T avg

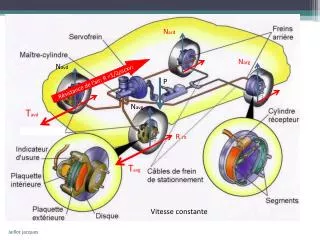

N ard. N arg. N avd. Résistance de l’air: R =1/2 r scxv 2. P. N avg. T avd. R rlt. T avg. Vitesse constante. Résistance de l’air: R =1/2 r scxv 2. P. y. N avg. N arg. N avd. N ard. R rlt. T avd. T avg. x. /x: Tavd + Tavg - Rair -4Rrlt=0.

paxton
Download Presentation

T avg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Nard Narg Navd Résistance de l’air: R =1/2rscxv2 P Navg Tavd R rlt Tavg Vitesse constante

  2. Résistance de l’air: R =1/2rscxv2 P y Navg Narg Navd Nard R rlt Tavd Tavg x /x: Tavd+Tavg-Rair-4Rrlt=0 /y: Navd+Navg+Nard+Narg-P=0

  3. Navg Narg Navd Nard Tavd Vitesse constant et résistances négligées

  4. Nard Tard Narg Navd Tavd Targ Pression Navg Pression N Tavg cf cf N N N couple de freinage frein à tambours C= N x f x b x R^2 x (cos qa-cos qb) x(k1+k2) couple de freinage frein à disques C= N x f x rmoyenx n

  5. Card Carg Navd Cavd g Tavd V1/0 P Cavg y Nard Narg Navg Targ Tard Tavg x /x: -Tavd-Tavg-Tard-Targ=-mg

  6. Cf R T Cf=T x R

  7. Corrigé exercice : 4 freins à disques Pression arrière = 35% avant /x: -Tavd-Tavg-Tard-Targ=-mg • -Cavd/R-Cavg/R-Card/R-Carg/R=-mg • (-Cavd-Cavg-Card-Carg)/Rroue=-mg • (2Cav+2Car)=Rrouemg • (Cav+Car)=Rrouemg/2 Pav.S.f.Ravmoyen.n+0.35Pav.S.f.Rarmoyenn. =Rrouemg/2 Pavf.n.S(Ravmoyen+0.35.Rarmoyen) =Rrouemg/2 2Pavf.n.S(Ravmoyen+0.35.Rarmoyen)/Rroue.m =g Pavfplaquette/disque.n[2].p.D2piston(Ravmoyen+0.35.Rarmoyen)/2Rroue.mvéhicule= gvéhic
