Week 9 - Monday CS361
Last time • What did we talk about last time? • BRDFs • Texture mapping and bump mapping in shaders
Fresnel reflectance • Fresnel reflectance is an ideal mathematical description of how perfectly smooth materials reflect light • The angle of reflection is the same as the angle of incidence and can be computed: • The transmitted (visible) radiance Lt is based on the Fresnel reflectance and the angle of refraction of light into the material:
Snell's Law • The angle of refraction into the material is related to the angle of incidence and the refractive indexes of the materials below the interface and above the interface: • We can combine this identity with the previous equation:
External reflection • Reflectance is obviously dependent on angle • Perpendicular (0°) gives essentially the specular color of the material • Higher angles will become more reflective • The function RF(θi) is also dependent on material (and the light color)

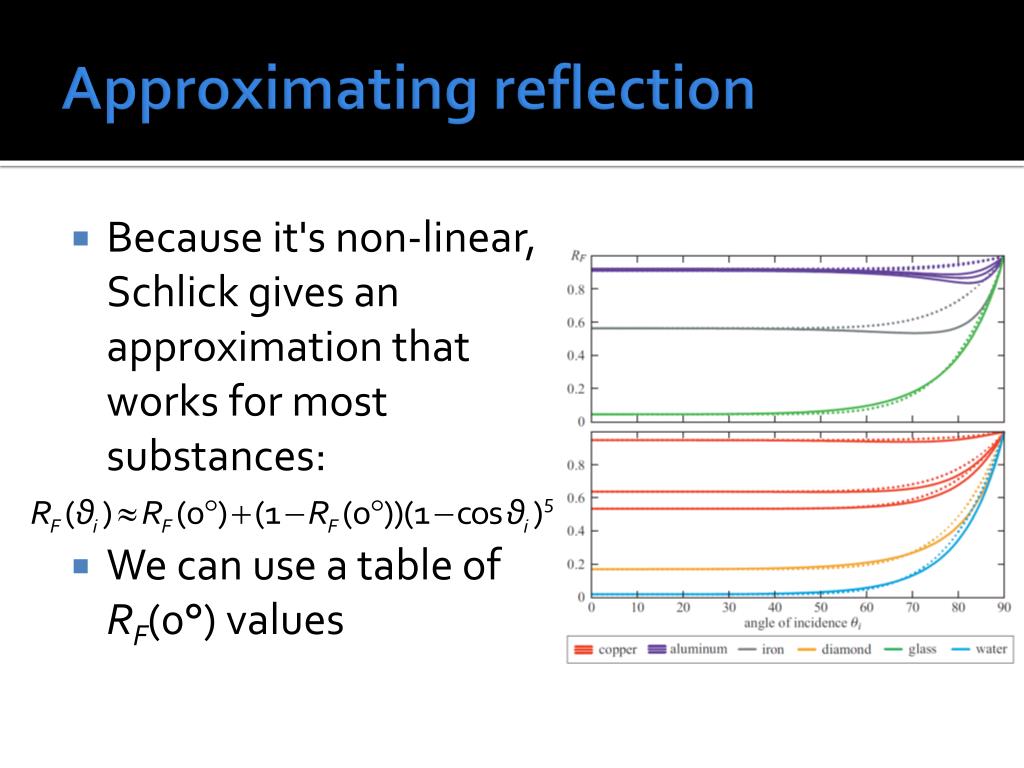

Approximating reflection • Because it's non-linear, Schlick gives an approximation that works for most substances: • We can use a table of RF(0°) values

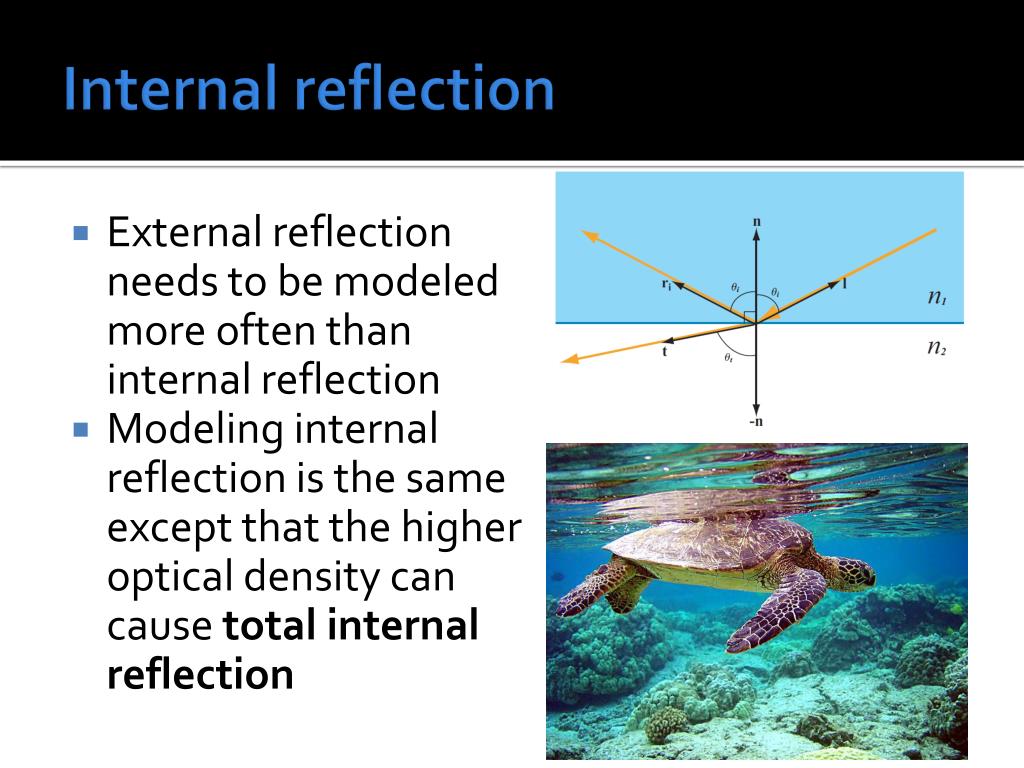

Internal reflection • External reflection needs to be modeled more often than internal reflection • Modeling internal reflection is the same except that the higher optical density can cause total internal reflection

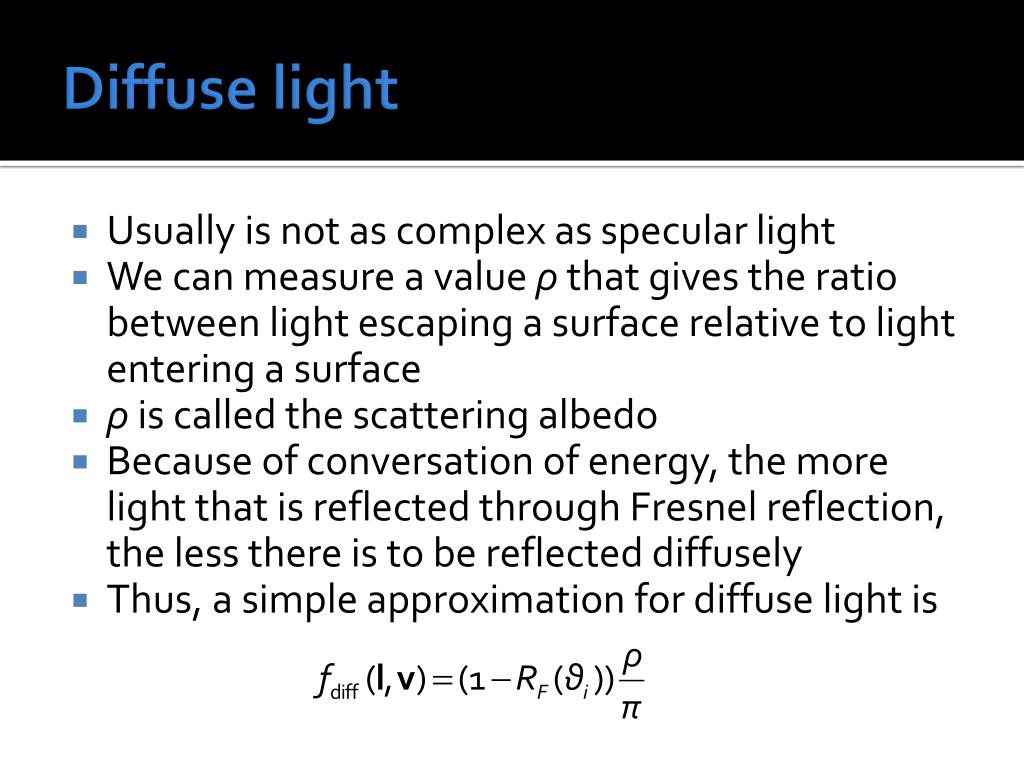

Diffuse light • Usually is not as complex as specular light • We can measure a value ρ that gives the ratio between light escaping a surface relative to light entering a surface • ρ is called the scattering albedo • Because of conversation of energy, the more light that is reflected through Fresnel reflection, the less there is to be reflected diffusely • Thus, a simple approximation for diffuse light is
Microgeometry • The cause of many lighting effects is microgeometry • The smoother the surface, the tighter (and brighter) the reflections are
Weird effects • Glancing angles can minimize the impacts of surface roughness, making rough surfaces reflective at very high angles • Most surfaces are isotropic (symmetrical) in the way they are rough • Anisotropic surfaces like brushed metal have directional blurring
Where do BRDFs come from? • The book gives a number of BRDF equations • It is also possible to samples materials (from every angle, at every color of light) to measure a BRDF of your own • Once you've got such a model, how do you implement it?

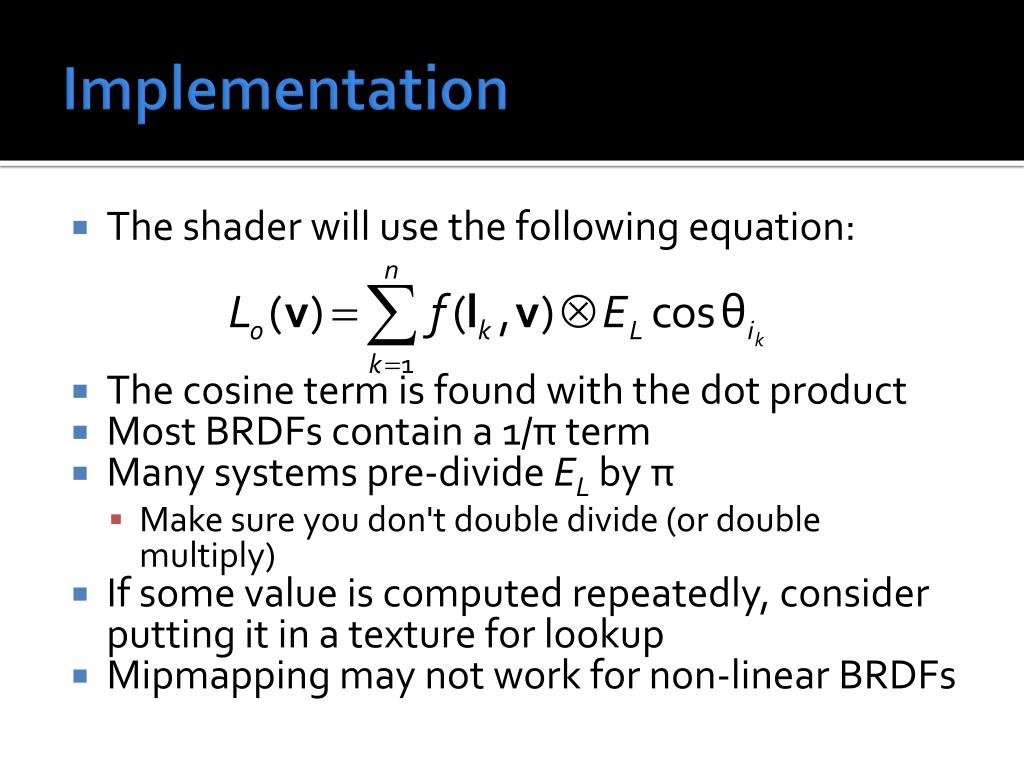

Implementation • The shader will use the following equation: • The cosine term is found with the dot product • Most BRDFs contain a 1/π term • Many systems pre-divide EL by π • Make sure you don't double divide (or double multiply) • If some value is computed repeatedly, consider putting it in a texture for lookup • Mipmapping may not work for non-linear BRDFs
Optimizations • It may be expensive to compute the shading based on all the light sources • Also, XNA and other APIs (and various graphics cards) limit the number of light sources • Some lights must be averaged into each other for performance reasons

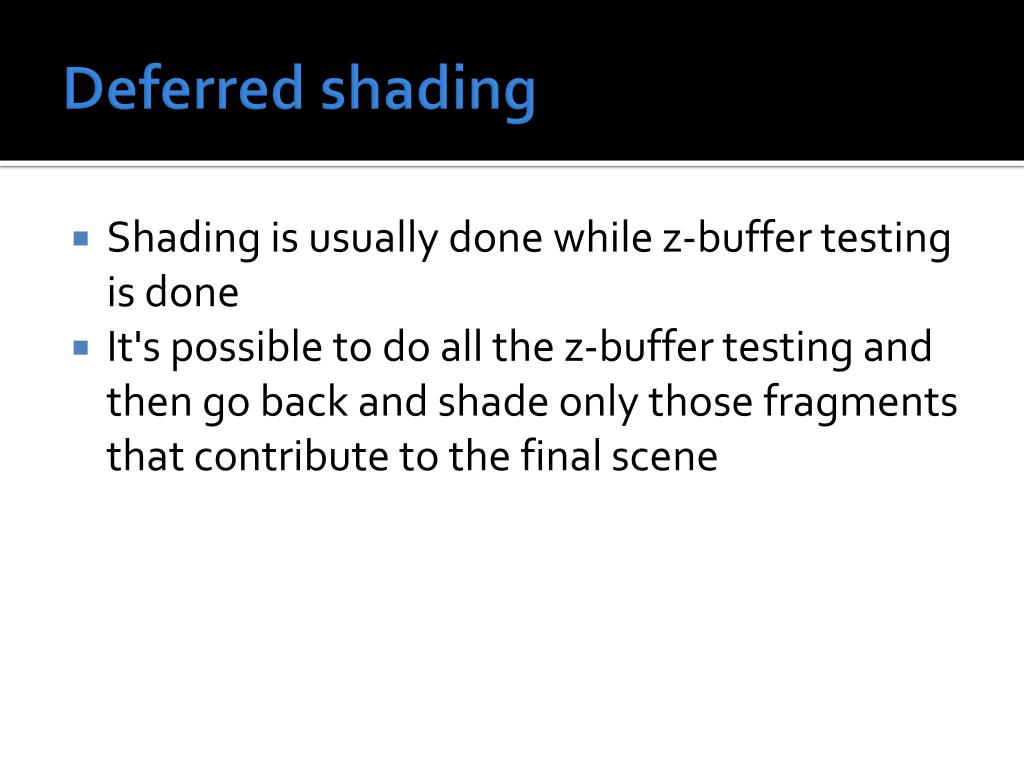

Deferred shading • Shading is usually done while z-buffer testing is done • It's possible to do all the z-buffer testing and then go back and shade only those fragments that contribute to the final scene

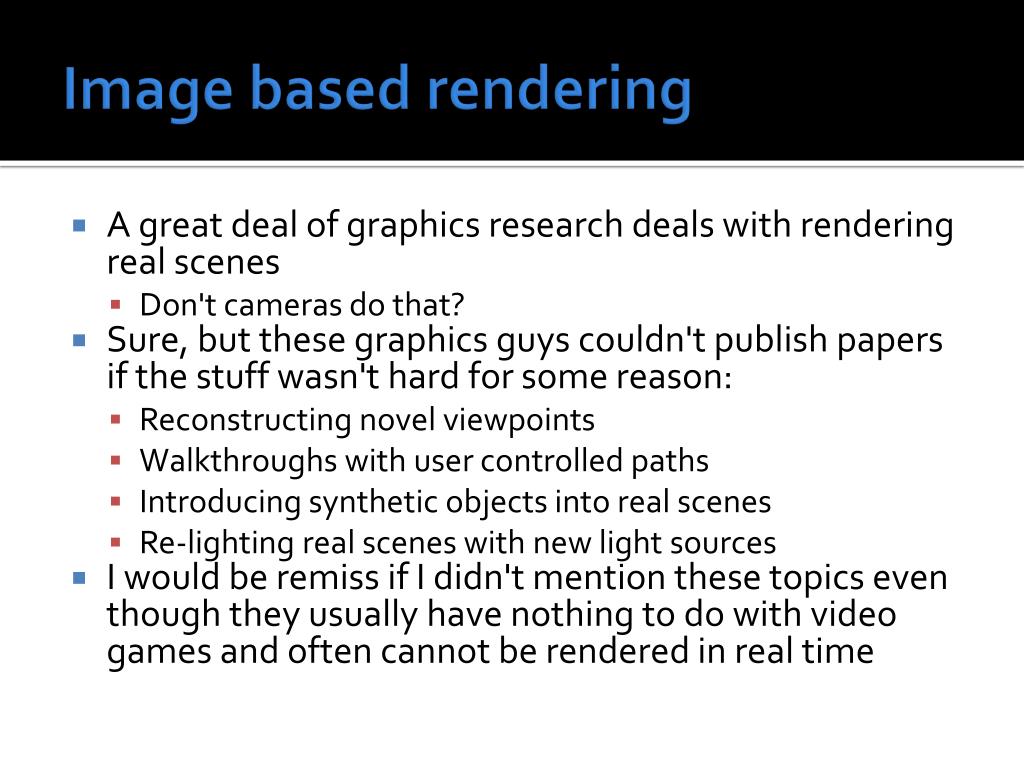

Image based rendering • A great deal of graphics research deals with rendering real scenes • Don't cameras do that? • Sure, but these graphics guys couldn't publish papers if the stuff wasn't hard for some reason: • Reconstructing novel viewpoints • Walkthroughs with user controlled paths • Introducing synthetic objects into real scenes • Re-lighting real scenes with new light sources • I would be remiss if I didn't mention these topics even though they usually have nothing to do with video games and often cannot be rendered in real time
Plenoptic function • A central idea in image-based rendering is the plenoptic function, sometimes called a light field • The basic plenoptic function is and its result is a color • In other words, it tells you the color you would see if you were at and looked in the direction given by angles and • There are also more complicated plenoptic functions that take into account time, wavelength, and more
Sea of Images • Although the research is old now, Daniel Aliaga et al. produced an impressive system for recreating real scenes in real time in which a user can control the path he or she takes • A robot records thousands and thousands of omnidirectional images and its location when it takes them • Then, images are merged together to create a novel view for the current location and orientation
Sea of Images issues • Rendering the images in real time isn't hard • Knowing the robot's position for all images is surprisingly difficult • Storing and loading the next images that will be needed in reconstruction is a huge caching and compression problem • Getting the robot to walk around and scan a scene automatically ended up being too hard • Some of these ideas were used for Google Street View, which is neither real time nor allows for arbitrary locations
Image based lighting • Synthetic objects can be rendered using a BRDF based on measurements of real-world materials • Alternatively, we could sample a real-world object from many different directions and get enough information to re-light it • You can also capture lighting from the real world using a mirrored ball • Then you can re-light: • A real image with a different set of real lights • Synthetic objects with realistic real light
Next time… • Area lighting • Environment mapping
Reminders • Start working on Project 3 • Due April 5 • Keep reading Chapter 8
