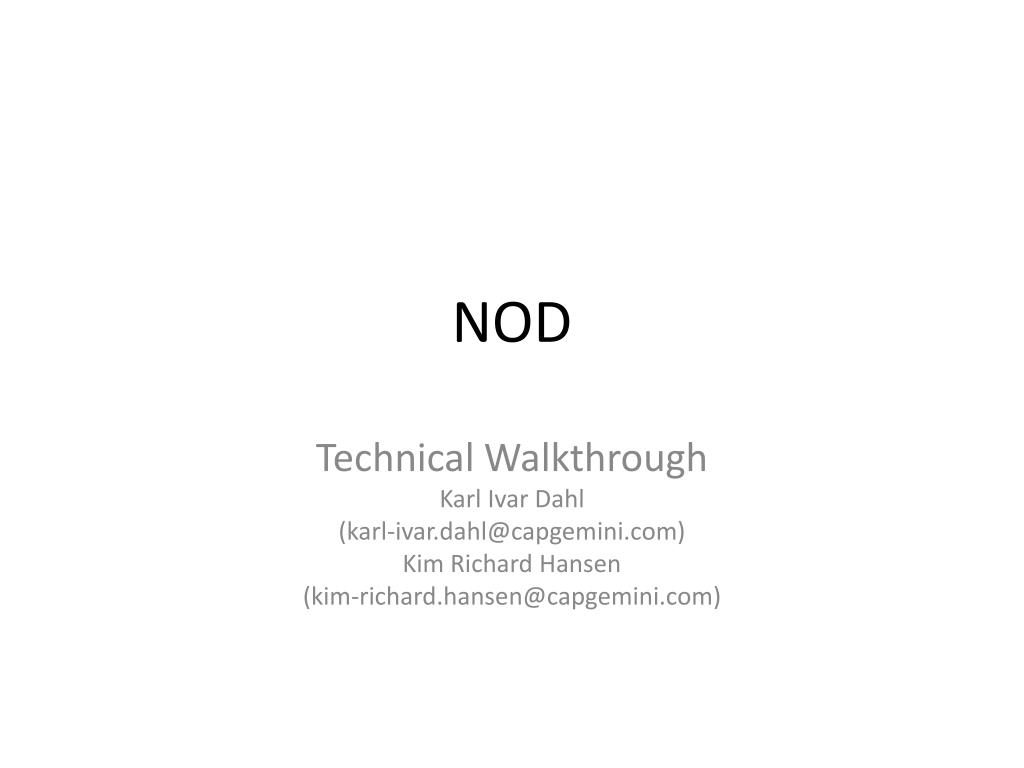

  1. NOD Technical Walkthrough Karl Ivar Dahl (karl-ivar.dahl@capgemini.com) Kim Richard Hansen (kim-richard.hansen@capgemini.com)

  2. NOD Proof Of ConceptPrimary Goals • Vertical slice • Specification of interfaces • Part of HB206 • Secure communication between NOD and Card • Demo + walkthrough • Latency measurements • Initial measurements • Security review by 3.rd party • After POC

  3. Interfaces • PL4 WEB Services • AddOrders • GetOrderGroups • UpdateOrderGroups • NOD REST Services • GET /ecard/<mediaSerialNumberID>/groups/ • POST /ecard/<mediaSerialNumberID>/nodsession • POST /group/<groupId>/nodsession • GET /group/<groupId>/nodsession/<nodsessionId>/cmdset/<cmdsetId> • POST /group/<groupId>/nodsession/<nodsessionId>/cmdset/<cmdsetId> • PLUGIN REST Services • GET /admin/schema • POST /order/execute • GET+POST /admin/*

  4. SecureCommuncation between NOD and Card • CASE: Credit Tpurse 50 NOK • Command Set 1 : • Create NOD Session • Short Beep • SelectApplication • Authenticate Step 1 (key7) • Command Set 2: • Authenticate Step 2 • GetValue (Read card image) • AuthenticateStep 1 (key 5) • Plugin Command: • ProcessOrder • Command Set 3: • AuthenticateStep 2 • Credit (Actual order) • WriteRecord (T_SVReloadLog) • AuthenticateStep1 (key6) • Command Set 4: • AuthenticateStep2 • WriteRecord (T_SpecialEventLog) • Commit • Command Set 5: • Long Beep • Demo

  5. Request (Create NOD Session) POST https://xxx:8443/nod/ecard/1000000001/nodsession?capability=01010 HTTP/1.1 Content-Type: */* Accept: application/xml Content-Language: no Authorization: Basic dGVzdDp0ZXN0 User-Agent: Apache CXF 2.4.0 Cache-Control: no-cache Pragma: no-cache Connection: keep-alive Content-Length: 0 NOTE: In the future, the NOD Client Context will be submitted with this POST.

  6. Response (NOD Session Created, Command Set 1 returned) HTTP/1.1 200 OK Server: Apache-Coyote/1.1 location: https://xxx:8443/nod/group/1234/nodsession/7563/cmdset/1 Date: Wed, 17 Aug 2011 07:20:46 GMT Content-Type: application/xml Content-Length: 542 <?xml version="1.0" encoding="UTF-8" standalone="yes"?> <ns2:commands xmlns:ns2="http://ioas.no/nod/commands" mlns:ns3="http://ioas.no/nod/commands/acr128u" xmlns:ns4="http://ioas.no/nod/commands/apdu" > <command cmdID="1" expectedResult="false"> <ns3:acr128uCommand> <frame>280114</frame> </ns3:acr128uCommand> </command> <command cmdID="2"> <ns4:apduFrame> <!–- SelectApplication TransportDF --> <frame>5A018057</frame> </ns4:apduFrame> </command> <command cmdID="3"> <ns4:apduFrame> <!– AuthenticateStep1, key 7 --> <frame>0A07</frame> </ns4:apduFrame> </command> </ns2:commands>

  7. Request (Command Set 1 Result submitted back to NOD server) POST https://xxx:8443/nod/group/1234/nodsession/7563/cmdset/1 HTTP/1.1 Content-Type: application/xml Accept: application/xml Content-Language: no Authorization: Basic dGVzdDp0ZXN0 Content-Length: 382 <?xml version="1.0" encoding="UTF-8" standalone="yes"?> <ns2:commands xmlns:ns2="http://ioas.no/nod/commands" > <command cmdID="2"> <result>006300</result> </command> <command cmdID="3"> <!–- ek(RndB) --> <result>AF42BD22623D4393BB</result> </command> </ns2:commands>

  8. Response (Command Set 2 created) HTTP/1.1 200 OK Server: Apache-Coyote/1.1 location: https://xxx:8443/nod/group/1234/nodsession/7563/cmdset/2 Date: Wed, 17 Aug 2011 07:20:46 GMT Content-Type: application/xml Content-Length: 533 <?xml version="1.0" encoding="UTF-8" standalone="yes"?> <ns2:commands xmlns:ns2="http://ioas.no/nod/commands" xmlns:ns3="http://ioas.no/nod/commands/acr128u" xmlns:ns4="http://ioas.no/nod/commands/apdu”> <command cmdID="4"> <ns4:apduFrame> <!–- AuthenticateStep2 --> <frame>AF22330BE8433837570978E0729CE8CAC5</frame> </ns4:apduFrame> </command> <command cmdID="5"> <ns4:apduFrame> <!– GetValue --> <frame>6C04</frame> </ns4:apduFrame> </command> <command cmdID="6"> <ns4:apduFrame> <!– AuthenticateStep1, key 5 --> <frame>0A05</frame> </ns4:apduFrame> </command> </ns2:commands>

  9. Request (Command Set 2 Result submitted back to NOD Server) POST https://xxx:8443/nod/group/1234/nodsession/7563/cmdset/2 HTTP/1.1 Content-Type: application/xml Accept: application/xml Content-Language: no Authorization: Basic dGVzdDp0ZXN0 User-Agent: Apache CXF 2.4.0 Content-Length: 458 <?xml version="1.0" encoding="UTF-8" standalone="yes"?> <ns2:commands xmlns:ns2="http://ioas.no/nod/commands" xmlns:ns4="http://ioas.no/nod/commands/apdu" xmlns:ns3="http://ioas.no/nod/commands/acr128u”> <command cmdID="4"> <result>004108BDEF73D9330F</result> </command> <command cmdID="5"> <!–- GetValue result, part of Image --> <result>0060DE0200DE6A5897</result> </command> <command cmdID="6"> <result>AFDB3246D39514093B</result> </command> </ns2:commands>

  10. Plugin Request (Source Image and Order submitted to Plugin) Example content: POST http://localhost:8443/nod/plugin/hb206/order/execute HTTP/1.1 <?xml version="1.0" encoding="UTF-8" standalone="yes"?> <ns2:commands xmlns:ns2="http://ioas.no/nod/plugin/commands" xmlns:ns5="http://ioas.no/nod/plugin/image/desfire"> <command> <processOrder> <srcImage> <ns5:image> <application> <applicationName>TransportDF</applicationName> <file> <fileName>T_StoredValue</fileName> <content>00000000</content> </file> </application> </ns5:image> </srcImage> <orderDescription>PD94bWwgdmVyc2lvbj0iMS4wIiB....</orderDescription> </processOrder> </command> </ns2:commands>

  11. Plugin Response (Target Image and Transaction returned by Plugin) Example Content HTTP/1.1 200 OK <?xml version="1.0" encoding="UTF-8" standalone="yes"?> <ns2:commands xmlns:ns2="http://ioas.no/nod/plugin/commands" xmlns:ns4="http://ioas.no/nod/plugin/dis/j" xmlns:ns5="http://ioas.no/nod/plugin/image/desfire"> <command> <processOrder> <targetImage> <ns5:image> <application> <applicationName>TransportDF</applicationName> <file> <fileName>T_StoredValue</fileName> <content>000001F4</content> </file> </application> </ns5:image> </targetImage> <transaction> <ns4:disTransaction> ... </ns4:disTransaction> </transaction> </processOrder> <result>00</result> </command> </ns2:commands>

  12. Response (Command Set 3 generated based on Plugin Image DIFF) HTTP/1.1 200 OK Server: Apache-Coyote/1.1 location: https://xxx:8443/nod/group/1234/nodsession/7563/cmdset/3 Date: Wed, 17 Aug 2011 07:20:46 GMT Content-Type: application/xml Content-Length: 643 <?xml version="1.0" encoding="UTF-8" standalone="yes"?> <ns2:commands xmlns:ns2="http://ioas.no/nod/commands" xmlns:ns4="http://ioas.no/nod/commands/apdu"> <command cmdID="7"> <ns4:apduFrame> <!–- AuthenticateStep2 --> <frame>AF4707F2792B130E2CD2F570990FDFA2AE</frame> </ns4:apduFrame> </command> <command cmdID="8"> <ns4:apduFrame> <!–- Credit --> <frame>0C04F401000045F04844</frame> </ns4:apduFrame> </command> <command cmdID="9"> <ns4:apduFrame> <!-– WriteRecord T_SVReloadLog --> <frame>3B0600000001000001</frame> </ns4:apduFrame> </command> <command cmdID="10"> <ns4:apduFrame> <!–- AuthenticateStep1, key 6 --> <frame>0A06</frame> </ns4:apduFrame> </command> </ns2:commands>

  13. Request (Command Set 3 Result submitted back to NOD Server) POST https://xxx:8443/nod/ group/1234/nodsession/7563/cmdset/3 HTTP/1.1 Content-Type: application/xml Accept: application/xml Content-Language: no Authorization: Basic dGVzdDp0ZXN0 User-Agent: Apache CXF 2.4.0 Content-Length: 499 <?xml version="1.0" encoding="UTF-8" standalone="yes"?><ns2:commands xmlns:ns2="http://ioas.no/nod/commands"> <command cmdID="7"> <result>002616BB9C40FB100B</result> </command> <command cmdID="8”> <result>006300</result> </command> <command cmdID="9"> <result>006300</result> </command> <command cmdID="10”> <result>AF2B196BBC57E306F6</result> </command> </ns2:commands>

  14. Response (Command Set 4 created) HTTP/1.1 200 OK Server: Apache-Coyote/1.1 location: https://xxx:8443/nod/group/1234/nodsession/7563/cmdset/4 Date: Wed, 17 Aug 2011 07:20:46 GMT Content-Type: application/xml Content-Length: 548 <?xml version="1.0" encoding="UTF-8" standalone="yes"?> <ns2:commands xmlns:ns2="http://ioas.no/nod/commands" xmlns:ns4="http://ioas.no/nod/commands/apdu" > <command cmdID="11"> <ns4:apduFrame> <!–- AuthenticateStep2 --> <frame>AF22330BE8433837576FEC627085536A6B</frame> </ns4:apduFrame> </command> <command cmdID="12"> <ns4:apduFrame> <!– WriteRecord T_SpecialEventLog --> <frame>3B0500000001000002</frame> </ns4:apduFrame> </command><command cmdID="13"> <ns4:apduFrame> <!-- Commit --> <frame>C7</frame> </ns4:apduFrame> </command> </ns2:commands>

  15. Request (Command Set 4 Result submitted back to NOD Server) POST https://xxx:8443/nod/group/1234/ nodsession/7563/cmdset/4 HTTP/1.1 Content-Type: application/xml Accept: application/xml Content-Language: no Authorization: Basic dGVzdDp0ZXN0 User-Agent: Apache CXF 2.4.0 Content-Length: 437 <?xml version="1.0" encoding="UTF-8" standalone="yes"? ><ns2:commands xmlns:ns2="http://ioas.no/nod/commands" > <command cmdID="11"> <result>004108BDEF73D9330F</result> </command> <command cmdID="12"> <result>006300</result> </command> <command cmdID="13”> <!-- COMMIT OK --> <result>006300</result> </command> </ns2:commands>

  16. Response (Command Set 5, final response) HTTP/1.1 200 OK Server: Apache-Coyote/1.1 Connection: close location: https://xxx:8443/nod/group/1234/ nodsession/7563/cmdset/5 Date: Wed, 17 Aug 2011 07:20:46 GMT Content-Type: application/xml Content-Length: 381 <?xml version="1.0" encoding="UTF-8" standalone="yes"? > <ns2:commands xmlns:ns2="http://ioas.no/nod/commands" xmlns:ns3="http://ioas.no/nod/commands/acr128u”> <command cmdID="14" expectedResult="false"> <ns3:acr128uCommand> <frame>280164</frame> </ns3:acr128uCommand> </command> </ns2:commands>

  17. Initial Latency Measurements

  18. Other Features • Mapping between Order and Plugin • Support for lost requests (Re-query) • Support for duplicate POSTs (HTTP 303) • Future support for binary formats (application/exi) • Backwards compatibility w/capabilities & NameSpaces • Support for other responsetypes such as GIF
