global transition to sustainable development

Daniel E. Campbell

Research Ecologist

IV International Workshop Advances in Energy Studies

Ecology-Energy Issues in Latin America June 15-19, 2004

Global Transition to Sustainable Development

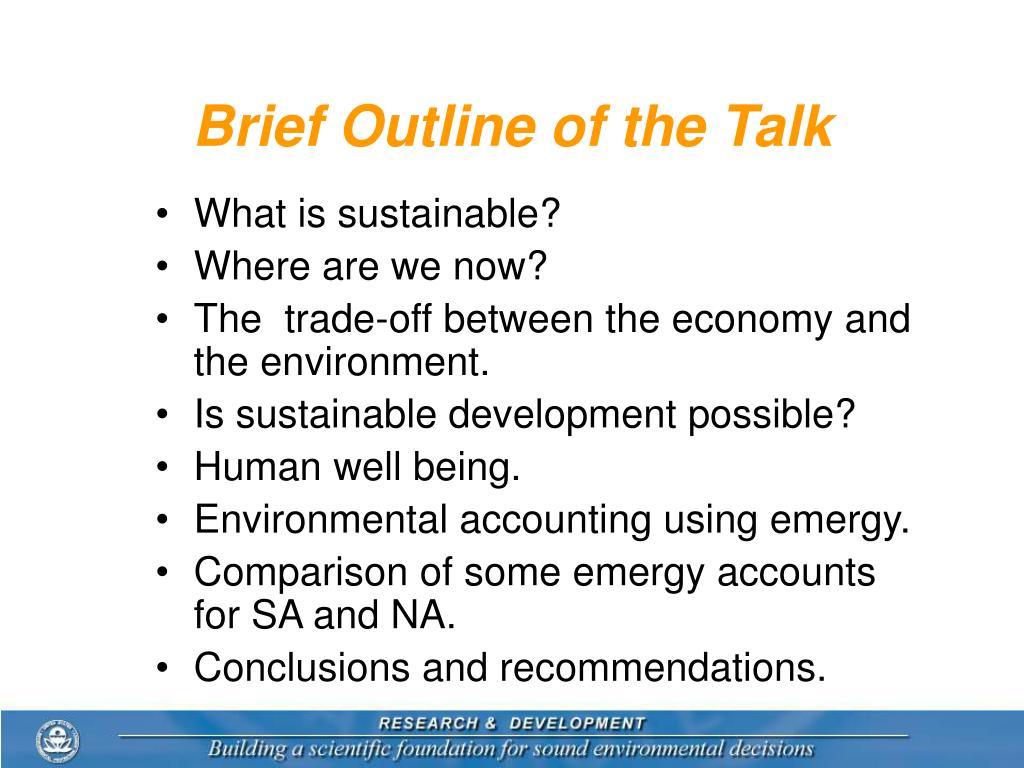

brief outline of the talk
Brief Outline of the Talk
  • What is sustainable?
  • Where are we now?
  • The trade-off between the economy and the environment.
  • Is sustainable development possible?
  • Human well being.
  • Environmental accounting using emergy.
  • Comparison of some emergy accounts for SA and NA.
  • Conclusions and recommendations.
sustainable development

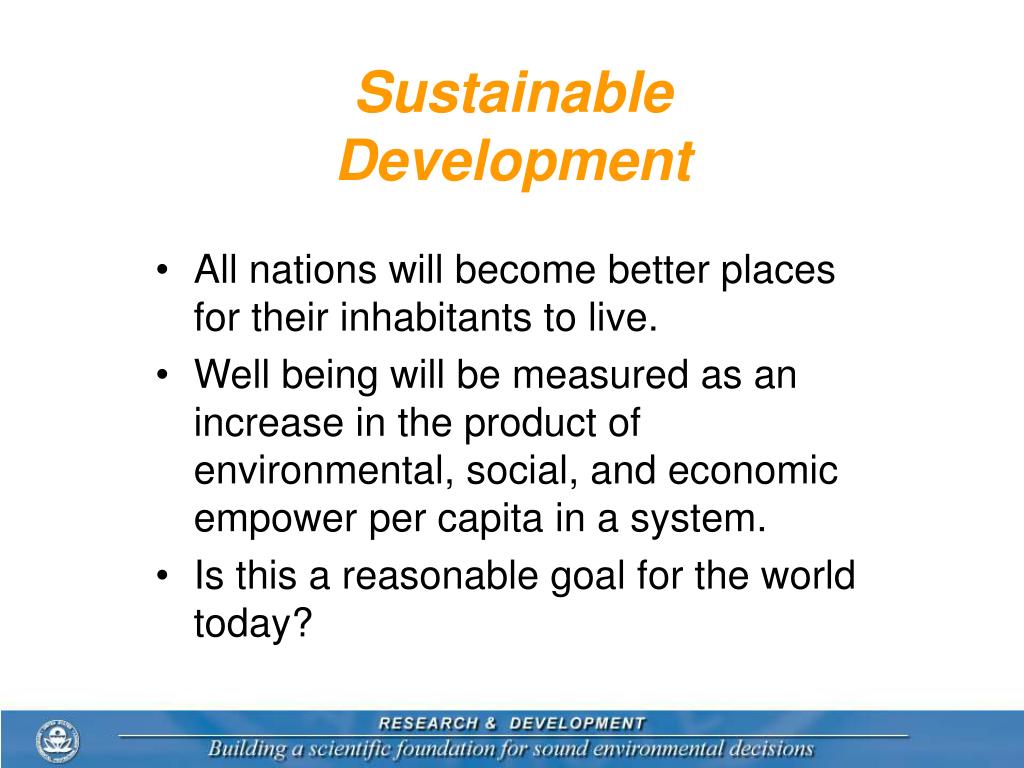

Sustainable Development
  • All nations will become better places for their inhabitants to live.
  • Well being will be measured as an increase in the product of environmental, social, and economic empower per capita in a system.
  • Is this a reasonable goal for the world today?
understanding what is sustainable
Understanding What is Sustainable
  • Energy Systems Theory (Odum 1994) is used as a context for understanding sustainable development.
  • Characterization of the properties of the global system using this approach will help answer our question.
  • The maximum empower principle provides the criterion for identifying system designs that will succeed.
maximum power design
Maximum Power Design
  • System designs that maximize empower prevail in competition.
  • Nature’s ubiquitous patterns are the result of such designs.
  • Pulsating systems at all scales may be one such design.
nature s pulsing paradigm

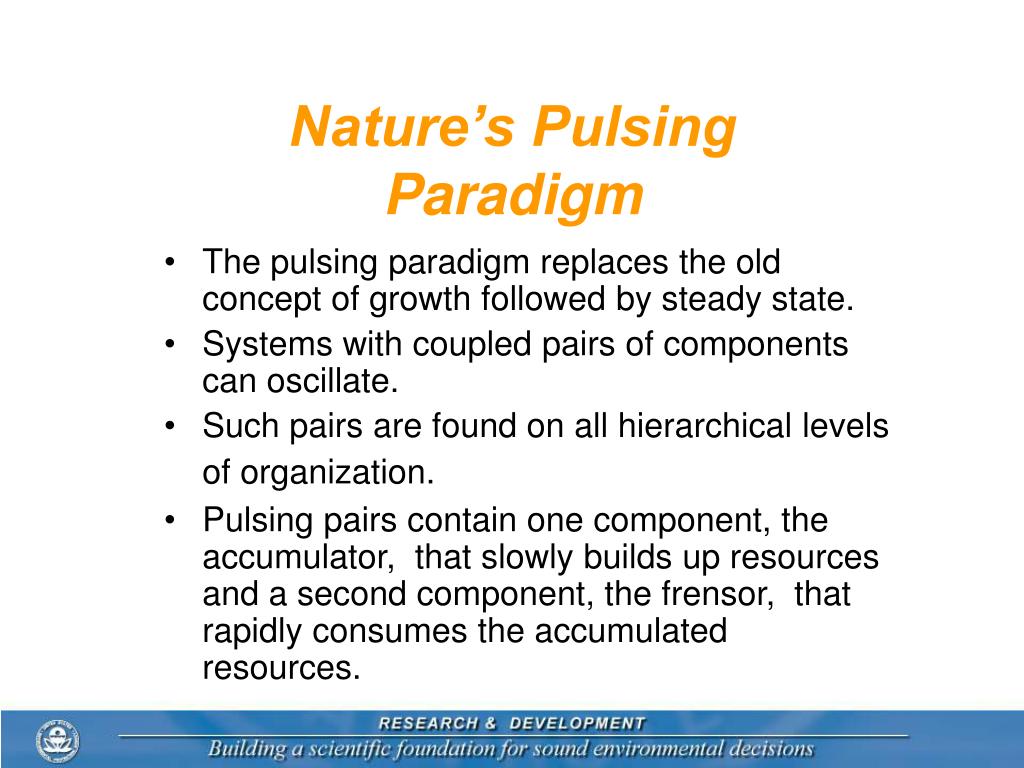

Nature’s Pulsing Paradigm
  • The pulsing paradigm replaces the old concept of growth followed by steady state.
  • Systems with coupled pairs of components can oscillate.
  • Such pairs are found on all hierarchical levels of organization.
  • Pulsing pairs contain one component, the accumulator, that slowly builds up resources and a second component, the frensor, that rapidly consumes the accumulated resources.
slide7

Pulsing on nested levels of hierarchical organization.

100000

1000

Level 3

Dispersed

Material

100000

1000

Energy

100000

ST = 1

Resource

Consumption

Accumulated

Resource

100000

100000

10000

100000

10000

100

Dispersed

Material

Level 2

10000

100

Energy

10000

ST = 1

Resource

Consumption

Accumulated

Resource

10000

10000

1000

10000

1000

10

Dispersed

Material

Level 1

1000

10

Energy

1000

ST =1

Resource

Consumption

Accumulated

Resource

1000

1000

100

1000

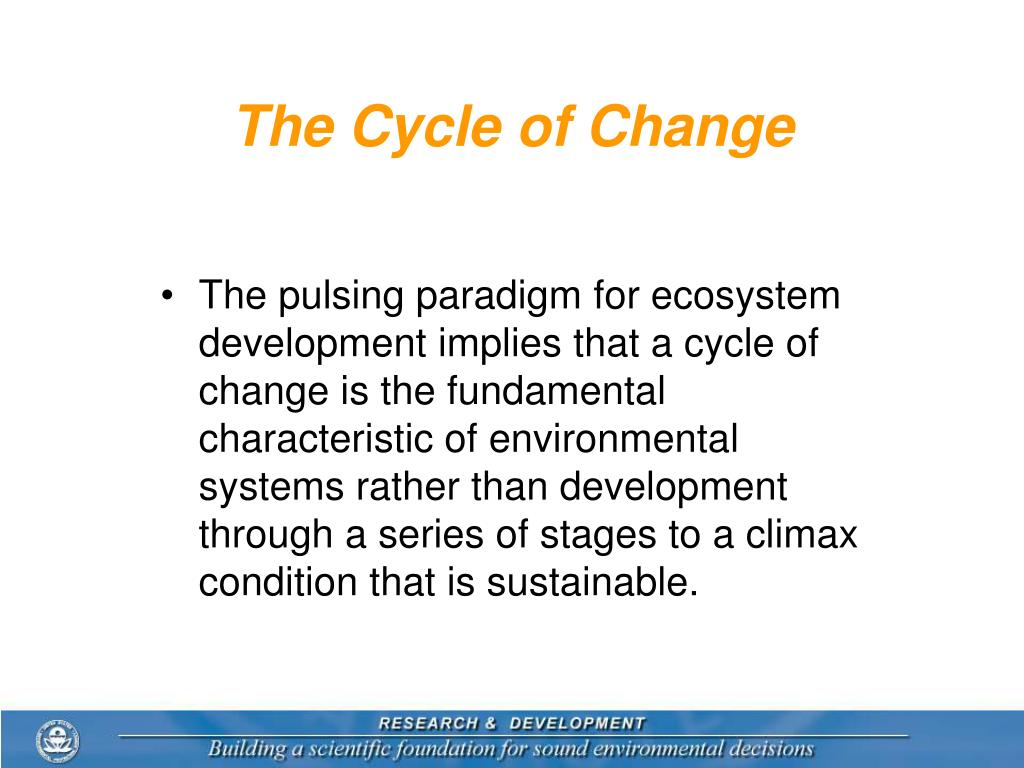

the cycle of change
The Cycle of Change
  • The pulsing paradigm for ecosystem development implies that a cycle of change is the fundamental characteristic of environmental systems rather than development through a series of stages to a climax condition that is sustainable.

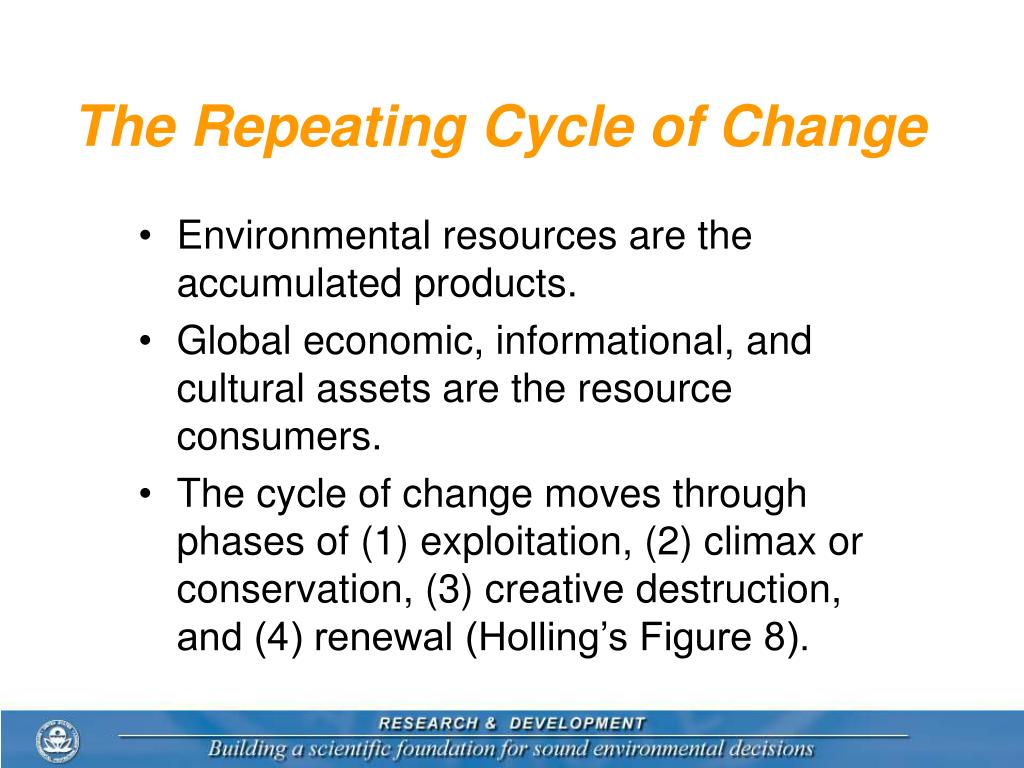

the repeating cycle of change
The Repeating Cycle of Change
  • Environmental resources are the accumulated products.
  • Global economic, informational, and cultural assets are the resource consumers.
  • The cycle of change moves through phases of (1) exploitation, (2) climax or conservation, (3) creative destruction, and (4) renewal (Holling’s Figure 8).
the evolving cycle of change

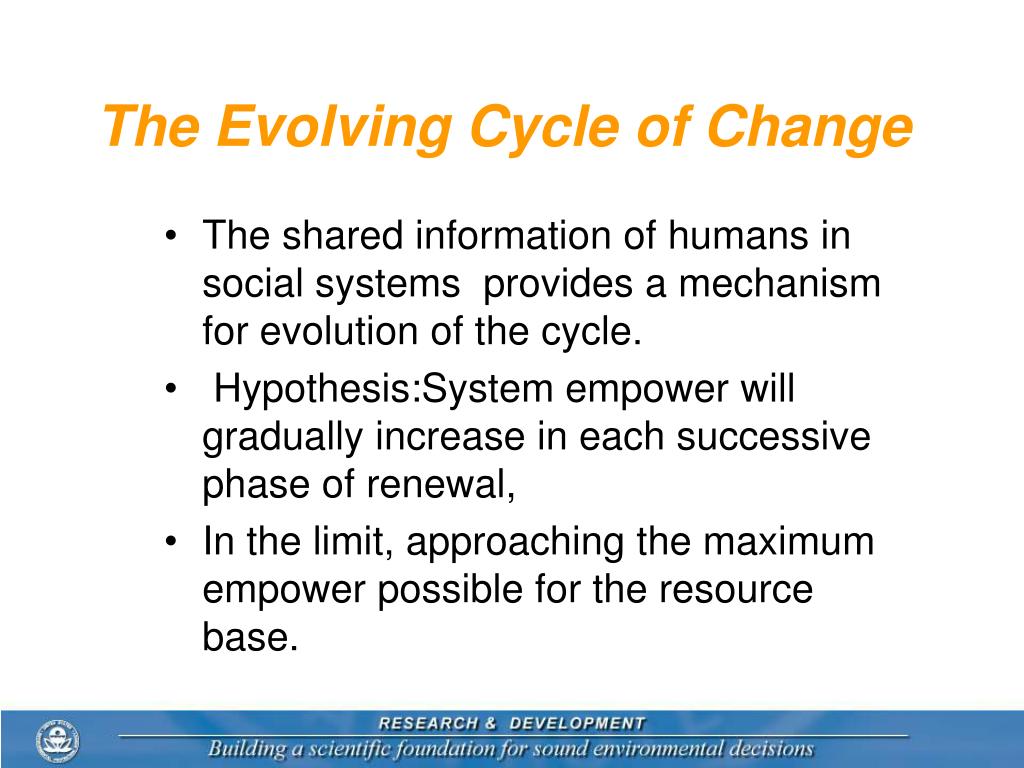

The Evolving Cycle of Change
  • The shared information of humans in social systems provides a mechanism for evolution of the cycle.
  • Hypothesis:System empower will gradually increase in each successive phase of renewal,
  • In the limit, approaching the maximum empower possible for the resource base.
slide12

X

X

X

X

X

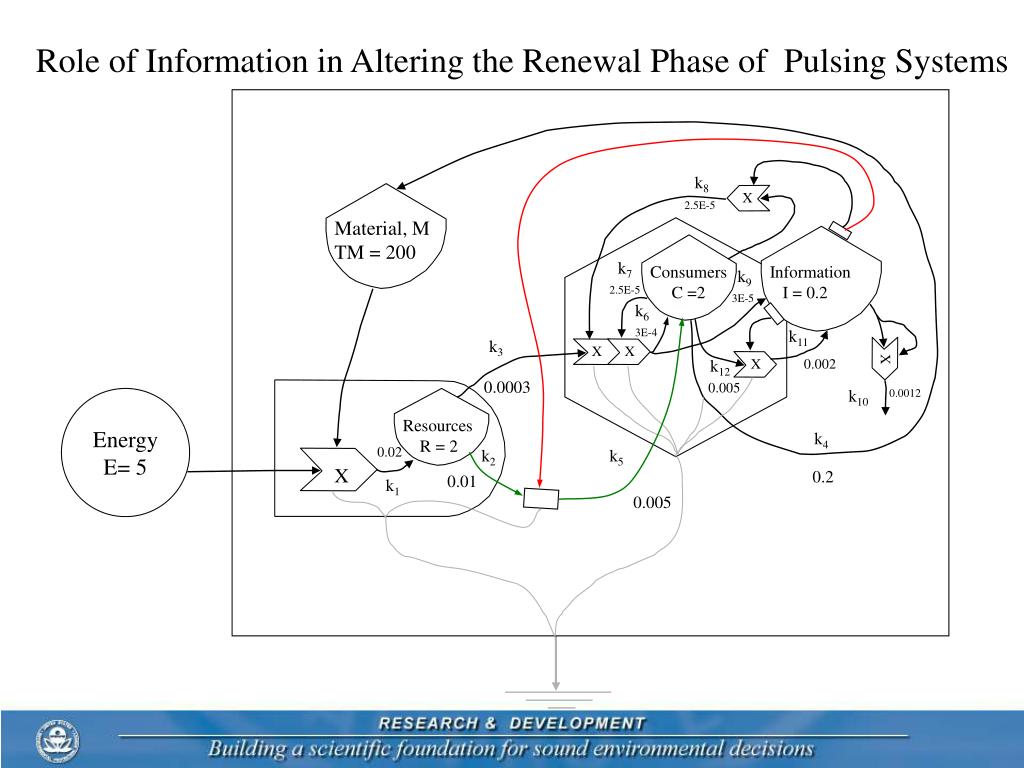

Role of Information in Altering the Renewal Phase of Pulsing Systems

k8

2.5E-5

Material, M

TM = 200

k7

Consumers

C =2

Information

I = 0.2

k9

2.5E-5

3E-5

k6

3E-4

k11

k3

k12

0.002

0.0003

0.005

k10

0.0012

Energy

E= 5

Resources

R = 2

k4

0.02

k2

k5

X

0.2

0.01

k1

0.005

slide13

Accumulated Resource

Resource Consumption

20

B

16

12

C

Emergy, sej

A

8

D2

D1

4

0

0

400

800

1200

1600

2000

2400

2800

3200

Time

Pulsing as an evolutionary mechanism for attaining higher empower states.

morality in each phase of the cycle
A) Exploitation of Resources

B) Climax

C) Decession

D) Low Energy Steady State

Our children will have more material wealth than we do.

We will meet our needs without compromising the needs of our children

We will do more with less, so our children will have less material wealth but life will be better

We plan for the 7th generation of our children

Morality in Each Phase of the Cycle

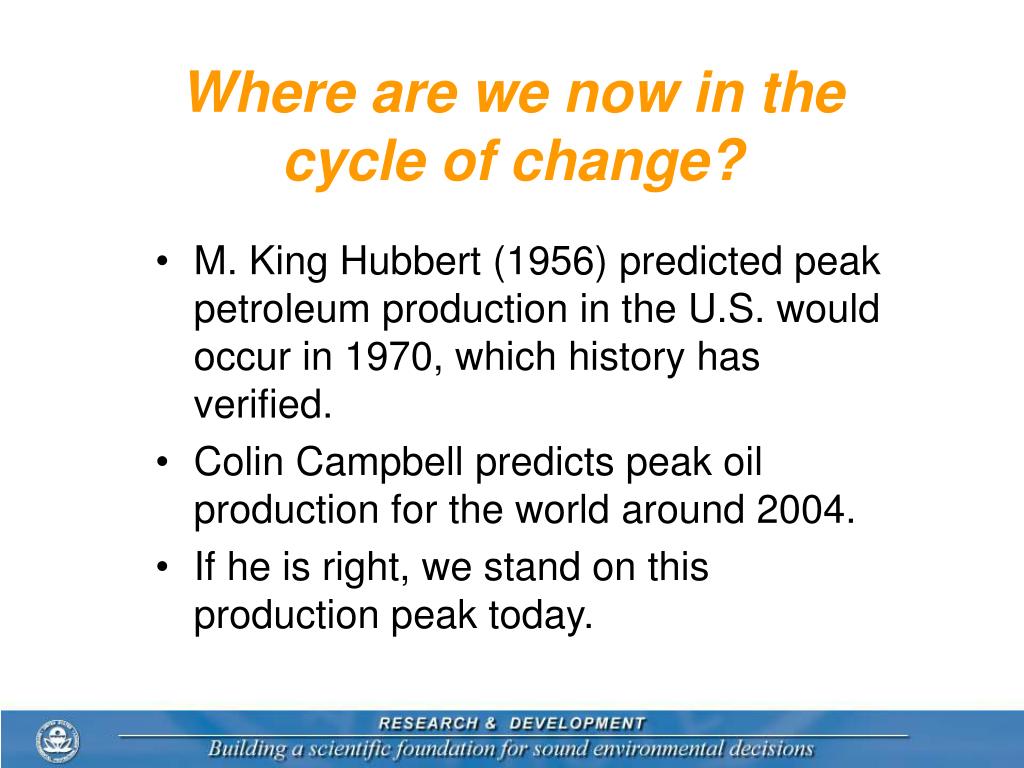

where are we now in the cycle of change
Where are we now in the cycle of change?
  • M. King Hubbert (1956) predicted peak petroleum production in the U.S. would occur in 1970, which history has verified.
  • Colin Campbell predicts peak oil production for the world around 2004.
  • If he is right, we stand on this production peak today.
slide18

F

Production Nonrenewable Resource , P

Q

P

Energetic limits determine the level of development.

slide19

Prior to its production peak, energy does not limit economic growth or production, except locally in time and space.

Campbell’s forecast

environmental systems
Environmental Systems
  • Environmental systems are ecosystems in which humans are a dominant component.
  • Economic production supports society and our standard of living and is not possible without the use of environmental resources.
  • The central problem for sustainable development is how to balance the environmental costs of economic production with the benefits of that production to society.

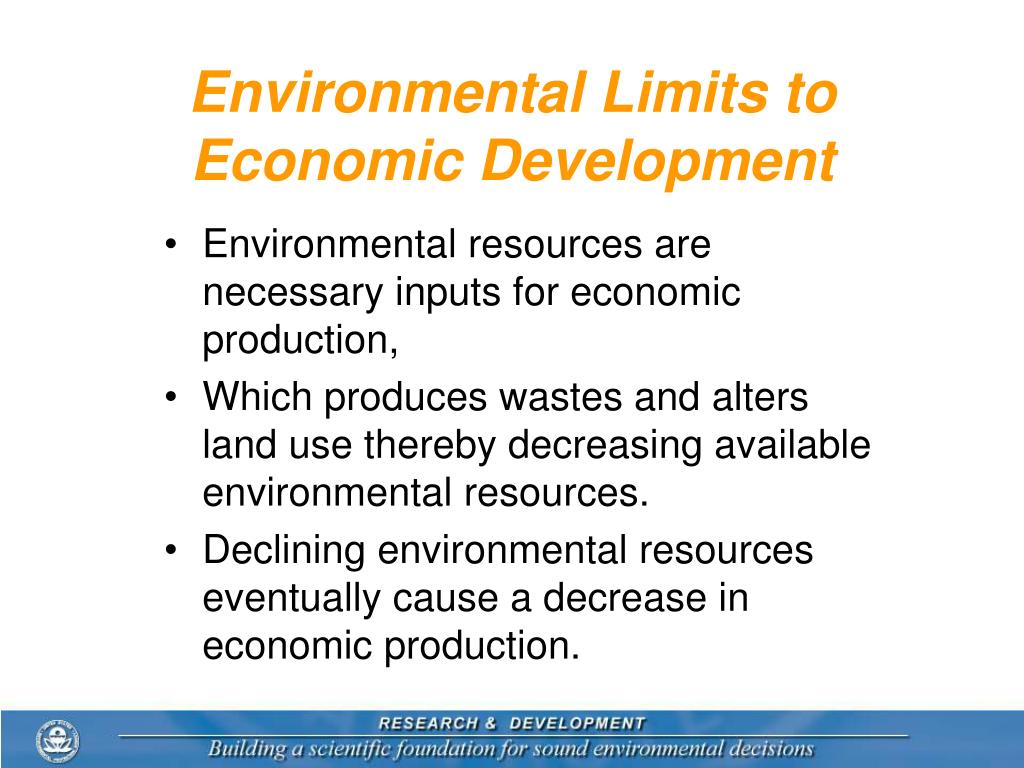

environmental limits to economic development
Environmental Limits to Economic Development
  • Environmental resources are necessary inputs for economic production,
  • Which produces wastes and alters land use thereby decreasing available environmental resources.
  • Declining environmental resources eventually cause a decrease in economic production.
slide22

Area

Area

Area

X

X

X

X

-

X

X

-

X

X

X

X

X

The Environmental System of a Nation

Natural resources are required for economic production, but production has negative effects on the environment.

Fossil fuel,

Minerals

(5)

Groundwater,

soil, clean air.

etc.

C

Waste,

Fertilizing

Fossil fuel,

minerals,

etc.

Waste,

Toxic

Goods &

Services

(3)

Renewable

Energies

C

Subsidized

Ecosystems

Markets

(2)

GDP

(1)

Economy

(4)

Natural

Ecosystems

C, Land Conversion

energy limits global growth
Energy Limits Global Growth
  • As long as the production of nonrenewable resource increases some resource can be used to mitigate the negative effects of economic production on the environment, while allowing economic growth to continue.
  • Once production peaks, each year less resource is available and some formerly supported activities must be given-up.
slide24

Area

Area

Area

X

X

X

X

X

X

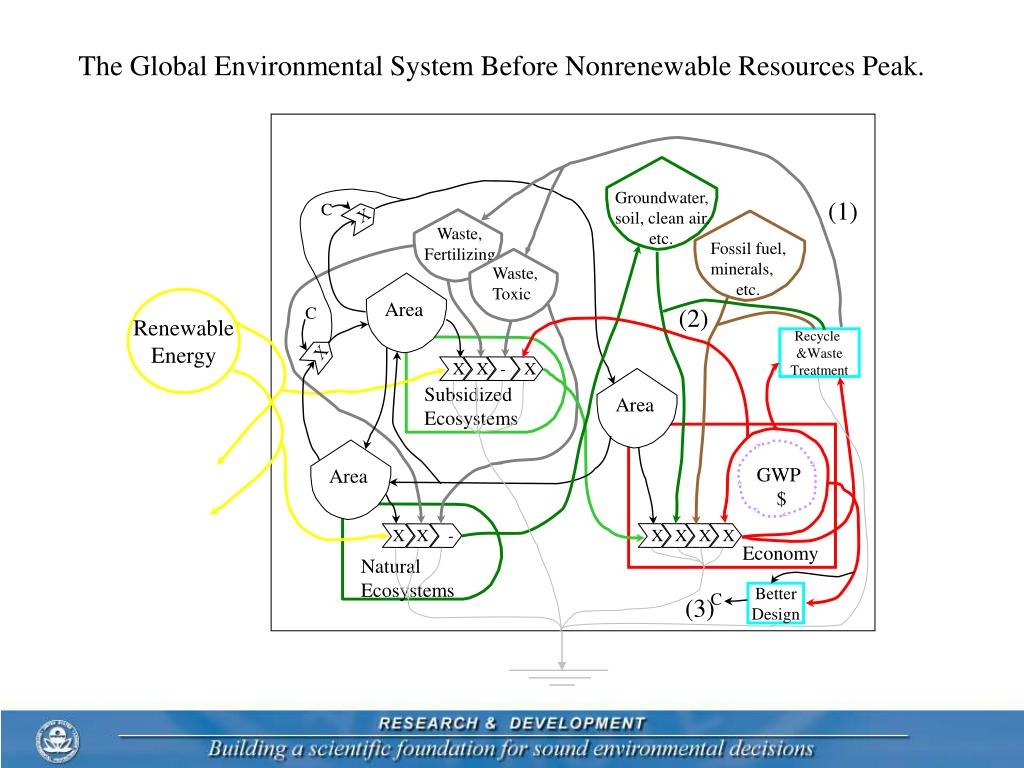

The Global Environmental System Before Nonrenewable Resources Peak.

Groundwater,

soil, clean air.

etc.

(1)

C

Waste,

Fertilizing

Fossil fuel,

minerals,

etc.

Waste,

Toxic

Renewable

Energy

C

(2)

Recycle

&Waste

Treatment

X

X

-

X

Subsidized

Ecosystems

GWP

$

X

X

-

Economy

Natural

Ecosystems

C

Better

Design

(3)

is global sustainable development possible
Is Global Sustainable Development Possible?
  • If it is, there must be an optimum nonrenewable emergy use for maximum human well being.
  • Underdeveloped countries will improve by using more nonrenewable emergy.
  • Developed countries will increase well being by using less, but improving design.
slide26

An optimum is not apparent looking at global economic activity

as a function of energy use.

slide27

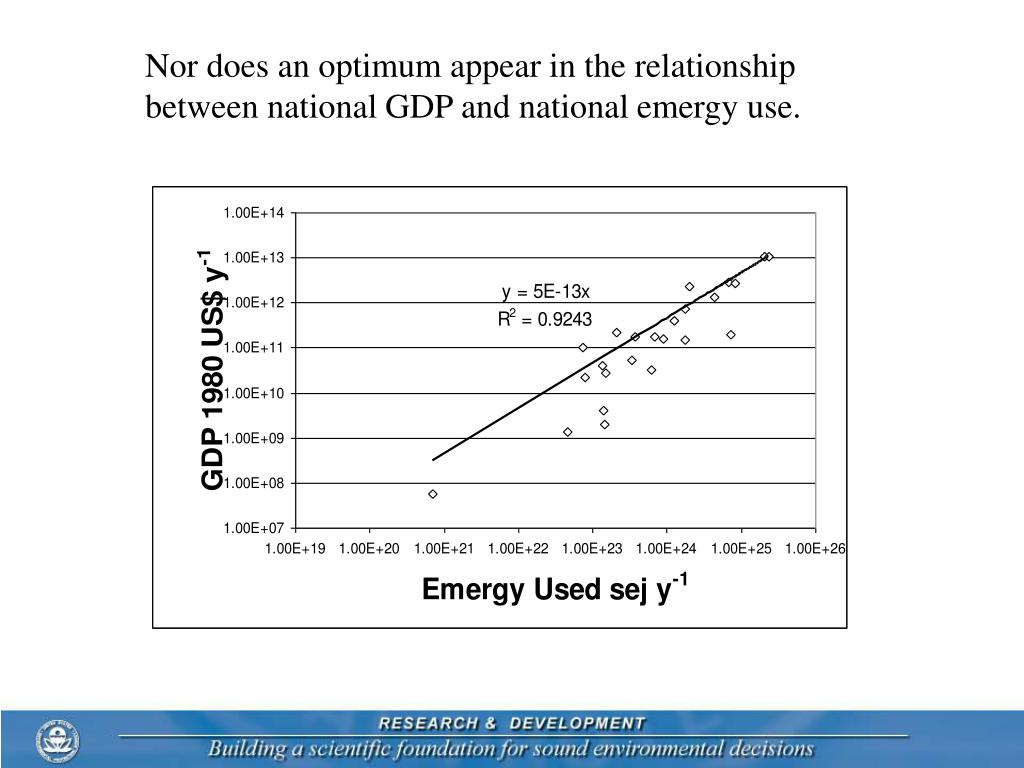

Nor does an optimum appear in the relationship

between national GDP and national emergy use.

human well being

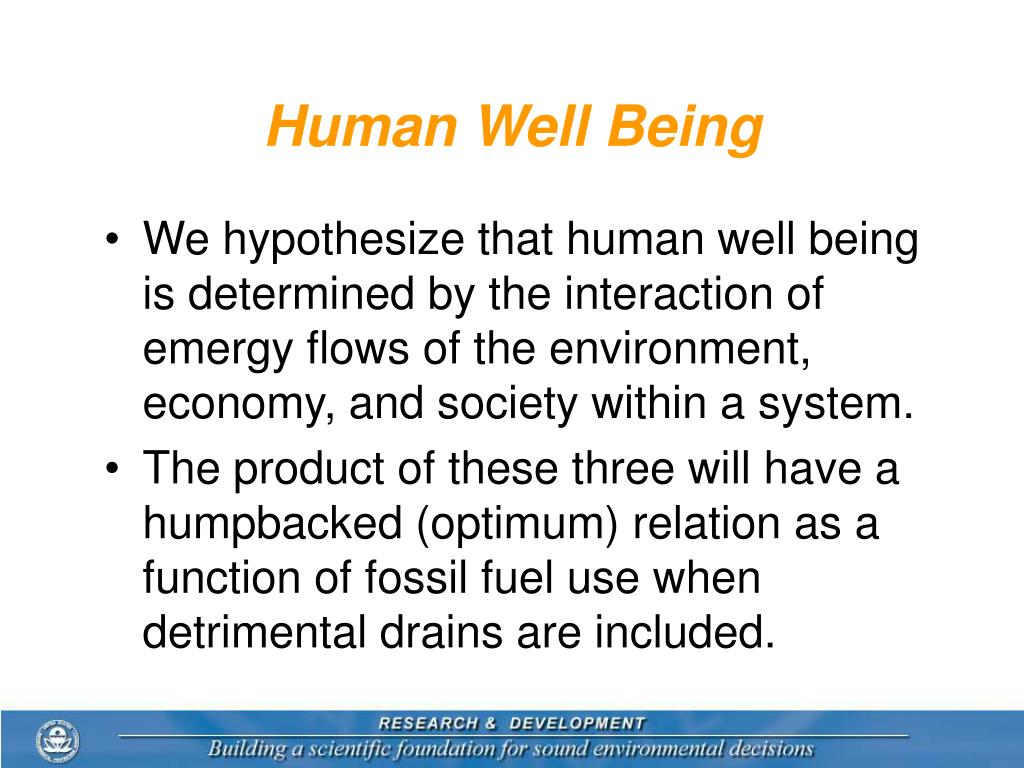

Human Well Being
  • We hypothesize that human well being is determined by the interaction of emergy flows of the environment, economy, and society within a system.
  • The product of these three will have a humpbacked (optimum) relation as a function of fossil fuel use when detrimental drains are included.

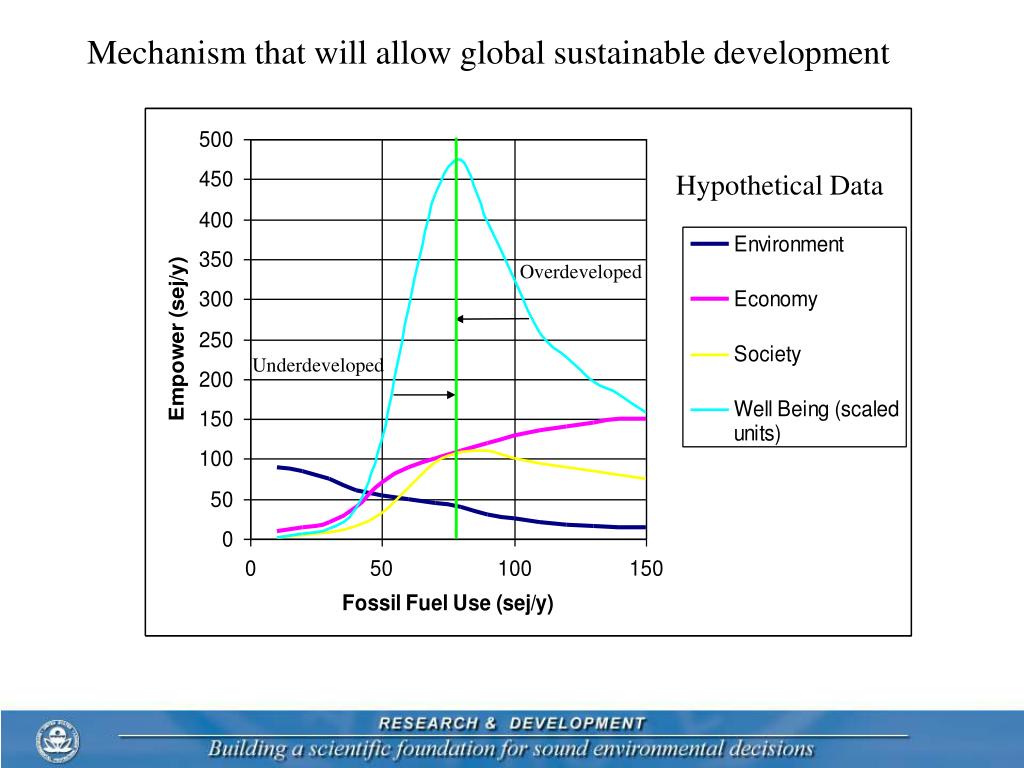

slide30

Mechanism that will allow global sustainable development

Hypothetical Data

Overdeveloped

Underdeveloped

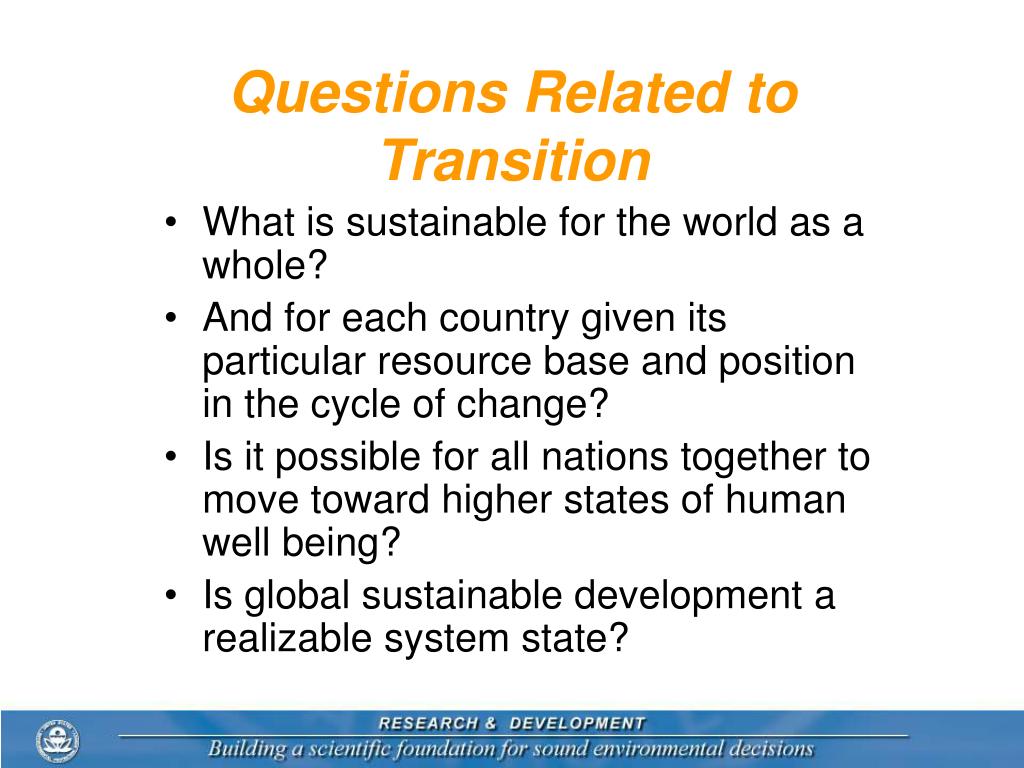

questions related to transition
Questions Related to Transition
  • What is sustainable for the world as a whole?
  • And for each country given its particular resource base and position in the cycle of change?
  • Is it possible for all nations together to move toward higher states of human well being?
  • Is global sustainable development a realizable system state?
environmental accounting
Environmental Accounting
  • The answers to these questions will depend on the development of an adequate theory of human well being and on the development of accounting methods to determine whether we are moving toward this goal.
  • Environmental accounting using emergy (Odum 1996) provides methods and measures to help answer these questions.
tools of environmental accounting
Tools of Environmental Accounting
  • The Emergy Income Statement
  • The Emergy Balance Sheet
  • Emergy Measures of Trade Equity
  • Emergy Measures of Social Equity
  • Emergy Indices, e.g., environmental loading and sustainability.
global transition to sustainable development34
Global Transition to Sustainable Development
  • To illustrate the application of environmental accounting methods to the problem of sustainable development, we will consider the concept of society’s debt to the environment debt and how it can be measured using emergy methods.
environmental debt
Environmental Debt
  • Money is paid only to people for their work.
  • The environment contributes work to economic production without payment.
  • Anything taken without payment is obtained on credit and becomes a liability on the balance sheet.
measuring the debt
Measuring the Debt
  • Environmental debt is mostly external to the market system, thus it is not easily measured by money.
  • Value can be measured by what was required to produce an item as well as by what someone is willing to pay for it.
  • Environmental work can be measured by the former method.
available energy is a common denominator
Available energy is a common denominator
  • All action is accompanied by the transformation of available energy or exergy.
  • The exergy used in the past to create an item is a measure of what was required to produce it.
  • But exergies of different kinds have different ability to do work when used in a network.
emergy
Emergy
  • If all the different kinds of exergy previously used up, directly and indirectly, to make an item are expressed as solar joules, and then summed the resulting value is the solar emergy of the item.

Emergy of Bread

Bread

Oil

Rain

=

=

+

X

X

Solar emjoules

Joules

Joules

Joules

what is emergy

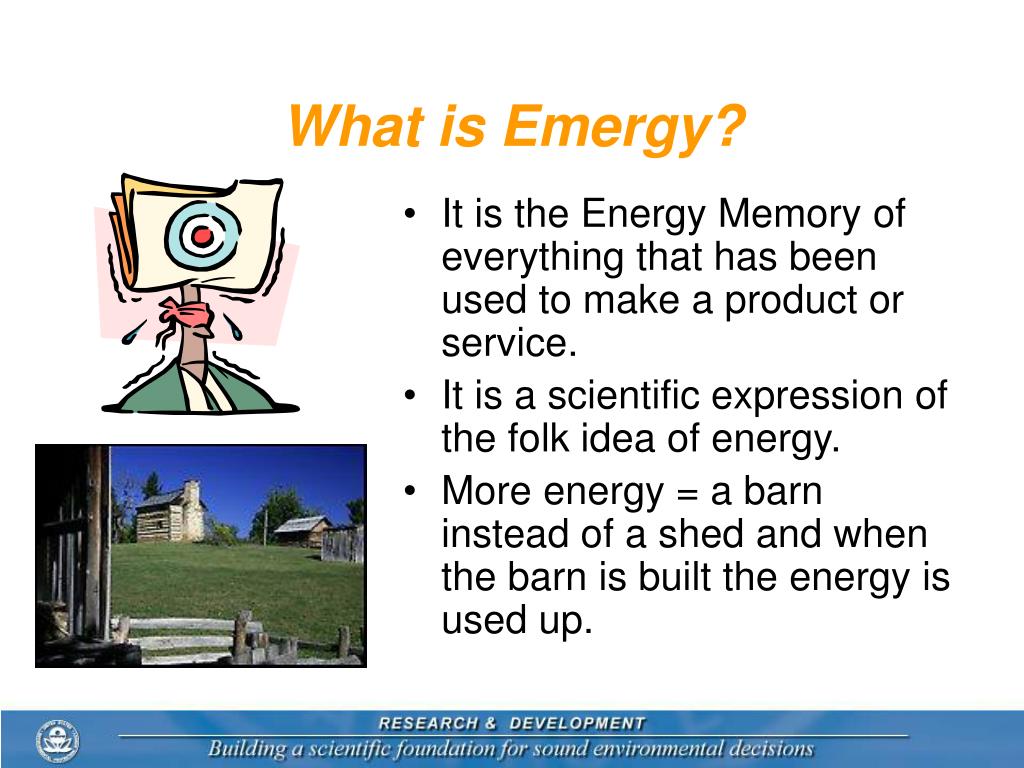

What is Emergy?
  • It is the Energy Memory of everything that has been used to make a product or service.
  • It is a scientific expression of the folk idea of energy.
  • More energy = a barn instead of a shed and when the barn is built the energy is used up.

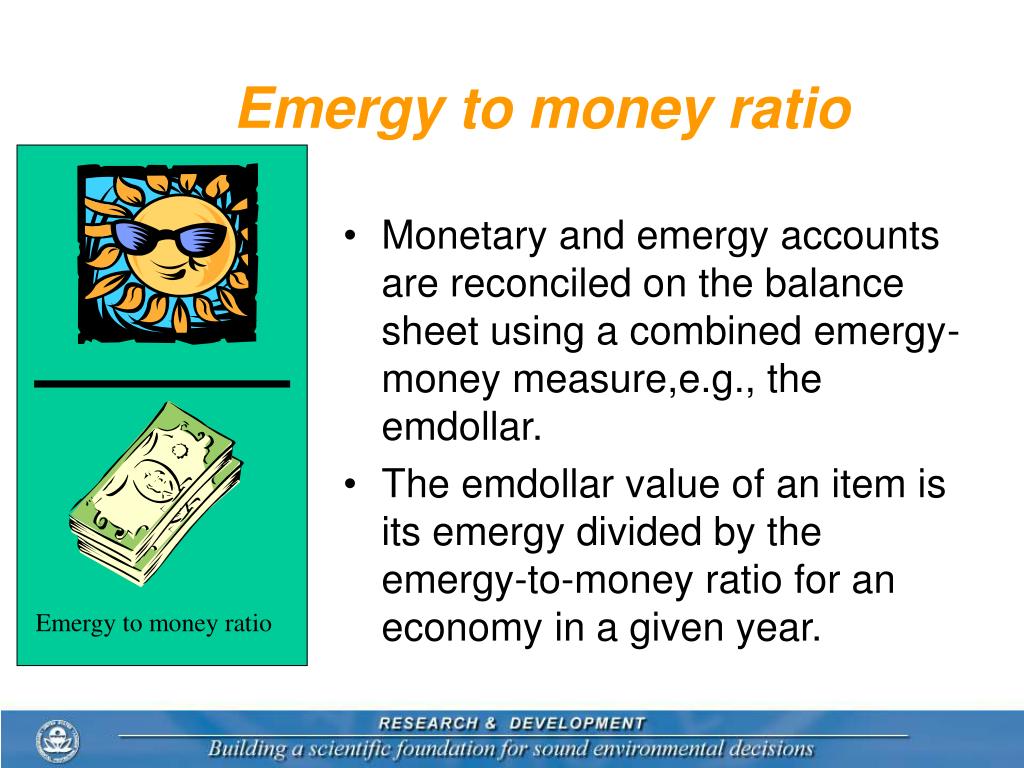

emergy to money ratio
Emergy to money ratio
  • Monetary and emergy accounts are reconciled on the balance sheet using a combined emergy-money measure,e.g., the emdollar.
  • The emdollar value of an item is its emergy divided by the emergy-to-money ratio for an economy in a given year.

Emergy to money ratio

environmental accounting tools
Environmental Accounting Tools
  • Emergy accounting makes it possible to keep a single set of books for the environment and the economy.
  • And to create a balance sheet that includes environmental liabilities from which the true solvency of our economic activities can be determined.
emergy balance sheet
Emergy Balance Sheet

The emergy balance sheet gives direct information on what is sustainable.

emergy balance sheets for north and south america
Emergy Balance Sheets for North and South America

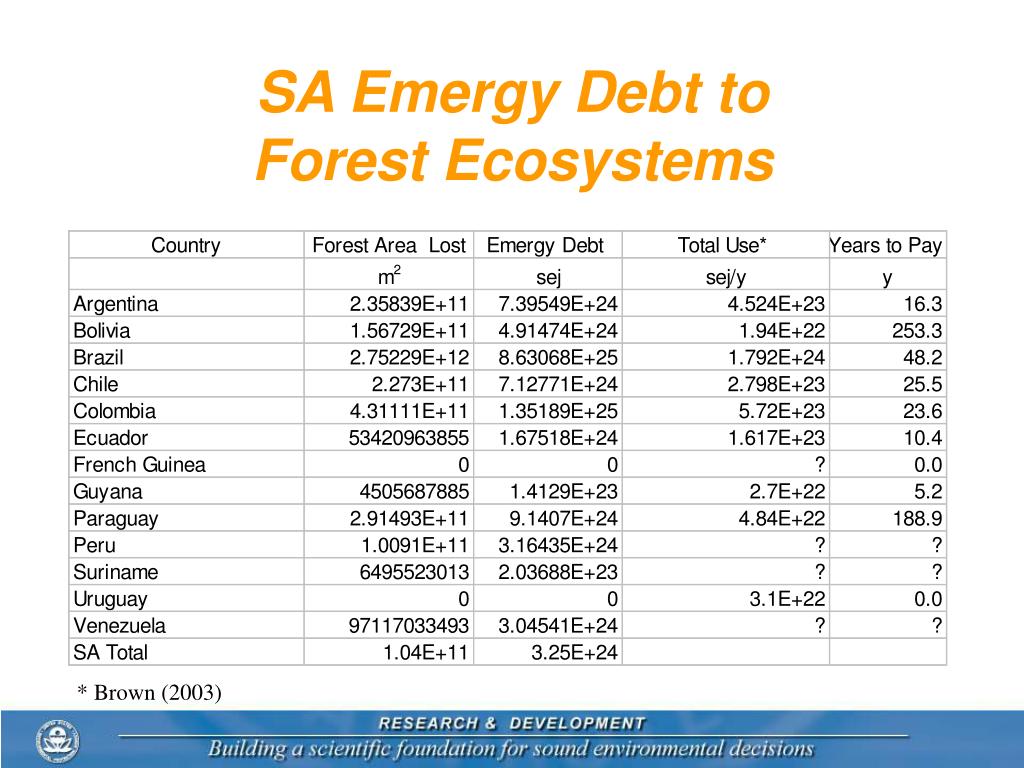

  • Emergy debt to the environment:
    • Forest systems (original area – present area)
    • Species extinctions: vascular plants
  • Emergy assets:

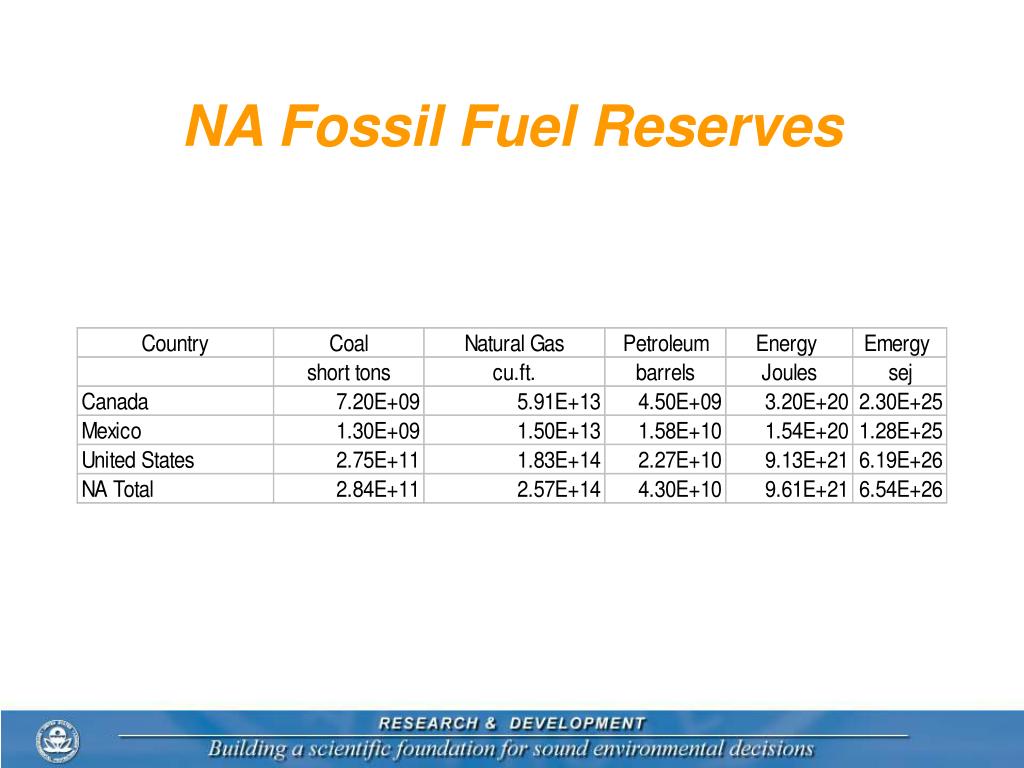

    • Fossil fuel reserves
      • Coal
      • Oil
      • Natural gas
conclusions
Conclusions
  • In nature the only thing that appears to be truly sustainable is a pulsing cycle of change.
  • Only by knowing our position in the cycle can we take appropriate steps to move toward a position of greater total empower use.
  • Documenting environmental liabilities and assets using emergy accounting shows what is sustainable for each phase in the cycle of change.
  • A transition toward global sustainable development may be possible if we apply the following rules during each phase of the cycle.
recommendations for global transition
Recommendations for Global Transition
  • Protect the larger planetary system by stabilizing environmental liabilities that affect global functions.
  • Individual countries adopt policies to move toward a position of greater total empower use.
  • Determine the equity of trade with emergy accounting methods.
  • Evaluate the efficacy of the distribution of wealth among people using emergy.
