shoulder and elbow anatomy

Shoulder and Elbow Anatomy

Sarah Rayner Extended Scope Practitioner Physiotherapist

Dr Tim Hughes GPSI

MSK Orthopaedic Services

surface anatomy
Surface Anatomy
  • Shoulder
    • Acromion (lateral border, post angle, ant edge)
    • AC joint line
    • Coracoid
    • Greater and lesser tuberosities
    • Insertions of supraspinatus, infraspinatus and suscapularis
    • Identify muscle bellies of supraspinatus, infraspinatus and teres minor
    • Outline of the scapula
    • C4 and C5 dermatomes
  • Elbow
    • Head of the radius
    • Radio-humeral joint line
    • Ulner, median and radial nerve innervation of the skin
    • Lateral and medial epicondyles and common flexor and extensor origins
    • Insertion of biceps
    • C5/6 and 7 dermatomes
shoulder anatomy
Shoulder Anatomy

With its 5 joints, 8 ligaments and 30 muscles, the shoulder complex presents a compromise between stability and mobility, and the result is that it is inherently unstable.

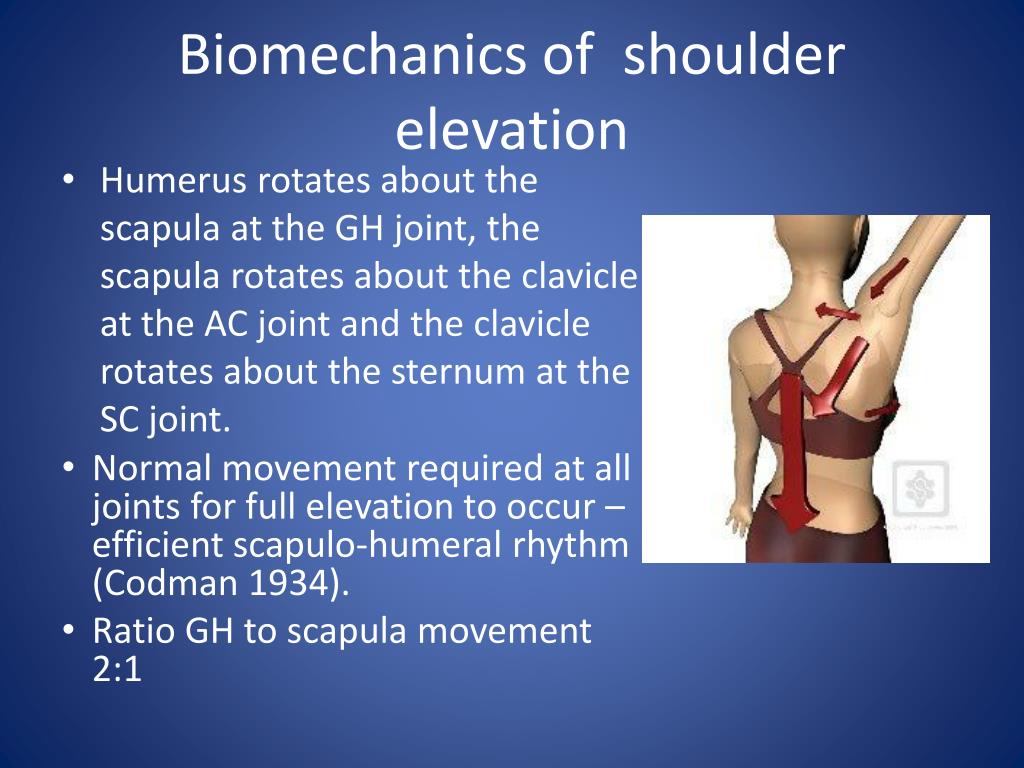

biomechanics of shoulder elevation
Biomechanics of shoulder elevation
  • Humerus rotates about the scapula at the GH joint, the scapula rotates about the clavicle at the AC joint and the clavicle rotates about the sternum at the SC joint.
  • Normal movement required at all joints for full elevation to occur – efficient scapulo-humeral rhythm (Codman 1934).
  • Ratio GH to scapula movement 2:1
shoulder muscles
Shoulder Muscles
  • Scapula Pivoters – (Trapezius, Serratus ant, Rhomboids, lev scap)
  • Glenohumeral protectors – (RC & LHB)
  • Humeral positioners – (deltoid)
  • Power Drivers (Teres major, pec major and lat dorsi)
shoulder summary
Shoulder Summary
  • Shoulder complex movement occurs through the GHJ, ACJ, SCJ and scapula-thoracic gliding mechanism.
  • Anatomical structures and neural mechanisms control the Shoulder complex allowing smooth synchronised pain free movement.
  • Shoulder function is significantly dependent on normal biomechanics.
  • Failure of any component may lead to abnormal function of the shoulder complex.
  • Understanding biomechanics – successful assessment and treatment planning.
