Presentation Transcript
Felix project inferential topology discovery from delay data to network graph

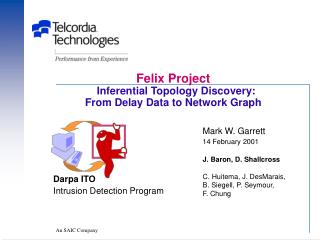

Felix ProjectInferential Topology Discovery:From Delay Data to Network Graph

Mark W. Garrett

14 February 2001

J. Baron, D. Shallcross

C. Huitema, J. DesMarais, B. Siegell, P. Seymour, F. Chung

Darpa ITOIntrusion Detection Program

An SAIC Company


The felix project goals
The Felix ProjectGoals

  • Evaluate network status independently fromthe usual network management protocolsand data.

    • E.g., no use of routing protocols, ping,traceroute, ICMP, SNMP, etc

  • Measure network by sending sparse probe packets among a set of monitors. Collect delay and loss data.

  • From these data discover the network topology and evaluate the performance of all links in the network.

  • Small new field of research developing called “Inferential Topology Discovery” (Kurose, Towsley, Paxson, McCanne, Caceras, Duffield, et al.)

  • This talk presents a particular method based on modeling correlation across the observations.


Network monitoring felix data analysis approach

AB AC AD AE AF BC BD BE BF CD CE CF DE DF EF

AB 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0

AC 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0

AD 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1

AE 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1

AF 1 1 1 1 1 0 1 1 1 1 1 1 0 1 1

BC 1 1 0 0 0 1 1 1 1 1 1 1 0 0 0

BD 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

BE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

BF 1 1 1 1 1 1 1 1 1 1 1 1 0 1 1

CD 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

CE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

CF 1 1 1 1 1 1 1 1 1 1 1 1 0 1 1

DE 0 0 1 1 0 0 0 1 0 1 1 0 1 1 1

DF 0 0 1 1 1 0 1 1 1 1 1 1 1 1 1

EF 0 0 1 1 1 0 1 1 1 1 1 1 1 1 1

898896670 145718 F A : Fri Jun 26 17:31:10 1998 Fri Jun 26 17:31:10 1998 1 0 0 0 0

898896693 159087 D E : Fri Jun 26 17:31:33 1998 Fri Jun 26 17:31:33 1998 22 0 0 0 0

898896707 184151 C D : Fri Jun 26 17:31:47 1998 Fri Jun 26 17:31:47 1998 6 0 0 0 0

898896718 173311 B F : Fri Jun 26 17:31:58 1998 Fri Jun 26 17:31:58 1998 6 0 0 0 0

898896762 195353 D E : Fri Jun 26 17:32:42 1998 Fri Jun 26 17:32:42 1998 22 0 0 0 0

898896907 243507 F A : Fri Jun 26 17:35:07 1998 Fri Jun 26 17:35:07 1998 1 0 0 0 0

898896923 252194 A C : Fri Jun 26 17:35:23 1998 Fri Jun 26 17:35:23 1998 8 0 0 0 0

898897096 315751 D C : Fri Jun 26 17:38:16 1998 Fri Jun 26 17:38:16 1998 9 0 0 0 0

898897099 321974 E B : Fri Jun 26 17:38:19 1998 Fri Jun 26 17:38:19 1998 2 0 0 0 0

898897101 326261 F C : Fri Jun 26 17:38:21 1998 Fri Jun 26 17:38:21 1998 3 0 0 0 0

898897265 376966 E F : Fri Jun 26 17:41:05 1998 Fri Jun 26 17:41:05 1998 7 0 0 0 0

898897280 371363 B C : Fri Jun 26 17:41:20 1998 Fri Jun 26 17:41:20 1998 6 0 0 0 0

898897285 371371 B F : Fri Jun 26 17:41:25 1998 Fri Jun 26 17:41:25 1998 6 0 0 0 0

898897333 401269 C E : Fri Jun 26 17:42:13 1998 Fri Jun 26 17:42:13 1998 14 0 0 0 0

898897351 385009 A F : Fri Jun 26 17:42:31 1998 Fri Jun 26 17:42:31 1998 8 0 0 0 0

898897355 389369 D B : Fri Jun 26 17:42:35 1998 Fri Jun 26 17:42:35 1998 5 0 0 0 0

898897458 428081 C B : Fri Jun 26 17:44:18 1998 Fri Jun 26 17:44:18 1998 9 0 0 0 0

898897511 470461 B D : Fri Jun 26 17:45:11 1998 Fri Jun 26 17:45:11 1998 2 0 0 0 0

898897631 472162 E B : Fri Jun 26 17:47:11 1998 Fri Jun 26 17:47:11 1998 0 0 0 0 0

898897782 558276 D F : Fri Jun 26 17:49:42 1998 Fri Jun 26 17:49:42 1998 9 0 0 0 0

898897897 608592 C D : Fri Jun 26 17:51:37 1998 Fri Jun 26 17:51:37 1998 4 0 0 0 0

898897925 605581 A F : Fri Jun 26 17:52:05 1998 Fri Jun 26 17:52:05 1998 8 0 0 0 0

898897926 616708 E F : Fri Jun 26 17:52:06 1998 Fri Jun 26 17:52:06 1998 3 0 0 0 0

898897938 614421 C B : Fri Jun 26 17:52:18 1998 Fri Jun 26 17:52:18 1998 13 0 0 0 0

898898220 693504 C D : Fri Jun 26 17:57:00 1998 Fri Jun 26 17:57:00 1998 5 0 0 0 0

A

F

Internet

TopologyDiscovery

B

E

e1 e2 e3 e4 e5 e6 e7 e8 e9

AB 1 1 1 0 0 0 0 0 0

AC 1 1 0 1 0 0 0 0 0

AD 1 0 0 0 1 0 1 0 1

AE 1 0 0 0 1 0 1 1 0

AF 1 0 0 0 1 1 0 0 0

BC 0 0 1 1 0 0 0 0 0

BD 0 1 1 0 1 0 1 0 1

BE 0 1 1 0 1 0 1 1 0

BF 0 1 1 0 1 1 0 0 0

CD 0 1 0 1 1 0 1 0 1

CE 0 1 0 1 1 0 1 1 0

CF 0 1 0 1 1 1 0 0 0

DE 0 0 0 0 0 0 0 1 1

DF 0 0 0 0 0 1 1 0 1

EF 0 0 0 0 0 1 1 1 0

C

D

Performance

Assessment

Simulator

  • Delay

  • Loss

  • Load

  • Throughput

  • Pr cong

A

F

e1

D

B

e6

D

A

e2

e5

F

e3

e9

E

B

E

e3

e1

e6

e8

(NAP)

(NAP)

C

e7

e4

e2

e7

e4

e5

(backbone

site)

Graph

Rendering

E

e8

F

C

C

e9

A

B

D

Network MonitoringFelix Data Analysis Approach

common component matrix

measurement system

raw data

Identify links

intermediate results

path component matrix

Network element

and link performance

Create graph

graph specification(nodes and links)

network graph

network map

Add geographic

information


Network discovery terminology for network topology and monitoring

M2

M3

M1

M4

M5

M6

M15

M14

M7

M13

M8

Monitor

M9

M12

(Interior) Node

Cloud

Path

M11

M10

Network DiscoveryTerminology for Network Topology and Monitoring

  • For m monitors, there are np = m(m-1) paths

  • The number of links is between m (star) and m2 (full mesh)

  • Links are unidirectional

    • … So a line in the graph usually represents two links


Network discovery reduced graph concept

M2

M3

M1

M4

“Series Equivalent Edges”

Links Not Traversed by Monitor Packets

M5

Network DiscoveryReduced Graph Concept

  • Define Reduced Graph as the sub-graph within the network that is discoverable.

  • Excludes links not traversed by monitor packets

  • Combines equivalent edges, i.e. edges traversed by exactly the same set of paths.

  • Non-series equivalent edges can occur when reducing a real graph, but they are very rare.


Network discovery example of complete network and reduced graph
Network DiscoveryExample of Complete Network and Reduced Graph

3150 nodes

WAN-MAN-LAN design

100 monitors

187 nodes

698 (unidirectional) links

Reduced graph tends to include more of backbone and less of edges


Network discovery reduced graph non series equivalent edges

“Non-Series Equivalent Edges”

A

B

Network DiscoveryReduced Graph – Non-series Equivalent Edges

  • Here is an (artificially) symmetrical graph with equivalent edges.

  • We have seen non-series equivalent edges only once in reducing randomly generated graphs (out of 100+ examples)


Network discovery reduced graph related to paths
Network DiscoveryReduced Graph Related to Paths

  • Reduced graph determined by n = 2… monitors is a successive approximation to the network.


Network discovery reduced graph related to paths1
Network DiscoveryReduced Graph Related to Paths

  • Reduced graph determined by n = 2, 3… monitors is a successive approximation to the network.


Network discovery reduced graph related to paths2
Network DiscoveryReduced Graph Related to Paths

  • Reduced graph determined by n = 2… 4… monitors is a successive approximation to the network.


Network discovery reduced graph related to paths3
Network DiscoveryReduced Graph Related to Paths

  • Reduced graph determined by n = 2… 5… monitors is a successive approximation to the network.


Network discovery reduced graph related to paths4
Network DiscoveryReduced Graph Related to Paths

  • Reduced graph determined by n = 2… 6… monitors is a successive approximation to the network.


Network discovery reduced graph related to paths5
Network DiscoveryReduced Graph Related to Paths

  • Reduced graph determined by n = 2… 7… monitors is a successive approximation to the network.


Network discovery reduced graph related to paths6
Network DiscoveryReduced Graph Related to Paths

  • Reduced graph determined by n = 2… 8… monitors is a successive approximation to the network.


Network discovery reduced graph related to paths7
Network DiscoveryReduced Graph Related to Paths

  • Reduced graph determined by n = 2… 9… monitors is a successive approximation to the network.


Network discovery reduced graph related to paths8
Network DiscoveryReduced Graph Related to Paths

  • Reduced graph determined by n = 2… 10… monitors is a successive approximation to the network. Etc…


A relationship between observable path metric topology and link performance

+c

-c

-c

+c

A Relationship Between Observable Path Metric, Topology and Link Performance

  • The delay along a path = sum of delays for each link

    DP = X  dL

    • X identifies topology (in terms of links on paths), and is always rank deficient.

    • To illustrate, consider adding a constant delay to each link into a particular node, and subtracting from outgoing links.

  • A variation on this general relationship can be formulated with each performance metric: packet loss, link load, throughput, congestion probability.


Felix Data MeasurementsRouting Changes Apparent in Data

Data courtesy of Advanced Network Solutions


Felix Data MeasurementsRouting Changes Apparent in Data

Data courtesy of Advanced Network Solutions


Felix Data MeasurementsRouting Changes Apparent in Data

Data courtesy of Advanced Network Solutions


Felix Topology DiscoveryCorrelation Method: Concept


Felix correlation method identifying links by correlation of paths

Group 1

Group 3

Group 4

Group 1

1

Path A

0

Group 5

1

Path B

0

Group 2

1

Path C

0

1

Path D

0

Felix Correlation MethodIdentifying Links By Correlation of Paths


Felix correlation method abstracting congestion event sequence from data
Felix Correlation MethodAbstracting Congestion Event Sequence From Data

  • Open problem: how exactly to get from a delay measurement on a real network to a series of thresholded congestion “events”.

  • Several approaches:

    • Average delay in a fixed-length sliding window

    • Cross-correlation function (pair-wise between paths, but promising…)

    • Congestion decision can be complex combination of delay and loss in window – probably most robust method, but needs some empirical experience to create useful methodology.

  • We assume a solution and solve the next part…


Felix correlation method network model assumptions
Felix Correlation MethodNetwork Model Assumptions

  • Node processing delay is negligible, so paths sharing nodes(but not links) do not show correlation. Queueing delay is associated with the link.

  • Network links congest independently.

  • Congestion is modeled asfixed-length discrete-time events

  • Congestion rate is fixed for eachlink, but can vary over a range forthe set of links in the network.

  • Routes are stable

  • Monitor packets are exchangedfrequently enough that congestionevents will be recorded consistentlyacross all paths crossing a given link.

    • Note, this does not require every event to be noticed, and real congestion events do occur over a wide range of time scales.


Felix correlation method observations and triggers
Felix Correlation MethodObservations and Triggers

  • An Observation is a measurement of congestion (however defined) on a path between two monitors.

  • A Trigger is a hypothetical cause of congestion, such as a link, or a group of links, in the network.

  • Method of solution:

Based on joint observations across all paths, define a model that discriminates statistically between the true triggers, that represent links in the network, and the apparent (or false) triggers that are due to combinations of true links congesting simultaneously. Then reduce the triggers down to single links.


Felix correlation method observations and triggers1

M1

M3

M2

M4

M5

Felix Correlation MethodObservations and Triggers

Illustration of observations, triggers, paths and links:

Definitions and Notation:

  • An observation event occurs at time t, when a set of paths are congested and not congested as specified.

  • For example,is the observation that paths a, b, d, k are congested and paths c, g are not congested at time t. Paths not included in the subscript are “don’t care” for this observation variable.

Observation “a” = path M1M3,

Observation “b” = path M2M4

Trigger a = all links on path a

Trigger ab = links in common between paths a and b


Felix correlation method observations and triggers2
Felix Correlation MethodObservations and Triggers

  • A trigger event occurs at time t, when at least one link congested that is a member (or not a member) of a set of paths as specified.

  • For example,is the event that some link congests that is shared by paths a, b, d, k, and is not on path c, or path g.

  • We refer to paths in the specification as “included” or “excluded”

  • If all paths are included or excluded, the trigger is “fully specified”

  • Observation and Trigger Probabilities follow these examples:


Felix correlation method relationship between observations and triggers
Felix Correlation MethodRelationship Between Observations and Triggers

  • Now we can related the observation and trigger probabilities in several interesting ways. E.g., [Ratnasamy & McCanne]

  • This set says, considering only two paths, if we see congestion on both paths, then it is caused either by a link the two paths share in common, or one link on each of the paths (not in common) are congesting together.

  • Similarly, if we see congestion on only one path, it must be due to a link that is on that path, and not on the other.

  • Note, this forces us to explicitly write the combinations of triggers that can cause an observation (not very scaleable).


Felix correlation method relationship between observations and triggers1
Felix Correlation MethodRelationship Between Observations and Triggers

  • Another interesting and useful relationship is this:

  • This one says that we observe no congestion on a set of paths only when none of the triggers that are on those paths are active.

  • We say a path (in the trigger specification) contradicts the observation when a path turned off in the observation is included in the trigger. (It is easy to write down these combinations.)

  • Inclusion of observations with multiple paths makes this model more powerful than an earlier method (DP = X  dL) that relied on a rank-deficient matrix.


Felix correlation method organization of triggers

Felix Correlation MethodOrganization of Triggers

  • Tree contains all potential triggers, i.e., all possible combinations of paths that can specify a link or group of links.

  • Triggers on a level partition the set of (potential) links in the graph

  • The tree grows exponentially as we add paths, but the number of true triggers is bounded by the number of links in the network.


Felix correlation method some more useful stuff from the model
Felix Correlation MethodSome More Useful Stuff From the Model…

  • Observation of congestion on a path means some link on that path is congesting (single-path observation and trigger).

  • Something must be happening, so the sum over all possible observations with n paths specified equals unity.

  • Child triggers are related to their parent.

  • No congestion observed anywhere means all triggers are quiet. (The product of all inverse triggers on any level is constant.)


Felix correlation method solving for trigger probabilities 3 path example
Felix Correlation MethodSolving for Trigger Probabilities – 3 Path Example

  • Observation of no congestion on 3,2,1 paths implies no activity on any trigger that includes one of the named paths

  • Triangular form: each equation produces one Pvt


Felix correlation method generalization of solution to any number of paths

class 1 triggers 0 ≤ j < k

class 3 triggersk < j ≤ n-1

class 2 triggers j = k

j = 0

j = 1

j = n-1

n paths in trig

k paths in obs

Master equation hask = n

Felix Correlation MethodGeneralization of Solution to Any Number of Paths

  • Count various things:

    • n = number of paths in the triggers = level in tree diagram

    • k = number of paths in the observation (varying from n down to 1)

    • j = number of paths excluded in the triggers (varying from 0 to n-1)

  • Divide “Master” equation by each “Specific” equation to find one trigger probability


Felix correlation method generalization of solution to any number of paths1
Felix Correlation MethodGeneralization of Solution to Any Number of Paths

  • For n paths there are 2n-1 equations and 2n-1 triggers.

  • The “Master” equation has all possible triggers, i.e., any active trigger contradicts the observation of no congestion anywhere.

  • For class 1 triggers (0 ≤ j < k):

    • The j paths excluded in the trigger cannot cover all k paths in the observation, so at least one path is included in the trigger that contradicts the observation.

    • All triggers then occur in both the master and specific equations, and cancel out in the division.

  • For class 2 triggers (j = k):

    • The j paths excluded in the trigger can cover the k paths in the observation, but there is only one combination. Call this the target trigger. All other triggers contradict the observation and cancel out.

    • There is one equation in which each such target trigger survives the division.


Felix correlation method generalization of solution to any number of paths2
Felix Correlation MethodGeneralization of Solution to Any Number of Paths

  • For class 3 triggers (k < j ≤ n-1):

    • There are such triggers.

    • No class 3 triggers exist in the first two stages(k = n, and k = n–1)

    • All class 3 triggers are computed at previous stages, when they appear as class 2 triggers.

    • For example, consider the case k = 8 < j = 9. In the previous stage when we had k = 9, the class 2 triggers with j = 9 were solved.

  • Each “Quotient” equation is left with one unknown trigger


Felix correlation method generalization of solution to any number of paths3
Felix Correlation MethodGeneralization of Solution to Any Number of Paths

  • General form of solution, for trigger probabilities with paths excluded (first case), and with no paths excluded (second case):

Where:

  • E is the set of excluded paths in the trigger

  • I is the set of included paths in the trigger

  • N is the set of all paths

  • w is the set of class-3 trigger probabilities in the master equation, but not in the specific equation

  • u is the set of all trigger probabilities with at least one path excluded.


Felix correlation method pruning tree reduces computational complexity
Felix Correlation MethodPruning Tree Reduces Computational Complexity

  • Returning to the tree of trigger probabilities…

  • For triggers that specify actual links in the network, the trigger probability is the (aggregate) congestion rate on that set of links.

  • False triggers (for which no link exists) are approximately zero

  • (True) triggers on the last level identify single links and their associated paths (reduced graph).

  • Therefore, a trigger prob. of zero can be pruned out along with all of its descendents.

  • Number of triggers to compute is bounded by (paths • links).

Let’s see some results…


Felix correlation method results
Felix Correlation MethodResults

18 monitors

23 nodes

95 (unidirectional) links


Felix correlation method results1
Felix Correlation MethodResults

19 monitors

27 nodes

114 (unidirectional) links


Felix correlation method results2
Felix Correlation MethodResults

20 monitors

29 nodes

121 (unidirectional) links


Felix correlation method results3
Felix Correlation MethodResults

50 monitors

61 nodes

269 (unidirectional) links

  • Run with link congestion rate of 1% (best efficiency)

  • Approx 12 hours to compute


Felix correlation method algorithm complexity
Felix Correlation MethodAlgorithm Complexity

  • Complexity of correlation algorithm is more than (paths • links) because the computation of triggers increases with number of paths…

  • …but it is polynomial: O(LPN + L2P) for L links, P paths, N simulated time intervals.

  • However, the overall run-time is apparently exponential, because it takes more data to discriminate the true and false triggers as the network gets larger.


Felix correlation method algorithm complexity1
Felix Correlation MethodAlgorithm Complexity

  • Running time of simulation and correlation code as function of network size (number of links)

    • Exponential increase if quality of result held constant.

    • Link Congestion Rate = 10% (constant).


Felix correlation method results with variable link congestion
Felix Correlation MethodResults With Variable Link Congestion

  • Constant link congestion rate is artificial constraint

  • Algorithm works well with links congesting in a range,e.g., tried 1% – 5%, 1% – 10%, 1% – 15%, etc.

  • Effect is to spread the distribution of true trigger probabilities

    • Longer convergence time

  • Probably all of the simplifying assumptions in the model can be relaxed at the cost of increased convergence time.

  • Correlation algorithm ran fastest with 1% link congestion

    • Probably an artifact of implementation…


Felix correlation method statistical discrimination problem

μ2

μ1

ησ

false triggers

false triggers

true triggers

true triggers

0

0

Felix Correlation MethodStatistical Discrimination Problem

  • Nice scaling property of the algorithm depends on being able to discriminate true from false triggers.

  • False triggers are approximately zero, but at edge of solvable parameter space, both populations are more noisy

    • Too little data (from simulation or measurement)

    • Too much variability in link loss rates

    • Too much dependence between link congestions, etc, etc

  • Need to set threshold, group triggers and evaluate “goodness” of resulting topology.


Felix project general discussion
Felix ProjectGeneral Discussion

  • We can make use of multicast idea (MINC project) to reduce load on network: each source multicasts packets to all receivers.

    • This will improve coincidence of measurements in time across all paths.


Felix topology performance inference applicability
Felix Topology / Performance InferenceApplicability

  • Does not replace “traditional” autodiscovery methods (SNMP)

  • May augment autodiscovery in difficult environment:

    • Military network under physical attack

    • Military or commercial network under cyber-attack

    • Network with buggy software (e.g. routing implementation)

    • Multiple protocol layers, not all included in autodiscovery

    • Protocols too old or new for the autodiscovery technology

  • Good for observing networks not under your control

    • Commercial context: ISP tries to locate fault between networks

    • Military context: Map out foreign network

  • Future networks will probably be more chaotic

    • Track changing topology & performance with minimal extra load


Felix project further work
Felix ProjectFurther Work

  • Augment algorithms to work in more fully realistic environment:

    • Non-discrete time: congestion events with “ragged edges”

    • Less stable routing (this is hard)

    • Dependence in link congestion – cross traffic routed through net

    • More volatile delay and loss patterns (most significant issue)

    • Wider range of congestion rates; more erratic time dependence

  • Variation with delay metric (instead of probability of congestion) is possible.

    • Result would be bounds on mean, variance, (higher moments) of delay distribution on each link.

    • Procedure is analogous (but not identical) to present algorithm.

  • Progressive version of algorithm to update existing topology estimate based on continuous data.

  • More experience with real data


Felix correlation method summary three stages in topology discovery

Event Abstraction Algorithm

Packet Delay & Loss Data

Event Correlation Algorithm

Path-Link

Matrix

Graph Construction Algorithm (“Matroid” Alg)

Event Time Series

Network Graph

Felix Correlation MethodSummary: Three Stages in Topology Discovery

  • Reduced graph concept: limitation of observability

  • Decomposition of topology/performance inference into separable problems

    • Allows optimization and variation of algorithms at each stage

  • Correlation Method:

    • Uses entire time series of data for each path.

    • Takes advantage of joint statistics across all paths

Future Work


Felix project
Felix Project

Extra Slides


Topology Discovery and Performance Assessment: 6 Methods

  • “Matrix” method

    • Evaluates “goodness” of topology, solves for link delay or loss

  • Tree-growing method

    • Composes topology as a tree, solves for link delays, goodness of fit.

  • Spike-tail method

    • Uses delay distributions to solve for link loads given topology.

  • Correlation method

    • Uses time-dependent delay data to find common path components.

  • Matroid method

    • Graph theoretic method - complements correlation method by solving from path-component list to topology

  • Distance-Realization method

    • Graph theoretic method - finds topologies rooted at each monitor and merges for complete system topology





Clock drift correction
Clock Drift Correction

  • Algorithm

    • Compute lower envelope of time series in both directions.

    • Shift lower envelopes so centered around zero.

    • Compute “average” of envelopes (one flipped).

    • Add/subtract average from original time series data.





A

F

B

E

C

D

Felix Matroid MethodSummary

  • Partial solution - goes with Correlation Method

  • Input here is unordered “path-component” list

  • 3 stages with increasing level of assumptions

  • Clouds: Incomplete solution is still useful when uncertainty is geographically localized. Internet graphs usually have no clouds.

  • Split nodes in solution - we can surely fix this problem.

  • Monitor placement changes discovered graph -- also changes discoverable “reduced” graph

  • Two examples - used GeorgiaTech code to generate realistic-looking Internet topologies


Felix matroid method example of reconstructed network graph
Felix Matroid MethodExample of Reconstructed Network Graph

3150 nodes

WAN-MAN-LAN design


Felix matroid method example of reconstructed network graph1
Felix Matroid MethodExample of Reconstructed Network Graph

100 monitors

187 nodes

698 (unidirectional) links


Felix matroid method example of reconstructed network graph2
Felix Matroid MethodExample of Reconstructed Network Graph

74 split nodes

2 clouds with 3 links each


ad
