checking interaction consistency in marmot component refinements

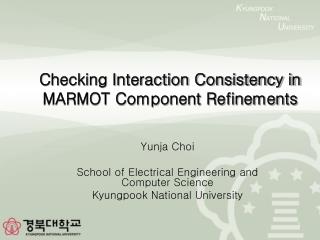

Checking Interaction Consistency in MARMOT Component Refinements

Yunja Choi

School of Electrical Engineering and Computer Science

Kyungpook National University

overview
Overview
  • MARMOT methodology
    • Component and refinements
  • Interaction consistency
  • A general framework for consistency checking
  • Case example
    • Model checking elevator system
  • Performance improvement through abstraction
  • Discussion
marmot methodology
MARMOT Methodology
  • Branched from KobrA by Atkinson et. al
    • Designed for the development of embedded systems
  • High quality system through systematic, structured development
  • Components are the focus of entire development process
    • Tree-structured hierarchy of components
    • Flexibility and reuse of components
marmot component

Statecharts

Specification

Operation

Schemata

Class Diagram

Sequence

Diagram

Class Diagram

Realization

Object

Diagram(Architecture)

MARMOT Component

Refined component

Refining component

recursive development
Recursive Development

Identification

Specification

Realization

Kpt A

Component

Reuse

Kpt B

Kpt C

Kpt D

COTS Component

quality control
Quality Control
  • MAMOT supports systematic identification and refinements of a component
    • the principle of “separation of concerns”: specification vs. realization
    • Iterative decomposition and refinements
  • There can be many issues in consistency
    • Structural consistency
    • Behavioral consistency
  • Behavioral consistency between the realization of refined component and the specification of its refining components
interaction consistency
Interaction Consistency
  • at ith refinement step, the realization of the refined component constrains the environment of the refining components
  • A system is consistent with its environment in its behavior if it either terminates normally or runs infinitely under the infinite sequence of stimuli generated from its environment
    • A system is inconsistent with its environment in its behavior if it terminates abnormally under the infinite sequence of stimuli generated from its environment
process model
A component and its environment are specified as two processes P and E, where each of them is represented as a labeled transition system (Sp, Lp, Rp, Ip, Tp) and (Se, Le, Re, Ie, Te)

A restricted form of process composition of P and E is defined as P↑E = (Sp× Se, Lp∪ Le, Rp× Re, Ip× Ie, Tp× Te) where

Process model
formal definitions
Formal definitions
  • Termination
    • Terminate(P(s))↑E : P terminates to a state s that belongs to the pre-defined set of terminal states T under the environment E
    • P(s) ∧ s ∈T,
    • If P is a compositional process, P = P1∥ P2∥.. ∥ Pn
      • Terminate(P(s)) ↑E if and only if ∀i, Terminate(Pi(si)) ↑Ei , where Ei = E ∥ P1∥ P2∥.. Pi-1 ∥ Pi+1 ∥ … ∥ Pn
formal definitions13
Formal definitions
  • Progressiveness
    • Progress(P(s)) ↑E : eventually, there is a transition out of the state s under the environment E
  • Interaction Consistency
    • Consistent(P(s)) ↑E = Terminate(P(s))↑E ∨ Progress(P(s)) ↑E
model checking consistency
Model checking consistency
  • Based on the exhaustive search of system state-space
  • Fully automated
    • SPIN: invalid-endstate checking
    • SMV: we can formulate the consistency property in temporal logic and use model checker to verify it
  • Provide counter-examples
  • Need translation to PROMELA or SMV input language
    • A number of translation approaches are available
abstraction techniques
Abstraction techniques
  • Trigger-based abstraction
    • Abstract the environment so that it contains all the transitions generating a triggering event for the process P, and all the transitions from the initial state leading to the transition
  • Transition reduction
    • collapse several transitions into one if the intermediate transitions do not generate triggering actions for the process P

ti /ai

s0

s1

s2

si

Si+1

ti /ai

s0

si

Si+1

discussion
Discussion
  • Formal methods can be effective and useful when integrated into development process
    • Our work focuses on the seamless integration
  • There are a number of existing works on UML consistency, refinements, CBD methodology, and the use of model checking
    • However, they mostly focus on one of the issues separately.
    • Hardly any of the earlier works concerns on performance issue when using model checking
    • Environment constraints have been manually identified in the previous works
  • More investigation is needed on optimization and automation
    • Translation and abstraction
