artificial neural networks

Articifial Intelligence

Artificial Neural Networks

Brian Talecki

CSC 8520

Villanova University

ann artificial neural network
ANN - Artificial Neural Network
  • A set of algebraic equations and functions which determine the best output given a set of inputs.
  • An artificial neural network is modeled on a very simplified version of the a human neuron which make up the human nervous system.
  • Although the brain operates at 1 millionth the speed of modern computers, it functions faster than computers because of the parallel processing structure of the nervous system.
human nerve cell
Human Nerve Cell
  • picture from: G5AIAI Introduction to AIby Graham Kendall
  • www.cs.nott.ac.uk/~gxk/courses/g5aiai
slide4
At the synapse – the nerve cell releases a chemical compounds called neurotransmitters, which excite or inhibit a chemical / electrical discharge in the neighboring nerve cells.
  • The summation of the responses of the adjacent neurons will elicit the appropriate response in the neuron.

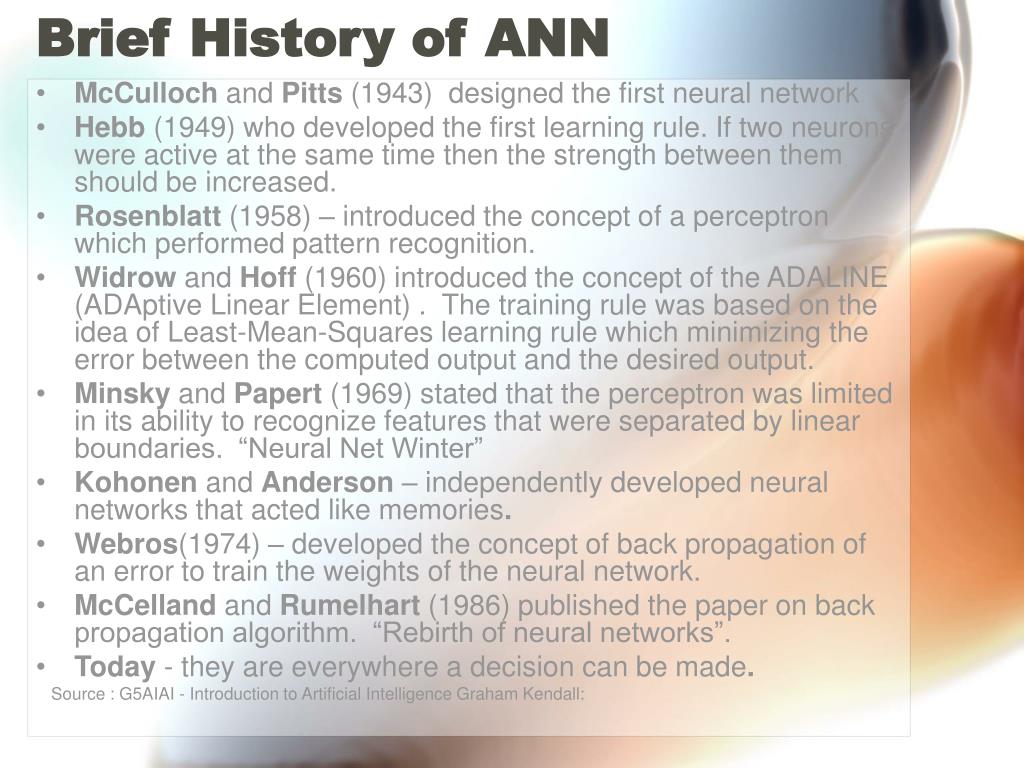

brief history of ann
Brief History of ANN
  • McCulloch and Pitts (1943) designed the first neural network
  • Hebb (1949) who developed the first learning rule. If two neurons were active at the same time then the strength between them should be increased.
  • Rosenblatt (1958) – introduced the concept of a perceptron which performed pattern recognition.
  • Widrow and Hoff (1960) introduced the concept of the ADALINE (ADAptive Linear Element) . The training rule was based on the idea of Least-Mean-Squares learning rule which minimizing the error between the computed output and the desired output.
  • Minsky and Papert (1969) stated that the perceptron was limited in its ability to recognize features that were separated by linear boundaries. “Neural Net Winter”
  • Kohonen and Anderson – independently developed neural networks that acted like memories.
  • Webros(1974) – developed the concept of back propagation of an error to train the weights of the neural network.
  • McCelland and Rumelhart (1986) published the paper on back propagation algorithm. “Rebirth of neural networks”.
  • Today - they are everywhere a decision can be made.

Source : G5AIAI - Introduction to Artificial Intelligence Graham Kendall:

basic neural network
Inputs – normally a vector of measured parameters

Bias – may/may not be added

f() – transfer or activation function

Outputs = f(∑Wp + b)

Basic Neural Network

b - Bias

∑ Wp +b

f()

Inputs

W

Outputs

T

activation functions
Activation Functions

Source: Supervised Neural Network Introduction CISC 873. Data Mining Yabin Meng

log sigmoidal function

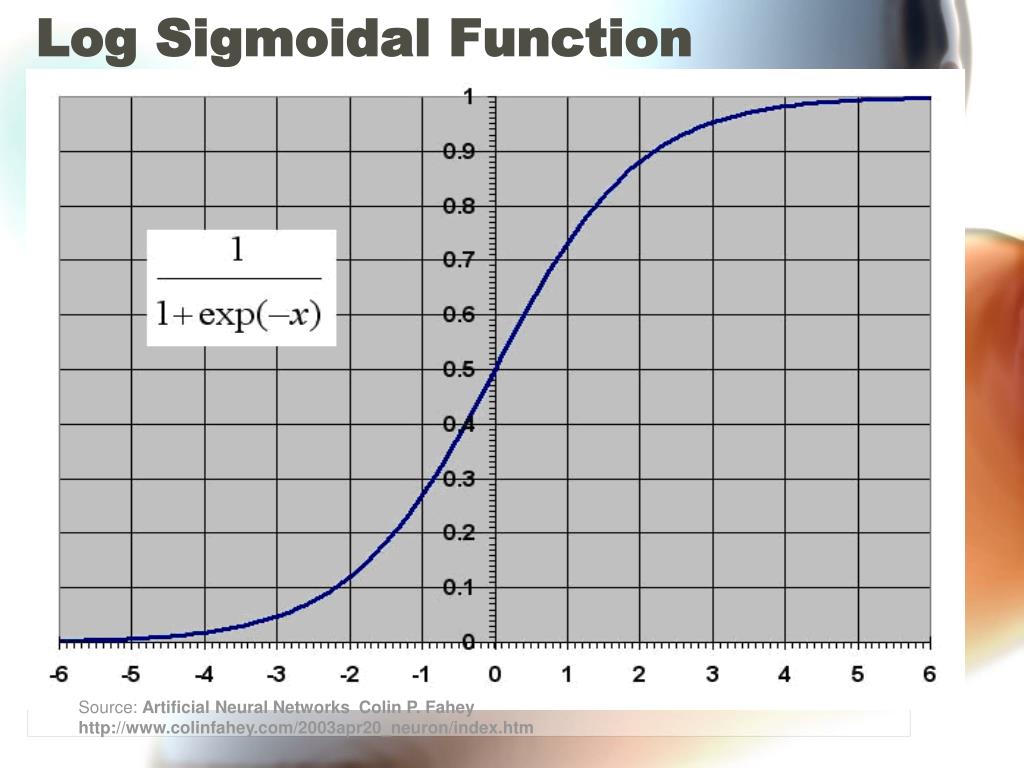

Log Sigmoidal Function

Source: Artificial Neural Networks Colin P. Fahey

http://www.colinfahey.com/2003apr20_neuron/index.htm

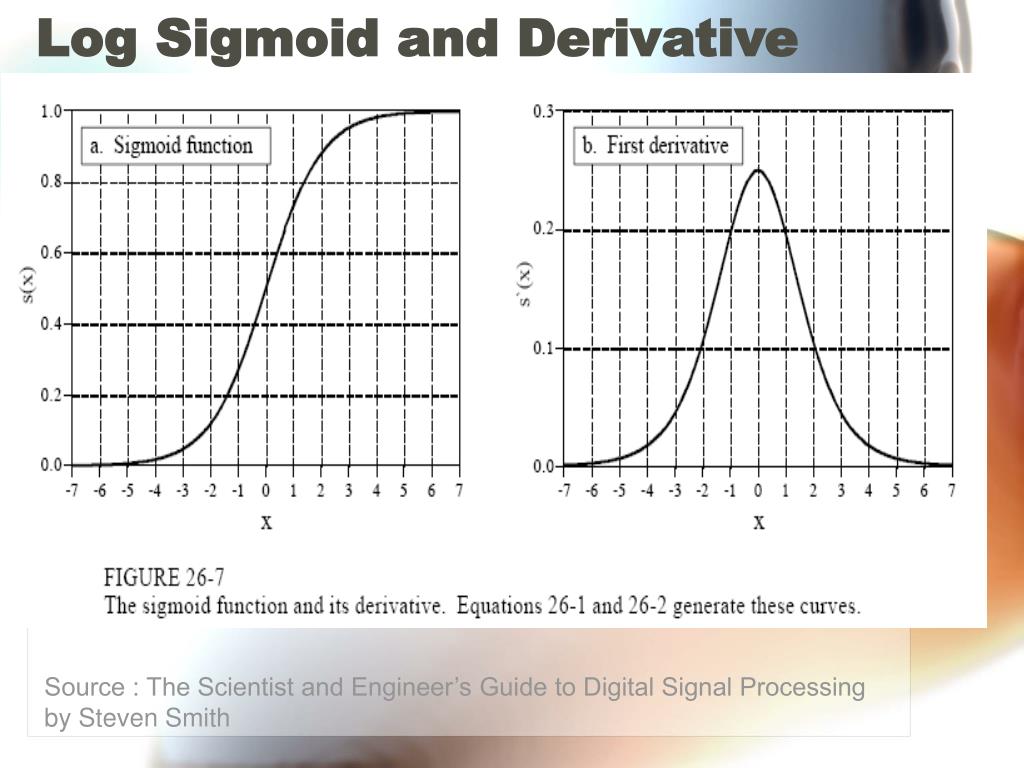

log sigmoid and derivative
Log Sigmoid and Derivative

Source : The Scientist and Engineer’s Guide to Digital Signal Processing by Steven Smith

derivative of the log sigmoidal function
Derivative of the Log Sigmoidal Function

s(x) = (1 + e )

s’(x) = -(1+e ) * (-e )

= e * (1+ e )

= ( e ) * ( 1 )

(1+ e ) ( 1 + e )

= (1 + e – 1) * ( 1 )

( 1+ e ) ( 1 + e )

= (1 - ( 1 ) ) * ( 1 )

(1+ e ) (1 + e )

s’(x) = (1-s(x)) * s(x)

-1

-x

-2

-x

-x

-2

-x

-x

-x

-x

-x

-x

-x

-x

-x

-x

Derivative is important for the back error propagation algorithm used to train multilayer neural networks.

example single neuron
Given : W = 1.3, p = 2.0, b = 3.0

Wp + b = 1.3(2.0) + 3.0 = 5.6

Linear:

f(5.6) = 5.6

Hard limit

f(5.6) = 1.0

Log Sigmoidal

f(5.6) = 1/(1+exp(-5.6)

= 1/(1+0.0037)

= .9963

Example : Single Neuron
simple neural network
Simple Neural Network

One neuron with a linear activation function => Straight Line

Recall the equation of a straight Line : y = mx +b

m is the slope (weight), b is the y-intercept (bias).

p2

Bad

Good

Mp1 + b >= p2

Decision Boundary

Mp1 + b < p2

p1

perceptron learning
Perceptron Learning

Extend our simple perceptron to two inputs and hard limit activation function

bias

W

F()

Output

p1

W1

Hard limit function

p2

W2

o = f (∑ W p + b)

W is the weight matrix

p is the input vector

o is our scalar output

T

rules of matrix math
Rules of Matrix Math

Addition/Subtraction

1 2 3 9 8 7 10 10 10

4 5 6 +/- 6 5 4 = 10 10 10

7 8 9 3 2 1 10 10 10

Multiplication by a scalar Transpose

a 1 2 = a 2a 1 = 1 2

3 4 3a 4a 2

Matrix Multiplication

2 4 5 = 18 , 5 2 4 = 10 20

2 2 4 8

T

data points for the and function
Data Points for the AND Function

q1 = 0 , o1 = 0

0

q2 = 1 , o2 = 0

0

q3 = 0 , o3 = 0

1

q4 = 1 , o4 = 1

1

Truth Table

P1 P2 O

0 0 0

0 1 0

1 0 0

1 1 1

weight vector and the decision boundary
Weight Vector and the Decision Boundary

W = 1.0

1.0

Magnitude and Direction

Decision Boundary is the line where

W p = b or W p – b = 0

T

T

As we adjust the weights and biases of the neural network, we change the magnitude and direction of the weight vector or the slope and intercept of the decision boundary

T

W p > b

T

W p < b

perceptron learning rule
Perceptron Learning Rule
  • Adjusting the weights of the Perceptron
  • Perceptron Error : Difference between the desired and derived outputs.

e = Desired – Derived

When e = 1

W new = Wold + p

When e = -1

W new = Wold - p

When e = 0

W new = Wold

Simplifing

W new = Wold + λ * ep

b new = bold + e

λ is the learning rate ( = 1 for the perceptron).

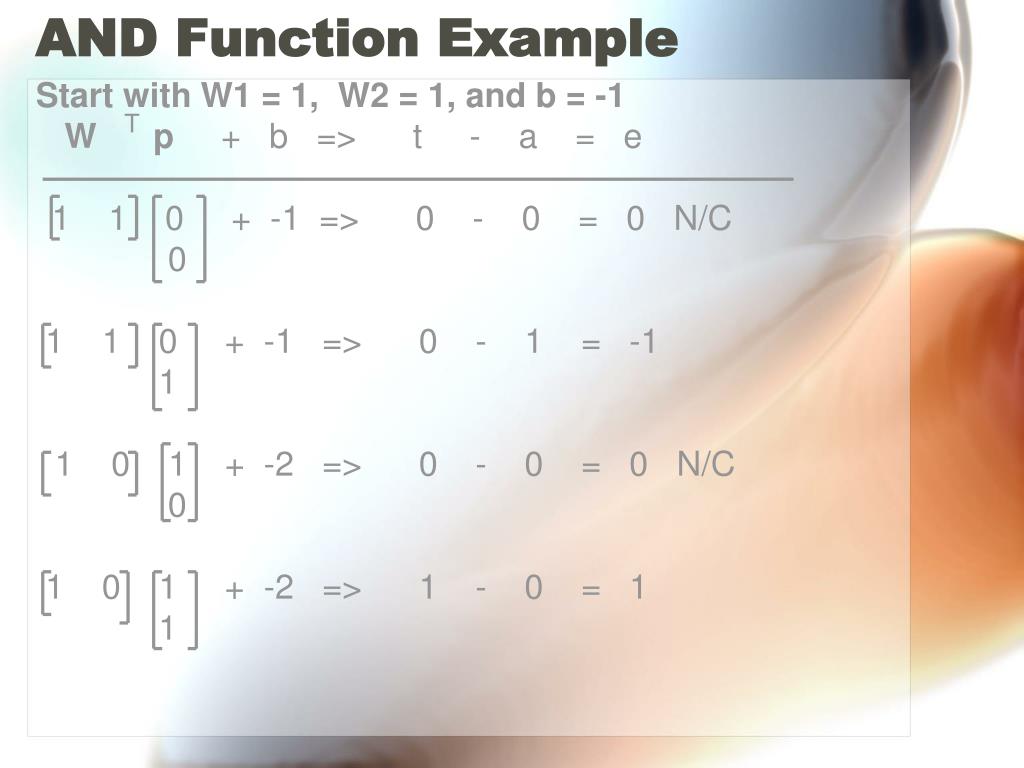

and function example
AND Function Example

Start with W1 = 1, W2 = 1, and b = -1

Wp + b => t - a = e

1 1 0 + -1 => 0 - 0 = 0 N/C

0

1 1 0 + -1 => 0 - 1 = -1

1

1 0 1 + -2 => 0 - 0 = 0 N/C

0

1 0 1 + -2 => 1 - 0 = 1

1

T

slide20

T

W p + b => t - a = e

2 1 0 + -1 => 0 - 0 = 0 N/C

0

2 1 0 + -1 => 0 - 1 = -1

1

2 0 1 + -2 => 0 - 1 = -1

0

1 0 1 + -3 => 1 - 0 = 1

1

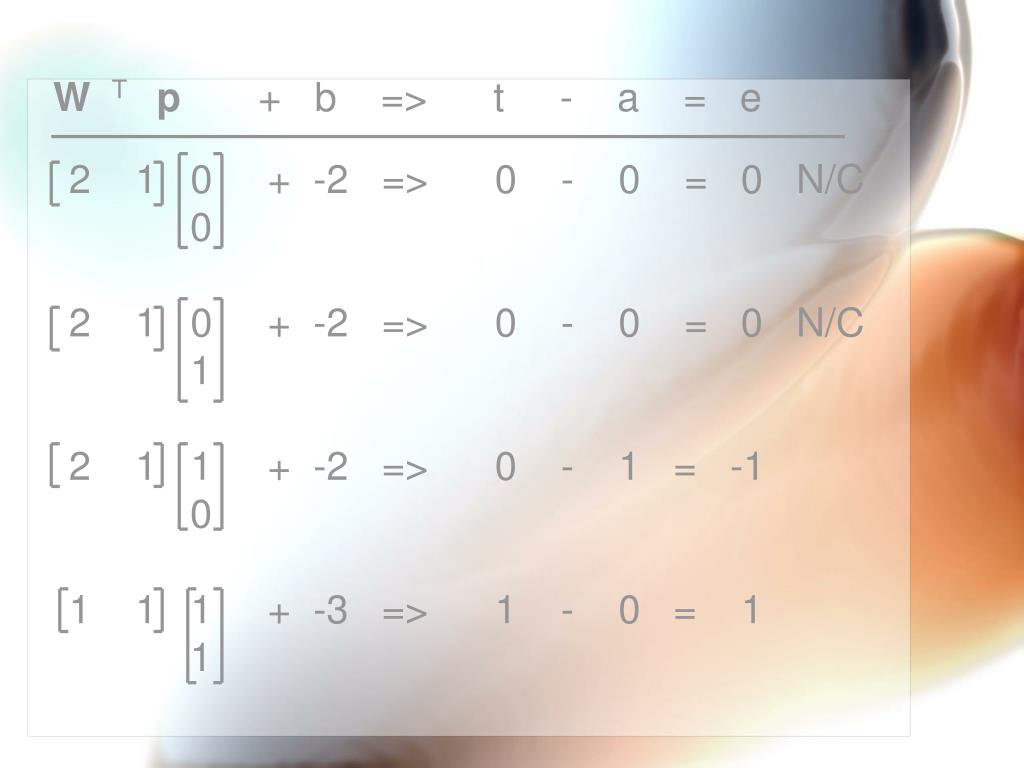

slide21

T

W p + b => t - a = e

2 1 0 + -2 => 0 - 0 = 0 N/C

0

2 1 0 + -2 => 0 - 0 = 0 N/C

1

2 1 1 + -2 => 0 - 1 = -1

0

1 1 1 + -3 => 1 - 0 = 1

1

slide22

T

W p + b => t - a = e

2 2 0 + -2 => 0 - 0 = 0 N/C

0

2 2 0 + -2 => 0 - 1 = -1

1

2 1 1 + -3 => 0 - 0 = 0 N/C

0

2 1 1 + -3 => 1 - 1 = 0 N/C

1

slide23

T

W p + b => t - a = e

2 1 0 + -3 => 0 - 0 = 0 N/C

0

2 1 0 + -3 => 0 - 0 = 0 N/C

1 Done !

2

p1

Σ

f()

1

p2

Hardlim()

-3

xor function
XOR Function

Truth Table

X Y Z = (X and not Y) or (not X and Y)

0 0 0

0 1 1

1 0 1

1 1 0

1

0

No single decision boundary can separate the favorable and unfavorable outcomes.

x

Circuit Diagram

y

z

We will need a more complicated neural net to realize this function

xor function multilayer perceptron
XOR Function – Multilayer Perceptron

x

W1

Σ

f1()

W5

W4

b11

W2

b2

f()

b12

y

Σ

W6

W3

f1()

z

Z = f (W5*f1(W1*x + W4*y+b11) +W6*f1(W2*x + W3*y+b12)+b2)

Weights of the neural net are independent of each other, so that we can compute the partial derivatives of z with respect to the weights of the network.

i.e. δz / δW1, δz / δW2, δz / δW3,

δz / δW4, δz / δW5, δz / δW6

back propagation diagram
Back Propagation Diagram

Neural Networks and Logistic Regression by Lucila Ohno-Machado

Decision Systems Group, Brigham and Women’s Hospital, Department of Radiology

back propagation algorithm

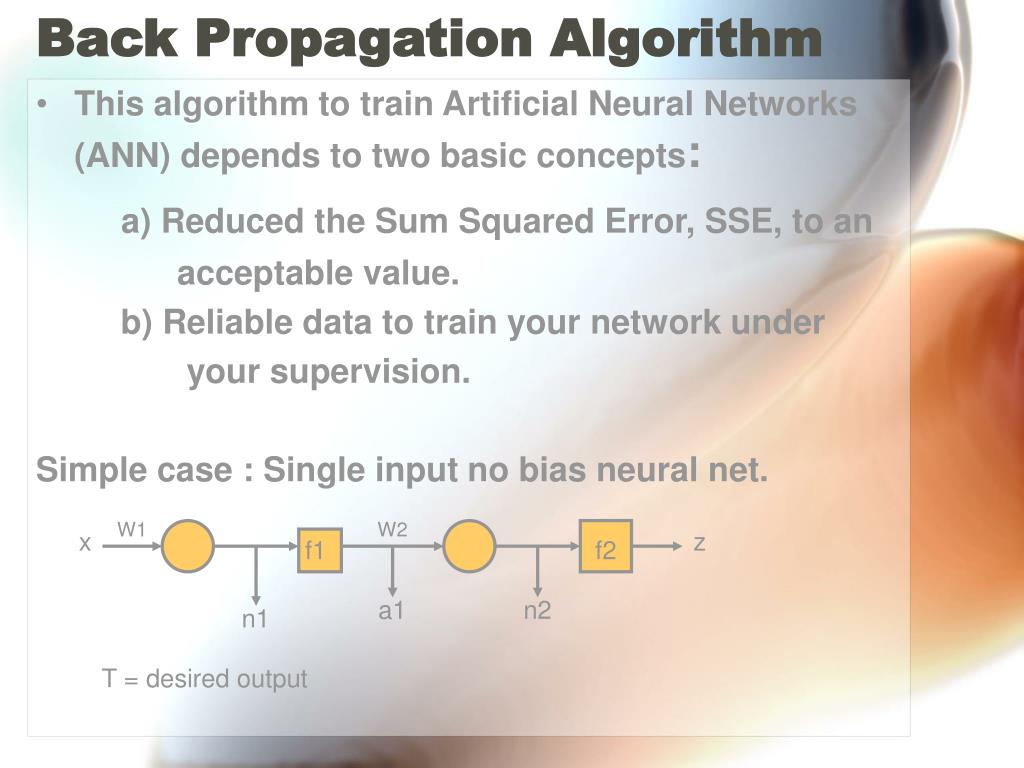

Back Propagation Algorithm
  • This algorithm to train Artificial Neural Networks (ANN) depends to two basic concepts:

a) Reduced the Sum Squared Error, SSE, to an

acceptable value.

b) Reliable data to train your network under

your supervision.

Simple case : Single input no bias neural net.

W1

W2

x

z

f1

f2

a1

n2

n1

T = desired output

bp equations
BP Equations

n1 = W1 * x

a1 = f1(n1) = f1(W1 * x)

n2 = W2 * a1 = W2 * f1(n1) = W2 * f1(W1 * x)

z = f2(n2) = f2(W2 * f1(W1 * x))

SSE = ½ (z – T)

Lets now take the partial derivatives

δSSE/ δW2 = (z - T) * δ(z - T)/ δW2 = (z – T) * δz/ δW2

= (z - T) * δf2(n2)/δW2

Chain Rule

δf2(n2)/δW2 = (δf2(n2)/δn2)* (δn2/δW2)

= (δf2(n2)/δn2)* a1

δSSE/ δW2 = (z - T) * (δf2(n2)/δn2)* a1

Define λto our learning rate (0 < λ< 1, typical λ= 0.2)

Compute our new weight:

W2(k+1) = W2(k) - λ(δSSE/ δW2)

= W2(k) - λ((z - T) * (δf2(n2)/δn2)* a1)

2

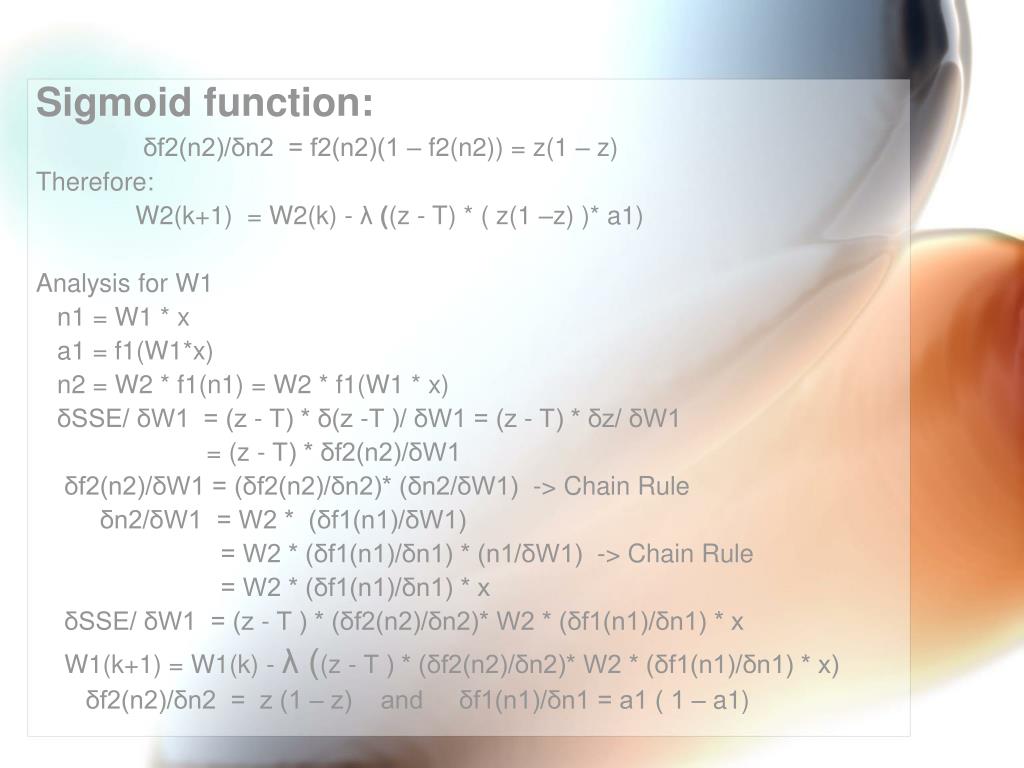

slide29
Sigmoid function:

δf2(n2)/δn2 = f2(n2)(1 – f2(n2)) = z(1 – z)

Therefore:

W2(k+1) = W2(k) - λ ((z - T) * ( z(1 –z) )* a1)

Analysis for W1

n1 = W1 * x

a1 = f1(W1*x)

n2 = W2 * f1(n1) = W2 * f1(W1 * x)

δSSE/ δW1 = (z - T) * δ(z -T )/ δW1 = (z - T) * δz/ δW1

= (z - T) * δf2(n2)/δW1

δf2(n2)/δW1 = (δf2(n2)/δn2)* (δn2/δW1) -> Chain Rule

δn2/δW1 = W2 * (δf1(n1)/δW1)

= W2 * (δf1(n1)/δn1) * (n1/δW1) -> Chain Rule

= W2 * (δf1(n1)/δn1) * x

δSSE/ δW1 = (z - T ) * (δf2(n2)/δn2)* W2 * (δf1(n1)/δn1) * x

W1(k+1) = W1(k) - λ ((z - T ) * (δf2(n2)/δn2)* W2 * (δf1(n1)/δn1) * x)

δf2(n2)/δn2 = z (1 – z) and δf1(n1)/δn1 = a1 ( 1 – a1)

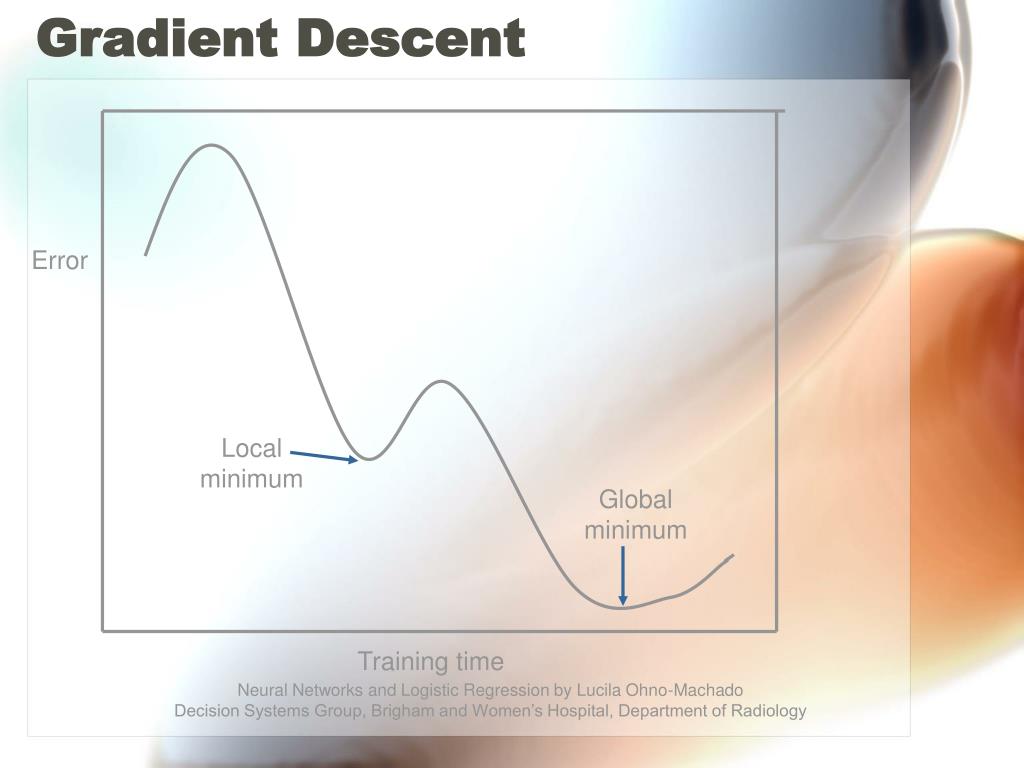

gradient descent
Gradient Descent

Error

Local minimum

Global minimum

Training time

Neural Networks and Logistic Regression by Lucila Ohno-Machado

Decision Systems Group, Brigham and Women’s Hospital, Department of Radiology

2 d diagram of gradient descent
2-D Diagram of Gradient Descent

Source : Back Propagation algorithm by Olena Lobunets

www.essex.ac.uk/ccfea/Courses/ workshops03-04/Workshop4/Workshop%204.ppt

learning by example
Learning by Example
  • Training Algorithm: backpropagation of errors using gradient descent training.
  • Colors:
    • Red: Current weights
    • Orange: Updated weights
    • Black boxes: Inputs and outputs to a neuron
    • Blue: Sensitivities at each layer

Source : A Brief Overview of Neural Networks

Rohit Dua, Samuel A. Mulder, Steve E. Watkins, and Donald C. Wunsch

campus.umr.edu/smartengineering/ EducationalResources/Neural_Net.ppt

first pass
First Pass

0.6225

0.6225

0.6508

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.6225

0.6225

0.6508

Gradient of the output neuron = slope of the transfer function × error

G1= (0.6225)(1-0.6225)(0.0397)(0.5)(2)=0.0093

G2= (0.6508)(1-0.6508)(0.3492)(0.5)=0.0397

0.6508

1

0.6508

G3=(1)(0.3492)=0.3492

Gradient of the neuron= G =slope of the transfer function×[Σ{(weight of the neuron to the next neuron) × (output of the neuron)}]

Error=1-0.6508=0.3492

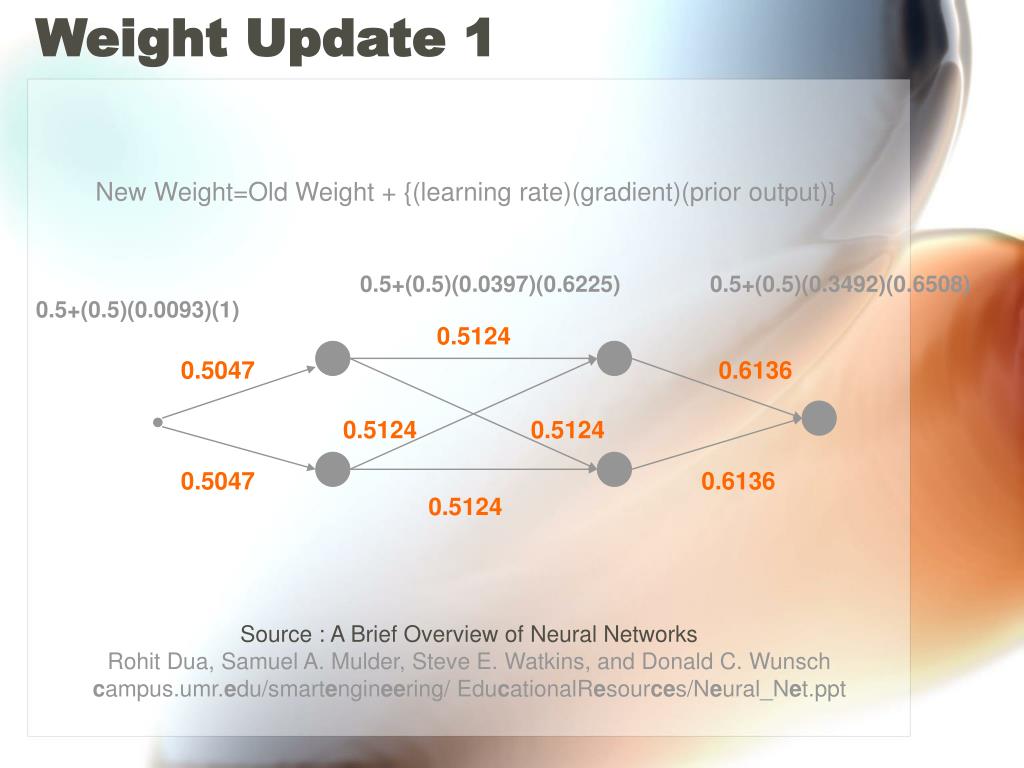

weight update 1
Weight Update 1

New Weight=Old Weight + {(learning rate)(gradient)(prior output)}

0.5+(0.5)(0.0397)(0.6225)

0.5+(0.5)(0.3492)(0.6508)

0.5+(0.5)(0.0093)(1)

0.5124

0.5047

0.6136

0.5124

0.5124

0.5047

0.6136

0.5124

Source : A Brief Overview of Neural Networks

Rohit Dua, Samuel A. Mulder, Steve E. Watkins, and Donald C. Wunsch

campus.umr.edu/smartengineering/ EducationalResources/Neural_Net.ppt

second pass

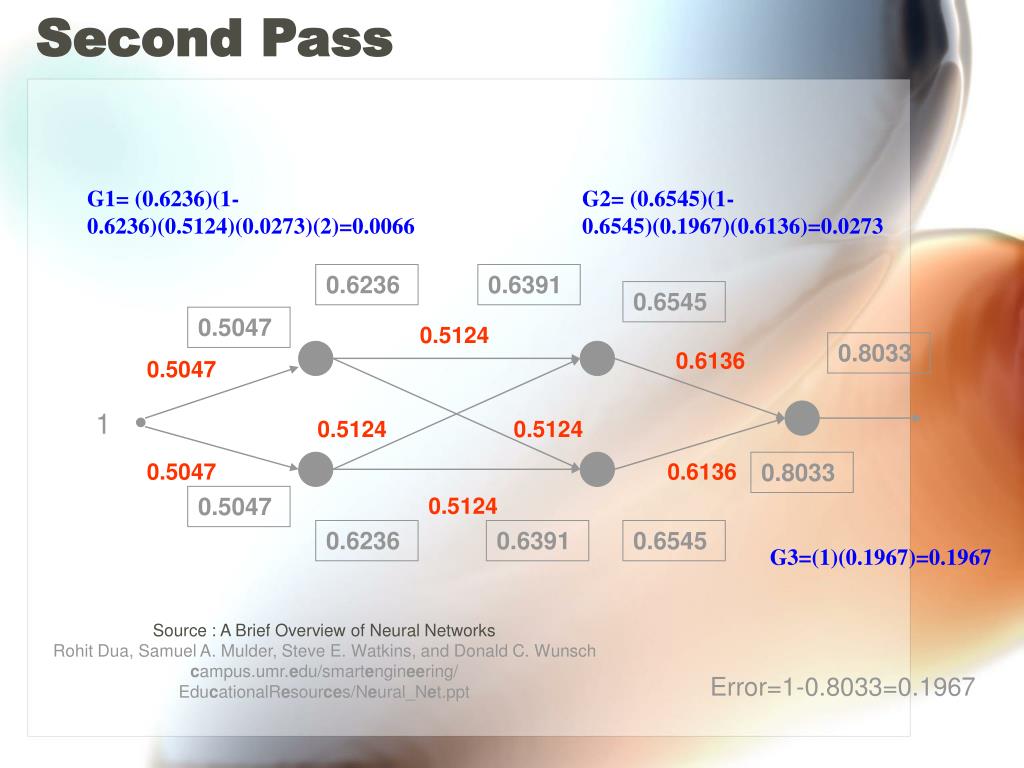

Second Pass

0.6236

0.6391

0.6545

0.5047

0.5124

0.6136

0.5047

0.5124

0.5124

0.5047

0.6136

0.5047

0.5124

0.6236

0.6391

0.6545

G1= (0.6236)(1-0.6236)(0.5124)(0.0273)(2)=0.0066

G2= (0.6545)(1-0.6545)(0.1967)(0.6136)=0.0273

0.8033

1

0.8033

G3=(1)(0.1967)=0.1967

Source : A Brief Overview of Neural Networks

Rohit Dua, Samuel A. Mulder, Steve E. Watkins, and Donald C. Wunsch

campus.umr.edu/smartengineering/ EducationalResources/Neural_Net.ppt

Error=1-0.8033=0.1967

weight update 2
Weight Update 2

New Weight=Old Weight + {(learning rate)(gradient)(prior output)}

0.5124+(0.5)(0.0273)(0.6236)

0.6136+(0.5)(0.1967)(0.6545)

0.5047+(0.5)(0.0066)(1)

0.5209

0.508

0.6779

0.5209

0.5209

0.508

0.6779

0.5209

Source : A Brief Overview of Neural Networks

Rohit Dua, Samuel A. Mulder, Steve E. Watkins, and Donald C. Wunsch

campus.umr.edu/smartengineering/ EducationalResources/Neural_Net.ppt

third pass
Third Pass

0.6571

0.508

0.508

0.6571

0.6243

0.6504

0.5209

0.8909

0.6779

0.508

1

0.5209

0.5209

0.508

0.6779

0.5209

0.8909

0.6243

0.6504

Source : A Brief Overview of Neural Networks

Rohit Dua, Samuel A. Mulder, Steve E. Watkins, and Donald C. Wunsch

campus.umr.edu/smartengineering/ EducationalResources/Neural_Net.ppt

weight update summary
Weight Update Summary

W1: Weights from the input to the input layer

W2: Weights from the input layer to the hidden layer

W3: Weights from the hidden layer to the output layer

Source : A Brief Overview of Neural Networks

Rohit Dua, Samuel A. Mulder, Steve E. Watkins, and Donald C. Wunsch

campus.umr.edu/smartengineering/ EducationalResources/Neural_Net.ppt

ecg interpretation
ECG Interpretation

Neural Networks and Logistic Regression by Lucila Ohno-Machado

Decision Systems Group, Brigham and Women’s Hospital, Department of Radiology

other applications of ann
Other Applications of ANN

Lip Reading Using Artificial Neural Network

Ahmad Khoshnevis, Sridhar Lavu, Bahar Sadeghi

and Yolanda Tsang ELEC502 Course Project

www-dsp.rice.edu/~lavu/research/doc/502lavu.ps

AI Techniques in Power Electronics and DrivesDr. Marcelo G. Simões Colorado School of Mines

egweb.mines.edu/msimoes/tutorial

Car Classification with Neural Networks

Koichi Sato & Sangho Park

hercules.ece.utexas.edu/course/ ee380l/1999sp/present/carclass.ppt

Face Detection and Neural Networks

Todd Wittman

www.ima.umn.edu/~whitman/faces/face_detection2.ppt

A Neural Network for Detecting and Diagnosing Tornadic Circulations

V Lakshmanan, Gregory Stumpf, Arthur Wittwww.cimms.ou.edu/~lakshman/Papers/mdann_talk.ppt

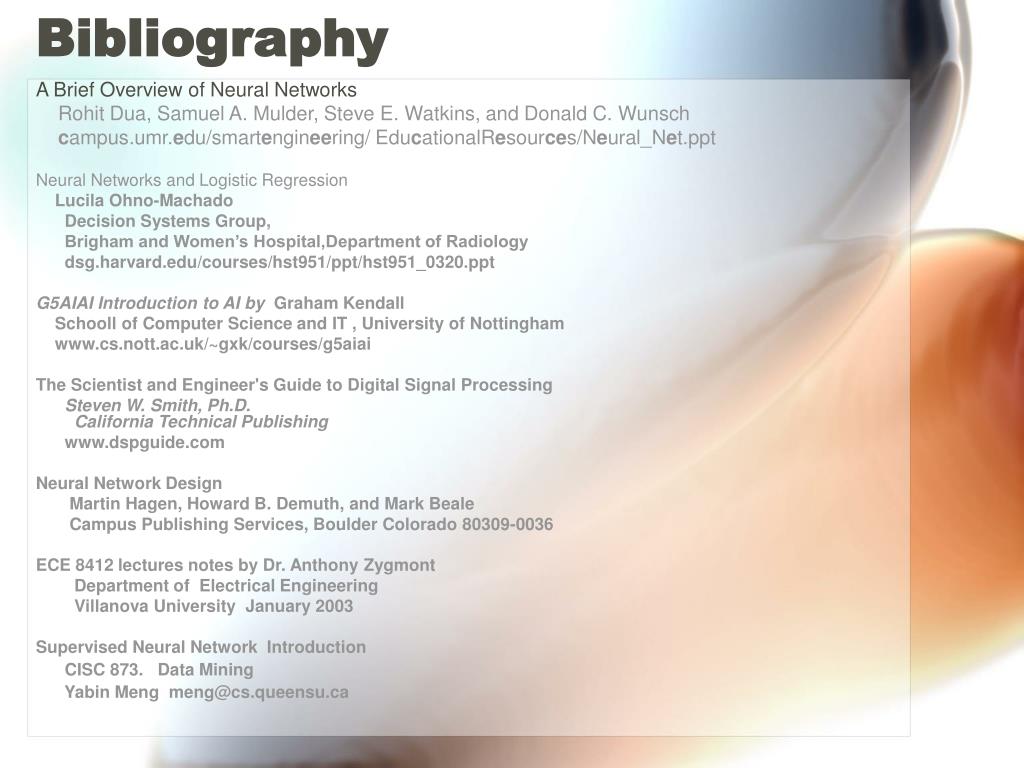

bibliography
Bibliography

A Brief Overview of Neural Networks

Rohit Dua, Samuel A. Mulder, Steve E. Watkins, and Donald C. Wunsch

campus.umr.edu/smartengineering/ EducationalResources/Neural_Net.ppt

Neural Networks and Logistic Regression

Lucila Ohno-Machado

Decision Systems Group,

Brigham and Women’s Hospital,Department of Radiology

dsg.harvard.edu/courses/hst951/ppt/hst951_0320.ppt

G5AIAI Introduction to AI by Graham Kendall

Schooll of Computer Science and IT , University of Nottingham

www.cs.nott.ac.uk/~gxk/courses/g5aiai

The Scientist and Engineer's Guide to Digital Signal Processing

Steven W. Smith, Ph.D.California Technical Publishing

www.dspguide.com

Neural Network Design

Martin Hagen, Howard B. Demuth, and Mark Beale

Campus Publishing Services, Boulder Colorado 80309-0036

ECE 8412 lectures notes by Dr. Anthony Zygmont

Department of Electrical Engineering

Villanova University January 2003

Supervised Neural Network Introduction

CISC 873. Data Mining

Yabin Meng meng@cs.queensu.ca
