Presentation Transcript
Adaptive optimization in the jalape o jvm l.jpg

Adaptive Optimization in the Jalapeño JVM

Matthew Arnold

Stephen Fink

David Grove

Michael Hind

Peter F. Sweeney

Presentation by Michael Bond


Talk overview l.jpg
Talk overview

  • Introduction: Background & Jalapeño JVM

  • Adaptive Optimization System (AOS)

  • Multi-level recompilation

  • Miscellaneous issues

  • Feedback-directed inlining

  • Conclusion


Background l.jpg
Background

  • Three waves of JVMs:

    • First: Compile method when first encountered; use fixed set of optimizations

    • Second: Determine hot methods dynamically and compile them with more advanced optimizations

    • Third: Feedback-directed optimizations

  • Jalapeño JVM targets third wave, but current implementation is second wave


Jalape o jvm l.jpg
Jalapeño JVM

  • Written in Java (core services precompiled to native code in boot image)

  • Compiles at four levels: baseline, 0, 1, & 2

    • Why three levels of optimization?

  • Compile-only strategy (no interpretation)

    • Advantages? Disadvantages?

  • Yield points for quasi-preemptive switching

    • Advantages? (Disadvantages later)


Talk progress l.jpg
Talk progress

  • Introduction: Background & Jalapeño JVM

  • Adaptive Optimization System (AOS)

  • Multi-level recompilation

  • Miscellaneous issues

  • Feedback-directed inlining

  • Conclusion



Aos design l.jpg

“Distributed, asynchronous, object-oriented design” useful for managing lots of data, say authors

Each successive pipeline (from raw data to compilation decisions) performs increasingly complex analysis on decreasing amounts of data

AOS: Design


Talk progress8 l.jpg
Talk progress useful for managing lots of data, say authors

  • Introduction: Background & Jalapeño JVM

  • Adaptive Optimization System (AOS)

  • Multi-level recompilation

  • Other issues

  • Feedback-directed inlining

  • Conclusion


Multi level recompilation l.jpg
Multi-level recompilation useful for managing lots of data, say authors


Multi level recompilation sampling l.jpg
Multi-level recompilation: useful for managing lots of data, say authorsSampling

  • Sampling occurs on thread switch

  • Thread switch triggered by clock interrupt

  • Thread switch can occur only at yield points

  • Yield points are method invocations and loop back edges

  • Discussion: Is this approach biased?


Multi level recompilation biased sampling l.jpg
Multi-level recompilation: useful for managing lots of data, say authorsBiased sampling

Short method

Code with no method calls or back edges

Long method

method call

method call


Multi level recompilation cost benefit analysis l.jpg
Multi-level recompilation: Cost-benefit analysis useful for managing lots of data, say authors

  • Method m compiled at level i; estimate:

    • Ti, expected time program will spend executing m if m not recompiled

    • Cj, the cost of recompiling m at optimization level j, for i ≤ j ≤ N.

    • Tj, expected time program will spend executing method m if m recompiled at level j.

    • If, for best j, Cj + Tj < Ti, recompile m at level j.


Multi level recompilation cost benefit analysis continued l.jpg
Multi-level recompilation: Cost-benefit analysis (continued) useful for managing lots of data, say authors

  • Estimate Ti :

    Ti = Tf * Pm

  • Tf is the future running time of the program

  • We estimate that the program will run for as long as it has run so far

    • Reasonable assumption?


Multi level recompilation cost benefit analysis continued14 l.jpg
Multi-level recompilation: Cost-benefit analysis (continued) useful for managing lots of data, say authors

  • Pm is the percentage of Tf spent in m

    Pm estimated from sampling

  • Sample frequencies decay over time.

  • Why is this a good idea?

  • Could it be a disadvantage in certain cases?


Multi level recompilation cost benefit analysis continued15 l.jpg
Multi-level recompilation: Cost-benefit analysis (continued) useful for managing lots of data, say authors

  • Statically-measured speedups Si and Si used to determine Tj:

    Tj = Ti * Si / Sj

  • Statically-measured speedups?!

  • Is there any way to do better?


Multi level recompilation cost benefit analysis continued16 l.jpg
Multi-level recompilation: Cost-benefit analysis (continued) useful for managing lots of data, say authors

  • Cj (cost of recompilation) estimated using a linear model of speed for each optimization level:

    Cj = aj * size(m), where aj = constant for level j

  • Is it reasonable to assume a linear model?

  • OK to use statically-determined aj?


Multi level recompilation results l.jpg
Multi-level recompilation: useful for managing lots of data, say authorsResults


Multi level recompilation results continued l.jpg
Multi-level recompilation: useful for managing lots of data, say authorsResults (continued)


Multi level recompilation discussion l.jpg
Multi-level recompilation: Discussion useful for managing lots of data, say authors

  • Adaptive multi-level compilation does better than JIT at any level in short term.

  • But in the long run, performance is slightly worse than JIT compilation.

  • The primary target is server applications, which tend to run for a long time.


Multi level recompilation discussion continued l.jpg
Multi-level recompilation: Discussion (continued) useful for managing lots of data, say authors

  • So what’s so great about Jalapeño’s AOS?

  • Current AOS implementation gives good results for both short and long term – JIT compiler can’t do both cases well because optimization level is fixed.

  • The AOS can be extended to support feedback-directed optimizations such as

    • fragment creation (i.e., Dynamo)

    • determining if an optimization was effective


Talk progress21 l.jpg
Talk progress useful for managing lots of data, say authors

  • Introduction: Background & Jalapeño JVM

  • Adaptive Optimization System (AOS)

  • Multi-level recompilation

  • Miscellaneous issues

  • Feedback-directed inlining

  • Conclusion


Miscellaneous issues multiprocessing l.jpg
Miscellaneous issues: useful for managing lots of data, say authorsMultiprocessing

  • Authors say that if a processor is idle, recompilation can be done almost for free.

  • Why almost for free?

  • Are there situations when you could get free recompilation on a uniprocessor?


Slide23 l.jpg

You’re so useful for managing lots of data, say authorshot!

Adaptively optimize me all night long!

AOS Controller

Hot method

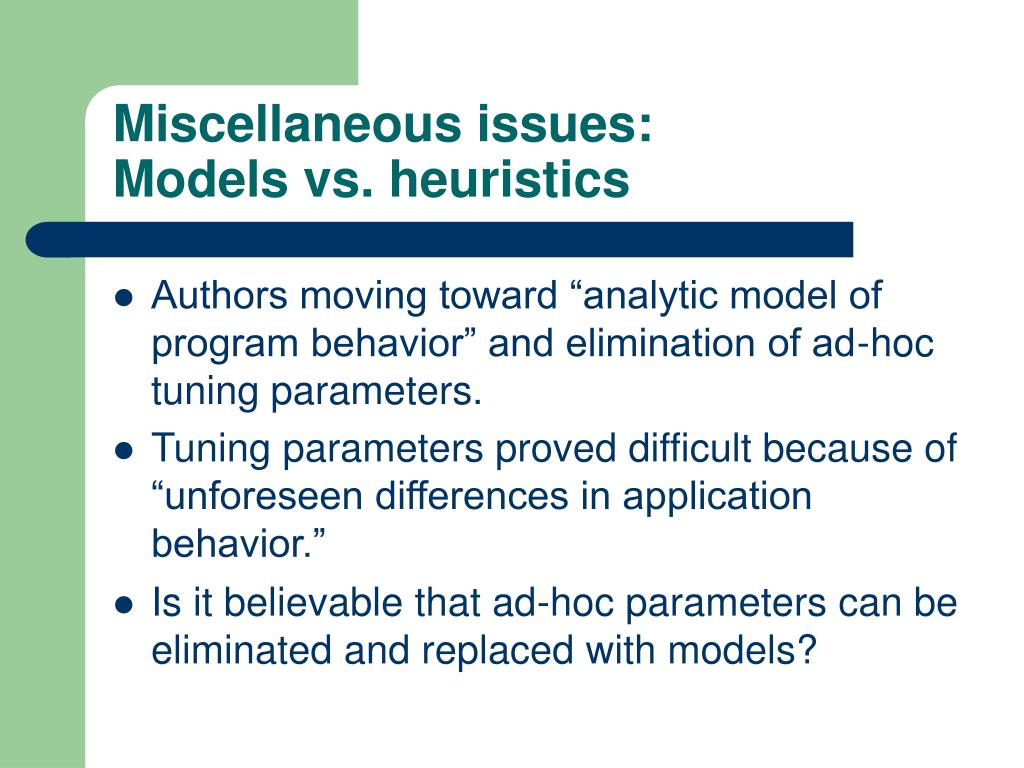

Miscellaneous issues models vs heuristics l.jpg
Miscellaneous issues: useful for managing lots of data, say authorsModels vs. heuristics

  • Authors moving toward “analytic model of program behavior” and elimination of ad-hoc tuning parameters.

  • Tuning parameters proved difficult because of “unforeseen differences in application behavior.”

  • Is it believable that ad-hoc parameters can be eliminated and replaced with models?


Miscellaneous issues more intrusive optimizations l.jpg
Miscellaneous issues: useful for managing lots of data, say authorsMore intrusive optimizations

  • The future of Jalapeño is more intrusive optimizations, such as compiler-inserted instrumentation for profiling

  • Advantages and disadvantages compared with current system?

  • Advantages:

    • Performance gains in the long term

    • Adjusts to phased behavior

  • Disadvantages:

    • Unlike with sampling, you can’t profile all the time

    • Harder to adaptively throttle overhead


Miscellaneous stack frame rewriting l.jpg
Miscellaneous: useful for managing lots of data, say authorsStack frame rewriting

  • In the future, Jalapeño will support rewriting of a baseline stack frame with an optimized stack frame

  • Authors say that rewriting an optimized stack frame with an optimized stack frame is more difficult?

    • Why?


Talk progress27 l.jpg
Talk progress useful for managing lots of data, say authors

  • Introduction: Background & Jalapeño JVM

  • Adaptive Optimization System (AOS)

  • Multi-level recompilation

  • Miscellaneous issues

  • Feedback-directed inlining

  • Conclusion


Feedback directed inlining more cost benefit analysis l.jpg
Feedback-directed inlining: More cost-benefit analysis useful for managing lots of data, say authors

  • Boost factor estimated:

    • Boost factor b is a function of

      • The fraction f of dynamic calls attributed to the call edge in the sampling-approximated call graph

      • Estimate s of the benefit (i.e., speedup) from eliminating virtually all calls from the program

    • Presumably something like b = f * s.


Feedback directed inlining results l.jpg
Feedback-directed inlining: Results useful for managing lots of data, say authors

Why?

Why?


Talk progress30 l.jpg
Talk progress useful for managing lots of data, say authors

  • Introduction: Background & Jalapeño JVM

  • Adaptive Optimization System (AOS)

  • Multi-level recompilation

  • Other issues

  • Feedback-directed inlining

  • Conclusion


Conclusion l.jpg
Conclusion useful for managing lots of data, say authors

  • AOS designed to support feedback-directed optimizations (third wave)

  • Current AOS implementation only supports selective optimizations (second wave)

    • Improves short-term performance without hurting long term

    • Uses mix of cost-benefit model and ad-hoc methods.

  • Future work will use more intrusive performance monitoring (e.g., instrumentation for path profiling, checking that an optimization improved performance)
