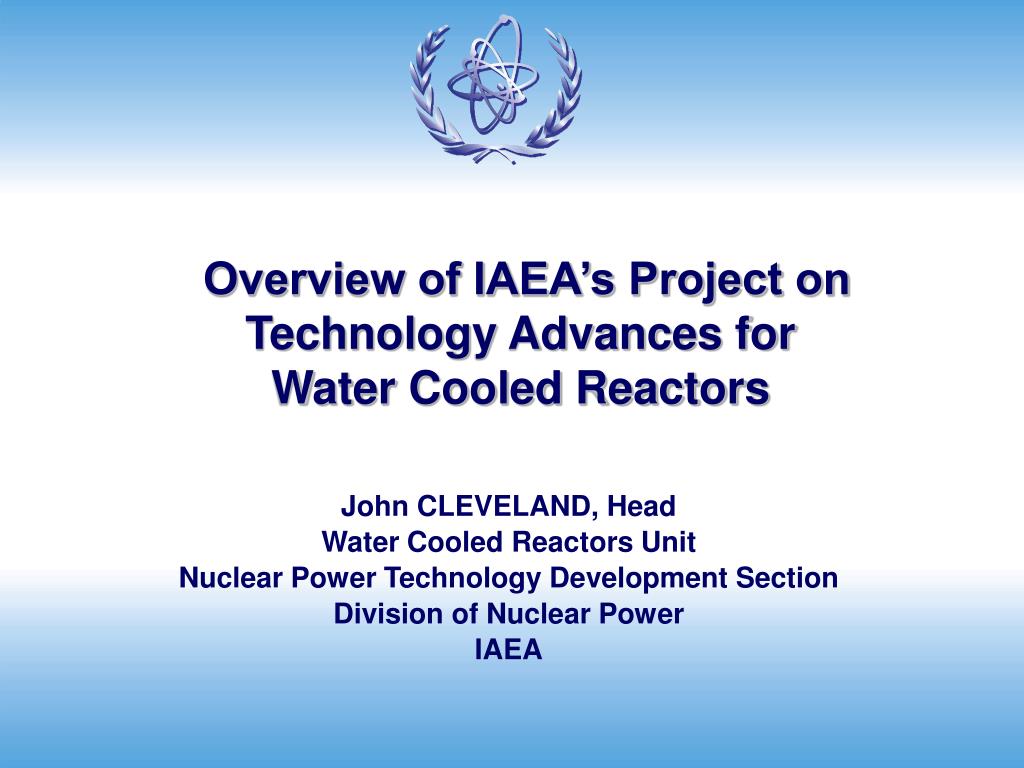

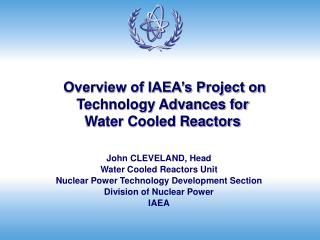

Overview of IAEA’s Project on Technology Advances for Water Cooled Reactors

John CLEVELAND, Head

Water Cooled Reactors Unit

Nuclear Power Technology Development Section

Division of Nuclear Power

IAEA

slide2

IAEA Organization

DIRECTOR GENERAL

Director General

Department of Management

DEPARTMENT OF NUCLEAR ENERGY

Department of Nuclear Energy

Department of Nuclear Safety and Security

Planning and Economic Studies Section

INIS Section

Department of Technical Cooperation

IAEA Library

Department of Nuclear Science and Application

Department of Safeguards

Division of Nuclear Fuel Cycle and Waste Technology

Division of Nuclear Power

DIVISION OF NUCLEAR POWER

Nuclear Fuel Cycle and Materials Section

Waste Technology Section

Nuclear Power Technology Development Section

Nuclear Power Engineering Section

Nuclear Power Engineering Section

background 1 3

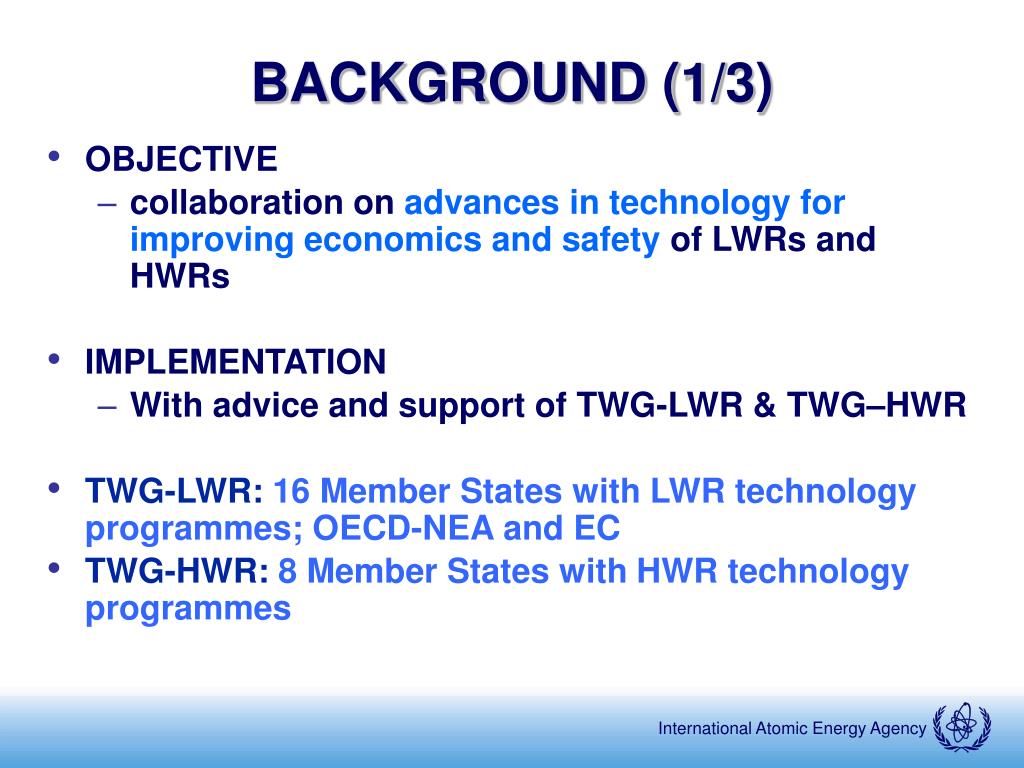

BACKGROUND (1/3)
  • OBJECTIVE
    • collaboration on advances in technology for improving economics and safety of LWRs and HWRs
  • IMPLEMENTATION
    • With advice and support of TWG-LWR & TWG–HWR
  • TWG-LWR: 16 Member States with LWR technology programmes; OECD-NEA and EC
  • TWG-HWR: 8 Member States with HWR technology programmes
background 2 3
BACKGROUND (2/3)

The Terms of Reference have broad scope

  • TWG-LWR:
    • Technology improvements for current LWRs;
    • Designs and technologies for advanced LWRs
    • Economics, performance, safety
  • TWG-HWR:
    • Design and technologies for current and advanced HWRs;
    • Advanced fuel options
    • Economics, performance, safety
background 3 3

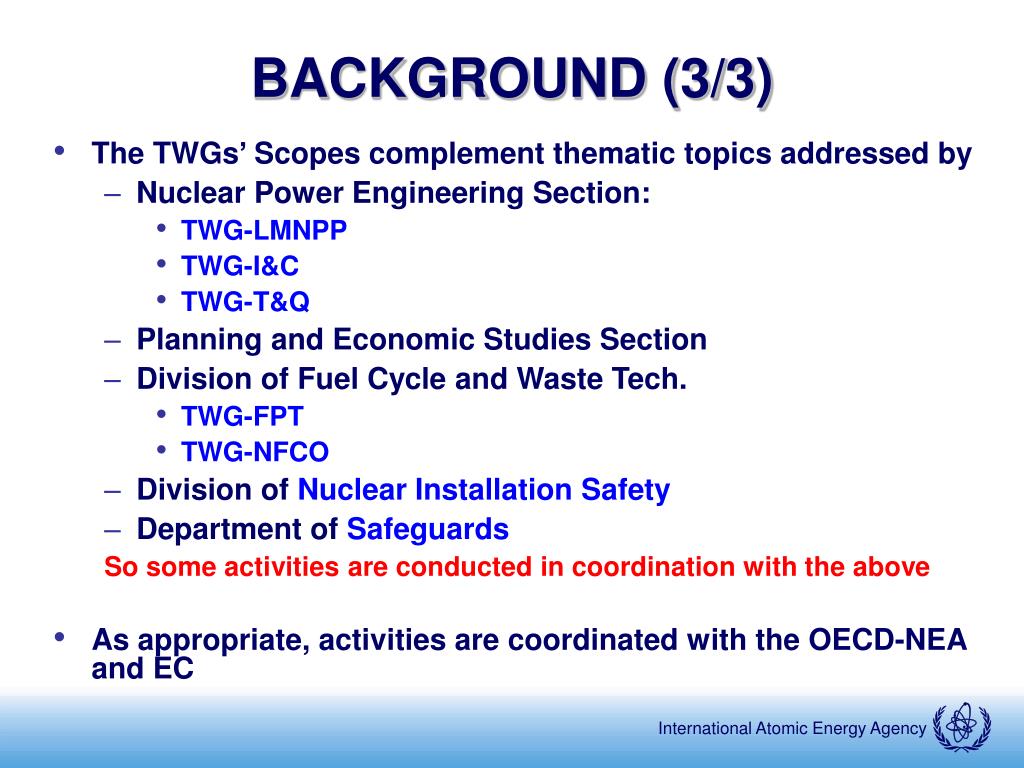

BACKGROUND (3/3)
  • The TWGs’ Scopes complement thematic topics addressed by
    • Nuclear Power Engineering Section:
      • TWG-LMNPP
      • TWG-I&C
      • TWG-T&Q
    • Planning and Economic Studies Section
    • Division of Fuel Cycle and Waste Tech.
      • TWG-FPT
      • TWG-NFCO
    • Division of Nuclear Installation Safety
    • Department of Safeguards

So some activities are conducted in coordination with the above

  • As appropriate, activities are coordinated with the OECD-NEA and EC
the iaea wants twg members to advise and then marshal support for agreed activities jcc

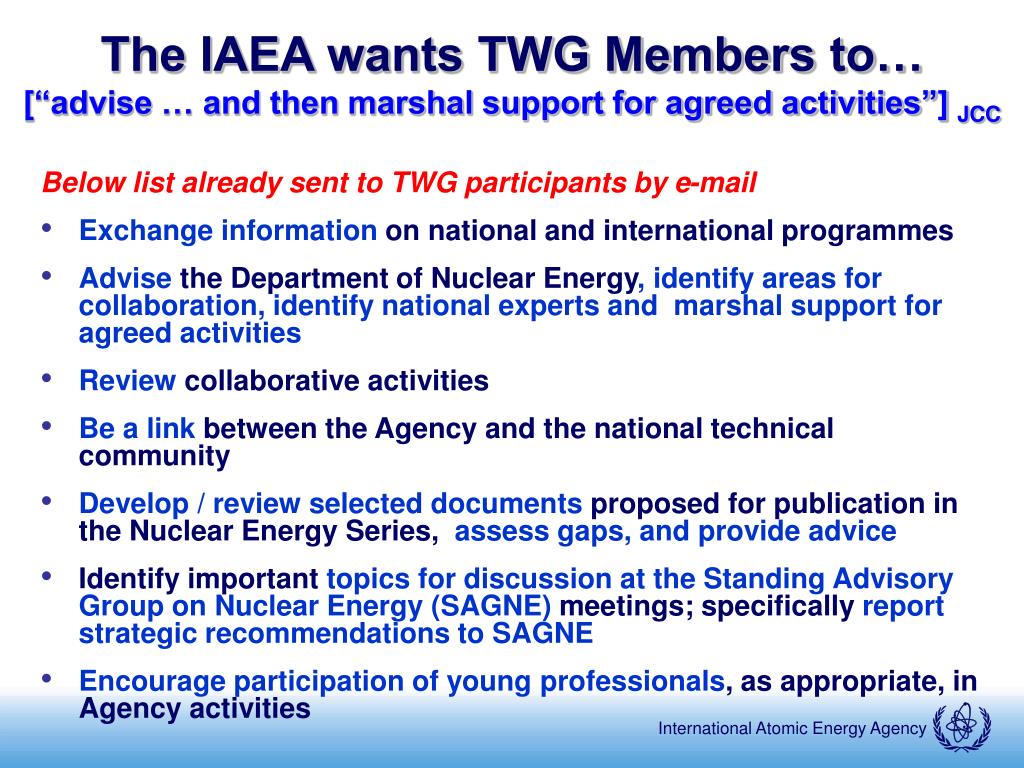

The IAEA wants TWG Members to…[“advise … and then marshal support for agreed activities”] JCC

Below list already sent to TWG participants by e-mail

  • Exchange information on national and international programmes
  • Advise the Department of Nuclear Energy, identify areas for collaboration, identify national experts and marshal support for agreed activities
  • Review collaborative activities
  • Be a link between the Agency and the national technical community
  • Develop / review selected documents proposed for publication in the Nuclear Energy Series, assess gaps, and provide advice
  • Identify important topics for discussion at the Standing Advisory Group on Nuclear Energy (SAGNE) meetings; specifically report strategic recommendations to SAGNE
  • Encourage participation of young professionals, as appropriate, in Agency activities
slide7

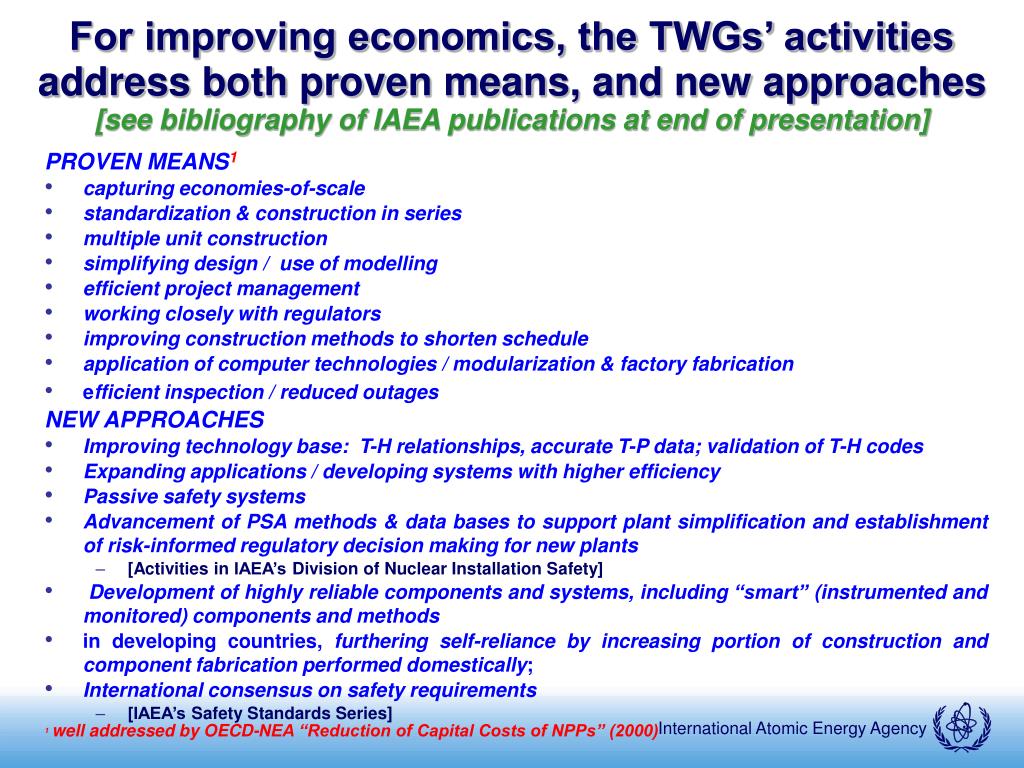

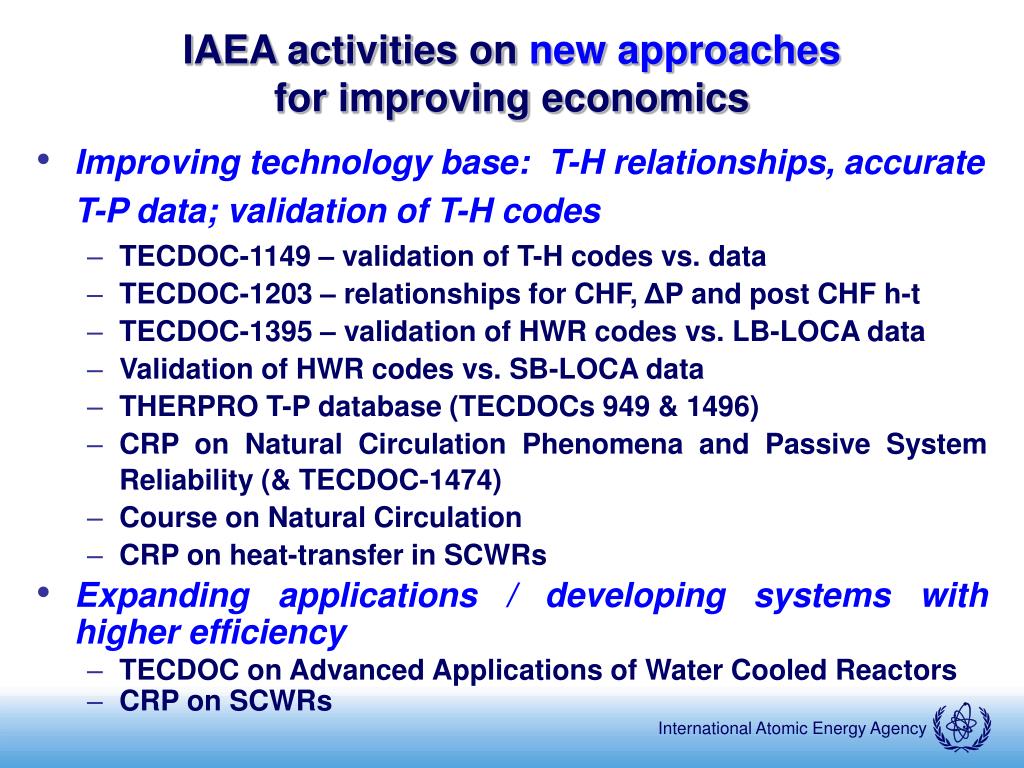

For improving economics, the TWGs’ activities address both proven means, and new approaches[see bibliography of IAEA publications at end of presentation]

PROVEN MEANS1

  • capturing economies-of-scale
  • standardization & construction in series
  • multiple unit construction
  • simplifying design / use of modelling
  • efficient project management
  • working closely with regulators
  • improving construction methods to shorten schedule
  • application of computer technologies / modularization & factory fabrication
  • efficient inspection / reduced outages

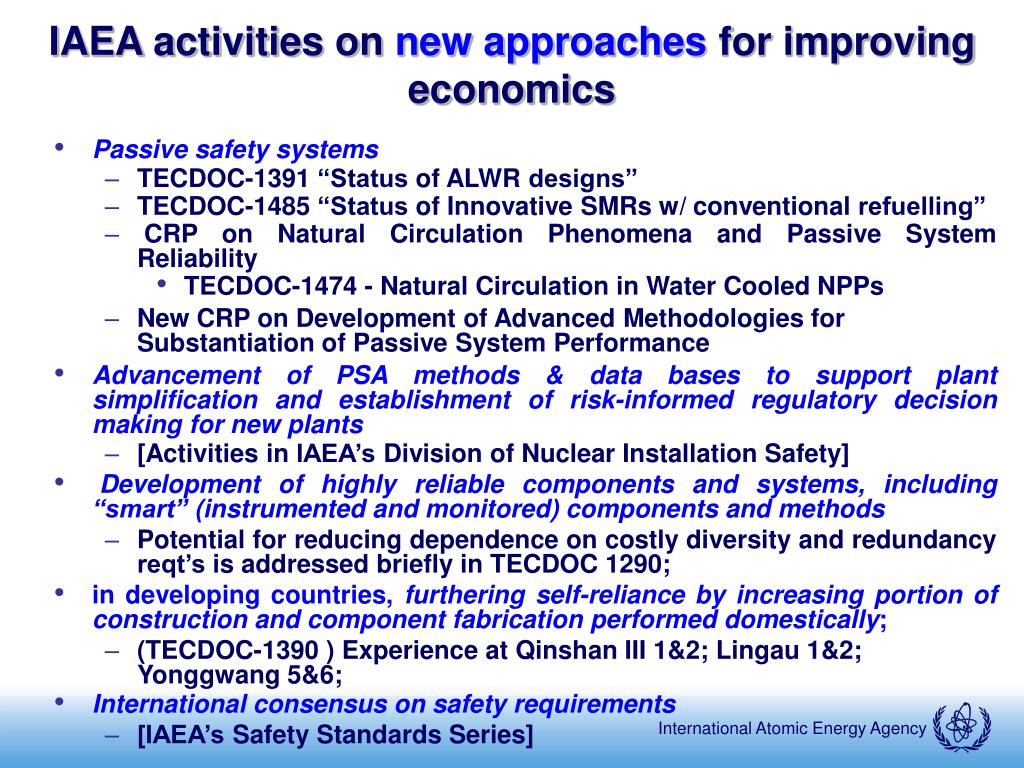

NEW APPROACHES

  • Improving technology base: T-H relationships, accurate T-P data; validation of T-H codes
  • Expanding applications / developing systems with higher efficiency
  • Passive safety systems
  • Advancement of PSA methods & data bases to support plant simplification and establishment of risk-informed regulatory decision making for new plants
    • [Activities in IAEA’s Division of Nuclear Installation Safety]
  • Development of highly reliable components and systems, including “smart” (instrumented and monitored) components and methods
  • in developing countries, furthering self-reliance by increasing portion of construction and component fabrication performed domestically;
  • International consensus on safety requirements
    • [IAEA’s Safety Standards Series]

1well addressed by OECD-NEA “Reduction of Capital Costs of NPPs” (2000)

slide8

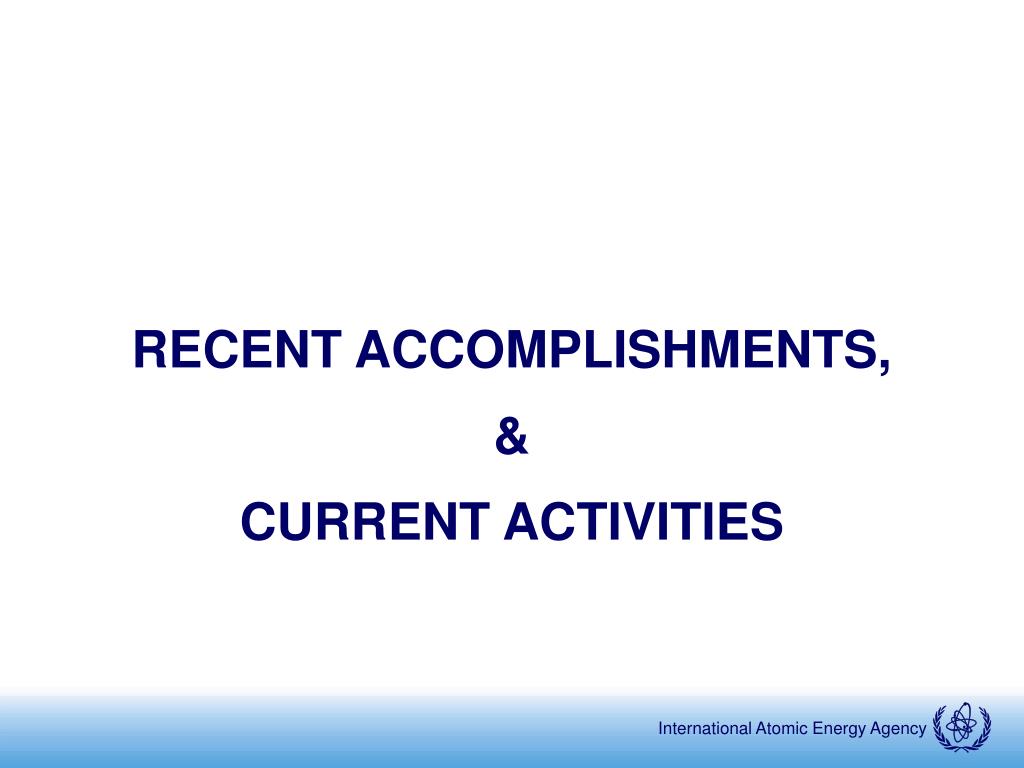

RECENT ACCOMPLISHMENTS,

&

CURRENT ACTIVITIES

crp establishment of a thermo physical properties data base for lwr hwr materials
Joint: TWG-LWR & -HWR & -FPT

DB: www.iaea.org/THERPROManaged by Hanyang Univ. (RoK)

IAEA Staff: S.-G. Moon & A. Pryakhin

» 13000 files:

data tables

experimental techniques

bibliographic information

accessible with password

TECDOC-949 & TECDOC-1496 - new data contributed to the CRP; data reviews & assessments

More contributed data is welcome (data from IPPE is being added)

contact: S.G.Moon@iaea.org

Canada (AECL)

China (NPIC)

Czech Republic (Univ. of West Bohemia)

France (CEA)

India (BARC)

Rep. of Korea (Hanyang Univ. & Seoul National Univ.)

Russian Federation (IPPE & Russian Academy of Sciences)

USA (ANL)

CRP - Establishment of a Thermo-physical Properties Data Base for LWR & HWR Materials
slide10
Argentina (CNEA)

Canada (AECL)

China (RINPO & CNNC)

India (BARC)

Rep. of Korea (KEPRI & KAERI)

Romania (NIRDTP & NNDT)

Special Acknowledgement:

Support for preparing TECDOC-1499: Mr. Joulin (AECL) & Mr. Belinco (CNEA)

Support to this presentation: Mr. Nanekar (BARC)

IAEA Staff: J. Cleveland & J.-H. Choi

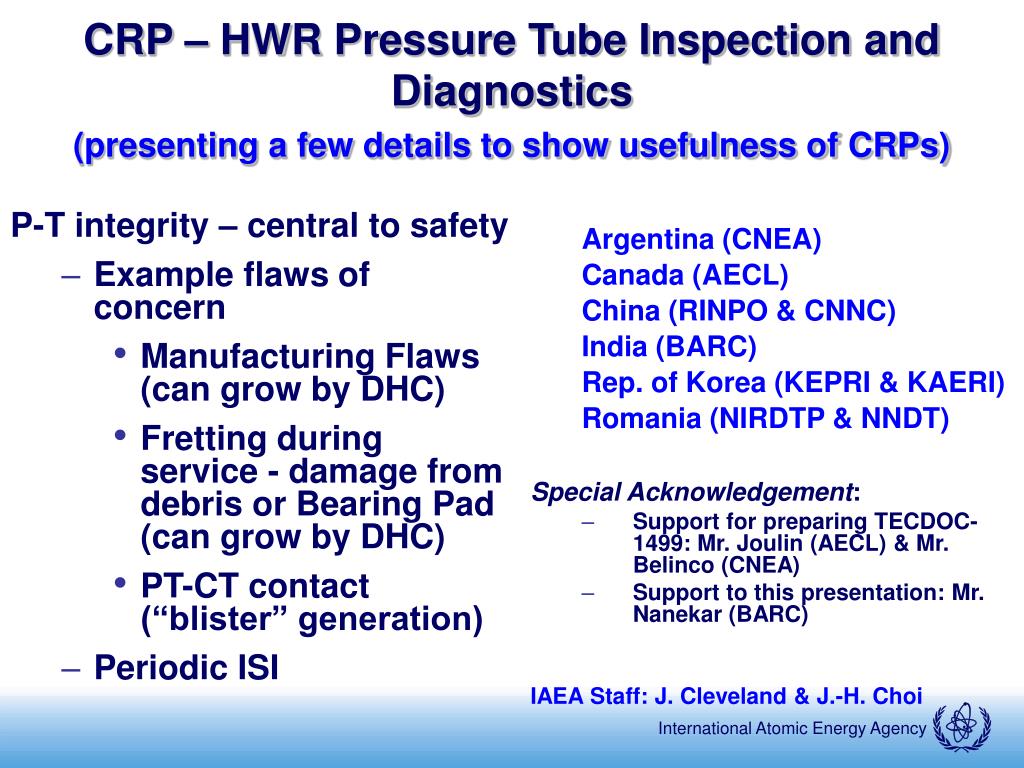

P-T integrity – central to safety

Example flaws of concern

Manufacturing Flaws (can grow by DHC)

Fretting during service - damage from debris or Bearing Pad (can grow by DHC)

PT-CT contact (“blister” generation)

Periodic ISI

CRP – HWR Pressure Tube Inspection and Diagnostics (presenting a few details to show usefulness of CRPs)
crp phases and objectives

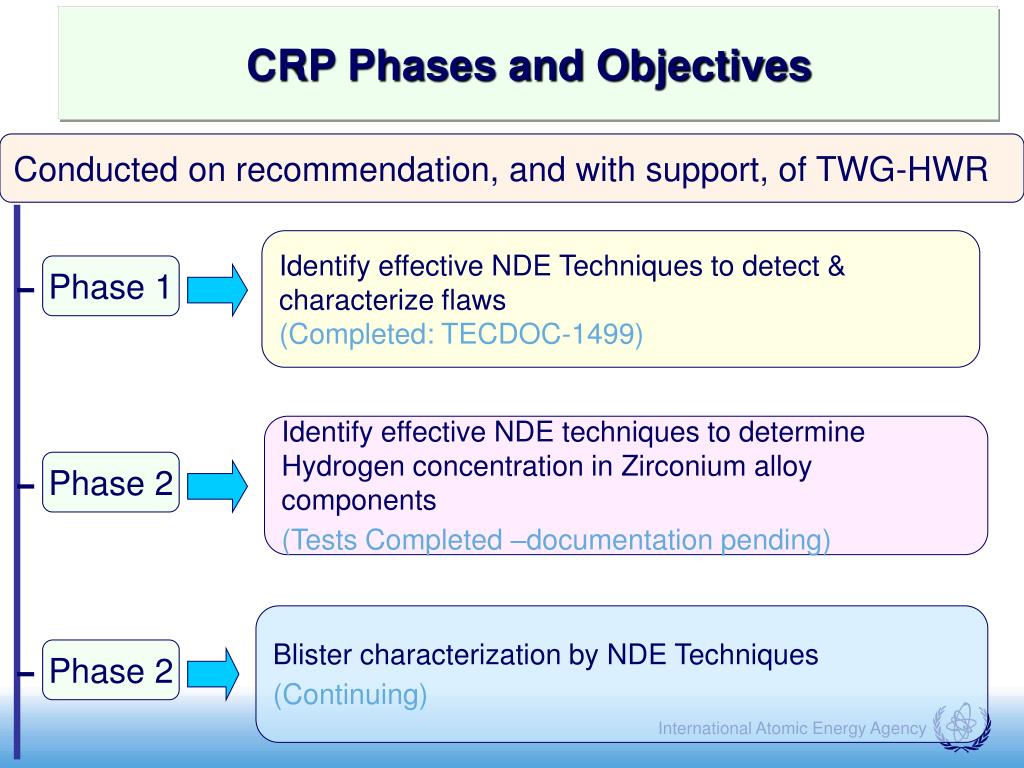

CRP Phases and Objectives

Conducted on recommendation, and with support, of TWG-HWR

Identify effective NDE Techniques to detect &

characterize flaws

(Completed: TECDOC-1499)

Phase 1

Identify effective NDE techniques to determine

Hydrogen concentration in Zirconium alloy

components

(Tests Completed –documentation pending)

Phase 2

Blister characterization by NDE Techniques

(Continuing)

Phase 2

slide12
Phase 1: Round-robin tests of Seven PT specimenwith hidden, well characterized flaws(Photo of Korean sample with flaws on ID of PT )
slide14

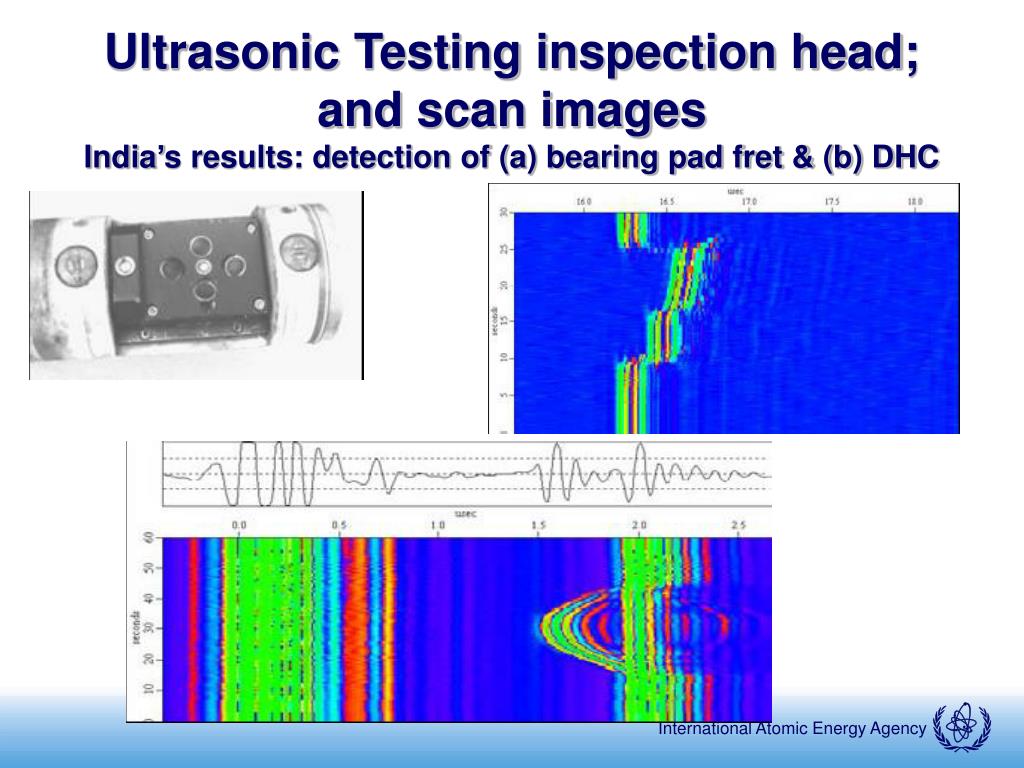

Ultrasonic Testing inspection head; and scan images India’s results: detection of (a) bearing pad fret & (b) DHC
overview phase 1 results some examples
Overview – Phase 1 Results ( some examples)
  • 170 “flaws” in 7 P-T samples underwent Round-Robin analysis
  • All serious flaws were detected
  • The most effective techniques were identified
    • UT for detecting and sizing ID and OD flaws
    • ET for sizing ID flaws and detecting OD flaws
  • Further development needed to determine flaw “tip-radius” – important for predicting if flaw is sharp enough to initiate DHC
  • … other detailed technical results are in TECDOC-1499
npp life management processes guidelines and practices for hwrs
Conducted as activity in TWG-LMNPP Project

Ageing management

Planning LTO (refurbishment & life extension)

Component specific technologies

Argentina (CNEA)

Canada (AECL & CNSC)

India (NPCIL)

Rep. of Korea (KEPRI)

Romania (NIRDTP & NNDT)

IAEA Staff: K.-S. Kang & [J. Cleveland]

NPP Life Management Processes: Guidelines and Practices for HWRs
workshops on npp simulators for education

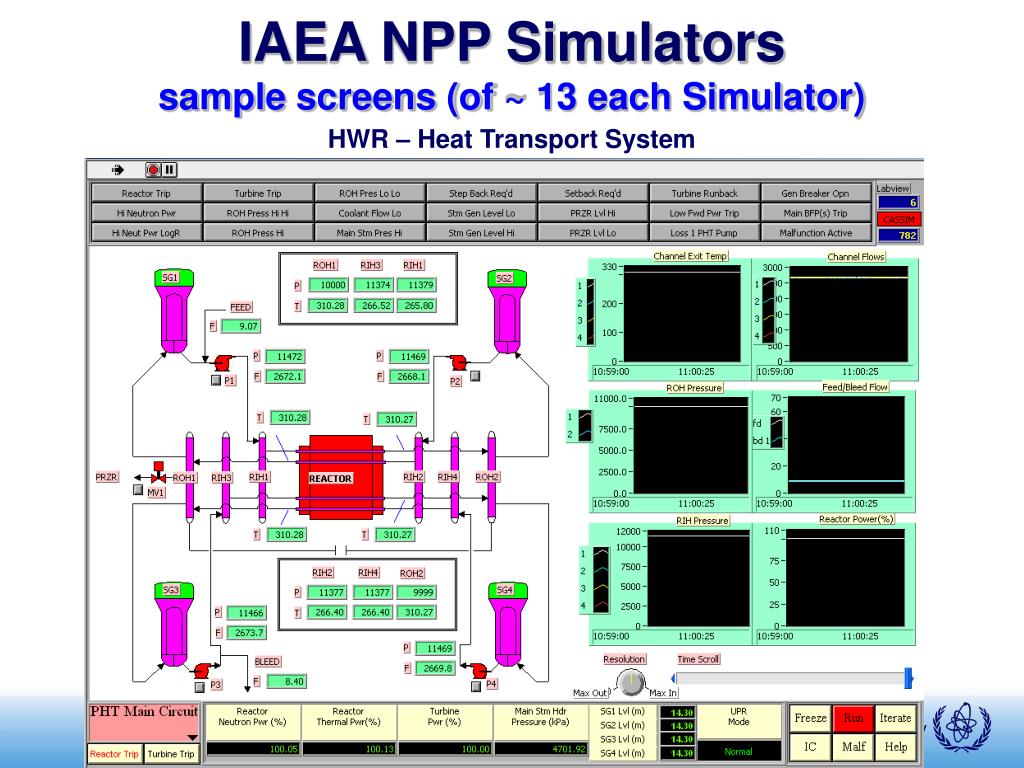

SIMULATORS

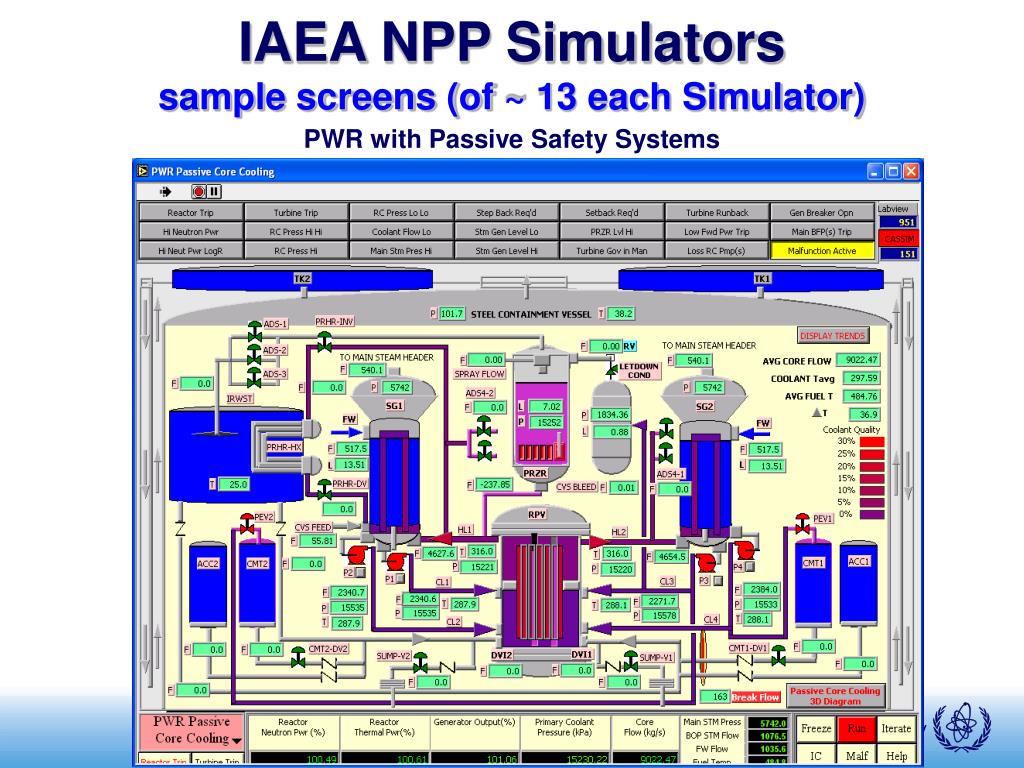

PWR with active safety systems

PWR with passive safety systems

BWR

WWER-1000

HWR

Advanced CANDU

Workshops to train educators

ICTP, Trieste (1997,’99, 2001,’02,’04,’05)

Bucharest (7.2006) [national TC project]

ICTP, Trieste (10.2007)

Demonstrations

2000 (IYNC); 2004 (ANL)

IAEA also distributes Simulators upon request from Missions (5-6 / mo)

Purpose – University level education

IAEA Staff: A. Pryakhin, S.-G. Moon, A. Badulescu & J. Cleveland

Workshops on NPP Simulators for Education
iaea course on natural circulation in water cooled npps
NC is key to several evolutionary and many innovative designs

Course builds on results of NC CRP

Courses:

ICTP (6.2004 & 6.2007)

INL (8.2007) (“in co-operation with IAEA”)

ICTP (6.2008)

Lecturers:

J. Reyes (OSU, USA)

F. D’Auria (Univ. of Pisa, Italy)

N. Aksan (PSI, Switzerland)

D. Saha & P. Vijayan (BARC, India)

M. Marques (CEA, France)

J. Ferreri (Autoridad Reg. Nucl., Argentina)

Y. Hassan (Texas A&M Univ., USA)

IAEA Staff: J. Cleveland & J.-H. Choi

Course Director: Prof. José Reyes (Dept. Head, Oregon State Univ.)

IAEA Course on Natural Circulation in Water-Cooled NPPs
collaborative assessment advanced applications for water cooled npps

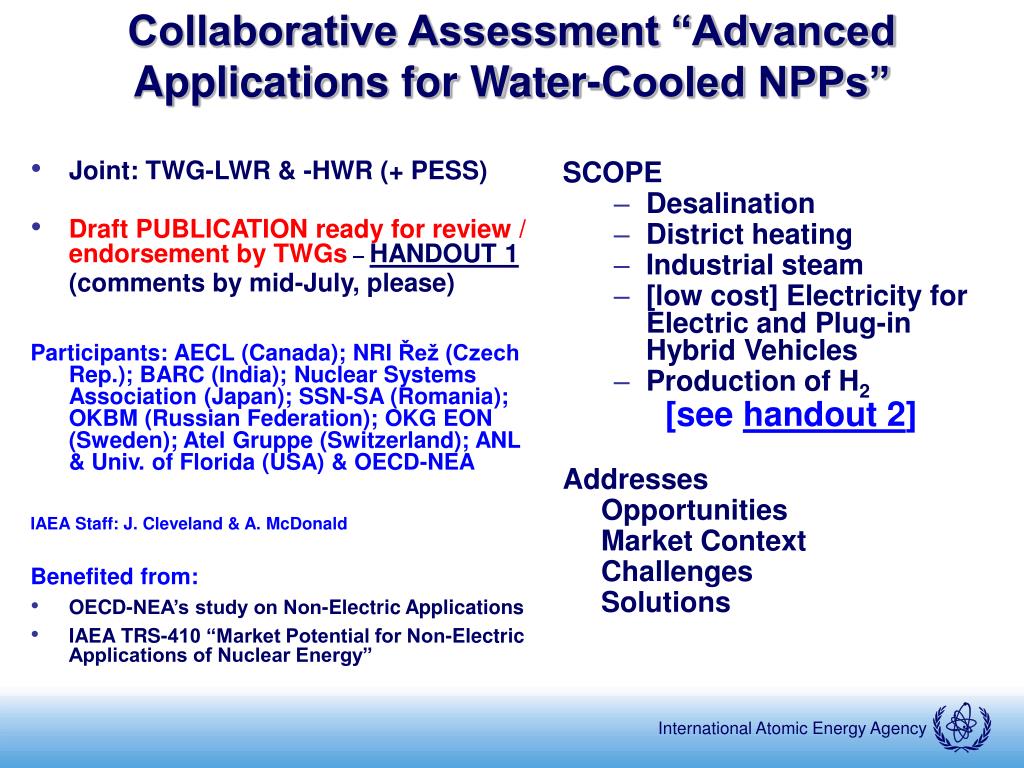

Joint: TWG-LWR & -HWR (+ PESS)

Draft PUBLICATION ready for review / endorsement by TWGs – HANDOUT 1

(comments by mid-July, please)

Participants: AECL (Canada); NRI Řež (Czech Rep.); BARC (India); Nuclear Systems Association (Japan); SSN-SA (Romania); OKBM (Russian Federation); OKG EON (Sweden); Atel Gruppe (Switzerland);ANL & Univ. of Florida (USA) & OECD-NEA

IAEA Staff: J. Cleveland & A. McDonald

Benefited from:

OECD-NEA’s study on Non-Electric Applications

IAEA TRS-410 “Market Potential for Non-Electric Applications of Nuclear Energy”

SCOPE

Desalination

District heating

Industrial steam

[low cost] Electricity for Electric and Plug-in Hybrid Vehicles

Production of H2

[see handout 2]

Addresses

Opportunities

Market Context

Challenges

Solutions

Collaborative Assessment “Advanced Applications for Water-Cooled NPPs”
coordinated research projects underway
Coordinated Research Projects underway
  • Natural Circulation Phenomena, Modelling and Reliability of Passive Systems That Utilize Natural Circulation [2004-2008]
    • IAEA Staff: J. Cleveland & J.-H. Choi

[more discussion Thursday]

  • Heat Transfer and Thermo-Hydraulic Codes Testing for SCWRs [2007~2010]
    • IAEA Staff: J. Cleveland

[more discussion Thursday]

role of hwrs in the sustainable utilization of fissile resources

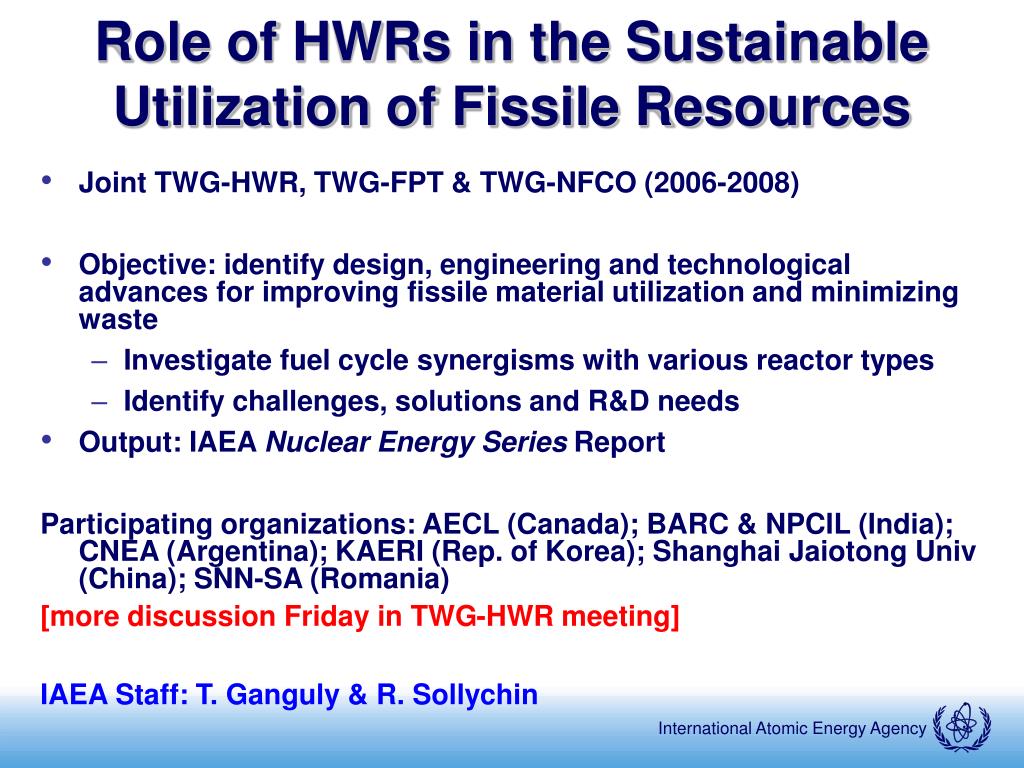

Role of HWRs in the Sustainable Utilization of Fissile Resources
  • Joint TWG-HWR, TWG-FPT & TWG-NFCO (2006-2008)
  • Objective: identify design, engineering and technological advances for improving fissile material utilization and minimizing waste
    • Investigate fuel cycle synergisms with various reactor types
    • Identify challenges, solutions and R&D needs
  • Output: IAEA Nuclear Energy Series Report

Participating organizations: AECL (Canada); BARC & NPCIL (India); CNEA (Argentina); KAERI (Rep. of Korea); Shanghai Jaiotong Univ (China); SNN-SA (Romania)

[more discussion Friday in TWG-HWR meeting]

IAEA Staff: T. Ganguly & R. Sollychin

heavy water reactor design user criteria working title

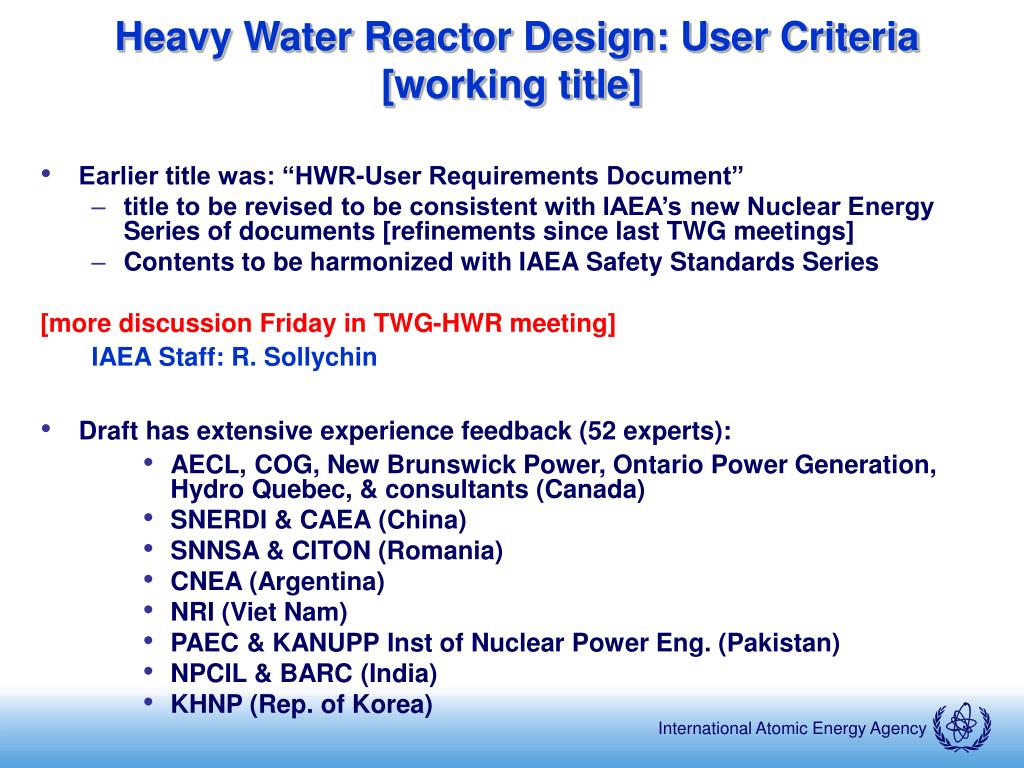

Heavy Water Reactor Design: User Criteria [working title]
  • Earlier title was: “HWR-User Requirements Document”
    • title to be revised to be consistent with IAEA’s new Nuclear Energy Series of documents [refinements since last TWG meetings]
    • Contents to be harmonized with IAEA Safety Standards Series

[more discussion Friday in TWG-HWR meeting]

IAEA Staff: R. Sollychin

  • Draft has extensive experience feedback (52 experts):
      • AECL, COG, New Brunswick Power, Ontario Power Generation, Hydro Quebec, & consultants (Canada)
      • SNERDI & CAEA (China)
      • SNNSA & CITON (Romania)
      • CNEA (Argentina)
      • NRI (Viet Nam)
      • PAEC & KANUPP Inst of Nuclear Power Eng. (Pakistan)
      • NPCIL & BARC (India)
      • KHNP (Rep. of Korea)
other international meetings can be conducted in cooperation with iaea

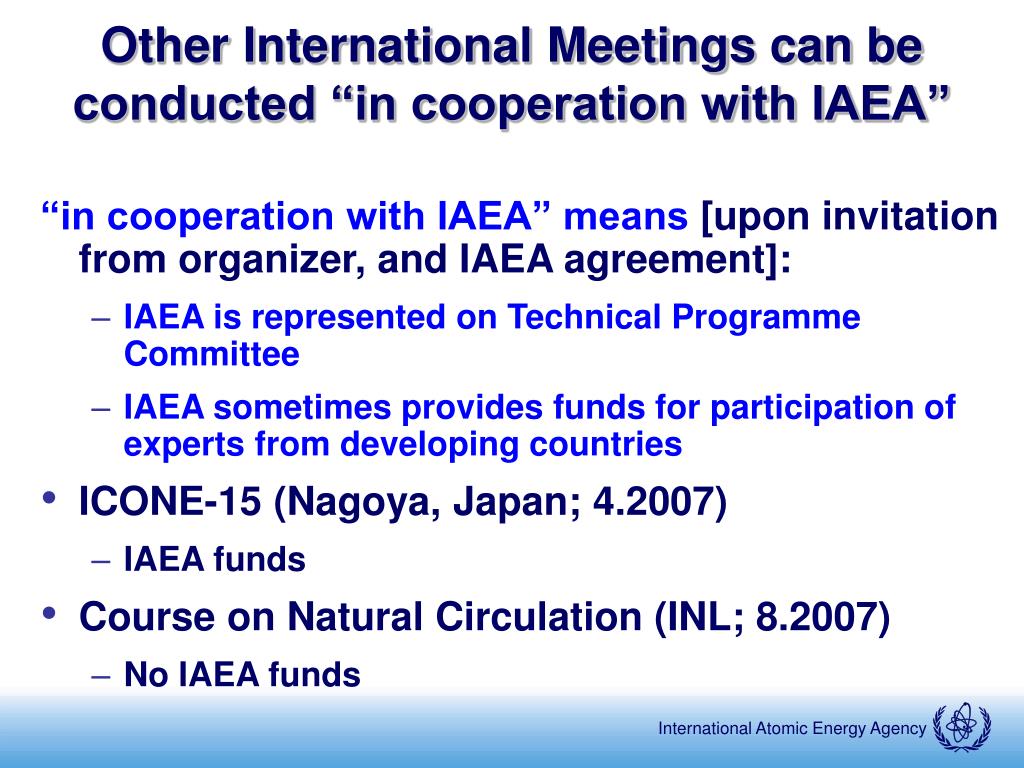

Other International Meetings can be conducted “in cooperation with IAEA”

“in cooperation with IAEA” means [upon invitation from organizer, and IAEA agreement]:

    • IAEA is represented on Technical Programme Committee
    • IAEA sometimes provides funds for participation of experts from developing countries
  • ICONE-15 (Nagoya, Japan; 4.2007)
    • IAEA funds
  • Course on Natural Circulation (INL; 8.2007)
    • No IAEA funds
slide26

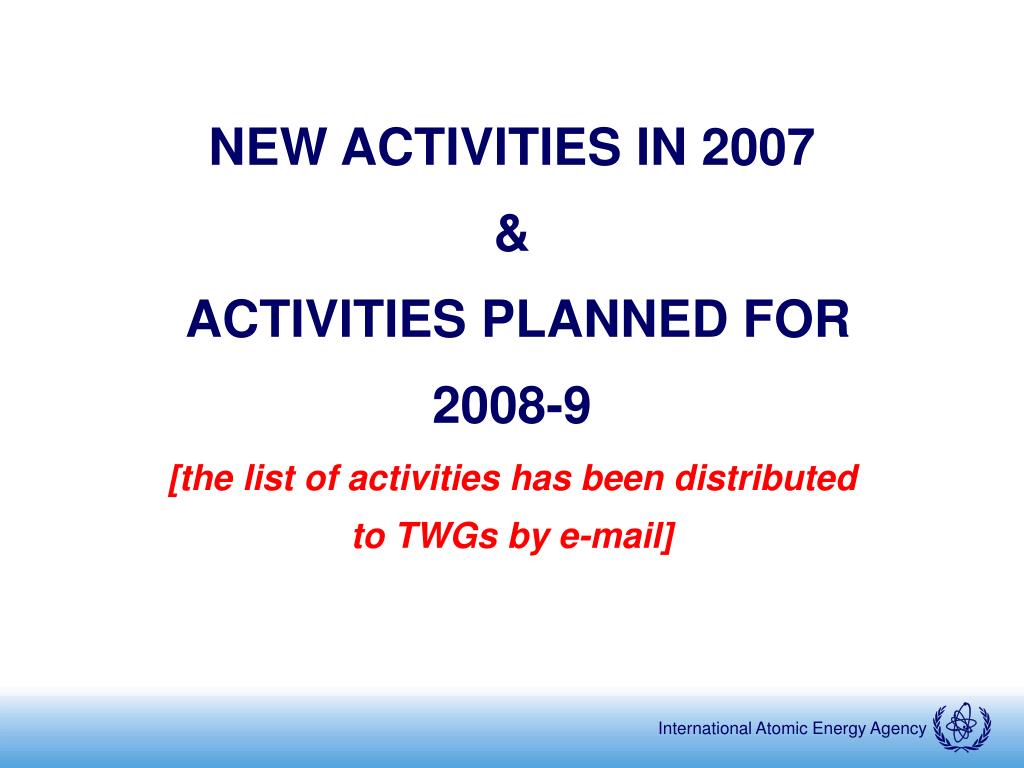

NEW ACTIVITIES IN 2007

&

ACTIVITIES PLANNED FOR

2008-9

[the list of activities has been distributed

to TWGs by e-mail]

during this meeting please give us your recommendations

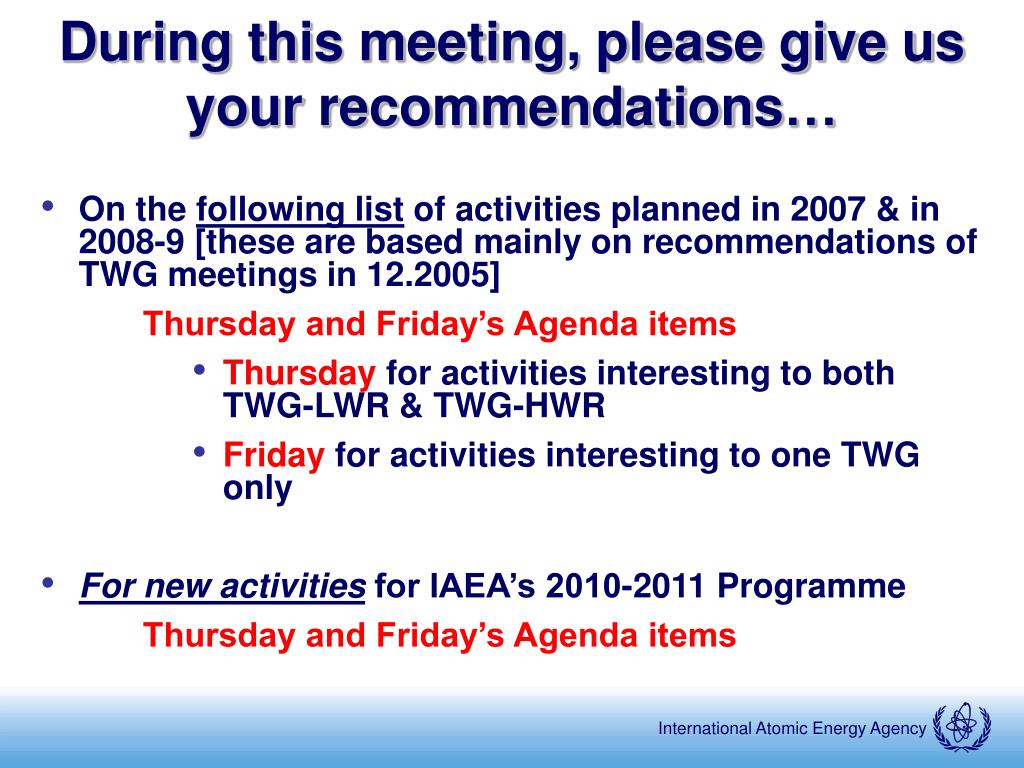

During this meeting, please give us your recommendations…
  • On the following list of activities planned in 2007 & in 2008-9[these are based mainly on recommendations of TWG meetings in 12.2005]

Thursday and Friday’s Agenda items

        • Thursday for activities interesting to both TWG-LWR & TWG-HWR
        • Friday for activities interesting to one TWG only
  • For new activitiesfor IAEA’s 2010-2011 Programme

Thursday and Friday’s Agenda items

new activities 2007
New Activities (2007)
  • International Collaborative Standard Problem on “Comparison of HWR Simulation Results with SB-LOCA data” from AECL’s RD-14M facility IAEA Staff: J.-H. Choi

[more discussion Friday in TWG-HWR meeting]

  • TC Workshop “Steps for Conducting Technology Assessments of Water Cooled NPPs” IAEA Staff: R. Sollychin, J.-H. Choi, X. Li, et.al.

Technology Assessment :

    • Is an exercise to determine which NPP technologies / plant concepts are suitable for the country;
    • provides the technical basis for several elements of infrastructure development, including assessment of national capabilities, defining the degree of national technical and industrial participation in the NPP programme; identification of appropriate sites for the NPP; and establishment of a fuel cycle policy

Conducting a Technology Assessment thus can provide the technical basis for preparation of bid documents in a subsequent stage

[more discussion Thursday]

activities in 2008 9
Activities in 2008-9

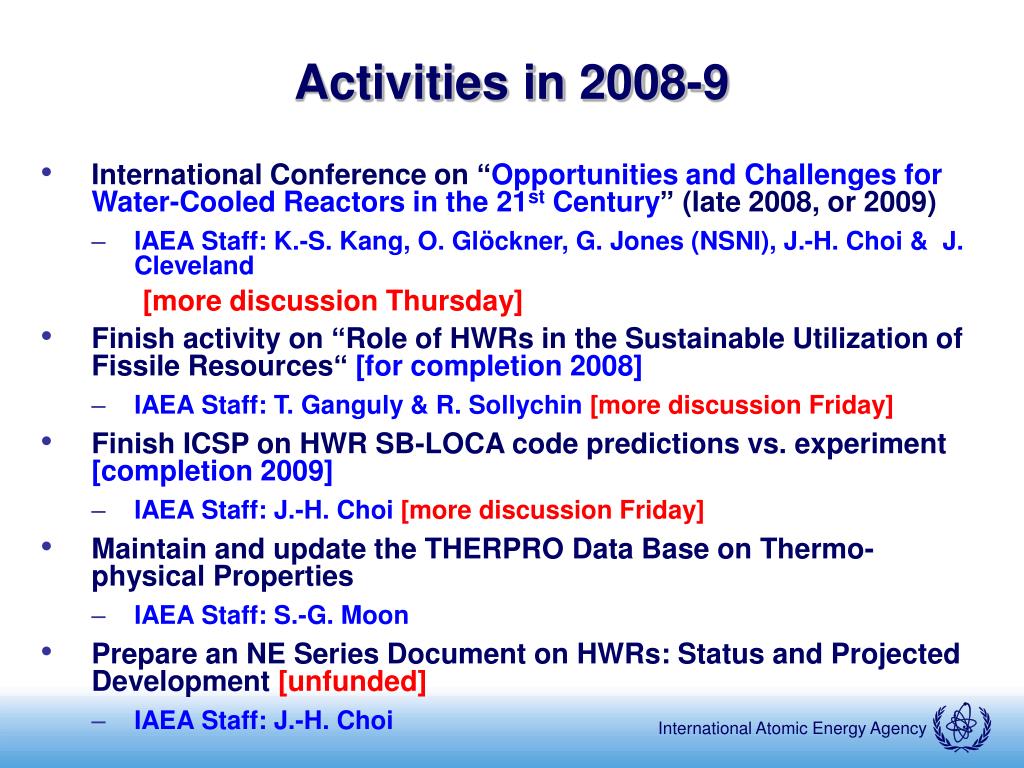

  • International Conference on “Opportunities and Challenges for Water-Cooled Reactors in the 21st Century” (late 2008, or 2009)
    • IAEA Staff: K.-S. Kang, O. Glöckner, G. Jones (NSNI), J.-H. Choi & J. Cleveland

[more discussion Thursday]

  • Finish activity on “Role of HWRs in the Sustainable Utilization of Fissile Resources“ [for completion 2008]
    • IAEA Staff: T. Ganguly & R. Sollychin [more discussion Friday]
  • Finish ICSP on HWR SB-LOCA code predictions vs. experiment [completion 2009]
    • IAEA Staff: J.-H. Choi [more discussion Friday]
  • Maintain and update the THERPRO Data Base on Thermo-physical Properties
    • IAEA Staff: S.-G. Moon
  • Prepare an NE Series Document on HWRs: Status and Projected Development [unfunded]
    • IAEA Staff: J.-H. Choi
activities in 2008 930
Activities in 2008-9

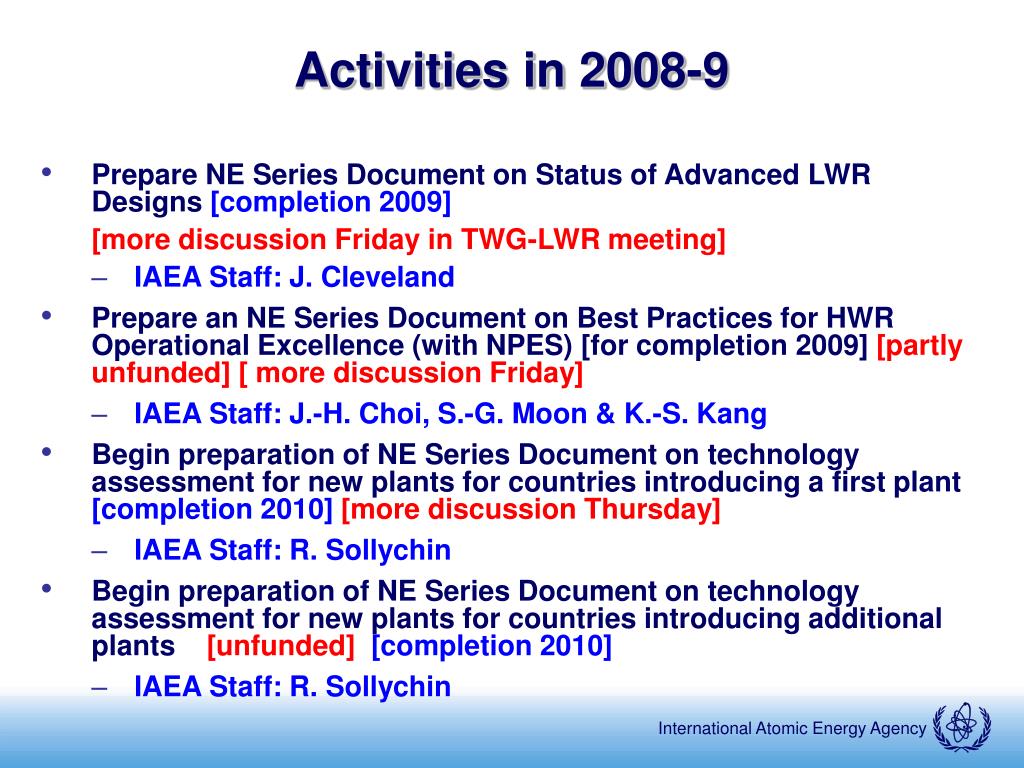

  • Prepare NE Series Document on Status of Advanced LWR Designs [completion 2009]

[more discussion Friday in TWG-LWR meeting]

    • IAEA Staff: J. Cleveland
  • Prepare an NE Series Document on Best Practices for HWR Operational Excellence (with NPES) [for completion 2009] [partly unfunded] [ more discussion Friday]
    • IAEA Staff: J.-H. Choi, S.-G. Moon & K.-S. Kang
  • Begin preparation of NE Series Document on technology assessment for new plants for countries introducing a first plant[completion 2010] [more discussion Thursday]
    • IAEA Staff: R. Sollychin
  • Begin preparation of NE Series Document on technology assessment for new plants for countries introducing additional plants [unfunded] [completion 2010]
    • IAEA Staff: R. Sollychin
activities in 2008 931
Activities in 2008-9
  • Cooperate in non-Agency international conferences on nuclear power technology [upon invitation from conference organizers]
    • IAEA Staff: to be determined case-by-case
  • Participate in international conferences on advanced water cooled reactor technology
    • IAEA Staff: to be determined case-by-case
  • Prepare an NE Series Document on Improved Pellets and advanced Fuel Designs for LWRs and HWRs [collaboratively with NEFW’s TWG-FPT]
    • IAEA Staff: V. Inozemtsev & TBD [more discussion Thursday]
  • Complete CRP on Natural Circulation…
    • IAEA Staff: J.-H. Choi & J. Cleveland [more discussion Thursday]
  • Begin CRP on Benchmarking Severe Accident Modelling for HWRs [in collaboration with Safety Assessment Section, NSNI]
    • IAEA Staff: J.-H. Choi & S.-H. Lee[more discussion Friday]
activities in 2008 932
Activities in 2008-9

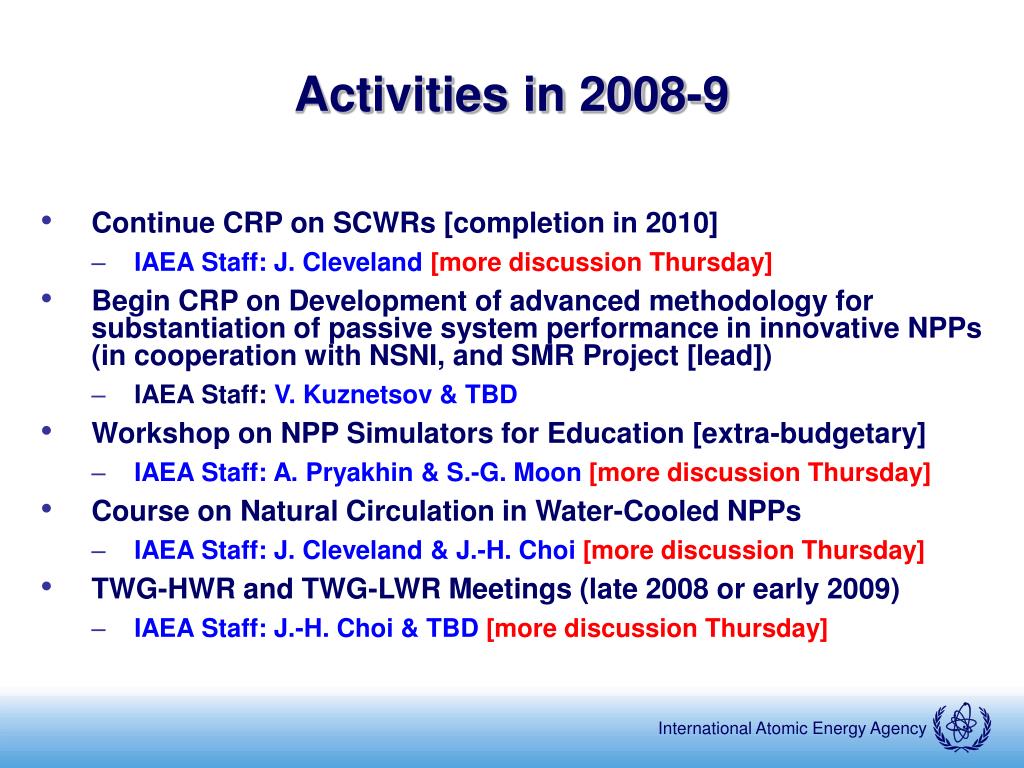

  • Continue CRP on SCWRs [completion in 2010]
    • IAEA Staff: J. Cleveland [more discussion Thursday]
  • Begin CRP on Development of advanced methodology for substantiation of passive system performance in innovative NPPs (in cooperation with NSNI, and SMR Project [lead])
    • IAEA Staff: V. Kuznetsov & TBD
  • Workshop on NPP Simulators for Education [extra-budgetary]
    • IAEA Staff: A. Pryakhin & S.-G. Moon [more discussion Thursday]
  • Course on Natural Circulation in Water-Cooled NPPs
    • IAEA Staff: J. Cleveland & J.-H. Choi [more discussion Thursday]
  • TWG-HWR and TWG-LWR Meetings (late 2008 or early 2009)
    • IAEA Staff: J.-H. Choi & TBD [more discussion Thursday]
iaea activities on proven means for improving economics
IAEA activities on proven means for improving economics
  • capturing economies-of-scale
    • (TECDOC-1391 & TRS-407 )Reports approaches ofdesign organizations - e.g. AP-600 to AP-1000; ABWR to ABWR-II; KSNP/OPR to APR-1400; 220 MWe HWR to 540 and 700 MWe HWR; N4 and KONVOI to EPR; WWER-1000 to WWER-1500;…
  • standardization & construction in series
    • (TECDOC-1117) French experience: 58 PWRs at 19 sites
    • (TECDOC-1290) TEPCO’s expectations for cost reduction with ABWR & ABWR-II series
  • multiple unit construction
    • (TECDOC-1290) KHNP & AECL experience at Wolsong
  • simplifying design / use of modelling
    • (TECDOCs 1391 and 1290) Approaches by design organizations
iaea activities on proven means for improving economics35
IAEA activities on proven means for improving economics
  • efficient project management
    • (TECDOC-1117) lessons learned by Ontario Hydro
    • (TECDOC-1390) recent positive experiences
  • working closely with regulators
    • (TECDOC-1390) recent positive experiences
  • improving construction methods to shorten schedule
    • (TECDOC-1390 )Techniques used at K-6 &7; Qinshan III 1&2; Lingau 1&2; Yonggwang 5&6; Tarapur 3&4
  • application of computer technologies / modularization & factory fabrication
    • (TECDOC 1290) Approaches of AECL and W
    • (TECDOC-1390 )Techniques used at K-6 &7; Qinshan III 1&2; Lingau 1&2; Yonggwang 5&6; Tarapur 3&4
    • (TECDOC-1485) Approaches taken for innovative SMRs
    • TECDOCs-1503, TRS 448 & others from NPES) HWR and LWR PLiM
  • efficient inspection / reduced outages
    • CRP – round-robin tests on HWR Pressure Tube Inspection Techniques ( TECDOC-1499)
    • TRS-392 “Design Measures to Facilitate Safeguards”
iaea activities on new approaches for improving economics
IAEA activities on new approachesfor improving economics
  • Improving technology base: T-H relationships, accurate T-P data; validation of T-H codes
    • TECDOC-1149 – validation of T-H codes vs. data
    • TECDOC-1203 – relationships for CHF, ΔP and post CHF h-t
    • TECDOC-1395 – validation of HWR codes vs. LB-LOCA data
    • Validation of HWR codes vs. SB-LOCA data
    • THERPRO T-P database (TECDOCs 949 & 1496)
    • CRP on Natural Circulation Phenomena and Passive System Reliability (& TECDOC-1474)
    • Course on Natural Circulation
    • CRP on heat-transfer in SCWRs
  • Expanding applications / developing systems with higher efficiency
    • TECDOC on Advanced Applications of Water Cooled Reactors
    • CRP on SCWRs
iaea activities on new approaches for improving economics37
IAEA activities on new approaches for improving economics
  • Passive safety systems
    • TECDOC-1391 “Status of ALWR designs”
    • TECDOC-1485 “Status of Innovative SMRs w/ conventional refuelling”
    • CRP on Natural Circulation Phenomena and Passive System Reliability
      • TECDOC-1474 - Natural Circulation in Water Cooled NPPs
    • New CRP on Development of Advanced Methodologies for Substantiation of Passive System Performance
  • Advancement of PSA methods & data bases to support plant simplification and establishment of risk-informed regulatory decision making for new plants
    • [Activities in IAEA’s Division of Nuclear Installation Safety]
  • Development of highly reliable components and systems, including “smart” (instrumented and monitored) components and methods
    • Potential for reducing dependence on costly diversity and redundancy reqt’s is addressed briefly in TECDOC 1290;
  • in developing countries, furthering self-reliance by increasing portion of construction and component fabrication performed domestically;
    • (TECDOC-1390 )Experience at Qinshan III 1&2; Lingau 1&2; Yonggwang 5&6;
  • International consensus on safety requirements
    • [IAEA’s Safety Standards Series]
summary
Summary

IAEA provides a forum for international collaboration on technology advances for LWRs and HWRs for improving economics and safety through

  • Information exchange meetings (“Technical Meetings”)
  • Coordinated Research Projects
  • Collaborative Assessments
  • Workshops and Courses
slide39
IAEA

…atoms for peace
