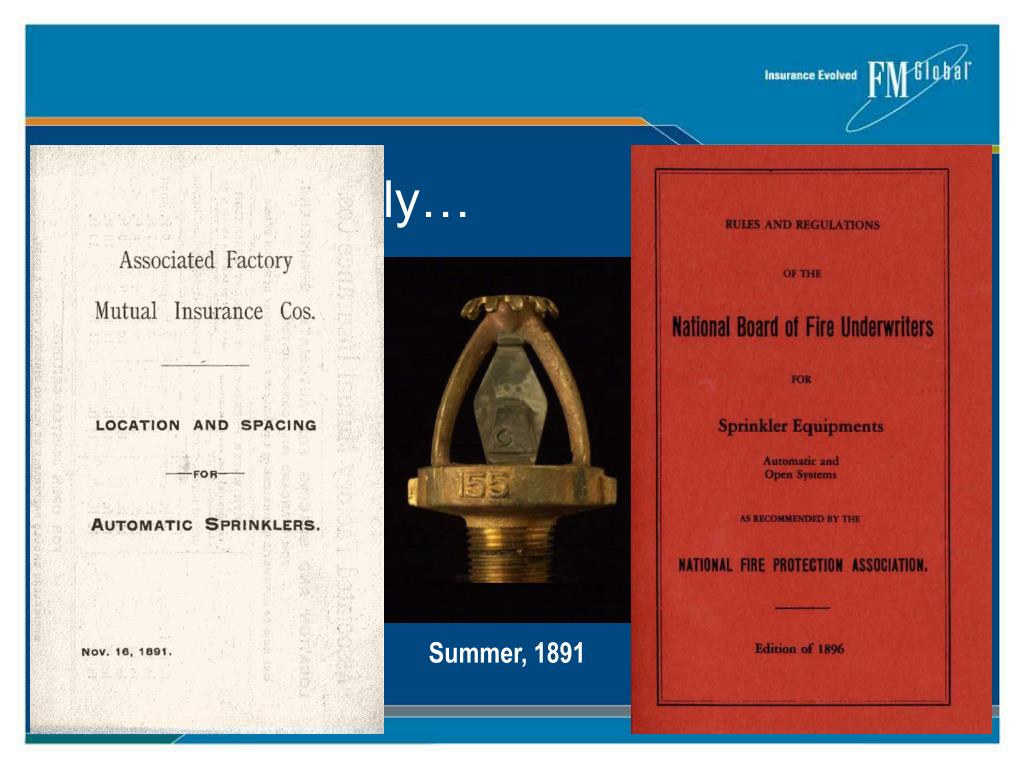

Sprinklers Evolved by Allan Macpherson, FM Global. IFE Scotland and BAFSA : Technical Sprinkler Seminar 2010 National Library of Scotland 20 January 2010. It started simply…. Summer, 1891. Then in the 1950’s…. Standard Spray Sprinkler. Then came…. A bunch of Control Mode Density

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Sprinklers Evolved by Allan Macpherson, FM Global' - patia


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
sprinklers evolved by allan macpherson fm global

Sprinklers Evolvedby Allan Macpherson, FM Global

IFE Scotland and BAFSA : Technical Sprinkler Seminar 2010

National Library of Scotland

20 January 2010

then in the 1950 s
Then in the 1950’s…

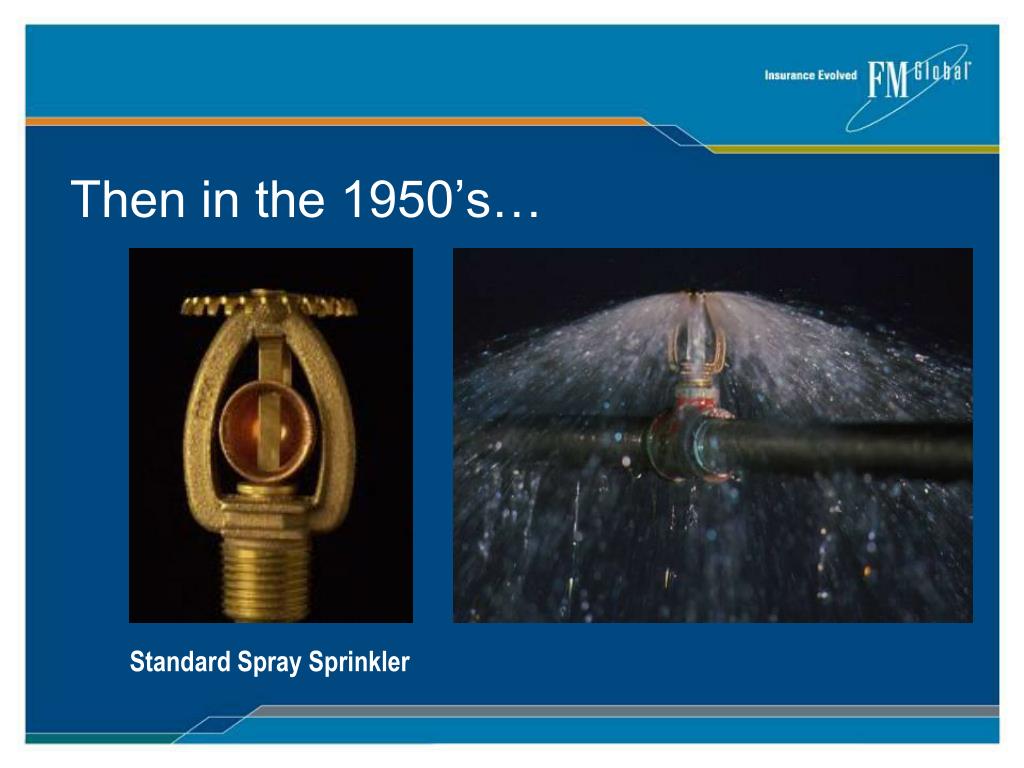

Standard Spray Sprinkler

then came
Then came…

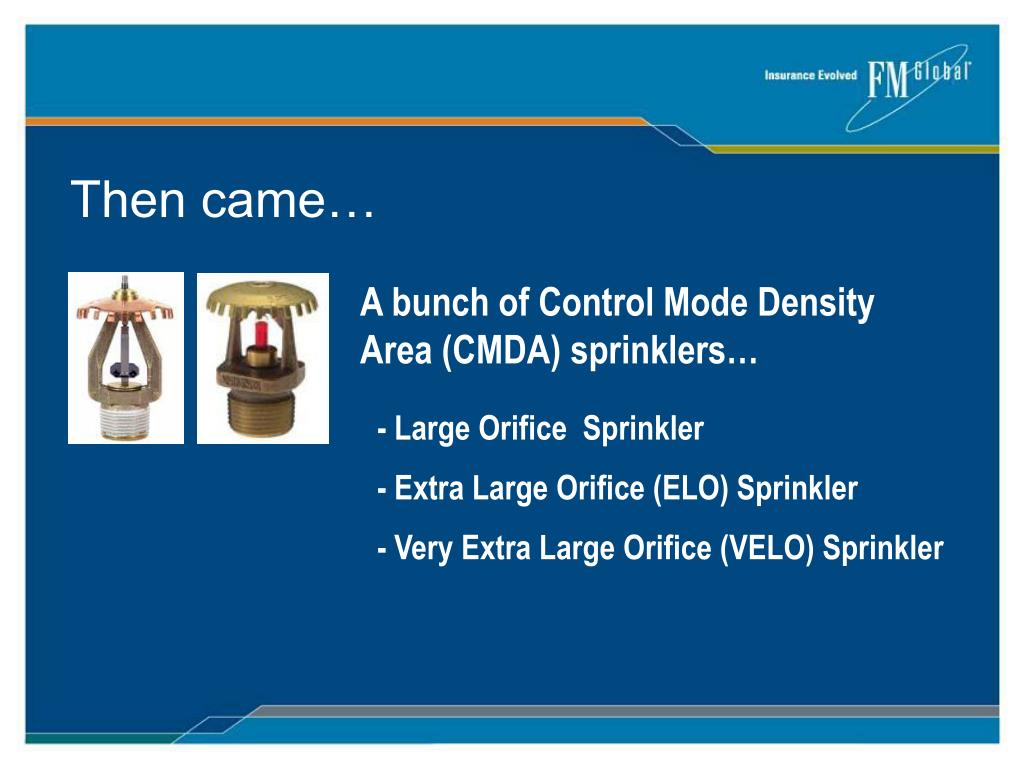

A bunch of Control Mode Density

Area (CMDA) sprinklers…

- Large Orifice Sprinkler

- Extra Large Orifice (ELO) Sprinkler

- Very Extra Large Orifice (VELO) Sprinkler

other milestones

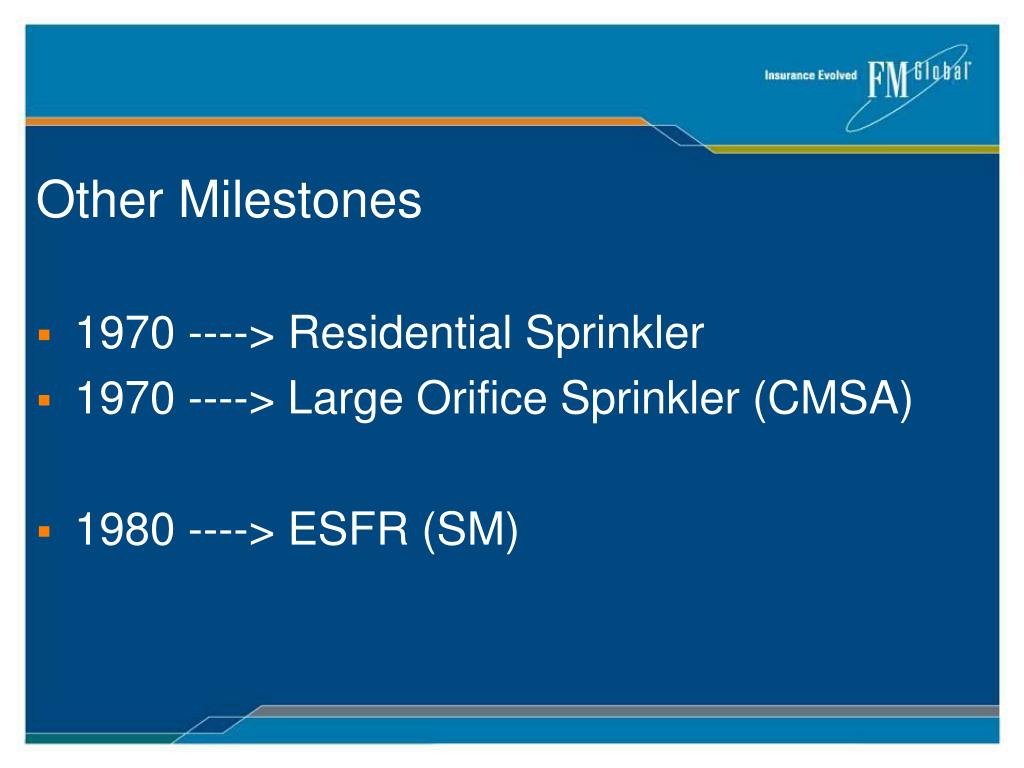

Other Milestones
  • 1970 ----> Residential Sprinkler
  • 1970 ----> Large Orifice Sprinkler (CMSA)
  • 1980 ----> ESFR (SM)
leading to

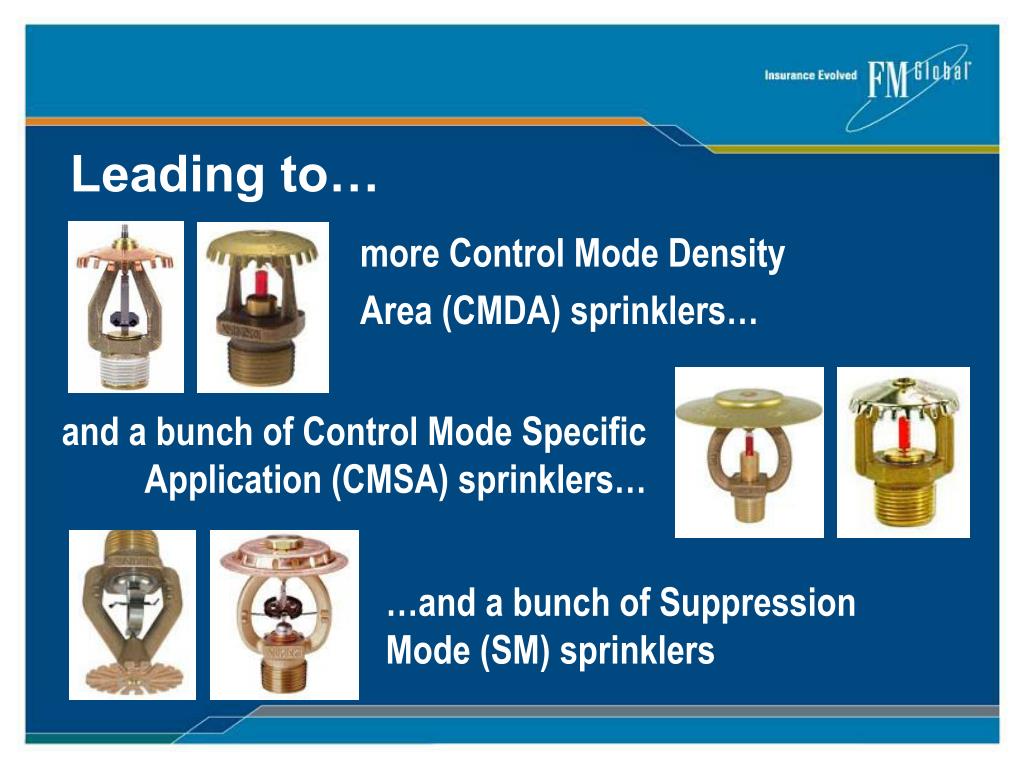

Leading to…

more Control Mode Density

Area (CMDA) sprinklers…

and a bunch of Control Mode Specific Application (CMSA) sprinklers…

…and a bunch of Suppression Mode (SM) sprinklers

where we are in 2009

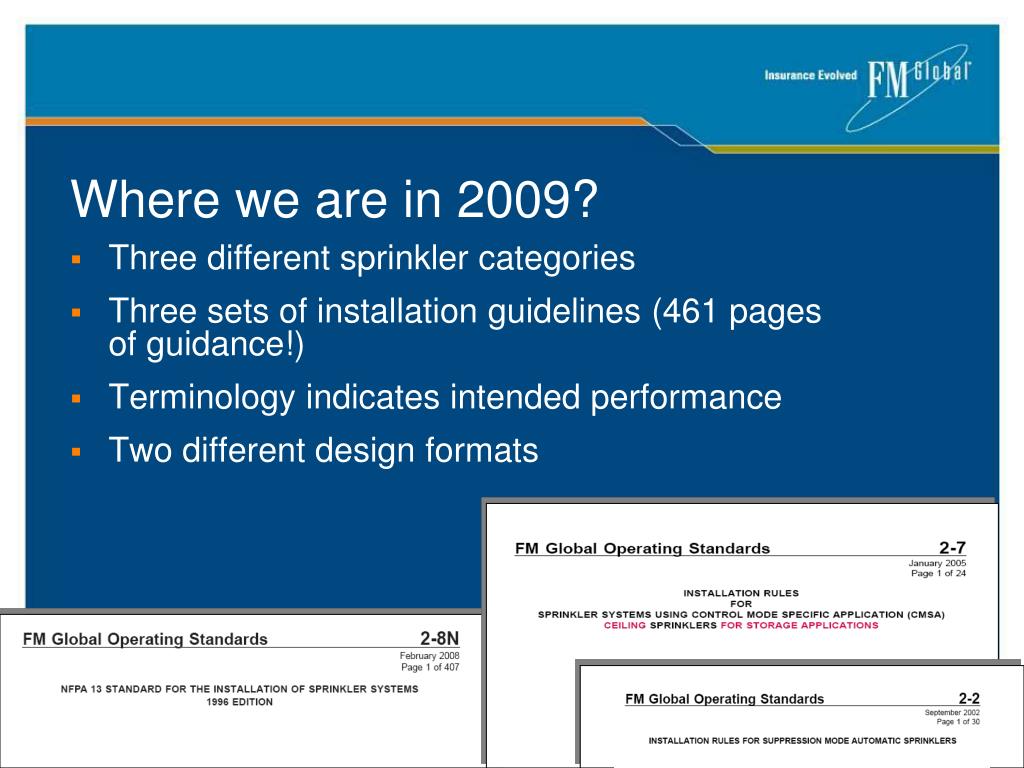

Where we are in 2009?
  • Three different sprinkler categories
  • Three sets of installation guidelines (461 pages of guidance!)
  • Terminology indicates intended performance
  • Two different design formats
stepping back

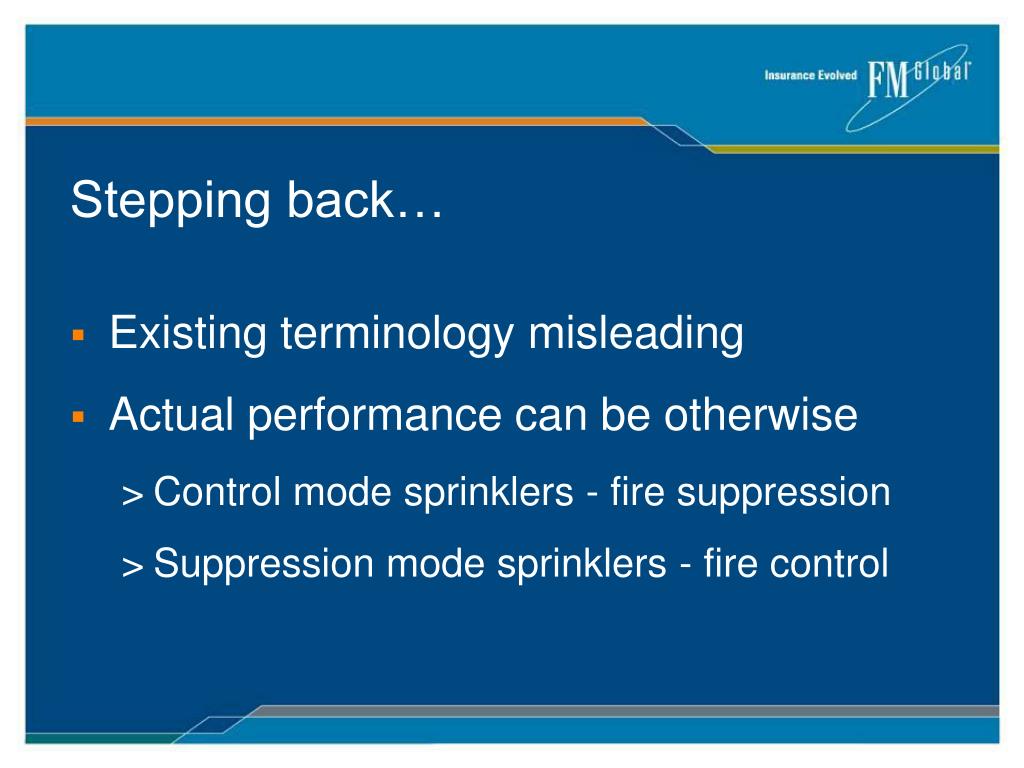

Stepping back…
  • Existing terminology misleading
  • Actual performance can be otherwise
    • Control mode sprinklers - fire suppression
    • Suppression mode sprinklers - fire control
change in sprinkler terminology

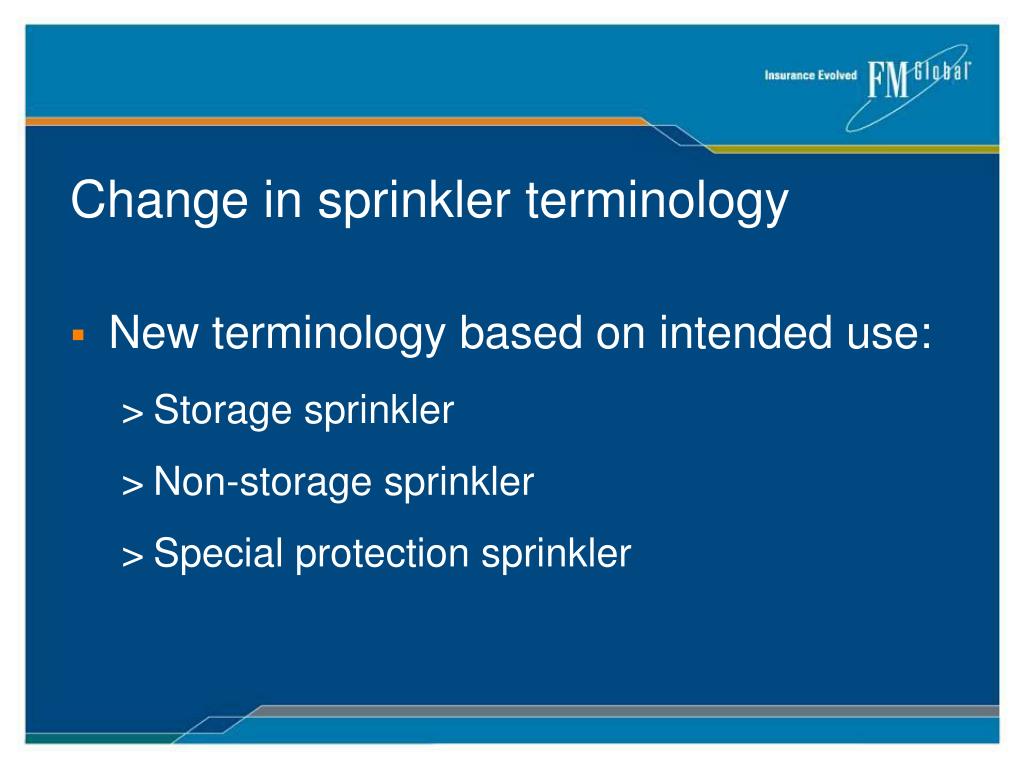

Change in sprinkler terminology
  • New terminology based on intended use:
    • Storage sprinkler
    • Non-storage sprinkler
    • Special protection sprinkler
slide10

Quiz

True or False?

Two different FM Approved control mode sprinklers discharging the exact same amount of water will provide equivalent protection

slide11

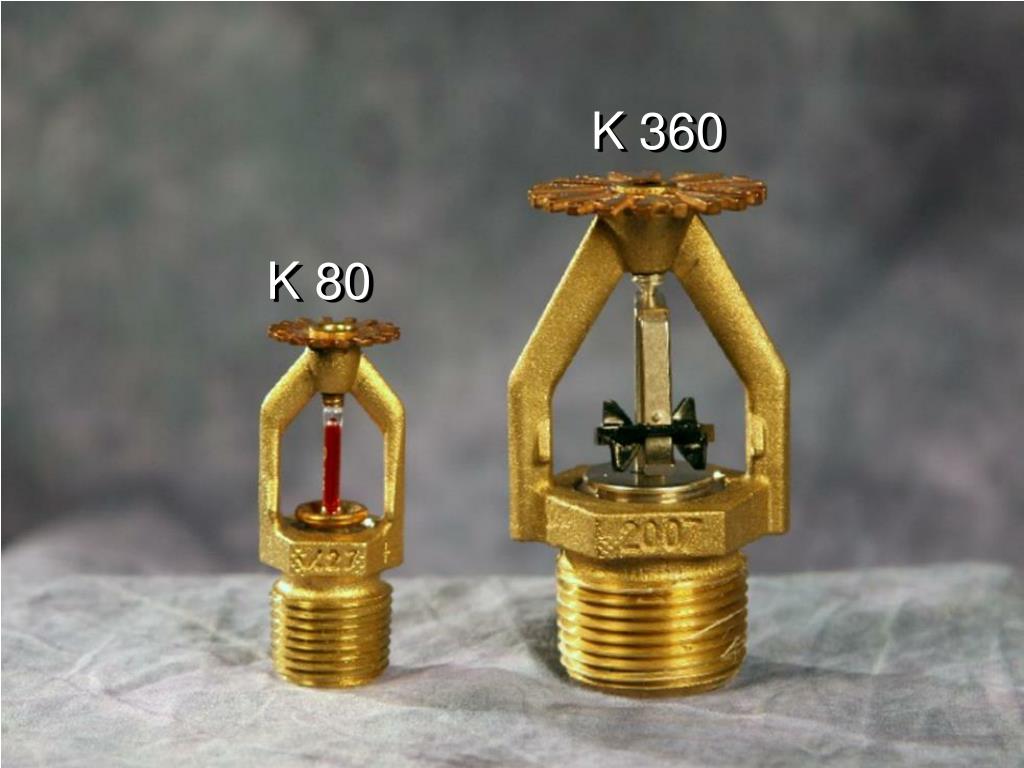

K 360

  • K 80
slide13

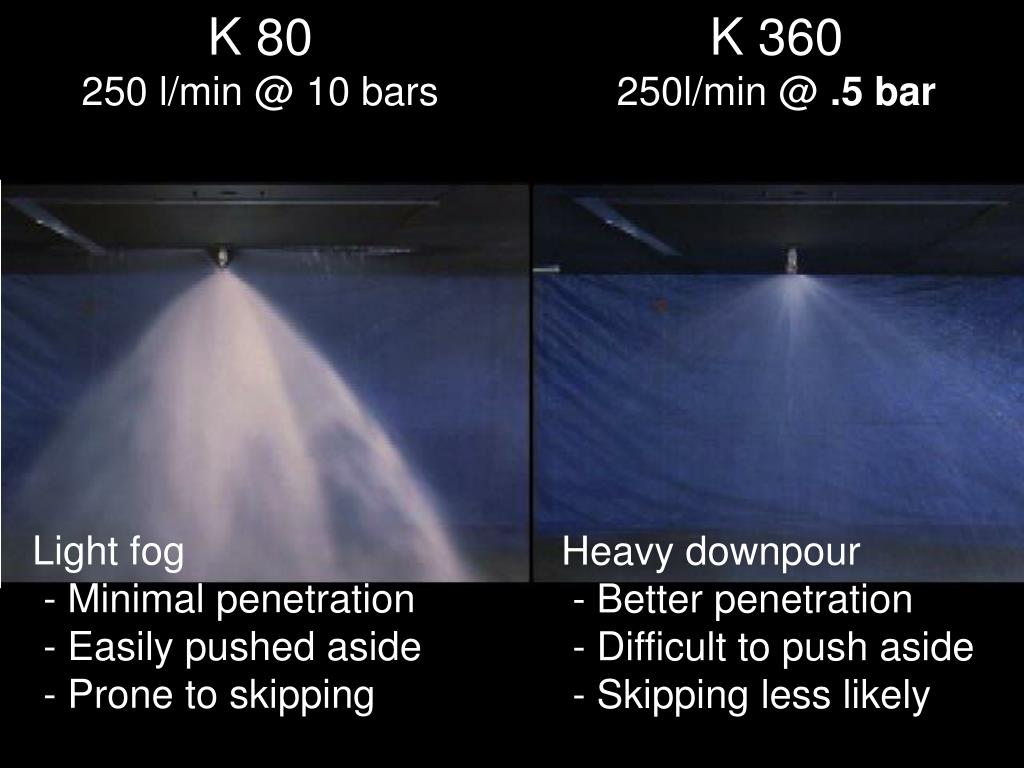

K 80

250 l/min @ 10 bars

K 360

250l/min @ .5 bar

Light fog

- Minimal penetration

- Easily pushed aside

- Prone to skipping

Heavy downpour

- Better penetration

- Difficult to push aside

- Skipping less likely

test 2 k 360 ec sprinkler

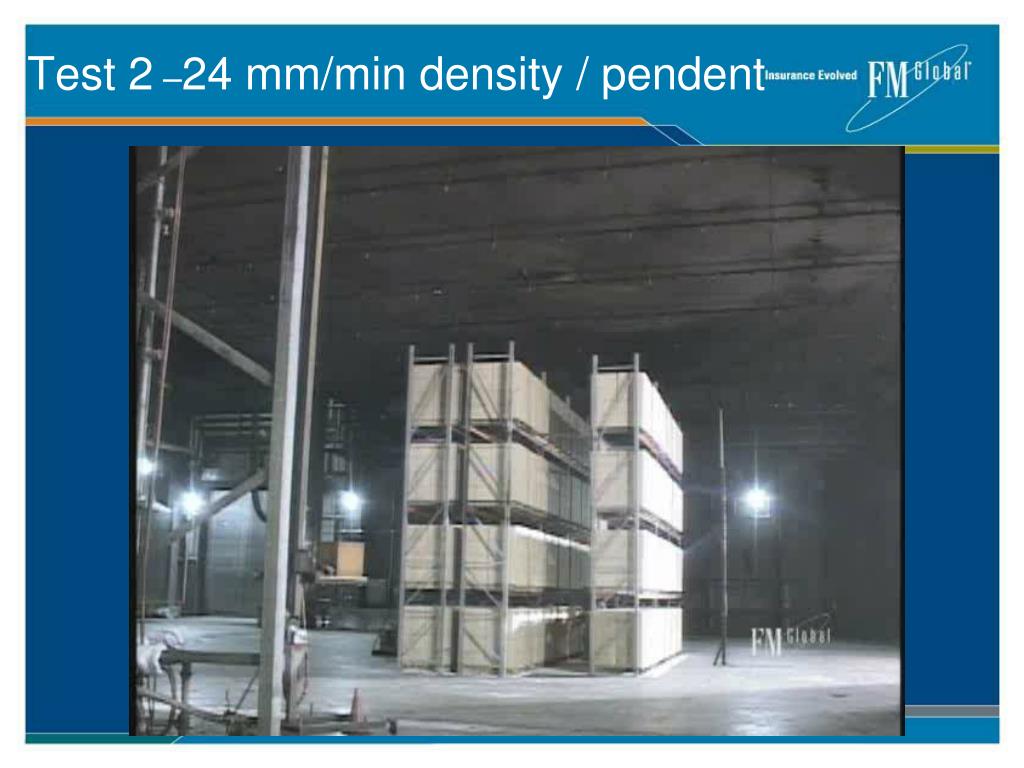

Test 2 – K 360 EC sprinkler

Lower water demand

10.7 m. building

6 sprinklers at 2.75 bars

3600 l/min

More cost effective

Spacing up to 18 m2 per head means less pipe, fewer sprinklers

Much less fire, smoke and goods damage

what s really most important

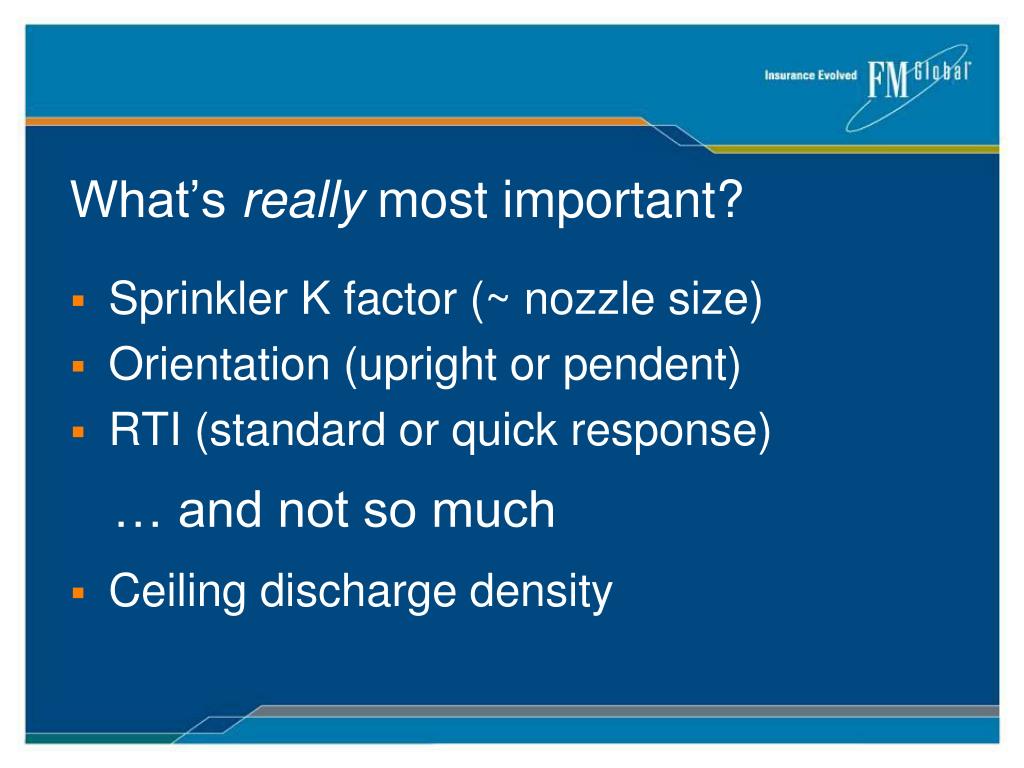

What’s really most important?
  • Sprinkler K factor (~ nozzle size)
  • Orientation (upright or pendent)
  • RTI (standard or quick response)

… and not so much

  • Ceiling discharge density
what does this mean for data sheets

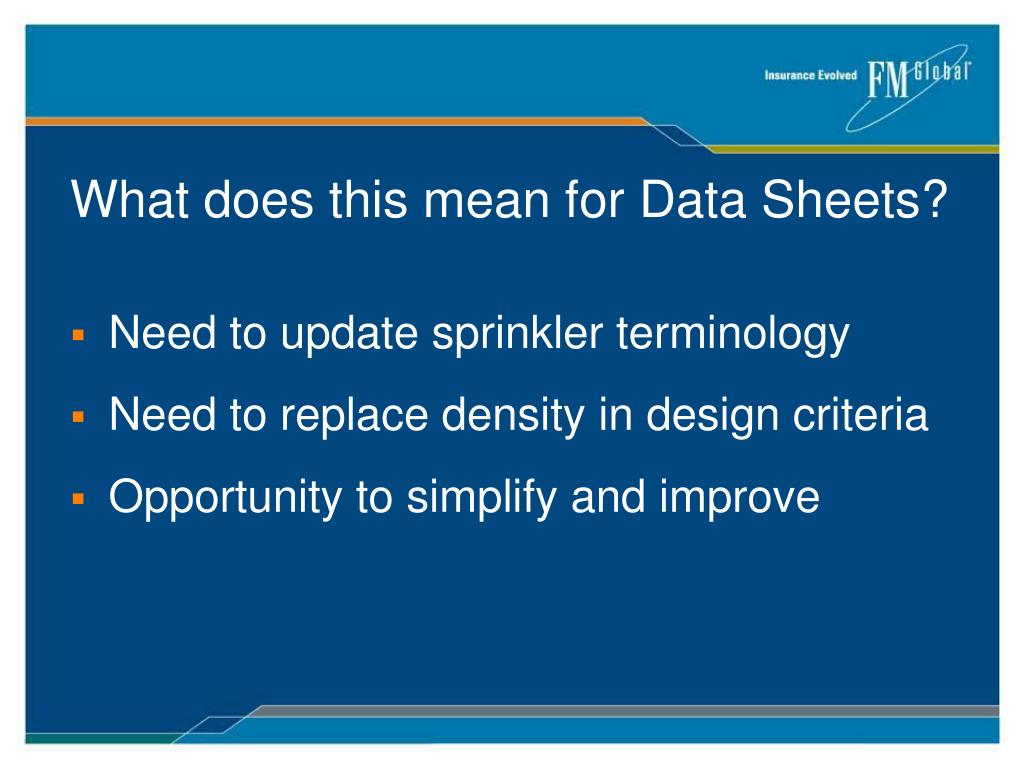

What does this mean for Data Sheets?
  • Need to update sprinkler terminology
  • Need to replace density in design criteria
  • Opportunity to simplify and improve
new data sheet 2 0
New Data Sheet 2-0
  • Replaces 2-2, 2-7, 2-8N
  • Installation rules – sprinkler type
  • Acceptance tests
new data sheet 8 9 protection tables

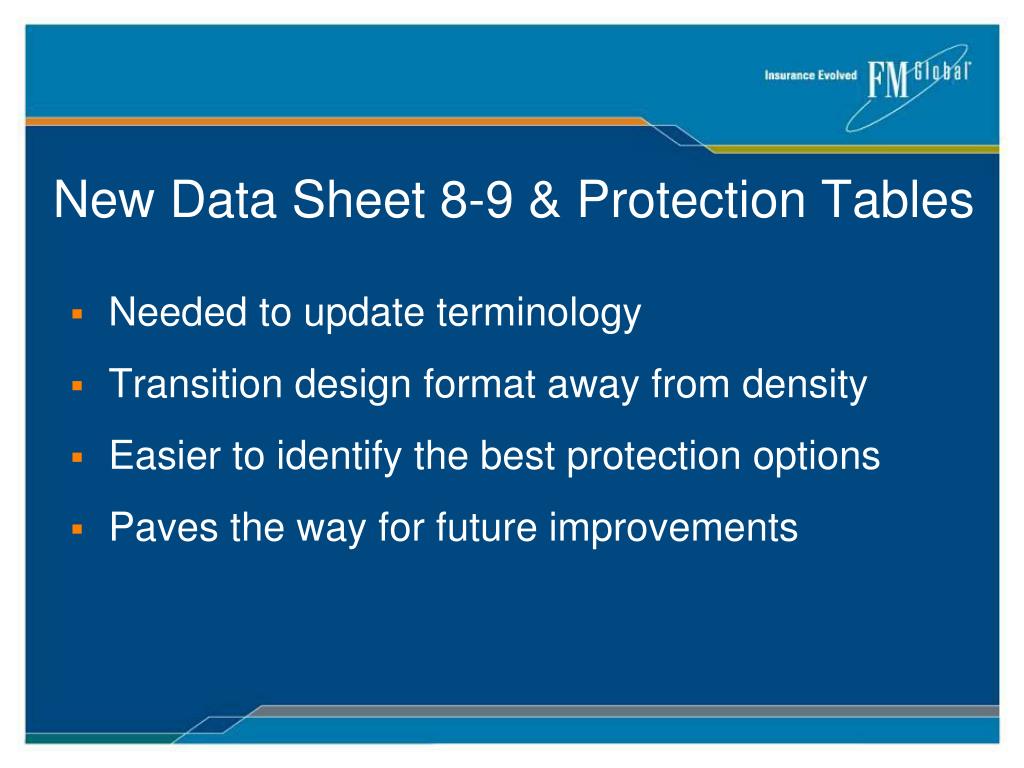

New Data Sheet 8-9 & Protection Tables
  • Needed to update terminology
  • Transition design format away from density
  • Easier to identify the best protection options
  • Paves the way for future improvements
slide22

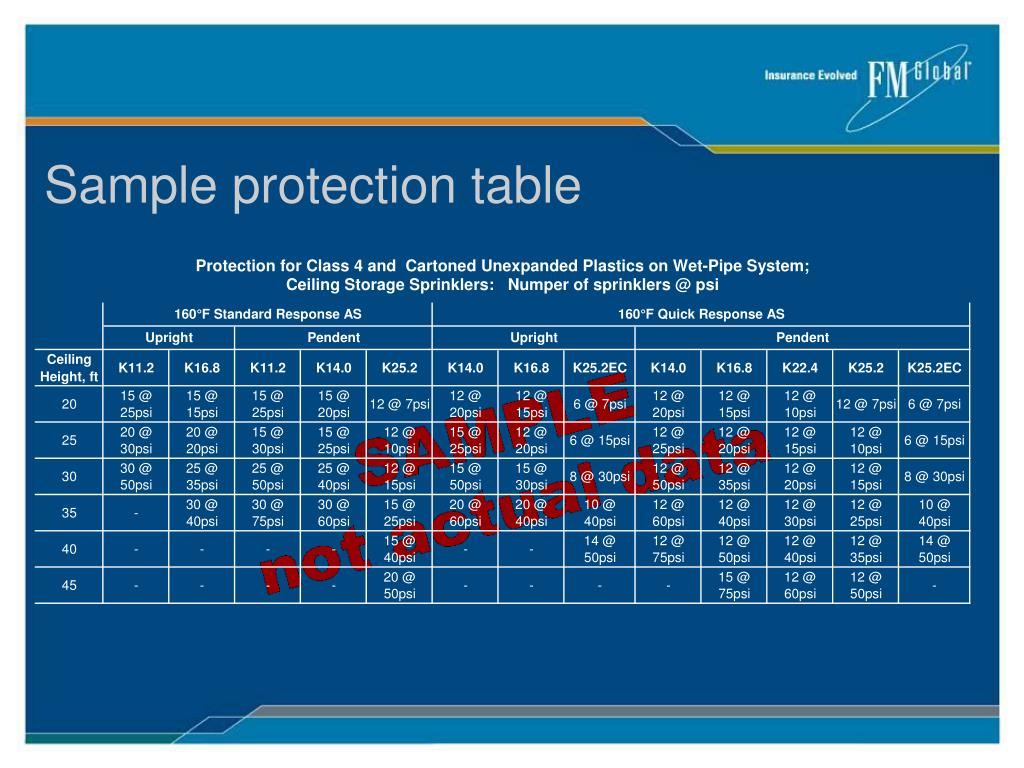

Protection tables based on

    • Ceiling height
    • RTI (standard or quick response)
    • Orientation (upright or pendent)
    • Sprinkler K factor (~ nozzle size)
many of these new designs mean
Many of these new designs mean:

Less Resources

  • Less Sprinklers
  • Less Piping

More Sprinklers Installed !

Greater Sustainability

  • Less Labour
  • Less Water
  • Lower Pressures
what is the bottom line

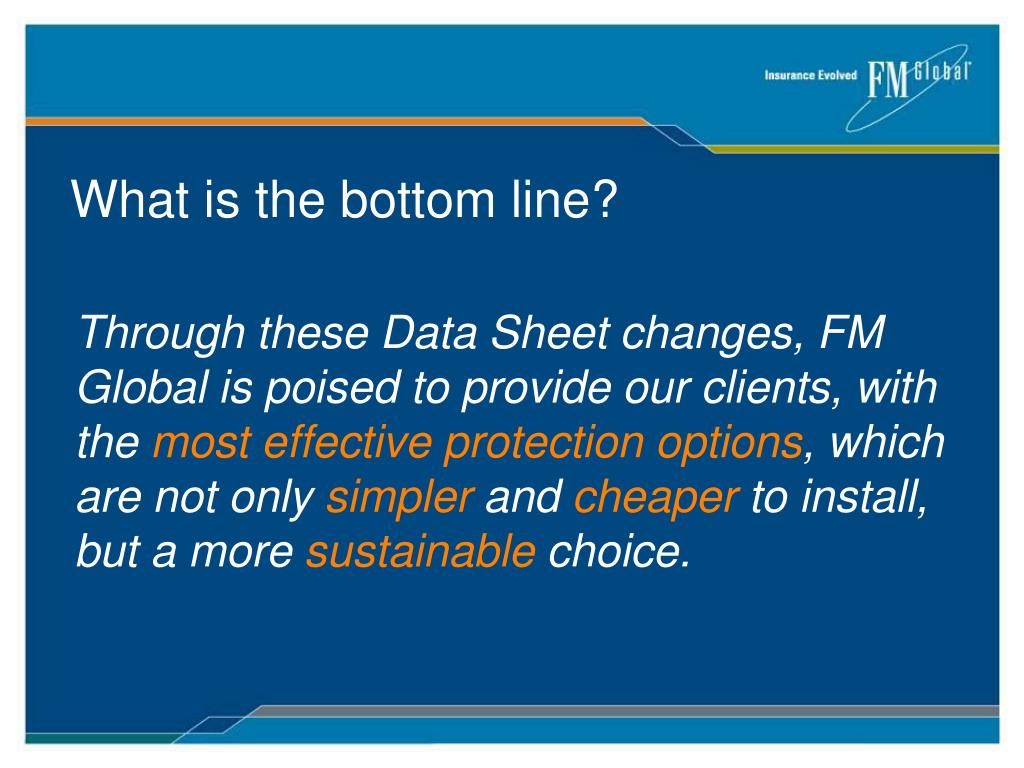

What is the bottom line?

Through these Data Sheet changes, FM Global is poised to provide our clients, with themost effective protection options, which are not onlysimplerandcheaperto install, but a moresustainablechoice.
