CH-32: Maxwell's Equations (4)

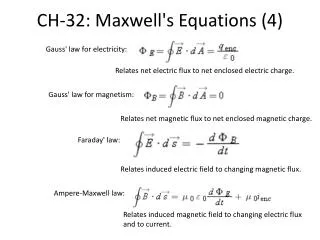

CH-32: Maxwell's Equations (4). Gauss' law for electricity:. Relates net electric flux to net enclosed electric charge. Gauss' law for magnetism:. Relates net magnetic flux to net enclosed magnetic charge. Faraday' law: . Relates induced electric field to changing magnetic flux.

patch
Download Presentation

CH-32: Maxwell's Equations (4)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CH-32: Maxwell's Equations (4) Gauss' law for electricity: Relates net electric flux to net enclosed electric charge. Gauss' law for magnetism: Relates net magnetic flux to net enclosed magnetic charge. Faraday' law: Relates induced electric field to changing magnetic flux. Ampere-Maxwell law: Relates induced magnetic field to changing electric flux and to current.

  2. Gauss' Law for Electric and Magnetic Fields In Chapter 23, we studied Gauss’ law for electric fields: The simplest magnetic structure that can exist is a magnetic dipole. Magnetic monopoles do not exist (as far as we know). Gauss' law for magnetic fields is a formal way of saying that magnetic monopoles do not exist. The law asserts that the net magnetic flux ΦB through any closed Gaussian surface is zero:

  3. Faraday’s and Maxwell’s laws of Induction In Chapter 30 you saw that a changing magnetic flux induces an electric field, and we ended up with Faraday's law of induction: • Because symmetry is often so powerful in physics, we should be tempted to ask whether induction can occur in the opposite sense; that is, can a changing electric flux induce a magnetic field?The answer is that it can; furthermore, the equation governing the induction of a magnetic field is almost symmetric with the above equation. We often call it Maxwell's law of induction after James Clerk Maxwell, and we write it as:

  4. Ampere–Maxwell Law Now recall that the left side of the above equation, the integral of the dot product around a closed loop, appears in another equation—namely, Ampere's law: Thus, our two equations that specify the magnetic field produced by means other than a magnetic material (that is, by a current and by a changing electric field) give the field in exactly the same form. We can combine the two equations into the single equation:
