problem under investigation
Problem Under Investigation
  • UAV flying in unknown terrain
    • Typically helicopter
  • Map terrain
    • Vision
    • LIDAR
  • Identify landing sites
    • Hazard free
    • Terrain is suitable
    • Large enough to fit UAV
papers reviewed

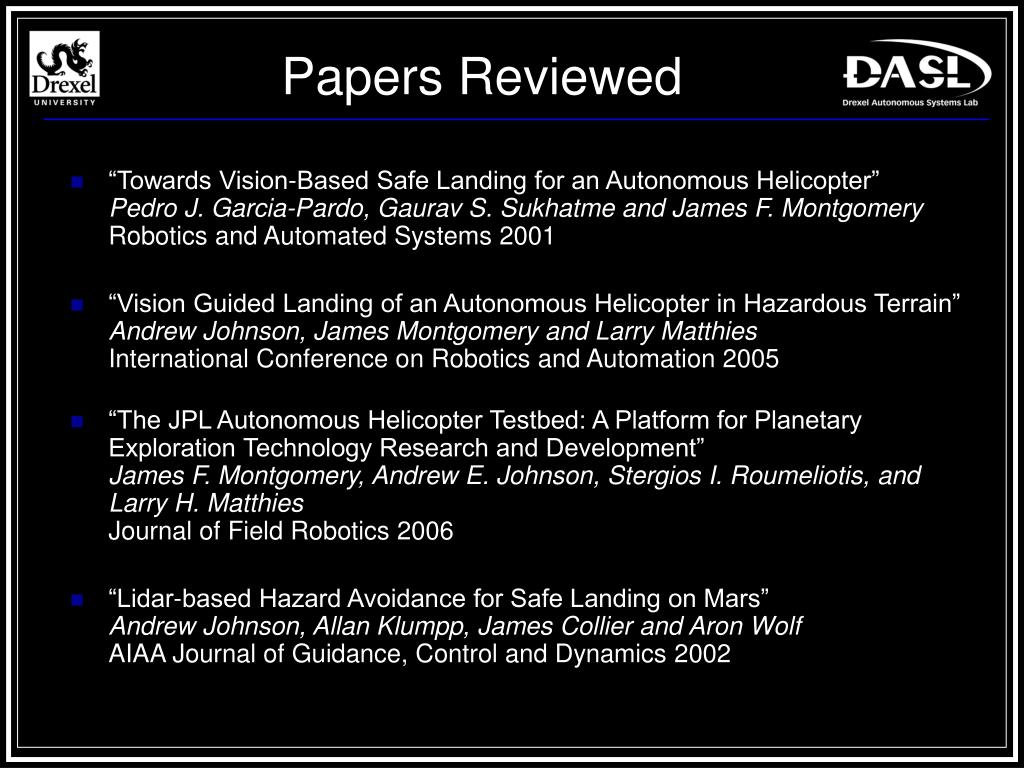

Papers Reviewed
  • “Towards Vision-Based Safe Landing for an Autonomous Helicopter”Pedro J. Garcia-Pardo, Gaurav S. Sukhatme and James F. MontgomeryRobotics and Automated Systems 2001
  • “Vision Guided Landing of an Autonomous Helicopter in Hazardous Terrain”Andrew Johnson, James Montgomery and Larry MatthiesInternational Conference on Robotics and Automation 2005
  • “The JPL Autonomous Helicopter Testbed: A Platform for Planetary Exploration Technology Research and Development”James F. Montgomery, Andrew E. Johnson, Stergios I. Roumeliotis, and Larry H. MatthiesJournal of Field Robotics 2006
  • “Lidar-based Hazard Avoidance for Safe Landing on Mars”Andrew Johnson, Allan Klumpp, James Collier and Aron WolfAIAA Journal of Guidance, Control and Dynamics 2002
algorithm selection option 1

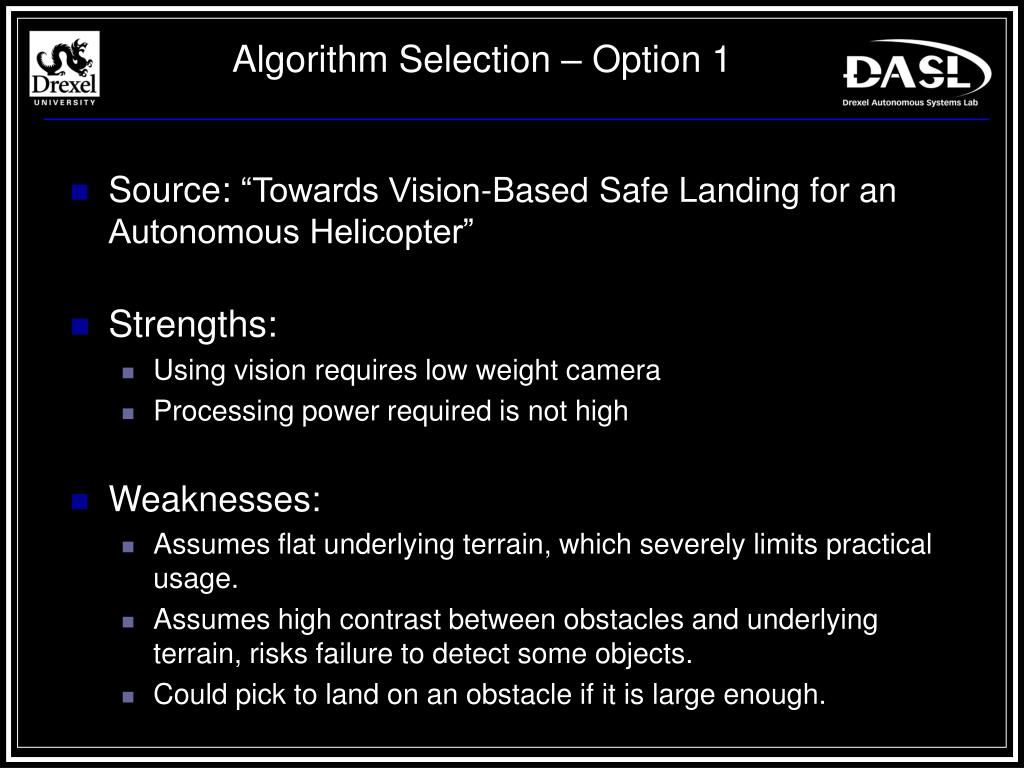

Algorithm Selection – Option 1
  • Source: “Towards Vision-Based Safe Landing for an Autonomous Helicopter”
  • Strengths:
    • Using vision requires low weight camera
    • Processing power required is not high
  • Weaknesses:
    • Assumes flat underlying terrain, which severely limits practical usage.
    • Assumes high contrast between obstacles and underlying terrain, risks failure to detect some objects.
    • Could pick to land on an obstacle if it is large enough.
algorithm selection option 2

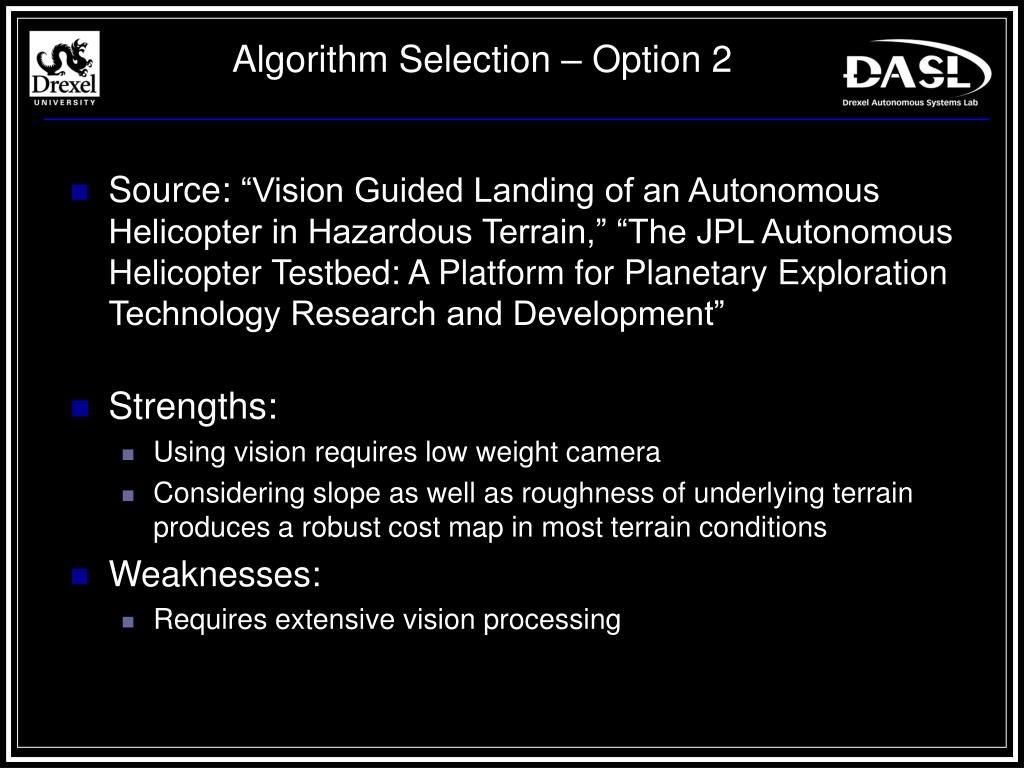

Algorithm Selection – Option 2
  • Source: “Vision Guided Landing of an Autonomous Helicopter in Hazardous Terrain,” “The JPL Autonomous Helicopter Testbed: A Platform for Planetary Exploration Technology Research and Development”
  • Strengths:
    • Using vision requires low weight camera
    • Considering slope as well as roughness of underlying terrain produces a robust cost map in most terrain conditions
  • Weaknesses:
    • Requires extensive vision processing
algorithm selection option 3

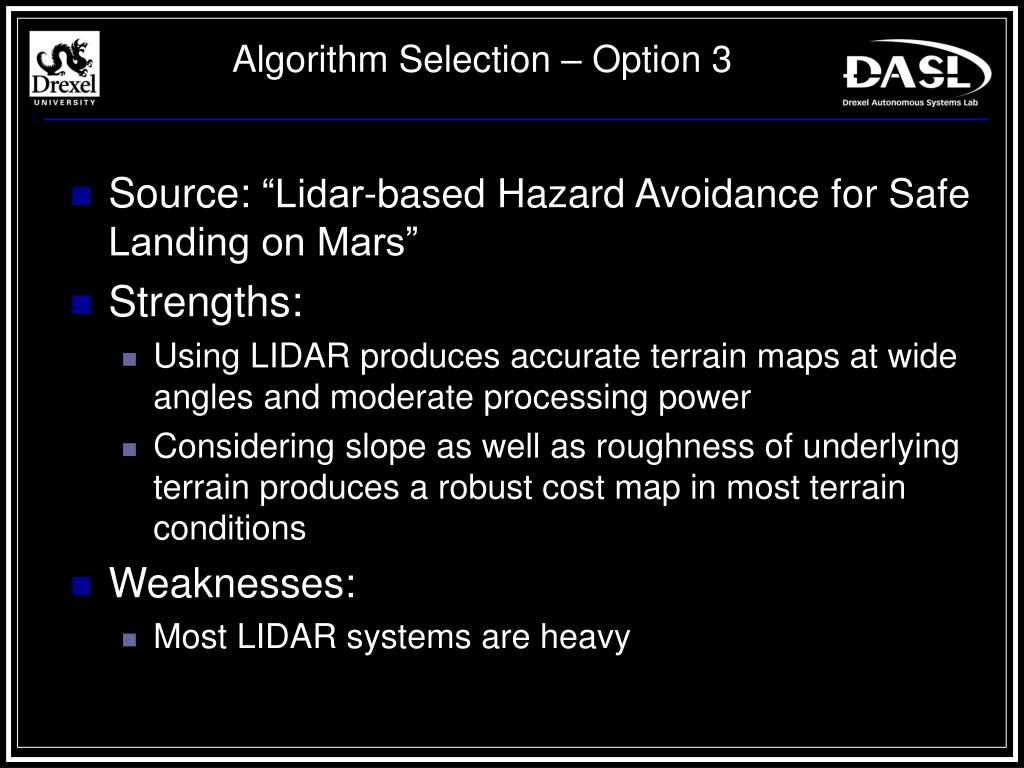

Algorithm Selection – Option 3
  • Source: “Lidar-based Hazard Avoidance for Safe Landing on Mars”
  • Strengths:
    • Using LIDAR produces accurate terrain maps at wide angles and moderate processing power
    • Considering slope as well as roughness of underlying terrain produces a robust cost map in most terrain conditions
  • Weaknesses:
    • Most LIDAR systems are heavy
algorithm choice option 3

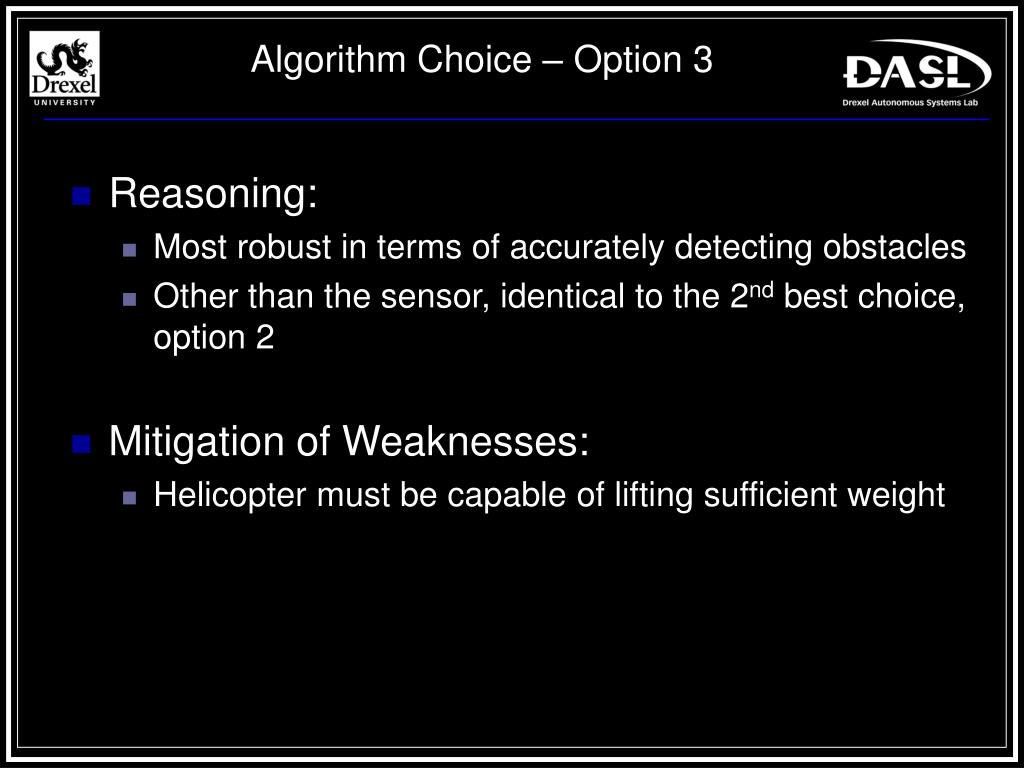

Algorithm Choice – Option 3
  • Reasoning:
    • Most robust in terms of accurately detecting obstacles
    • Other than the sensor, identical to the 2nd best choice, option 2
  • Mitigation of Weaknesses:
    • Helicopter must be capable of lifting sufficient weight
overview of algorithm implementation
Overview of Algorithm Implementation
  • Digital Elevation Map
    • SICK data is interpreted and flattened
    • Pose and position at each SICK scan point is recorded from UAV autopilot
    • Elevation map is generated by correlating the scanned depths with the position and pose at which they were recorded
overview of algorithm implementation9

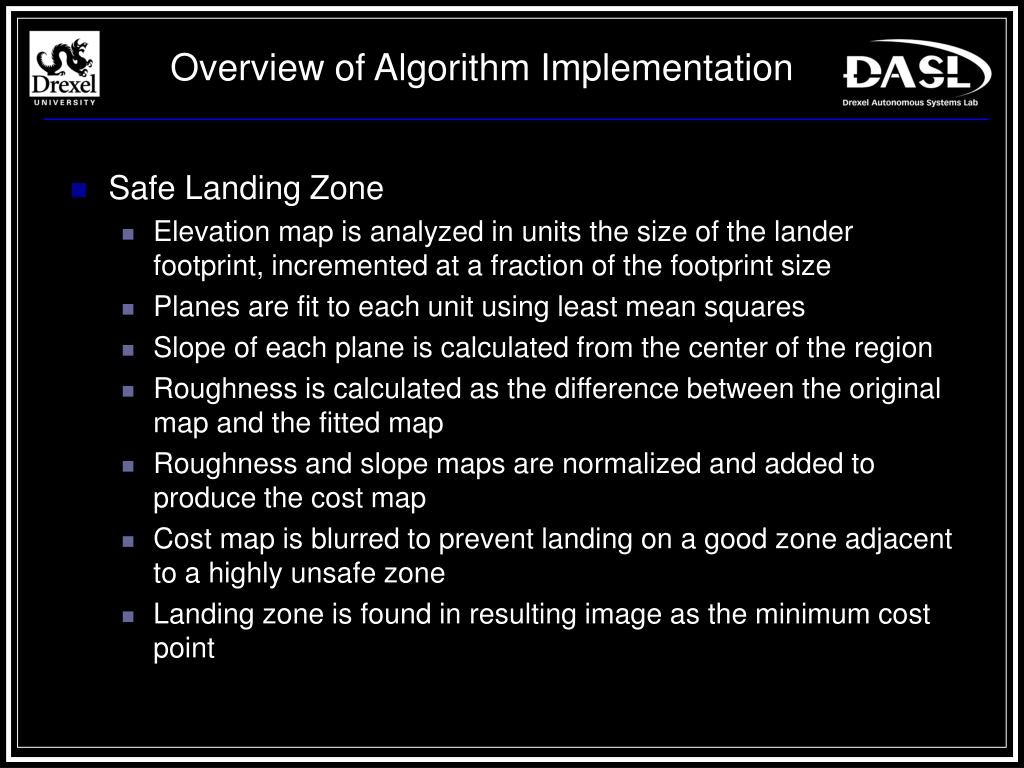

Overview of Algorithm Implementation
  • Safe Landing Zone
    • Elevation map is analyzed in units the size of the lander footprint, incremented at a fraction of the footprint size
    • Planes are fit to each unit using least mean squares
    • Slope of each plane is calculated from the center of the region
    • Roughness is calculated as the difference between the original map and the fitted map
    • Roughness and slope maps are normalized and added to produce the cost map
    • Cost map is blurred to prevent landing on a good zone adjacent to a highly unsafe zone
    • Landing zone is found in resulting image as the minimum cost point
generated terrain
Generated Terrain
  • Hypothetical terrain was generated with a graphics program
landing zone algorithm step 1

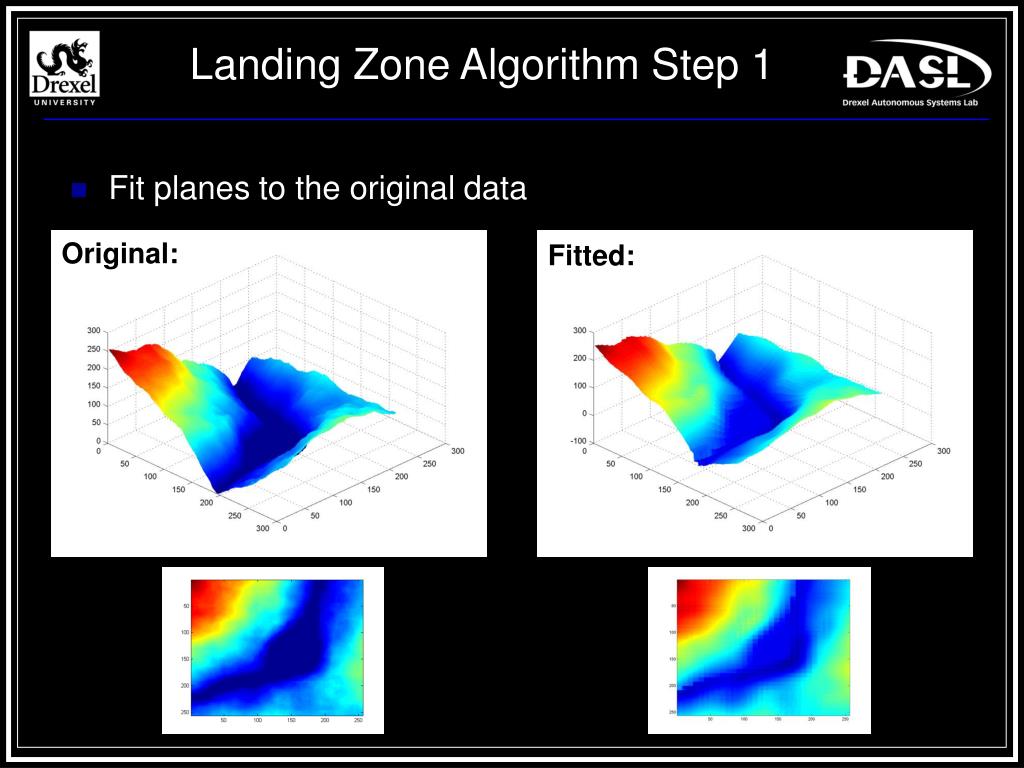

Landing Zone Algorithm Step 1
  • Fit planes to the original data

Original:

Fitted:

landing zone algorithm step 2 3

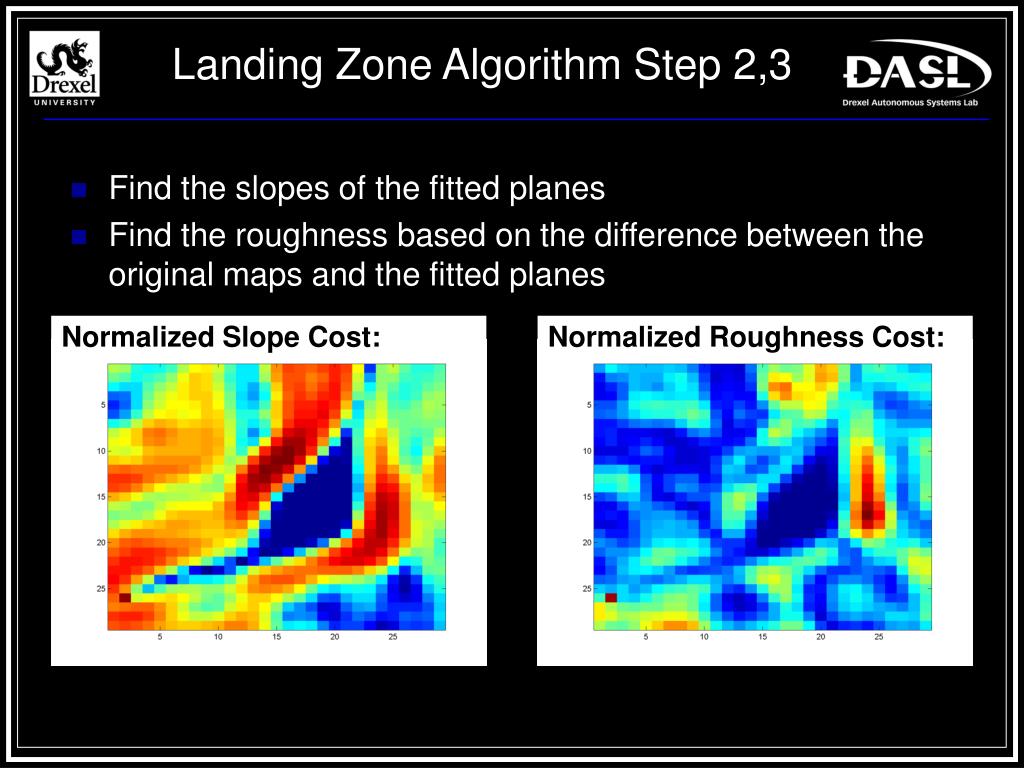

Landing Zone Algorithm Step 2,3
  • Find the slopes of the fitted planes
  • Find the roughness based on the difference between the original maps and the fitted planes

Normalized Slope Cost:

Normalized Roughness Cost:

landing zone algorithm step 4

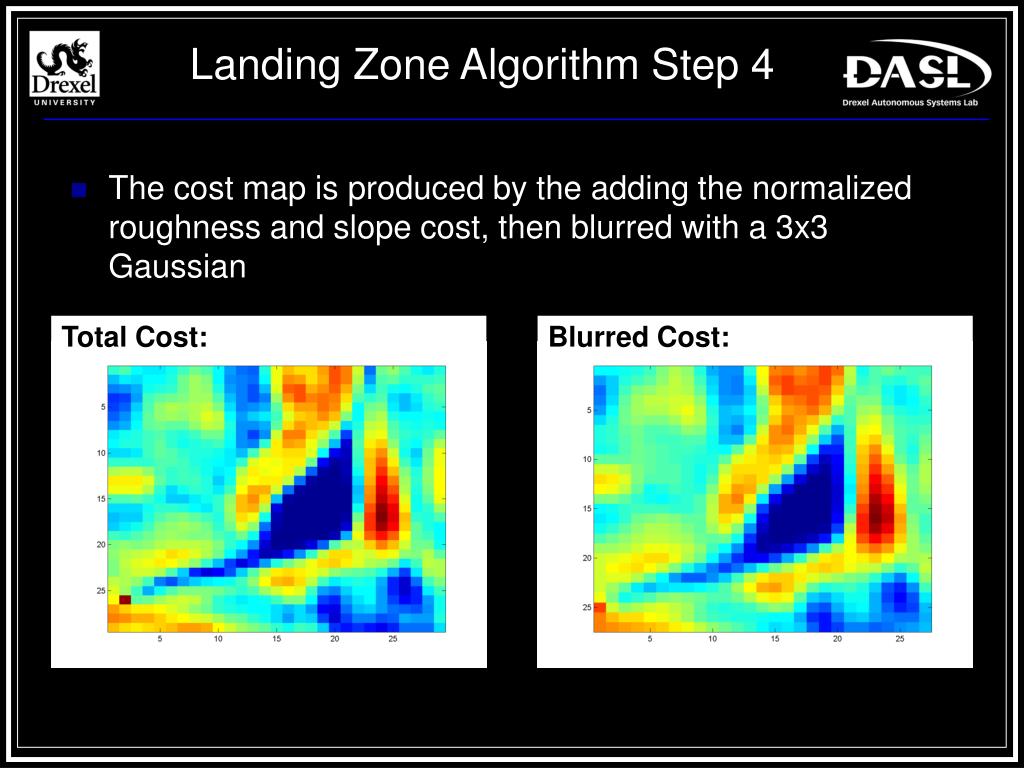

Landing Zone Algorithm Step 4
  • The cost map is produced by the adding the normalized roughness and slope cost, then blurred with a 3x3 Gaussian

Total Cost:

Blurred Cost:

landing zone algorithm step 5

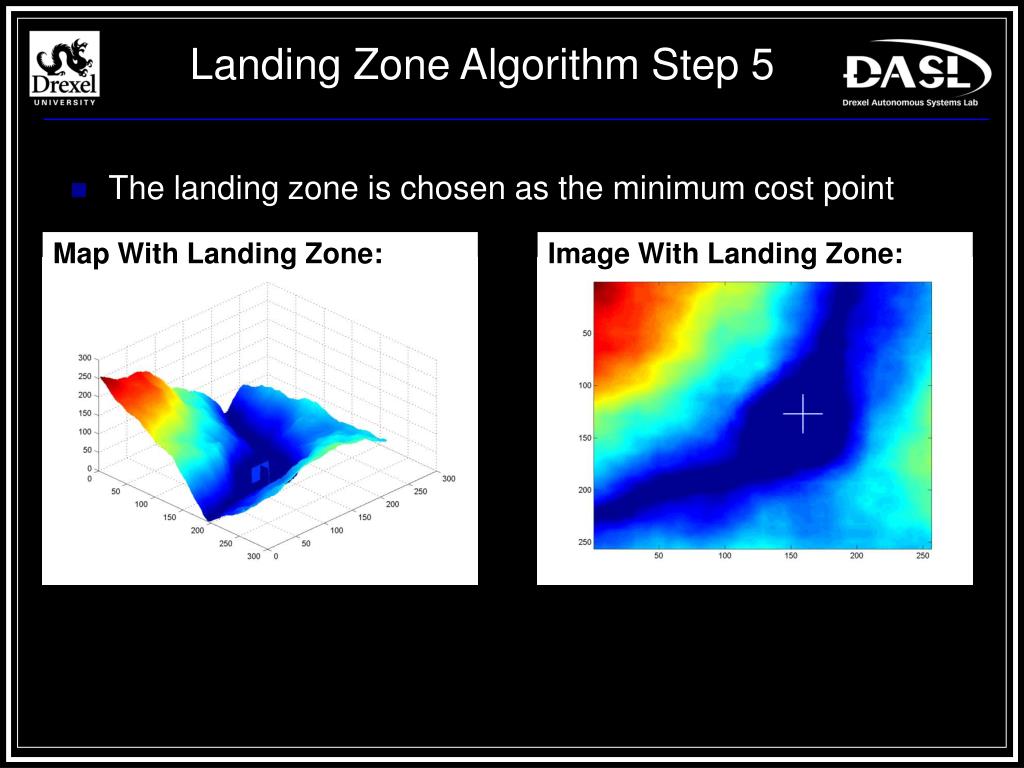

Landing Zone Algorithm Step 5
  • The landing zone is chosen as the minimum cost point

Map With Landing Zone:

Image With Landing Zone:
