Presentation Transcript

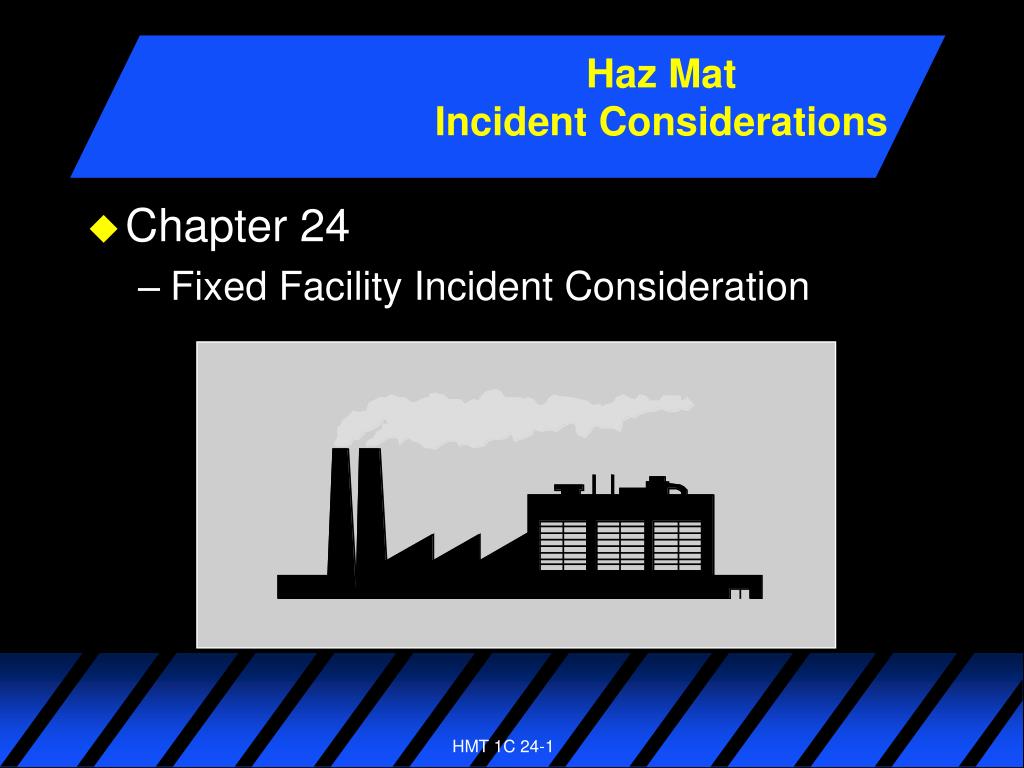

slide1

Haz MatIncident Considerations

  • Chapter 24
    • Fixed Facility Incident Consideration
fixed facility incident consideration
Fixed Facility Incident Consideration
  • Session Objectives
    • Identify the impact of fire and safety features on the behavior of the products during an incident
    • Explain the significance of fire and safety features in the risk assessment process
    • Identify methods for determining the pressure and amount of lading in facility containers
codes ordinances and regulations
Codes, Ordinances and Regulations
  • The Uniform Fire Code
  • Uniform Building Code
  • NFPA 704 - Hazard identification system
codes ordinances and regulations4
Codes, Ordinances and Regulations
  • Health and Safety Code
  • Locally adopted ordinances
  • SARA, Title III
    • Emergency planning, community right to know and emergency notification
pre plan
Pre-Plan
  • Type(s) and amount(s) of materials
  • The hazards of each material
  • Potential health and environmental effects
  • In-house protection systems, utilities, and facility layout
  • Response routes, points of entry, barriers, emergency escape routes, and other access information
pre plan6
Pre-Plan
  • Identify potential exposure problems
  • Identify potential avenues of spread
  • Determine local capabilities and resources
the pre planning process
The Pre-Planning Process
  • Identify target hazards
  • Compile information on target hazards
sources of information include
Sources of information include:
  • Building permits
  • Inspection reports
  • Hazardous materials permits
  • Past incident reports
  • Hazardous Materials Management Plan
hazardous materials management plans hmmps
Hazardous Materials Management Plans (HMMPs)
  • Developed and maintained by personnel at the fixed facility
  • Must be given to the agency having emergency response authority
  • Required
hmmp must contain
HMMP Must Contain:
  • General Information
  • Facility Storage Map
  • Hazardous Materials Inventory Statement
  • Separation of materials
  • Monitoring Program
  • Record Keeping Forms
  • Emergency Equipment
  • Emergency Response Plans
pre plans
Pre-Plans
  • A pre-plan usually consists of two parts:
    • Quick access information
    • Plot plan
  • Pre-plans should be set up in a standard format for all fixed facilities
    • exercise the plan
fixed facility systems
Fixed Facility Systems
  • Containers and tanks
  • Piping, valves and fittings
  • Signage
  • Security
  • Ignition sources
  • Shelf storage
  • Spill control, drainage and containment
  • Ventilation
fixed facility systems13
Fixed Facility Systems
  • Separation from incompatible hazardous materials
  • Hazardous materials storage cabinets
  • Fire extinguishing systems
  • Explosion venting or suppression
  • Standby power
  • Limit controls
  • Manual alarm
fixed facility systems14
Fixed Facility Systems
  • Supervision
  • Emergency vehicle access
  • Toxic gas storage
  • Gas detection
  • Local gas shut off
  • Automatic shut off
  • Enunciator panel
fixed facility containers16
Fixed Facility Containers
  • Non-bulk containers
  • Intermediate bulk containers
  • Fixed storage tanks
    • Underground tanks
    • Above ground tanks
hazardous materials storage tank regulations
Hazardous Materials Storage Tank Regulations
  • Uniform Building Code (UBC)
  • Uniform Fire Code (UFC)
  • Occupational Safety and Health Administration (OSHA)
  • Locally adopted Hazardous Materials Storage Ordinances (HMSO)
vertical atmospheric fixed roof tanks19
Vertical Atmospheric Fixed Roof Tanks
  • Wider then they are tall
  • Fat roof or an inverted cone shaped roof
  • May be designed with weak roof-to-shell attachments
  • Usually contain flammable, combustible and corrosive liquids
floating roof tanks
Floating-Roof Tanks
  • Very large tanks
  • Roofs float on liquid inside
    • limits the vapor space
  • Designed for flammable and combustible liquids that readily vaporize
covered floating roof tanks
Covered Floating-Roof Tanks
  • Fixed roof with a inner floating roof
  • Can be identified by large vent openings around the top of the tank
  • Designed to contain flammable and combustible liquids
vertical low pressure fixed roof tanks
Vertical Low Pressure Fixed-Roof Tanks
  • Taller than they are wide
  • Dome top
    • designed to accommodates changes in vapor pressure
  • Operate at pressures up to 15 psig
  • Used for flammable and combustible liquids and other types of haz mats
horizontal above ground low pressure storage tanks
Horizontal Above Ground Low Pressure Storage Tanks
  • Above ground tanks that lay horizontally
  • Potential problems include:
    • possible failure of supports during a fire
    • possible inadequate venting
  • Generally contain gasoline, naphtha or fuel oil
pressure horizontal tank
Pressure Horizontal Tank
  • Cylindrical with rounded ends
  • Usually mounted horizontally on concrete foundation walls or legs
  • Generally painted white or another highly reflective color
  • Contain liquefied gases
  • May have built-in protection systems
spherical tanks
Spherical Tanks
  • Ball-like shape
  • Contain high pressure gases
  • Painted white or other reflective color
  • Pressure relief valve at the top
    • No pressure relief valve may indicate cryogenic liquids
cryogenic liquid tanks
Cryogenic Liquid Tanks
  • Taller than they are wide, and have domed tops
  • Rest on legs rather than directly on the ground
  • Store cryogenic liquids
underground storage tanks
Underground Storage Tanks
  • Underground storage tanks are at least partially below ground
  • Advantages - protected from fire and mechanical damage
  • Disadvantage - cannot be visually inspected for leaks
  • Subject to corrosion
  • Contain LPG, gasoline or fuel oil
bulk storage facilities
Bulk Storage Facilities
  • Safety features that can be found at Bulk Storage Facilities:
    • Tank Spacing
    • Drainage Control and Diking
    • Venting Systems
    • Monitoring and Detection Systems
    • Fire Protection Systems
    • Transfer Options
fixed facility haz mat incident management
Fixed Facility Haz Mat Incident Management
  • Review pre-plans while en route
  • Determine the best approach route and notify other responding units
  • Establish Command
  • Conduct safe size-up
  • Contact site personnel for information
fixed facility haz mat incident management30
Fixed Facility Haz Mat Incident Management
  • Determine if a rescue is involved
  • Isolate the area
  • Request assistance as needed
  • Establish control zones
  • Have responsible party respond
  • Identify hazards present at the site
fixed facility haz mat incident management31
Fixed Facility Haz Mat Incident Management
  • Alert hospitals if necessary
  • Consider protective actions
  • Establish the level of PPE
  • Contain the material using appropriate measures
  • Decontaminate personnel, victims and equipment
  • Owner is responsible for clean up
incidents with fire involvement
Incidents With Fire Involvement:
  • Extinguish vs. let it burn
  • Steam may volatize and spread contaminants
  • Use foam, dry chemical or carbon dioxide as appropriate
  • Oxidizers are difficult extinguish
