SpectraVISION™i9 6L (4FT, DIGITAL)

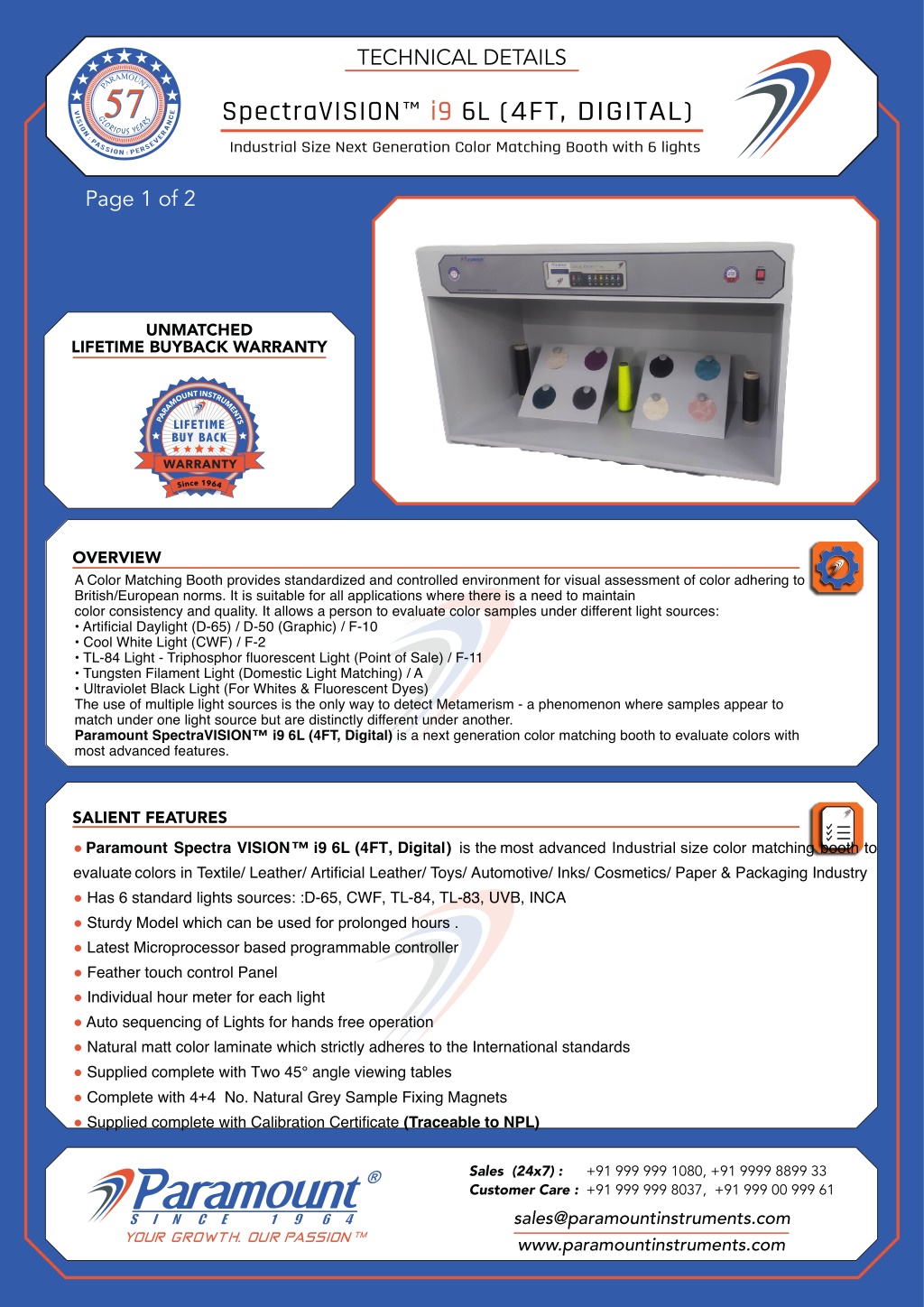

1. TECHNICAL DETAILS SpectraVISION™ i9 6L (4FT, DIGITAL) Industrial Size Next Generation Color Matching Booth with 6 lights Page 1 of 2 UNMATCHED LIFETIME BUYBACK WARRANTY OVERVIEW A Color Matching Booth provides standardized and controlled environment for visual assessment of color adhering to British/European norms. It is suitable for all applications where there is a need to maintain color consistency and quality. It allows a person to evaluate color samples under different light sources: • Artificial Daylight (D-65) / D-50 (Graphic) / F-10 • Cool White Light (CWF) / F-2 • TL-84 Light - Triphosphor fluorescent Light (Point of Sale) / F-11 • Tungsten Filament Light (Domestic Light Matching) / A • Ultraviolet Black Light (For Whites & Fluorescent Dyes) The use of multiple light sources is the only way to detect Metamerism - a phenomenon where samples appear to match under one light source but are distinctly different under another. Paramount SpectraVISION™ i9 6L (4FT, Digital) is a next generation color matching booth to evaluate colors with most advanced features. SALIENT FEATURES ●Paramount SpectraVISION™ i9 6L (4FT, Digital) is the most advanced Industrial size color matching booth to evaluatecolors in Textile/ Leather/ Artificial Leather/ Toys/ Automotive/ Inks/ Cosmetics/ Paper & Packaging Industry ● Has 6 standard lights sources: :D-65, CWF, TL-84, TL-83, UVB, INCA ● Sturdy Model which can be used for prolonged hours . ● Latest Microprocessor based programmable controller ● Feather touch control Panel ● Individual hour meter for each light Auto sequencing of Lights for hands free operation ● ● Natural matt color laminate which strictly adheres to the International standards Supplied complete with Two 45° angle viewing tables Complete with 4+4 No. Natural Grey Sample Fixing Magnets ● ● ● Supplied complete with Calibration Certificate (Traceable to NPL) Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com

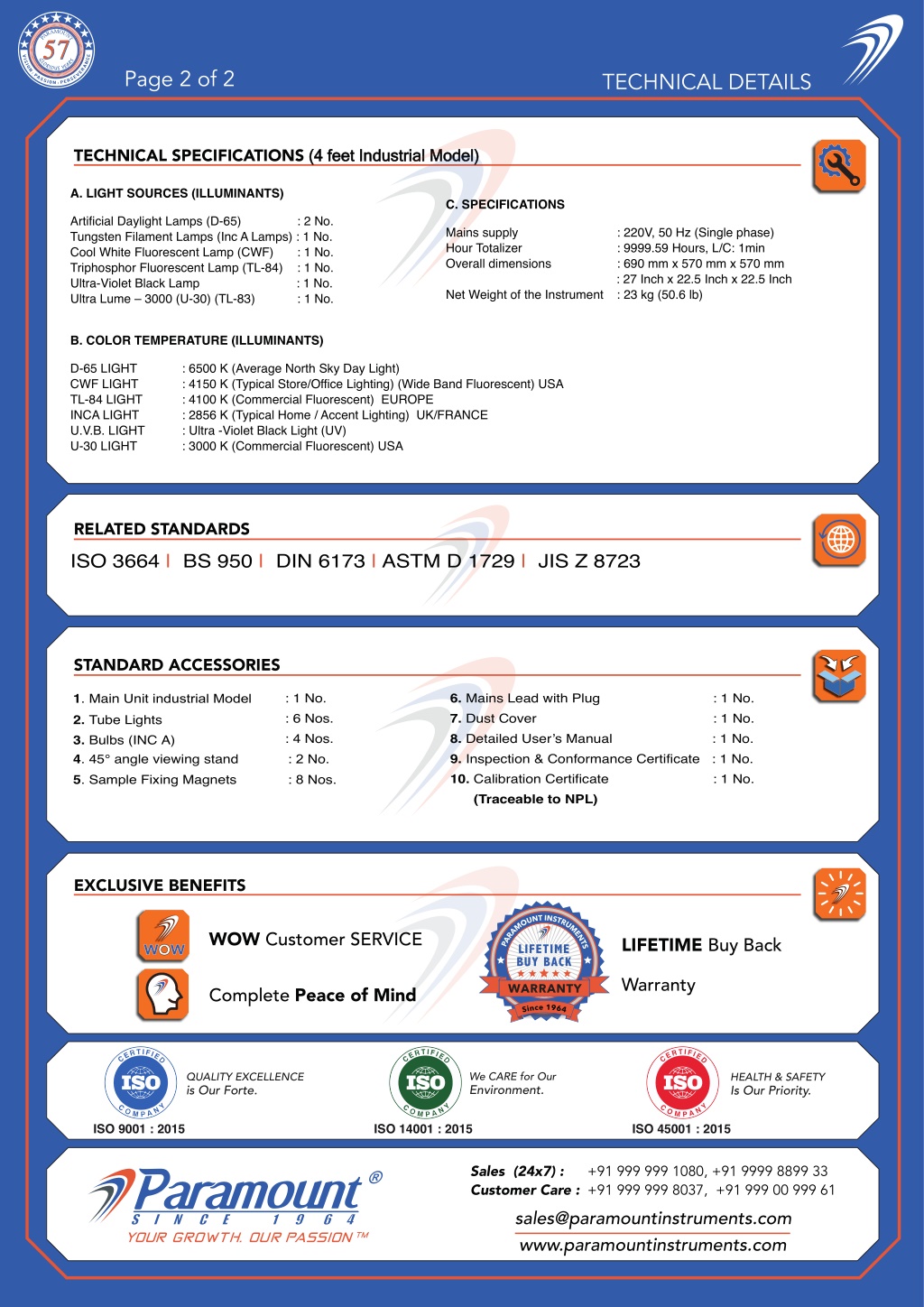

2. Page 2 of 2 TECHNICAL DETAILS TECHNICAL SPECIFICATIONS( (4 4 feet Industrial Model) feet Industrial Model) C. SPECIFICATIONS A. LIGHT SOURCES (ILLUMINANTS) Artificial Daylight Lamps (D-65) Tungsten Filament Lamps (Inc A Lamps) : 1 No. Cool White Fluorescent Lamp (CWF) Triphosphor Fluorescent Lamp (TL-84) : 1 No. Ultra-Violet Black Lamp : 1 No. Ultra Lume – 3000 (U-30) (TL-83) : 2 No. Mains supply Hour Totalizer Overall dimensions Net Weight of the Instrument : 23 kg (50.6 lb) : 220V, 50 Hz (Single phase) : 9999.59 Hours, L/C: 1min : 690 mm x 570 mm x 570 mm : 27 Inch x 22.5 Inch x 22.5 Inch : 1 No. : 1 No. B. COLOR TEMPERATURE (ILLUMINANTS) D-65 LIGHT CWF LIGHT TL-84 LIGHT INCA LIGHT U.V.B. LIGHT U-30 LIGHT : 6500 K (Average North Sky Day Light) : 4150 K (Typical Store/Office Lighting) (Wide Band Fluorescent) USA : 4100 K (Commercial Fluorescent) EUROPE : 2856 K (Typical Home / Accent Lighting) UK/FRANCE : Ultra -Violet Black Light (UV) : 3000 K (Commercial Fluorescent) USA RELATED STANDARDS ISO 3664 | BS 950 | DIN 6173 | ASTM D 1729 | JIS Z 8723 STANDARD ACCESSORIES 1. Main Unit industrial Model : 1 No. 6. Mains Lead with Plug : 1 No. : 6 Nos. 7. Dust Cover : 1 No. 2. Tube Lights 3. Bulbs (INC A) 4. 45° angle viewing stand : 2 No. 5. Sample Fixing Magnets : 8 Nos. : 4 Nos. 8. Detailed User’s Manual : 1 No. 9. Inspection & Conformance Certificate : 1 No. 10. Calibration Certificate : 1 No. (Traceable to NPL) EXCLUSIVE BENEFITS WOW Customer SERVICE LIFETIME Buy Back Warranty Complete Peace of Mind We CARE for Our Environment. QUALITY EXCELLENCE is Our Forte. HEALTH & SAFETY Is Our Priority. ISO 9001 : 2015 ISO 14001 : 2015 ISO 45001 : 2015 Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com
