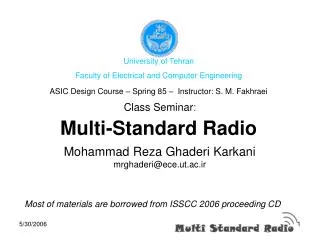

Multi-Standard Radio. University of Tehran Faculty of Electrical and Computer Engineering. ASIC Design Course – Spring 85 – Instructor: S. M. Fakhraei. Class Seminar :. Mohammad Reza Ghaderi Karkani mrghaderi@ece.ut.ac.ir. Most of materials are borrowed from ISSCC 2006 proceeding CD.

panthea-zurlo
Download Presentation

Multi-Standard Radio

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Multi-Standard Radio University of Tehran Faculty of Electrical and Computer Engineering ASIC Design Course – Spring 85 – Instructor: S. M. Fakhraei ClassSeminar: Mohammad Reza Ghaderi Karkani mrghaderi@ece.ut.ac.ir Most of materials are borrowed from ISSCC 2006 proceeding CD

  2. Outlines • Introduction • Radio Hardware Platform • Recent works • GSM/GPRS • GPS for Cell-phones • DVB-H • MB-OFDM UWB • GSM/802.11g WLAN • Conclusion

  3. Introduction • Reconfigurable devices for combined signal paths are technology enablers for Multi band, Multi mode, Software Radio and Multi standard Radios. • Features for future multiradio devices: • Cellular: GSM/WCDMA/… • Wireless broadband: WLAN 802.11a/b/g/n/… • Short range connectivity: BT & UWB • Positioning: GPS/Galileo • Broadcast/TV: DVB-H • Design considerations: • Architecture and system partitioning • Power management • IP blocks and interfaces

  4. From Factor of Multimedia WCDMA/GSM GPS/GALILEO BT/WLAN DVB-H UWB WLAN diversity WCDMA diversity

  5. Radio Hardware Platform • How many ASIC’s? • Single-chip radios or separate RF & BB ASIC’s • External RF components: antennas, filters, PA’s, switches,… • How many modules? • Antennas distributed all over the product • Increased ASIC integration level not any more the only driver in system architectural partitioning • Options • Separate single-chip ASIC’s or system modules close to antenna • One centralized modem with distributed antennas • Something in between (including different choices)

  6. A Fully Integrated SoC for GSM/GPRS in 0.13µm [2] Infineon

  7. A Fully Integrated SoC for GSM/GPRS in 0.13µm [2]

  8. A Fully Integrated SoC for GSM/GPRS in 0.13µm • Crosstalk from the digital blocks into RF is one of the biggest concerns in single-chip transceivers. • Substrate noise pickup, package crosstalk, magnetic coupling between the coils, and supply coupling degrade the RF performance. [2]

  9. A 20mW 3.24mm2 Fully Integrated GPS Radio for Cell-Phones • Cellular phones with embedded GPS engines will enable network-based positioning methods. • Assisted GPS solutions allow a direct migration path into 3G handsets besides being more accurate than cell tower-based ones. [3] RFDomus

  10. DVB-H • DVB-H is a new standard that is expected to be widely deployed in future mobile devices. • The first DVB-H field trials were held in Europe and used the UHF band. • DVB-H has also been targeted for deployment in the United States using L-band spectrum between 1670MHz and 1675MHz. • There has also been discussion of reallocating European L-band DAB frequencies for DVB-H service.

  11. Dual-band Single-Ended-Input Direct-Conversion DVB-H Receiver [4] Microtune, Plano

  12. A Multi-Band Multi-Mode CMOSDirect-Conversion DVB-H Tuner [5] Samsung

  13. Measured performance summary comparison Dual-band Single-Ended-Input Direct-Conversion DVB-H Receiver► [4] ◄A Multi-Band Multi-Mode CMOSDirect-Conversion DVB-H Tuner (0.18μm 40GHz-fT CMOS technology) [5]

  14. A 1.1V 3.1-to-9.5GHz MB-OFDMUWB Transceiver in 90nm CMOS [6] NEC

  15. A 1.1V 3.1-to-9.5GHz MB-OFDMUWB Transceiver in 90nm CMOS [6]

  16. Software-Defined Radio Receiver • A software-defined radio (SDR) can tune to any frequency band, select any reasonable channel bandwidth, and detect any known modulation. • While progress has been made on DSP and baseband functions for SDR, the low-power radio front-end has remained elusive. • An ADC at the antenna which digitizes all bands simultaneously with equal fidelity will not be practical in the foreseeable future. • Today’s mobile SDR receiver needs a wideband, linear RF front-end that can be tuned to any one channel at a time in the band from 800MHz to5GHz.

  17. An 800MHz to 5GHz Software-Defined Radio Receiver in 90nm CMOS [7] UCLA

  18. An 800MHz to 5GHz Software-Defined Radio Receiver in 90nm CMOS • The on-chip receiver selectivity at 900MHz is sufficient for GSM and at 2.4GHz for 802.11g WLAN [7]

  19. Conclusion • Multi-Standard Radio Design is not only an ASIC level issue • Hierarchical design and design abstraction are needed in system design • Hybrid solutions cover numerous different options to realize Multi-Standard Radio

  20. References • A. Parssinen, “System Design For Multi-Standard Radios,” ISSCC 2006, GIRAFE forum. • J. Kissing, R. Koch, “A Fully Integrated SoC for GSM/GPRS in 130nm CMOS,” ISSCC 2006. • V. Della Torre, et al., “A 20mW 3.24mm2 Fully Integrated GPS Radio for Cell-Phones ,” ISSCC 2006. • M. Womac, et al., “Dual-Band Single-Ended-Input Direct-Conversion DVB-H Receiver ,” ISSCC 2006. • Y. J. Kim, et al., “A Multi-Band Multi-Mode CMOS Direct-Conversion DVB-H Tuner,” ISSCC 2006. • A. Tanaka, et al., “A 1.1V 3.1 to 9.5 GHz MB-OFDM UWB Transceiver in 90nm CMOS,” ISSCC 2006. • R. Bagheri, et al., “An 800MHz-5GHz Software-Defined Radio Receiver in 90nm CMOS,” ISSCC 2006.
