1 / 6

A = Cos o x H

Cosine Rule. A = Cos o x H. To find an adjacent side we need 1 side (hypotenuse) and the included angle. 9 cm. 12 cm. 60 °. 75 °. a. a. A = Cos ° x H A = Cos 75° x 12 A = 0.258819045 x 12 A = 3.1 cm. A = Cos ° x H A = Cos 60° x 9 A = 0.5 x 9 A = 4.5 cm. Cosine Rule.

Download Presentation

A = Cos o x H

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Cosine Rule A = Cos o x H To find an adjacent side we need 1 side (hypotenuse) and the includedangle. 9 cm 12 cm 60° 75° a a A = Cos ° x H A = Cos 75° x 12 A = 0.258819045 x 12 A = 3.1 cm A = Cos ° x H A = Cos 60° x 9 A = 0.5 x 9 A = 4.5 cm

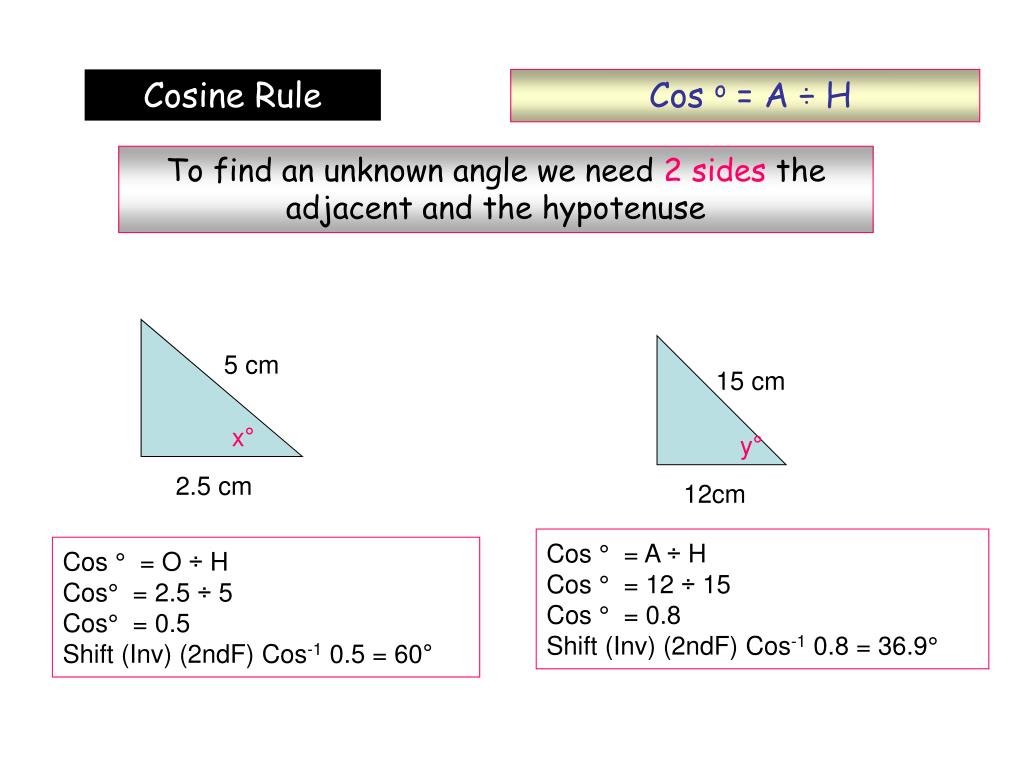

  2. Cosine Rule Cos o = A ÷ H To find an unknown angle we need 2 sides the adjacent and the hypotenuse 5 cm 15 cm x° y° 2.5 cm 12cm Cos ° = A÷ H Cos ° = 12 ÷ 15 Cos ° = 0.8 Shift (Inv) (2ndF) Cos-1 0.8 = 36.9° Cos ° = O ÷ H Cos° = 2.5 ÷ 5 Cos° = 0.5 Shift (Inv) (2ndF) Cos-1 0.5 = 60°

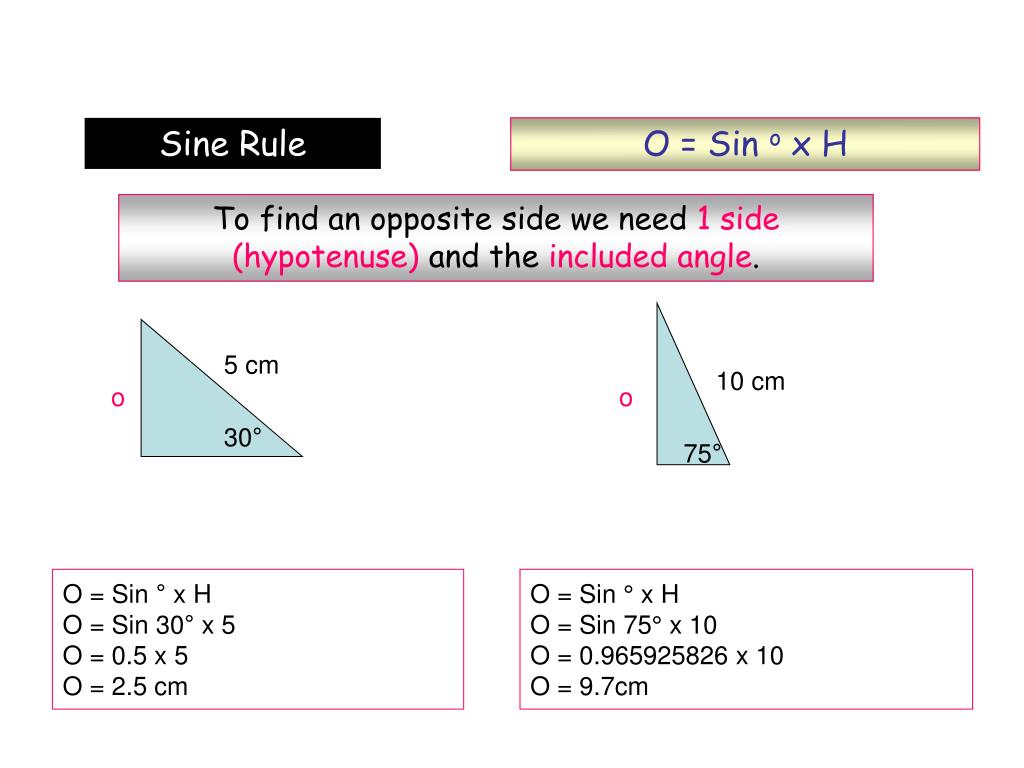

  3. Sine Rule O = Sin o x H To find an opposite side we need 1 side (hypotenuse) and the includedangle. 5 cm 10 cm o o 30° 75° O = Sin ° x H O = Sin 30° x 5 O = 0.5 x 5 O = 2.5 cm O = Sin ° x H O = Sin 75° x 10 O = 0.965925826 x 10 O = 9.7cm

  4. Sine Rule Sin o = O ÷ H To find an unknown angle we need 2 sides the opposite and the hypotenuse 5 cm 15 cm 2.5 cm 12cm x° y° Sin ° = A÷ H Sin ° = 12 ÷ 15 Sin ° = 0.8 Shift (Inv) (2ndF) Sin-1 0.8 = 53.1° Sin ° = O ÷ H Sin ° = 2.5 ÷ 5 Sin ° = 0.5 Shift (Inv) (2ndF) Sin-1 0.5 = 30°

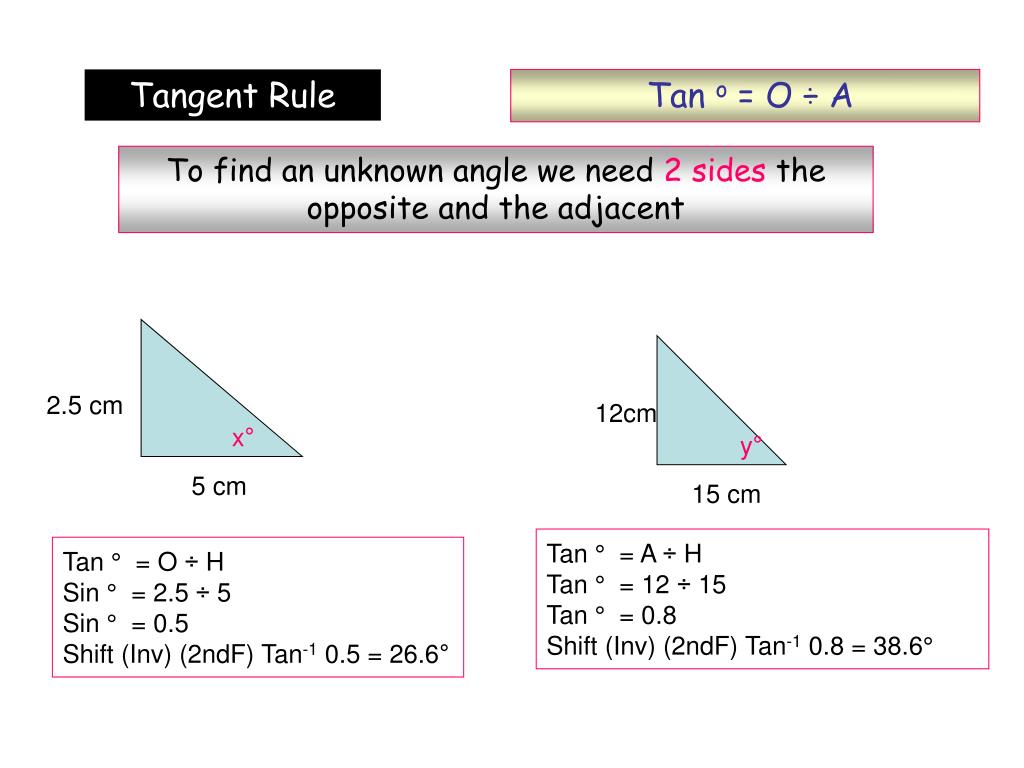

  5. Tangent Rule Tan o = O ÷ A To find an unknown angle we need 2 sides the opposite and the adjacent 2.5 cm 12cm x° y° 5 cm 15 cm Tan ° = A÷ H Tan ° = 12 ÷ 15 Tan ° = 0.8 Shift (Inv) (2ndF) Tan-1 0.8 = 38.6° Tan ° = O ÷ H Sin ° = 2.5 ÷ 5 Sin ° = 0.5 Shift (Inv) (2ndF) Tan-1 0.5 = 26.6°

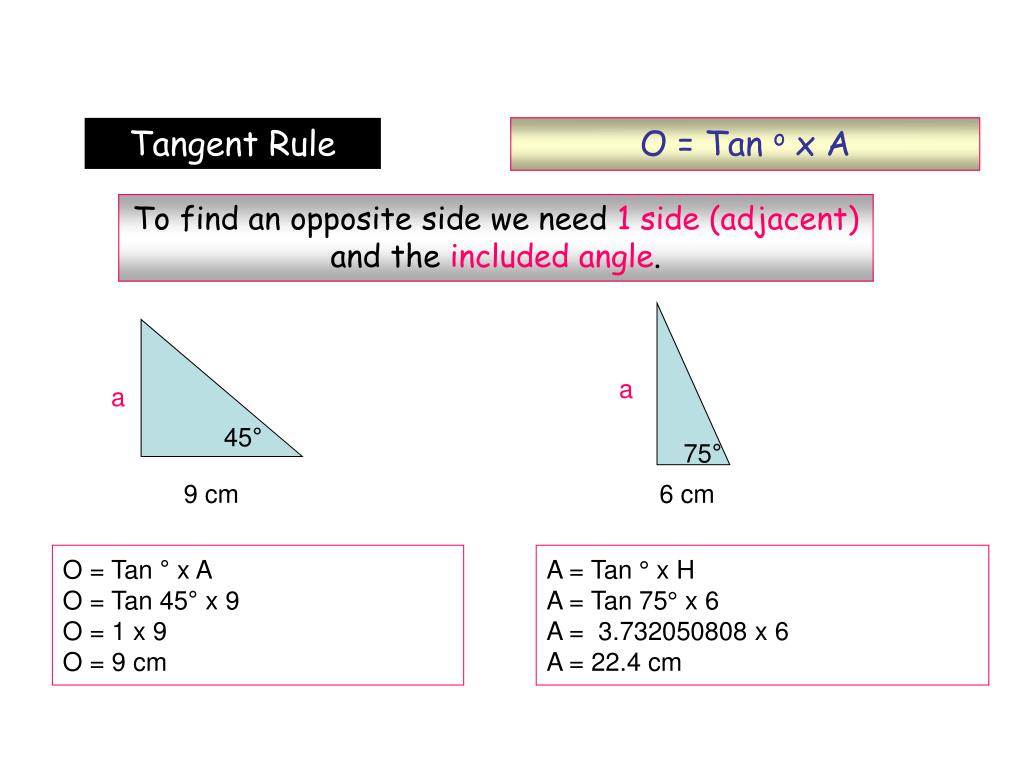

  6. Tangent Rule O = Tan o x A To find an opposite side we need 1 side (adjacent) and the includedangle. a a 45° 75° 9 cm 6 cm O = Tan ° x A O = Tan 45° x 9 O = 1 x 9 O = 9 cm A = Tan ° x H A = Tan 75° x 6 A = 3.732050808 x 6 A = 22.4 cm
