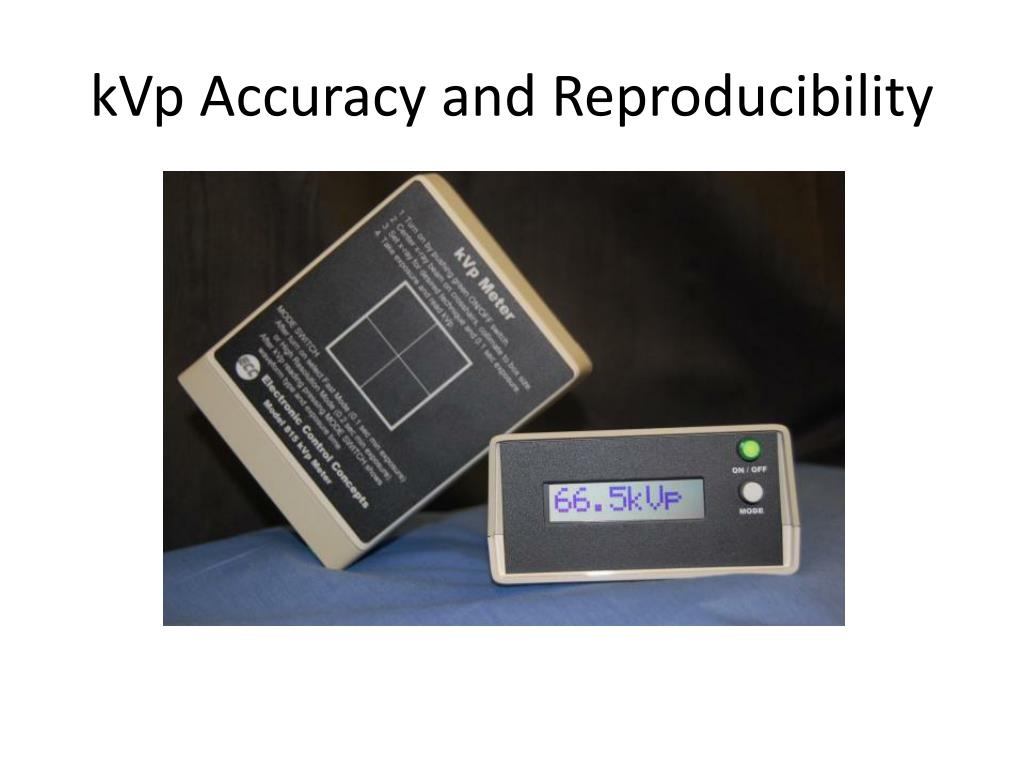

kVp Accuracy and Reproducibility

kVp Accuracy and Reproducibility. Equipment. Procedure 1 Set meter at about 30" from focus or as prescribed by manufacturer. 2. Set 400 mA and 200 ms on the console 3. Measure kVp from 60-120 kVp ( eg . 60, 70, 80, 100, 120) 4. Calculate error between set and measured value.

Download Presentation

kVp Accuracy and Reproducibility

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. kVp Accuracy and Reproducibility

  2. Equipment • Procedure 1 • Set meter at about 30" from focus or as prescribed by manufacturer. • 2. Set 400 mA and 200 ms on the console • 3. Measure kVp from 60-120 kVp (eg. 60, 70, 80, 100, 120) • 4. Calculate error between set and measured value • Procedure 2 • Set meter at about 30 “ from focus or as prescribed by manufacturer. • 2. Set 400mA and 200ms on the console. • 3. Set a fix 70 KVp on the console. • 4. Perform five exposures • 5. Calculate reproducibility variance kVp meter

  3. SID 30” Table Top Technique

  4. Central Ray

  5. How to use the kVp meter video http://www.youtube.com/watch?v=g4n3akjyITM
