Presentation Transcript

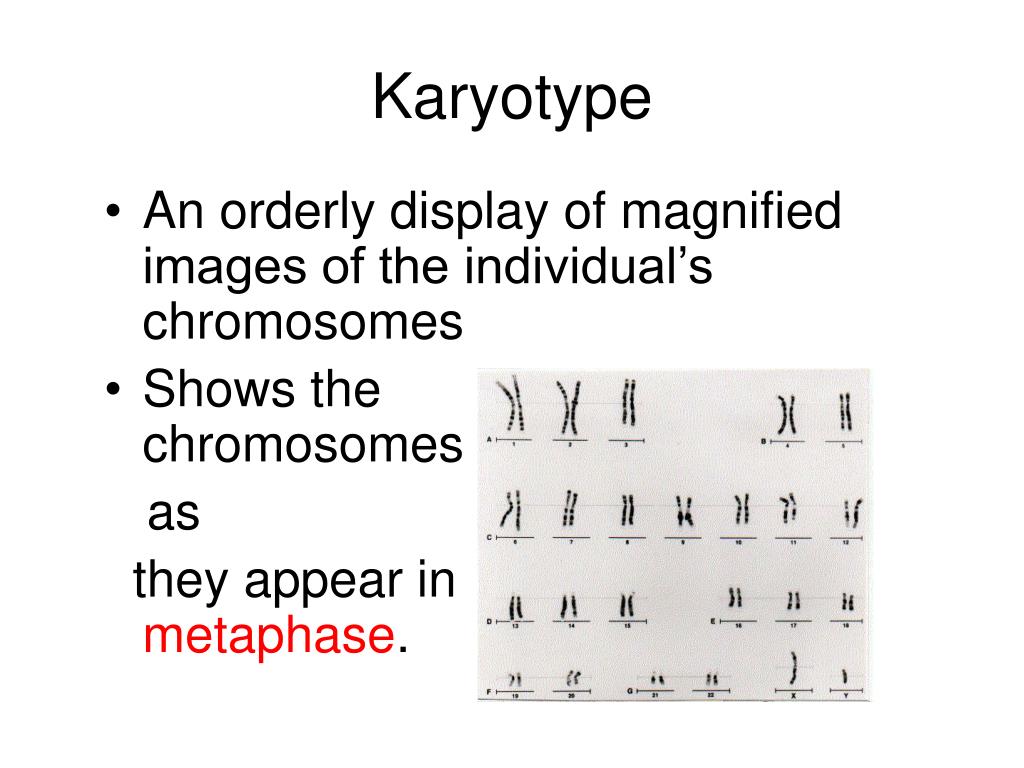

Karyotype l.jpg
Karyotype

  • An orderly display of magnified images of the individual’s chromosomes

  • Shows the chromosomes

    as

    they appear in metaphase.


What is a normal karyotype l.jpg
What is a Normal Karyotype?

  • We are supposed to have 46 total chromosomes in each cell (22 pairs of autosomes = 44, + 2 sex chromosomes).


One source amniocentesis l.jpg
One source:Amniocentesis

  • Take fluid from amniotic fluid around the baby

  • Can make a karyotype to see if there is a genetic disorder


Preparing a karyotype l.jpg
Preparing a Karyotype

  • 1. Use blood cells.


Essay preparing a karyotype l.jpg
Essay: Preparing a Karyotype

  • 2. Burst RBC (red blood cells) in hypotonic solution.

  • Release WBC (white blood cells).


Essay preparing a karyotype7 l.jpg
Essay: Preparing a Karyotype

3. Use a centrifuge to separate the white blood cells from the rest of the blood fluid


Preparing a karyotype8 l.jpg
Preparing a Karyotype

  • 4.Add chemical (colchicine) to stop the chromatids in metaphase (stops spindle fibers from forming)


Preparing a karyotype cont l.jpg
Preparing a Karyotype (cont)

  • 5. Drop on a slide.


Preparing a karyotype cont10 l.jpg
Preparing a Karyotype (cont)

  • 5. Take a picture

  • 6.Sort by size and shape from largest to smallest



Types of karyotypes l.jpg
Types of Karyotypes

  • Fluorescent to detect a marker showing certain defect


Types of karyotypes13 l.jpg
Types of Karyotypes

  • Colored dyes for certain chromosomes

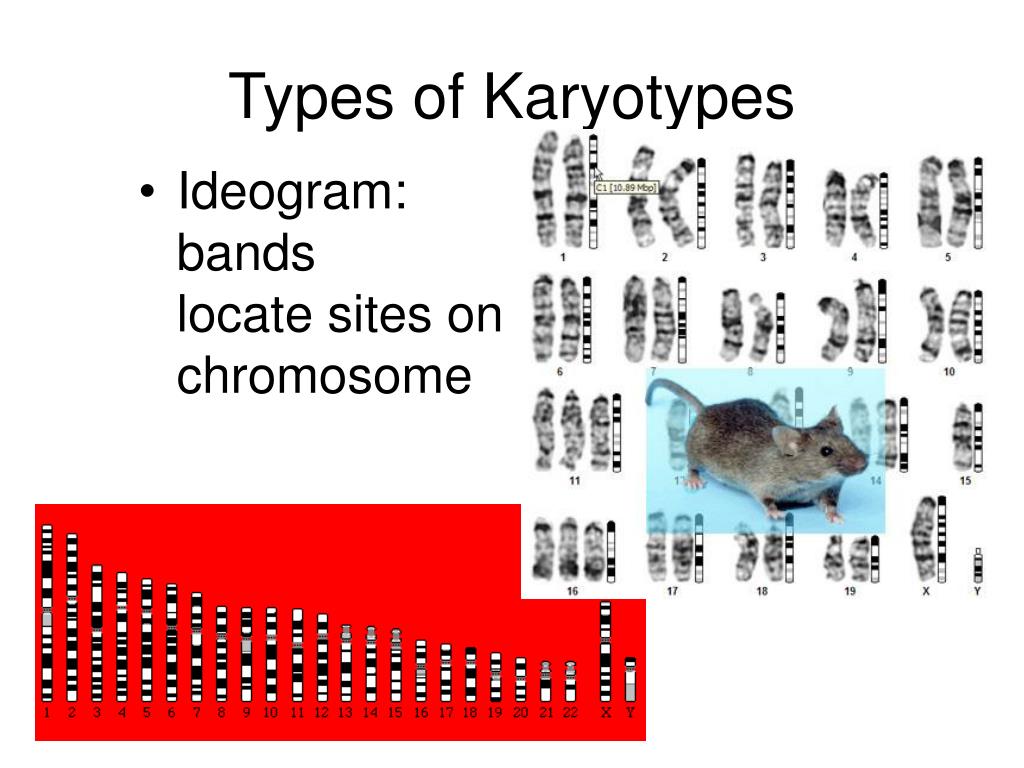

Types of karyotypes14 l.jpg
Types of Karyotypes

  • Ideogram: bands locate sites on chromosome

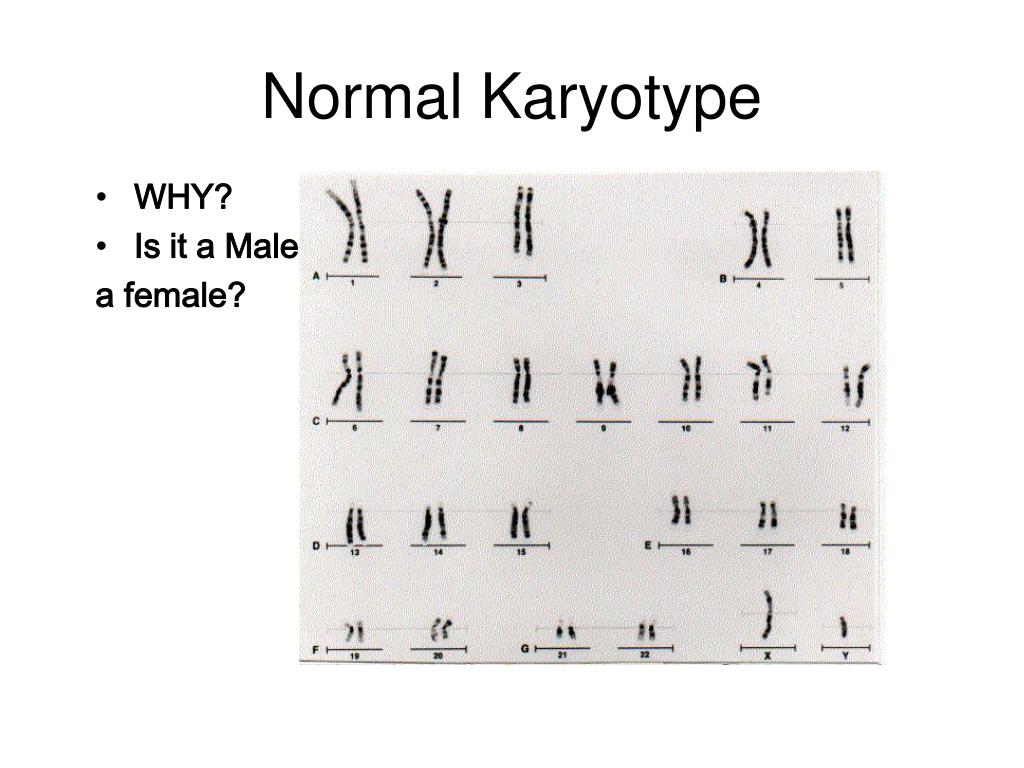

Normal karyotype l.jpg
Normal Karyotype

  • WHY?

  • Is it a Male or

    a female?



Down syndrome l.jpg
Down Syndrome

  • Trisomy 21

  • Folds over eyes

  • Sluggish muscles

  • Mental Problems

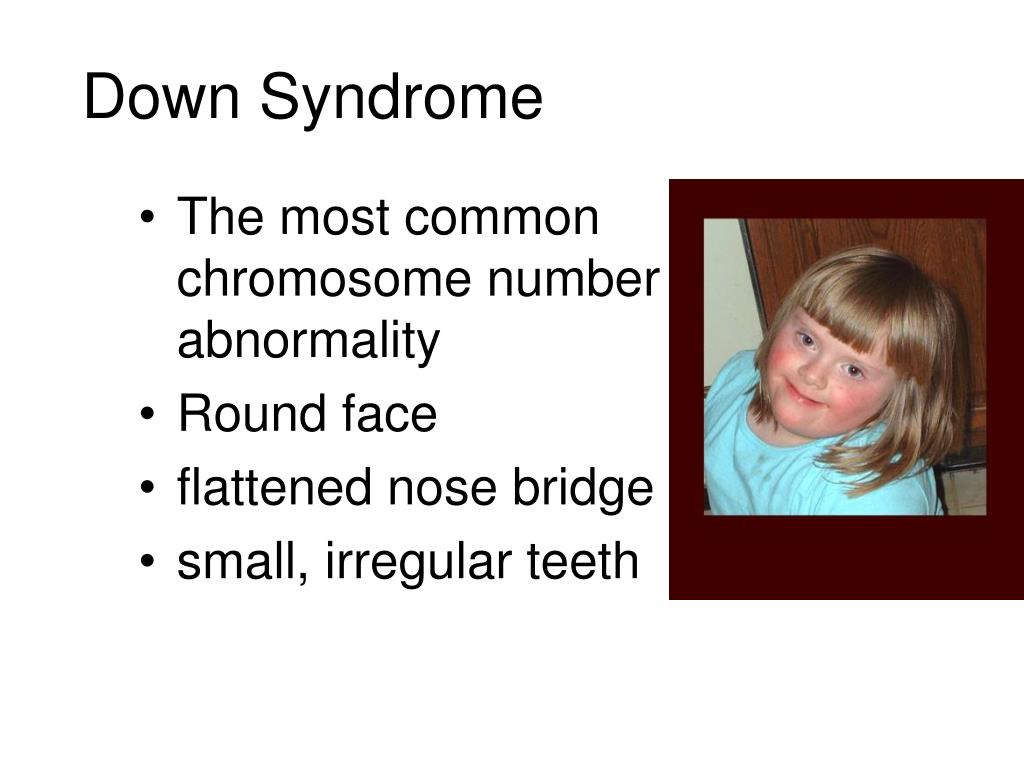

Down syndrome18 l.jpg
Down Syndrome

  • The most common chromosome number abnormality

  • Round face

  • flattened nose bridge

  • small, irregular teeth


Down syndrome19 l.jpg
Down Syndrome

  • Short Stature

  • heart defects

  • susceptibility to respiratory infection , leukemia and Alzheimer’s


Does the mother s age matter l.jpg

As the age of the mother increases above 30, the frequency of Trisomy 21 also increases

Does the mother’s age matter?


Nondisjunction l.jpg
Nondisjunction of Trisomy 21 also increases

  • Uneven distribution of chromosomes in cell division

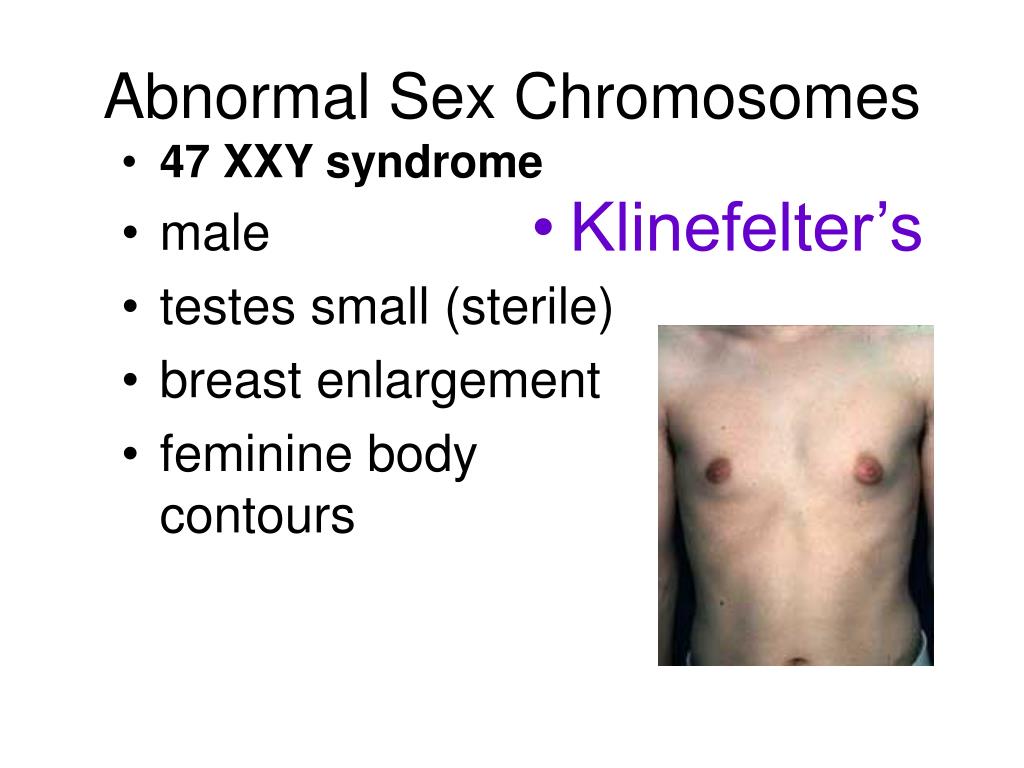

Abnormal sex chromosomes l.jpg

47 XXY syndrome of Trisomy 21 also increases

male

testes small (sterile)

breast enlargement

feminine body contours

Klinefelter’s

Abnormal Sex Chromosomes


Klinefelter s syndrome l.jpg
Klinefelter’s Syndrome of Trisomy 21 also increases

  • also XXYY, XXXY, XXXXY


Turner syndrome l.jpg
TURNER SYNDROME of Trisomy 21 also increases

  • XO (only one X)

  • short

  • often web of skin between neck and shoulders

  • sterile

  • poor breast development


Turner karyotype l.jpg
Turner Karyotype of Trisomy 21 also increases

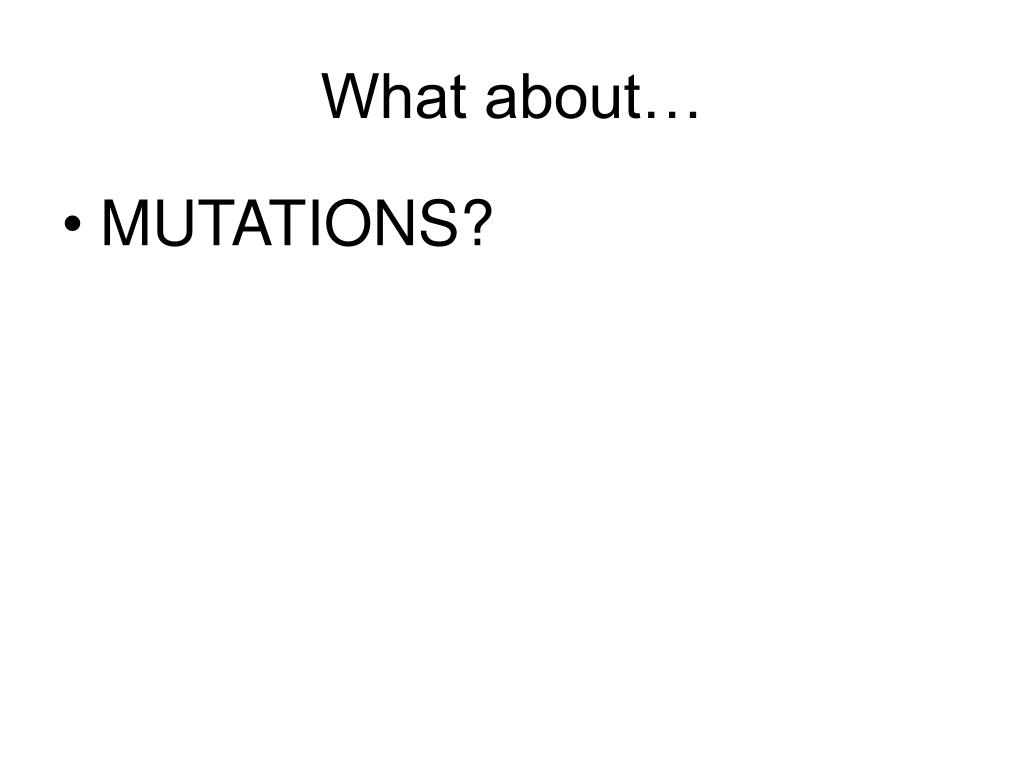

What about l.jpg
What about… of Trisomy 21 also increases

  • MUTATIONS?

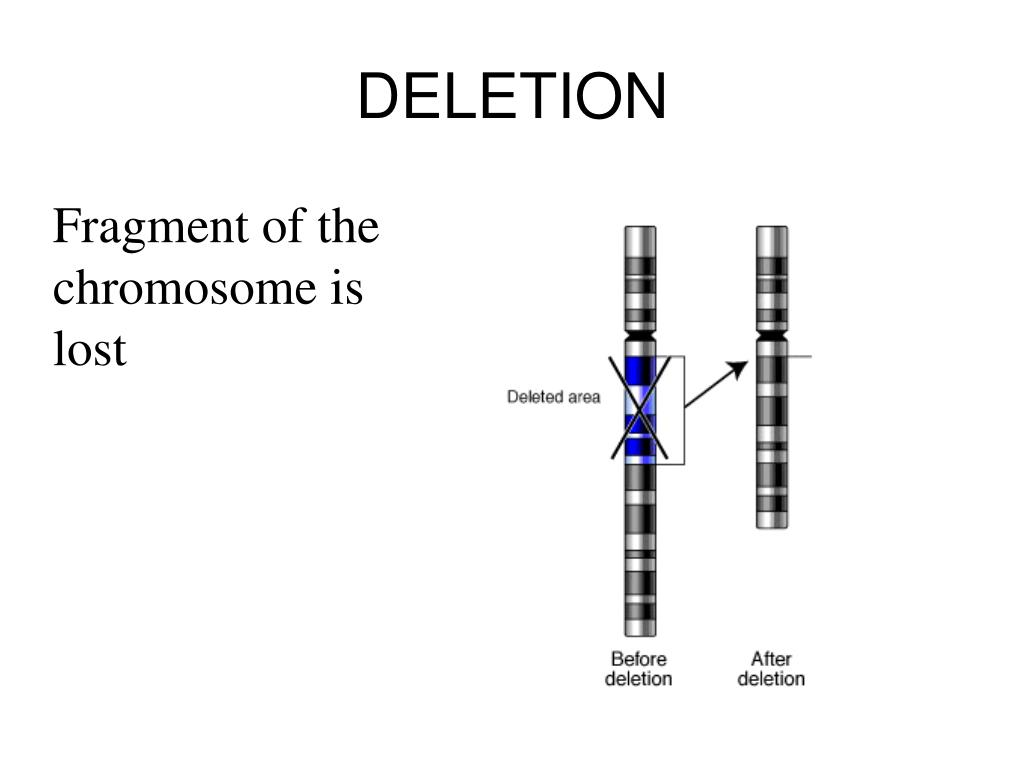

Deletion l.jpg
DELETION of Trisomy 21 also increases

Fragment of the chromosome is lost

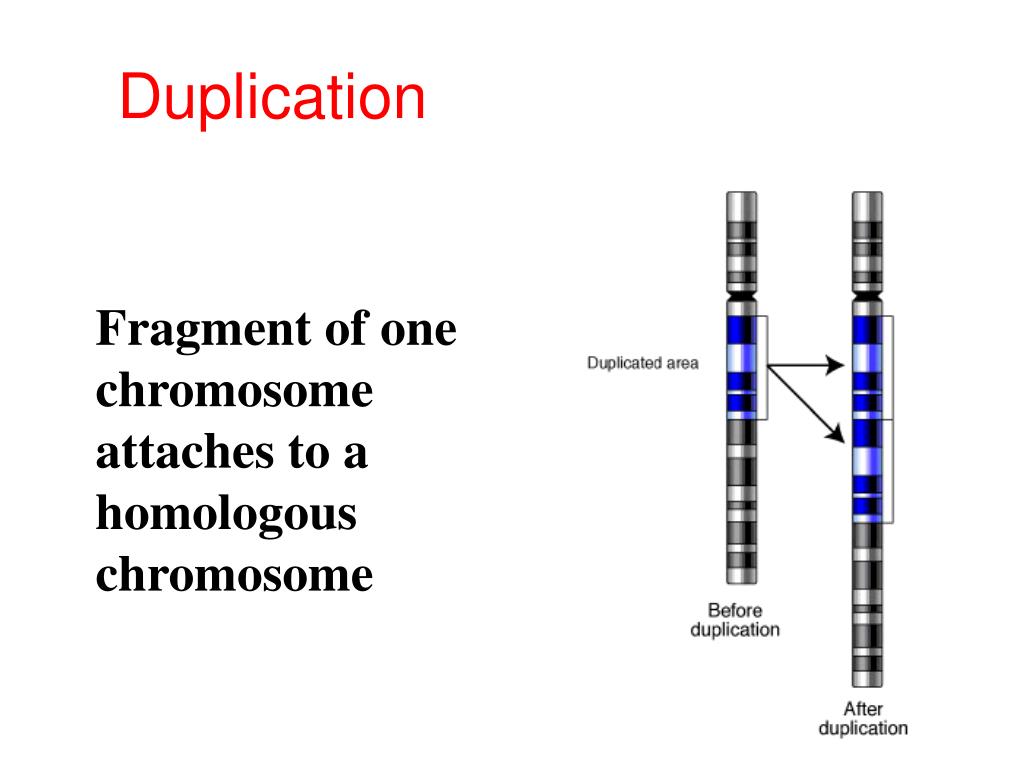

Duplication l.jpg
Duplication of Trisomy 21 also increases

Fragment of one chromosome attaches to a homologous chromosome

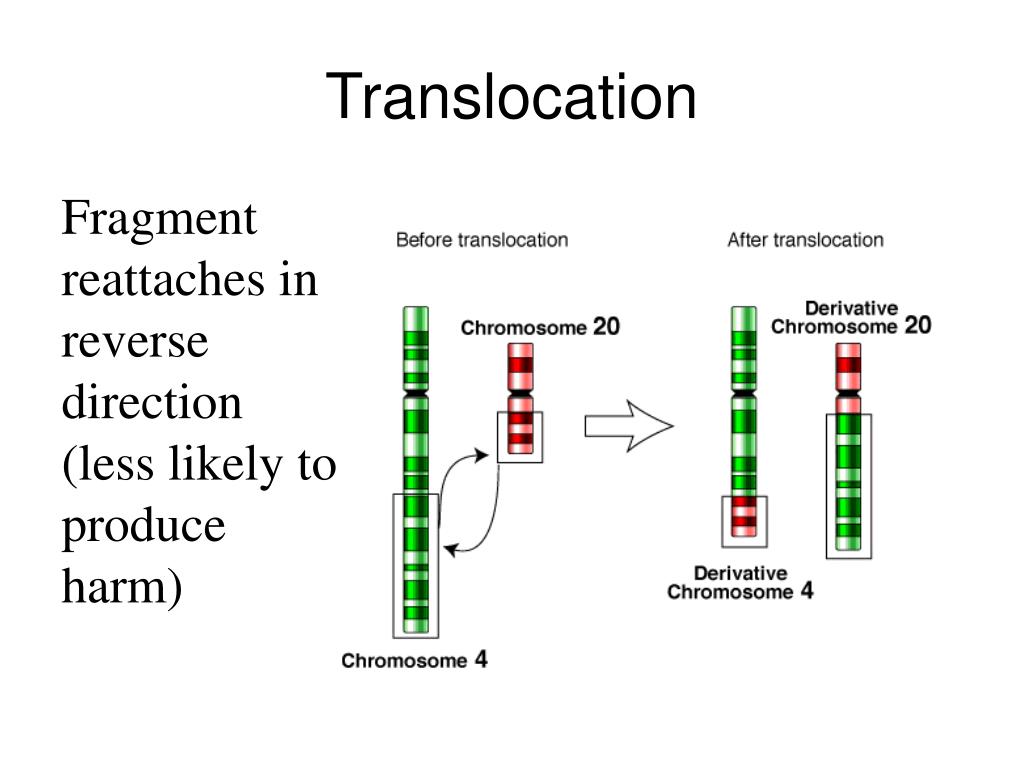

Translocation l.jpg
Translocation of Trisomy 21 also increases

Fragment reattaches in reverse direction (less likely to produce harm)

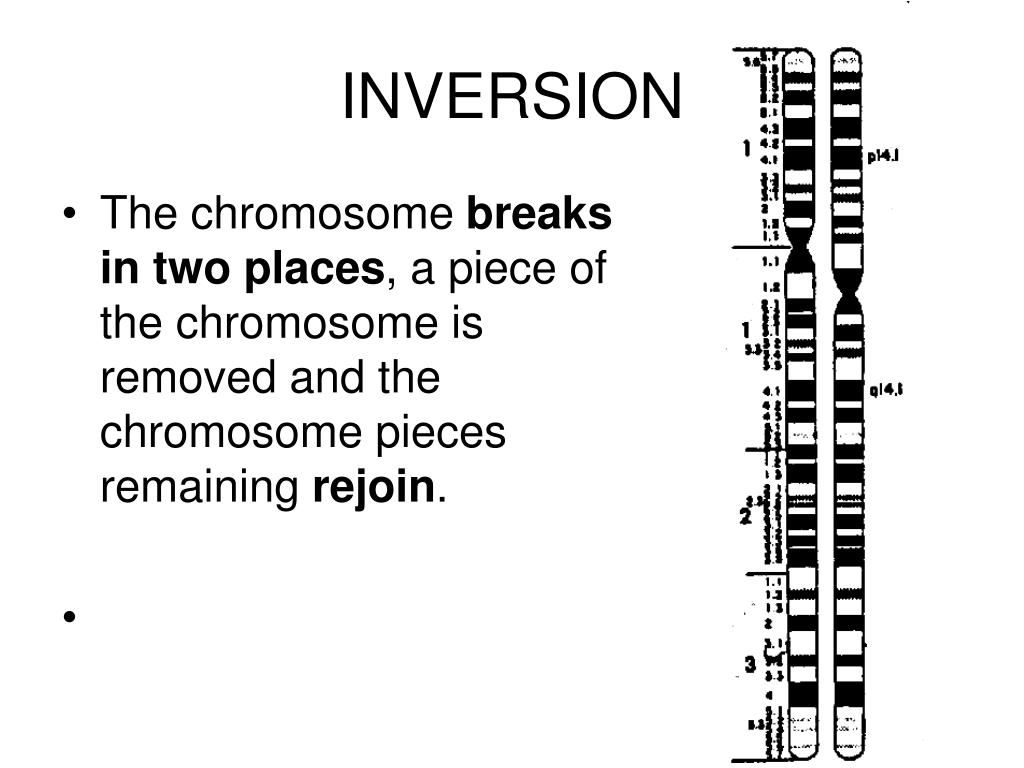

Inversion l.jpg
INVERSION of Trisomy 21 also increases

  • The chromosome breaksin two places, a piece of the chromosome is removed and the chromosome pieces remaining rejoin.


Inversions l.jpg
Inversions of Trisomy 21 also increases

  • Inversions, by definition, do not involve loss or gain of chromosomal material.


Inversion 46 xy inv 16 l.jpg
INVERSION of Trisomy 21 also increases46,XY,inv(16)

  • The left one is normal and the right one is inverted near the centromere.


45 xx rob 13 14 a robertsonian translocation l.jpg
45,XX,rob(13,14) of Trisomy 21 also increasesA Robertsonian translocation

(an end to end fusion of #13 and #14) There is no net gain or loss of genetic material in this person so they would have a normal phenotype.


Applications l.jpg

Chromosomes from the father of a retarded child... a portion of

chromosome 11 (blue) has been

transfered to chromosome 1(yellow).

Applications

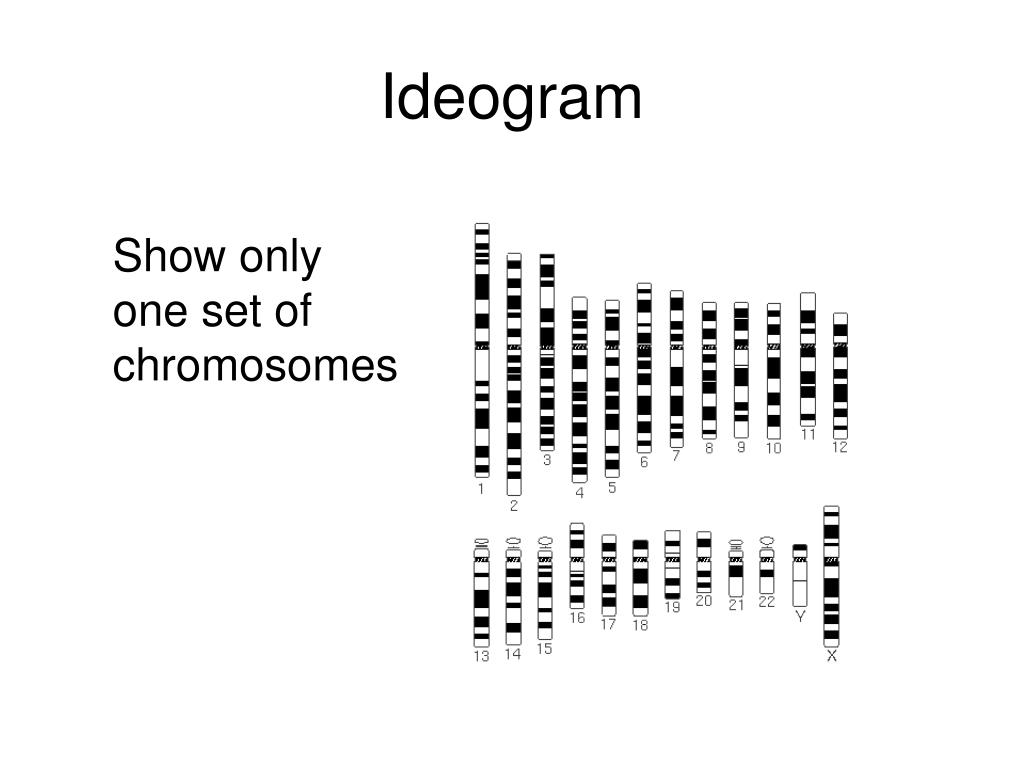

Ideogram l.jpg
Ideogram of

Show only one set of chromosomes
