User interface design

1. User interface design • Designing graphical interfaces for software systems Lecture 5

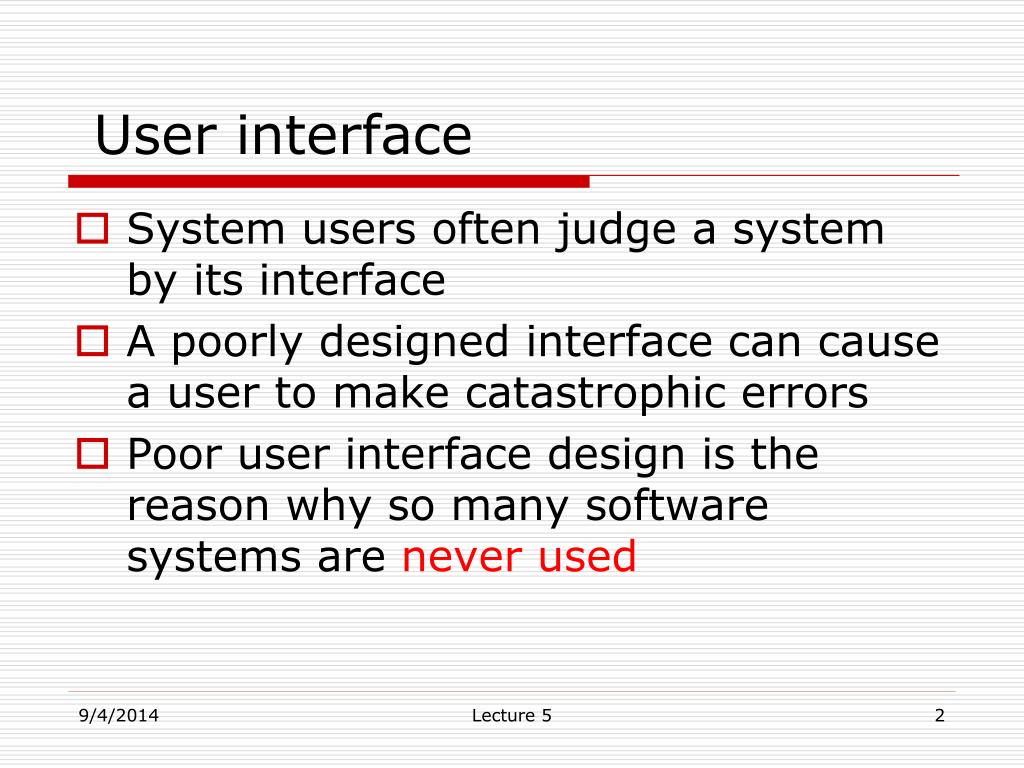

2. User interface • System users often judge a system by its interface • A poorly designed interface can cause a user to make catastrophic errors • Poor user interface design is the reason why so many software systems are never used Lecture 5

3. User Centred Design • Software development should focus on the needs of users • Understand your users • Design software based on an understanding of the users’ tasks • Ensure users are involved in decision making processes • Design the user interface following guidelines for good usability • Have users work with and give their feedback about prototypes, on-line help and draft user manuals Lecture 5

4. The importance of focusing on users • Reduced training and support costs • Reduced time to learn the system • Greater efficiency of use • Reduced costs by only developing features that are needed • Reduced costs associated with changing the system later • Better prioritizing of work for iterative development • Greater attractiveness of the system, so users will be more willing to buy and use it Lecture 5

5. Characteristics of Users • Software engineers must develop an understanding of the users • Goals for using the system • Potential patterns of use • Demographics • Knowledge of the domain and of computers • Physical ability • Psychological traits and emotional feelings Lecture 5

6. Basics of User Interface Design • User interface design should be done in conjunction with other software engineering activities • Do use case analysis to help define the tasks that the UI must help the user perform • Do iterative UI prototyping to address the use cases • Results of prototyping will enable you to finalize the requirements Lecture 5

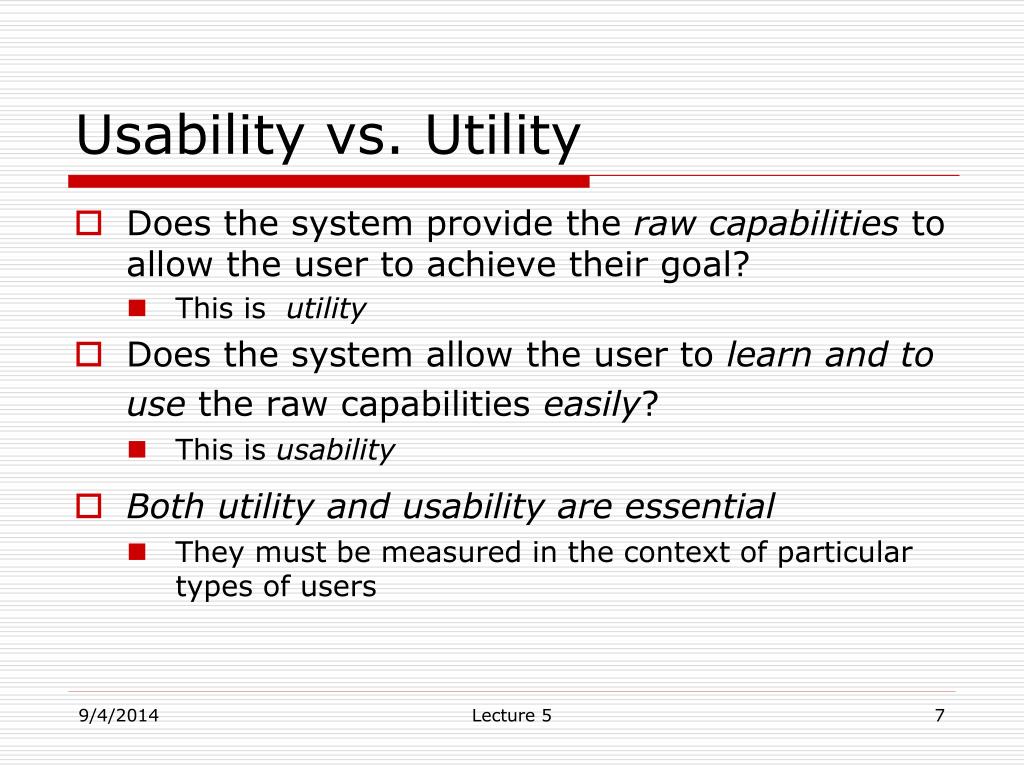

7. Usability vs. Utility • Does the system provide the raw capabilities to allow the user to achieve their goal? • This is utility • Does the system allow the user to learn and to use the raw capabilities easily? • This is usability • Both utility and usability are essential • They must be measured in the context of particular types of users Lecture 5

8. Aspects of usability • Usability can be divided into separate aspects: • Learnability • The speed with which a new user can become proficient with the system • Efficiency of use • How fast an expert user can do their work • Error handling • The extent to which it prevents the user from making errors, detects errors, and helps to correct errors • Acceptability • The extent to which users like the system Lecture 5

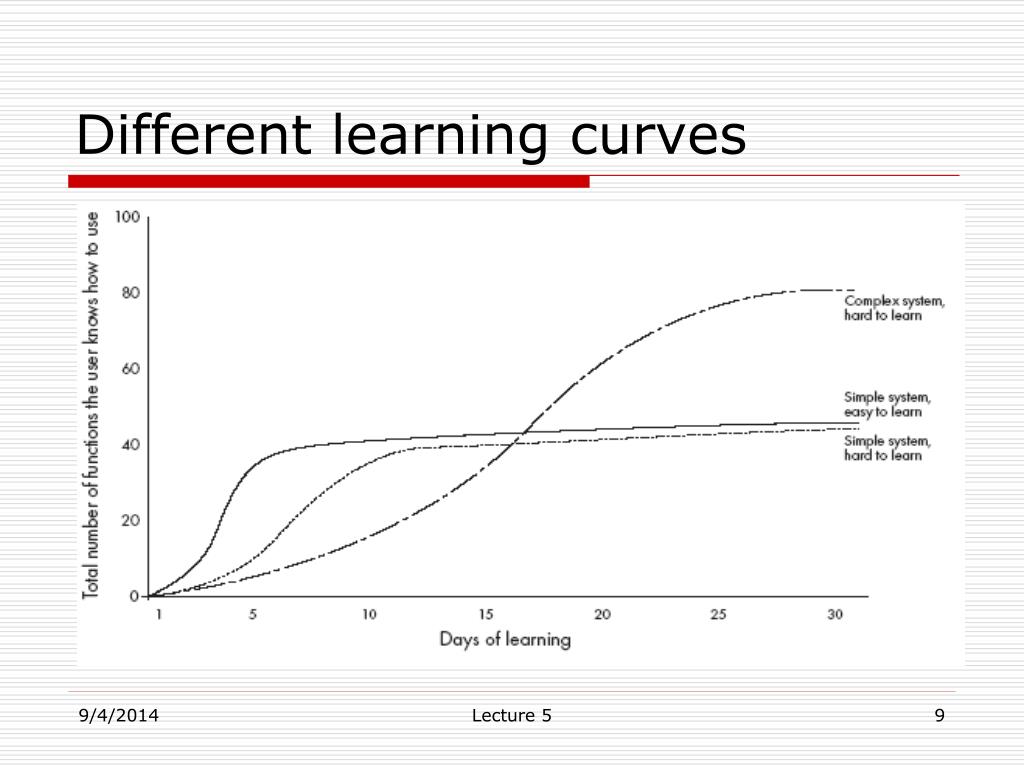

9. Different learning curves Lecture 5

10. Some basic terminology of user interface design • Dialog: A specific window with which a user can interact, but which is not the main UI window • Control or Widget: Specific components of a user interface • Affordance: The set of operations that the user can do at any given point in time • State: At any stage in the dialog, the system is displaying certain information in certain widgets, and has a certain affordance • Mode: A situation in which the UI restricts what the user can do • Modal dialog: A dialog in which the system is in a very restrictive mode • Feedback: The response from the system whenever the user does something, is called feedback • Encoding techniques. Ways of encoding information so as to communicate it to the user Lecture 5

11. Usability Principles • Do not rely only on usability guidelines – always test with users • Usability guidelines have exceptions; you can only be confident that a UI is good if you test it successfully with users • Base UI designs on users’tasks • Perform use case analysis to structure the UI • Ensure that the sequences of actions to achieve a task are as simple as possible • Reduce the amount of reading and manipulation the user has to do • Ensure the user does not have to navigate anywhere to do subsequent steps of a task Lecture 5

12. Usability Principles • Ensure that the user always knows what he or she can and should do next • Ensure that the user can see what commands are available and are not available • Make the most important commands stand out • Provide good feedback including effective error messages • Inform users of the progress of operations and of their location as they navigate • When something goes wrong explain the situation in adequate detail and help the user to resolve the problem Lecture 5

13. Usability Principles • Ensure that the user can always get out, go back or undo an action • Ensure that all operations can be undone • Ensure it is easy to navigate back to where the user came from • Ensure that response time is adequate • Users are very sensitive to slow response time • They compare your system to others • Keep response time less than a second for most operations • Warn users of longer delays and inform them of progress Lecture 5

14. Usability Principles • Use understandable encoding techniques • Choose encoding techniques with care • Use labels to ensure all encoding techniques are fully understood by users • Ensure that the UI’s appearance is uncluttered • Avoid displaying too much information • Organize the information effectively Lecture 5

15. Usability Principles • Consider the needs of different groups of users • Accommodate people from different locales and people with disabilities • Ensure that the system is usable by both beginners and experts • Provide all necessary help • Organize help well • Integrate help with the application • Ensure that the help is accurate Lecture 5

16. Usability Principles • Be consistent • Use similar layouts and graphic designs throughout your application • Follow look-and-feel standards • Consider mimicking other applications Lecture 5

17. Some encoding techniques • Text and fonts • Icons • Photographs • Diagrams and abstract graphics • Colors • Grouping and bordering • Spoken words • Music • Other sounds • Animations and video • Flashing Lecture 5

18. UI Design principles • UI design must take into account the needs, experience and capabilities of system users • Users should be involved in the UI design process and UI designs should be refined through prototyping • There are cognitive factors, such as the size of short-term memory, which user interface designers must be aware of Lecture 5

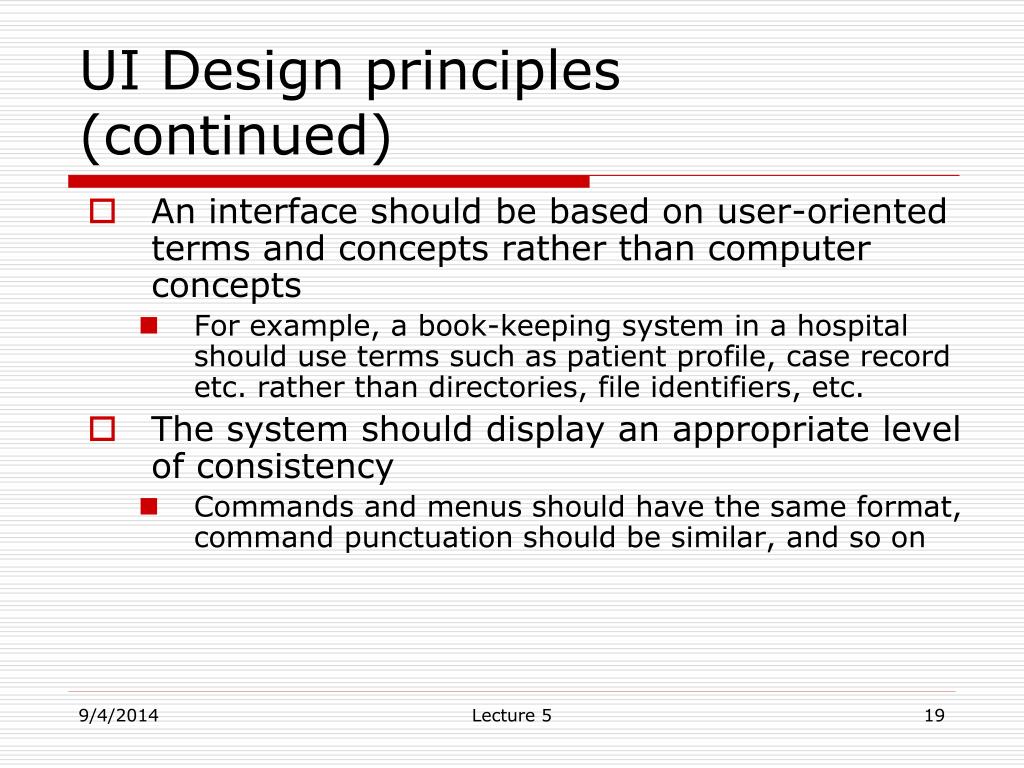

19. UI Design principles (continued) • An interface should be based on user-oriented terms and concepts rather than computer concepts • For example, a book-keeping system in a hospital should use terms such as patient profile, case record etc. rather than directories, file identifiers, etc. • The system should display an appropriate level of consistency • Commands and menus should have the same format, command punctuation should be similar, and so on Lecture 5

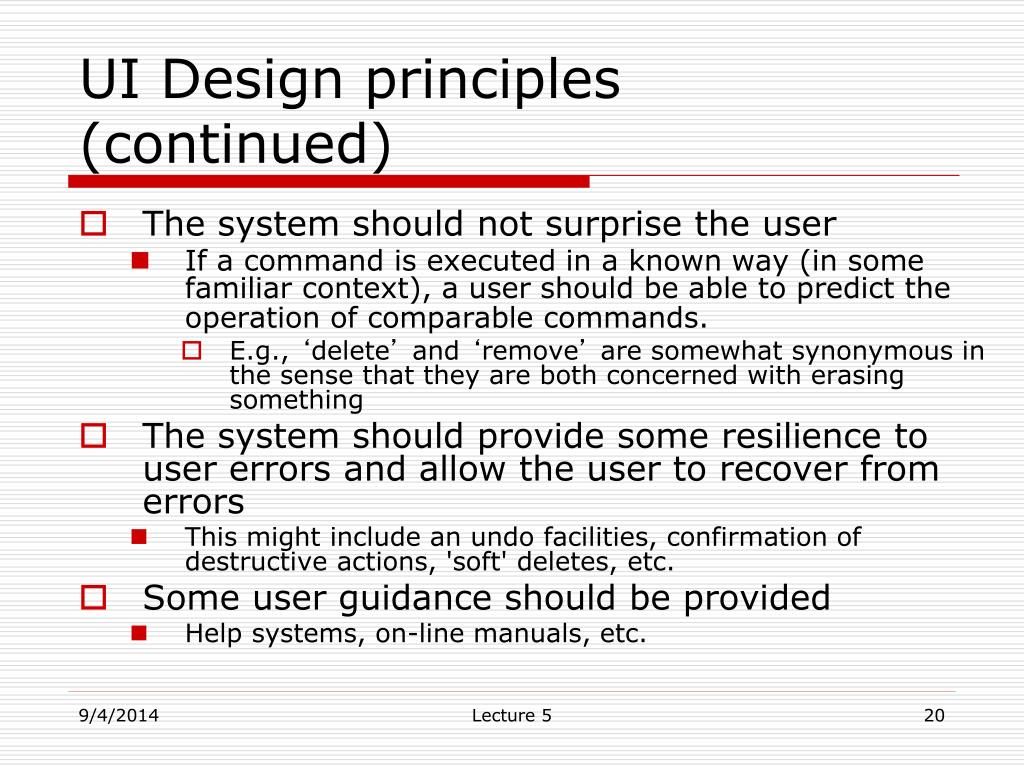

20. UI Design principles (continued) • The system should not surprise the user • If a command is executed in a known way (in some familiar context), a user should be able to predict the operation of comparable commands. • E.g., ‘delete’ and ‘remove’ are somewhat synonymous in the sense that they are both concerned with erasing something • The system should provide some resilience to user errors and allow the user to recover from errors • This might include an undo facilities, confirmation of destructive actions, 'soft' deletes, etc. • Some user guidance should be provided • Help systems, on-line manuals, etc. Lecture 5

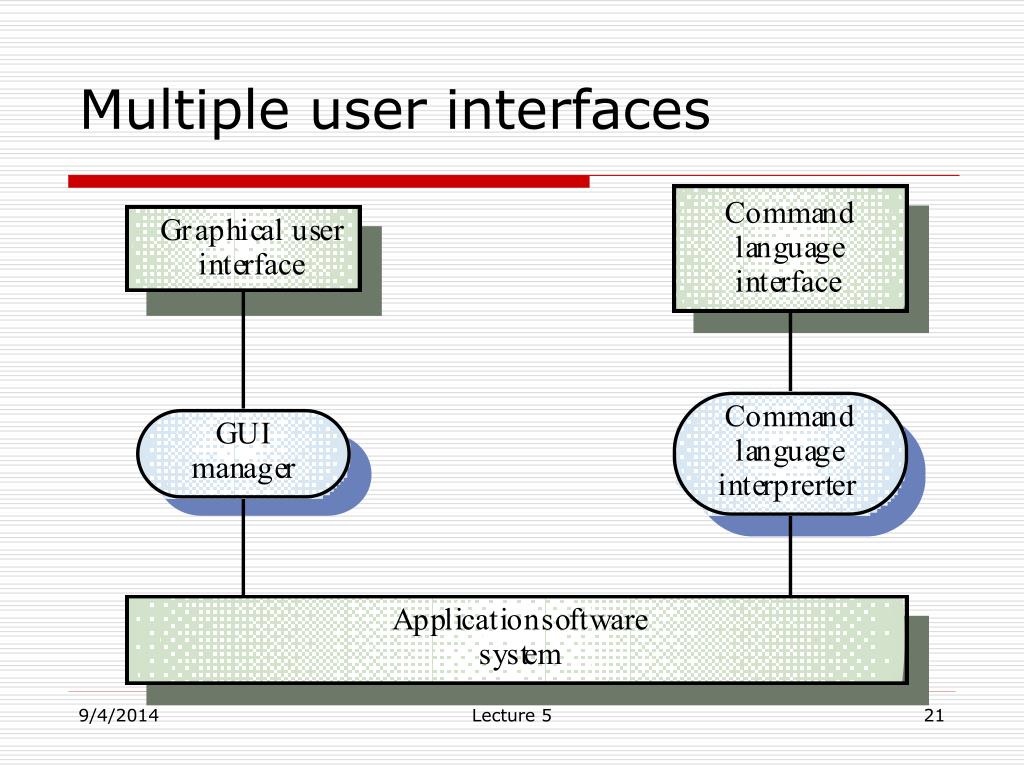

21. Multiple user interfaces Lecture 5

22. Information display factors • Is user interested in precise information or data relationships? • How quickly do information values change? Must a change be indicated immediately? • Must user take some action in response to a change? • Is there a direct manipulation interface? • Is the information textual or numeric? Are relative values important? Lecture 5

23. Information presentation Lecture 5

24. Data visualization • Concerned with techniques for displaying large amounts of information • Visualization can reveal relationships between entities and trends in the data • Examples • Weather information collected from a number of sources • The state of a telephone network • A model of a molecule displayed in 3 dimensions Lecture 5

25. Color use guidelines • Don't use too many colors • Use color coding to support user tasks • Allow users to control color coding • Design for monochrome then add color • Use color coding consistently • Avoid color pairings which clash • Use color change to show status change • Be aware that color displays are usually lower resolution Lecture 5

26. User guidance • A user guidance system is integrated with user interface to help users when they need information about the system or when they make mistakes • User guidance covers: • System messages, including error messages • Documentation provided for users • On-line help • The help and message system may be integrated Lecture 5

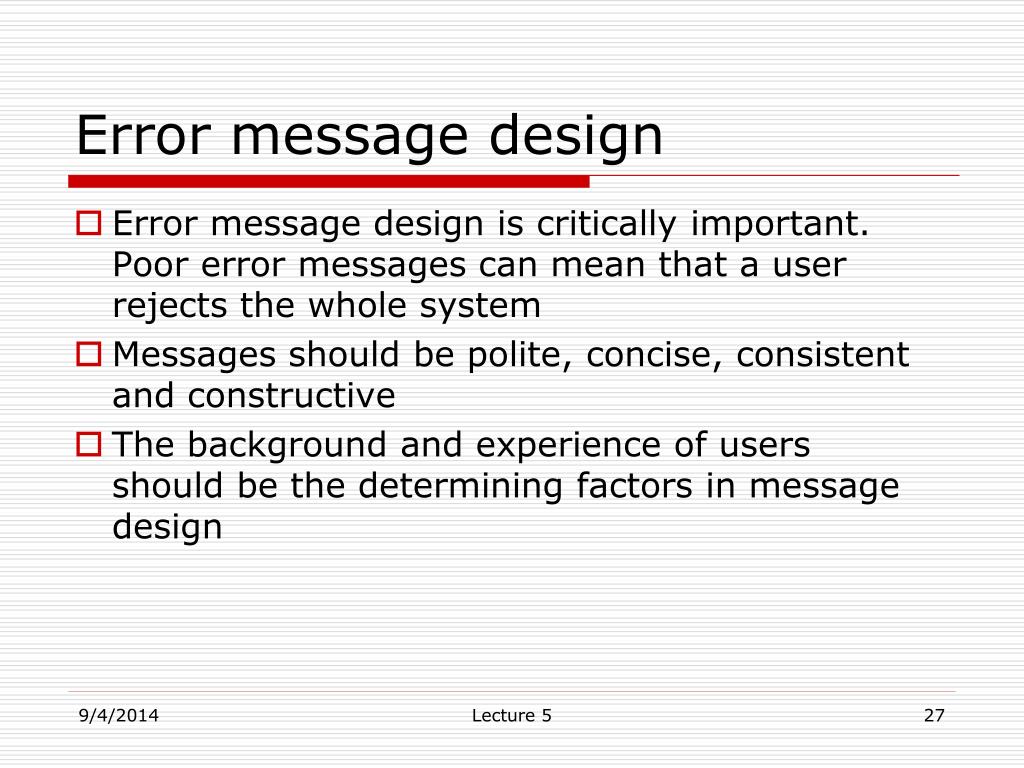

27. Error message design • Error message design is critically important. Poor error messages can mean that a user rejects the whole system • Messages should be polite, concise, consistent and constructive • The background and experience of users should be the determining factors in message design Lecture 5

28. Bad and good error responses ? Err or #27 In v alid patient id Patients P atient J . Bates is not kno wn to the system Help Clic k on P atients f or a list of kno wn patients Clic k on Retr y to re-input a patient name Clic k on Help f or more inf or mation Retr y Lecture 5

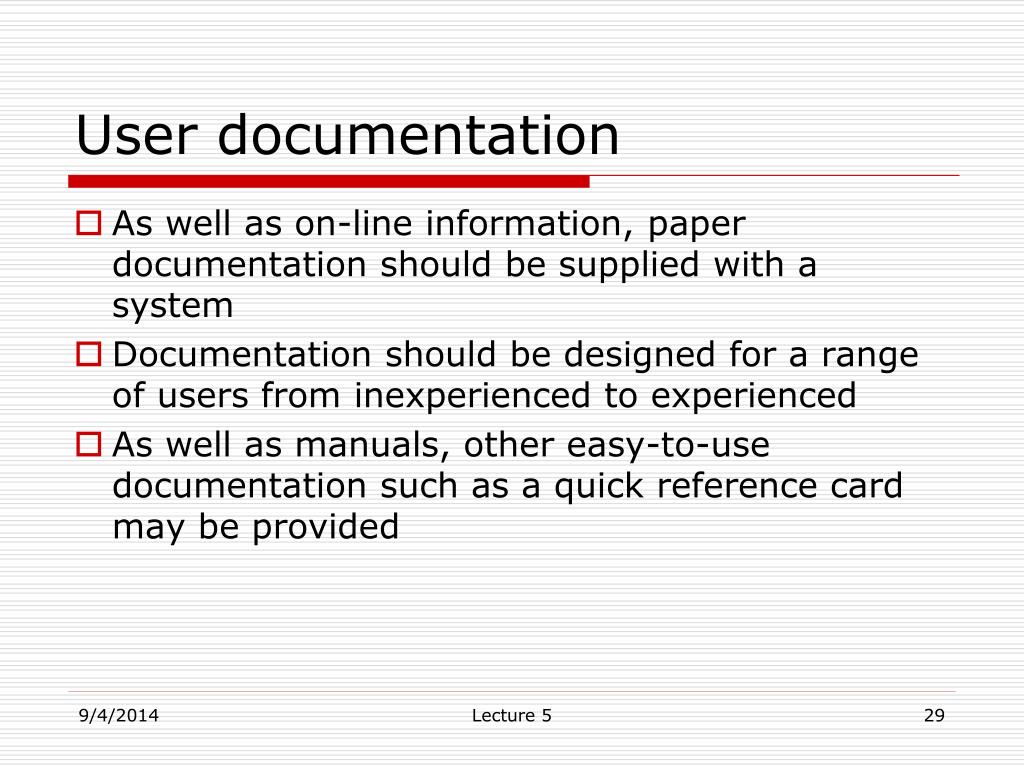

29. User documentation • As well as on-line information, paper documentation should be supplied with a system • Documentation should be designed for a range of users from inexperienced to experienced • As well as manuals, other easy-to-use documentation such as a quick reference card may be provided Lecture 5

30. User Interface Design • Easy to learn? • Easy to use? • Easy to understand? Lecture 5

31. Typical Design Errors • Lack of Consistency • Too much memorization • No guidance / help • No context sensitivity • Poor response • Unfriendly Lecture 5

32. Golden Rules • Place the user in Control • Reduce the user’s memory load • Make the interface consistent Lecture 5

33. Example (bad UI) Lecture 5

34. Example (better UI) Lecture 5

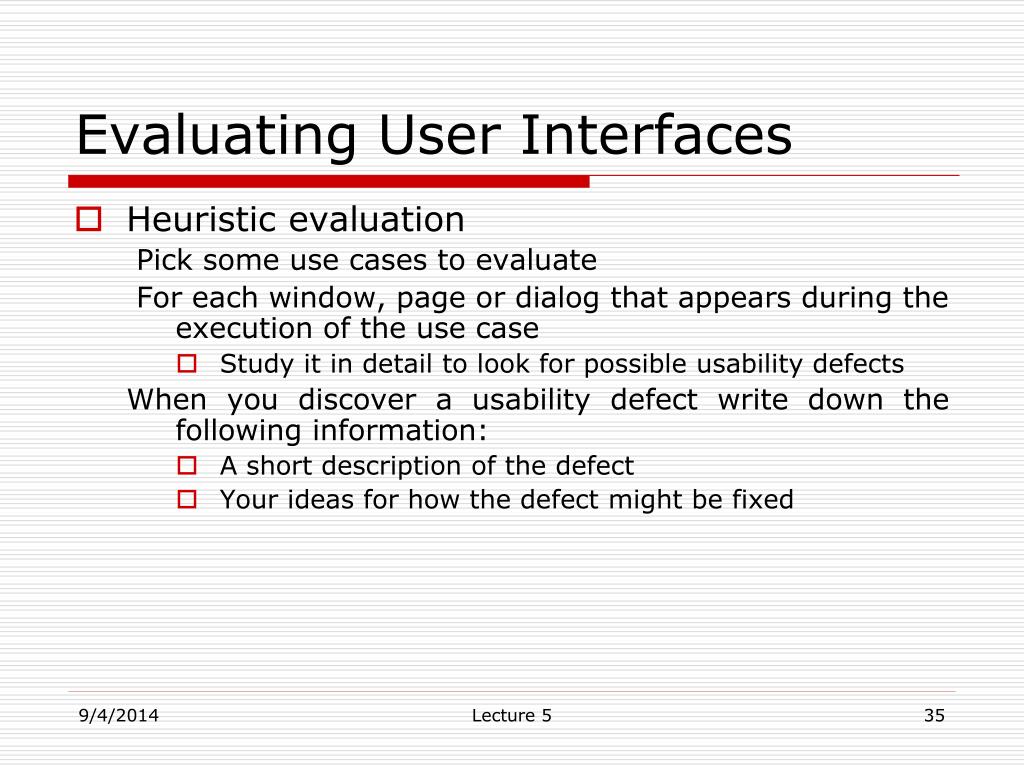

35. Evaluating User Interfaces • Heuristic evaluation Pick some use cases to evaluate For each window, page or dialog that appears during the execution of the use case • Study it in detail to look for possible usability defects When you discover a usability defect write down the following information: • A short description of the defect • Your ideas for how the defect might be fixed Lecture 5

36. Evaluating User Interfaces • Evaluation by observation of users • Select users corresponding to each of the most important actors • Select the most important use cases • Write sufficient instructions about each of the scenarios • Arrange evaluation sessions with users • Explain the purpose of the evaluation • Preferably videotape each session • Converse with the users as they are performing the tasks • When the users finish all the tasks, de-brief them • Take note of any difficulties experienced by the users • Formulate recommended changes Lecture 5

37. User Interface Design Models • System perception: the user’s mental image of what the interface is • User model: a profile of all end user of the system • System image: the presentation of the system projected by the complete interface • Design model: data, architecture, interface and procedural representations of the software Lecture 5

38. User’s Model Design Model Designer User System System image User Interface Design Lecture 5
