SharePoint External Access

1. GOPAS TechEd 2012 Ing. Ondřej Ševeček | GOPAS a.s. | MCM: Directory Services | MVP: Enterprise Security | ondrej@sevecek.com | www.sevecek.com | SharePoint External Access

2. Designing Secure SharePoint External Access Motivation

3. Why • Enable internal users to access from outside • Share portal access with business partners

4. How • Forefront Threat Management Gateway • Forefront Unified Access Gateway

5. Challenges • Secure authenticated access • Smooth document access from Office applications • Repeated password prompts • Endpoint compliance • Intrusion prevention

6. Designing Secure SharePoint External Access Authentication Overview

7. SharePoint Authentication • Classic Mode Authentication • NTLM or Kerberos • Claims Based Authentication • NTLM or Kerberos • Basic • ASP.NET Forms • Active Directory Federation Services

8. SharePoint Authentication

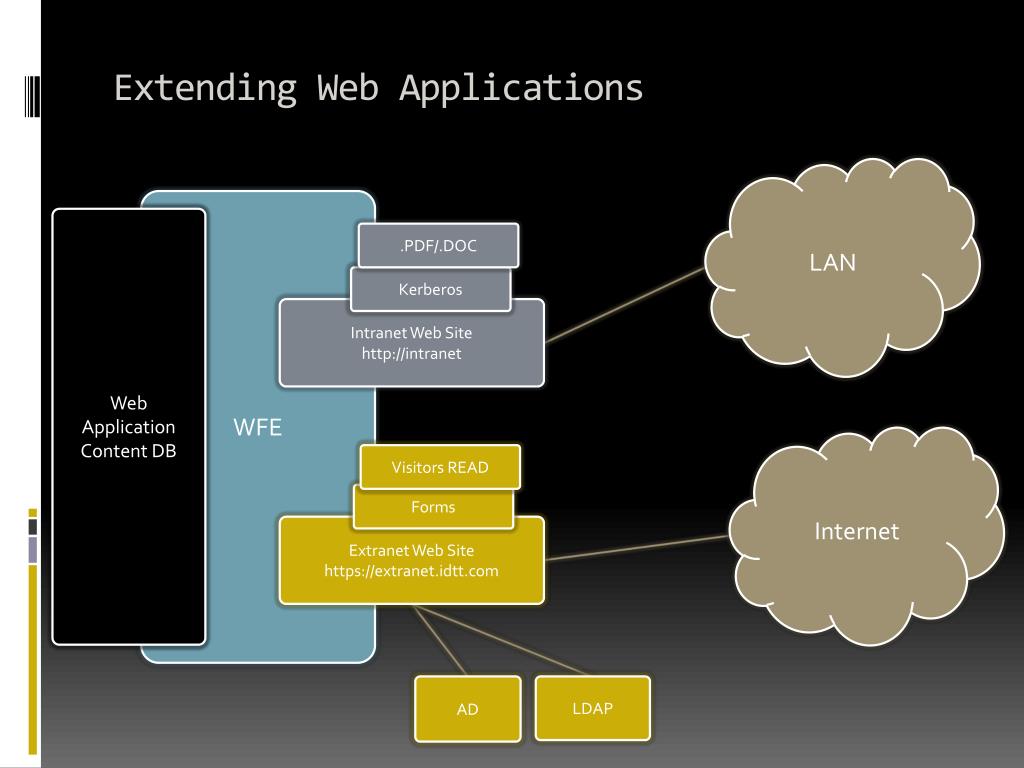

9. Extending Web Applications LAN WFE Web Application Content DB .PDF/.DOC Kerberos Intranet Web Site http://intranet Internet Visitors READ Forms Extranet Web Site https://extranet.idtt.com AD LDAP

10. Extending Web Applications

11. Designing Secure SharePoint External Access Windows Authentication

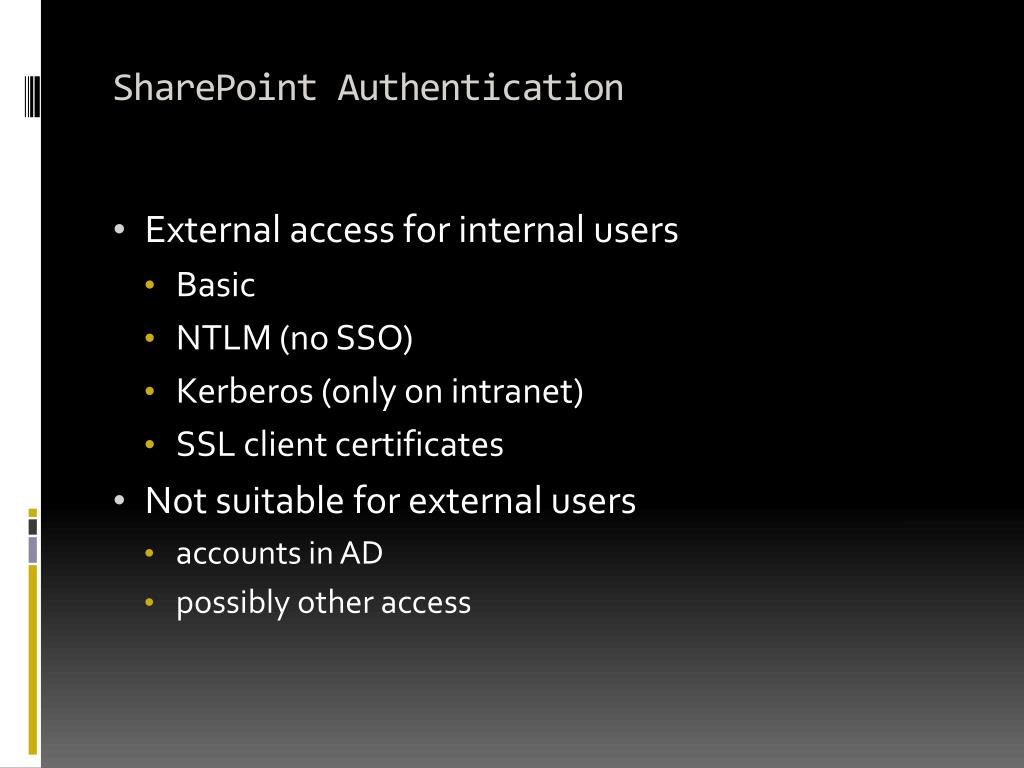

12. SharePoint Authentication • External access for internal users • Basic • NTLM (no SSO) • Kerberos (only on intranet) • SSL client certificates • Not suitable for external users • accounts in AD • possibly other access

13. SharePoint Authentication for Internal Users • Basic • plaintext password • works from internet • no SSO • NTLM • less secure, MD5 • performance problems at 200 +/- users per WFE • no SSO • Kerberos • secure, mutual authentication, AES, smart cards • faster, smoother • intranet only • SSL Client Certificates • the most secure, mutual authentication • SSO from outside

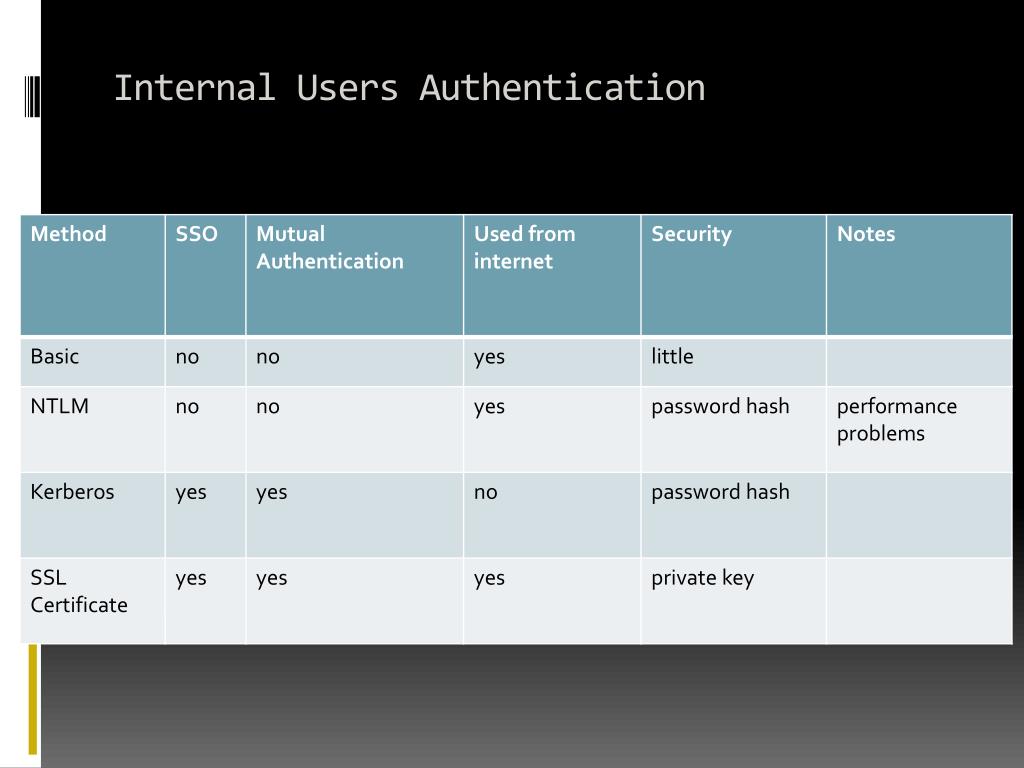

14. Internal Users Authentication

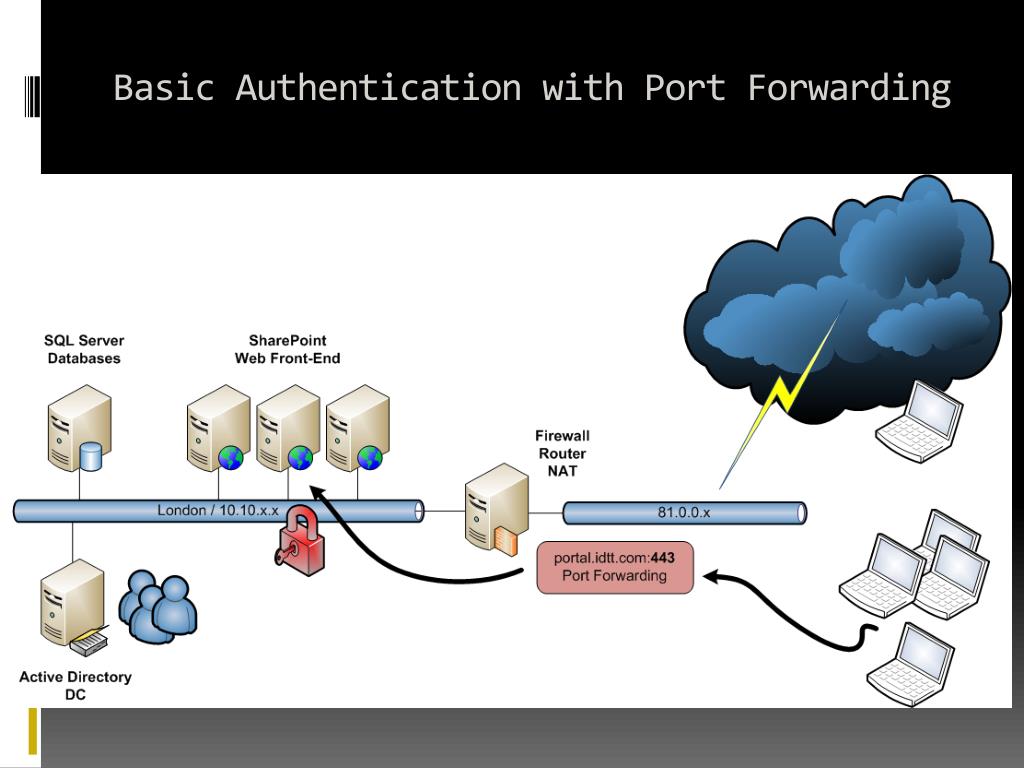

15. Basic Authentication with Port Forwarding

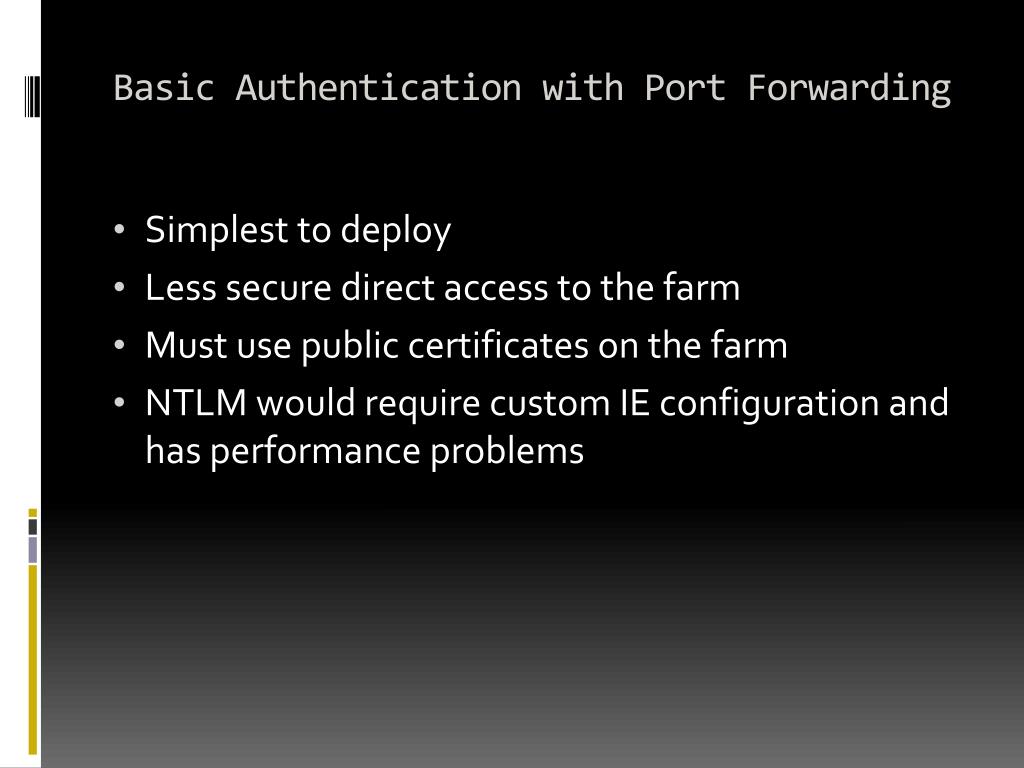

16. Basic Authentication with Port Forwarding • Simplest to deploy • Less secure direct access to the farm • Must use public certificates on the farm • NTLM would require custom IE configuration and has performance problems

17. Basic Authentication with TMG Inspection

18. Basic Authentication with TMG Inspection • Authenticates users at the gateway level • Forms authentication (cookies) • Basic authentication • Inspects clear HTTP • plus URL filters etc. • intrusion prevention signatures • Automatically forwards the basic credentials • Offloads SSL encryption • or hides the internal certficates on the farm

19. TMG and Forms Authentication

20. TMG Inspection with Kerberos Delegation

21. TMG Inspection with Kerberos Delegation • SSO or smart cards and tokens • No Basic authentication on the internal part • SharePoint “developers” do not receive your full password • Mutual authentication with client certificate • No password guessing

22. UAG Inspection with Kerberos Delegation

23. UAG Inspection with Kerberos Delegation • TMG features plus • Predefined URL and application inspections • User portal access • Endpoint policies and compliance

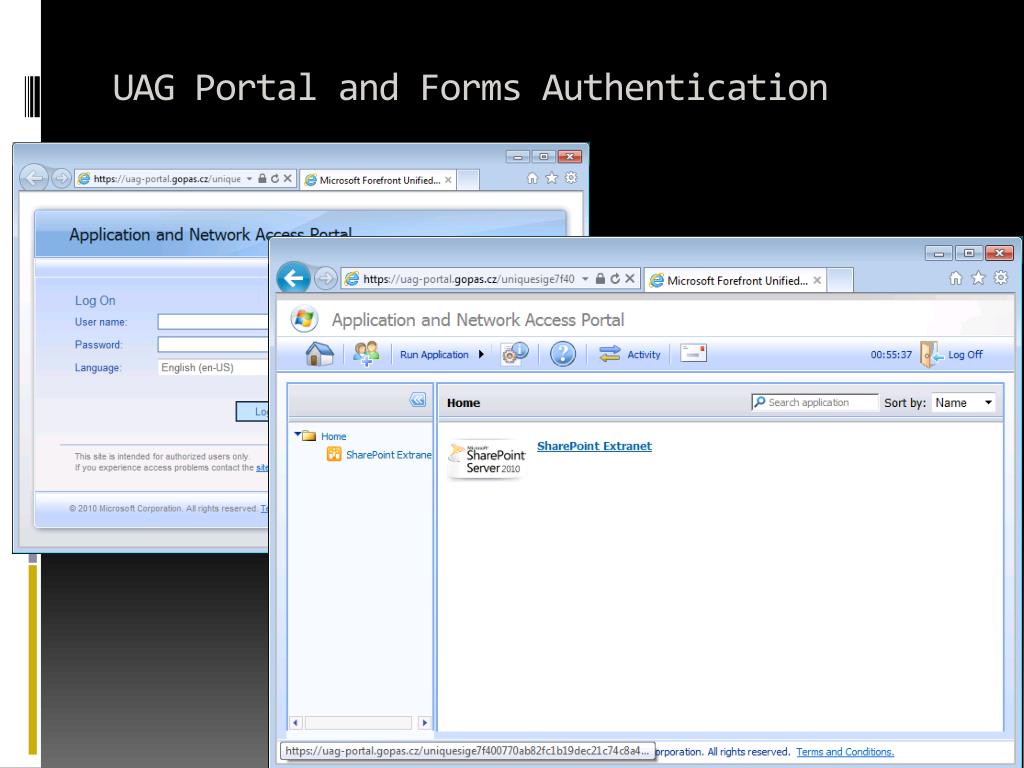

24. UAG Portal and Forms Authentication

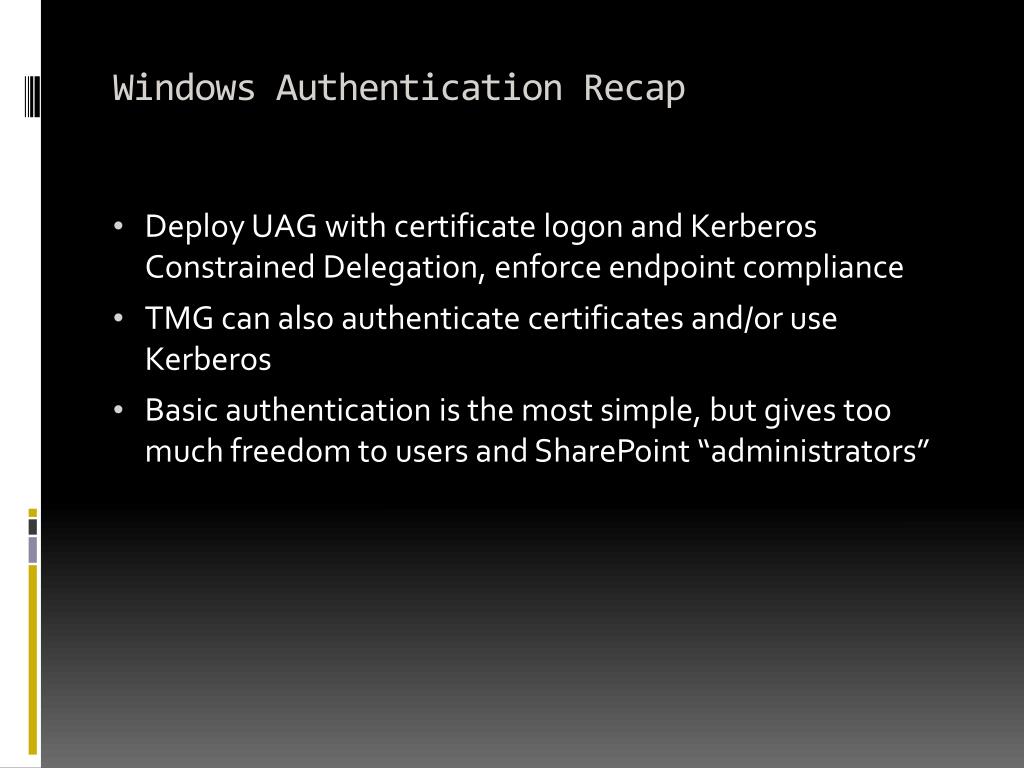

25. Windows Authentication Recap • Deploy UAG with certificate logon and Kerberos Constrained Delegation, enforce endpoint compliance • TMG can also authenticate certificates and/or use Kerberos • Basic authentication is the most simple, but gives too much freedom to users and SharePoint “administrators”

26. Designing Secure SharePoint External Access SharePoint 2010 Forms Authentication

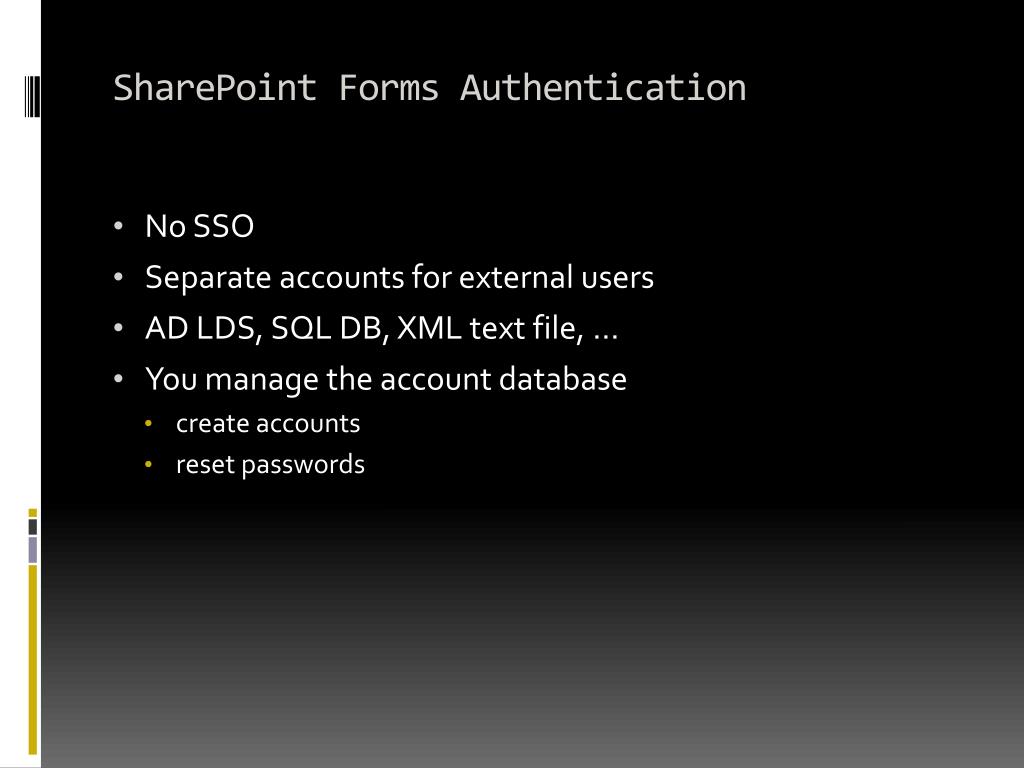

27. SharePoint Forms Authentication • No SSO • Separate accounts for external users • AD LDS, SQL DB, XML text file, ... • You manage the account database • create accounts • reset passwords

28. AD LDS • Active Directory Lightweight Directory Services • Standalone LDAP/S server • Part of Windows Server 2008 and newer • previously free download ADAM • Installs on Windows 7 as well • Managed manually using ADSI Edit

29. AD LDS User Accounts

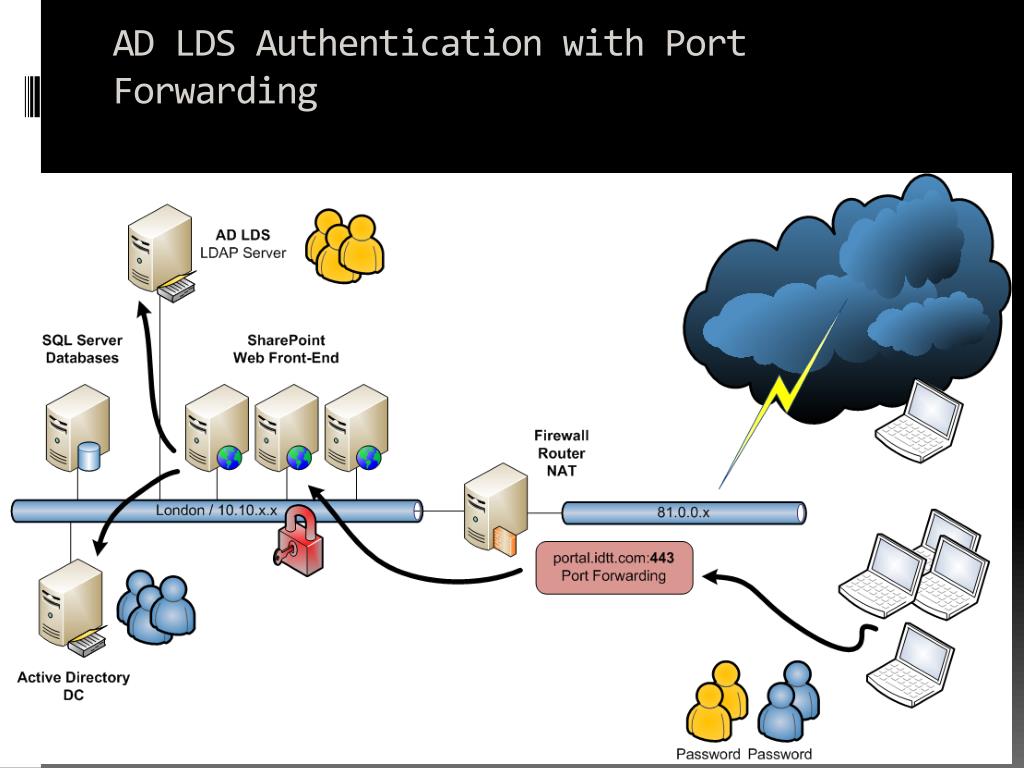

30. AD LDS Authentication with Port Forwarding

31. AD LDS Authentication with UAG Inspection

32. AD LDS with UAG and Certificates

33. AD LDS Authentication with UAG Inspection • Pre-authenticates users at the gateway level • double login prompt or certificates • Predefined set of URL and application inspections • User portal access • Endpoint policies and compliance

34. Designing Secure SharePoint External Access Active Directory Federation Services

35. AD FS • HTTPS/XML authentication protocol • Replacement for AD trusts • Free download • RTW – released to web • Accounts managed by Account Partner • Resource Partner just accepts identity claims • Requires level of management on the Account Partner part

36. AD FS Principles

37. AD FS Principles

38. AD FS Principles

39. Designing Secure SharePoint External Access Takeaway

40. Takeaway • Use certificates and/or Kerberos for internal users • Use AD LDS for external partners without AD FS • Use AD FS for larger external partners who do want to manage their own accounts

41. GOPAS TechEd 2012 Ing. Ondřej Ševeček | GOPAS a.s. | MCM: Directory Services | MVP: Enterprise Security | ondrej@sevecek.com | www.sevecek.com | Thank you!
