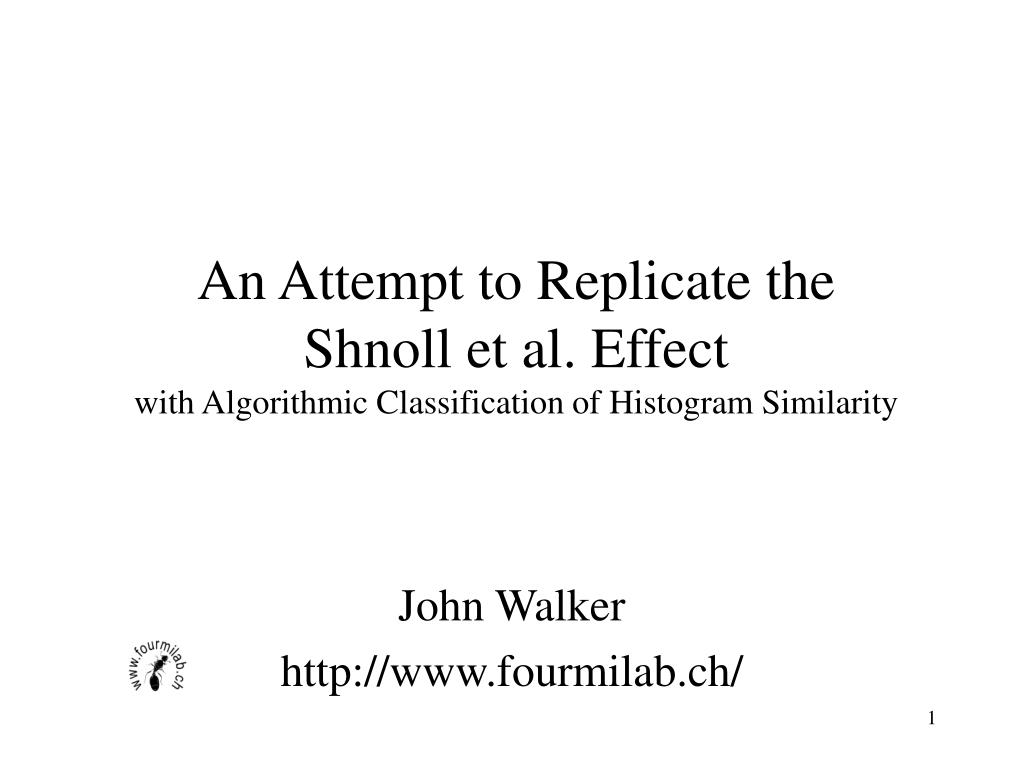

  1. An Attempt to Replicate the Shnoll et al. Effectwith Algorithmic Classification of Histogram Similarity John Walker http://www.fourmilab.ch/

  2. Principal Goal Development of an easily-replicated stochastic source and an accompanying computer-based toolkit for exploring time-dependence in histogram structure and automated techniques for histogram similarity ranking.

  3. Stochastic Source • Oxford Nuclear 5.0 µCi 137Cs 661.6keV gamma source (US$40) • Aware Electronics RM-80 Geiger- Müller detector with serial port interface (US$319) • Generic PC with MS-DOS and a serial port • Modified HotBits generator software (public domain) • Event rate  200,000 counts/min • Background  60 counts/min

  4. Generator Software • MS-DOS (not Windows) 16-bit program • Direct port access from assembly language • Interval timing from PC ROM BIOS clock • Time of day synchronised with Network Time Protocol Design Goals: • Small footprint: “retired” PCs suitable as generators • Consistent hardware-based interval timing • Accurate detection and accumulation of counts • Measurements precisely labeled with date and time

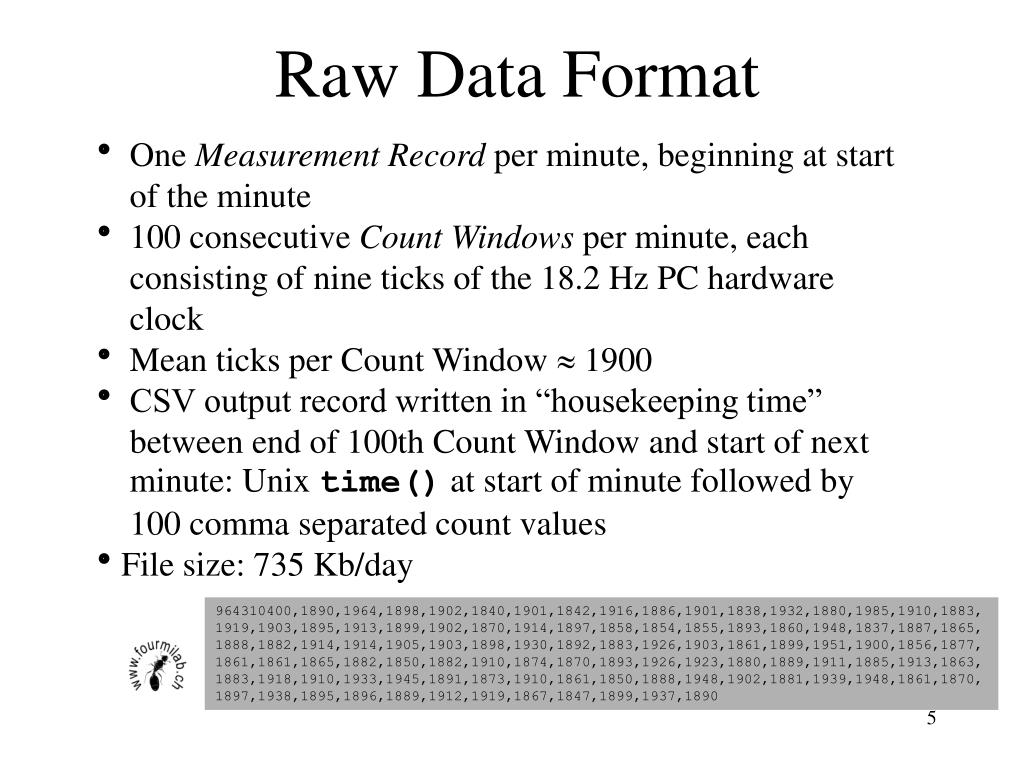

  5. Raw Data Format • One Measurement Record per minute, beginning at start of the minute • 100 consecutive Count Windows per minute, each consisting of nine ticks of the 18.2 Hz PC hardware clock • Mean ticks per Count Window  1900 • CSV output record written in “housekeeping time” between end of 100th Count Window and start of next minute: Unix time() at start of minute followed by 100 comma separated count values • File size: 735 Kb/day 964310400,1890,1964,1898,1902,1840,1901,1842,1916,1886,1901,1838,1932,1880,1985,1910,1883,1919,1903,1895,1913,1899,1902,1870,1914,1897,1858,1854,1855,1893,1860,1948,1837,1887,1865,1888,1882,1914,1914,1905,1903,1898,1930,1892,1883,1926,1903,1861,1899,1951,1900,1856,1877,1861,1861,1865,1882,1850,1882,1910,1874,1870,1893,1926,1923,1880,1889,1911,1885,1913,1863,1883,1918,1910,1933,1945,1891,1873,1910,1861,1850,1888,1948,1902,1881,1939,1948,1861,1870,1897,1938,1895,1896,1889,1912,1919,1867,1847,1899,1937,1890

  6. Analysis Software • Reads one or more days’ Raw Data CSV files • Assembles count histograms into Experiments of 10 minutes each Transformation Modules HistogramCompilation Raw Data Histogram Pair Assembly Matching Modules Closeness Sort Ranking Table

  7. Histogram Compilation • Arranges raw data into 10 minute Experiments, each beginning at a round 10 minute interval. (Intervals with missing data are discarded.) • Builds in-memory raw histograms (number of occurrences of a given count in interval) • Computes exponentially smoothed moving average (P = 0.2) of histogram, symmetrically from the mean • Creates histogram CSV files (raw and smoothed) for each experiment for subsequent analysis • Plots each experiment’s histogram as a GIF file

  8. Transformation Modules Open-ended plug-in modules transform experimenthistograms in place: • NORMALISE: Scales histogram values so that maximum value is 1 • FOURIER: Replaces histogram with its Fourier transform • WAVELET: Replaces histogram with its discrete wavelet transform using the Daubechies 4-coefficient filter coefficients Multiple transforms can be enabled; new transforms canbe added. Transformed histograms and their inverses can be plotted for debugging.

  9. Histogram Pair Assembly • All pairs of histograms are tabulated in memory • Assumes matching algorithm is commutative (but this can be changed)

  10. Matching Modules (1) Plug-in modules which, given a pair of experiment histograms, return a floating-point metric of how “close” they are in morphology. • MEAN-ALIGNED ²: Histograms are shifted so mean values align, then ² distance between the curves is computed. • SLIDING, MIRRORED ²: Histograms are initially aligned at their mean value, then the histogram pair and pair with one mirrored about the mean are shifted along the X axis and the minimum ² distance is reported.

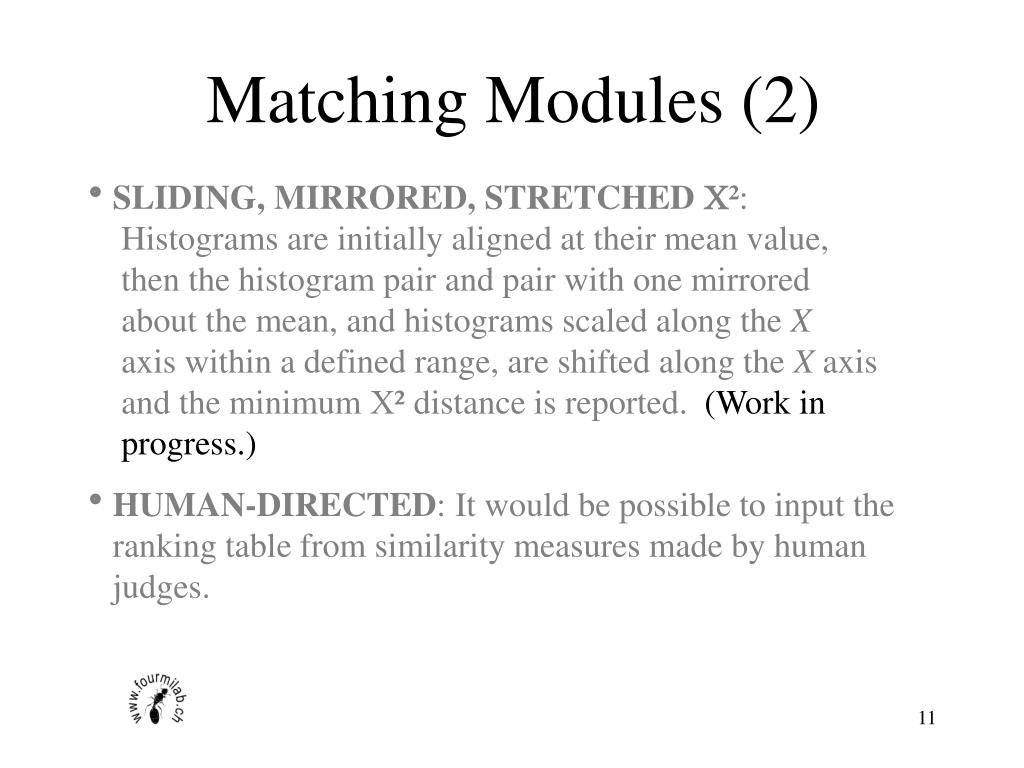

  11. Matching Modules (2) • SLIDING, MIRRORED, STRETCHED ²: Histograms are initially aligned at their mean value, then the histogram pair and pair with one mirrored about the mean, and histograms scaled along the X axis within a defined range, are shifted along the X axis and the minimum ² distance is reported. (Work in progress.) • HUMAN-DIRECTED: It would be possible to input the ranking table from similarity measures made by human judges.

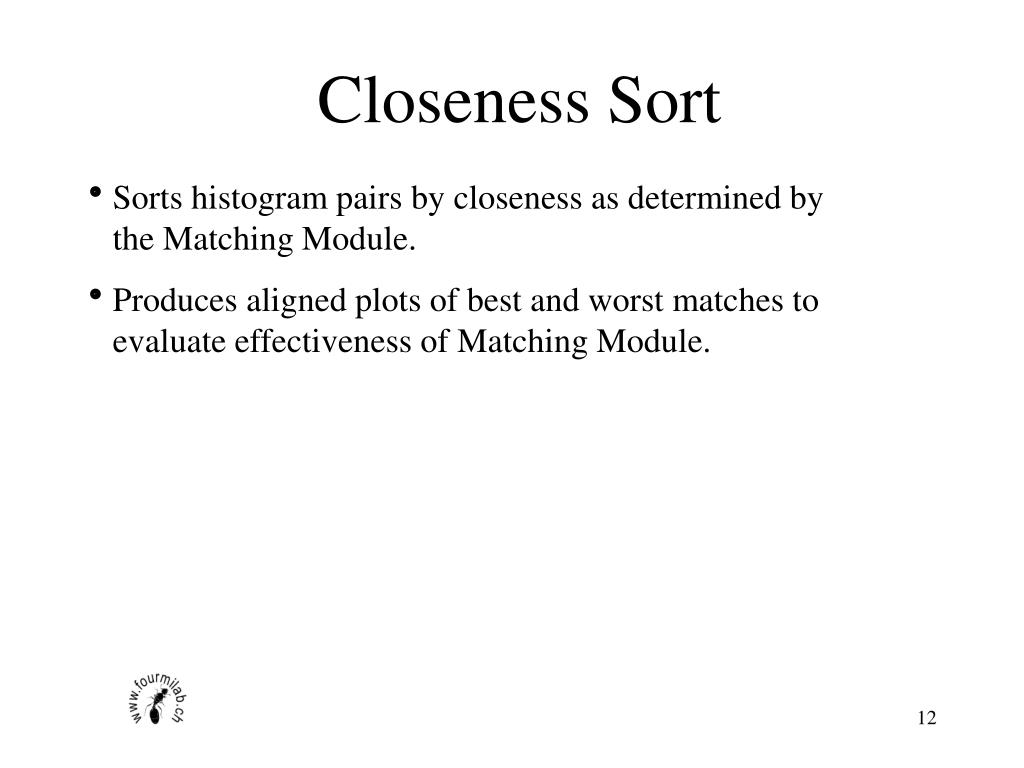

  12. Closeness Sort • Sorts histogram pairs by closeness as determined by the Matching Module. • Produces aligned plots of best and worst matches to evaluate effectiveness of Matching Module.

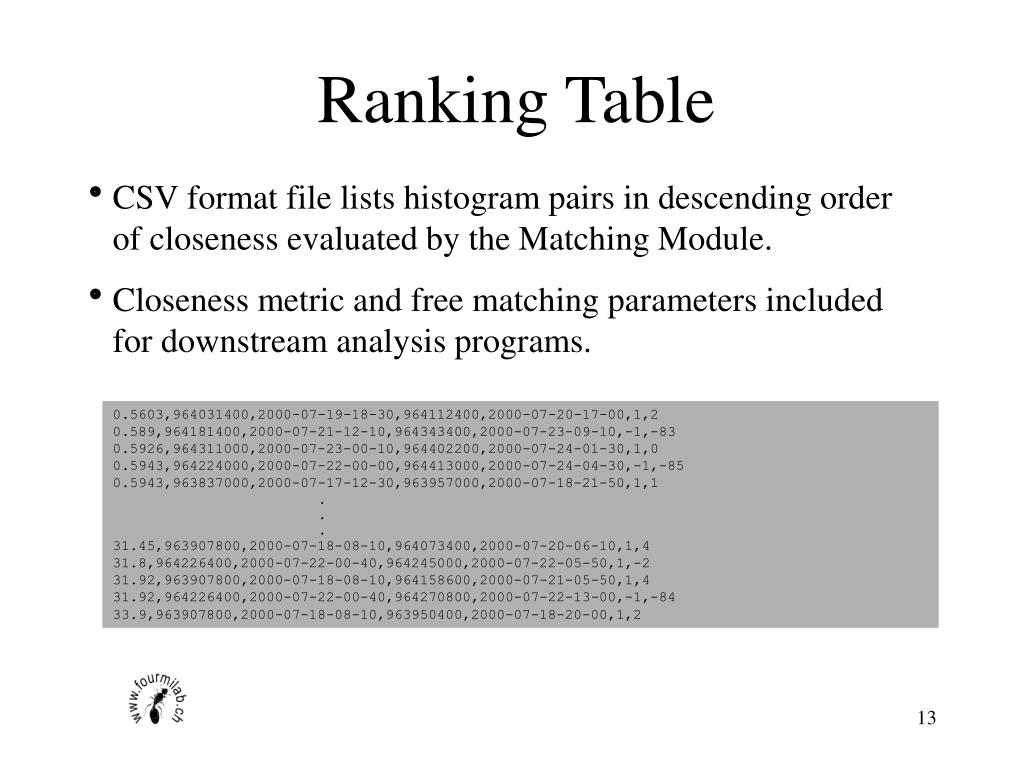

  13. Ranking Table • CSV format file lists histogram pairs in descending order of closeness evaluated by the Matching Module. • Closeness metric and free matching parameters included for downstream analysis programs. 0.5603,964031400,2000-07-19-18-30,964112400,2000-07-20-17-00,1,2 0.589,964181400,2000-07-21-12-10,964343400,2000-07-23-09-10,-1,-83 0.5926,964311000,2000-07-23-00-10,964402200,2000-07-24-01-30,1,0 0.5943,964224000,2000-07-22-00-00,964413000,2000-07-24-04-30,-1,-85 0.5943,963837000,2000-07-17-12-30,963957000,2000-07-18-21-50,1,1 . . . 31.45,963907800,2000-07-18-08-10,964073400,2000-07-20-06-10,1,4 31.8,964226400,2000-07-22-00-40,964245000,2000-07-22-05-50,1,-2 31.92,963907800,2000-07-18-08-10,964158600,2000-07-21-05-50,1,4 31.92,964226400,2000-07-22-00-40,964270800,2000-07-22-13-00,-1,-84 33.9,963907800,2000-07-18-08-10,963950400,2000-07-18-20-00,1,2

  14. Time Binning • Reads Ranking Table and bins into deciles by closeness metric, creating a histogram of time difference between histograms for each decile. • Creates expectation value table for null hypothesis. • Normalises decile histograms vs. null hypothesis and plots results by decile.

  15. Ranking Table Randomiser • Shuffles lines in the ranking table produced by the Closeness Sort. • Time binning randomised ranking provides null hypothesis control for closeness matching.

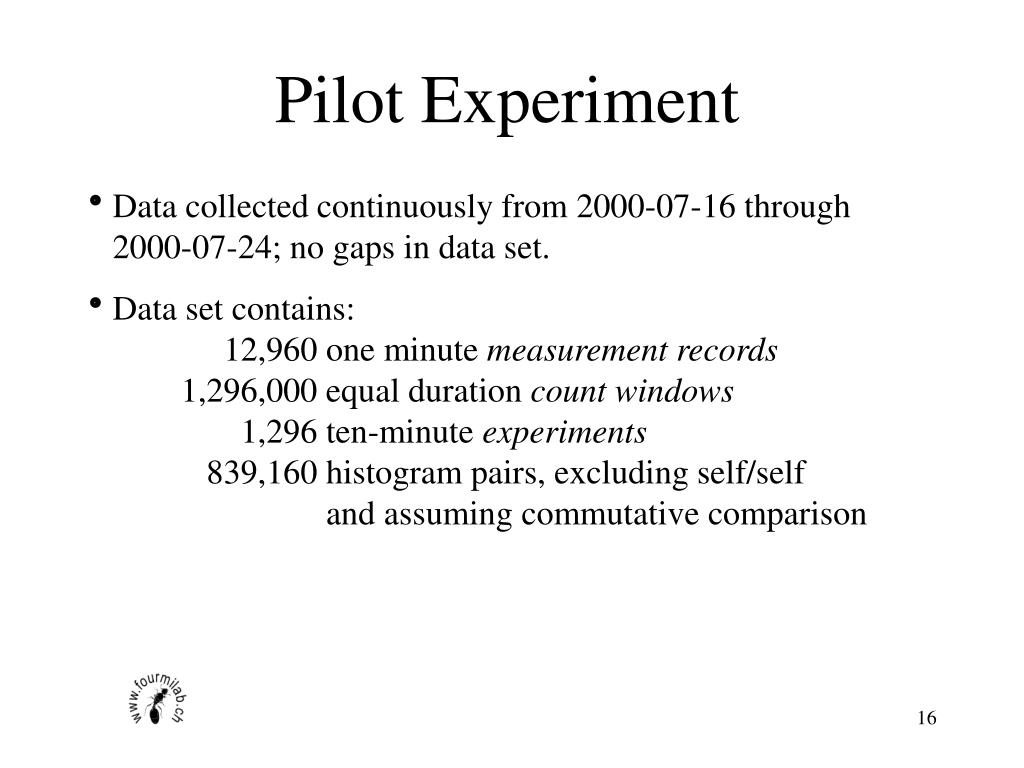

  16. Pilot Experiment • Data collected continuously from 2000-07-16 through 2000-07-24; no gaps in data set. • Data set contains: 12,960 one minute measurement records 1,296,000 equal duration count windows 1,296 ten-minute experiments 839,160 histogram pairs, excluding self/self and assuming commutative comparison

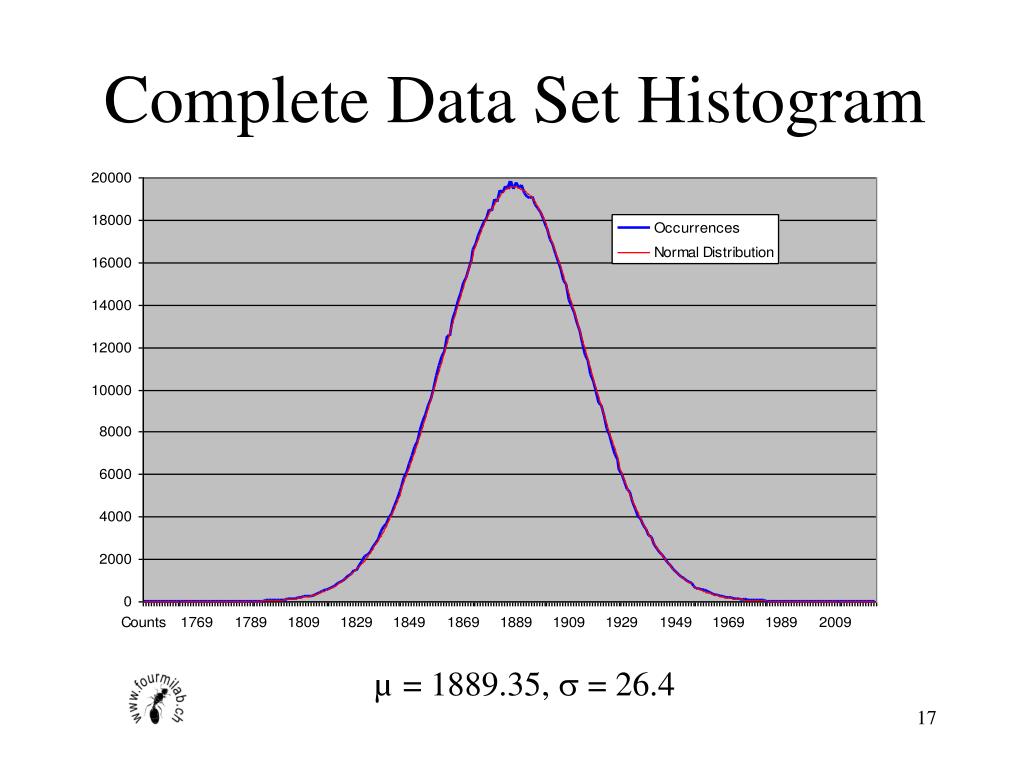

  17. Complete Data Set Histogram µ = 1889.35,  = 26.4

  18. Representative ExperimentHistograms

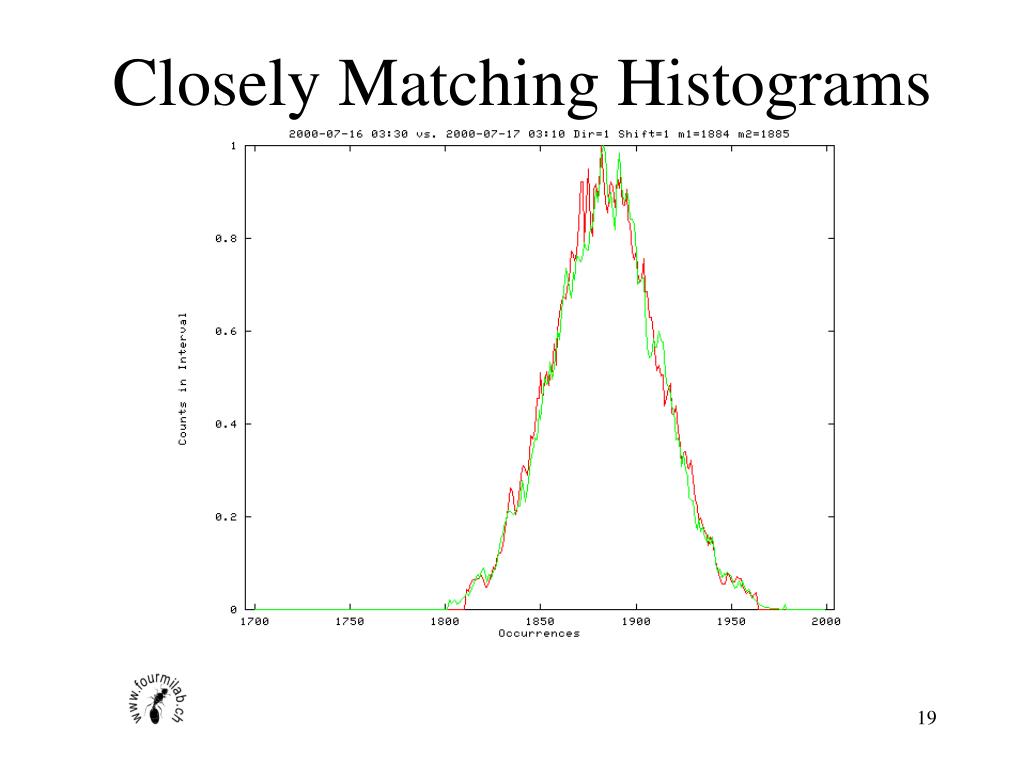

  19. Closely Matching Histograms

  20. Closely Matching Histograms

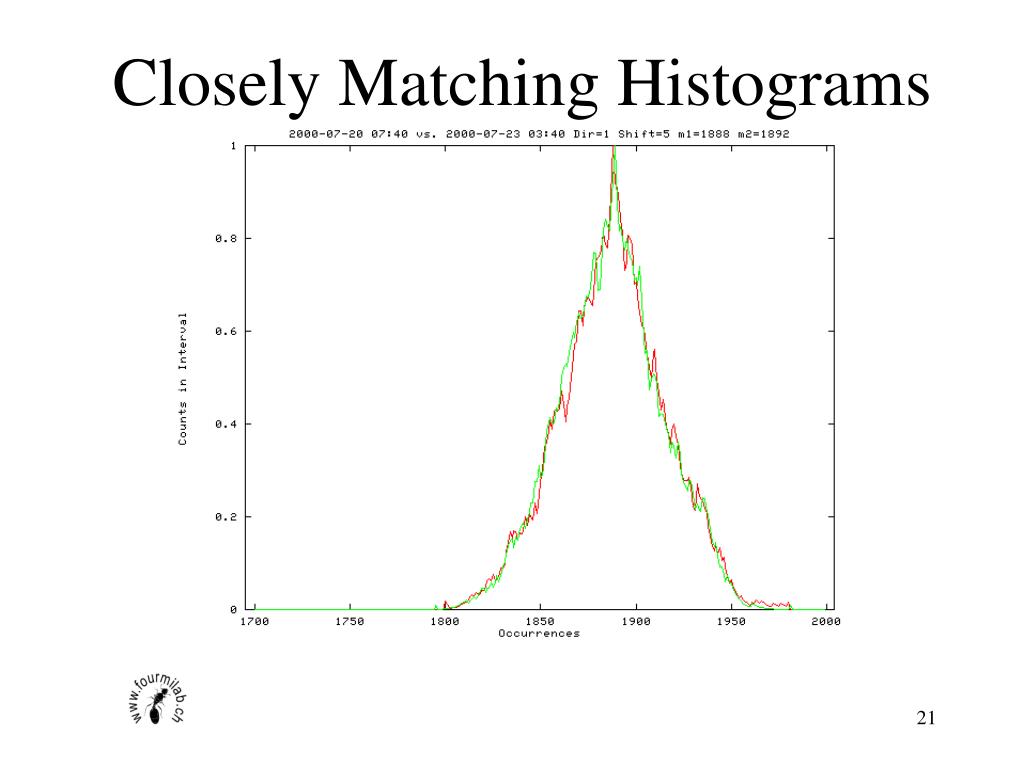

  21. Closely Matching Histograms

  22. Closely Matching Histograms

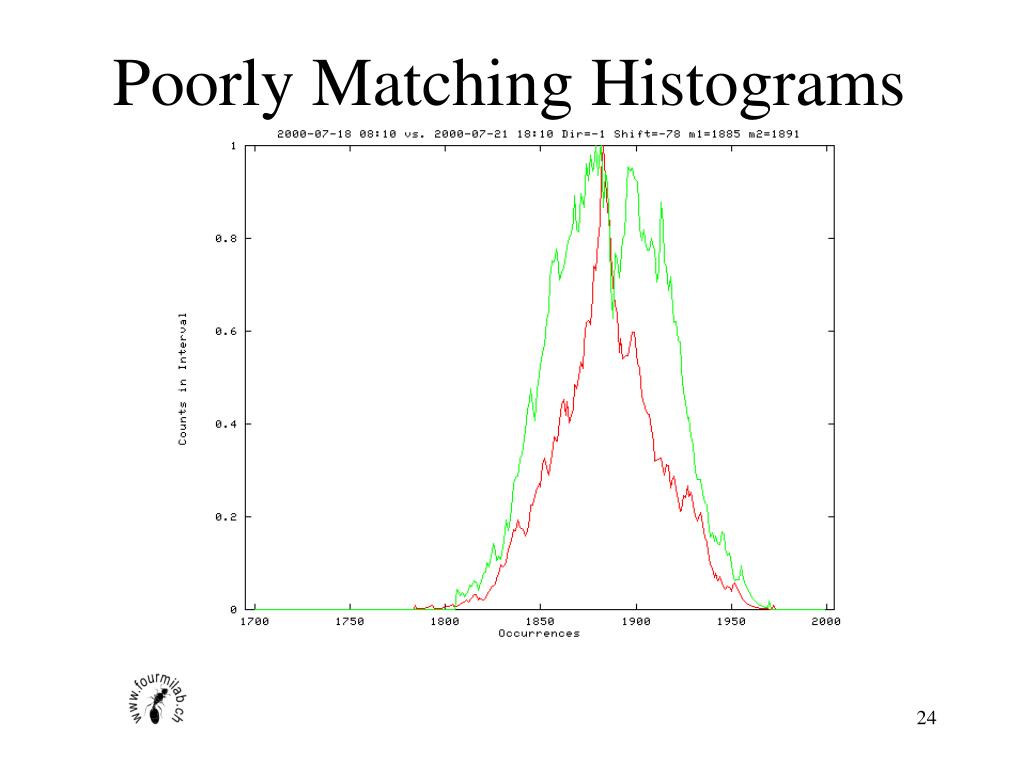

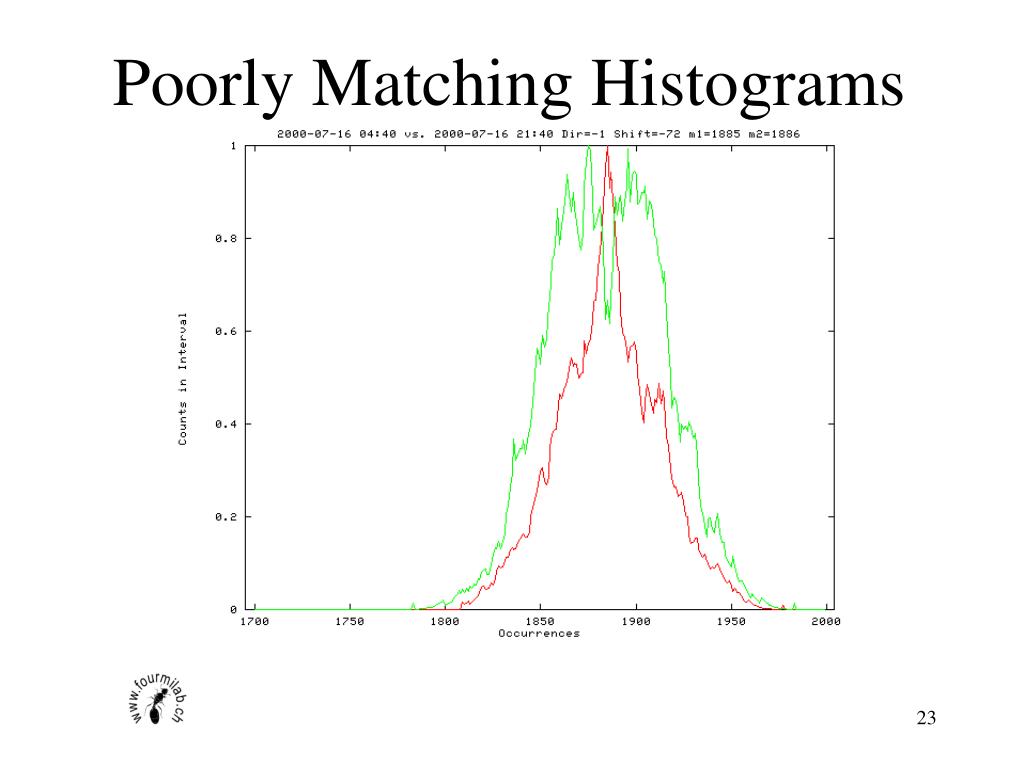

  23. Poorly Matching Histograms

  24. Poorly Matching Histograms

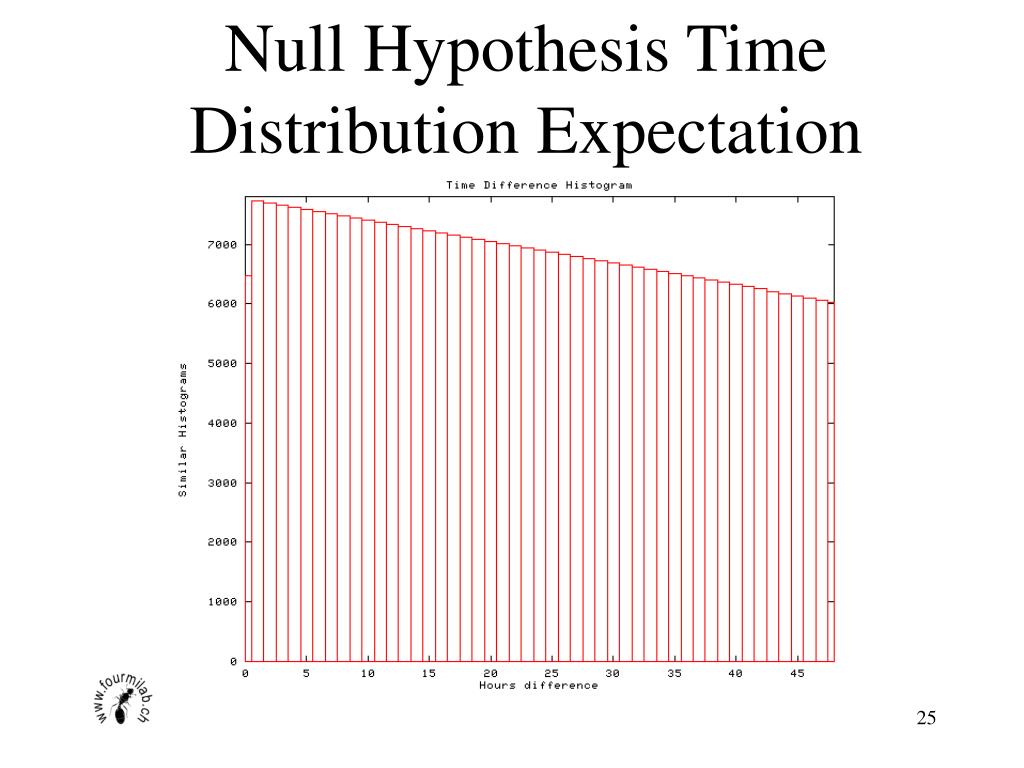

  25. Null Hypothesis TimeDistribution Expectation

  26. Closeness Ranking: Closest 2000

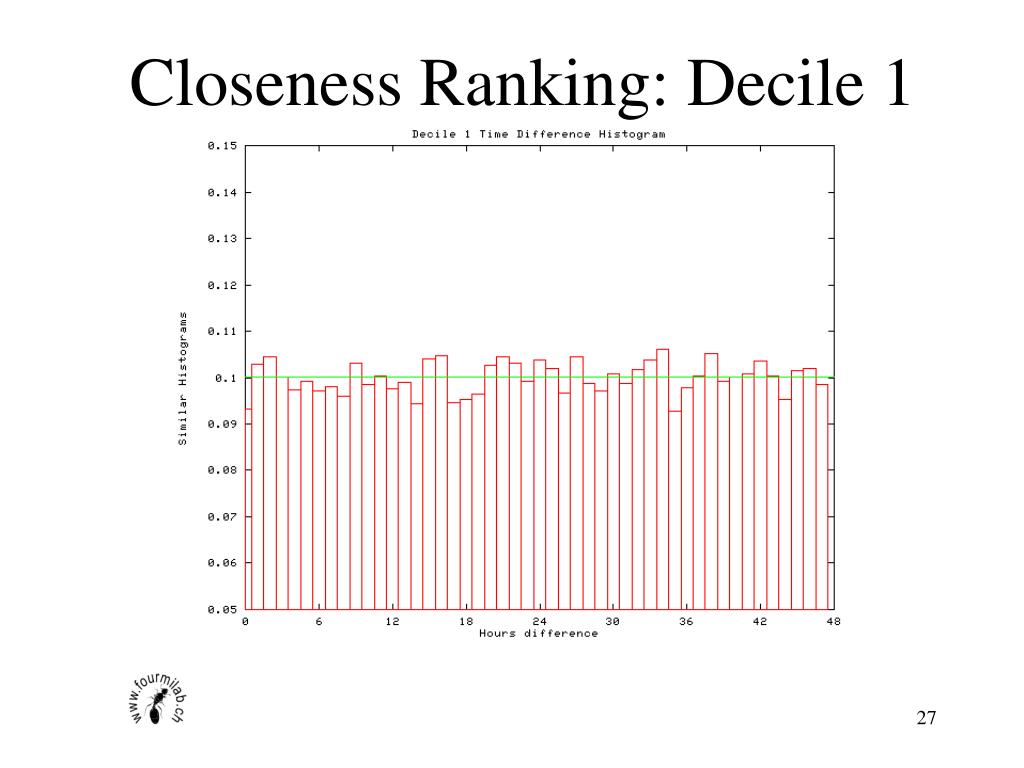

  27. Closeness Ranking: Decile 1

  28. Closeness Ranking: Decile 2

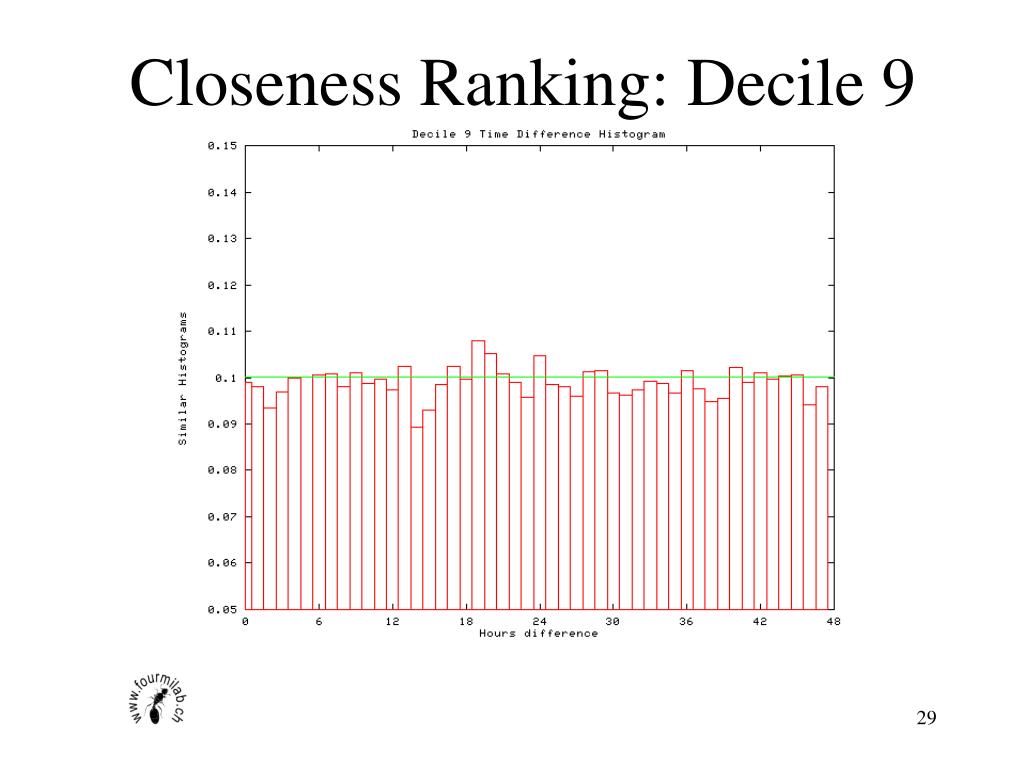

  29. Closeness Ranking: Decile 9

  30. Closeness Ranking: Decile 10

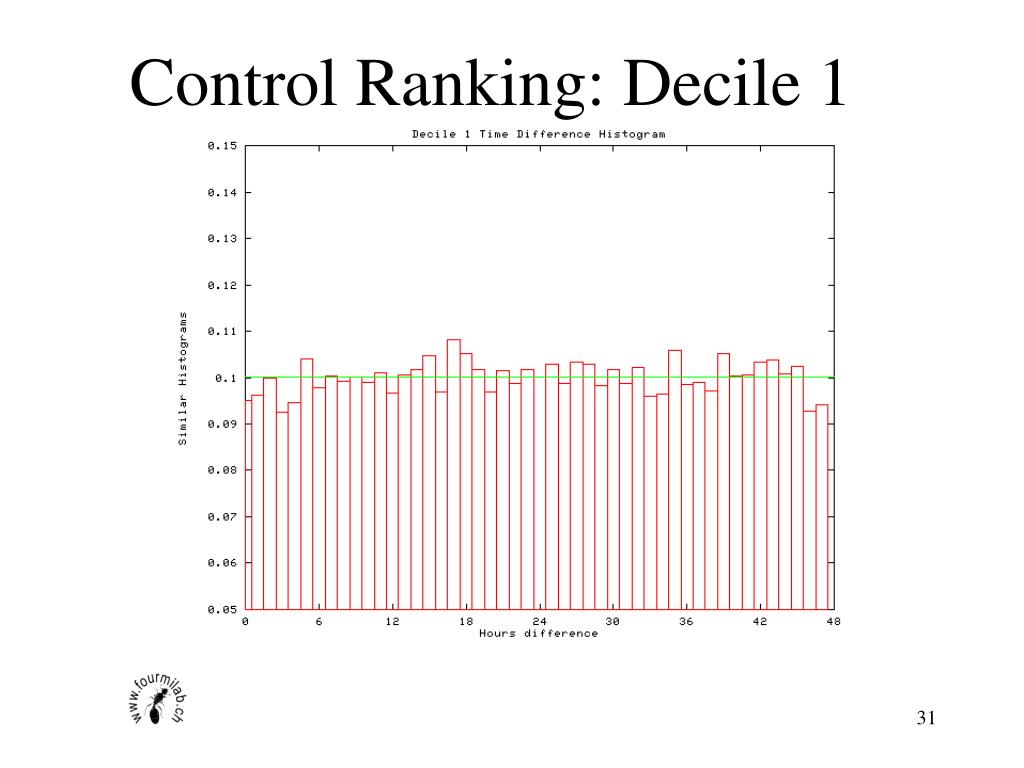

  31. Control Ranking: Decile 1

  32. Control Ranking: Decile 2

  33. Control Ranking: Decile 9

  34. Control Ranking: Decile 10

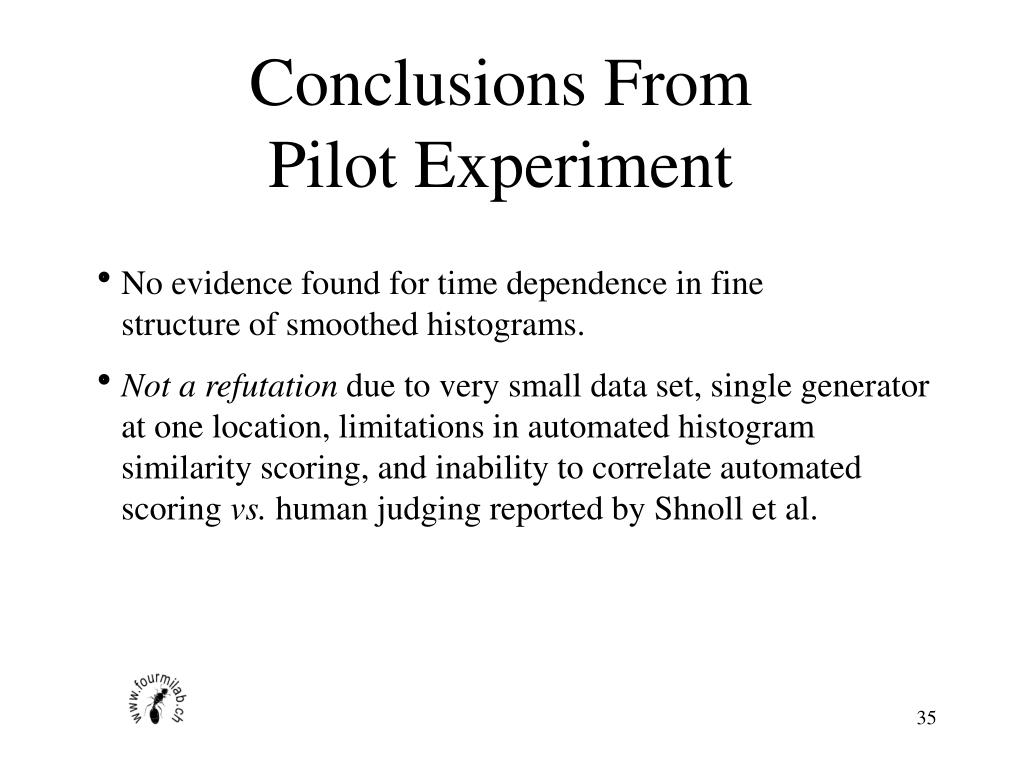

  35. Conclusions From Pilot Experiment • No evidence found for time dependence in fine structure of smoothed histograms. • Not a refutation due to very small data set, single generator at one location, limitations in automated histogram similarity scoring, and inability to correlate automated scoring vs. human judging reported by Shnoll et al.

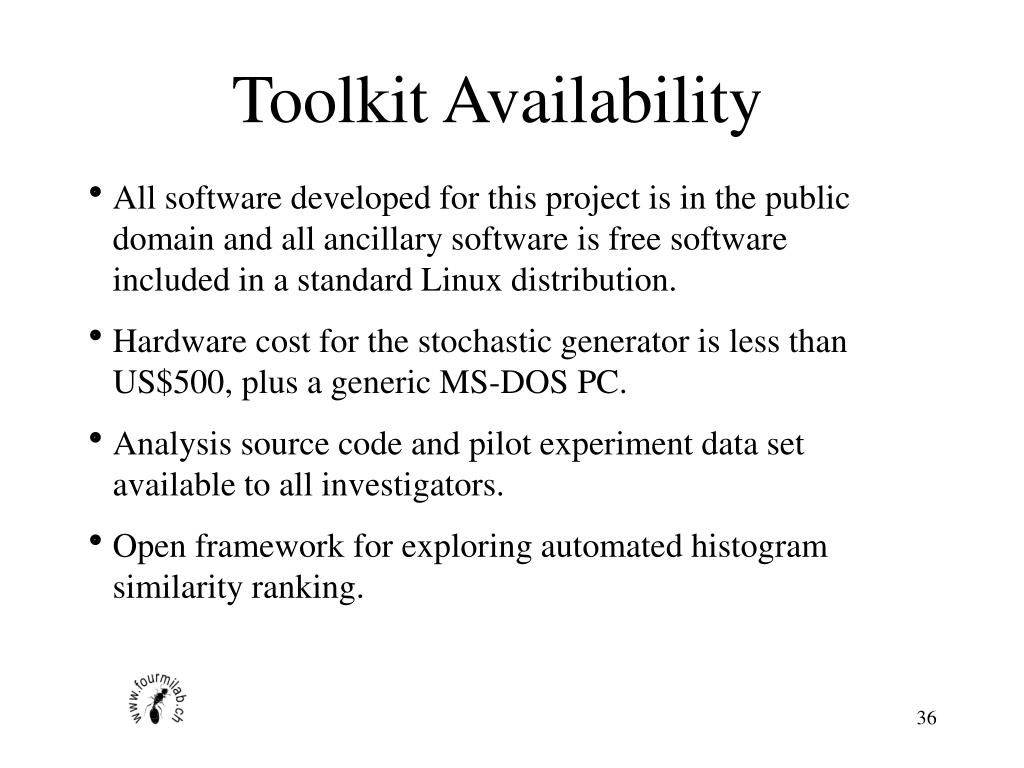

  36. Toolkit Availability • All software developed for this project is in the public domain and all ancillary software is free software included in a standard Linux distribution. • Hardware cost for the stochastic generator is less than US$500, plus a generic MS-DOS PC. • Analysis source code and pilot experiment data set available to all investigators. • Open framework for exploring automated histogram similarity ranking.

  37. The RetroPsychoKinesis ProjectStatus to Date http://www.fourmilab.ch/rpkp/

  38. The RetroPsychoKinesis ProjectOverview • Web/Java-based Schmidt-like retrocausal PK experiments • Pre-recorded data generated by HotBits radioactive random sequence generator • Anybody with Web access can run practice or for-the- record experiments: 5884 participants to date • Three different Java visual feedback programs • Results permanently logged: participants can view their own results and a summary of results of others • Complete data transparency: investigators can retrieve results in raw form for their own analyses http://www.fourmilab.ch/rpkp/

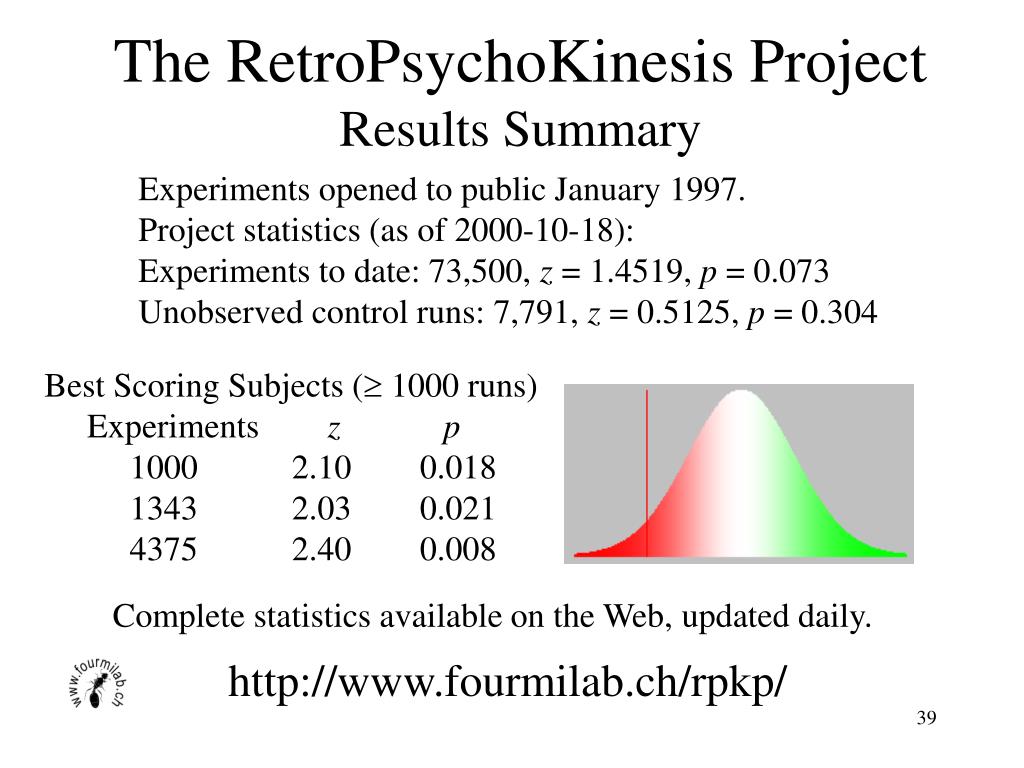

  39. The RetroPsychoKinesis ProjectResults Summary Experiments opened to public January 1997. Project statistics (as of 2000-10-18): Experiments to date: 73,500, z = 1.4519, p = 0.073 Unobserved control runs: 7,791, z = 0.5125, p = 0.304 Best Scoring Subjects ( 1000 runs) Experiments zp 1000 2.10 0.018 1343 2.03 0.021 4375 2.40 0.008 Complete statistics available on the Web, updated daily. http://www.fourmilab.ch/rpkp/

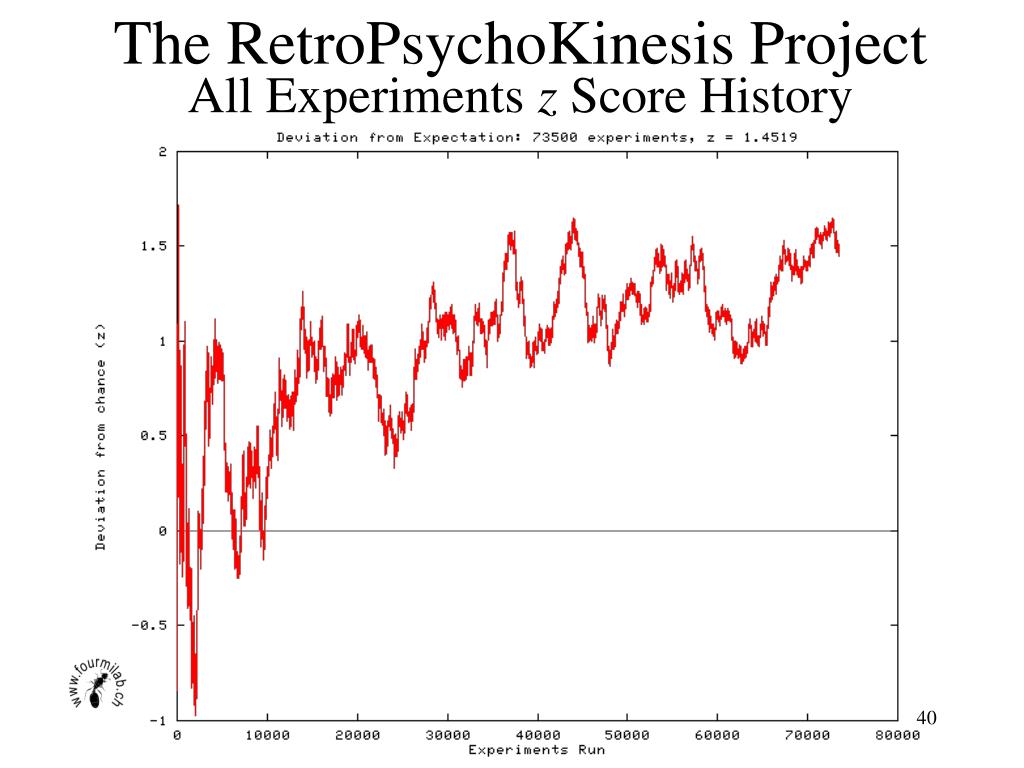

  40. The RetroPsychoKinesis ProjectAll Experiments z Score History

  41. The RetroPsychoKinesis ProjectControl Run z Score History
