환경생물공학 < 조류생물공학에 대한 소개 >

1. 환경생물공학<조류생물공학에 대한 소개> EBTL-Jeon You Chul

2. Global Warming Problems Global warming is caused by the continuous development under regardless of environment Result from accumulation of Green House Gases (CO2, CH4, CFCs, water vapor, etc.) in the atmosphere Result in temperature increase abnormal climate rise of sea water level

3. Direct Fixation Target : flue gas Biomass reuse : solid/liquid fuels, biosorbents, etc. Indirect Fixation Target : captured CO2 Biomass reuse : health foods, animal feeds, composts, pharmaceuticals, etc. atmospheric CO2 combustion respiration dissolution photosynthesis fossil fuel dissolved CO2 photosynthesis death respiration humus Biological CO2 Fixation (BCF)using photosynthetic organisms

4. SUN Low CO2 Recycle Flue gas • Value-added • products • Biosorbents Wastewater Treated water Photobioreactor CO2-emitting plant Applications of Photosynthetic Microorganisms • Production of health food (eq, chlorella) • Production of fine chemicals (eq, astaxanthin, β-carotein, etc) • Biological CO2 fixation • Wastewater treatment • Heavymetal biosorption

5. 녹조류

6. 녹조류

7. 녹조류

8. 녹조류

9. INTRODUCTION Astaxanthin : Green Vegetative cells→ Red cyst cells under unfavorable environmental conditions : nitrogen limitation, strong light intensity, high temperature, pH, salinity, or phosphate deficiency

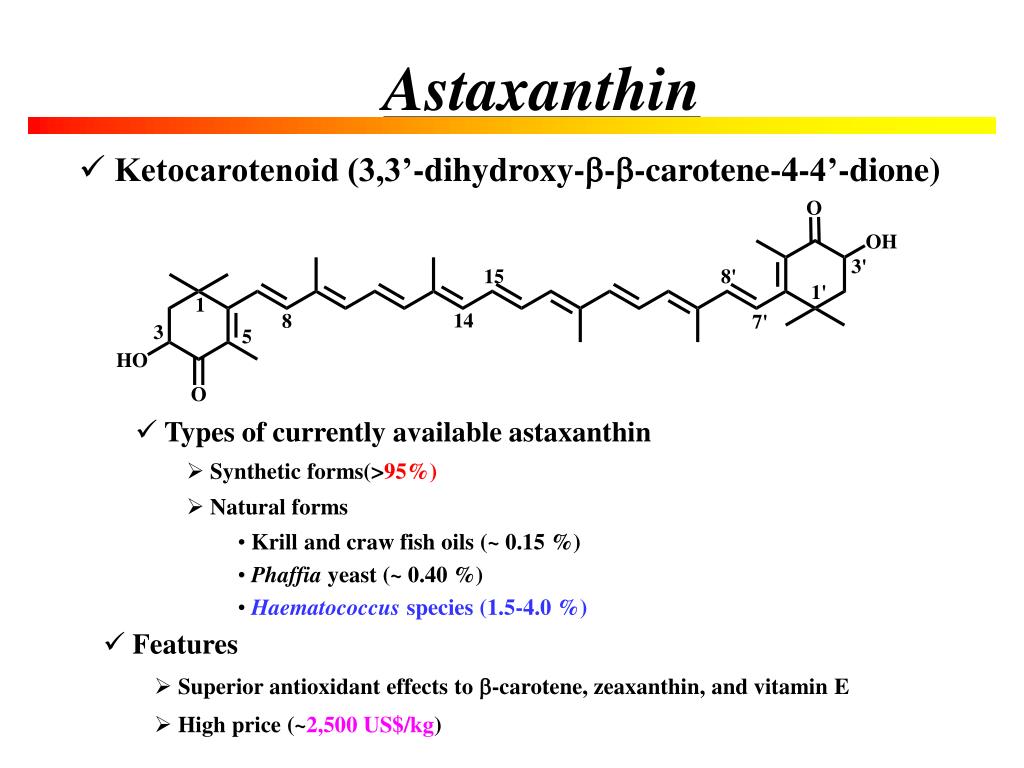

10. Astaxanthin • Ketocarotenoid (3,3’-dihydroxy---carotene-4-4’-dione) • Types of currently available astaxanthin • Synthetic forms(>95%) • Natural forms • Krill and craw fish oils (~ 0.15 %) • Phaffia yeast (~ 0.40 %) • Haematococcus species (1.5-4.0 %) • Features • Superior antioxidant effects to -carotene, zeaxanthin, and vitamin E • High price (~2,500 US$/kg)

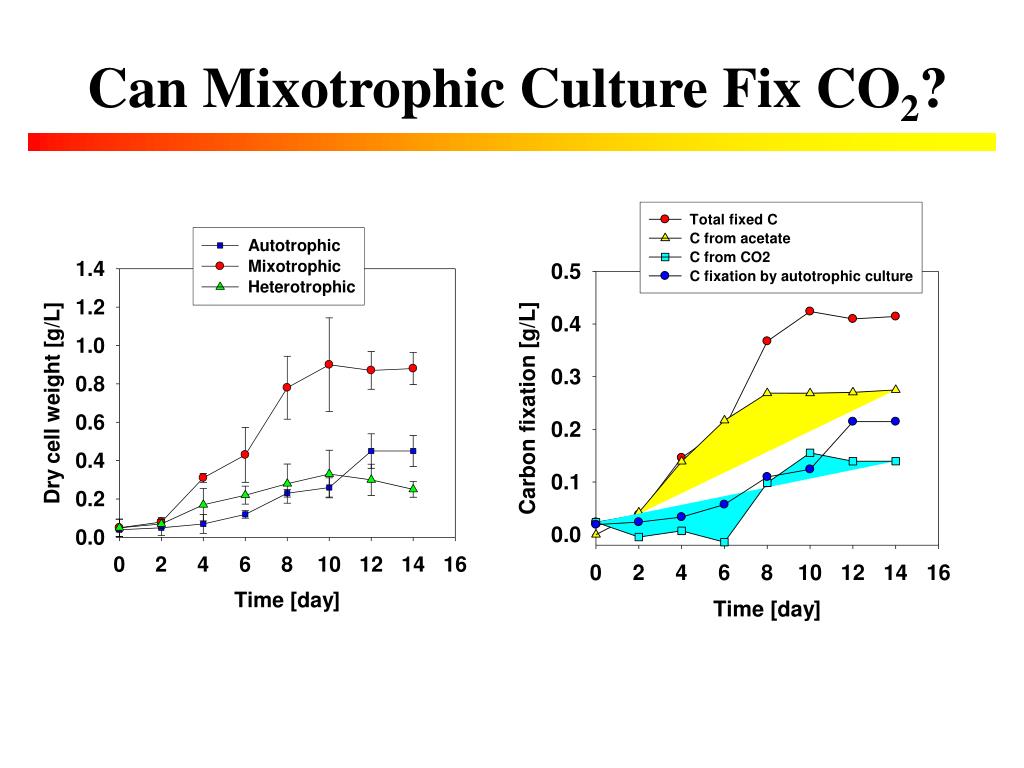

11. Can Mixotrophic Culture Fix CO2?

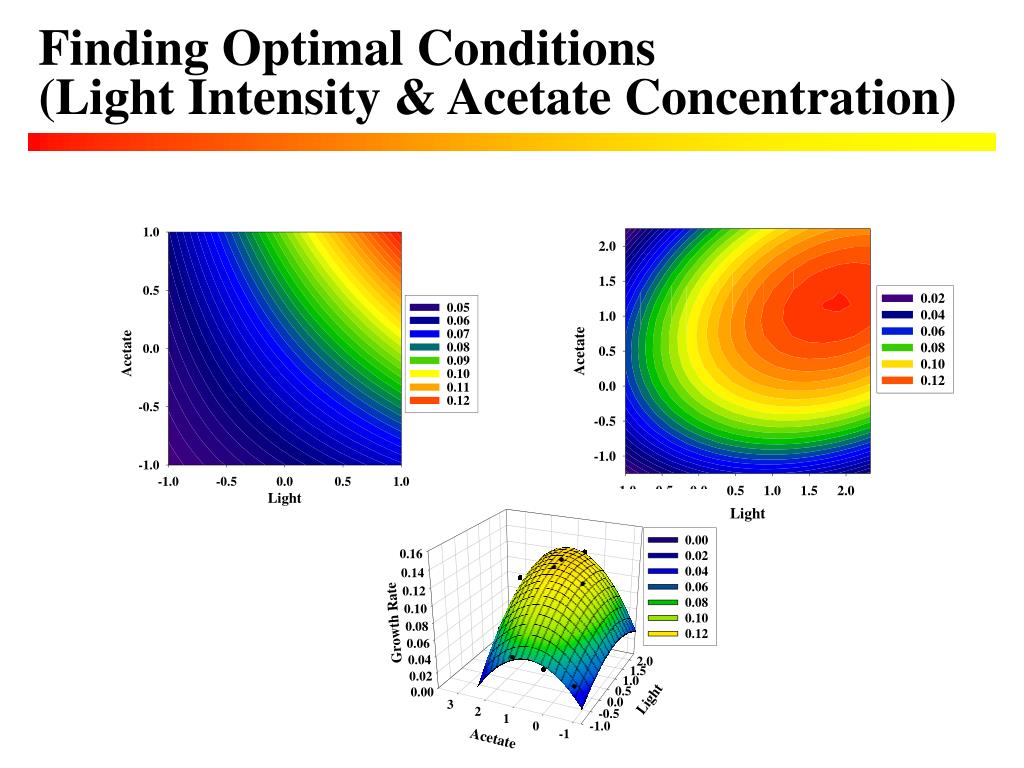

12. Finding Optimal Conditions (Light Intensity & Acetate Concentration)

13. Research Area Photobioreactions & Photobioreactors Laboratory Industry

14. Research Area Photobioreactions & Photobioreactors 연 구 내 용 • Modeling and kinetic analysis of microalgal photosynthesis and growth • Biological carbon dioxide fixation using photosynthetic microorganisms • Biological production of hydrogen gas using solar energy • Microalgal production of high-value-added fine chemicals • Photosynthesis measurement systems and its applications • Reuse of algal biomass as a biosorbent • Design and optimization of novel photobioreactor systems EBTL

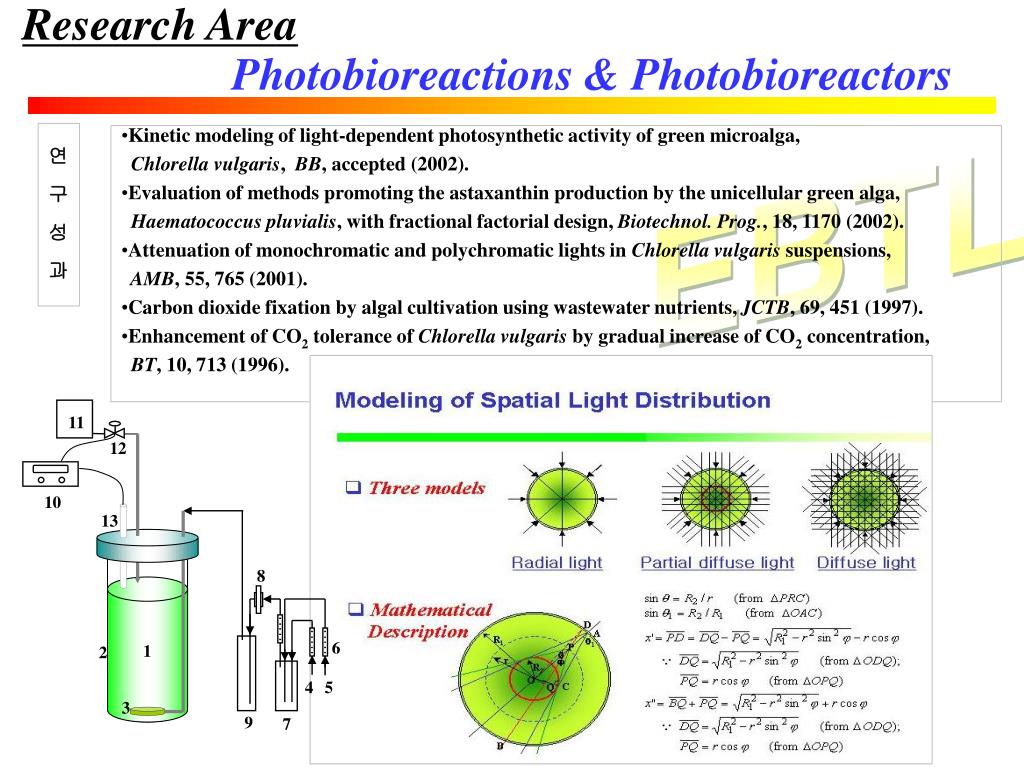

15. Research Area 11 12 10 13 8 6 1 2 4 5 3 9 7 Photobioreactions & Photobioreactors 연 구 성 과 • Kinetic modeling of light-dependent photosynthetic activity of green microalga, • Chlorella vulgaris, BB, accepted (2002). • Evaluation of methods promoting the astaxanthin production by the unicellular green alga, • Haematococcus pluvialis, with fractional factorial design, Biotechnol. Prog., 18, 1170 (2002). • Attenuation of monochromatic and polychromatic lights in Chlorella vulgaris suspensions, • AMB, 55, 765 (2001). • Carbon dioxide fixation by algal cultivation using wastewater nutrients, JCTB, 69, 451 (1997). • Enhancement of CO2 tolerance of Chlorella vulgaris by gradual increase of CO2 concentration, • BT, 10, 713 (1996). EBTL

16. 꿈꾸는 자만이 꿈을 이룰 수 있다. 不狂不及 (불광불급) 관심 의지 꿈은 이루어진다 지식 꿈 도전 Thank you for your attention !
