  1. HANWHA TECHM (한화 테크엠) 2008013469 kim sang in

  2. INDEX -what is the Cnc Lathe ? -Cnc Lathe composition -HANWHA M.TECH cnc lathe (STL-series)

  3. Lathe CNC Automatic Lathe

  4. CNC LATHE COMPOSITION • CNC (Computer numerical control) • Basic Lathe composition • Used to NC program-XD20 • Input code example

  5. CNC LATHE COMPOSITION Cnc 프로그램 주축 대척심 압대서브모터 볼스크류

  6. SPINDLE (주축대) • Headstock spindle servo motor converts the rotation of the belt and through the gears to rotate the chuck in the spindle end, to rotate the workpiece chuck bite is a system. CNC lathe composition

  7. CHUCK(척) • Workpiece spindle is attached to the tip (chucking) pretend to work with oil pressure and air pressure to operate hydraulic chuck gongapcheok and special chuck is used. CNC lathe composition

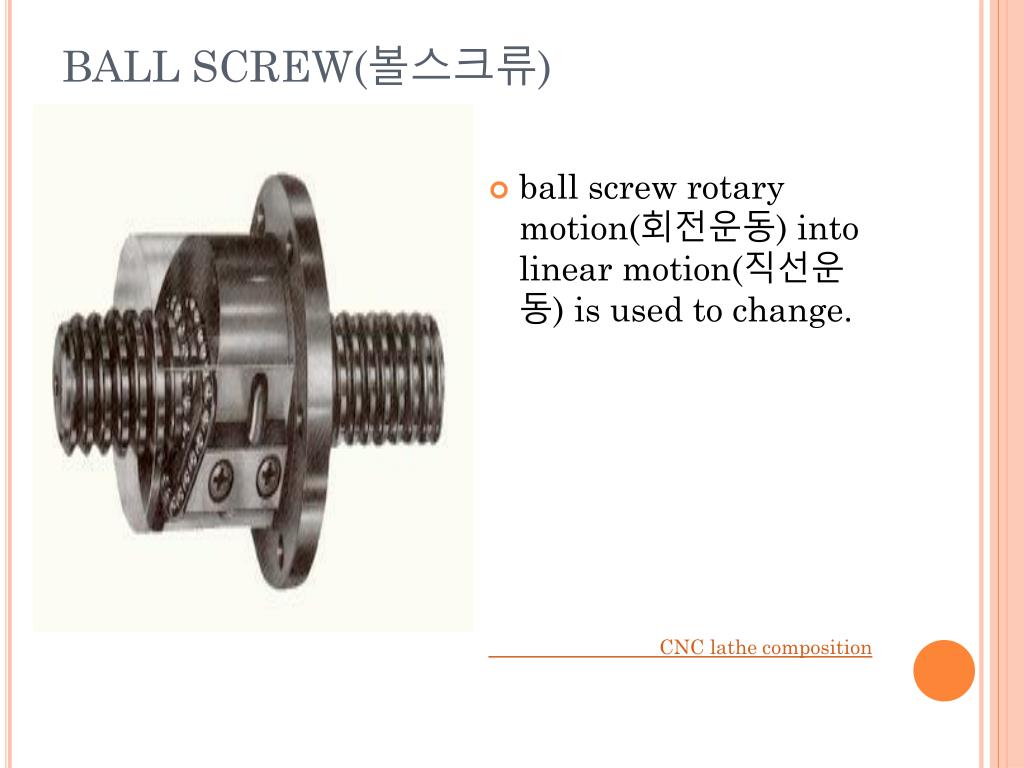

  8. BALL SCREW(볼스크류) • ball screw rotary motion(회전운동) into linear motion(직선운동) is used to change. CNC lathe composition

  9. TAIL STOCK(심압대) • anxious to secure the workpiece when the tail stock is used CNC lathe composition

  10. SERVO MOTOR(서브모터) • servo motor • cpu command will move the tables • At the same time to control the position CNC lathe composition

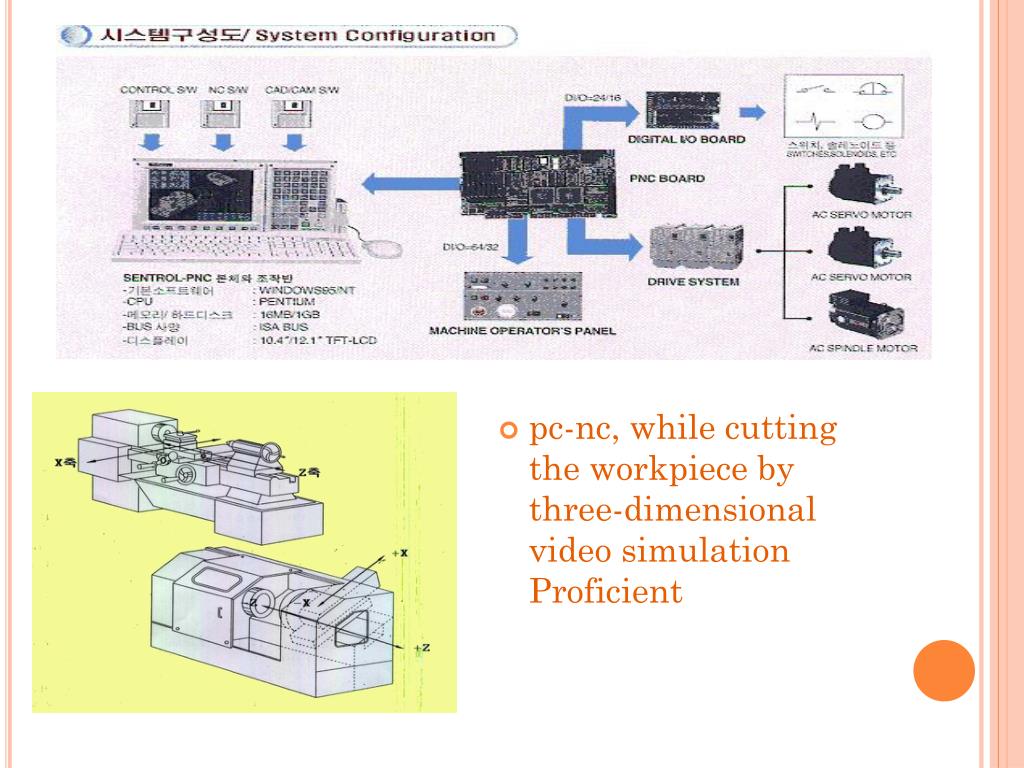

  11. ` • pc-nc, while cutting the workpiece by three-dimensional video simulation Proficient

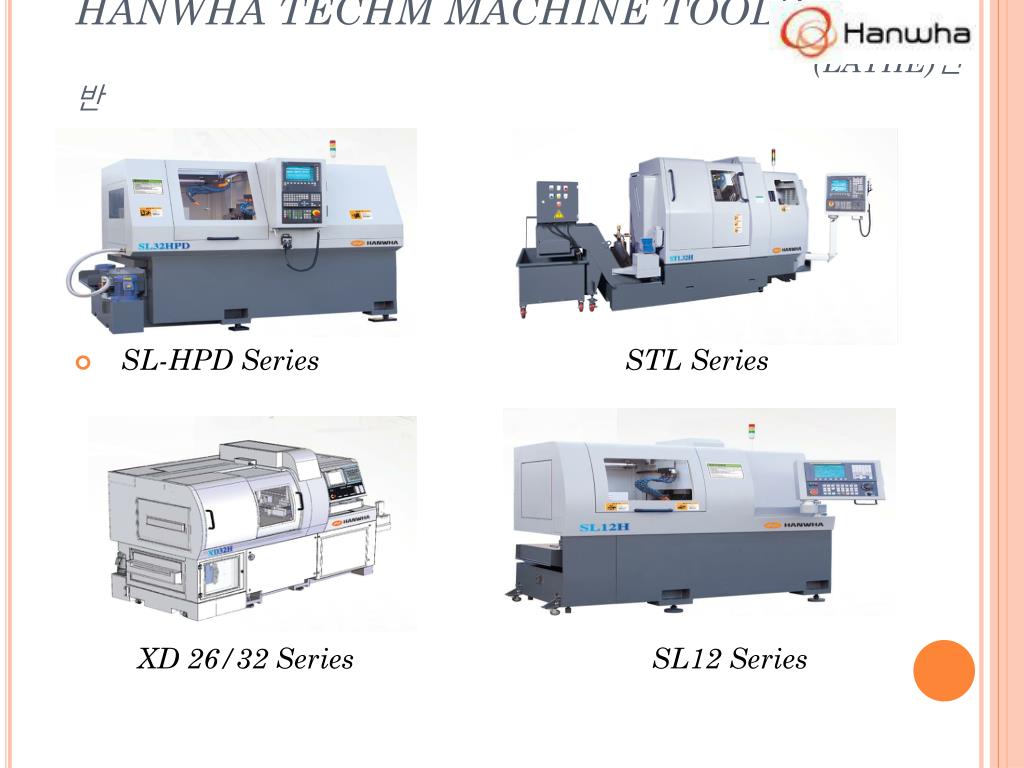

  12. HANWHA TECHM MACHINE TOOLS(LATHE)선반 • SL-HPD Series STL Series XD 26/32 Series SL12 Series

  13. HANWHA M.TECH CNCLATHE (STL SERIES)

  14. lathe designe & layout

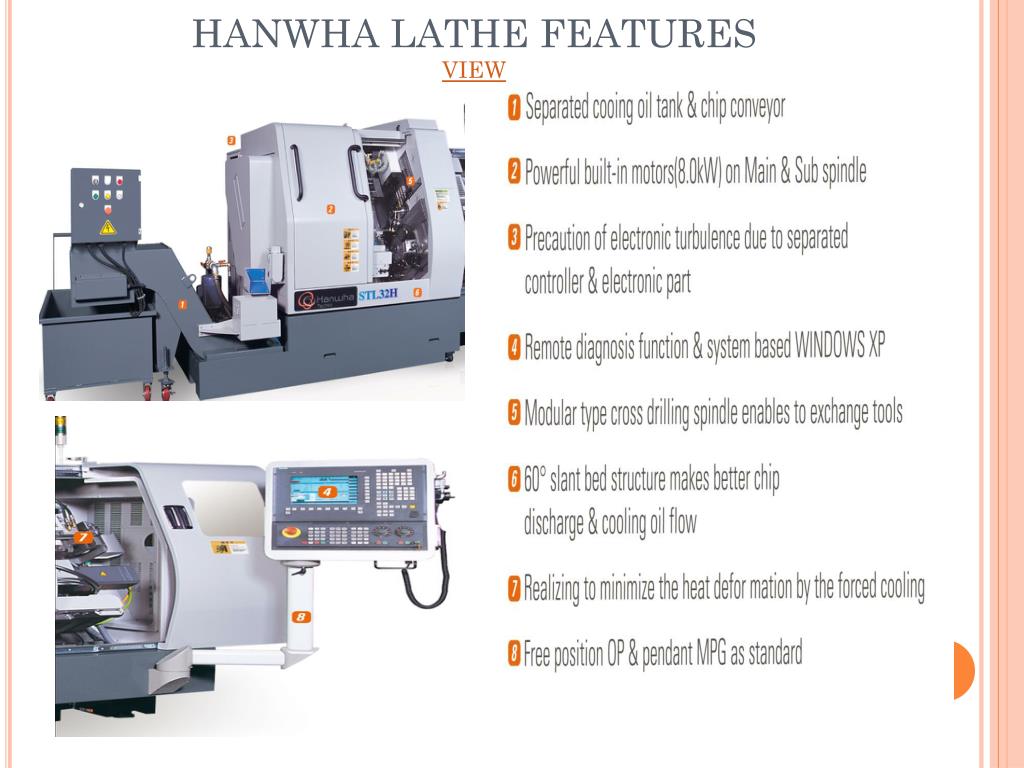

  15. HANWHA LATHE FEATURES VIEW

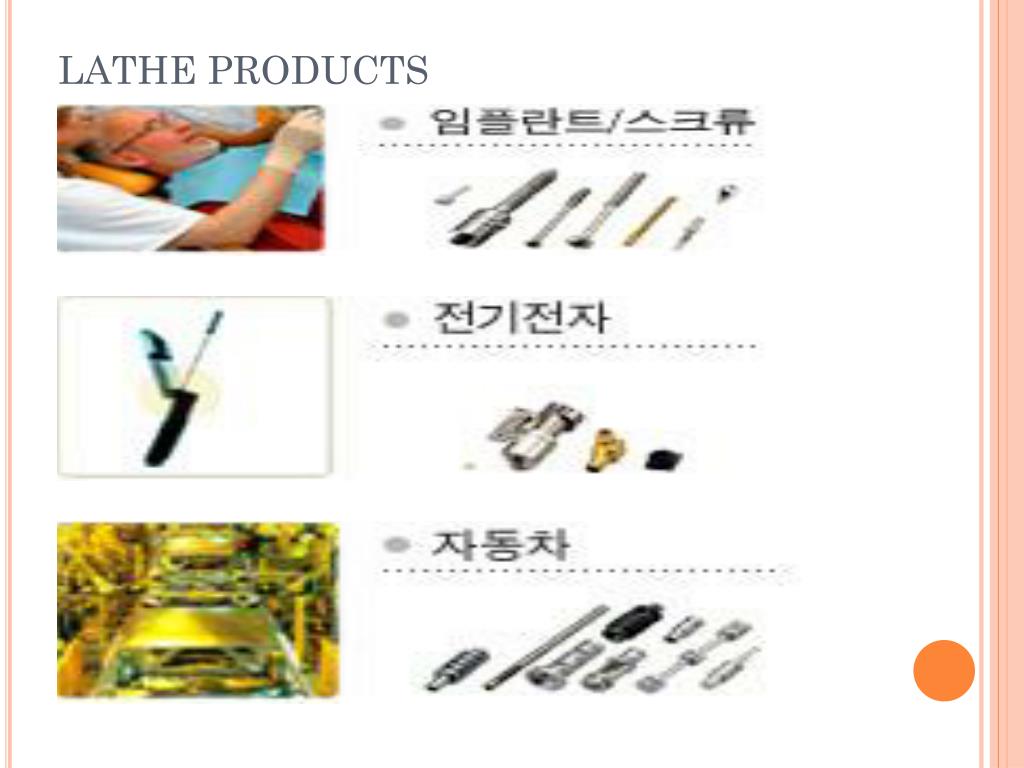

  16. LATHE PRODUCTS

  17. THANK YOU FOR LISTENING
