forest road assessment

Forest Road Assessment

Using, recording and maintaining the asset

David Killer - Forestry Civil Engineering - 23 October 2007

what are forest roads for
what are forest roads for?

Forest Road Assessment David Killer

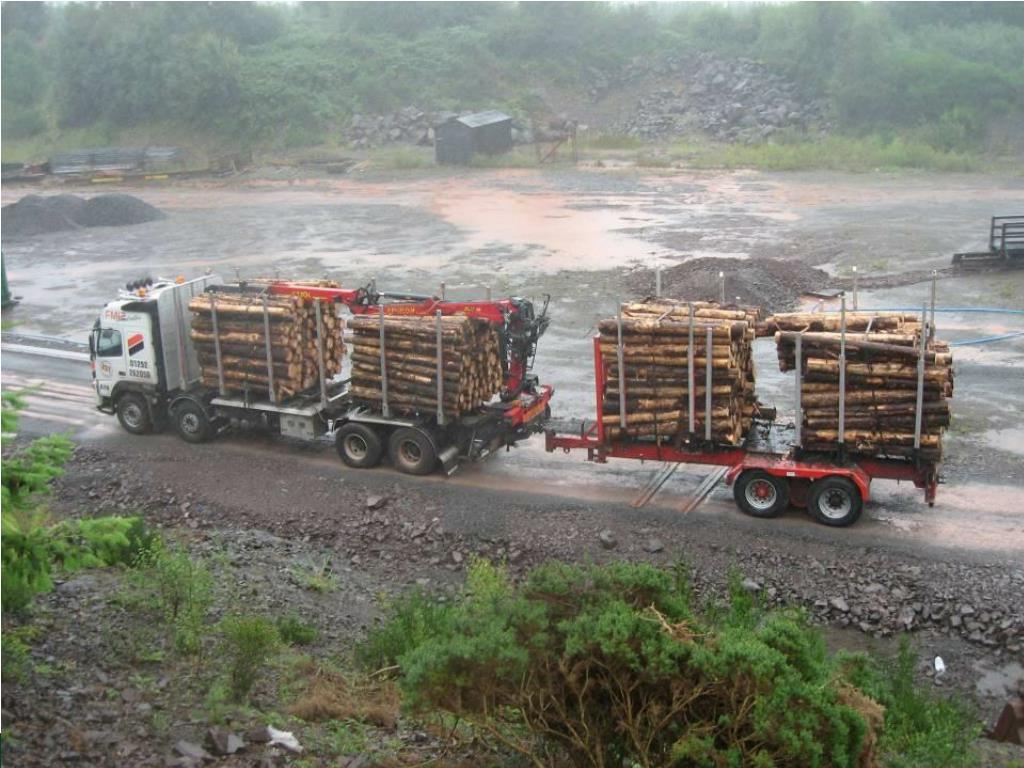

the main users of many forest roads
the main users of many forest roads

Forest Road Assessment David Killer

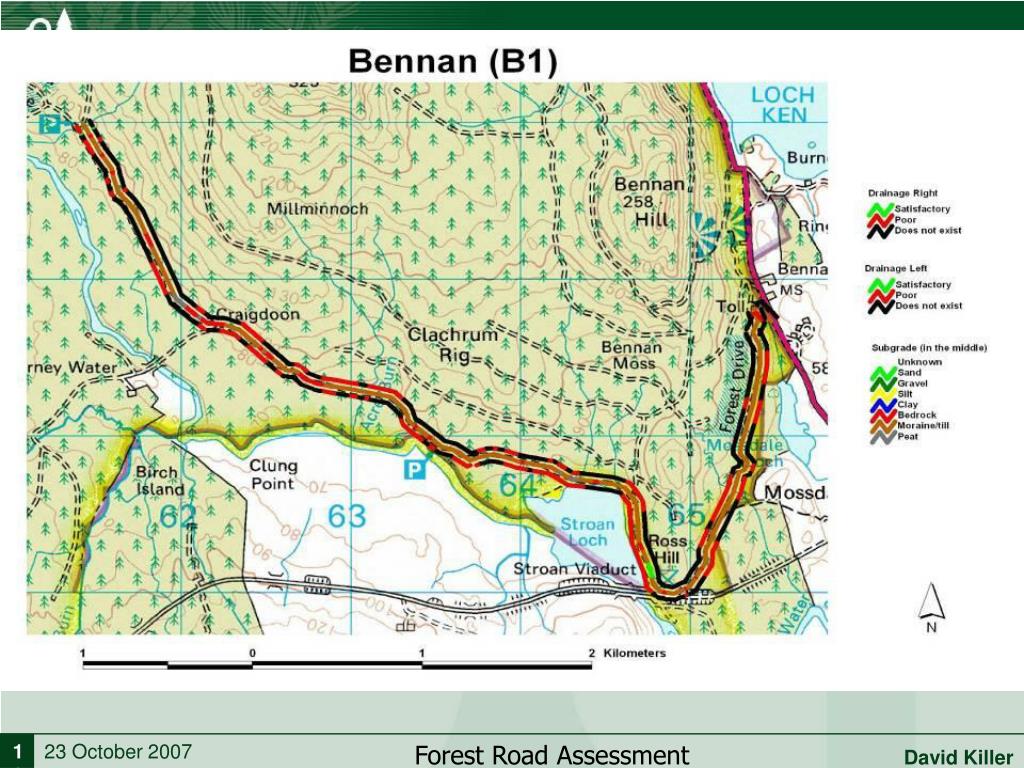

road condition survey
road condition survey
  • to define the usage of each segment of road in terms of low, medium or high for the following categories: timber traffic, light vehicles, cyclists, horses, walkers and other
  • to decide on the optimum surfacing solution for each usage combination
  • to record the actual condition against the optimum
  • to estimate the cost of moving to the optimum surfacing solution

Forest Road Assessment David Killer

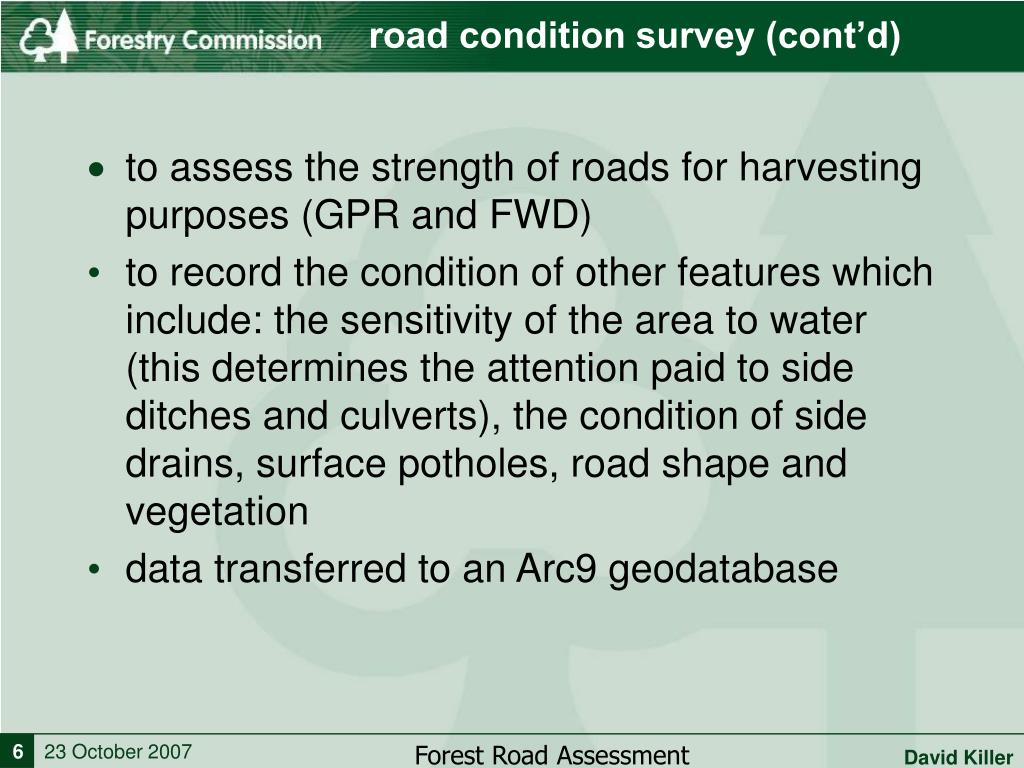

road condition survey cont d
road condition survey (cont’d)

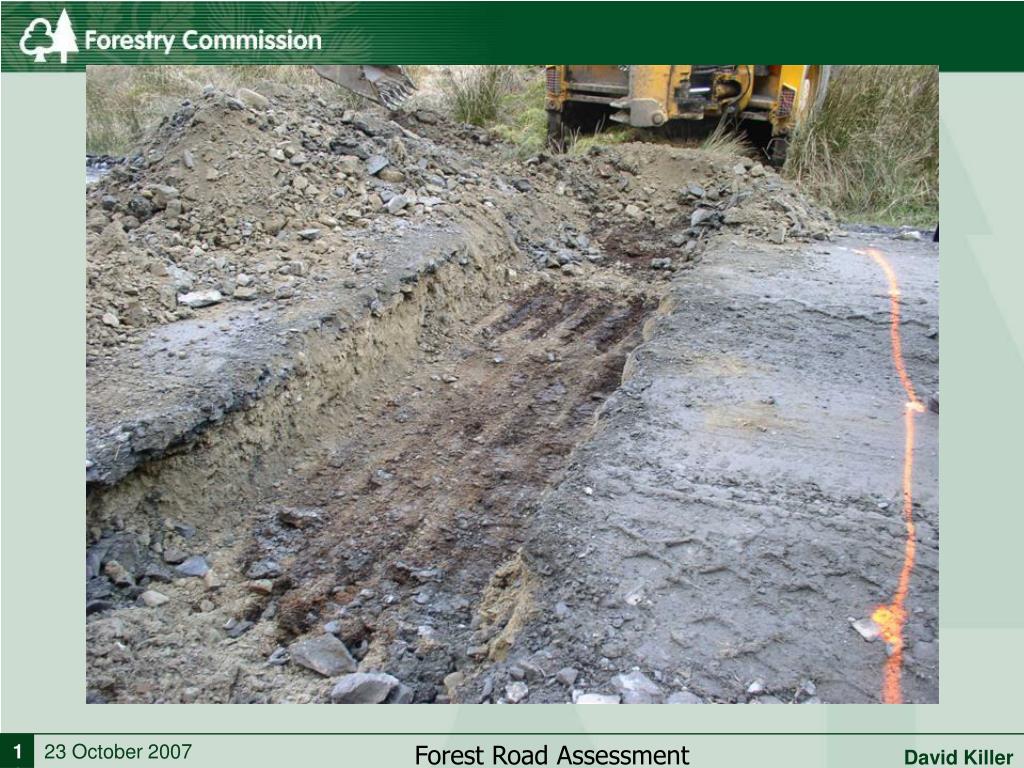

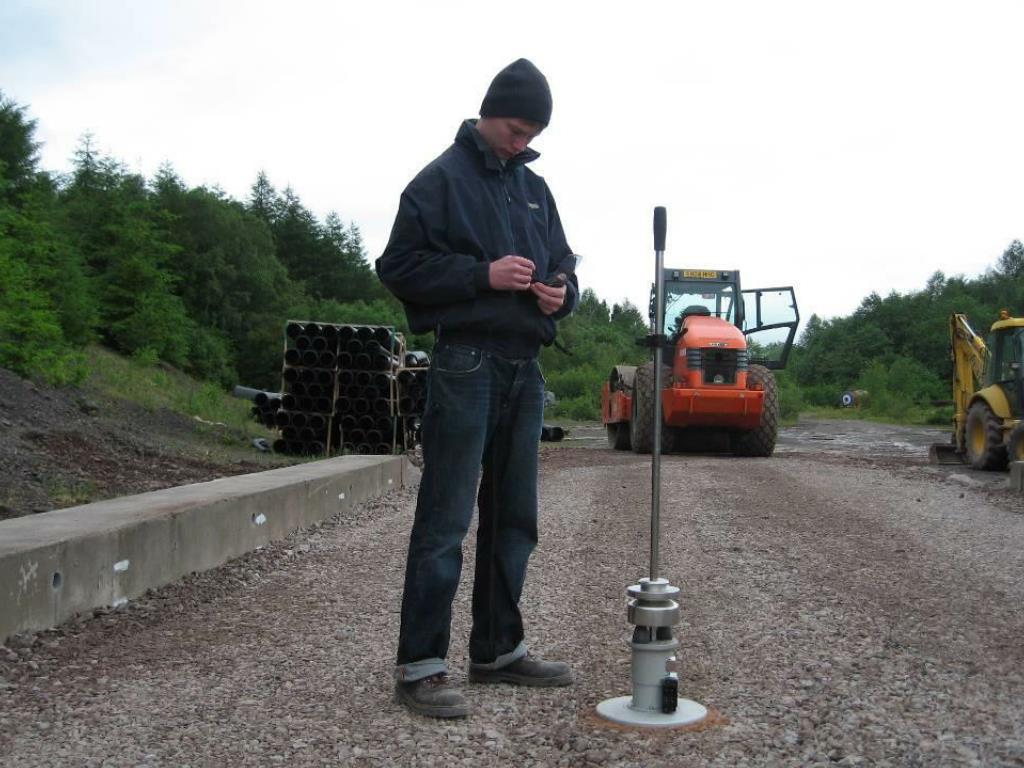

  • to assess the strength of roads for harvesting purposes (GPR and FWD)
  • to record the condition of other features which include: the sensitivity of the area to water (this determines the attention paid to side ditches and culverts), the condition of side drains, surface potholes, road shape and vegetation
  • data transferred to an Arc9 geodatabase

Forest Road Assessment David Killer

inputting usage data

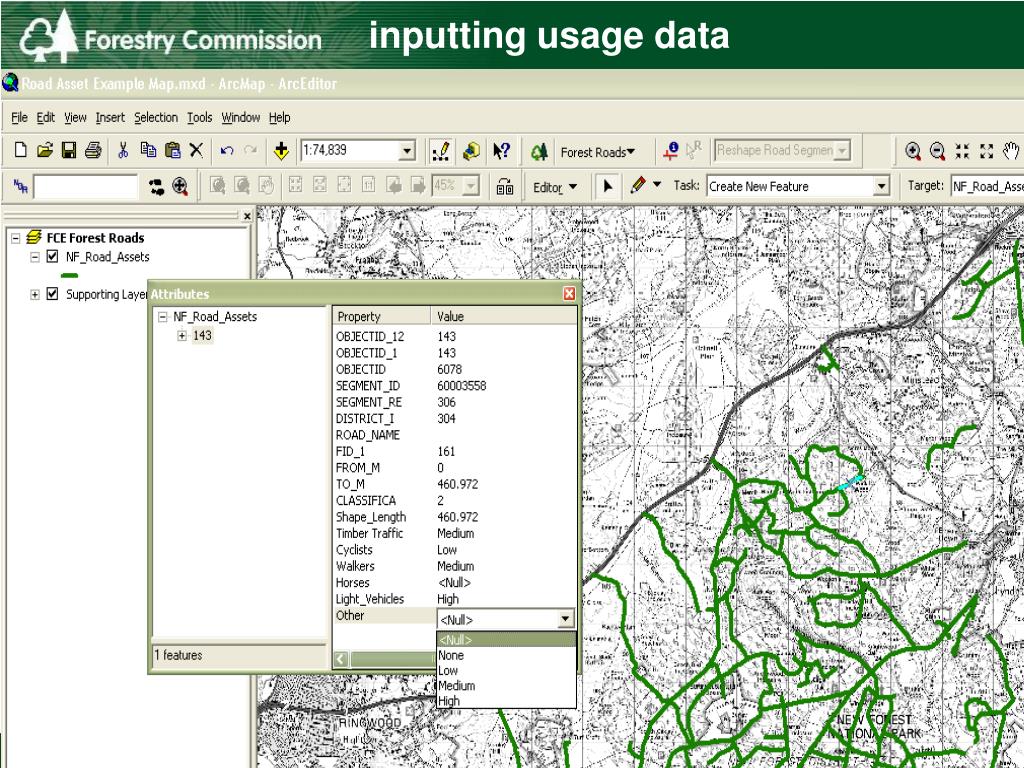

inputting usage data

Forest Road Assessment David Killer

surface characteristics
surface characteristics

Forest Road Assessment David Killer

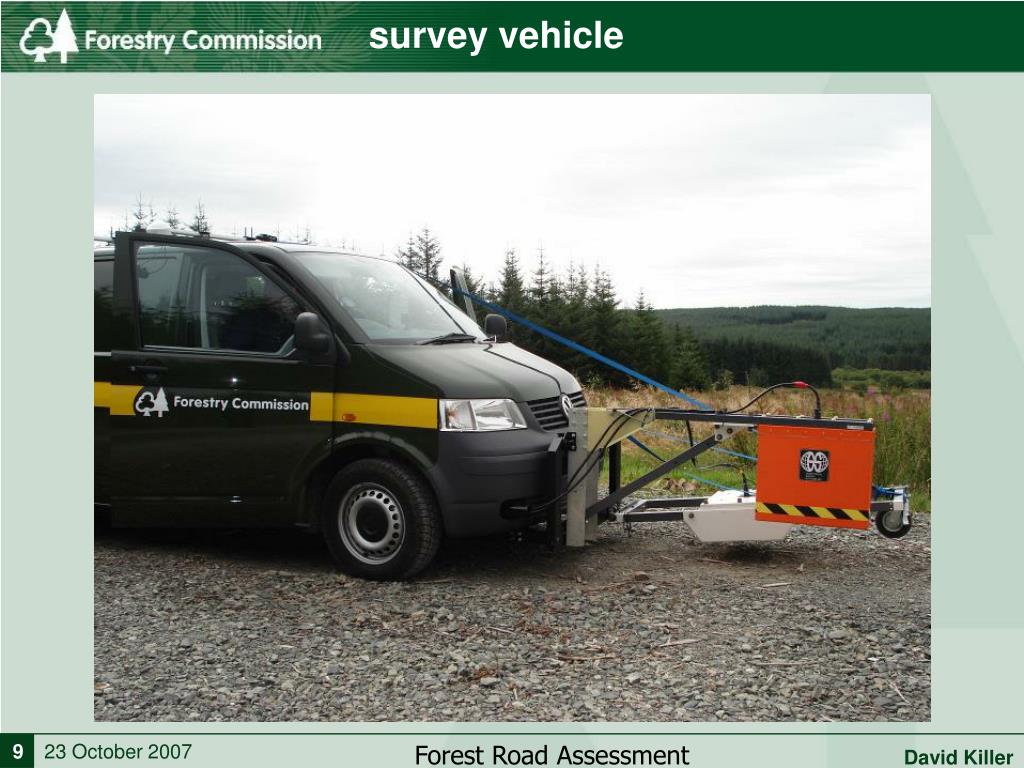

survey vehicle
survey vehicle

Forest Road Assessment David Killer

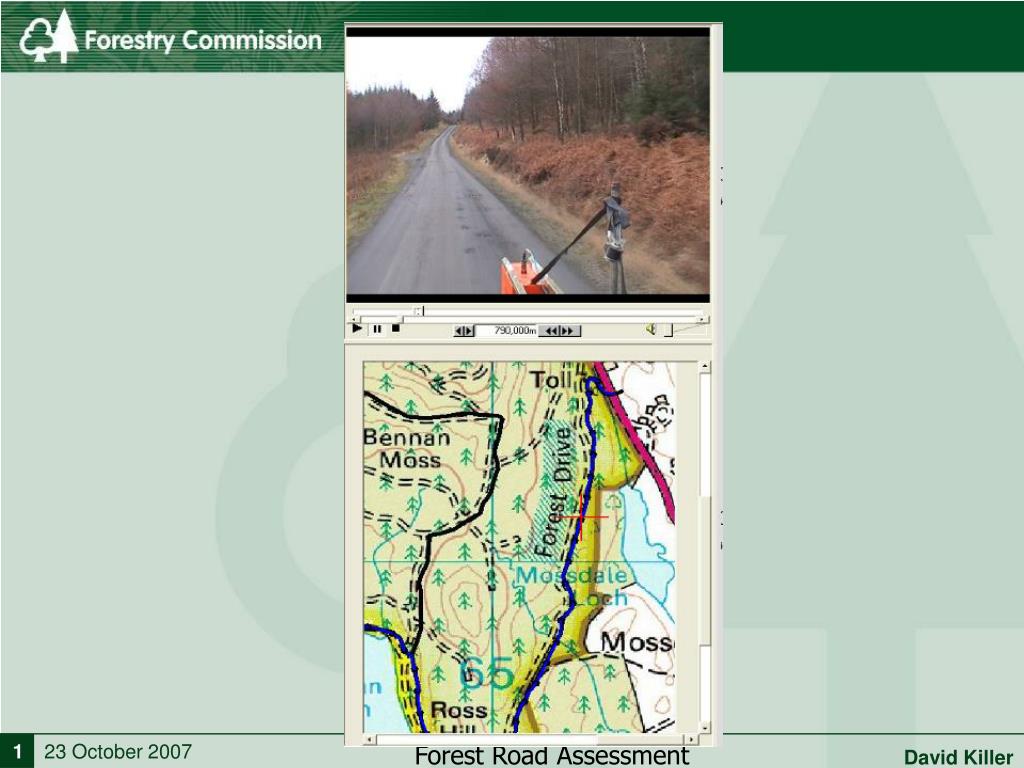

data capture and processing
data capture and processing

Forest Road Assessment David Killer

results of road assessment

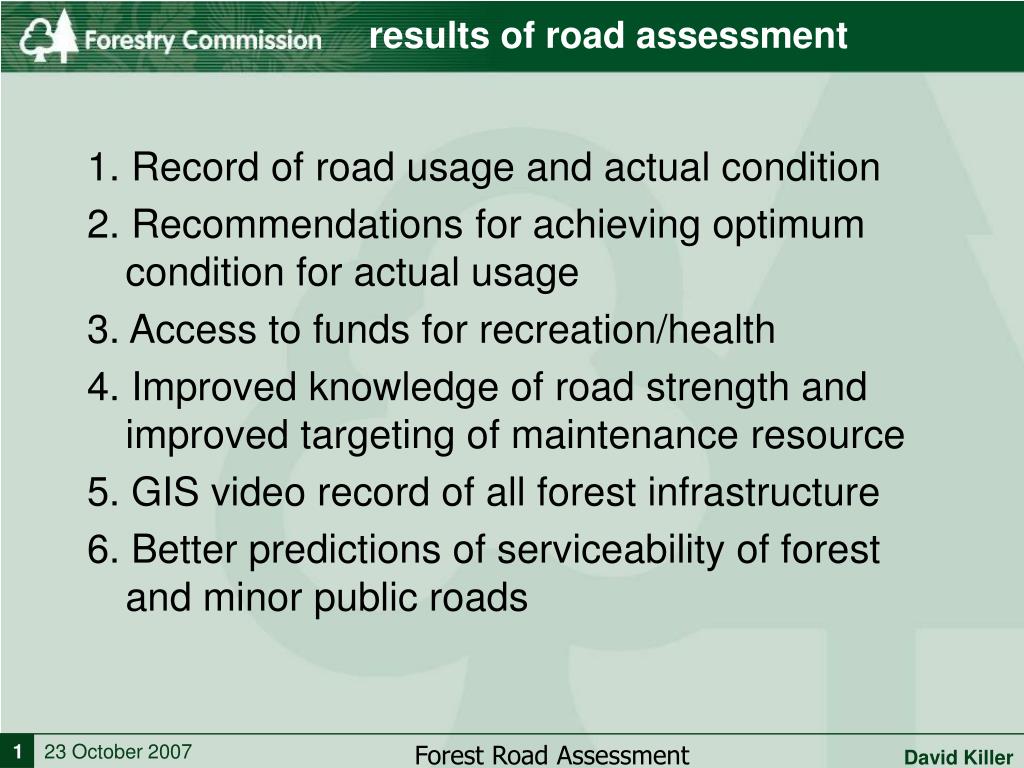

results of road assessment
  • 1. Record of road usage and actual condition
  • 2. Recommendations for achieving optimum condition for actual usage
  • 3. Access to funds for recreation/health
  • 4. Improved knowledge of road strength and improved targeting of maintenance resource
  • 5. GIS video record of all forest infrastructure
  • 6. Better predictions of serviceability of forest and minor public roads

Forest Road Assessment David Killer

bottom line

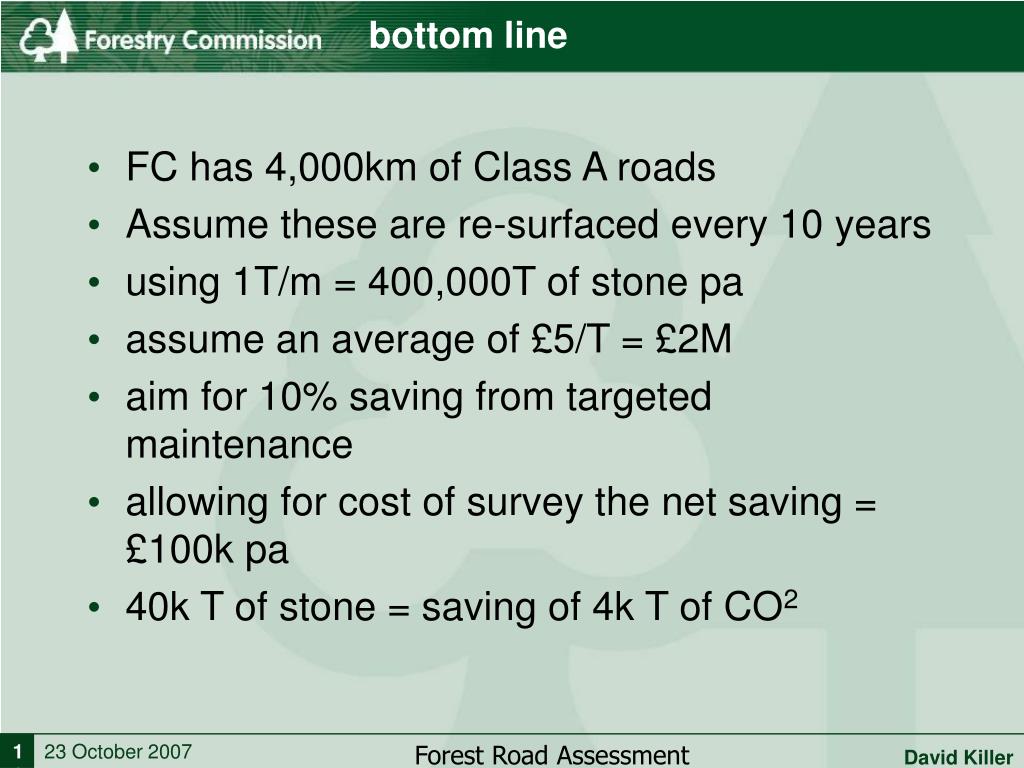

bottom line
  • FC has 4,000km of Class A roads
  • Assume these are re-surfaced every 10 years
  • using 1T/m = 400,000T of stone pa
  • assume an average of £5/T = £2M
  • aim for 10% saving from targeted maintenance
  • allowing for cost of survey the net saving = £100k pa
  • 40k T of stone = saving of 4k T of CO2

Forest Road Assessment David Killer

slide17

RUTT

Roads Under Timber Traffic

RUTT Project

Roads under Timber Transport

A joint study by

Forestry Civil Engineering & the University of Nottingham

slide27

RUTT Project - Ringour Trials Laboratory Results

Trial

Date

Vehicle

Mat.

Condition

Moisture Content

Remarks

Trial 1

26/Jun

FCE ML (Multi-Lift)

Type 1

Dry

N/A

Trial 2

27/Jun

FCE ML

Type 1

Soaked

Material at Scotland Lab

Trial 3

24/Jul

John Miller (J.M.) Aritc

Type 1

Soaked

3.90%

Wheel Track - 0 to 7cm depth

5.70%

Rut bottom - Right hand wheel track

Trial 4

08/Aug

J.M. Lorry&Drag + FCE ML

Type 1

Soaked

Material at Scotland Lab

Trial 5

18/Aug

John Scott LGP

Type 1

Soaked

5.17%

Trial 6

06/Sep

J.M. Artic + FCE ML

Risk

Soaked

6.20%

Trial 7

18/Sep

J. Jones TPCS

Risk

Soaked

?

Test due on 10th October

19/Sep

J. Jones TPCS

Risk

Soaked

5.00%

Right hand side wheel path

19/Sep

J. Jones TPCS

Risk

Soaked

6.10%

Left hand side wheel path

Forest Road Assessment David Killer

poor material grading analysis
Poor Material Grading Analysis

Forest Road Assessment David Killer

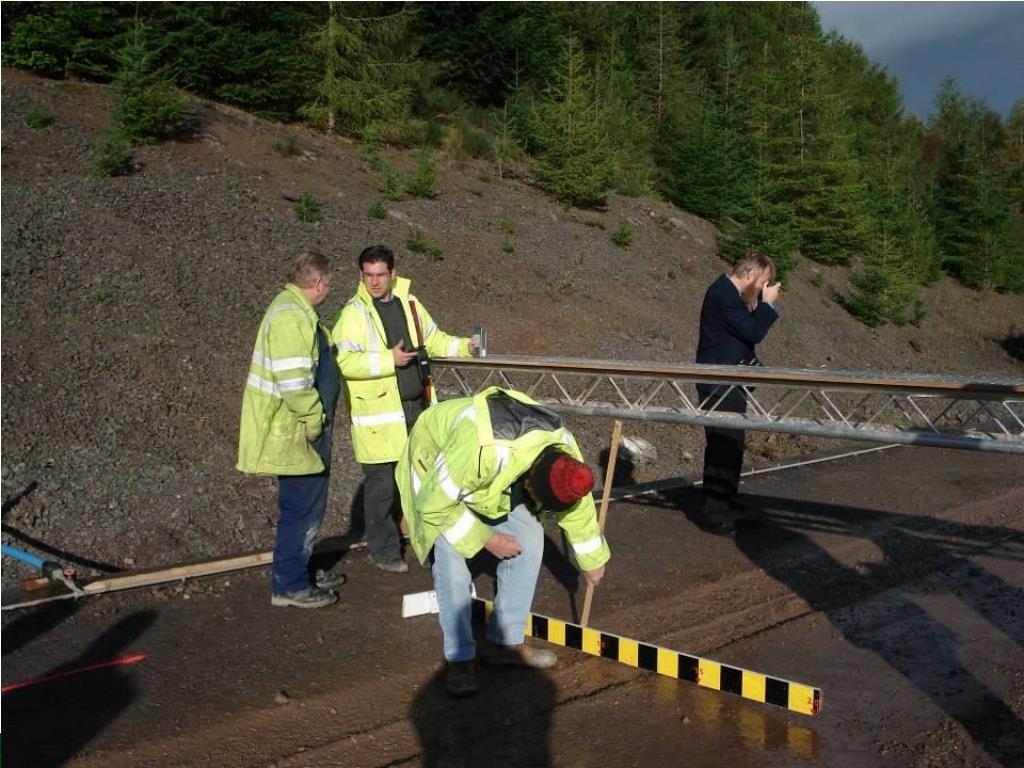

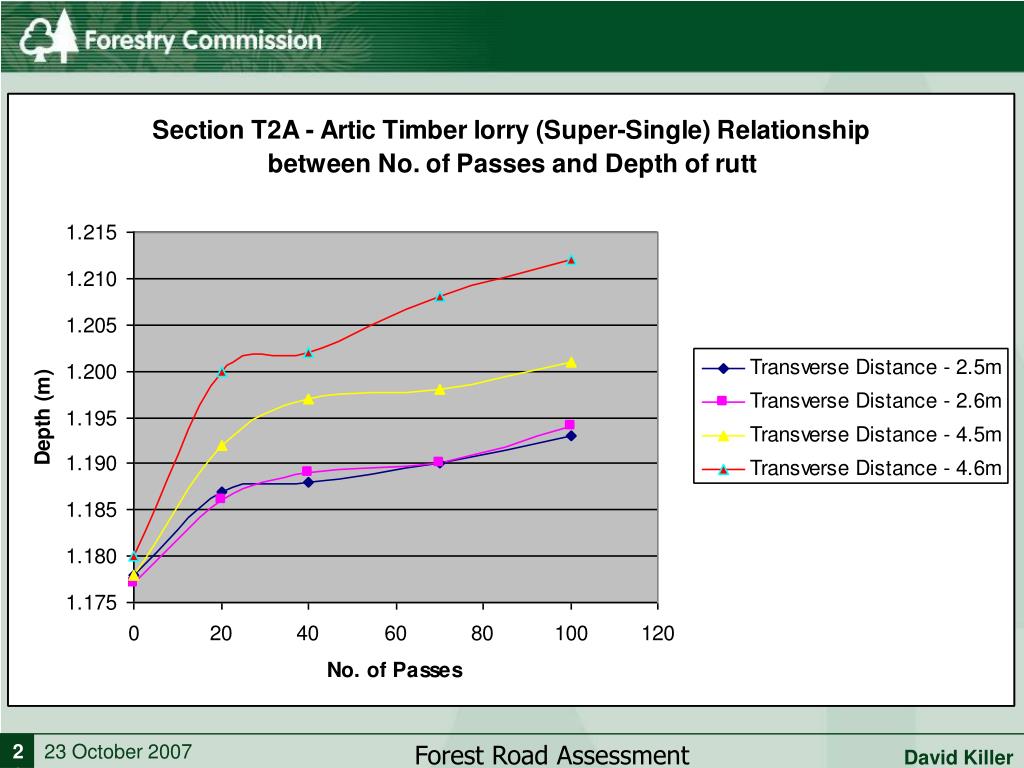

some points about the trials
Some Points about the Trials

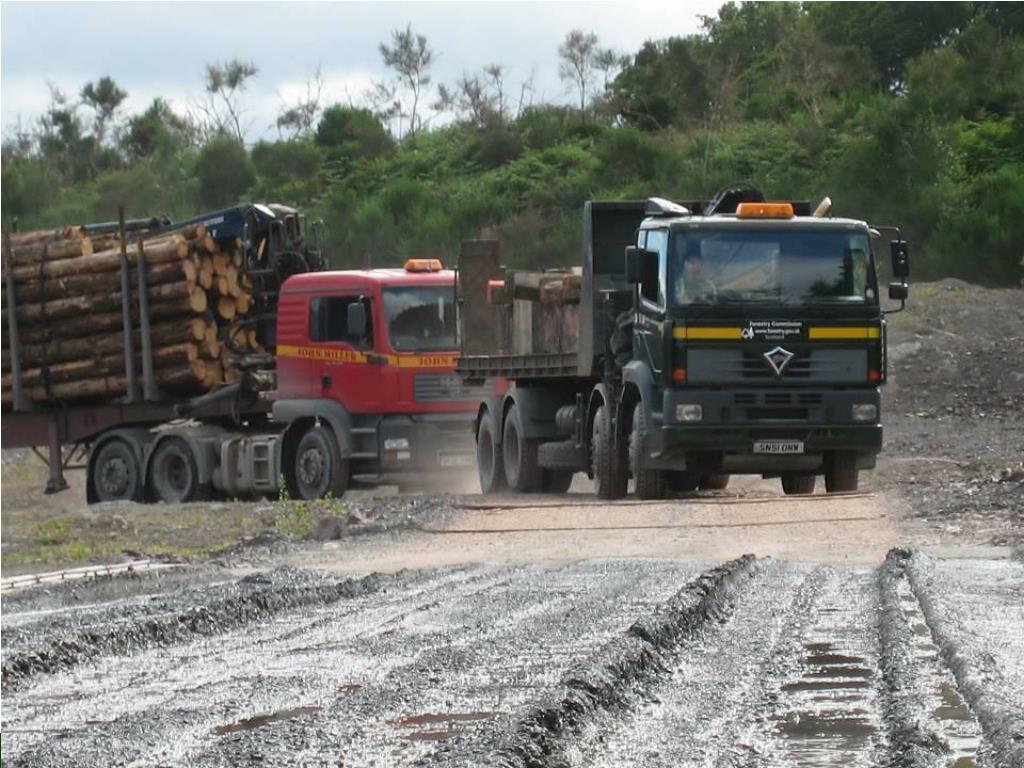

  • Each trial involves running vehicles over the section 100 times, measuring at set intervals.
  • The section was watered every 10 passes.
  • The first two trials were designed to compare rutting in dry and wet conditions.
  • The fourth trial involved two vehicles running in different tracks to allow comparison under the same conditions. An important development.

Forest Road Assessment David Killer

some more points about the trials

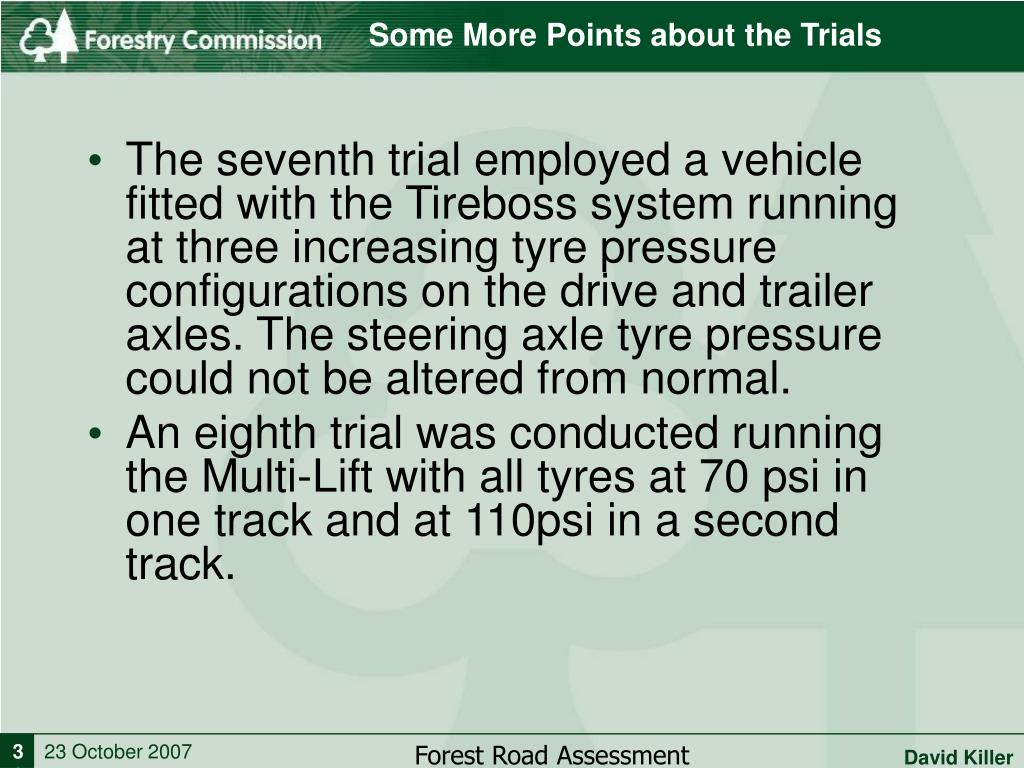

Some More Points about the Trials

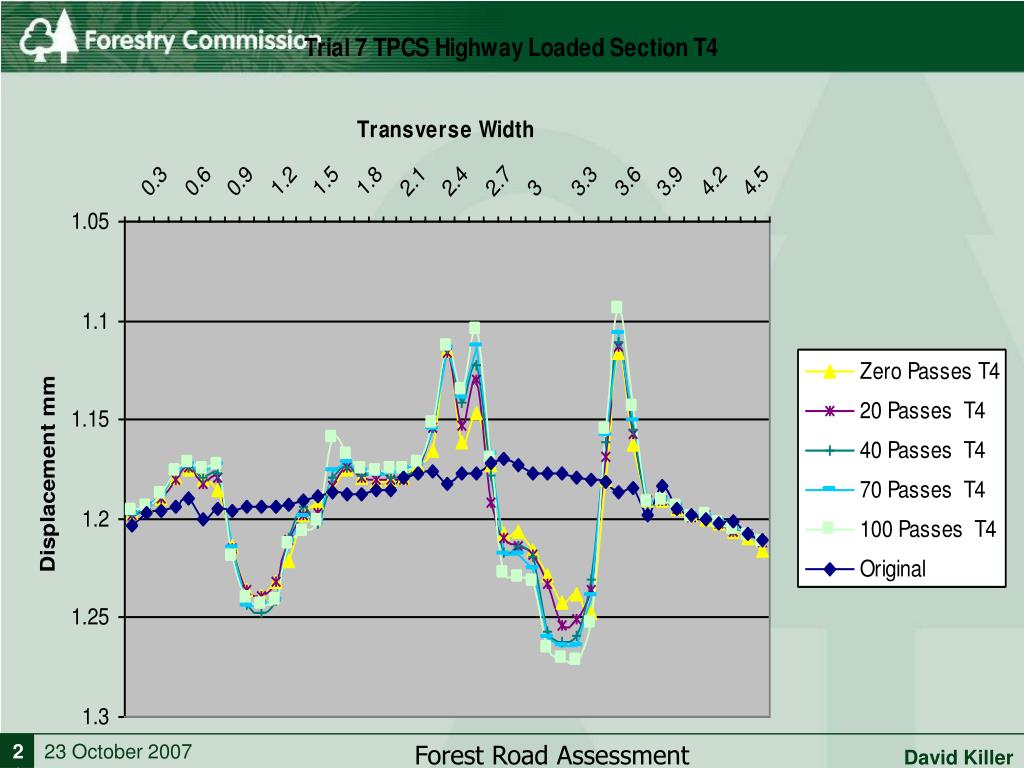

  • The seventh trial employed a vehicle fitted with the Tireboss system running at three increasing tyre pressure configurations on the drive and trailer axles. The steering axle tyre pressure could not be altered from normal.
  • An eighth trial was conducted running the Multi-Lift with all tyres at 70 psi in one track and at 110psi in a second track.

Forest Road Assessment David Killer

observations so far
Observations so far
  • The main factors that influence rutting are moisture content and tyre pressure/load.
  • It is thought that rutting is proportional to the highest tyre pressure / axle load combination (this includes the steering axle).

Forest Road Assessment David Killer

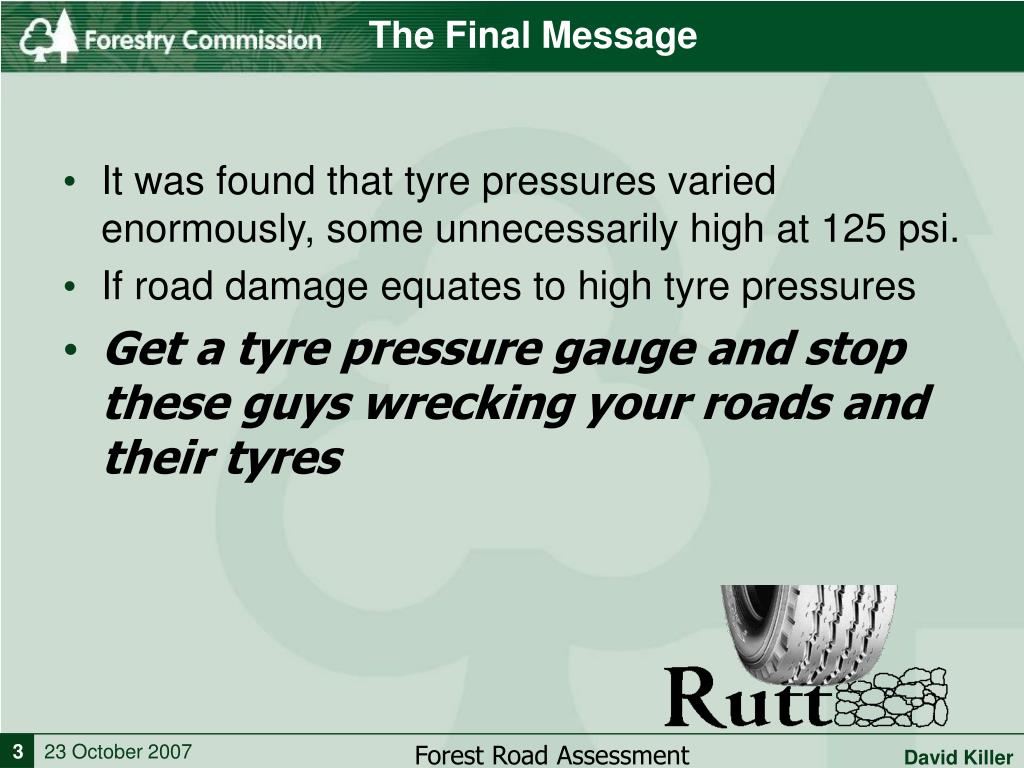

the final message
The Final Message
  • It was found that tyre pressures varied enormously, some unnecessarily high at 125 psi.
  • If road damage equates to high tyre pressures
  • Get a tyre pressure gauge and stop these guys wrecking your roads and their tyres

Forest Road Assessment David Killer

tyre pressure gauge
Tyre Pressure Gauge

Forest Road Assessment David Killer
