  1. Pengantar Jaringan Komputer Iwan Syarif Hero Yudo Martono Lecture 1

  2. Kumpulan dua atau lebih dari komputer yang saling berhubungan satu sama lain Apa itu Jaringan Lecture 1

  3. Kegunaan Jaringan • Sharing resource (data, printer, dll) • Efisiensi waktu • Efisiensi tempat • Effisiensi dana Lecture 1

  4. Kerugian Jaringan • Membutuhkan biaya tambahan • Memungkinkan adanya serangan ke komputer kita • Mengurangi human communication Lecture 1

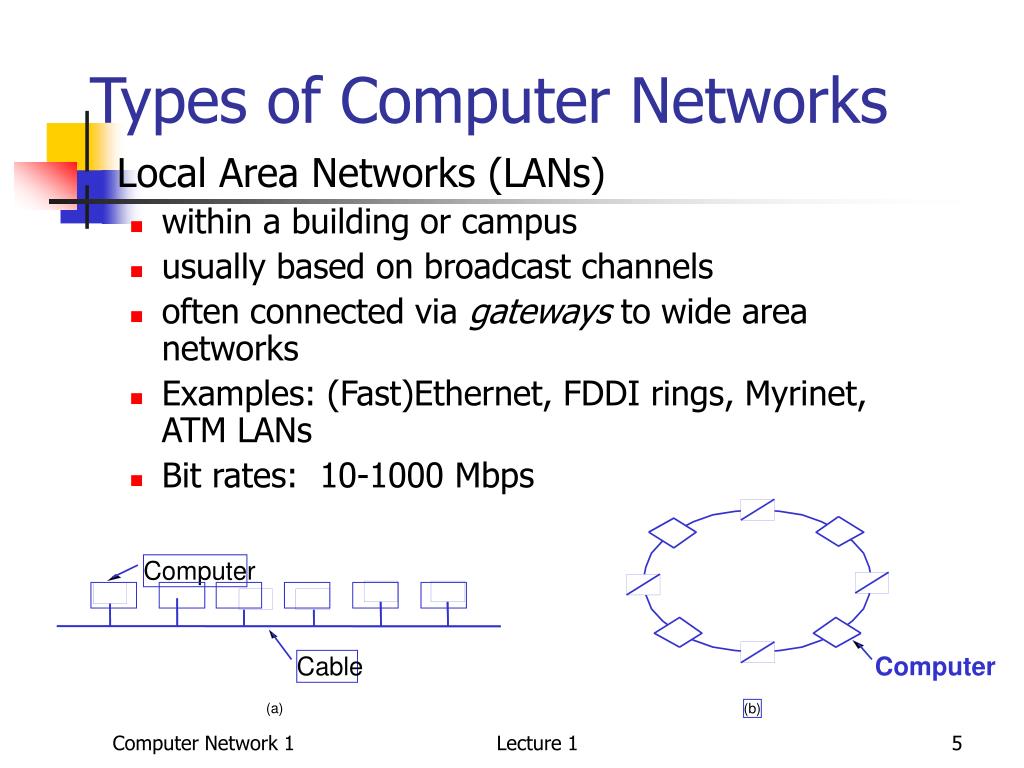

  5. Types of Computer Networks • Local Area Networks (LANs) • within a building or campus • usually based on broadcast channels • often connected via gateways to wide area networks • Examples: (Fast)Ethernet, FDDI rings, Myrinet, ATM LANs • Bit rates: 10-1000 Mbps Computer Cable Computer (a) (b) Lecture 1

  6. Type of Computer Networks • Metropolitan Area Networks (MANs) • covers area of a city • usually based on LAN technology • Examples: DQDB (Distributed Queue Dual Bus), cable television networks Lecture 1

  7. Type of Computer Networks • Wide Area (Long Haul) Networks • may cover country, continent • Most communication links are point-to-point • usually irregular topology • usually organized as a “subnet” to which hosts have access. • switching elements are generically referred to as routers Lecture 1

  8. Wireless Networks • Wireless: Cordless telephones, TV remote control, Analog cellular telephones • Wireless LANs • Mobile vs. wireless • mobile, not wireless • mobile, wireless • not mobile, not wireless • not mobile, wireless Lecture 1

  9. Internetworking • Many (mutually incompatible) network technologies • No one technology appropriate for every situation • Internetworking glues together networks of dissimilar technologies with routers • Result is virtual network whose details are invisible Lecture 1

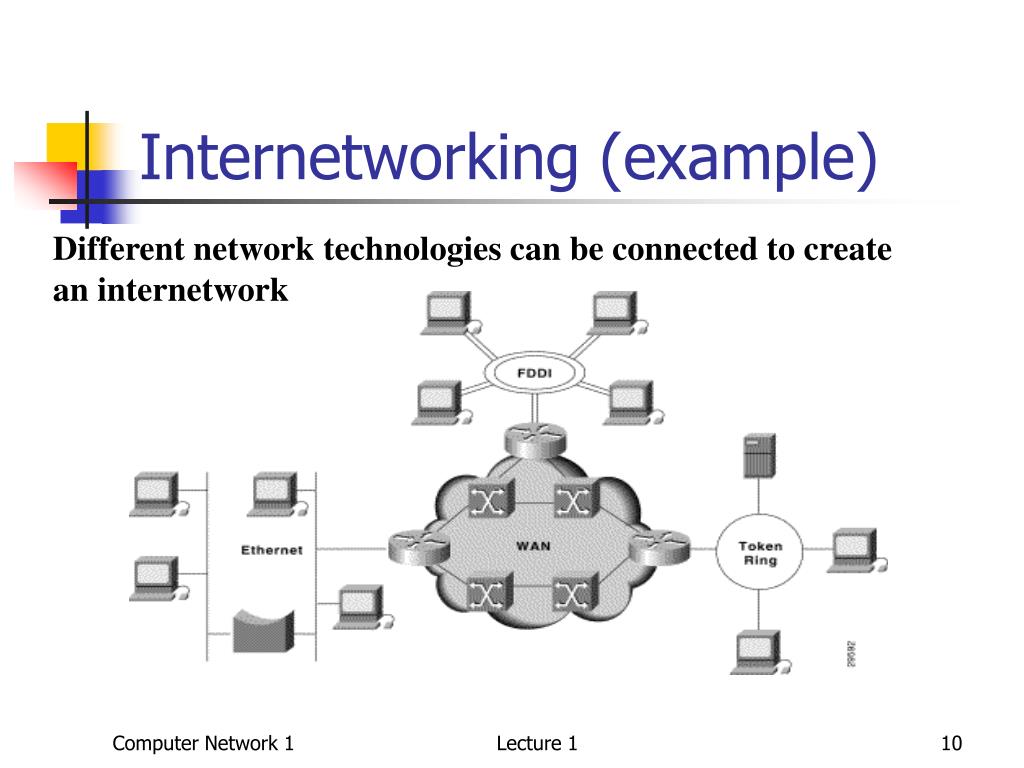

  10. Internetworking (example) Different network technologies can be connected to create an internetwork Lecture 1

  11. Peralatan Jaringan Sederhana • PC (komputer) • LAN card • Kabel UTP • RJ 45 • Tang Crimping • Multimeter • Hub • Switch Lecture 1

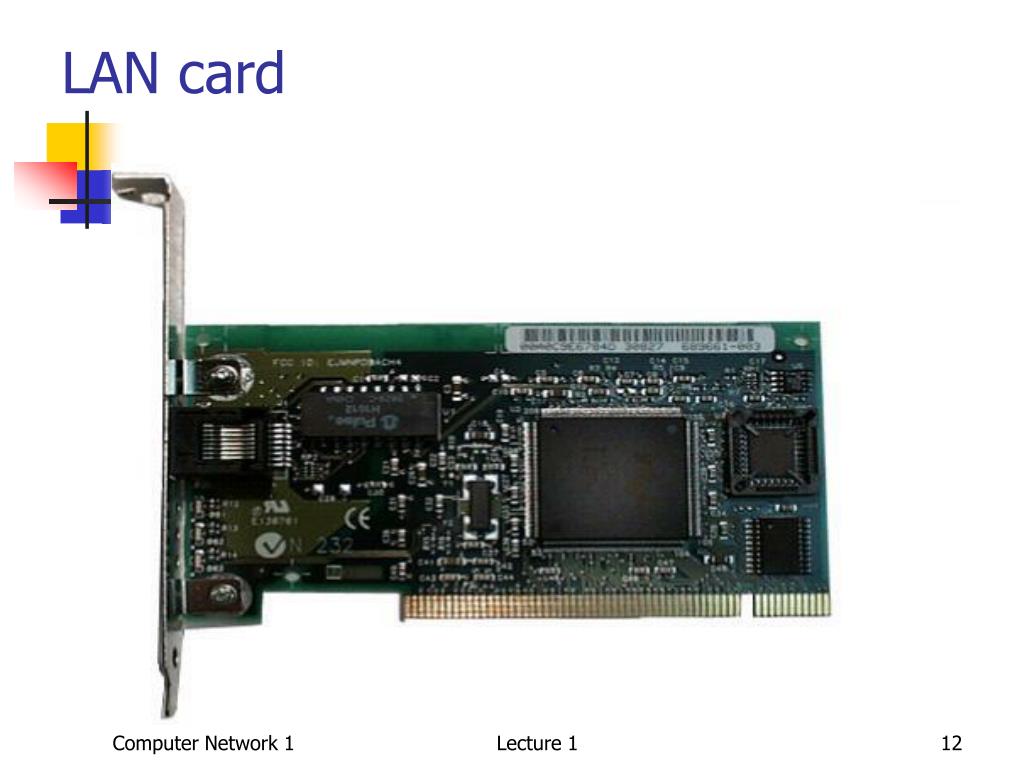

  12. LAN card Lecture 1

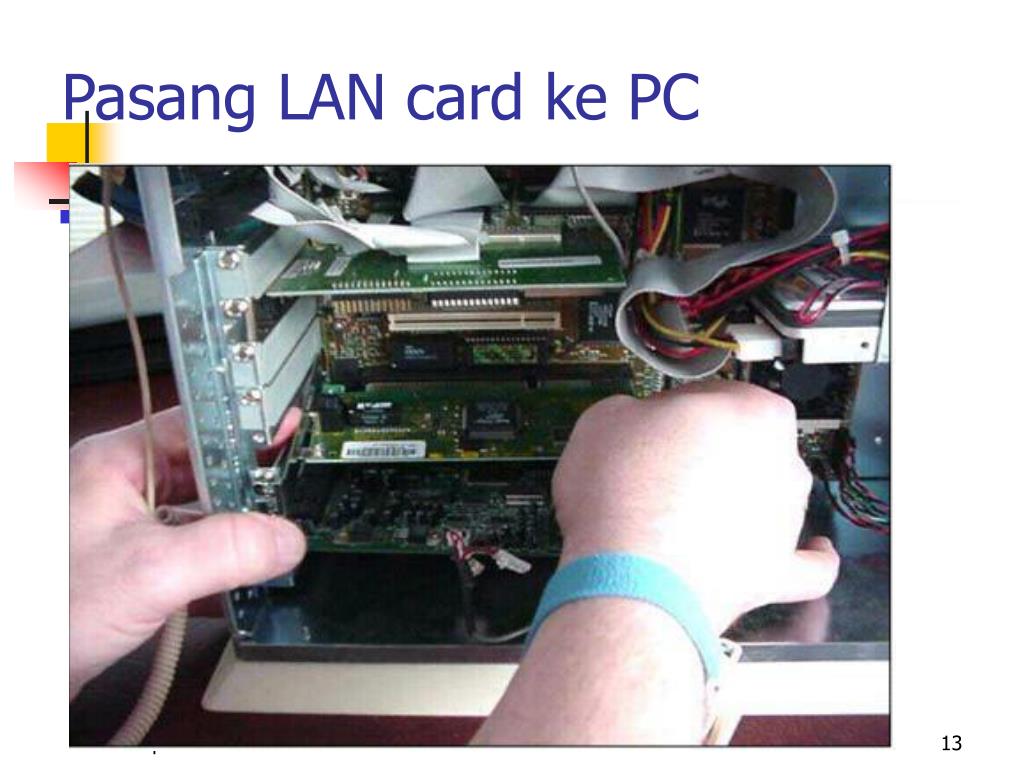

  13. Pasang LAN card ke PC Lecture 1

  14. a human protocol and a computer network protocol: TCP connection reply. Get http://gaia.cs.umass.edu/index.htm Got the time? 2:00 <file> time What’s a protocol? Hi TCP connection req. Hi Q: Other human protocol? Lecture 1

  15. Transmission media • Transmitted energy is carried through some sort of medium • Transmitter encodes data as energy and transmits energy through medium • Requires special hardware for data encoding • Requires hardware connection to transmission medium • Media can be copper, glass, air, ... Lecture 1

  16. Copper wires • Twisted pair uses two wires • Coaxial cable includes shield for improved performance Lecture 1

  17. Kabel UTP Lecture 1

  18. Glass fibers • Thin glass fiber carries light with encoded data • Plastic jacket allows fiber to bend (some!) without breaking • Fiber is very clear and designed to reflect •   light internally for efficient transmission • Light emitting diode (LED) or laser •   injects light into fiber • Light sensitive receiver at other end translates •   light back into data Lecture 1

  19. Radio • Data transmitted using radio waves • Energy travels through the air rather than copper or glass • Conceptually similar to radio, TV, cellular phones • Can travel through walls and through an entire building • Can be long distance or short distance • Long distance with satellite relay • Short distance - wireless computer network Lecture 1

  20. Base-station antenna for a wireless radio-frequency network; this antenna is attached to a unit that also connects to a wire-based network and forwards data between the wireless and wire-based networks Wireless Example • Wireless bridge and antenna Lecture 1

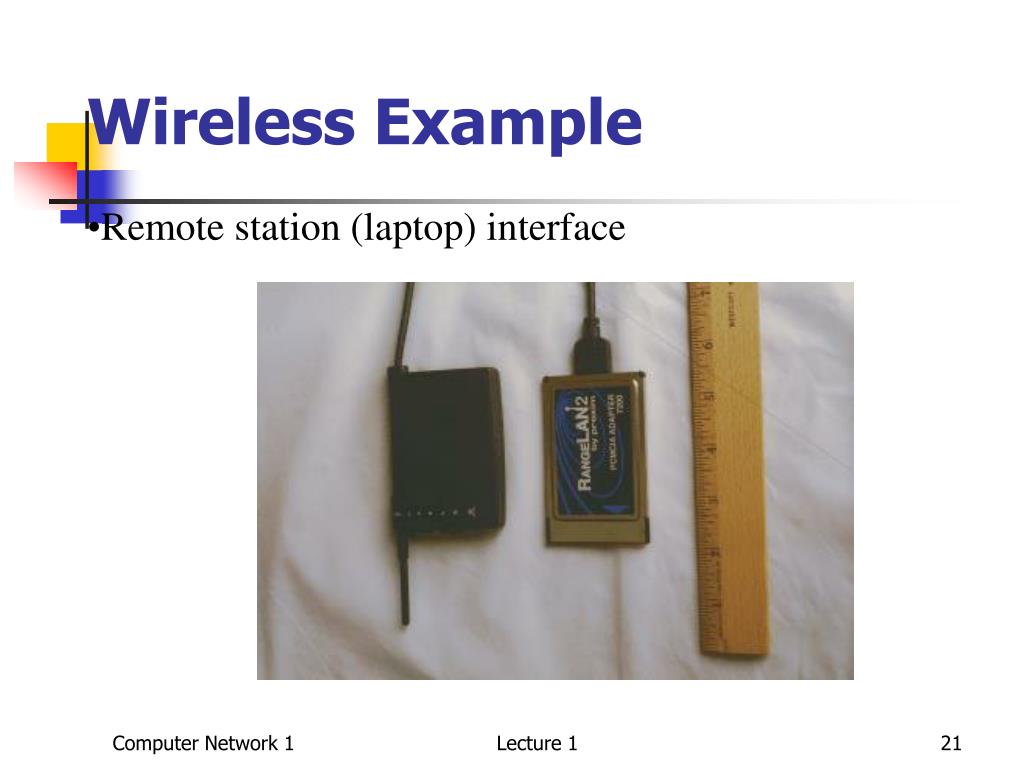

  21. Wireless Example • Remote station (laptop) interface Lecture 1

  22. Microwave • High frequency radio waves • Unidirectional, for point-to-point communication • Antennas mounted on towers relay transmitted data Lecture 1

  23. Infrared • Infrared light transmits data through the air • Similar to technology used in TV remote control • Can propagate throughout a room (bouncing off surfaces), but will not penetrate walls • Becoming common in personal digital assistants Lecture 1

  24. Laser • Unidirectional, like microwave • Higher speed than microwave • Uses laser transmitter and photo-sensitive receiver at each end • Point-to-point, typically between buildings • Can be adversely affected by weather Lecture 1

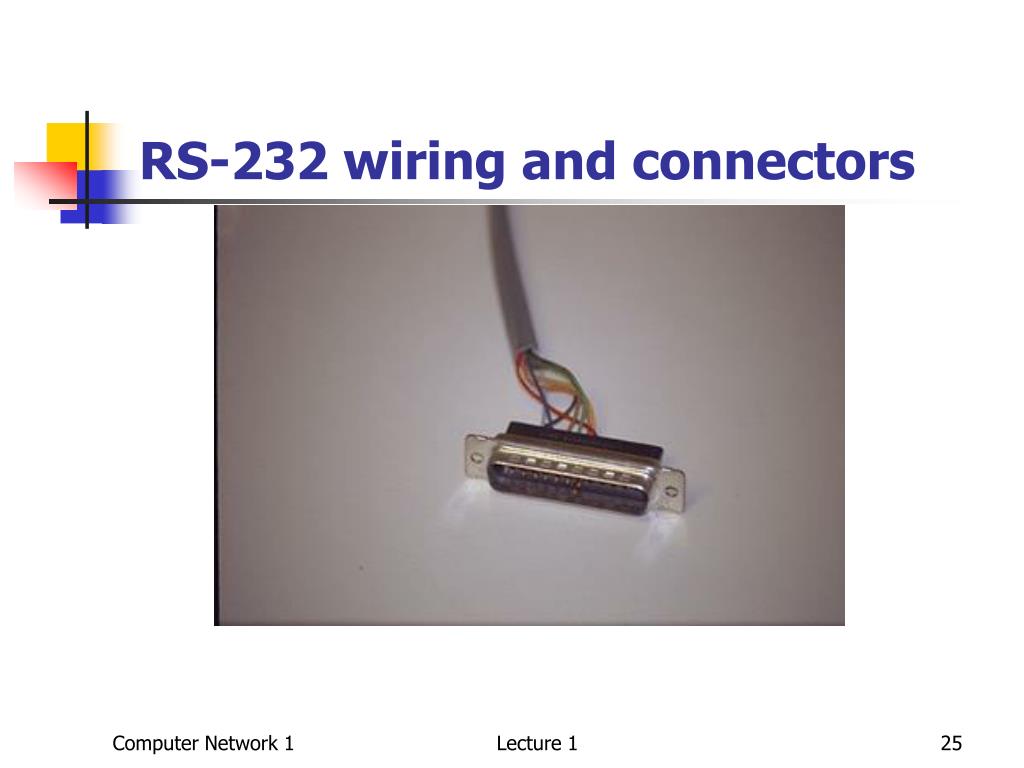

  25. RS-232 wiring and connectors Lecture 1

  26. Modems • If external to computer, RS-232 can be used between modem and computer Lecture 1

  27. Modems • If external to computer, RS-232 can be used between modem and computer Lecture 1

  28. Modems in a computer center for dial-up modem access to the organization network Modems • If internal, direct bus connection used • Can also be rack-mounted Lecture 1

  29. Lecture 1

  30. Lecture 1

  31. Lecture 1

  32. Lecture 1

  33. Lecture 1

  34. Lecture 1

  35. Lecture 1

  36. Lecture 1

  37. Lecture 1

  38. Lecture 1

  39. Lecture 1

  40. Lecture 1

  41. Lecture 1

  42. Lecture 1

  43. Lecture 1

  44. Lecture 1

  45. Lecture 1

  46. Lecture 1

  47. Lecture 1

  48. Lecture 1

  49. Lecture 1

  50. Lecture 1
