    Presentation Transcript

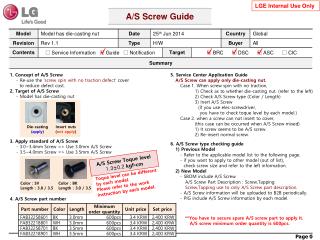

    1. 1. Concept of A/S Screw - Re-use the ‘screw spin with no traction defect’ cover to reduce defect cost. 5. Service Center Application Guide A/S Screw can apply only die-casting nut. Case 1. When screw spin with no traction, 1) Check as to whether die-casting nut. (refer to the left) 2) Check A/S Screw type(Color/ Length) 3) Inert A/S Screw (if you use elec-screwdriver, you have to check toque level by each model.) Case 2. when a screw can not insert to cover, (this case can be occurred when A/S Screw mixed) 1) It screw seems to be A/S screw. 2) Re-insert normal screw. 2. Target of A/S Screw - Model has die-casting nut Die-casting (apply) Insert nuts (not apply) 3. Apply standard of A/S Screw - 3.0~3.4mm Screw=> Use 3.0mm A/S Screw - 3.5~4.0mm Screw=> Use 3.5mm A/S Screw 6. A/S Screw type checking guide 1) Previous Model - Refer to the applicable model list to the following page. - if you want to apply to other model (out of list), check screw size and refer to the left information. 2) New Model - SBOM include A/S Screw. A/S Screw Part Description : Screw,Tapping Screw,Tapping use to onlyA/S Screw part description. - A/S Screw information will be uploaded to B2B periodically. - PIG include A/S Screw information by each model. A/S Screw Toque level 1.3±0.2 kgf•cm Toque level can be different by each model. Please refer to the work instruction by each model. Color : SV Length :3.0 / 3.5 Color : BK Length : 3.0 / 3.5 4. A/S Screw part number **You have to secure spare A/S screw part to apply it. A/S screw minimum order quantity is 600pcs.
