Ziptrack Apparatus

1. Ziptrack Apparatus. y. Ziptrack beam rests on two manipulators (brown and orange things) Cart sits on silver beam which holds the Hall probe Cart moves along the beam (z), manipulators move the beam in (x,y). x. z. z. z. Ben Freemire, Terry Hart, 01/14/09. 2.

otylia
Download Presentation

Ziptrack Apparatus

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 1 Ziptrack Apparatus y • Ziptrack beam rests on two manipulators (brown and orange things) • Cart sits on silver beam which holds the Hall probe • Cart moves along the beam (z), manipulators move the beam in (x,y) x z z z Ben Freemire, Terry Hart, 01/14/09

  2. 2 Current Plotting Dialogue y x z z z • Input raw data from Hall probe • Plot dialogue developed, shown at left • Plot Bx, By, Bz in (x,y), (x,z), (y,z) planes • Specify number bins in plot, output plot type • Plots saved as ROOT files, can be .ps or .eps files • Physics checks (Maxwell) under development • Documentation to be written • Lots of options, flexibility Ben Freemire, Terry Hart, 01/14/09

  3. 3 2D Plots from Test Dipole Magnet • Dipole field along x • z along Ziptrack beam, beam with Senis Hall probe shifts along (x,y) • (see previous slides) • 208 counts/gauss • Dipole field Bx • -350,000 counts ~ -0.175 T • Measurements are reasonable Ben Freemire, Terry Hart, 01/14/09

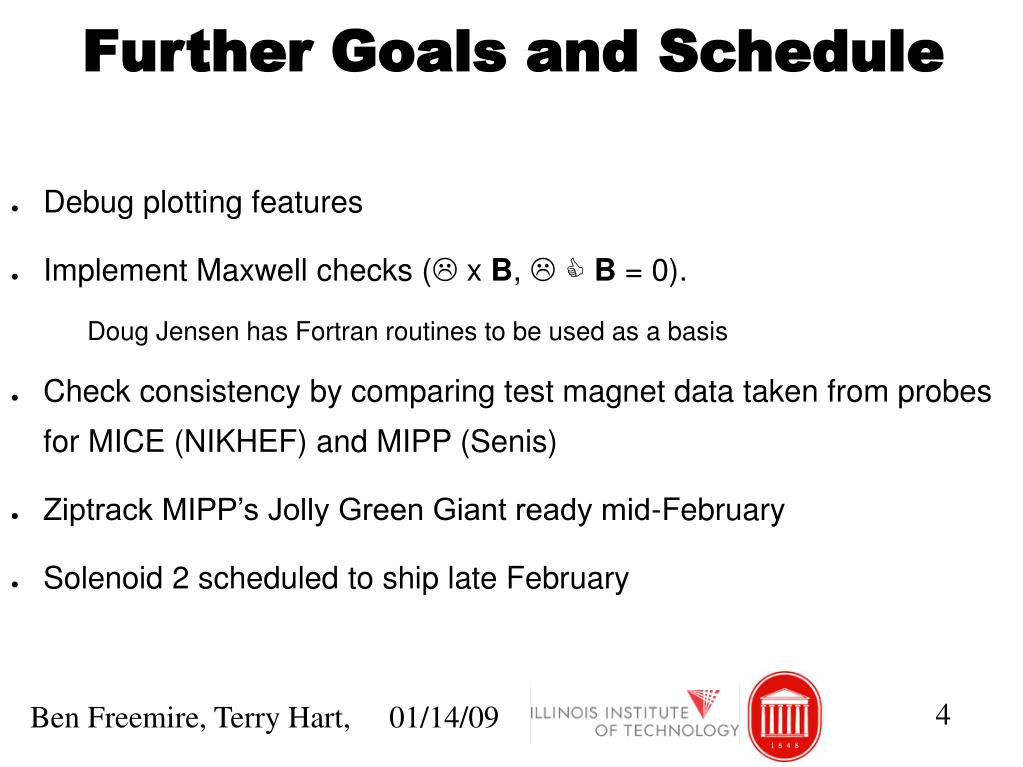

  4. 4 Further Goals and Schedule • Debug plotting features • Implement Maxwell checks ( x B,   B = 0). • Doug Jensen has Fortran routines to be used as a basis • Check consistency by comparing test magnet data taken from probes for MICE (NIKHEF) and MIPP (Senis) • Ziptrack MIPP’s Jolly Green Giant ready mid-February • Solenoid 2 scheduled to ship late February Ben Freemire, Terry Hart, 01/14/09
