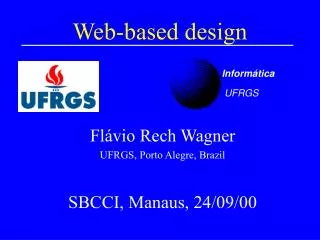

  1. Web-based design Informática UFRGS Flávio Rech Wagner UFRGS, Porto Alegre, Brazil SBCCI, Manaus, 24/09/00

  2. Motivation • Systems-on-chip, embedded systems • software, hardware (digital, analog) • multiprocessor platforms (DSPs, µcontrollers, ASIPs) • Design productivity gap • Design reuse • Expertise reuse

  3. Motivation • Systems-on-chip, embedded systems • Design productivity gap • Transistor count grows 58% per year • Design productivity grows 21% per year • Design and expertise reuse is the solution • Design reuse • Expertise reuse

  4. Motivation • Systems-on-chip, embedded systems • Design productivity gap • Design reuse • Standards • VSIA • Methodologies • Availability of IPs • Expertise reuse

  5. Motivation • Systems-on-chip, embedded systems • Design productivity gap • Design reuse • Standards • Methodologies • Abstraction - hard x soft IPs • Languages - VHDL, Java, SpecC • Object-orientation • Core selection • Communication synthesis • Availability of IPs • Expertise reuse

  6. Motivation • Systems-on-chip, embedded systems • Design productivity gap • Design reuse • Standards • Methodologies • Availability of IPs • Vendors • Protection • E-commerce • Expertise reuse

  7. Motivation • Systems-on-chips , embedded systems • Design productivity gap • Design reuse • Expertise reuse • Analog and mixed design • Physical design and effects • High-level design • Test and testability

  8. The impact of the web • Web is a “technology push” also for EDA • Services • Distributed data • Distributed tools • Distributed teams

  9. The impact of the web • Web is a “technology push” also for EDA • Services • Information on components and products • Search engines • Technical support • IP analysis and selection • Distributed data • Distributed tools • Distributed teams

  10. The impact of the web • Web is a “technology push” also for EDA • Services • Distributed data • Design reuse • IPs • Standards • Distributed tools • Distributed teams

  11. The impact of the web • Web is a “technology push” also for EDA • Services • Distributed data • Distributed tools • Distributed environments • Tool integration • Distributed tool execution • Distributed teams

  12. The impact of the web • Web is a “technology push” also for EDA • Services • Distributed data • Distributed tools • Distributed teams • Expertise reuse • Collaborative design

  13. Environments, frameworks • Requirements • Management of data, tools, design flows, teams • Data management • Design management • Tool management • Team management

  14. Environments, frameworkson the web • Requirements • Management of distributed data, tools, design flows, teams • Data management • Design management • Tool management • Team management

  15. Environments, frameworkson the web • Requirements • Data management • Distributed version and configuration management • Design management • Tool management • Team management

  16. Environments, frameworkson the web • Requirements • Data management • Design management • Distributed design flow management • Loosely coupled flows • System modularity • Methodologies for web-based design • Tool management • Team management

  17. Environments, frameworkson the web • Requirements • Data management • Design management • Tool management • Tool integration or encapsulation • Web-based tool interfaces • Team management

  18. Environments, frameworkson the web • Requirements • Data management • Design management • Tool management • Team management • Task distribution and synchronization • Design tasks may be fired … • By designers on different nodes … • And may need tools and data on different nodes

  19. Tools on the web • “Applet” model x “computing center” model • Tool runs either on the client or on the server side • Move data or move tool? • Interactive x batch tools • Pay-per-use • Protection of data and tools • A good architecture combines both models • What tools?

  20. Tools on the web • “Applet” model x “computing center” model • A good architecture combines both models • Each task has a different trade-off regarding ... • Communication and computation costs • Security • Solution may very according to the network characteristics • What tools?

  21. Tools on the web • “Applet” model x “computing center” model • A good architecture combines both models • Each task has a different trade-off regarding ... • Communication and computation costs • Security • Solution may very according to the network characteristics • Performance • Intranets x Internet • What tools?

  22. Tools on the web • “Applet” model x “computing center” model • A good architecture combines both models • What tools? • Is the web a new platform enabling the development of new tools? • Do we have the same “old” tools? • Taking concrete cases

  23. Tools on the web • “Applet” model x “computing center” model • A good architecture • What tools? • Is the web a new platform enabling the development of new tools? • Do we have the same “old” tools … • With a new web interface? • Running on a new execution environment? • Taking concrete cases

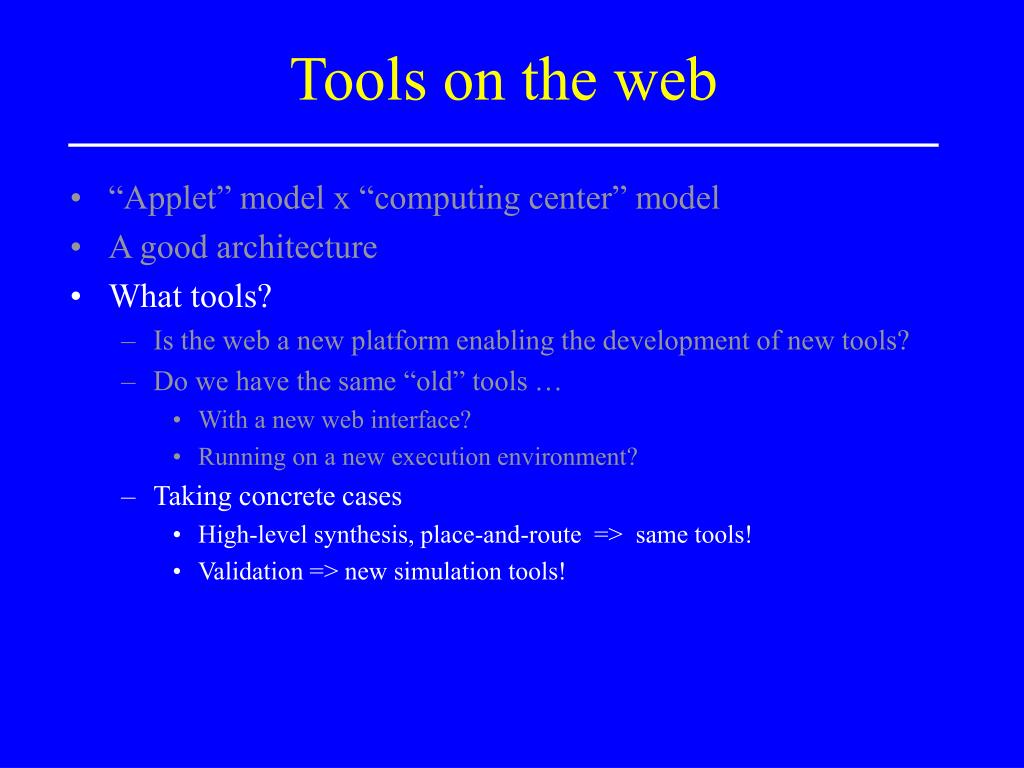

  24. Tools on the web • “Applet” model x “computing center” model • A good architecture • What tools? • Is the web a new platform enabling the development of new tools? • Do we have the same “old” tools … • With a new web interface? • Running on a new execution environment? • Taking concrete cases • High-level synthesis, place-and-route => same tools! • Validation => new simulation tools!

  25. Distributed simulation • Co-simulation of multiple domains • Multi-language specification • Hardware models • Standards • Challenges

  26. Distributed simulation • Co-simulation of multiple domains • Multi-language specification • Hardware models • Standards • Challenges on the web !!!

  27. Distributed simulation • Co-simulation of multiple domains • Multi-language specification • Hardware models • Standards • For describing the behavior of IPs • HLA: High-Level Architecture • Federated simulation • Challenges on the web !!!

  28. Distributed simulation • Co-simulation of multiple domains • Multi-language specification • Hardware models • Standards • Challenges • Integrating IPs into distributed models • Performing multi-language, multi-domain co-simulation on the web on the web !!!

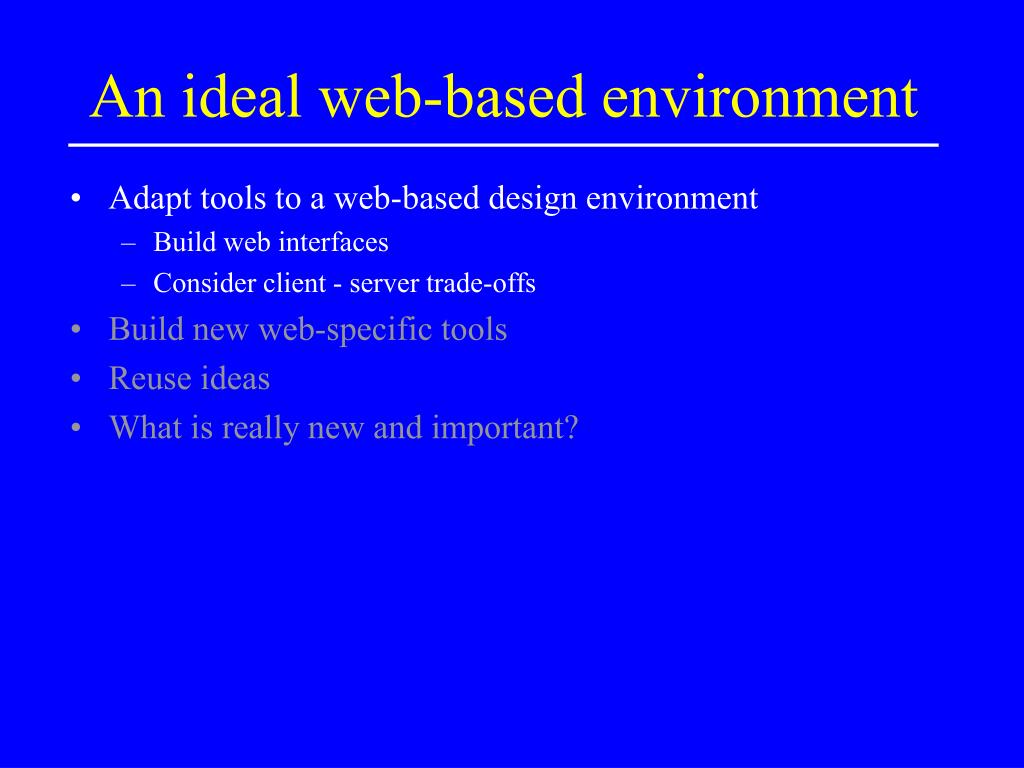

  29. An ideal web-based environment • Adapt tools to a web-based design environment • Build web interfaces • Consider client - server trade-offs • Build new web-specific tools • Reuse ideas • What is really new and important?

  30. An ideal web-based environment • Adapt tools to a web-based design environment • Build new web-specific tools • Distributed simulation • Reuse ideas • What is really new and important?

  31. An ideal web-based environment • Adapt tools to a web-based design environment • Build new web-specific tools • Reuse ideas • From design frameworks • An “old” discipline which ... • Was fading away … • And may become again relevant because of web computing • Recover models, techniques, architectures and adapt them to the web • From collaborative design • What is really new and important?

  32. An ideal web-based environment • Adapt tools to a web-based design environment • Build new web-specific tools • Reuse ideas • From design frameworks • From collaborative design • Bring solutions from different communities • What is really new and important?

  33. An ideal web-based environment • Adapt tools to a web-based design environment • Build new web-specific tools • Reuse ideas • What is really new and important ? • IP-based methodologies • Challenge: combine abstraction + language + object-orientation + + soft IPs + communication synthesis + …

  34. An ideal web-based environment • Adapt tools to a web-based design environment • Build new web-specific tools • Reuse ideas from design frameworks • Environments must support methodologies languages design management models data management tools team management methodologies • “Old” ideas must be adapted to “new” IP-based methodologies • What is really new and important? X

  35. An ideal web-based environment • Adapt tools to a web-based design environment • Build new web-specific tools • Reuse ideas from design frameworks • Environments must support methodologies • “Old” ideas must be adapted to “new” IP-based methodologies • Recent proposals on object-oriented VHDL to promote reuse and workflow management • What is really new and important?
