routing exterior gateway protocols and autonomous systems
Routing: Exterior Gateway Protocols and Autonomous Systems
  • Border Gateway Protocol (BGP)

Reference

D. E. Comer, Internetworking with TCP/IP, ISBN 1-13-018380-6, 4th Ed., Vol. 1, Ch. 15.

Network Architecture and Design

autonomous system as
Autonomous System (AS)
  • AS = collection of networks under a single technical administration & sharing the same routing policy
  • AS# can be 1 to 65535 (64512 – 65535 private)
  • Internal Gateway Protocols (IGPs) operate within an AS to ensure IP connectivity within it
  • Exterior Gateway Protocols (EGPs) run between ASs to enable routing policies between them

Network Architecture and Design

bgp necessity
BGP Necessity

Q: how will the traffic between AS1 and AS20 flow

Q: will AS 2 allow this traffic

Q: how would you solve this problem with OSPF or EIGRP

Network Architecture and Design

bgp characteristics
BGP Characteristics
  • Distance-vector protocol with enhancements:
    • Reliable updates (TCP port 179)
    • Incremental, triggered updates only
      • Full BGP tables exchanged after conn. setup
      • Only changes (delta) sent afterwards
    • Rich metrics (called path attributes)
    • Periodic keepalives to verify TCP connectivity
  • Designed to scale to huge internetworks
    • Full Internet Routing Table (FIRT) = 100.000 routes, 7000 ASs, 40MB approx.

Network Architecture and Design

bgp characteristics1
BGP Characteristics
  • BGP session = TCP connection port 179
  • Two routers with BGP session established are called peers or neighbors
  • No periodic updates
  • Triggered updates are batched and rate-limited (every 5 seconds for internal peer, every 30 seconds for external peer)
  • Needs an IGP to provide TCP connectivity between BGP peers

Network Architecture and Design

bgp table and routing table
BGP Table and Routing Table

Routing Table

BGP Table

  • BGP has its own table, in addition to the IP routing table
  • Information can be exchanged between the two

IGP/Static

BGP

Network Architecture and Design

sample bgp configurations
Sample BGP configurations
  • Customer connected to Internet Service Provider (ISP)
  • Customer connected to several Service Providers (multi-homed)
  • Service Provider networks (transit autonomous systems)
  • Service Providers exchanging traffic at an exchange point (e.g. AIX, MAE-East,…)
  • Backbone of large enterprise networks

Network Architecture and Design

configuration 1
Configuration #1

Large customer or small ISP connecting to the Internet

Network Architecture and Design

configuration 2
Configuration #2

Customer connecting to several service-providers (multi-homed customer)

  • BGP is mandatory in this case
  • Public AS# needed for the customer
  • Provider-independent address space for the customer

Network Architecture and Design

configuration 3
Configuration #3

Service providers exchanging traffic at exchange points (*IX)

Network Architecture and Design

configuration 4
Configuration #4

Transit AS (carrying traffic from other AS’es)

Network Architecture and Design

bgp message types
BGP Message Types
  • OPEN
    • Initialize communication
  • UPDATE
    • Advertise or withdraw routes
  • NOTIFICATION
    • Response to an incorrect message
  • KEEPALIVE
    • Actively test peer connectivity

Network Architecture and Design

bgp path attributes
BGP Path Attributes
  • BGP metrics are called path attributes
  • Part of the BGP Update Packet
  • Implemented as TLVs (Type-Length-Value)
  • Used by BGP peers as route selection criteria
  • Well-known vs Optional attributes

Network Architecture and Design

well known attributes
Well-known Attributes
  • Well-known attributes
    • must be recognized by all compliant implementations
  • Well-known mandatory attributes
    • must be present in all update messages
  • Well-known discretionary attributes
    • could be present in update messages
  • All well-known attributes are propagated to other neighbors

Network Architecture and Design

optional attributes
Optional Attributes
  • Optional attributes
    • recognized by some implementations (could be private), expected not to be recognized by everyone
  • Optional transitive attributes
    • propagated to other neighbors if not recognized
  • Optional non-transitive attributes
    • discarded if not recognized
  • Recognized optional attributes are propagated to other neighbors based on their meaning (not constrained by transitive bit)

Network Architecture and Design

well known mandatory attributes
Well-known Mandatory Attributes
  • Origin Code
    • Specifies the origin of a BGP route
      • IGP = route originated in an IGP (network command)
      • EGP = route originated in an EGP (and redistributed)
      • Incomplete (?) = route redistributed into BGP from IGP/static
  • AS_Path
    • sequence of AS numbers through which the network is accessible
  • Next_Hop
    • IP address of the next-hop router

Network Architecture and Design

well known discretionary attributes
Well-known Discretionary Attributes
  • Local preference
    • Used for consistent routing policy within AS
  • Atomic aggregate
    • informs the neighbor AS that the originating router aggregated routes

Network Architecture and Design

as path attribute
AS-Path Attribute
  • The AS-path attribute is empty when a local route is inserted in the BGP table
  • The sender’s AS number is prepended to the AS-path attribute when the routing update crosses AS boundary
  • The receiver of BGP routing information can use the AS-path to determine through which AS the information has passed
  • An AS that receives routing information with its own AS number in the AS-path silently ignores the information

Network Architecture and Design

as path attribute1
AS-Path Attribute

Network Architecture and Design

next hop attribute
Next Hop Attribute
  • Next-hop attribute indicates the next-hop IP address used for packet forwarding
  • Usually set to the IP address of the sending BGP router
  • Can be set to a third-party IP address to optimize routing

Network Architecture and Design

next hop processing in shared media
Next Hop Processing in Shared Media
  • If the receiving BGP router is in the same subnet as the current next-hop, the next-hop address is not changed to optimize packet forwarding

Network Architecture and Design

next hop processing in nbma
Next Hop Processing in NBMA
  • BGP next-hop processing can break connectivity with improper network designs over partially-meshed WAN networks
  • Correct use of subinterfaces and subnets alleviates the problem

Network Architecture and Design

bgp session establishment
BGP Session Establishment
  • BGP does not auto-discover Neighbors - they must be configured manually
  • Configuration must be done on both sides of the connection
  • Both routers will attempt to connect to the other with a TCP session on port number 179
  • Only one session will remain if both connection attempts succeed
  • Source IP address of incoming connection attempts is verified against a list of configured neighbors

Network Architecture and Design

example network
Example Network

Network Architecture and Design

bgp neighbors idle state
BGP Neighbors – Idle State

Initially all BGP sessions to the neighbors are idle

as123>show ip bgp sum

BGP table version is 1, main routing table version 1

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State

2.3.4.5 4 21 0 0 0 0 0 never Idle

3.4.5.6 4 37 0 0 0 0 0 never Idle

Network Architecture and Design

bgp neighbors steady state
BGP Neighbors – Steady State

All neighbors shall be up (no state info)

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State

2.3.4.5 4 21 17 22 10 0 0 0:01:47

3.4.5.6 4 37 11 17 10 0 0 0:07:07

Network Architecture and Design

external bgp ebgp
External BGP - EBGP
  • BGP neighbors in different AS

Router B:

router bgp 110

network 150.10.0.0

neighbor 131.108.10.1 remote-as 109

Router A:

router bgp 109

network 131.108.0.0

neighbor 131.108.10.2 remote-as 110

AS 109

131.108.0.0

A

.1

131.108.10.0

.2

B

150.10.0.0

AS 110

Network Architecture and Design

external bgp ebgp1
External BGP - EBGP

Network Architecture and Design

internal bgp ibgp
Internal BGP - IBGP

AS 109

  • BGP Neighbors in same AS

Router B:

router bgp 109

network 131.108.0.0

neighbor 131.108.30.1 remote-as 109

neighbor 131.108.30.1 update-source lo0

Router A:

router bgp 109

neighbor 131.108.10.2 remote-as 109

neighbor 131.108.30.2 update-source lo0

  • Update source is loopback0 to make sessions insensitive to topology changes within the AS

A

131.108.30.1

B

131.108.30.2

Network Architecture and Design

internal bgp ibgp1
Internal BGP - IBGP

Network Architecture and Design

bgp attributes as path

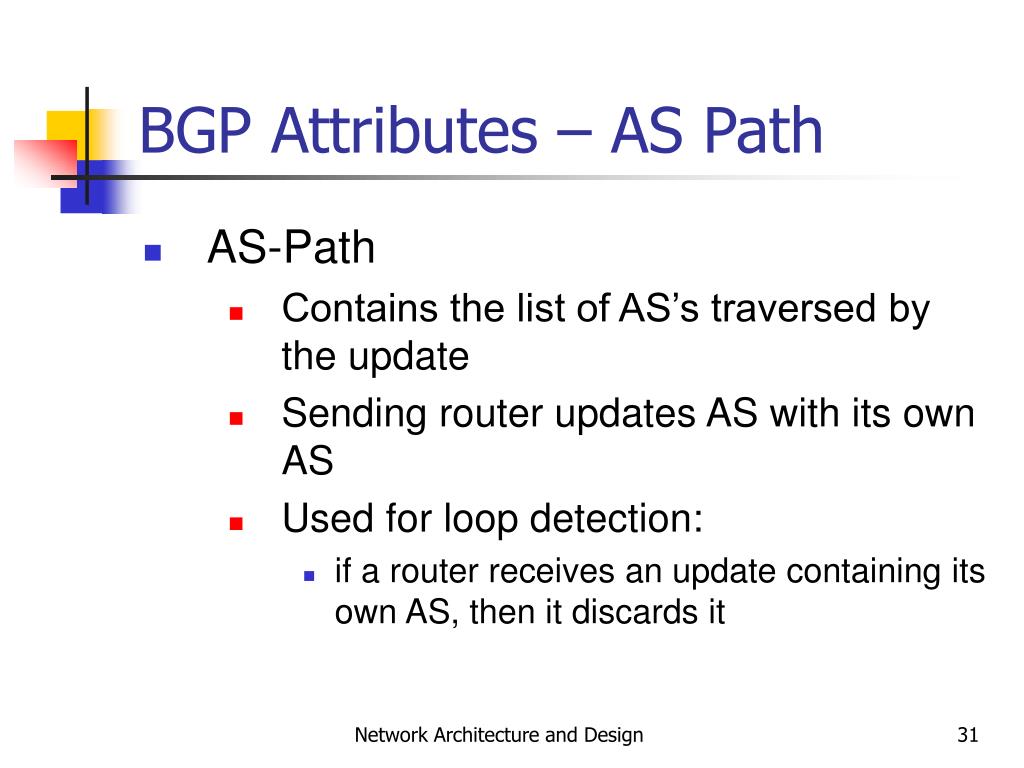

BGP Attributes – AS Path
  • AS-Path
    • Contains the list of AS’s traversed by the update
    • Sending router updates AS with its own AS
    • Used for loop detection:
      • if a router receives an update containing its own AS, then it discards it

Network Architecture and Design

bgp attributes as path1
BGP Attributes – AS Path

1983

192.2.0.0/24

  • AS-Path
    • Ordered list of AS’s traversed by route update
  • AS-Set
    • Route update traversed one or more members of a set

1981

192.2.1.0/24

1980

192.2.2.0/24

1982

192.2.3.0/24

192.2.0.0/24, 1980 1983

192.2.1.0/24, 1980 1981

192.2.2.0/24, 1980

192.2.3.0/24, 1980 1982

192.2.0.0/22 {1980, 1981, 1982, 1983}

Network Architecture and Design

bgp attributes as path2
BGP Attributes – AS Path
  • AS-Path – Loop detection

1. Router A sends update for 146.124.54.0/24 with AS_PATH: 1560

B

670

2. Router B sends update for 146.124.54.0/24 with AS_PATH: 670 1560 (pre-pends its AS path)

1560

A

146.124.54.0/24

4. Router A detects its own AS in the update’s AS_PATH and discards it

210

3. Router C sends update for 146.124.54.0/24 with AS_PATH: 210 670 1560 (pre-pends its AS path)

C

Network Architecture and Design

bgp attributes local preference
BGP Attributes – Local Preference
  • Local Preference
    • Is sent only to routers in the same AS
    • Path with highest local-preference is preferred
    • Default is 100

65500

65002

65001

A

Local Pref 120

Need to go to 65500

65003

65000

B

Network Architecture and Design

end of fifth lecture
End of Fifth Lecture

Network Architecture and Design
