sports and angular momentum

Sports and Angular Momentum

Dennis Silverman

Bill Heidbrink

U. C. Irvine

overview
Overview
  • Angular Motion
  • Angular Momentum
  • Moment of Inertia
  • Conservation of Angular Momentum
  • Sports body mechanics and angular momentum
  • Angular Momentum and Stability
  • How a baseball curves
angular momentum
Angular Momentum
  • Linear momentum or quantity of motion is P = mv, and inertia given by mass m.
  • m  v
  • Rotation of a mass m about an axis, zero when on axis, so should involve distance from axis r
  • Angular momentum L = r mv

L

m

r

circular motion
Circular Motion
  • The angle θ subtended by a distance s on the circumference of a circle of radius r

s

θ

r

radians
Radians
  • Instead of measuring the angle θin degrees (360 to a circle), we can measure in pizza pi slices such that there are 2π = 6.28 to a full circle
  • So each radian slice is about a sixth of a circle or 57.3 degrees.
  • Then we can write directly: s = θ r with θ in radians.
  • When a complete circle is traversed, θ = 2π, and s = 2π r, the circumference.
angular velocity

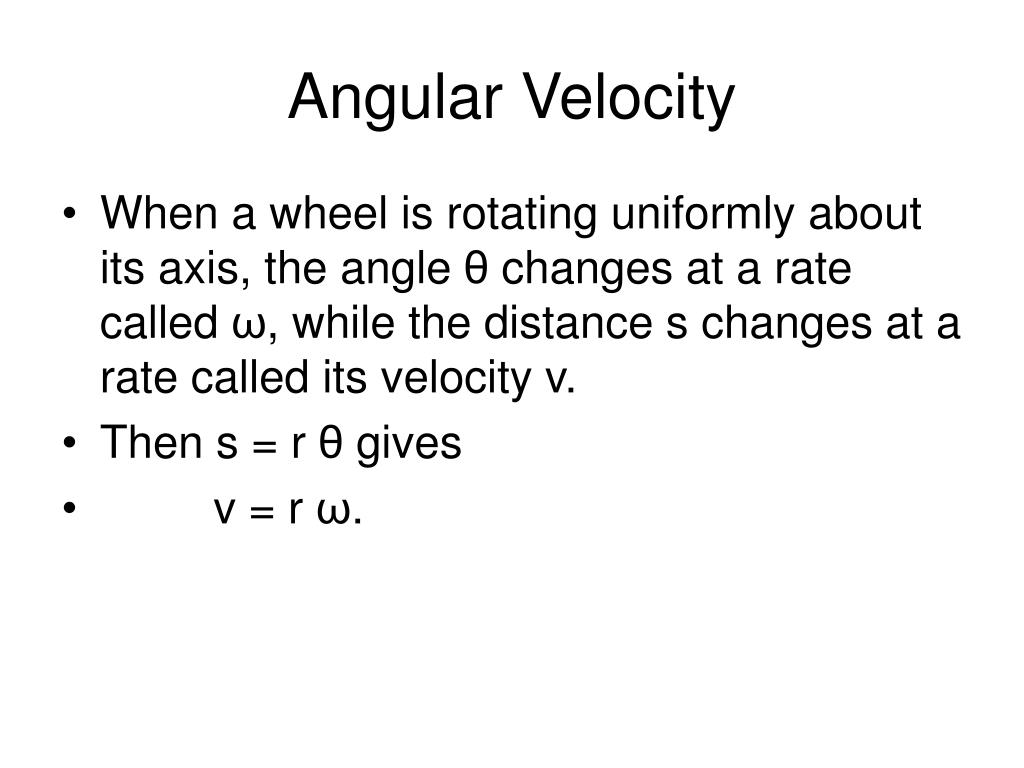

Angular Velocity
  • When a wheel is rotating uniformly about its axis, the angle θ changes at a rate called ω, while the distance s changes at a rate called its velocity v.
  • Then s = r θ gives
  • v = r ω.
angular momentum and moment of inertia
Angular Momentum and Moment of Inertia
  • Let’s recall the angular momentum
  • L = r m v = r m (ω r)
  • L = m r² ω
  • In a “rigid body”, all parts rotate at the same angular velocity ω, so we can sum mr² over all parts of the body, to give
  • I = Σ mr², the moment of inertia of the body.
  • The total angular momentum is then
  • L = I ω.
conservation of angular momentum
Conservation of Angular Momentum
  • If there are no outside forces acting on a symmetrical rotating body, angular momentum is conserved, essentially by symmetry.
  • The effect of a uniform gravitational field cancels out over the whole body, and angular momentum is still conserved.
  • L also involves a direction, where the axis is the thumb if the motion is followed by the fingers of the right hand.
examples of moment of inertia

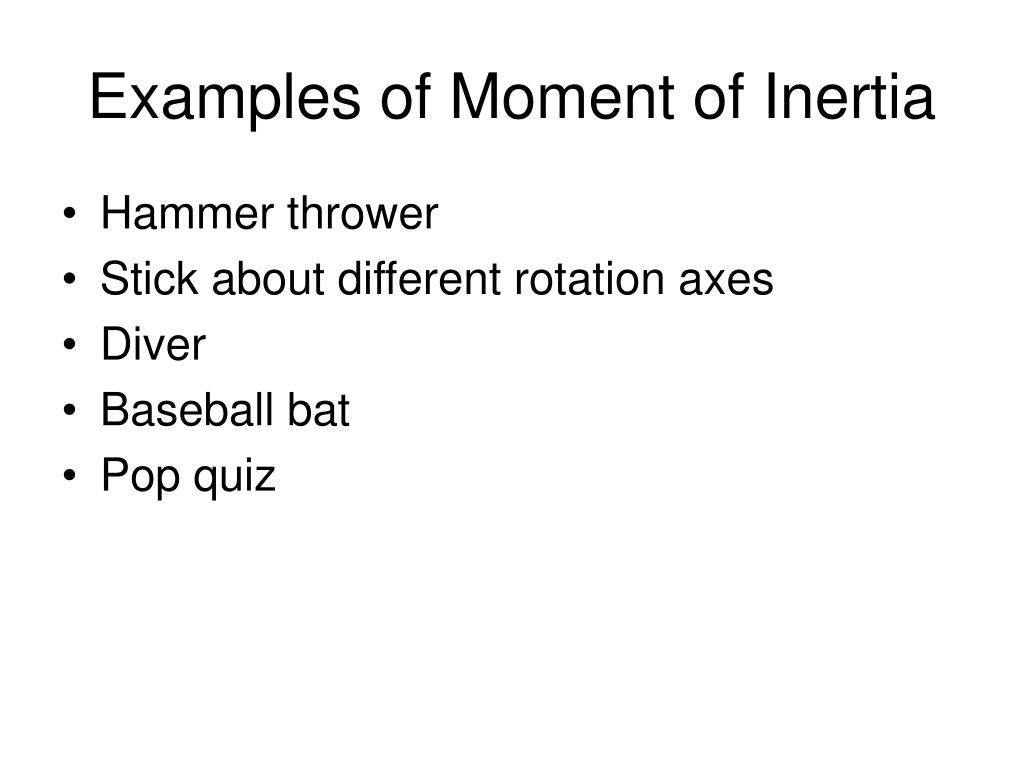

Examples of Moment of Inertia
  • Hammer thrower
  • Stick about different rotation axes
  • Diver
  • Baseball bat
  • Pop quiz
applications of conservation of angular momentum
Applications of Conservation of Angular Momentum
  • If the moment of inertial I1 changes to I2 , say by shortening r, then the angular velocity must also change to conserve angular momentum.
  • L = I1ω1 = I2ω2
  • Example: Rotating with weights out, pulling weights in shortens r, decreasing I and increasing ω.
examples of changes in moment of inertia
Examples of Changes in Moment of Inertia
  • Pulling arms in to do spins in ice skating
  • Tucking while diving to do rolls
  • Bicycle wheel flip demo
  • Space station video
rotating different parts of body
Rotating different parts of body
  • Ballet pirouette
  • Balancing beam
  • Ice skater balancing
  • Falling cat or rabbit landing upright
  • Rodeo bull rider
  • Ski turns
  • Ski jumping video
angular momentum for stability
Angular Momentum for Stability
  • Bicycle or motorcycle riding
  • Football pass or lateral spinning
  • Spinning top
  • Frisbee
  • Spinning gyroscopes for orbital orientation
  • Helicopter
  • Rifling of rifle barrel
  • Earth rotation for daily constancy and seasons
curving of spinning balls

Curving of spinning balls

Bernoulli’s Equation (1738)

Magnus Force (1852)

Rayleigh Calculation (1877)

bernoulli s principle
Bernoulli’s Principle
  • Follow the flow of a certain constant volume of fluid ΔV =A*Δx, even though A and Δx change
  • Pressure is P=F/A
  • Energy input is Force*distance

E = F*Δx=(PA)*Δx=P*ΔV

  • kinetic energy is E=½ρv²ΔV
  • So by energy conservation, P+½ρv² is a constant
  • When v increases, P decreases, and vice-versa

Δ

bernoulli s principal and flight
Bernoulli’s Principal and Flight
  • Lift on an airplane wing

V higher

P lower

P normal

v higher above wing, so pressure lower

air around a rotating baseball from ball s top point of view
Air around a rotating baseball, from ball’s top point of view

Higher v, lower P on right

Pright

Boundary layer

Lower v, higher P on left

So ball curves to right

Pleft

examples of curving balls
Examples of curving balls
  • Baseball curve pitch
  • Baseball outfield throw with backspin for longer distance
  • Tennis topspin to keep ball down
  • Soccer (Beckham) curve around to goal
  • Golf ball dimpling and backspin for range

Deflection d = ½ a t² most at end of range
