modularity menu
Modularity Menu

Learning Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2

Overview of Modularity

What is a module? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3

Reuse and Recycle with Modules . . . . . . . . . . . . . . . . . . . . . . page 5

Reasons for Modularity

Reduces the Cost of Coding . . . . . . . . . . . . . . . . . . . . . . . . . .page 7

Simplifies Coding and Debugging . . . . . . . . . . . . . . . . . . . . . . . page 9

Helps Avoid Spaghetti Code . . . . . . . . . . . . . . . . . . . . . . . . . . .page 11

Supports the Entire Program Development Cycle . . . . . . . . . . .page 13

Reduces the Occurrence of "Side Effects". . . . . . . . . . . . . .page 15

modularity learning objective
Modularity Learning Objective

Upon completion of this lesson, the student shall be able to:

1. Define a module

2. List the benefits of modularity

3. Discuss the two types of costs associated with application development

4. Explain why spaghetti code is bad

5. Describe how modularity simplifies debugging

6. Explain why side effects are undesirable

modularity overview
Modularity Overview

What is a module?

A module is a block of code that performs a single, well-defined function. The use of modules helps break large programs down into sets of small, manageable units.

modularity reuse recycle overview
Modularity Reuse & Recycle Overview

Code reuse is the practice of reusing a program or a part of a program in another application, thus saving time, energy and money. There are several reasons why modularity and reuse is needed.

modularity reasons
Modularity Reasons

Reason 1: Modularity Reduces The Cost of Coding

Two major types of costs associated with application development

  • Development costs – including design, coding and testing.
  • Maintenance costs – the cost of upgrading and repairing the software

Code reuse can reduce both these costs

modularity overview6
Modularity Overview

Reason 2: Modularity Simplifies Coding and Debugging

It is easier to debug programs when the problem is broken up into smaller pieces. Each piece can be coded and tested individually.

modularity overview7
Modularity Overview

Reason 3: Modularity Helps Avoid Spaghetti Code

Single Entry Single coding techniques can be used with modules. GOTO statements, uncontrolled entries/exits and jumps in the code cause confusion and make the code harder to debug and modify.

modularity overview8
Modularity Overview

Reason 4: Modularity Supports the Entire Program Life Cycle

During the life of a program many people are involved with code development and maintenance. Modularity makes it easier to understand the changes made by others.

modularity overview9
Modularity Overview

Reason 5: Modularity Reduces The Occurrence of “Side Effects”

Changes made in one module are less likely to cause problem in the rest of the code. The risk of unintended consequences (side effects) is reduced with the use of modules. When in doubt see Murphy’s Law.

modularity group pair practice

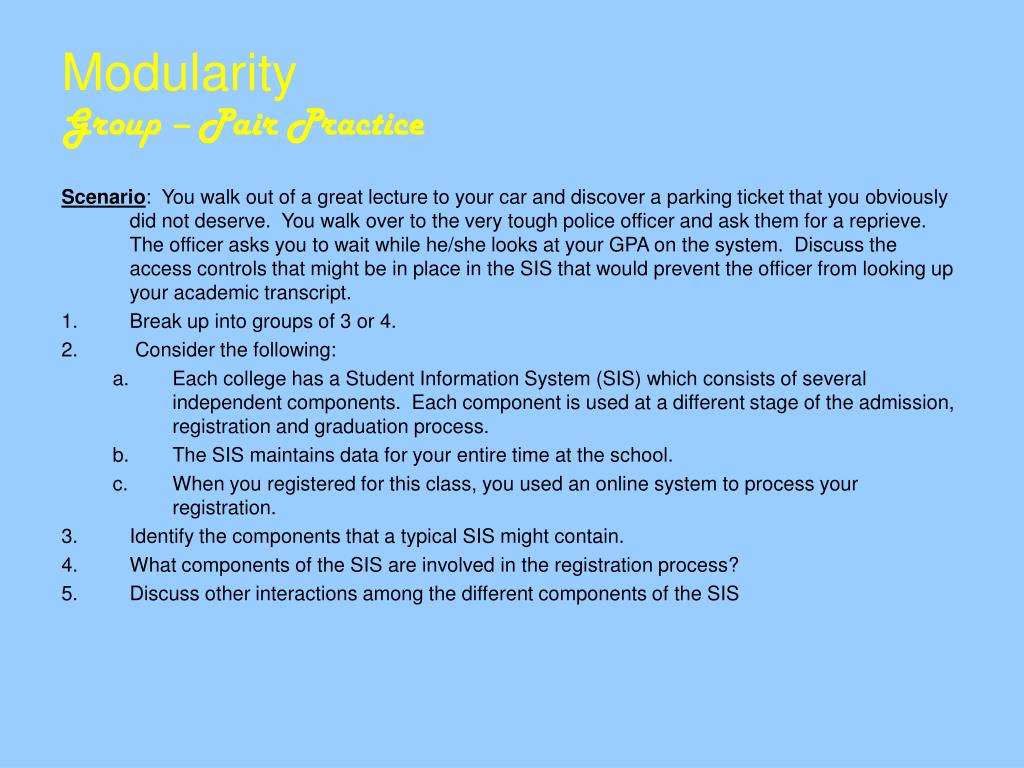

Modularity Group – Pair Practice

Scenario: You walk out of a great lecture to your car and discover a parking ticket that you obviously did not deserve. You walk over to the very tough police officer and ask them for a reprieve. The officer asks you to wait while he/she looks at your GPA on the system. Discuss the access controls that might be in place in the SIS that would prevent the officer from looking up your academic transcript.

  • Break up into groups of 3 or 4.
  • Consider the following:
    • Each college has a Student Information System (SIS) which consists of several independent components. Each component is used at a different stage of the admission, registration and graduation process.
    • The SIS maintains data for your entire time at the school.
    • When you registered for this class, you used an online system to process your registration.
  • Identify the components that a typical SIS might contain.
  • What components of the SIS are involved in the registration process?
  • Discuss other interactions among the different components of the SIS
modularity
Modularity

Congratulations! You have completed the modularity lesson
