slide1

P A T H W A Y S

High performance solutions for high performance work environments

Pathways Technology Wall

Highest Technology Support

Power and data access in base, every 12” vertically, every 6” horizontally

Access via Ports, technology skins, base, or field cut skins

Lay-in cabling in top cap, base, every 12” vertically, and junctions

600 cables in 66” H frame

Advanced Planning Flexibility

Broad dial up/dial down capability

Off module panels, worksurfaces, and storage

Ports allow greater skin flexibility in critical zones

90 or 120o junctions

P&B fence fin

Kick fins for new sites, Avenir, S9000, and Segment fins for inventory reuse

Strong Aesthetics

High fit and finish, sharp skin corners

Wide range of materials, and skins range from monolithic to 12” segments

Wood inset trims

Facility Management

Monolithic panels ship fully assembled

Easy to specify and inventory; quick and easy installation

Competitive Pricing

Competitively priced vs. high performance solutions

Positioning

Pathways solutions provide the highest-performing, most technology-savvy environments designed to support change.

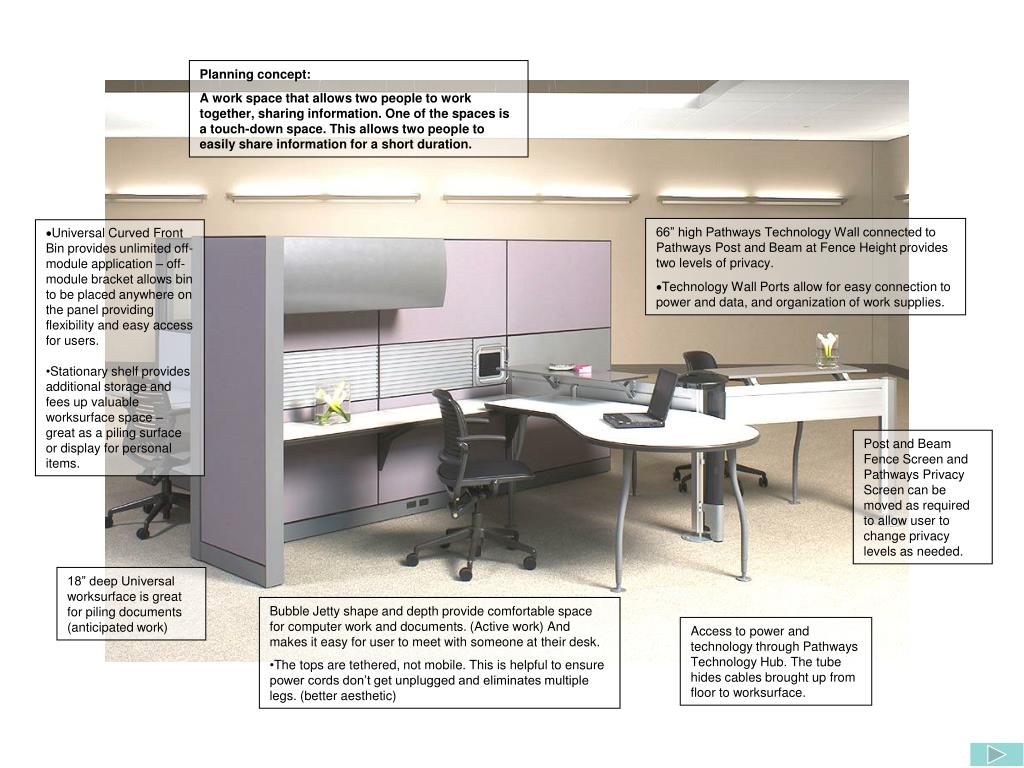

slide2

Planning concept:

A work space that allows two people to work together, sharing information. One of the spaces is a touch-down space. This allows two people to easily share information for a short duration.

66” high Pathways Technology Wall connected to Pathways Post and Beam at Fence Height provides two levels of privacy.

  • Technology Wall Ports allow for easy connection to power and data, and organization of work supplies.
  • Universal Curved Front Bin provides unlimited off-module application – off-module bracket allows bin to be placed anywhere on the panel providing flexibility and easy access for users.
  • Stationary shelf provides additional storage and fees up valuable worksurface space – great as a piling surface or display for personal items.

Post and Beam Fence Screen and Pathways Privacy Screen can be moved as required to allow user to change privacy levels as needed.

18” deep Universal worksurface is great for piling documents (anticipated work)

Bubble Jetty shape and depth provide comfortable space for computer work and documents. (Active work) And makes it easy for user to meet with someone at their desk.

  • The tops are tethered, not mobile. This is helpful to ensure power cords don’t get unplugged and eliminates multiple legs. (better aesthetic)

Access to power and technology through Pathways Technology Hub. The tube hides cables brought up from floor to worksurface.

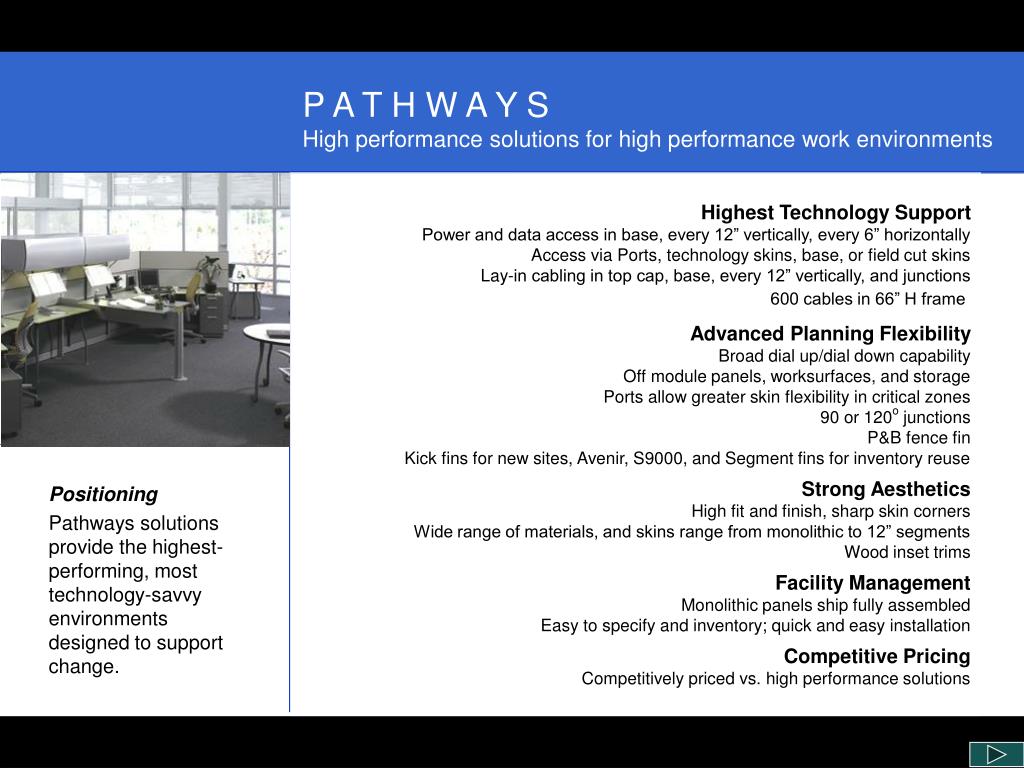

slide3

P A T H W A Y S

High performance solutions for high performance work environments

Highest Technology Support

Power and data access in base, every 12” vertically, every 6” horizontally

Access via Ports, technology skins, base, or field cut skins

Lay-in cabling in top cap, base, every 12” vertically, and junctions

600 cables in 66” H frame

Advanced Planning Flexibility

Broad dial up/dial down capability

Off module panels, worksurfaces, and storage

Ports allow greater skin flexibility in critical zones

90 or 120o junctions

P&B fence fin

Kick fins for new sites, Avenir, S9000, and Segment fins for inventory reuse

Strong Aesthetics

High fit and finish, sharp skin corners

Wide range of materials, and skins range from monolithic to 12” segments

Wood inset trims

Facility Management

Monolithic panels ship fully assembled

Easy to specify and inventory; quick and easy installation

Competitive Pricing

Competitively priced vs. high performance solutions

Positioning

Pathways solutions provide the highest-performing, most technology-savvy environments designed to support change.

slide4

Planning concept:

This a more traditional application with a refreshed, high-end aesthetic that could be applied to create a private office within an open space.

Panel is segmented with steel skin and Slatwall, and we’ve integrated the Power and Communications Port as well as the Personal Organizer Port.

Glass panel used as a fin to define space, yet still allows visual connection with other people. It has exquisite fit and finish, unmatched by any of our competitors who make glass panels.

Wood fronts on the storage components and the Unison table with the tapered edge and cabby legs exude elegance and class.

Flawless integration of the new portfolio products like glass shelves on an open sided tower with skylight, the laterals and peds all with proud wood fronts and elegant Jazz pulls provide lots of both display and document storage.

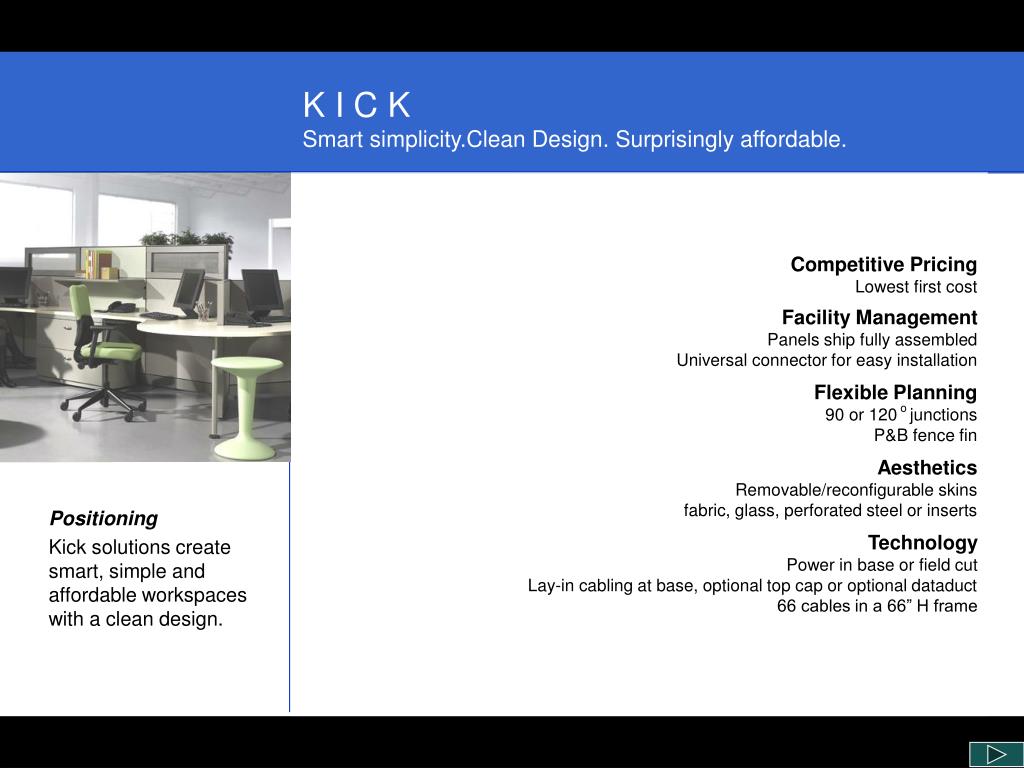

slide5

K I C K

Smart simplicity.Clean Design. Surprisingly affordable.

Competitive Pricing

Lowest first cost

Facility Management

Panels ship fully assembled

Universal connector for easy installation

Flexible Planning

90 or 120ojunctions

P&B fence fin

Aesthetics

Removable/reconfigurable skins

fabric, glass, perforated steel or inserts

Technology

Power in base or field cut

Lay-in cabling at base, optional top cap or optional dataduct

66 cables in a 66” H frame

Positioning

Kick solutions create smart, simple and affordable workspaces with a clean design.

slide6

Kick

Planning concept:

Traditional workstation with corner orientation supports CRT and lots of room for piling and organizing documents.

Combination of 66” high Pathways Technology Wall and 66” Kick panels attached off-module.

Kick fin panels have large glass stackers on three sides for visual access.

Kick laminate common shelf provides additional worksurface and is the lowest cost shelf.

  • Universal Worksurfaces used to create a traditional corner orientation with keyboard cutout, preferable in for use with CRT monitor in smaller spaces.
  • Worksurfaces attach with off-module connection to Pathways technology wall

Access to power through the Pathways technology skin with power and data connections. Because off-module connections are used – power is run only through spine, allowing fin wall to move without changes to power.

Universal Mobile pedestal:

  • Standard interior includes a pencil tray, box drawer divider and file drawer rail;
  • BBF and FF mobile pedestals; cushion top option on BF mobile pedestals Universal L-shelf:
  • Used next to glass stacker/nicer visual then using binder bin
  • Off-mod bracket allows shelf to be placed anywhere on the panel.
slide7

A N S W E R

Flexibility redefined

Facility Management

Flexible and adjustable panel to support change easily and cost effectively

Advanced Technology Support

Horizontal power/cable routing and access in every 12” horizontal zone

Access via base, field cut skins, or technology skins

Lay-in cabling at top cap or base

180 cables in a 66” H frame

Advanced Planning Flexibility

Covers broadest range of market needs; broad dial up/dial down capability

90 or 120o planning

Off module panels

P&B fence fin

Competitive Pricing

Broad pricing flexibility

Competitively priced with mass market solutions

Strong Aesthetics

Wide variety of skin options Skins range from monolithic to 12” segments

Wood trims

Positioning

Answer solutions provide the most flexibility to create environments that respond to the broadest range of needs.

slide8

The up-mounted bin and frosted glass used on 54” spine and 42” off-module fin respectively provides three levels of privacy (66”, 54”, 42”).

Planning concept:

Cubicle is opened up, and the orientation of user is changed from back-to-aisle to forward.

The fin is attached with an off-module, change-of-height connector so workspace can expand or contract as required without defacing the spine wall

A combination of Universal Storage:

  • Great alignment of drawer fronts, bases, pulls between the ped and combo using 3”H base.
  • Combo cabinet features adjustable shelves with ¾” adjustment (using a reversible bracket).
  • Universal peds with proud fronts are sized to fit perfectly under universal systems worksurfaces
  • Curved Front bin with Display Shelf up-mounted to allow lower panel height to be used

Combining 90º planning and 120º planning allows orientation of user to face outward

Frosted glass moderates the visual distraction that clear glass would create.

All panels available with monolithic or segmented skins

A combination of freestanding Universal Worksurfaces opens up the workspace, but allows for a very compact footprint:

  • 120 degree allows for computer work and supporting documents (active space)
  • 18” deep provides a place for piling additional documents and nests under the primary worksurface (anticipated space)
  • Mobile table can nest under primary worksurface and pulls out for conferencing.
slide9

M O N T A G E

Unmistakable style. Unlimited possibilities.

Highest Aesthetics

Broadest range of surface materials

Wood trims and tiles

Highly customizable

High fit and finish, always segmented

Advanced Planning Flexibility

Off module panels, worksurfaces, and storage

90, 120o and custom junctions

Stackable to ceiling

Pocket and hinged doors

P&B fence fin

Strong Technology Support

Power in base and belt, data anywhere

Lay-in cabling in junctions and optional top cap

540 cables in a 65” H frame

Facility Management

Easy to specify and install

Competitive Pricing

Competitively priced vs. premium aesthetic solutions

Positioning

Montage solutions provide endless design options to create image-driven environments.

slide10

Planning concept:

Unfolds cubicle to allow outward-facing user orientation and create better user interaction in small footprint

  • Smaller footprint throughout overall floor plan accommodates greater number of people in a facility as well as teaming spaces.

The spine wall’s 65”H x 48”W enhanced off-module frames have horizontal slots for off-module support of bins (shown), shelves, and worksurfaces. Fin Wall (24”W) is an enhanced frame: no off-module slots.

Organization tools attach into integrated slatwall skin and helps to keep clutter off worksurface.

Curved Front Bin offers unlimited off-module application-off-module bracket allows bin to be placed anywhere on panel providing planning flexibility and easy access for use.

24” deep worksurfaces can be used for piling and anticipated work; has scallop for routing power cord from Underline light.

Proud Wood fronts on all storage elements (except curved bin) provides a lovely aesthetic for lower price than all-wood unit.

Jetty worksurface becomes main work area and facilitates managing people-to-people connection. Worksurfaces are panel-hung and off-module; all have 3mm edge.

Mobile pedestal standard interior includes pencil tray, box drawer divider, file drawer rail.

Workstation vertical is designed for paper storage in the workstation; binder storage is accommodated by 13½” high liftup door with fixed shelf at top opening of the 5 high units.

User accesses power and data in two locations; panel base and just-above-worksurface.

universal storage
Universal Storage
  • PlanningandApplications Versatility
  • Integrates with all panel-based and freestanding systems
    • use 3”H base with Kick, Answer, Montage, Technology Wall
    • use 1-1/2”H base with Avenir, Series 9000
  • More case sizes, interior configurations and options
  • Stackable cases
  • Visual Choice and Alignment
  • Matching fronts and pull styles on all product types
  • Three front styles: flush steel, proud steel, proud wood
  • Fronts are interchangeable
    • flush and proud fronts are applied to the same case; proud fronts will always 7/8” deeper than flush fronts
  • New materials integrated across the offering (e.g. wood, glass)
  • Bases, fronts and tops align dimensionally across all product types
  • Award-Winning Design
  • Gold Award at Neocon 2003 for Filing & Storage
slide12

Storage

Tower is designed with a single door. When open, all contents are easily accessible and when closed, all items are secure; open door can also be used as a visual privacy cue.

  • 2H through 5H bookcases are sized to support binders on every shelf.
  • Shelves adjust on ¾” increments using a reversible bracket; shelves are easy for end users to adjust
  • Display shelf brackets are available to orient the adjustable shelf in a sloped position for displaying shared items

Flush front uses same integral pull style as S9000/900 Series, and provide a neutral front to blend with many environments.

  • Universal storage laterals are available as stacked.
  • 24”D lateral file provides full depth drawers with full extension suspensions for easy access and efficient storage in a smaller footprint.
  • Rollout shallow shelves and file frames are designed to support books, binders, objects, containers, etc.
  • Shelves and file frames feature ‘shrouded’ suspensions, and promote interaction with contents.
  • Rollout elements in deeper case (e.g. 24”D) provide better use of space and easier access.
  • Rotated case provides single lock for each side, and allows one drawer on each side to be open at the same time
  • Security shelf/ counterweight provided at point of rotation; only one rotation allowed per unit for safety

Full-front tower features a partition to create a coat space plus rollout shallow shelves and file frames.
