Chapter 7Project Management

© 2007 Pearson Education


Project management l.jpg
Project Management

  • Used to manage large complex projects

  • Has three phases:

    • Project planning

    • Project scheduling

    • Project controlling


Phase 1 project planning l.jpg
Phase 1: Project Planning

  • What is the project goal or objective?

  • What are the activities (or tasks) involved?

  • How are activities linked?

  • How much time required for each activity?

  • What resources are required for each activity?


Phase 2 project scheduling l.jpg
Phase 2: Project Scheduling

  • When will the entire project be completed?

  • What is the scheduled start and end time for each activity?

  • Which are the “critical” activities?

  • Which are the noncritical activities?


Phase 2 project scheduling cont l.jpg
Phase 2: Project Scheduling (cont.)

  • How late can noncritical activities be w/o delaying the project?

  • After accounting for uncertainty, what is the probability of completing the project by a specific deadline?


Phase 3 project controlling l.jpg
Phase 3: Project Controlling

At regular intervals during the project the following questions should be considered:

  • Is the project on schedule? Early? Late?

  • Are costs equal to the budget? Over budget? Under budget?

  • Are there adequate resources?

  • What is the best way to reduce project duration at minimum cost?


Identifying activities l.jpg
Identifying Activities

  • Subdivides a large project into smaller units

  • Each activity should have a clearly defined starting point and ending point

  • Each activity is clearly distinguishable from every other activity

  • Each activity can be a project in itself


Work breakdown structure wbs l.jpg
Work Breakdown Structure (WBS)

Divides the project into its various subcomponents and defines hierarchical levels of detail

Level

1 Project

2 Major tasks in project

3 Subtasks in major tasks

4 Activities to be completed



Identify for each activity l.jpg
Identify for Each Activity:

  • Which other activities must be completed previously (predecessors)

  • Time required for completion

  • Resources required

    This completes the project planning phase.


Project scheduling phase l.jpg
Project Scheduling Phase

Commonly used techniques:

  • Program Evaluation and Review Technique (PERT)

  • Critical Path Method (CPM)


Project management example general foundry inc l.jpg
Project Management Example:General Foundry Inc.

  • Have 16 weeks to install a complex air filter system on its smokestack

  • May be forced to close if not completed w/in 16 weeks due to environmental regulations

  • Have identified 8 activities


Drawing the project network l.jpg
Drawing the Project Network

  • AON – Activity on Node networks show each activity as a node and arcs show the immediate predecessor activities

  • AOA – Activity on Arc networks show each activity as an arc, and the nodes represent the starting and ending points

    We will use the AON method




Determining the project schedule l.jpg
Determining the Project Schedule

  • Some activities can be done simultaneously so project duration should be less than 25 weeks

  • Critical path analysis is used to determine project duration

  • The critical path is the longest path through the network


Critical path analysis l.jpg
Critical Path Analysis

Need to find the following for each activity:

  • Earliest Start Time (EST)

  • Earliest Finish Time (EFT)

  • Latest start time (LST)

  • Latest Finish Time (LFT)


Forward pass l.jpg
Forward Pass

  • Identifies earliest times (EST and EFT)

  • EST Rule: All immediate predecessors must be done before an activity can begin

    • If only 1 immediate predecessor, then

      EST = EFT of predecessor

    • If >1 immediate predecessors, then

      EST = Max {all predecessor EFT’s}


Slide20 l.jpg

  • EFT Rule:

    EFT = EST + activity time

    Node Notation:



Backward pass l.jpg
Backward Pass

  • Identifies latest times (LST an LFT)

  • LFT Rule:

    • If activity is the immediate predecessor to only 1 activity, then

      LFT = LST of immediate follower

    • If activity is the immediate predeccor to multiple activities, then

      LFT = Min {LST of all imm. followers}


Slide23 l.jpg

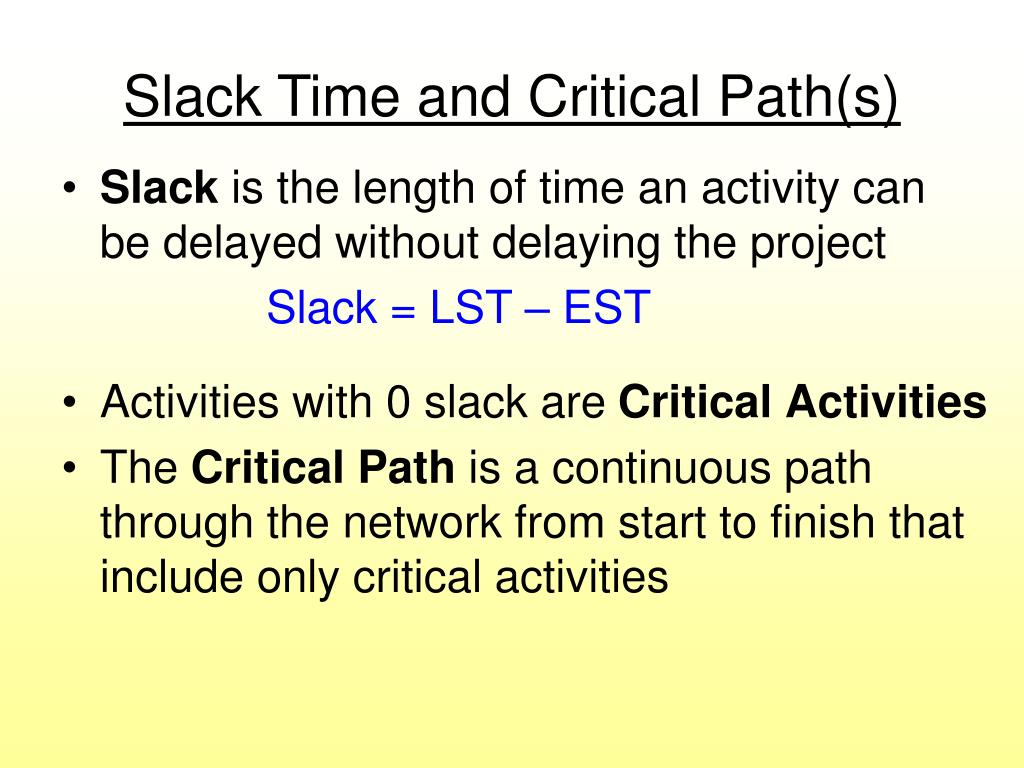

Slack time and critical path s l.jpg
Slack Time and Critical Path(s)

  • Slack is the length of time an activity can be delayed without delaying the project

    Slack = LST – EST

  • Activities with 0 slack are CriticalActivities

  • The Critical Path is a continuous path through the network from start to finish that include only critical activities




Total slack time vs free slack time l.jpg
Total Slack Time vs. Free Slack Time

  • Total slack time is shared by more than 1 activity

    Example: A 1 week delay in activity B will leave 0 slack for activity D

  • Free slack time is associated with only 1 activity

    Example: Activity F has 6 week of free slack time


Variability in activity times l.jpg
Variability in Activity Times

  • Activity times are usually estimates that are subject to uncertainty

  • Approaches to variability:

    • Build “buffers” into activity times

    • PERT – probability based

    • Computer simulation


Pert analysis l.jpg
PERT Analysis

  • Uses 3 time estimates for each activity

    Optimistic time (a)

    Pessimistic time (b)

    Most likely time (m)

  • These estimates are used to calculate an expected value and variance for each activity (based on the Beta distribution)

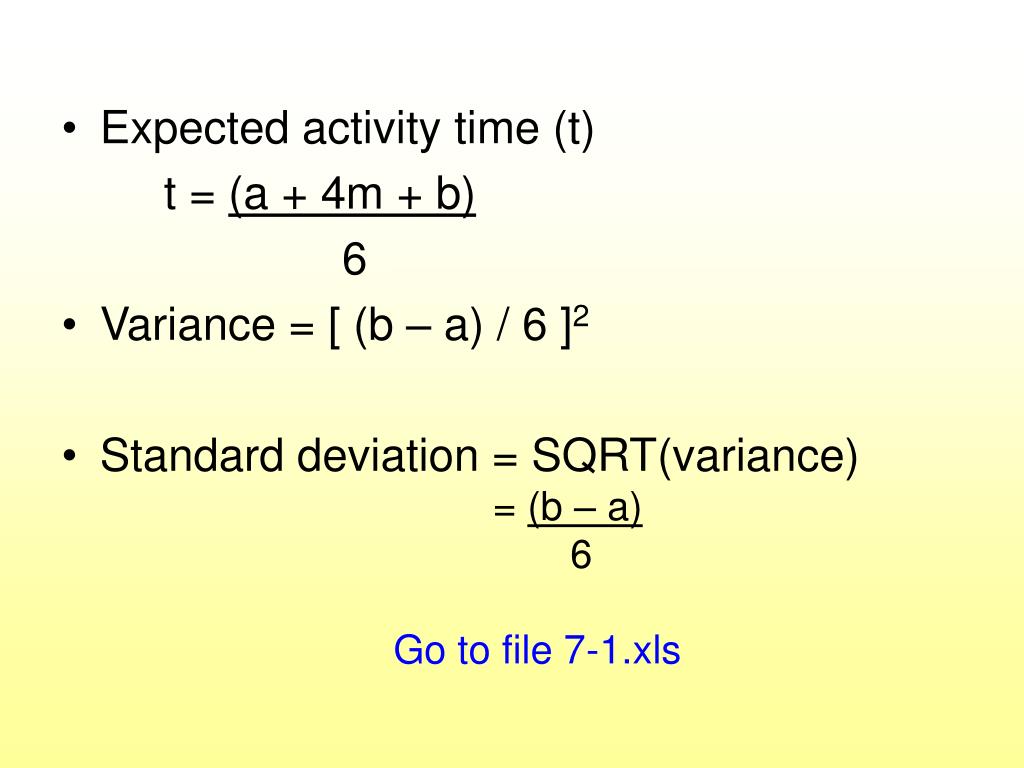

Slide31 l.jpg

  • Expected activity time (t)

    t = (a + 4m + b)

    6

  • Variance = [ (b – a) / 6 ]2

  • Standard deviation = SQRT(variance)

    = (b – a)

    6

    Go to file 7-1.xls


Project variance and standard deviation l.jpg
Project Variance and Standard Deviation

  • Project variance (σp2)

    = ∑ (variances of all critical path activities)

    σp2 = 0.11 + 0.11 + 1.0 + 1.78 + 0.11

    = 3.11

  • Project standard deviation (σp)

    = SQRT (Project variance)

    σp = SQRT ( 3.11) = 1.76

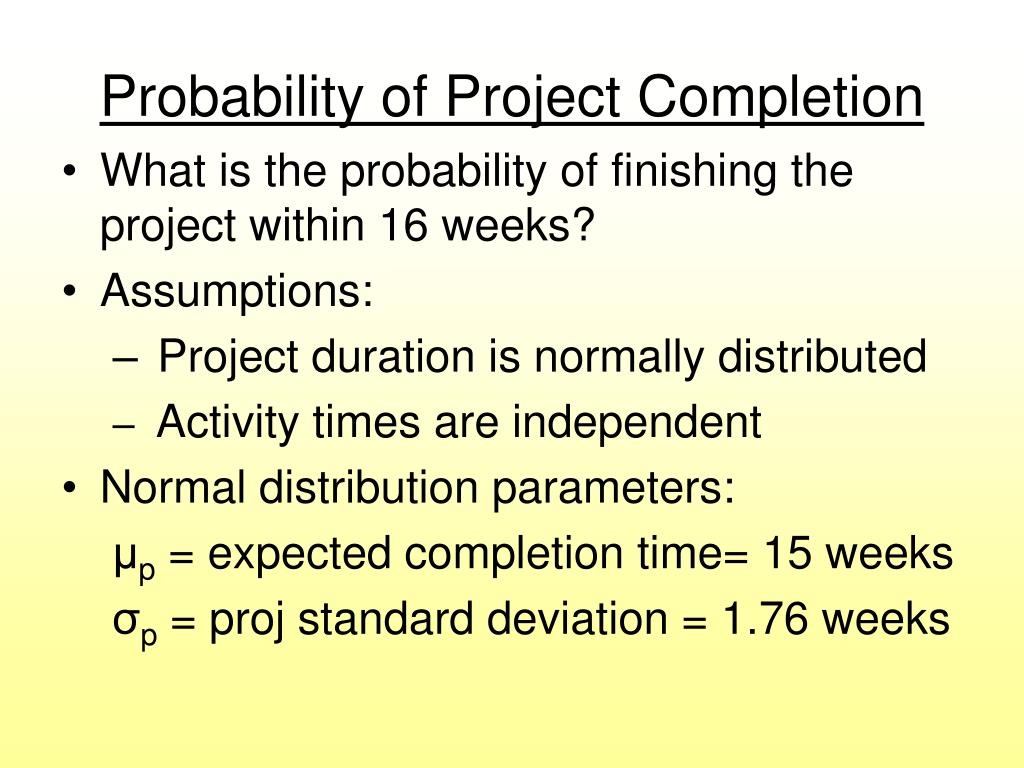

Probability of project completion l.jpg
Probability of Project Completion

  • What is the probability of finishing the project within 16 weeks?

  • Assumptions:

    • Project duration is normally distributed

    • Activity times are independent

  • Normal distribution parameters:

    μp = expected completion time= 15 weeks

    σp = proj standard deviation = 1.76 weeks


Normal probability calculations l.jpg
Normal Probability Calculations

Z = (Target time – expected time)

σp

Z = (16 - 15) = 0.57

1.76

This means 16 weeks is 0.57 standard deviations above the mean of 15 weeks.

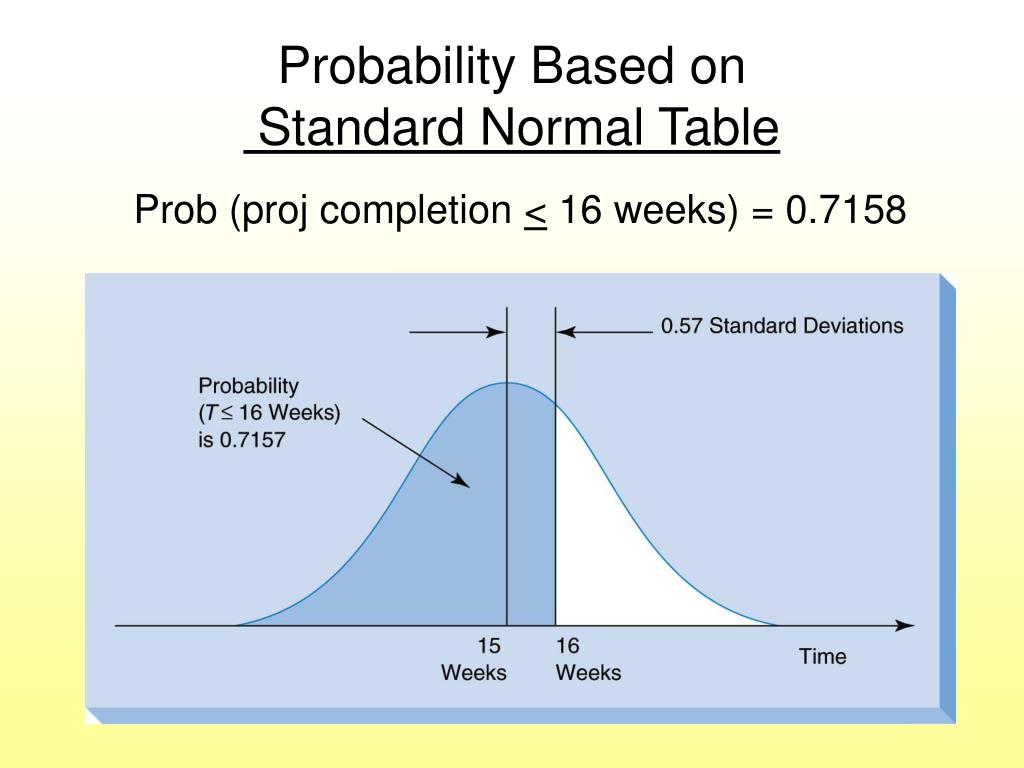

Probability based on standard normal table l.jpg
Probability Based on Standard Normal Table

Prob (proj completion < 16 weeks) = 0.7158


Project duration for a given probability l.jpg
Project Duration fora Given Probability

  • What project duration does General Foundry have a 99% chance of completing the project within?

    i.e. Prob (proj duration < ? ) = 0.99

  • From Std. Normal Table, this corresponds to Z = 2.33


Slide37 l.jpg

Z = (? - 15) = 2.33

1.76

So ? = 15 + 2.33 x 1.76 = 19.1 weeks


Scheduling project costs l.jpg
Scheduling Project Costs

  • Estimate total cost for each activity

  • Identify when cost will actually be spent

    (we will assume costs are spread evenly)

  • Use EST and LST for each activity to determine how costs are spread over project


Monitoring and controlling project costs l.jpg
Monitoring and Controlling Project Costs

  • While the project is underway, costs are tracked and compared to the budget

  • What is the value of work completed?

    Value of work completed

    = (% of work completed) x (total activity budget)

  • Are there any cost overruns?

    Cost difference

    = (Actual cost) – (Value of work completed)


Project crashing l.jpg
Project Crashing

  • Reducing a project’s duration is called crashing

  • Some activities’ times can be shortened (by adding more resources, working overtime, etc.)

  • The crash time of an activity is the shortest possible duration, and has an associated crash cost


Steps in project crashing l.jpg
Steps in Project Crashing

  • Compute the crash cost per time period

  • Find the current critical path (CP)

  • Find the lowest cost way to crash the CP by 1 time period

  • Update all activity times. If further crashing is needed, go to step 2.

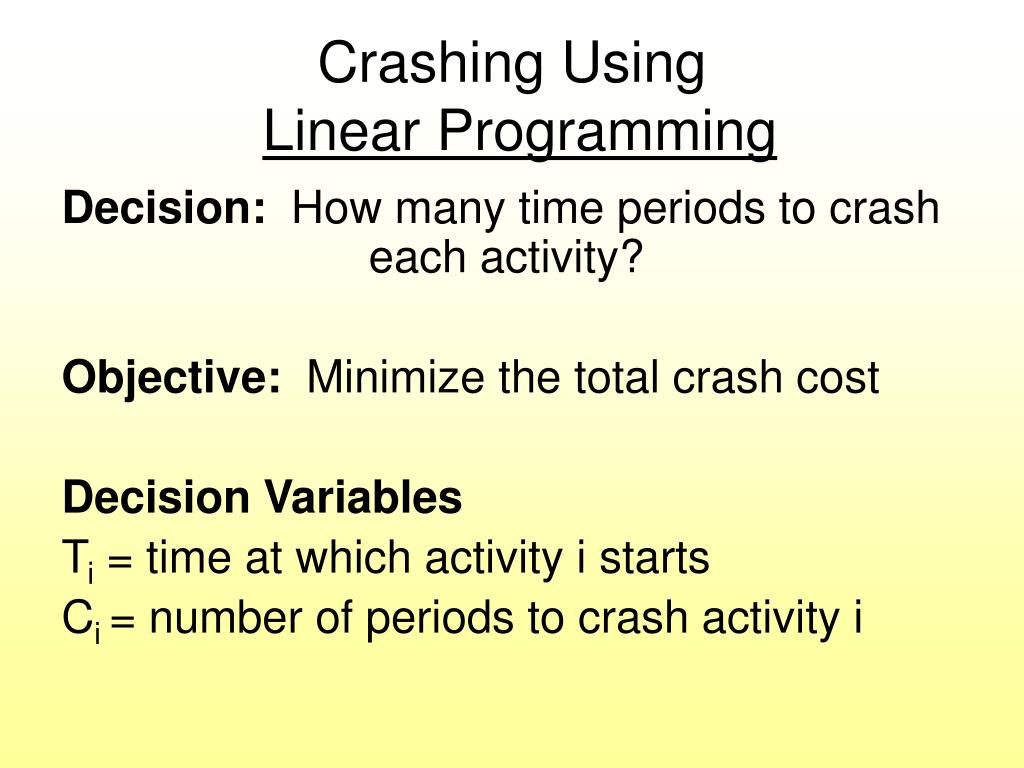

Crashing using linear programming l.jpg
Crashing UsingLinear Programming

Decision: How many time periods to crash each activity?

Objective: Minimize the total crash cost

Decision Variables

Ti = time at which activity i starts

Ci = number of periods to crash activity i

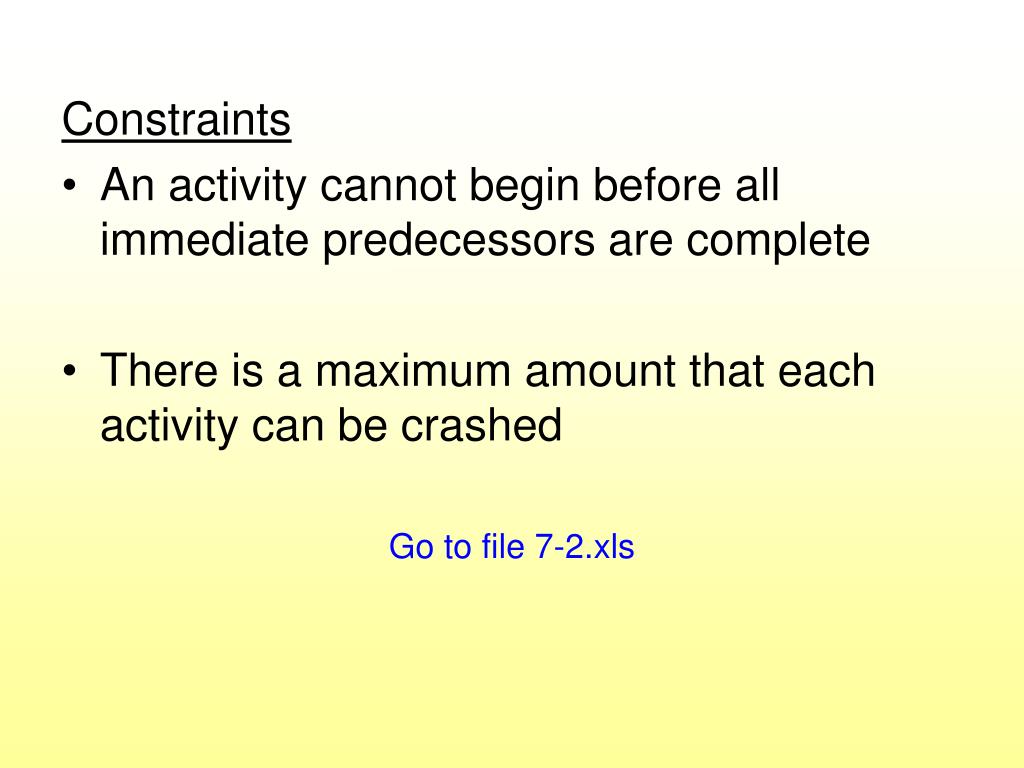

Slide49 l.jpg

Constraints

  • An activity cannot begin before all immediate predecessors are complete

  • There is a maximum amount that each activity can be crashed

    Go to file 7-2.xls
