AIAAUnmanned Aerial Vehicle, Systems, Technology, and Operations ConferenceSense, Detect and Avoid Workshop

Collision Avoidance

session outline
Session Outline

Introduction John Price

Collision Avoidance – US Civil Airspace John Price

Lessons Learned

Challenges for Different Classes of Airspace

Collision Avoidance – Restricted Airspace Bruce Clough

Collision Avoidance – European Perspective Dick Wagaman

faa data references

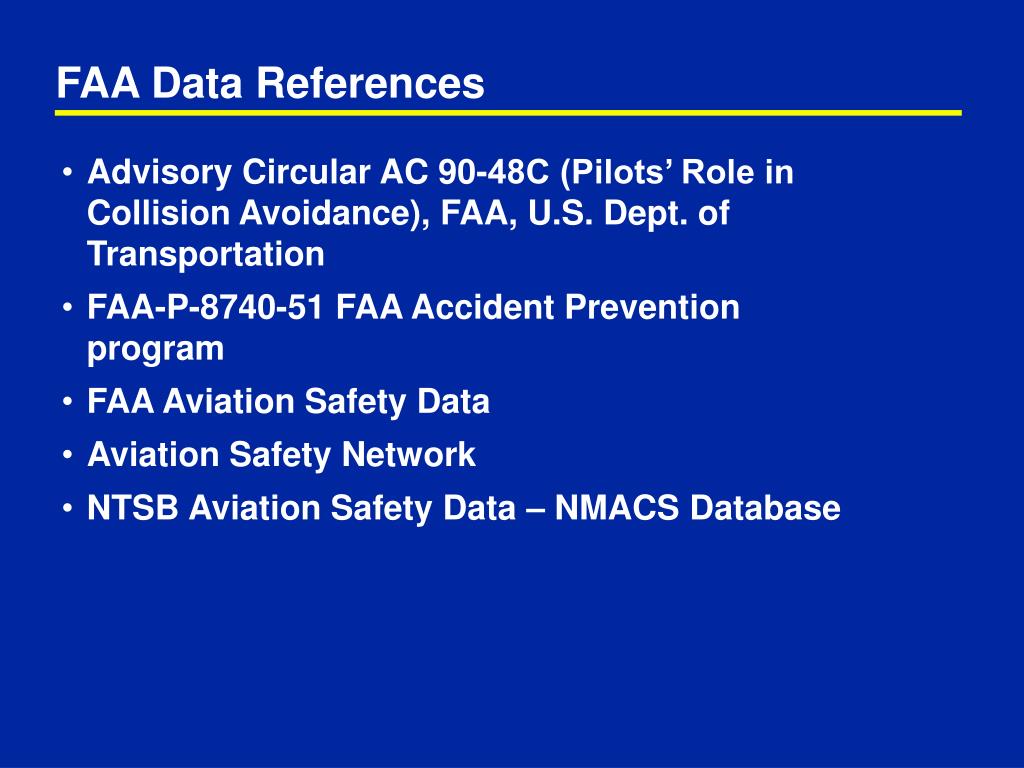

FAA Data References
  • Advisory Circular AC 90-48C (Pilots’ Role in Collision Avoidance), FAA, U.S. Dept. of Transportation
  • FAA-P-8740-51 FAA Accident Prevention program
  • FAA Aviation Safety Data
  • Aviation Safety Network
  • NTSB Aviation Safety Data – NMACS Database
faa mac statistics 1978 to 1982
FAA MAC Statistics – 1978 to 1982
  • A Total of 152 Midair Collisions (MAC) Occurred in the United States From 1978 Through October 1982 Resulting in 377 Fatalities.
  • The Yearly Statistics Remained Fairly Constant Throughout This Approximately 5 Years.
  • During This Same Time Period There Were 2,241 Reported Near Midair Collisions (NMAC).
  • Statistics Indicate That the Majority of These Midair Collisions and Near Midair Collisions Occurred in Good Weather and During the Hours of Daylight.
  • FAA Has Since Introduced Several Programs With a Greater Emphasis on the Need for Recognition of the Human Factors Associated With Midair Conflicts.
faa nmac statistics 1987 to 1996

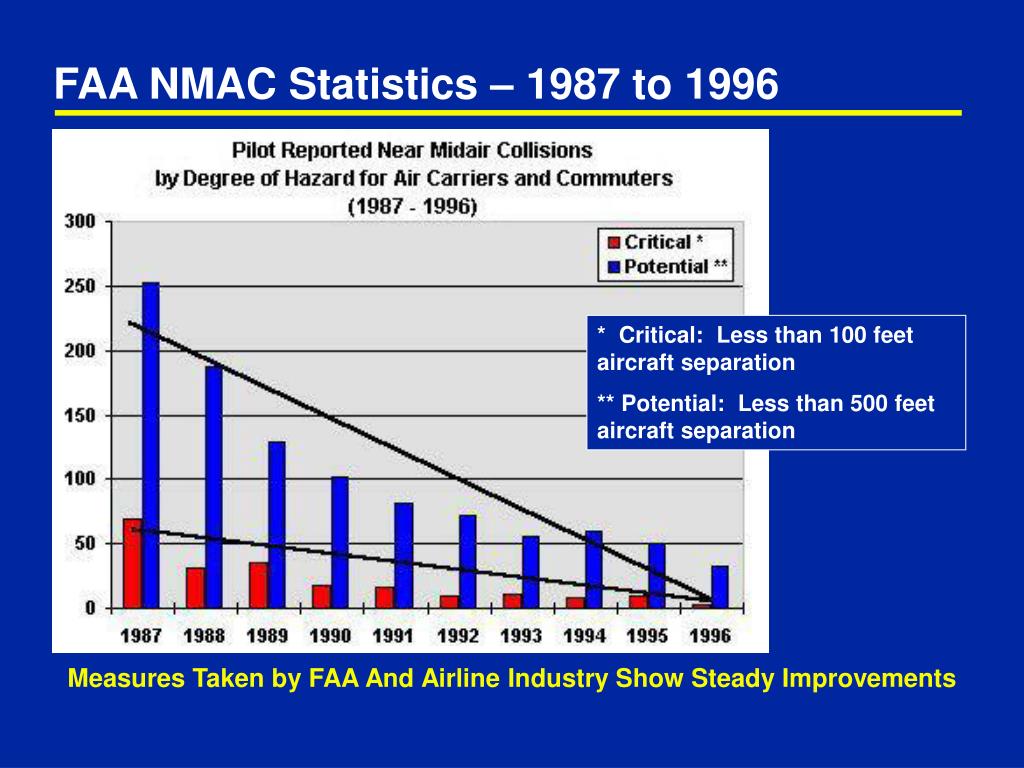

FAA NMAC Statistics – 1987 to 1996

* Critical: Less than 100 feet aircraft separation

** Potential: Less than 500 feet aircraft separation

Measures Taken by FAA And Airline Industry Show Steady Improvements

comparison of nmac by operator type

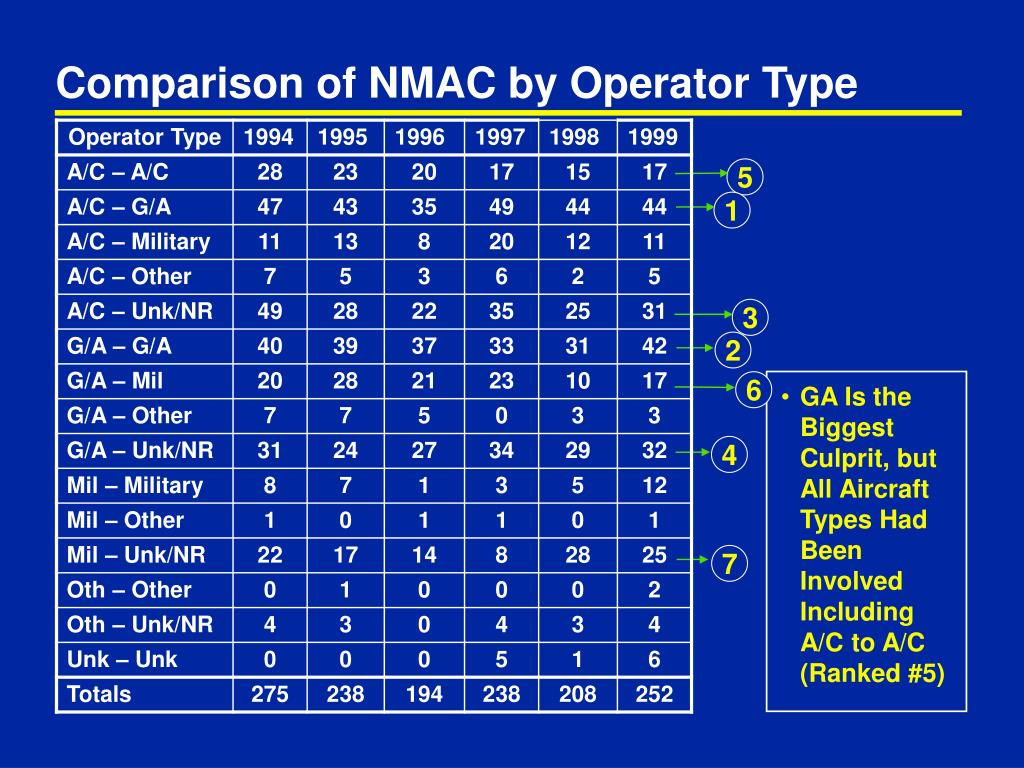

Comparison of NMAC by Operator Type
  • GA Is the Biggest Culprit, but All Aircraft Types Had Been Involved Including A/C to A/C (Ranked #5)

5

1

3

2

6

4

7

comparison of nmac by flight plan
Comparison of NMAC by Flight Plan
  • Neither Flight Plan Is Free From NMAC. However, IFR/VFR Has the Highest Incident Rates While IFR/IFR Has the Lowest Rates.
some data on dutch air traffic incidents
Some Data on Dutch Air Traffic Incidents
  • Similar Trends As USA:
    • GA Has the Highest Incident Rates
    • More Occurrence Under VMC (VFR) than IMC (IFR)
    • Most Frequently Occurred Under 3,000 Feet Surrounding Airports
lessons learned
Lessons Learned
  • Nearly All Midair Collisions Occur During Daylight Hours and in VFR Conditions. Majority of These Happen Within Five Miles of an Airport, in the Areas of Greatest Traffic Concentration
  • Statistics on 105 In-flight Collisions Show That:
    • 82% Were at Overtaking
    • 5% Were From a Head-on Angle
    • 77% Occurred at or Below 3,000 feet And 49% at or Below 500 feet
  • Increasing Traffic and Higher Closing Speeds Pose Increased Potential of Midair Collisions. It Takes a Minimum of 10 seconds, Says the FAA, For a Pilot to Spot Traffic, Identify It, Realize It's a Collision Threat, React, and Have His Aircraft Respond.
  • The Reason Most Often Noted in the Statistics Reads: "Failure of Pilot to See Other Aircraft." In Most Cases at Least One of the Pilots Involved Could Have Seen the Other in Time to Avoid Contact, If He Had Used His Eyes Properly.
military data references

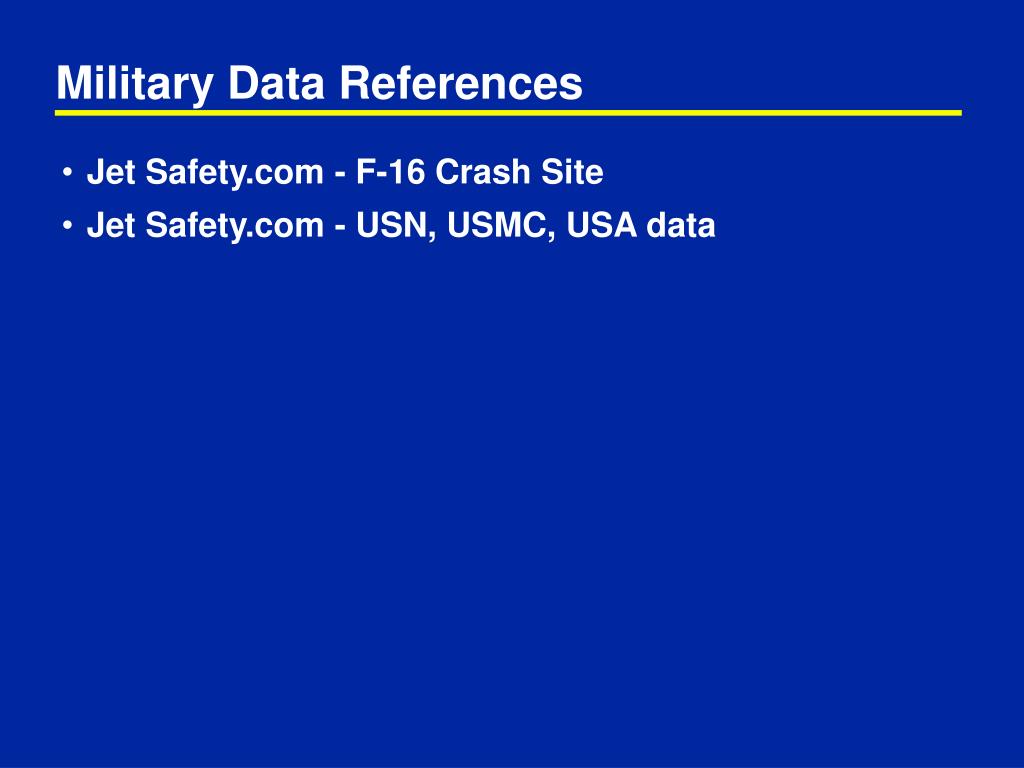

Military Data References
  • Jet Safety.com - F-16 Crash Site
  • Jet Safety.com - USN, USMC, USA data
lessons learned1
Lessons Learned
  • Most Military Aircraft Midair Collisions Occur During Training. Close Proximity and Aggressive Maneuvers Create Special Challenges As Relative Geometry/velocity Can Be Such That One Would Fail to See or Maintain Safe Distance From the Others. Exercises That Involve Red and Blue Forces Can Further Create Chaos, Thus Increasing the Risk of MAC.
uav population vs airspace class

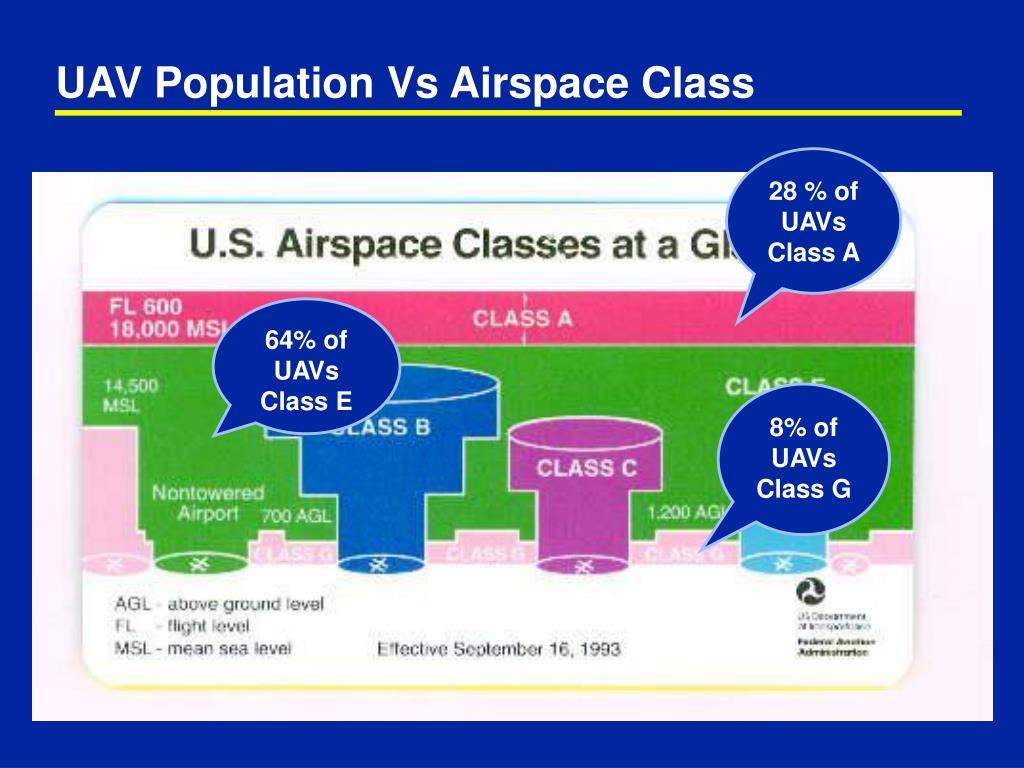

UAV Population Vs Airspace Class

28 % of UAVs Class A

64% of UAVs Class E

8% of UAVs Class G

uavs in class a airspace
UAVs in Class A Airspace
  • Situation:
    • Normally a Highly Structured Environment
    • Undergoing Change – GATM
    • Technology Challenge – SWAP and Cost
    • Domain of Larger more Expensive UAVs
  • Sensors/Equipment:
    • Mode S Extended
    • ADS-B
    • TCAS II ?
    • Dual GPS/INS
    • Redundant Airdata/Altimeters
uavs in class a airspace1
UAVs in Class A Airspace
  • Issues:
    • “Sense and Avoid” vs “Broadcast your Position and let Other Avoid You”
      • May help UAVs, but does it add other restrictions
    • “Man in the Loop” vs “Autonomous Operations”
    • Finding Appropriate Space of the UAV for Equipment
    • Cost
uavs in class e airspace
UAVs in Class E Airspace
  • Situation:
    • Not Well Structured Environment – Largely Domain of General Aviation
    • Technology Challenge – Performance, SWAP, Cost
    • Generally Occupied by Smaller, Less Expensive UAVs
  • Sensors/Equipments:
    • EO/IR
    • Radar
    • Ladar
uavs in class e airspace1
UAVs in Class E Airspace
  • Issues:
    • “…comparable see-and-avoid requirements for manned A/C”
      • What is the detection range and reliability of the human pilot in various weather and lighting conditions?
      • What is his field of regard?
      • What is his reaction time
      • Should we strive to exceed manned performance
    • “Man in the Loop” vs “Autonomous Operations”
    • Finding appropriate on the UAV for Sensors
    • Cost
summary
Summary
  • Data and lessons learned indicate that our biggest challenge will be UAV integration with General Aviation aircraft
  • The old question of “man in the loop” vs “autonomous operations” plays across all classes of airspace
  • Technology has provided us solutions, but can we fit them in the UAV and still retain a reasonable payload volume? Can we afford them?
slide20
OPEC Model Results for F-16

This quantifies “…same range…”

afrl sn opec model
Line-of-sight

Human Observer

AFRL/SN OPEC Model
  • Models human detection
    • Backgrounds
    • Lighting
      • Sunshine
      • Earthshine
      • Skyshine
    • Aircraft models
      • 10,000 facets
      • Dynamics
    • Atmospheric transmission
  • Validated
    • 937 human trials
    • Model calibrated using trials
