draft ietf radext filter rules 01 txt

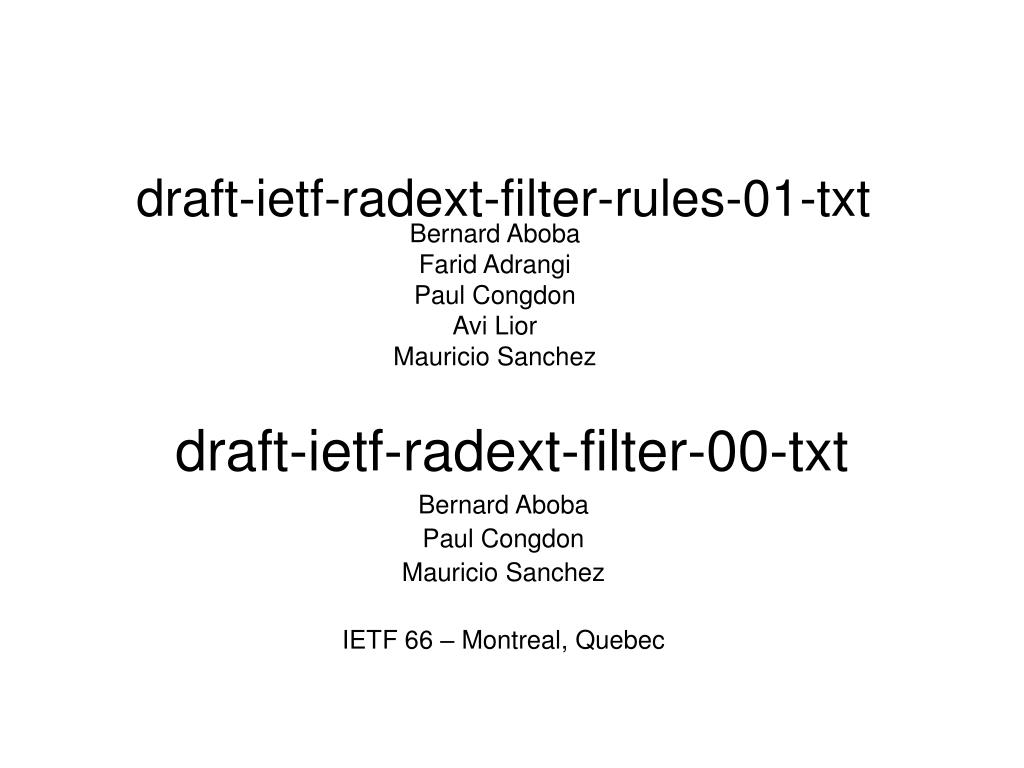

draft-ietf-radext-filter-rules-01-txt

Bernard Aboba

Farid Adrangi

Paul Congdon

Avi Lior

Mauricio Sanchez

draft-ietf-radext-filter-00-txt

Bernard Aboba

Paul Congdon

Mauricio Sanchez

IETF 66 – Montreal, Quebec

agenda
Agenda
  • Draft Comparison
  • draft-ietf-radext-filter-00-txt
    • Motivation
    • Draft Status
  • draft-ietf-radext-filter-rules-01-txt
    • Updates since last time
    • Issues and open items
draft comparison
Draft Comparison

draft-ietf-radext-filter-rules-01

  • Two Attributes
    • NAS-Traffic-Rule
    • Acct-NAS-Traffic-Rule
  • Based on Diameter’s IPFilterRule format
  • Provides more functionality than IPFilterRule
    • More rule types
    • More actions

draft-ietf-radext-filter-00

  • One Attribute
    • NAS-Filter-Rule
  • Uses Diameter’s IPFilterRule format verbatim
  • Provides the same functionality as IPFilterRule and NAS-Filter-Rule AVP
draft ietf radext filter 00 txt motivation
draft-ietf-radext-filter-00-txtMotivation
  • 3GPP has standardized on DIAMETER, but…
    • RADIUS still entrenched in many cases
    • Need exists to translate from DIAMETER NAS-Filter-Rule AVP to RADIUS attribute
  • draft-ietf-radext-filter-00-txt defines one RADIUS attribute
    • NAS-Filter-Rule
    • References RFC3588 IPFilterRule format for its syntax
draft ietf radext filter 00 txt draft status
draft-ietf-radext-filter-00-txtDraft Status
  • First -00 draft posted June 16, 2006
  • One issue pending resolution in draft -01
    • 199: Attribute Length
  • One issue open
    • 198: Attribute Concatenation/Splitting
issue 198 attribute concatenation splitting
Issue 198: Attribute Concatenation/Splitting
  • Issue: How to deal long rules >253 bytes (attribute limit)
  • Proposals galore
    • Add delimiter to rule syntax (LF, CR, etc.)
    • Always split at 253 byte boundaries
    • Add delimiter attribute (2-byte attribute)
    • Use RFC2868 tunnel ‘tagged’ attribute
    • Forget attribute<->rule matching
    • Force rule length to be <253 bytes
    • Use extended RADIUS attribute format
    • Do nothing!
draft ietf radext filter rules 01 txt updates since last time
draft-ietf-radext-filter-rules-01-txt Updates since last time
  • Draft -01 posted June 22, 2006
  • Renamed draft to “RADIUS Attributes for Filtering and Redirection”
  • Resolved Issues
    • I115: Editorial comments
    • I167: Compatibility with RFC2866, RFC3576
    • I168: Editorial comments
draft ietf radext filter rules 01 txt open issues
draft-ietf-radext-filter-rules-01-txt Open Issues
  • I111 – Accounting (Greg W.)
    • Mostly closed; Awaiting for insight from 3GPP reps
  • I114 – NAS-Filter-Rule Accounting (Bernard A.)
    • Awaiting Bernard’s response to proposal from Jan/10/06
  • Diameter Compatibility
    • I130 – Diameter Interoperability (Bernard A.)
    • I164 – Review (Jari A.)
  • I169 – Handling unparseable rules (Greg W.)
    • Awaiting Greg’s response to proposal from June/22/06
  • I170 – Precedence and Order for NAS-Filter-Rule (Greg W.)
    • Discussion ongoing
  • I192 – Comments (Jouni K.)
    • Editorial changes made in -01 draft; Awaiting Jouni’s response to proposal from June/24/06
i130 diameter interoperability bernard a i164 review jari a yet another proposal

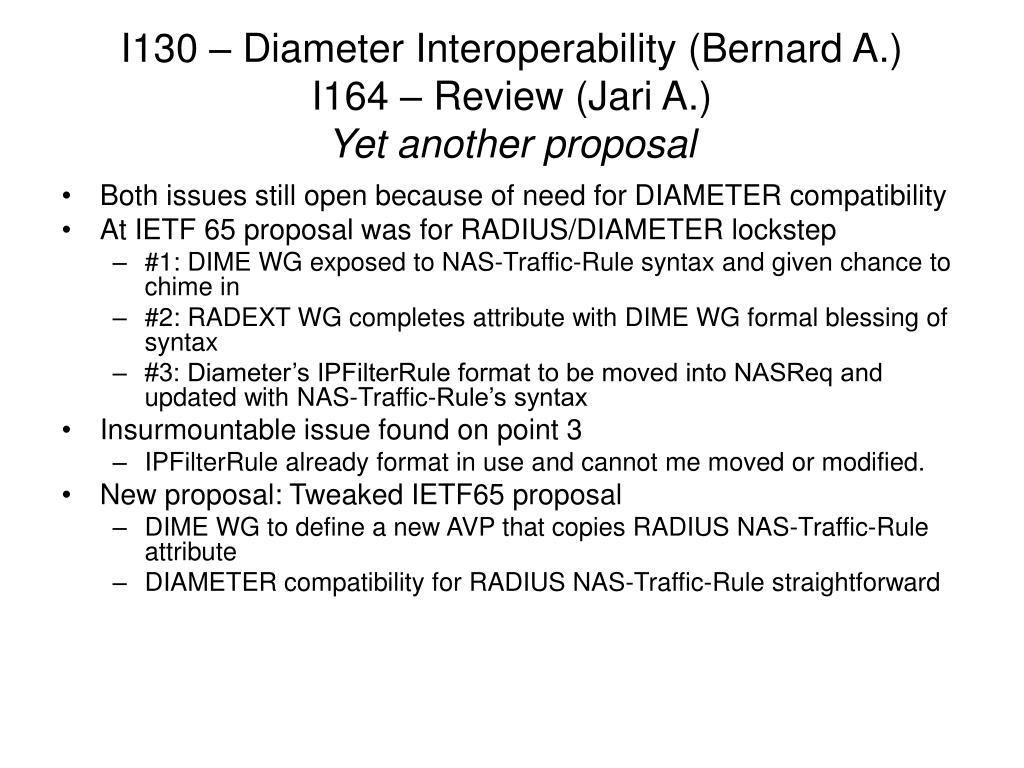

I130 – Diameter Interoperability (Bernard A.)I164 – Review (Jari A.)Yet another proposal
  • Both issues still open because of need for DIAMETER compatibility
  • At IETF 65 proposal was for RADIUS/DIAMETER lockstep
    • #1: DIME WG exposed to NAS-Traffic-Rule syntax and given chance to chime in
    • #2: RADEXT WG completes attribute with DIME WG formal blessing of syntax
    • #3: Diameter’s IPFilterRule format to be moved into NASReq and updated with NAS-Traffic-Rule’s syntax
  • Insurmountable issue found on point 3
    • IPFilterRule already format in use and cannot me moved or modified.
  • New proposal: Tweaked IETF65 proposal
    • DIME WG to define a new AVP that copies RADIUS NAS-Traffic-Rule attribute
    • DIAMETER compatibility for RADIUS NAS-Traffic-Rule straightforward
i170 precedence and order for nas filter rule
I170 - Precedence and Order for NAS-Filter-Rule
  • Current debate around:
    • "A NAS MAY apply deny rules of its own before the supplied rules, for example to protect the access device owner's infrastructure.”
  • This text points out an unsaid fact
    • A NAS will protect itself using additional ‘rules’
  • May just be easier to leave unsaid
    • Out of sight, out of mind
next steps for drafts
Next Steps for Drafts
  • Draft-ietf-radext-filter-00-txt
    • Resolve Issue 180
    • Submit -01 and do WG last call?
  • Draft-ietf-radext-filter-rules-01-txt
    • Close out open issues
    • Submit -02 draft for WG last call
    • Kickstart draft-ietf-radext-redirection-00 draft
