Presentation Transcript
countering trusting trust through diverse double compiling

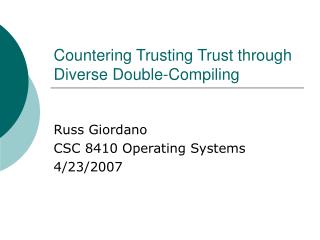

Countering Trusting Trust through Diverse Double-Compiling

Russ Giordano

CSC 8410 Operating Systems

4/23/2007

product security evaluations
Product Security Evaluations
  • Generally, it is assumed that a check of source code is enough
  • Check every time the source code is recompiled to see if you get the same binary results
  • But what happens if malicious code has been inserted into the binary files of the compiler itself?
inadequate solutions
Inadequate Solutions
  • Compiler binary files could be manually compared with their source code
  • Automating the comparison of compiler source to compiler binary
  • Compile source code with a second compiler
  • Receivers could require that they only receive source code
  • Programs can be written in interpreted languages
what is trusting trust
What is Trusting Trust?
  • When an attacker modifies one or more binaries so that the compilation process inserts different code than would be expected
  • Recompilation of the compiler still results in the reinsertion of malicious code
  • Original source code can be examined without finding the attack, and the compiler itself can be recompiled without removing the attack
analysis of threat attacker motivation
Analysis of Threat – Attacker Motivation
  • Potential benefits of a “trusting trust” attack include:
    • Complete control of all systems compiled by affected binary [and it’s descendants]
    • Backdoor passwords/logins that allow unlimited privileges on entire classes of systems
    • For a widely-used compiler, or one used to compile a widely-used program or operating system, an attack could result in global control over banks, financial markets, military systems etc.
analysis of threat attacker motivation6
Analysis of Threat – Attacker Motivation
  • Such an attack requires:
    • Knowledge of compilers
    • The effort involved with creating an attack
    • Access to the compiler binary
triggers payloads and non discovery
Triggers, payloads, and non-discovery
  • A successful attack depends on three things:
    • Triggers
    • Payloads
    • Non-discovery
triggers payloads and non discovery8
Triggers, payloads, and non-discovery
  • For a trusting trust attack to be valuable, there must be at least two triggers:
    • One that causes a malicious attack that provides some direct value to the attack
    • One that propagates the ability to attack in future versions of the code
triggers payloads and non discovery9
Triggers, payloads, and non-discovery
  • The “fragility” of an attack is the susceptibility of the attack to failure
  • Fragility of an attack can be countered by an attacker by incorporating many narrowly defined triggers and payloads
  • There may be enough vulnerabilities in the resulting system to allow an attack to re-enter a compiler at will to add new/modify existing triggers and payloads
diverse double compiling
Diverse Double Compiling
  • To perform Diverse Double Compiling [DDC], you recompile a compiler’s source code twice: once with a second “trusted” compiler, and then again using the result of the first compilation.
  • Check if the final result exactly matches the original compiler binary
  • In order to perform DDC on a compiler, it must be able to self-regenerate
diverse double compiling11
Diverse Double Compiling
  • Start by using a trusted compiler T to compile the source code SA of an untrusted complier A resulting in c(SA,T)
  • Next, use c(SA,T) to compile SA again, resulting in c(SA,c(SA,T))
  • Finally compare c(SA,c(SA,T)), A, and c(SA,T)If all three are identical, we can say that SA accurately reflects A
justification
Justification
  • To justify the DDC technique, we must make some assumptions:
    • We must have a trusted compilation process T, comparer, and environments to perform all of the actions involved with DDC
    • T must have the same semantics for the same constructs as A
    • Information that affects the output of compilation must be semantically identical when generating c(SA,T), and c(SA,c(SA,T))
    • The compiler defined by SA should be deterministic given only its inputs, and not use or write undefined values
methods to increase diversity
Methods to increase diversity
  • Diversity in compiler implementation
    • Compiler T’s binary should be for a completely different implementation than of compiler A
  • Diversity in time
    • Compiler T developed long before compiler A, and they do not share a common implementation heritage
  • Diversity in environment
    • Compiler T could generate code for a different environment, c(SA,T) could run on a different environment
  • Diversity in source code input
    • Use mutations of compiler A’s source code as the input to the first stage of DDC
ramifications
Ramifications
  • DDC technique has many strengths: can be complete automated, applied to any common language, and does not require the use of complex mathematical proofs
  • Unintentional defects in either compiler are also detected by the technique
ramifications15
Ramifications
  • The DDC only shows that the source code corresponds with a given compiler’s binary [nothing is hidden in the code]
  • The binary may have errors or malevolent code; the DDC technique simply ensures that these errors and malevolent code can be found by examining the source code
cited works
Cited Works
  • Countering Trusting Trust through Diverse Double-Compiling by David A Wheeler:http://www.acsa-admin.org/2005/papers/47.pdf
