Isabel K. Darcy Mathematics Department University of Iowa http://www.math.uiowa.edu/~idarcy Modeling Protein-DNA Complexes Using Tangles http://knotplot.com/zoo

Related searches for Isabel K. Darcy Mathematics Department University of Iowa math.uiowa/~idarcy

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Isabel K. Darcy Mathematics Department University of Iowa math.uiowa/~idarcy' - ostinmannual


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

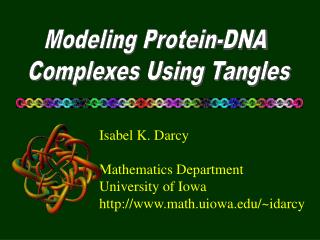

Isabel k darcy mathematics department university of iowa http www math uiowa edu idarcy l.jpg

Isabel K. Darcy

Mathematics Department

University of Iowa

http://www.math.uiowa.edu/~idarcy

Modeling Protein-DNA

Complexes Using Tangles



Slide3 l.jpg

Duplex DNA knots produced by Escherichia coli topoisomerase I. Dean FB, Stasiak A, Koller T, Cozzarelli NR., J Biol Chem. 1985 Apr 25;260(8):4975-83.


Slide4 l.jpg

C. Ernst, D. W. Sumners, A calculus for rational tangles: applications to DNA recombination, Math. Proc. Camb. Phil. Soc. 108 (1990), 489-515.

protein = three dimensional ball

protein-bound DNA = strings.

Protein-DNA complex

Heichman and Johnson


Slide5 l.jpg

Solving tangle equations applications to DNA recombination,


Slide6 l.jpg

Path of DNA within the Mu Transpososome Transposase Interactions Bridging Two Mu Ends and the Enhancer Trap Five DNA Supercoils

Shailja Pathania, Makkuni Jayaram and

Rasika M Harshey


Slide7 l.jpg

Interactions of Phage Mu Enhancer and Termini that Specify the Assembly of a Topologically Unique Interwrapped Transpososome

Zhiqi Yin, Asaka Suzuki, Zheng Lou,

Makkuni Jayaram and Rasika M. Harshey


Slide8 l.jpg

Older Model: the Assembly of a Topologically Unique Interwrapped Transpososome

Newer Model:


A difference topology experiment l.jpg
A difference topology experiment: the Assembly of a Topologically Unique Interwrapped Transpososome


Slide15 l.jpg

x the Assembly of a Topologically Unique Interwrapped Transpososome 2

x2

x1

x1

x3

x3

x2 + x3 = 4


Slide16 l.jpg

x the Assembly of a Topologically Unique Interwrapped Transpososome 2

x1

x3

x2 + x3 = 4

x1 + x3 = 3

x1 + x2 = 3

implies

x1 = 1,

x2 = 2,

x3 = 2

Thus T =


Slide18 l.jpg

Theorem [ the Assembly of a Topologically Unique Interwrapped Transpososome Darcy, I. K., Luecke, J., Vazquez, M., Tangle analysis of difference topology experiments: applications to a Mu protein-DNA complex]: If T is a solution to the Mu-Cre equations, and if either

1.) T is rational or split or has parallel strands or

2.) If T has fewer than 9 crossings,

Then

T =

(assuming a particular handedness of the products)


Slide19 l.jpg

TopoICE in the Assembly of a Topologically Unique Interwrapped Transpososome

Rob Scharein’s

KnotPlot.com


Slide20 l.jpg

3D visualization software to analyze topological outcomes of topoisomerase reactions

I. K. Darcy,

R. G. Scharein and A. Stasiak Nucleic Acids Research 2008 36(11):3515-3521


Slide21 l.jpg

Cover topoisomerase reactions: Visual presentation of knot distance metric created using the software TopoICE-X within KnotPlot. A pair of knots in this graph is connected by an edge if they can be converted into one another via a single intersegmental passage. This graph shows all mathematically possible topoisomerase reaction pathways involving small crossing knots. Darcy et al. (Nucleic Acids Res., 2008; 36: 3515–3521).


Slide22 l.jpg

Topoisomerase II performing a crossing change on DNA: topoisomerase reactions

Cellular roles of DNA topoisomerases: a molecular perspective, James C. Wang, Nature Reviews Molecular Cell Biology 3, 430-440 (June 2002)
