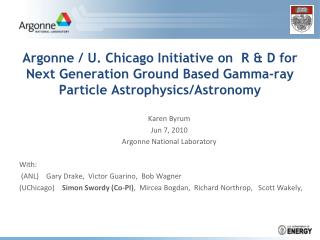

Argonne / U. Chicago Initiative on R & D for Next Generation Ground Based Gamma-ray Particle Astrophysics/Astronomy

Karen Byrum

Jun 7, 2010

Argonne National Laboratory

With:

(ANL) Gary Drake, Victor Guarino, Bob Wagner

(UChicago) Simon Swordy (Co-PI), Mircea Bogdan, Richard Northrop, Scott Wakely,

outline
Outline

Cosmic Particle Physics/ Astronomy

Strategic Motivation and Synergies

Opportunities and Competition

This Proposal: Development of Telescope Mechanical Structures & Development of Camera DAQ & Triggering

Summary

slide3

Cosmic Particle Physics/astronomy

(E > 0.1 GeV)

Supernova remnants

Starburst galaxies

Dark accelerators

Molecular Clouds

Pulsars, Pulsar Wind Nebula

Galactic DM clumps

Galatic center

DM profile in dwarf galaxies

Cosmic Particle Origin

> 100 sources (E > 200 GeV)

Dark Matter

Ext. Gal. Backg. Light

Axion-Like Particle

Lorentz Inv. Violation

GRBs

AGNs

Cosmic Ray Composition

Direct Cherenkov

outline1
Outline

Cosmic Particle Physics/ Astronomy

Strategic Motivation and Synergies

Opportunities and Competition

This Proposal: Development of Telescope Mechanical Structures & Development of Camera DAQ & Triggering

Summary

slide5

Strategic Motivation and Synergies

Current Generation Instruments

HESS, VERITAS:

Sensitivity ~ 1% Crab in 20 – 30 h

Erange ~ 100 GeV – 100 TeV

Aeff ~ 100,000 m2

Angular resolution ~ 0.1o

MAGIC-II:

Ethres ~ 25 GeV

VERITAS is currently the most sensitive TeV Observatory in the World!

UChicago – Founding Member ; Argonne joined 2005

veritas
VERITAS

TrICE

VERITAS: More than 20 refereed publications in the last 2 years.

Dark Matter Science WG – Wagner (ANL) co-convener

AstroParticle WG – Wakely (UChicago) convener

UChicago – HV system, DAQ hardware/software

Argonne – Trigger Upgrade

TrICE Camera

  • TrICE (Track Imaging Cherenkov Experiment) Argonne,UChicago,Utah
  • Prototype Experiment had several goals:
  • Direct Cherenkov Science
  • Camera R&D for Future Gamma-ray and Direct Cherenkov Experiments.

6

outline2
Outline

Cosmic Particle Physics/ Astronomy

Strategic Motivation and Synergies

Opportunities and Competition

This Proposal: Development of Telescope Mechanical Structures & Development of Camera DAQ & Triggering

Summary

slide9
3.5

Increased Field of View (3.5 deg -> 8 deg)

Improved Angular Resolution

Reduced Camera Plate Scale

outline3
Outline

Cosmic Particle Physics/ Astronomy

Strategic Motivation and Synergies

Opportunities and Competition

This Proposal: Development of Telescope Mechanical Structures & Development of Camera DAQ & Triggering

Summary

11 5 meter sc mechanical design this proposal
11.5 Meter SC Mechanical Design – This Proposal

ANL (Mech. Structure)

UChicago (Camera box)

UCLA optics

technical advances needed
Technical Advances Needed

Current-gen

~500 Pixels

~500 MHz

~10000 Pixels

~1000 MHz

Next-gen

Recall TrICE (ANL/UChicago Camera Prototype

64-channel, 1GSPS, 12-bit readout modules

Self-contained, modular camera planes

Order 10k channels

electronics design
Electronics Design

DRS4

  • 64-channel prototype board with DRS ASIC
    • 4 copies of an independent 16-channel daughter board + master control logic
    • Each board has integrated trigger, calibration and ADC readout
      • 12bit, 2 us depth at 1 GSPS
    • Testing now underway

This Proposal:

    • Design of system interface to an active front-end
    • And connection to a trigger
outline4
Outline

Cosmic Particle Physics/ Astronomy

Strategic Motivation and Synergies

Opportunities and Competition

This Proposal: Development of Telescope Mechanical Structures & Development of Camera DAQ & Triggering

Summary & Future Plans

summary and future plans
Summary and Future Plans

Complete Conceptual Design of SC Telescope integrating ANL Dish and UChicago Camera Box/Mount; Build a “Mock-up” structure for simple tests and proof of principle.

Complete DAQ readout board for one camera module; begin a system conceptual design interfacing camera front-end DAQ to an active front end and a topological like trigger.
