Presentation Transcript

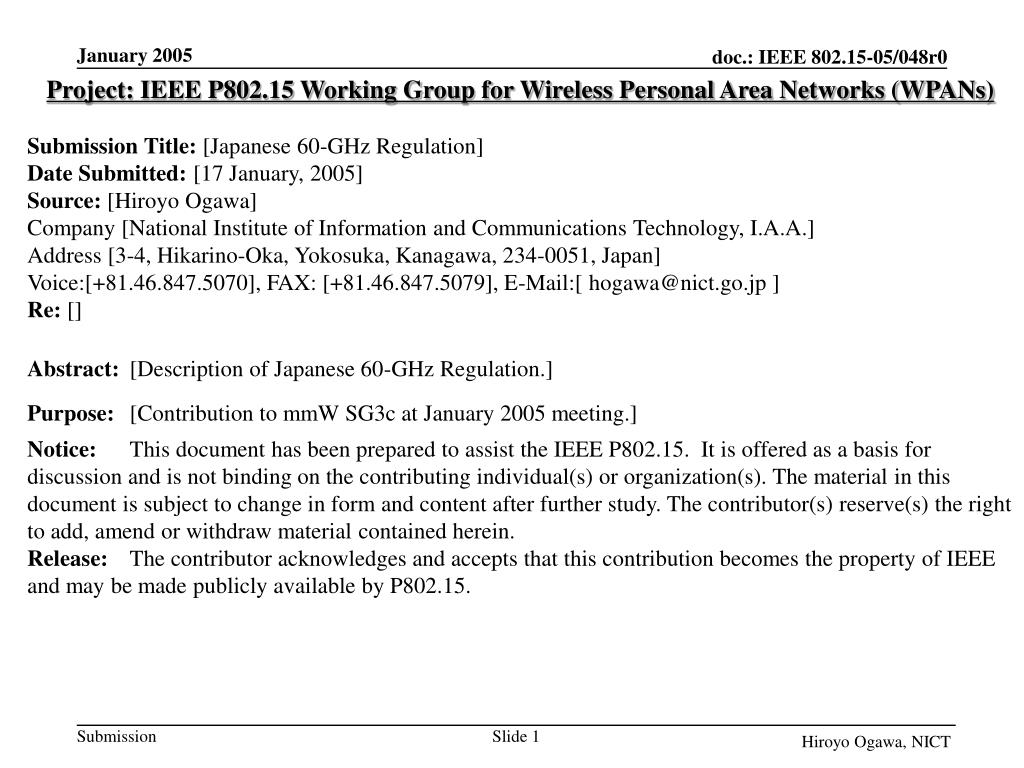

  1. Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [Japanese 60-GHz Regulation] Date Submitted: [17 January, 2005] Source: [Hiroyo Ogawa] Company [National Institute of Information and Communications Technology, I.A.A.] Address [3-4, Hikarino-Oka, Yokosuka, Kanagawa, 234-0051, Japan] Voice:[+81.46.847.5070], FAX: [+81.46.847.5079], E-Mail:[ hogawa@nict.go.jp ] Re: [] Abstract:[Description of Japanese 60-GHz Regulation.] Purpose: [Contribution to mmW SG3c at January 2005 meeting.] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Hiroyo Ogawa, NICT

  2. Collusion Avoidance Radar Frequency Band 60 61 GHz After August 2000 Licensed Band Unlicensed Band 54.25 59 66 GHz Hiroyo Ogawa, NICT

  3. Japanese Regulation for 60 GHz Unlicensed Band • Main specifications RF frequency 59-66 GHz Maximum output power 10 mW Maximum antenna gain 47 dBi Frequency stability within +/-500 ppm Maximum Bandwidth 2.5 GHz Spurious radiation strength 100mW or less Other items Basically not specified Hiroyo Ogawa, NICT

  4. Japanese Regulation for 60 GHz Licensed Band • Main specifications RF frequency 54.25-59 GHz Maximum output power 100 mW Minimum antenna gain 20 dBi Frequency stability within +/-200 ppm Spurious radiation strength 50mW or less Hiroyo Ogawa, NICT

  5. European Spectrum Allocation (59.3- 66.0GHz) by 2008 (Source : European Frequency Allocation Table issued by CEPT) 59.0 66.0(GHz) 59.3 62.0 63.0 64.0 65.0 Fixed Fixed Inter-Satellite Mobile(5.558) Mobile except Aeronautical Space research (Vehicle radar (*2)) Earth Exploration satellite Earth Exploration satellite RADIOLOCATION (5.559) Space research SRD (*1) (5.138) 5.138 : This frequency band is designated for ISM applications. The use of this frequency band shall be subject to special authorisation by the administration concerned, in agreement with other administrations whose radiocommunication services might be affected. In applying this provisions shall have due regard to the latest relevant ITU-R recommendations. 5.558 : Stations in the aeronautical mobile service may be operated subject to not causing harmful interference to the inter-satellite service. 5.559 : Airbone radars in the radiolocation service may be operated subject to not causing harmful interference to the inter-satellite service. (*1) : Non specific short range device. See ERC recommendation 70-03 for (May, 2003) (*2) : Road Transport Traffic Telematics (RTTT). See ECC/DEC/(02)01 Ref. 15-03-0360-00-mmwi-millimeter-wave-frequency-allocation-in-europe Hiroyo Ogawa, NICT
