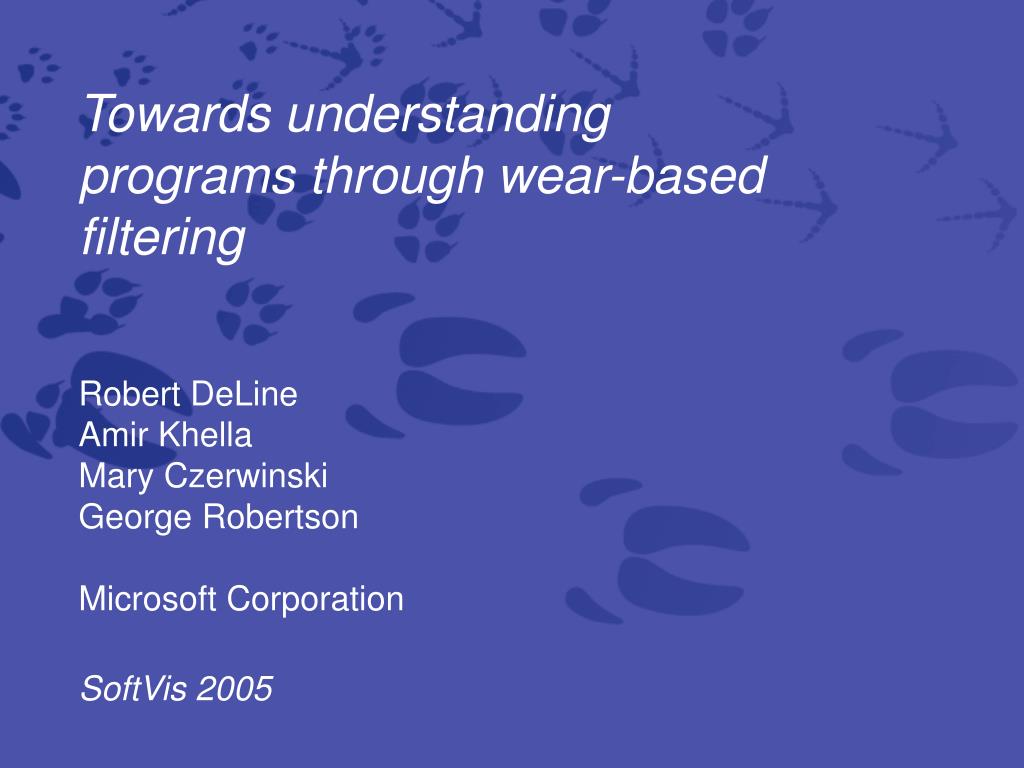

towards understanding programs through wear based filtering

Towards understanding programs through wear-based filtering

Robert DeLine

Amir Khella

Mary Czerwinski

George Robertson

Microsoft Corporation

SoftVis 2005

developers often change unfamiliar code
Developers often change unfamiliar code
  • Today’s business makes it unavoidable.
    • Team membership is always changing
    • Separate teams create features and fixes
    • Security teams consult across products
    • Teams consume outsourced products
  • How could today’s tools be better for this task?
    • We studied programmers to find usability issues
    • We suggest an approach for improving tools

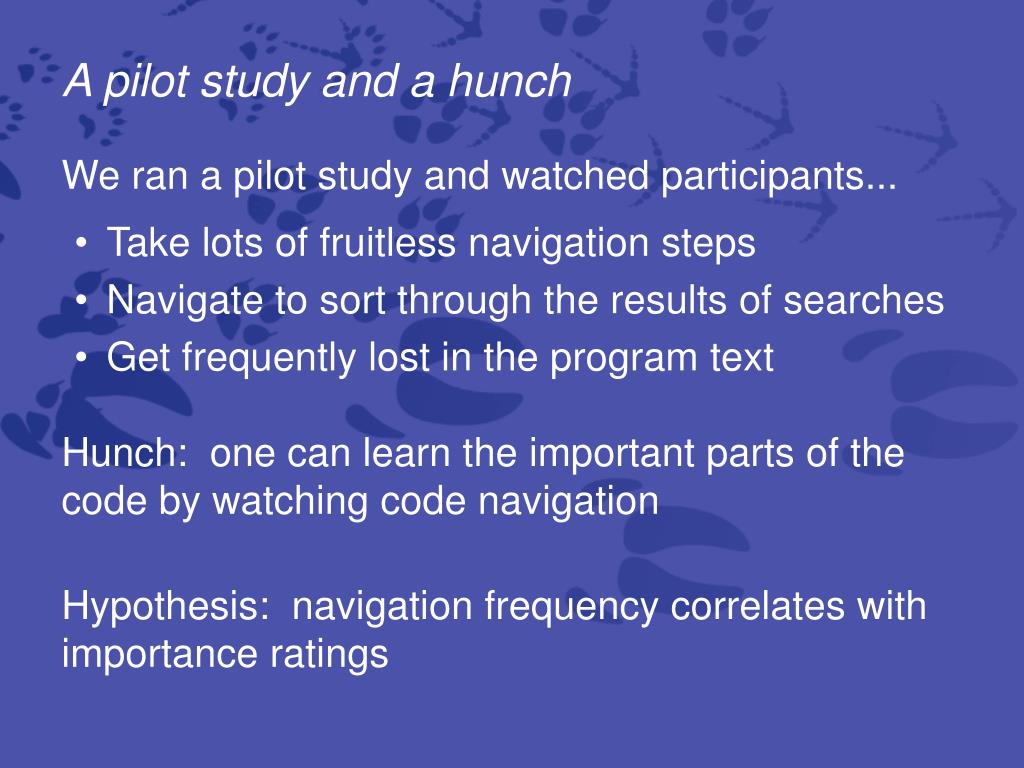

a pilot study and a hunch
A pilot study and a hunch
  • We ran a pilot study and watched participants...
    • Take lots of fruitless navigation steps
    • Navigate to sort through the results of searches
    • Get frequently lost in the program text
  • Hunch: one can learn the important parts of the code by watching code navigation
  • Hypothesis: navigation frequency correlates with importance ratings
formative observational study
Formative, observational study
  • Participants run singly in two hour sessions
    • 10 min code exploration, 20 min per task
    • We logged navigation and videoed
    • Tasks followed by quiz and ratings questionnaire
  • Dependent measures
    • Code traversal paths
    • Subjective importance ratings (1 to 5)
    • Plus, task completion and quiz scores

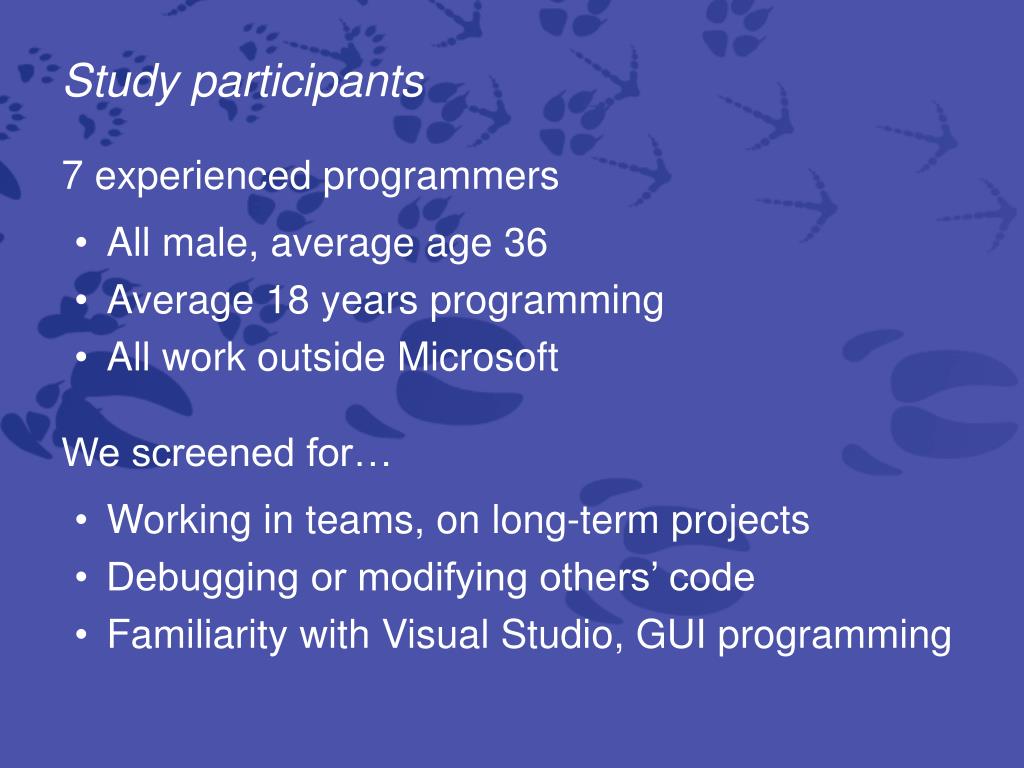

study participants
Study participants
  • 7 experienced programmers
    • All male, average age 36
    • Average 18 years programming
    • All work outside Microsoft
  • We screened for…
    • Working in teams, on long-term projects
    • Debugging or modifying others’ code
    • Familiarity with Visual Studio, GUI programming
participants modified a tetris game
Participants modified a Tetris game
  • Code selected for familiarity, size, and high rating
  • Two comprehension tasks, two modification tasks

1 Which method chooses the next game piece?

2 Which method causes pieces to fall faster?

3 Add the missing square game piece.

4 Add a command to make the piece fall immediately to the bottom.

importance ratings do correlate to navigation frequency
Importance ratings do correlate to navigation frequency
  • Pearson product moment correlation, r=0.79, p<0.01
study results
Study results
  • Poor completion of modification tasks
    • 7 / 7 completed tasks 1 and 2
    • 1 / 7 completed task 3
    • 1 / 7 completed task 4 (different participant)
  • Participants used different learning styles
    • All started by exploring control flow
    • 2 / 7 used top-down, hypothesis-driven approach
    • 5 / 7 used bottom-up approach and visited more code
usability problems
Usability problems
  • Participants wanted more overview information
    • Architectural diagrams, e.g. UML class diagrams
    • Descriptions of the relationships among components
    • Short summaries of important algorithmic steps
  • Participants got lost in the program text
    • Had difficulty managing many open documents
    • Needed extra navigation to explore search results
    • Wanted help in tracking exploration (bread crumbs)
  • Participants overused short-term memory
    • Difficulty recognizing previously visited code
    • Annoyance when they couldn’t use spatial memory
how can we make the task easier
How can we make the task easier?
  • Let’s use navigation data for social filtering
    • The more often code is visited, the greater its importance for a newcomer.
    • The more often parts of code are visited in succession, the more related they are.
  • Team Tracks extends Visual Studio
    • Filters file & class browsers to most visited items
    • Recommends related code based on context
conceptual design not yet implemented
Conceptual design not yet implemented
  • UML class diagram with navigation heat map
closest related work
Closest related work
  • Read wear/edit wear Hill, Hollan, Wroblewski, McCandless ’92
    • Introduced idea of tracking document usage
    • Focus on team awareness
  • Project Watcher Schneider, Gutwin, Penner, Paquette ’04
    • Applied read wear/edit ware idea to software artifacts
    • Focus on team awareness
  • ROSE Zimmermann, Weißgerber, Diehl, Zeller ’04
    • Find change patterns in source history
    • Focus on recommending related code
  • Mylar Kersten, Murphy ’05
    • Track file-level navigation per individual user
    • Focus on managing user’s working set

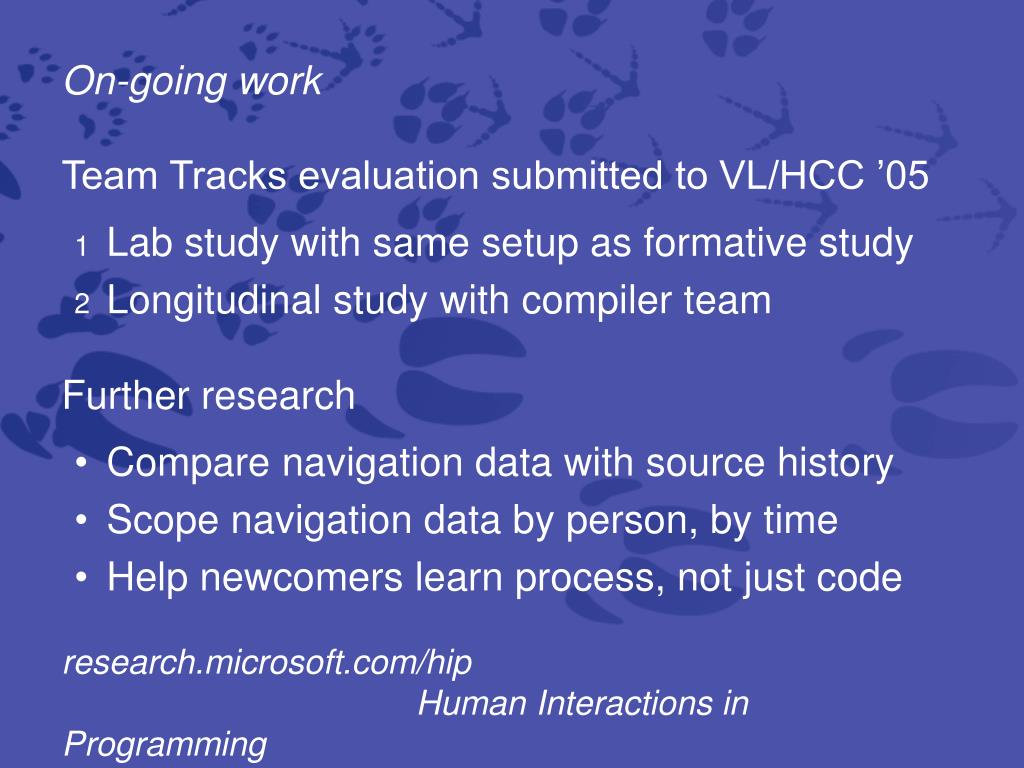

on going work
On-going work
  • Team Tracks evaluation submitted to VL/HCC ’05

1 Lab study with same setup as formative study

2 Longitudinal study with compiler team

  • Further research
    • Compare navigation data with source history
    • Scope navigation data by person, by time
    • Help newcomers learn process, not just code
  • research.microsoft.com/hip Human Interactions in Programming
