Shape Distortion
  • Shape distortion is the misrepresentation of the object compared to the image.
  • Most shape distortion is the result of angulation of the tube or film.
  • This can be beneficial.If we can move overlying anatomy or open disc spaces, shape distortion is good.
shape distortion2
Shape Distortion
  • The ideal x-ray image would be to see the area of interest free of overlying structures.
  • A cephalad tube angle is toward the head.
  • A caudal tube angle is toward the feet.
  • The direction and amount of angulation is determined by the angle of the area of interest.
tube angle cephalad
Tube Angle: Cephalad
  • Tube angled toward head.
  • Reduce SID one inch for every five degrees of tube angulation.
  • Used to get angled body parts perpendicular to film.
cephalad tube angle
Cephalad Tube Angle
  • The amount of tube angle is determined by adding the angle to 90 for erect radiographs.
  • Anterior structures are on top of the image.
  • Posterior structures are projected to the bottom of the image.
cephalad tube angle5
Cephalad Tube Angle
  • This is an A-P Cervical Spine view.
  • The tube angle is 15° cephalad.
  • The tube is set to 105°
  • The central ray is parallel to the lower disc spaces.
tube angle caudal

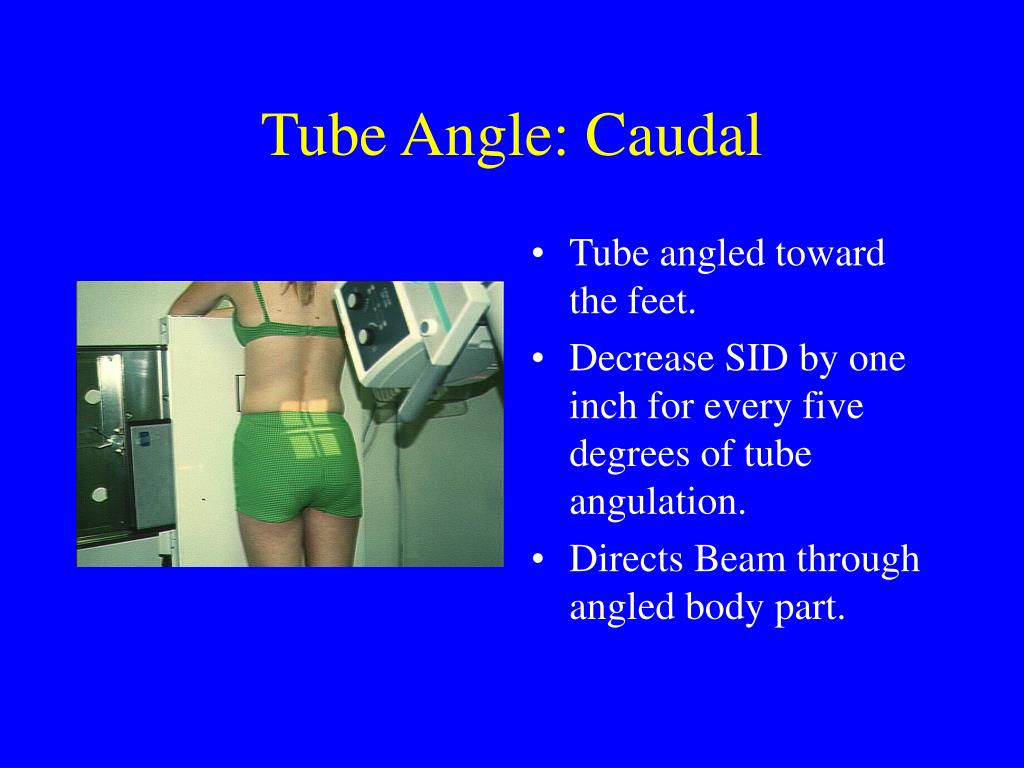

Tube Angle: Caudal
  • Tube angled toward the feet.
  • Decrease SID by one inch for every five degrees of tube angulation.
  • Directs Beam through angled body part.
caudal tube angle

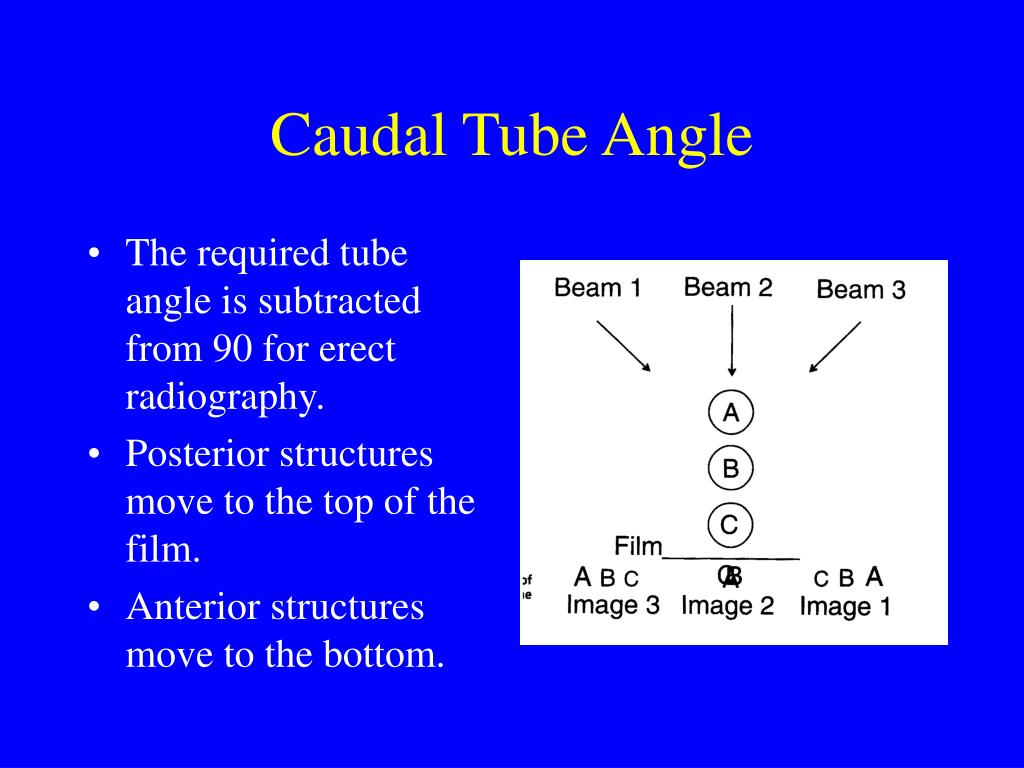

Caudal Tube Angle
  • The required tube angle is subtracted from 90 for erect radiography.
  • Posterior structures move to the top of the film.
  • Anterior structures move to the bottom.
caudal tube angle8
Caudal Tube Angle
  • The patient is positioned A-P.
  • The tube is angled 15° caudal or set to 75°
  • This is the wrong tube angle to see the cervical spine.
tube angulation
Tube Angulation
  • Erect Radiography requires adding or subtracting the required angle from 90 degrees.
  • Cephalad angles: Add required angle to 90 degrees.
  • Caudal angles: Subtract required angle from 90 degrees.
tube angles

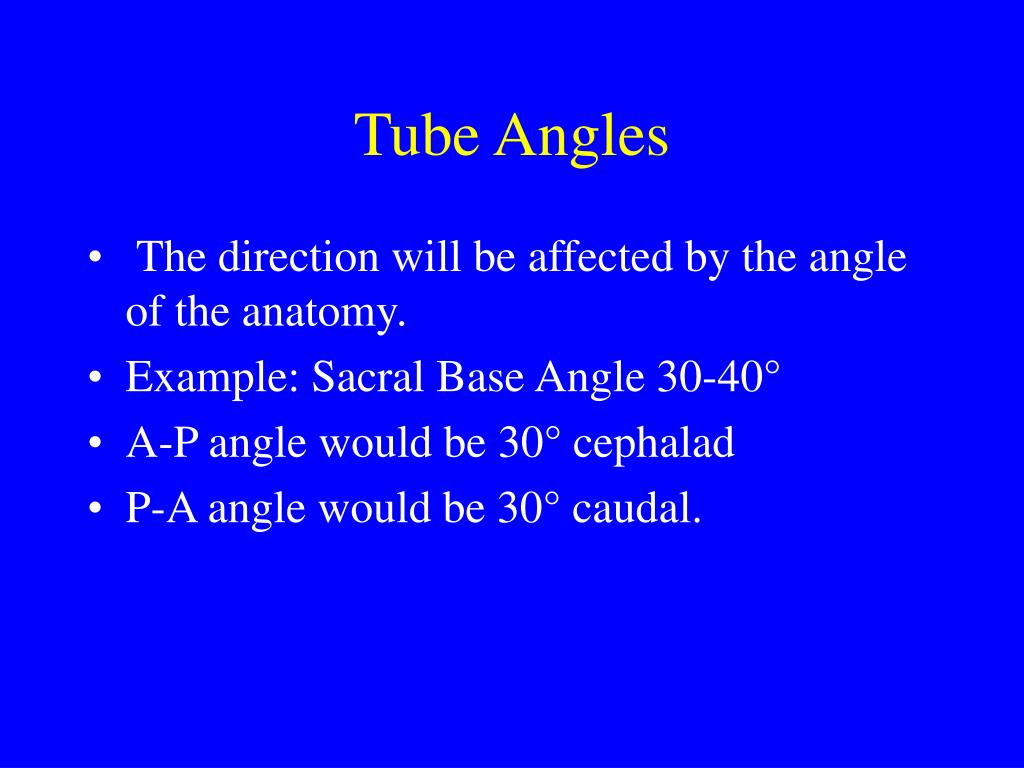

Tube Angles
  • The direction will be affected by the angle of the anatomy.
  • Example: Sacral Base Angle 30-40°
  • A-P angle would be 30° cephalad
  • P-A angle would be 30° caudal.
no tube angle
No Tube Angle
  • If we wanted to see the top two cervical vertebra, no tube angle is needed.
  • If the mouth was open, we would see the dens well without a tube angle.
  • No shape distortion.
p a skull film

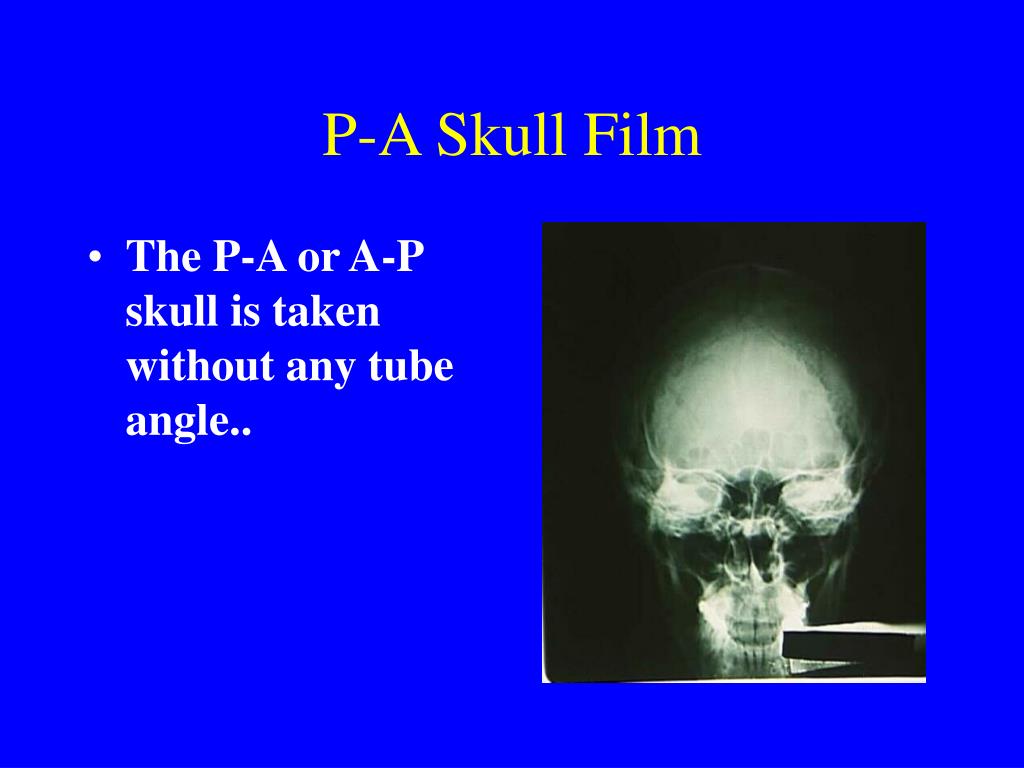

P-A Skull Film
  • The P-A or A-P skull is taken without any tube angle..
chamberlain townes
Chamberlain-Townes
  • The Townes Projection is part of a routine skull series.
  • The skull is in the same relative position as the P-A view
  • The tube is angled to throw the anterior part of the skull away from the occipital region of the skull.
tube angle observations

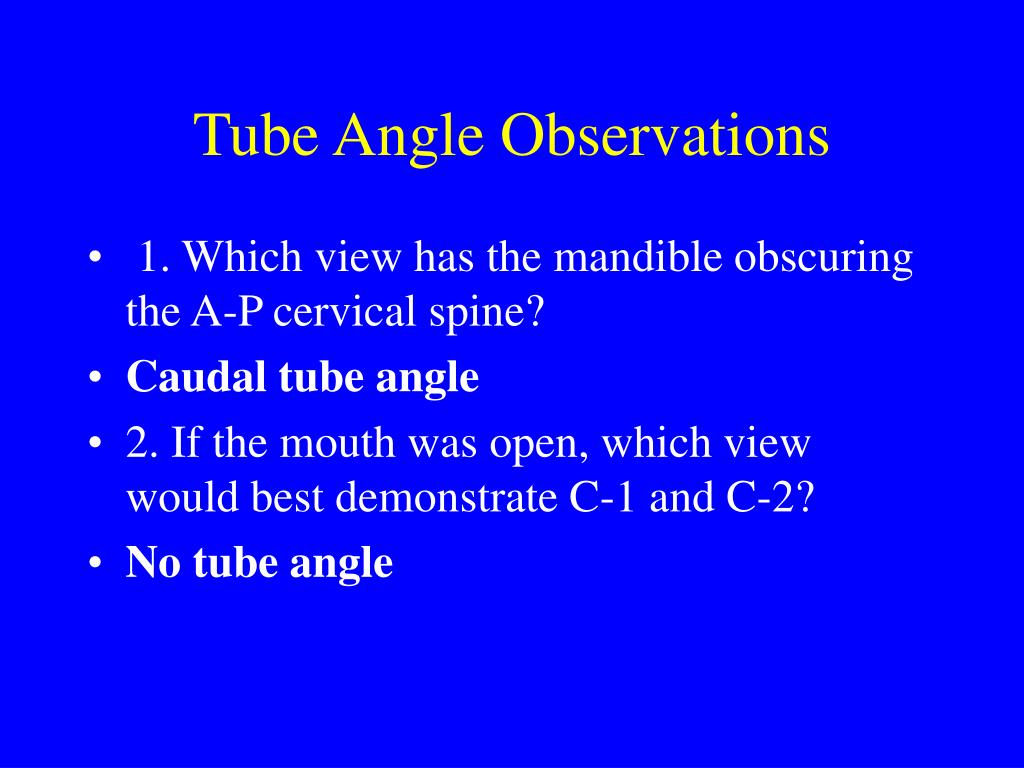

Tube Angle Observations
  • 1. Which view has the mandible obscuring the A-P cervical spine?
  • Caudal tube angle
  • 2. If the mouth was open, which view would best demonstrate C-1 and C-2?
  • No tube angle
tube angle observations15
Tube Angle Observations
  • 3. Which view best demonstrates the cervical disc spaces?
  • Cephalad Tube Angle
  • 4. When the tube was set to 90° was there any tube angle in relation to the patient or film?
  • No
tube angle observations16
Tube Angle Observations
  • 5. When the tube was set at 105° was this a cephalad or caudal angle?
  • Cephalad
  • 6. What do we need to do to account for tube angles with erect radiography.
  • Add angle to 90° for cephalad angles.
    • Subtract angle from 90° for caudal angles.
beam centering
Beam Centering
  • The central ray must be centered to the area of interest .
  • If the beam is not centered, the shape of the area will be distorted.
shape distortion18

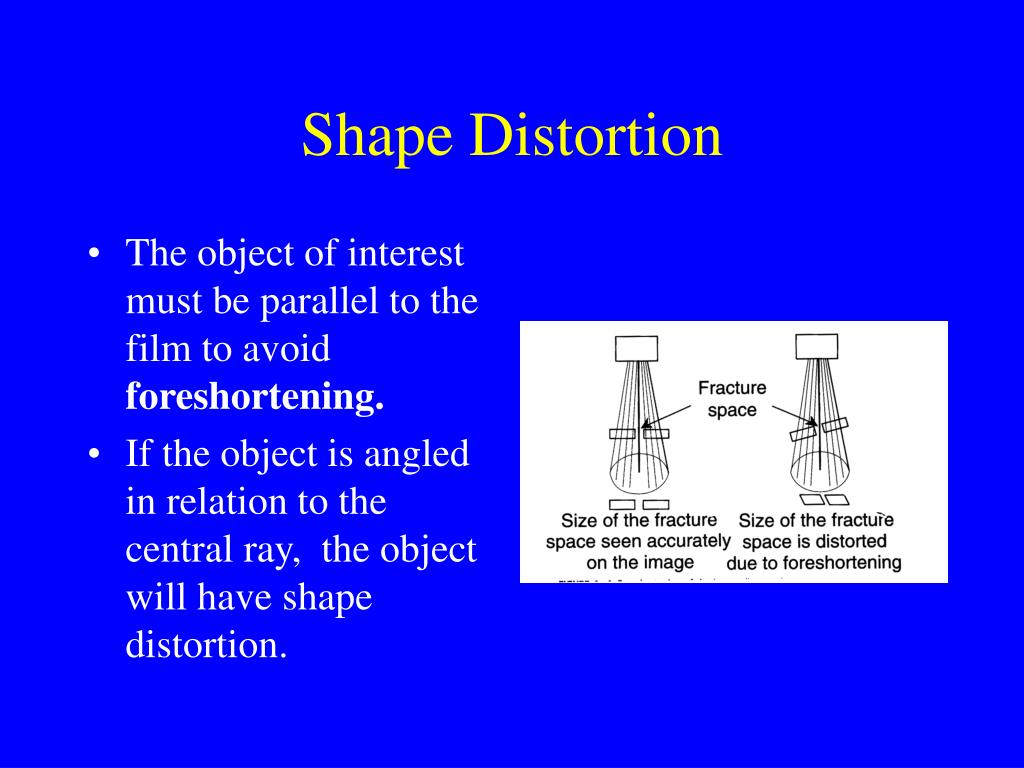

Shape Distortion
  • The object of interest must be parallel to the film to avoid foreshortening.
  • If the object is angled in relation to the central ray, the object will have shape distortion.
beam centering19
Beam Centering
  • The center image has the beam properly aligned.
  • The right and left images have the beam not centered properly.
observations for beam centering
Observations for Beam Centering
  • 1. Which image most accurately demonstrated the true shape of the object?
  • With the beam centered to the object.
  • 2. When the tube is improperly centered too high or too low, what happens to the image.
  • The top structures are projected off center opposite to the direction of tube shift.
