Presentation Transcript
pathway analysis using bioconductor

Pathway analysis using BioConductor

The global test revisited

overview
Overview
  • Introduction
  • Annotation
  • Pathway analysis
  • Demonstration

R User group 6 dec 2005

introduction
Introduction
  • Pathway
    • Set of related genes
      • Functional
      • Structural
    • Described as lists of gene identifiers
  • Micro array
    • 1000s of tests
    • Description
      • Location on chip/slide
      • Sequence ID
    • On chip replication

R User group 6 dec 2005

feature description
Feature description
  • Proprietary ID (Affymetrix/Agilent)
  • GenBank, RefSeq, EnsembleID
  • Symbol, LocusLink /Entrez Gene,Unigene
  • SwissProt
  • Chromosomal location
  • EC number, GO, KEGG

R User group 6 dec 2005

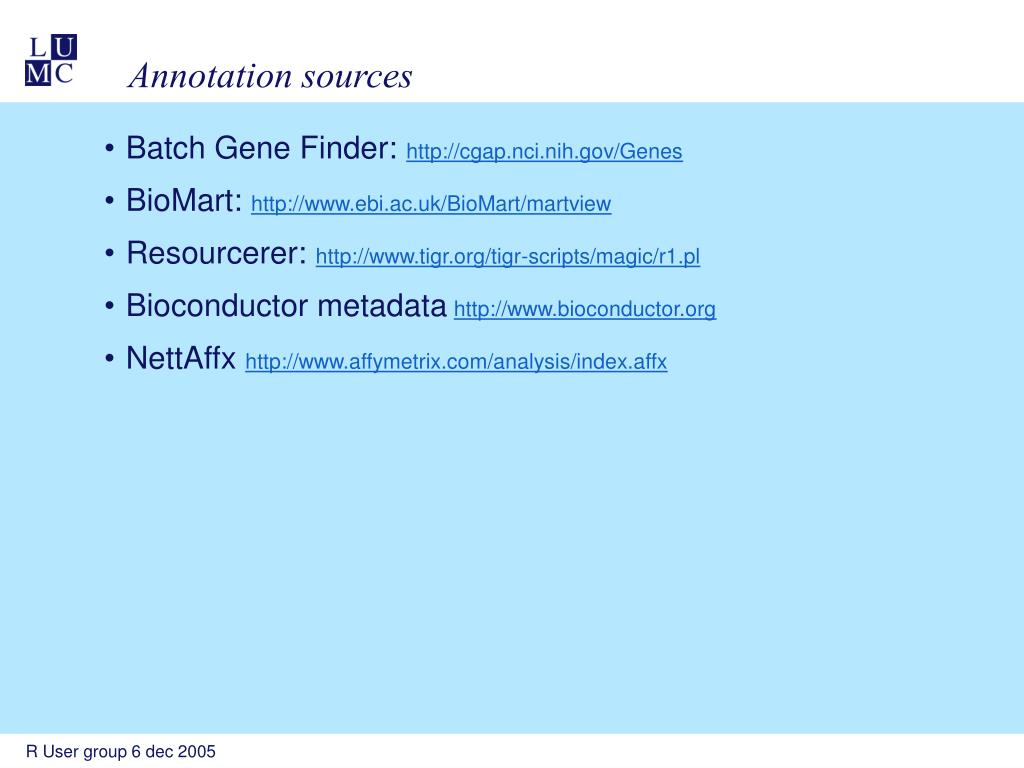

annotation sources
Annotation sources
  • Batch Gene Finder: http://cgap.nci.nih.gov/Genes
  • BioMart: http://www.ebi.ac.uk/BioMart/martview
  • Resourcerer: http://www.tigr.org/tigr-scripts/magic/r1.pl
  • Bioconductor metadatahttp://www.bioconductor.org
  • NettAffx http://www.affymetrix.com/analysis/index.affx

R User group 6 dec 2005

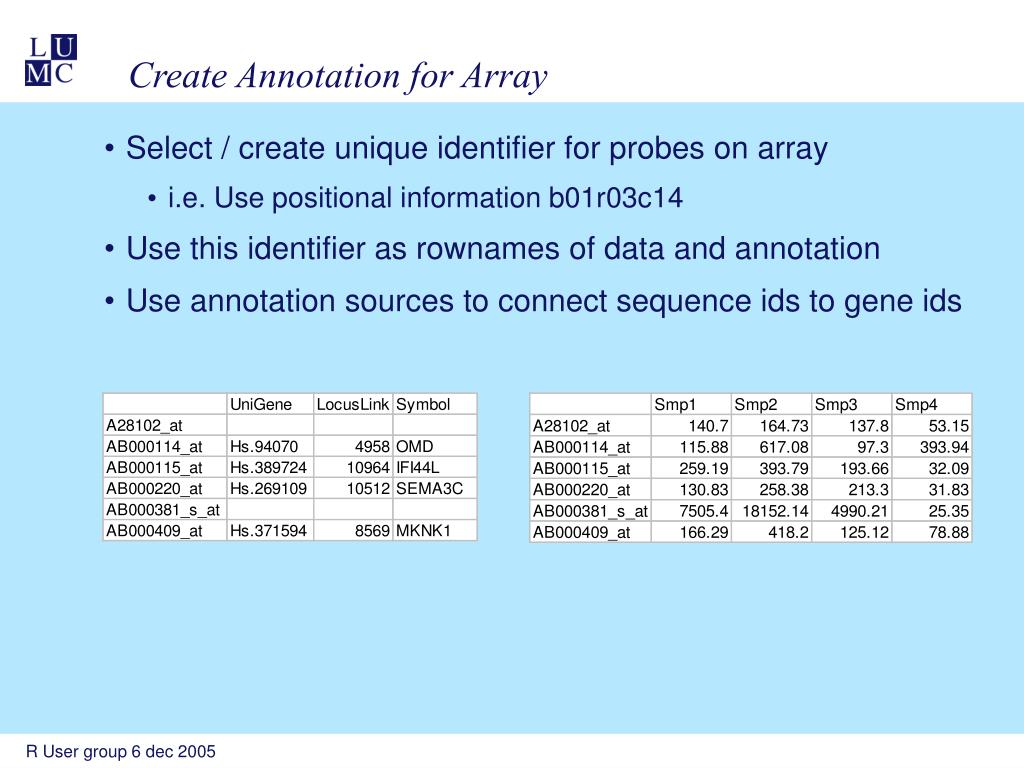

create annotation for array
Create Annotation for Array
  • Select / create unique identifier for probes on array
    • i.e. Use positional information b01r03c14
  • Use this identifier as rownames of data and annotation
  • Use annotation sources to connect sequence ids to gene ids

R User group 6 dec 2005

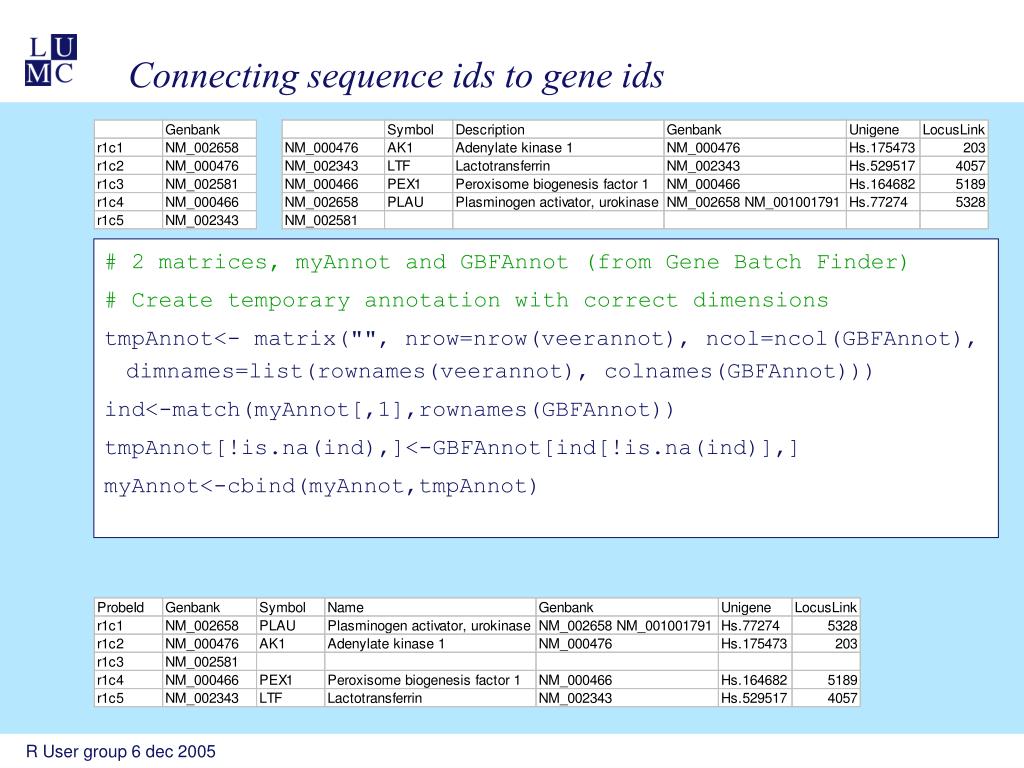

connecting sequence ids to gene ids
Connecting sequence ids to gene ids

# 2 matrices, myAnnot and GBFAnnot (from Gene Batch Finder)

# Create temporary annotation with correct dimensions

tmpAnnot<- matrix("", nrow=nrow(veerannot), ncol=ncol(GBFAnnot), dimnames=list(rownames(veerannot), colnames(GBFAnnot)))

ind<-match(myAnnot[,1],rownames(GBFAnnot))

tmpAnnot[!is.na(ind),]<-GBFAnnot[ind[!is.na(ind)],]

myAnnot<-cbind(myAnnot,tmpAnnot)

R User group 6 dec 2005

selecting probes by pathway
Selecting probes by pathway
  • Using BioConductor metadata package
  • Using BioConductor GO and Mapping

>library(hgu95av2)

>get("GO:0005868",envir=hgu95av2GO2PROBE)

NAS <NA> TAS <NA> TAS ISS

"37300_at" "40318_at" "40319_at" "40949_at" "40950_at" "946_at"

> library(GO)

> ll<-get("GO:0005868",envir=GOLOCUSID)

> rownames(myAnnot)[myAnnot[,”LocusLink”] %in% ll]

[1] "Contig51966_RC" "NM_004411" "Contig47291_RC" "NM_006141"

[5] "NM_014183" "AB002323" "NM_006519"

R User group 6 dec 2005

pathway analysis
Pathway analysis
  • List based methods
  • Order based methods
  • Statistical combination of results

R User group 6 dec 2005

list based pathway analysis
List based Pathway analysis
  • Compare the proportion if differentially expressed genes in a pathway to the proportion on the array
  • R: phyper(), GOHyperG() in GOstats package (BioConductor)
  • phyper(PWde,ARde,ARall-ARde,PWall,lower.tail=FALSE)

>phyper(15,1000,9000,100,lower.tail=FALSE)

[1] 0.03910265

R User group 6 dec 2005

order based analysis
Order based analysis
  • Genes are ordered by difference, from up- to non- to downregulated. Interesting pathways form clusters along this order
  • In R: Gene Set Enrichment Analysis (GSEA) package http://www.broad.mit.edu/gsea/software/software_index.html

R User group 6 dec 2005

statistical combination of results
Statistical combination of results
  • All genes in a pathway contribute their statistical influence
  • In R: globaltest package (BioConductor)

R User group 6 dec 2005

demonstration
Demonstration

R User group 6 dec 2005
