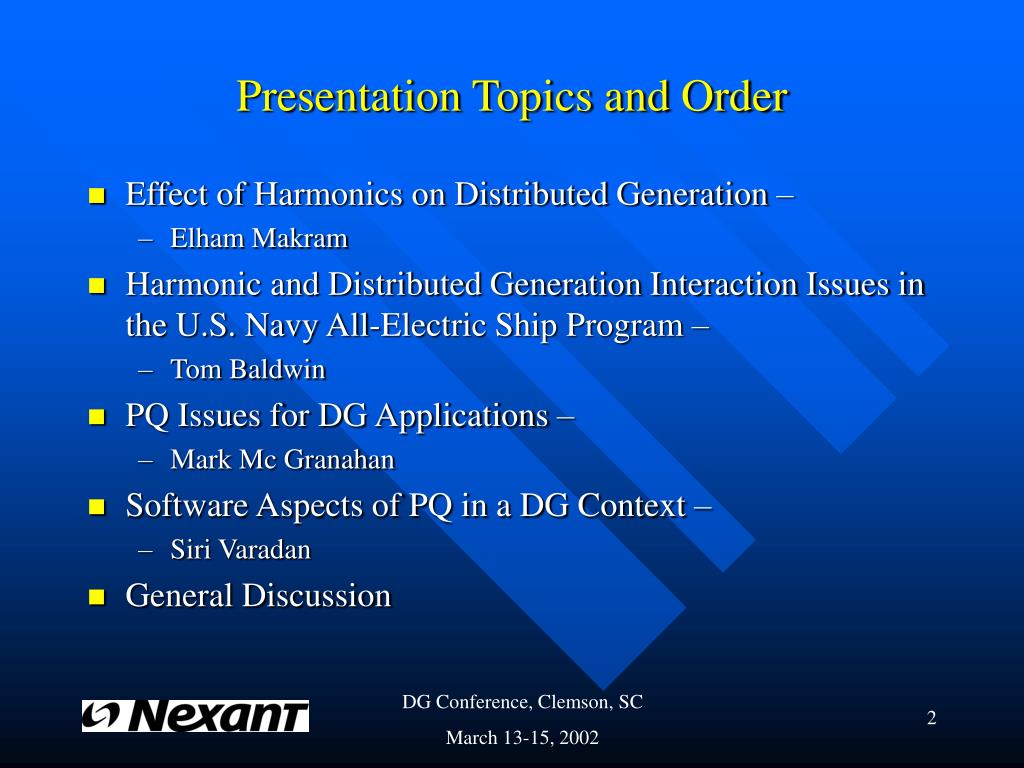

  • Effect of Harmonics on Distributed Generation –
    • Elham Makram
  • Harmonic and Distributed Generation Interaction Issues in the U.S. Navy All-Electric Ship Program –
    • Tom Baldwin
  • PQ Issues for DG Applications –
    • Mark Mc Granahan
  • Software Aspects of PQ in a DG Context –
    • Siri Varadan
  • General Discussion
independent modules to ensure vendor independence in utility wide pq monitoring systems

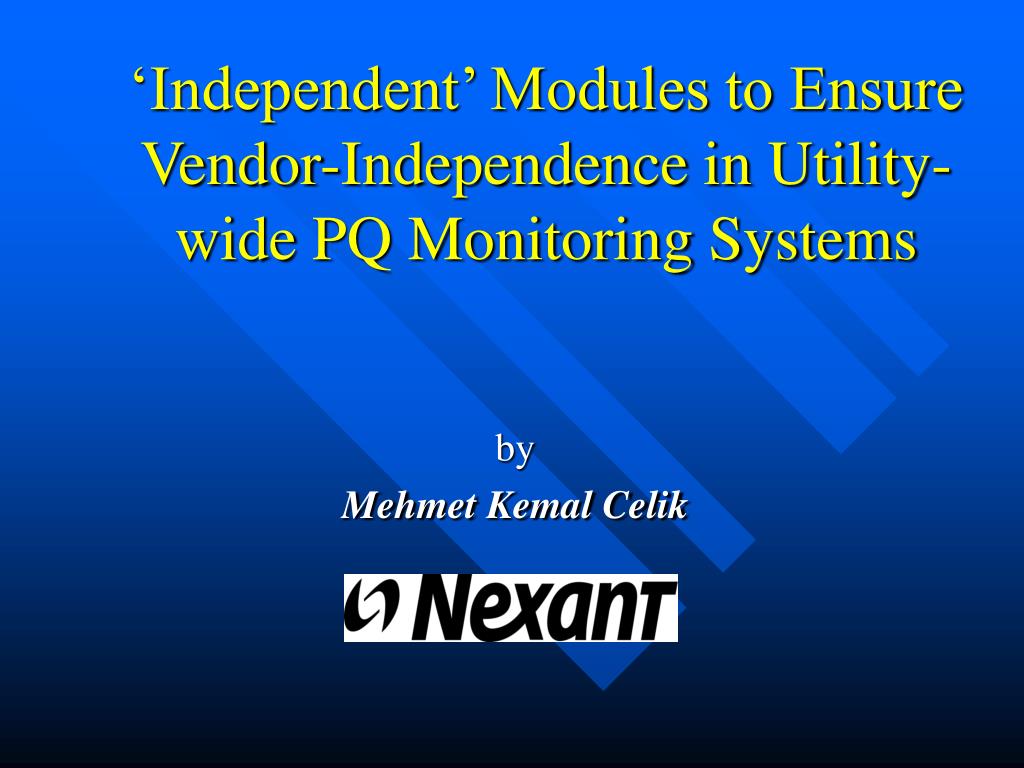

‘Independent’ Modules to Ensure Vendor-Independence in Utility-wide PQ Monitoring Systems

by

Mehmet Kemal Celik

overview of the presentation
Overview of the Presentation
  • Introduction
  • Modular System Design
  • Benefits
  • Functional Design
  • A Customized Analysis Example
  • Conclusions
power quality monitoring systems
Power Quality Monitoring Systems

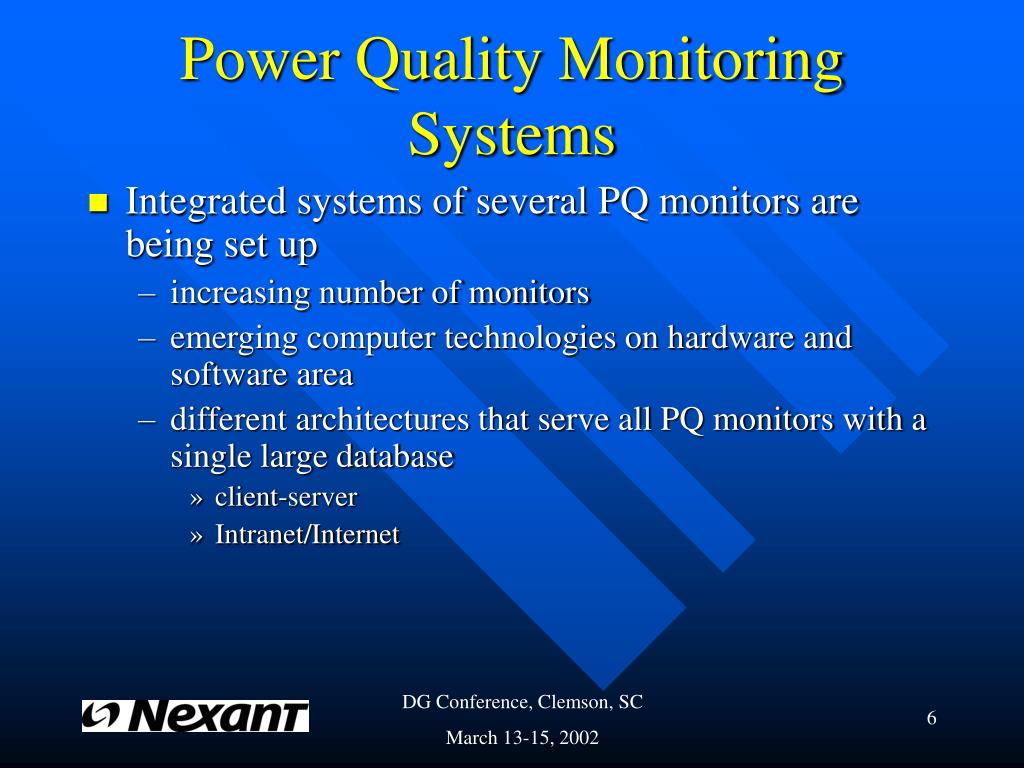

  • Integrated systems of several PQ monitors are being set up
    • increasing number of monitors
    • emerging computer technologies on hardware and software area
    • different architectures that serve all PQ monitors with a single large database
      • client-server
      • Intranet/Internet
power quality monitoring systems7
Power Quality Monitoring Systems
  • Such integrated designs have several advantages
    • efficient and fast analysis of large volumes of data
    • establish centralized PQ data
    • usage of standard PQ indices within the utility
    • standardization of customer complaint evaluation
    • modular, expendable and portable system design
    • reduction in system maintenance and expansion costs
    • standard data analysis tools on LAN/WAN, Intranet, etc.
    • centralized security system
main pq monitoring system components

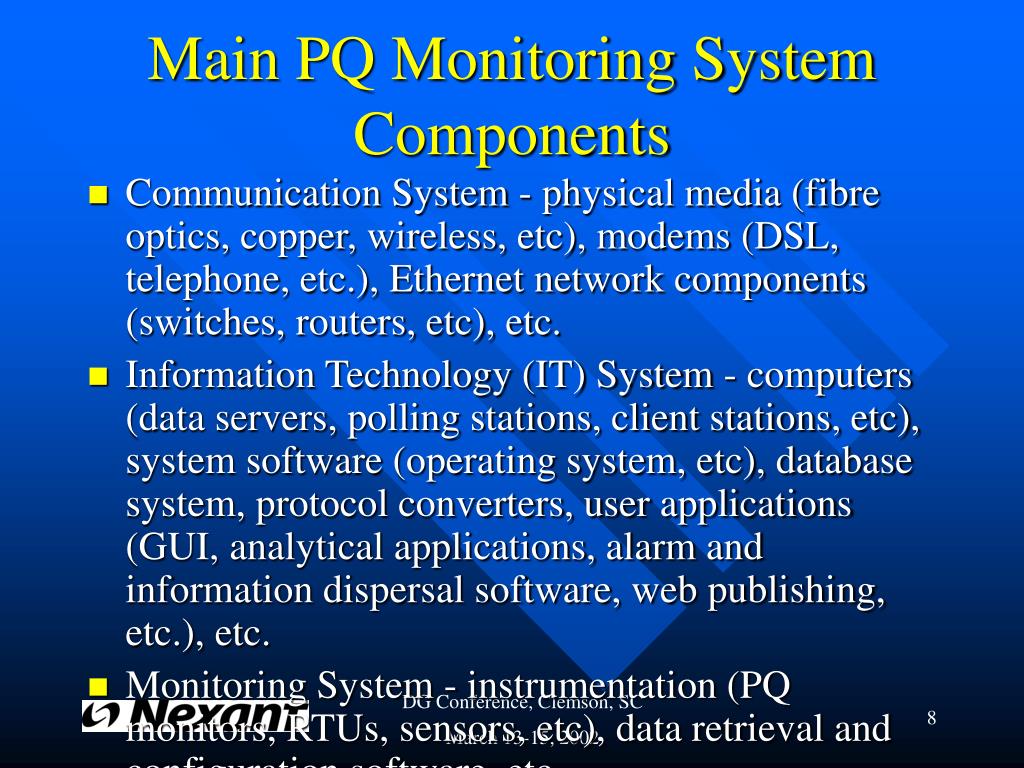

Main PQ Monitoring System Components
  • Communication System - physical media (fibre optics, copper, wireless, etc), modems (DSL, telephone, etc.), Ethernet network components (switches, routers, etc), etc.
  • Information Technology (IT) System - computers (data servers, polling stations, client stations, etc), system software (operating system, etc), database system, protocol converters, user applications (GUI, analytical applications, alarm and information dispersal software, web publishing, etc.), etc.
  • Monitoring System - instrumentation (PQ monitors, RTUs, sensors, etc), data retrieval and configuration software, etc
pq monitoring system components

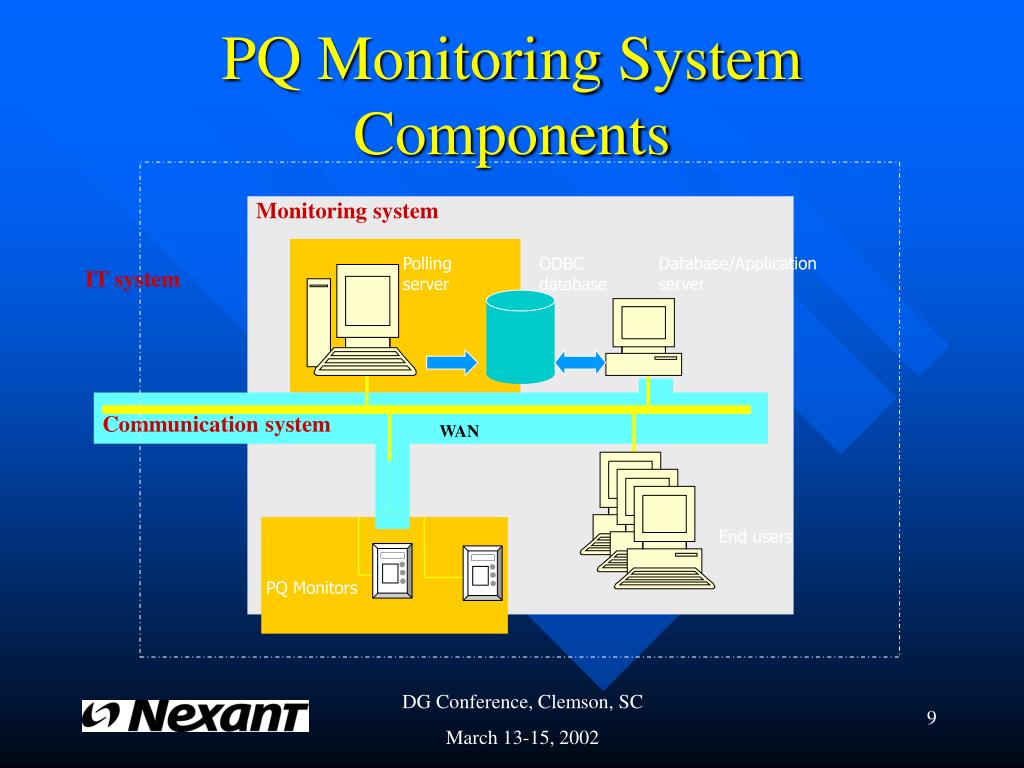

PQ Monitoring System Components

Monitoring system

Polling

server

Database/Application

server

ODBC

database

IT system

Communication system

WAN

End users

PQ Monitors

implementation benefits
Implementation Benefits
  • Removes vendor dependencies - The best alternatives, specific to meet all of the utility’s requirements, are used
  • Easy implementation of analysis applications
    • Analytical applications can be written that use the ‘standardized databases
    • Industry standard and vendor independent applications, each best suited to meet utility’s requirements
  • Ease in implementation of web reporting applications - Latest web hosting and interactive site technologies can be used.
  • Economic benefits - With several alternative systems, price of the individual modules is more competitive
operational benefits
Operational Benefits
  • Maintenance of a standard database
    • Allows cheap and regular maintenance. Facilitates easy database expansion. Single database ensures that there is no duplication of data from all current and potential future power quality monitors.
  • Existing trained personnel can quickly come up to speed with the operation & maintenance of the system - No new elaborate training is necessary
future expansion benefits

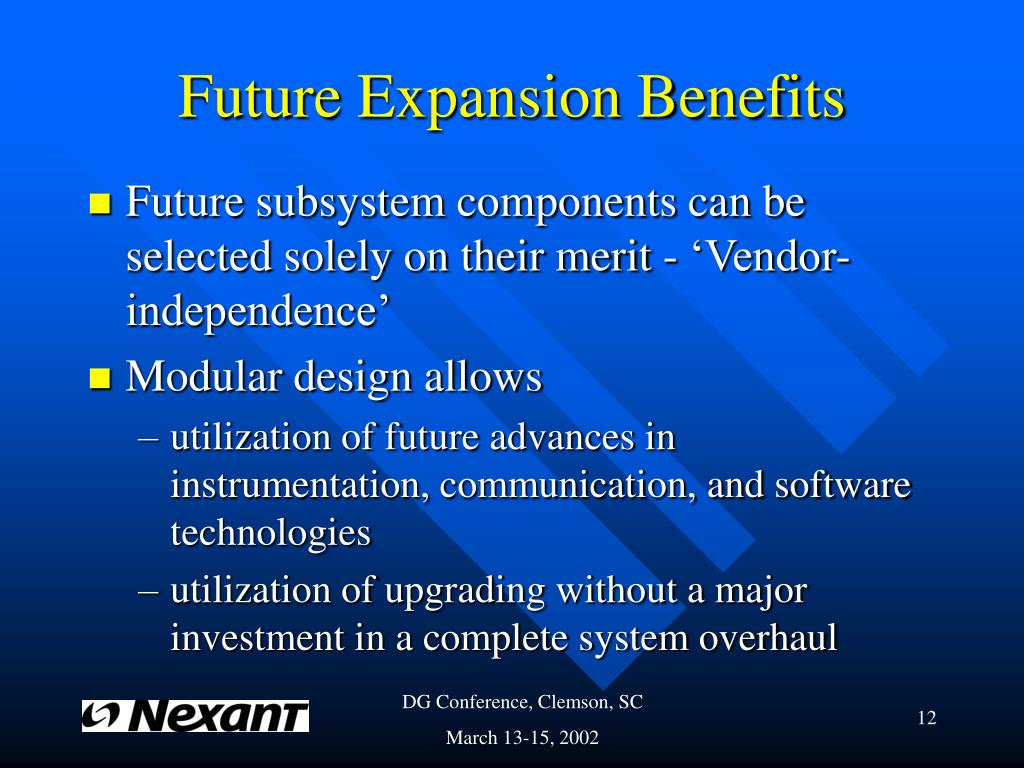

Future Expansion Benefits
  • Future subsystem components can be selected solely on their merit - ‘Vendor-independence’
  • Modular design allows
    • utilization of future advances in instrumentation, communication, and software technologies
    • utilization of upgrading without a major investment in a complete system overhaul
conceptual design
Conceptual Design

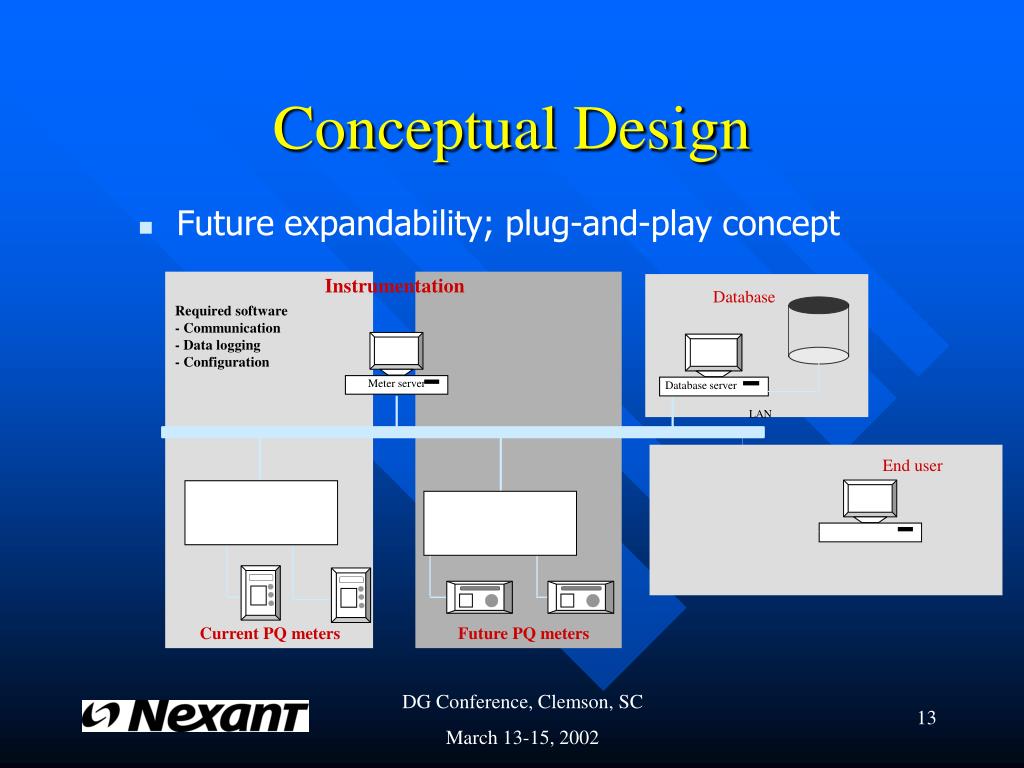

  • Future expandability; plug-and-play concept

Instrumentation

Database

Required software

- Communication

- Data logging

- Configuration

Meter server

Database server

LAN

End user

Fiber Optics and DSL modems

Leased Lines or other media

Current PQ meters

Future PQ meters

software modules

F

3

component

analysis

Data from

Harmonic

Communication server

analysis

Web reporting

‘Basic’ software

is installed on the

ODBC

Communication server

Application

database

server

Event reporting

PQ characterization

Independent software

modules, each of which

Import/Export of data

can be modified/upgraded

to other formats

independently

(

PQDIF

,

COMTRADE

, etc)

Software Modules
data analysis and reporting18
Data Analysis and Reporting
  • Calculation Modules
    • RMS, Root Mean Square, (voltage or current)
    • SARFI
    • Fundamental voltages and currents of Fourier series
    • Total voltage harmonic RMS, etc.
  • Expert system rules constitute a simple if-and-then logic for combining windowed time data with relational and topological data
  • Extract module basically extracts the required portion of the data from database tables
  • Display is in the form of graphs, tables and text
typical customization disturbance aggregation
Typical Customization – Disturbance Aggregation
  • Monitors track individual PQ disturbances
  • A deviation on a single phase at a single instant in time will be recorded as a disturbance
  • An electrical system event may cause multiple disturbances
  • For example, a single event: a tree branch blowing against a 12kV line
    • It can result in voltage sags on more than one phase
    • Sags will be recorded at PQ monitors located at different parts of feeder with small time lags
    • Arcing may generate wave shape faults as well
    • Furthermore, fault current may result in a series of momentary outages, maybe followed by an interruption to service
  • PQ monitoring should be able to relate all disturbances to the actual cause (event)
disturbance aggregation
Disturbance Aggregation
  • Two sets of disturbances, one on feeder 1, and another on feeder 2
    • voltage sag at t = 1 from PQ monitor 2 on feeder 1
    • Voltage sag from PQ monitor 1 at t = 2 on feeder 1
    • Voltage sag from PQ monitor 3 at t = 2.5 on feeder 1
    • Momentary outage from PQ monitor 2 at t = 3.5 on feeder 1
    • Voltage sag from PQ monitor 4 at t = 3.6 on feeder 2
    • Voltage sag from PQ monitor 5 at t = 4 on feeder 2
    • Waveform distortion from PQ monitor 6 at t = 4.5 on feeder 2
disturbance aggregation22
Disturbance Aggregation

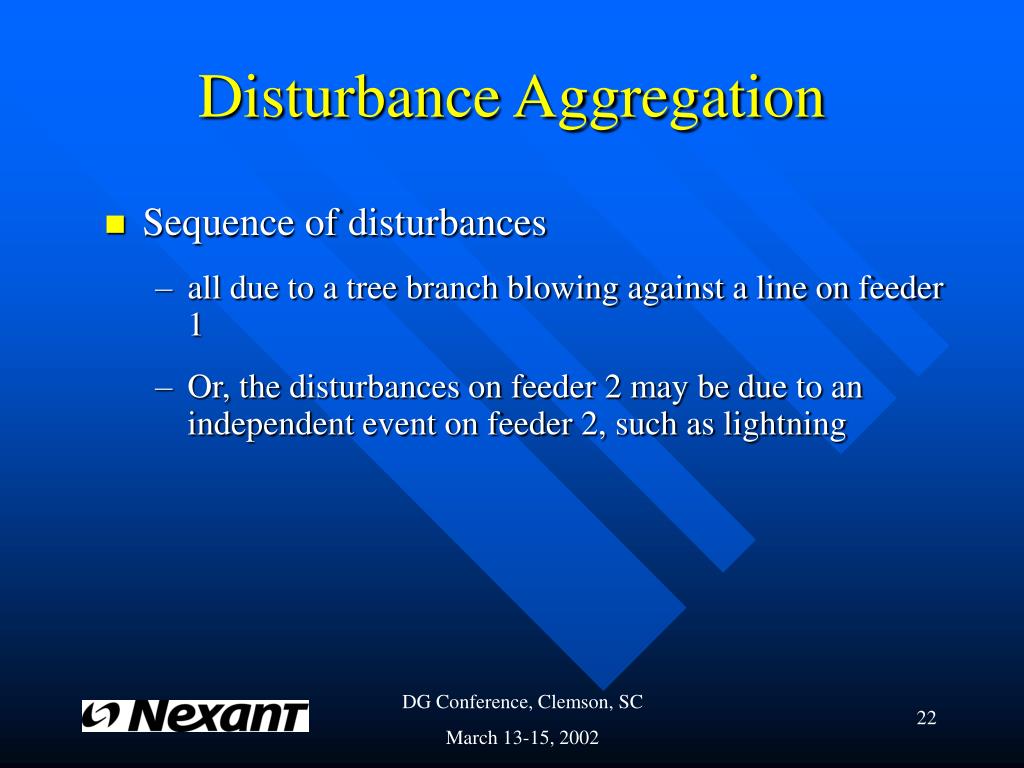

  • Sequence of disturbances
    • all due to a tree branch blowing against a line on feeder 1
    • Or, the disturbances on feeder 2 may be due to an independent event on feeder 2, such as lightning
disturbance aggregation23
Disturbance Aggregation
  • A properly sized moving time window that starts with the first event of the sequence will capture most of the practical situations, such as
    • event data that are from different phases on the same monitor
    • that are far apart from each other only by infinitesimal time intervals, etc.
disturbance aggregation24
Disturbance Aggregation

However, fixed size moving time windowing may cause inaccurate aggregation of events if it is not properly sized and used as the only decision criteria

disturbance aggregation25
Disturbance Aggregation

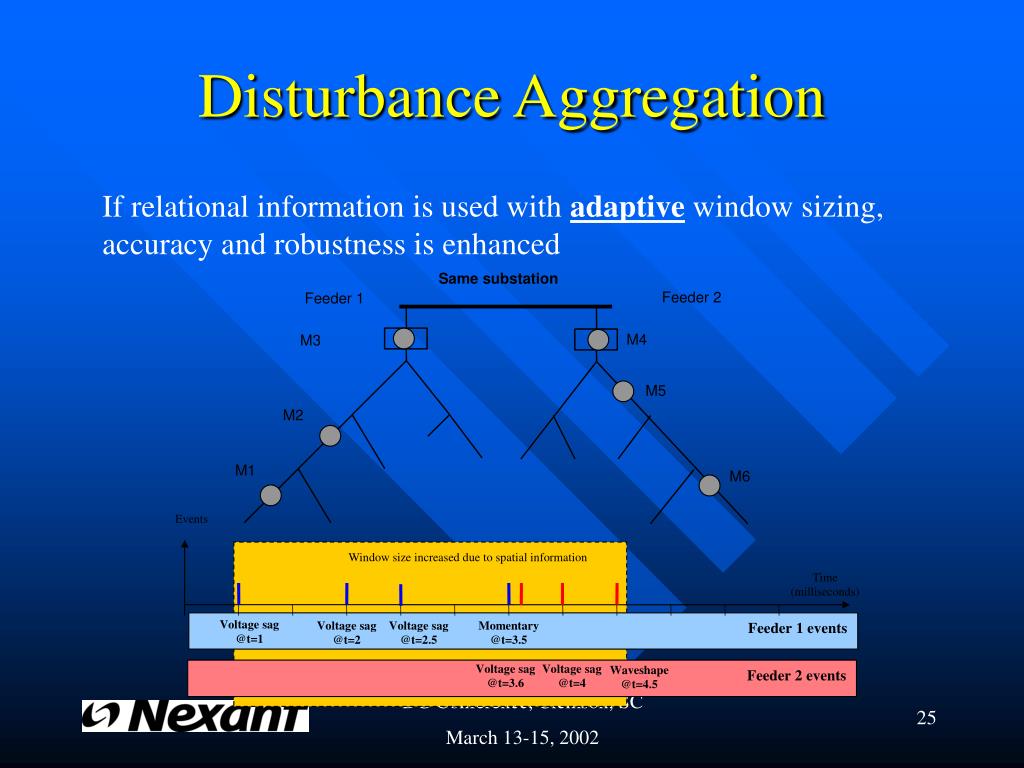

If relational information is used with adaptive window sizing, accuracy and robustness is enhanced

disturbance aggregation26
Disturbance Aggregation

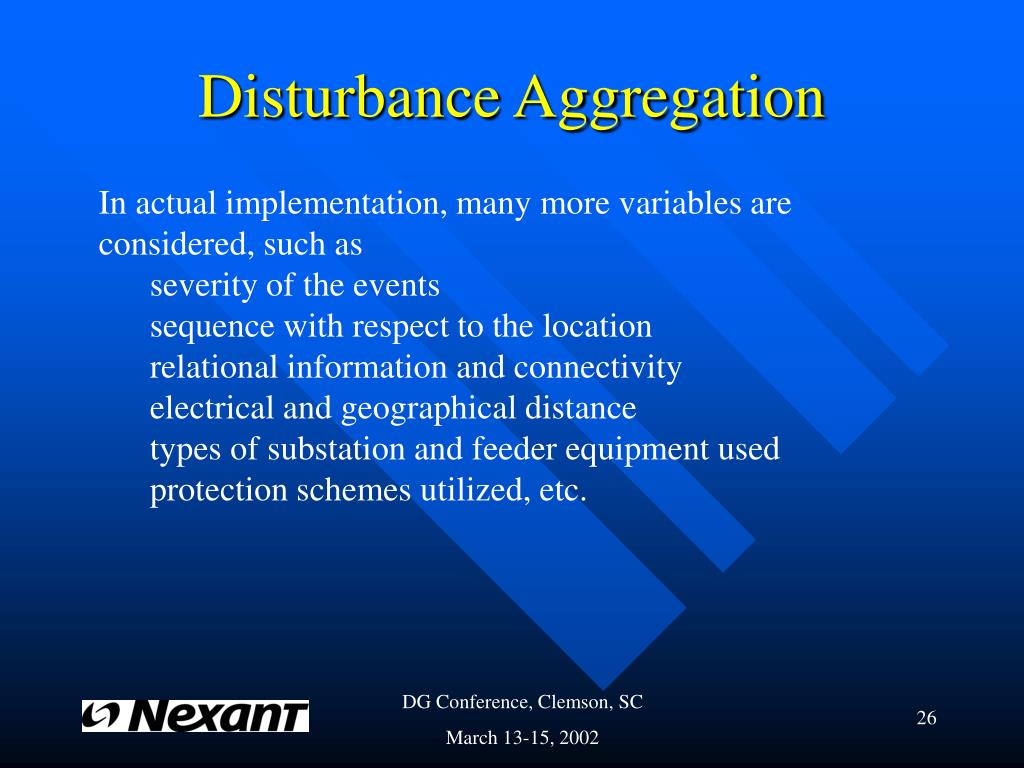

  • In actual implementation, many more variables are considered, such as
    • severity of the events
    • sequence with respect to the location
    • relational information and connectivity
    • electrical and geographical distance
    • types of substation and feeder equipment used
    • protection schemes utilized, etc.
conclusions
Conclusions
  • Modular – system components can be changed without major modifications
  • Expandable – new monitoring systems can be added without a complete system overhaul
  • Easier to maintain
  • Standard unified set of tools across the users
  • Customizable applications
