Multimedia in organisations l.jpg
Multimedia in Organisations

BUSS 213

Lecture 1

Defining Media, Multiple Media, and Organisational Multimedia

Notices l.jpg

  • Assignment 2 marks available Wednesday of this week

  • Group 6 should download the new version of this file

Agenda l.jpg

  • Defining Media

  • Examples of New Media

    • Temporal Media (Audio, Video)

    • Immersive Media (QTVR, VRML)

    • New Media (Time Slice, STI)

  • Using New Media: Integration for Intranets

New media relevance l.jpg
New Media- Relevance

  • some new digital media are being used to solve organisational problems

  • for example QTVR is being used by:

    • Real Estate Agents use it to describe the interiors of expensive properties which are to be auctioned,

    • Queensland Police are using it to create a realistic reconstruction of the crime scene

New media relevance6 l.jpg
New Media- Relevance

  • there are many forms of new digital media which are currently being created- many simply await an application for which they are suited

  • because Intranets are not necessarily limited to the speed and bandwidth constraints of the Internet- some of these new forms of media will be first available on Intranets

Defining media 1 l.jpg
Defining Media (1)

  • Just what is a media?- the answer to this simple question is surprisingly complex

    • if we can answer this question we may be able to understand the relationship between the so-called new digital media and traditional media

    • we may also be able to build multimedia systems

Defining media 2 failure of technical classification of media l.jpg
Defining Media (2)Failure of Technical Classification of Media

  • Recall Reading #3 which classifies the types of media according to the type of data structures that are used

  • this is not an adequate explanation because it ignores how users actually ‘read’ or interact with these forms of media

Defining media 3 media classification failure time slice l.jpg

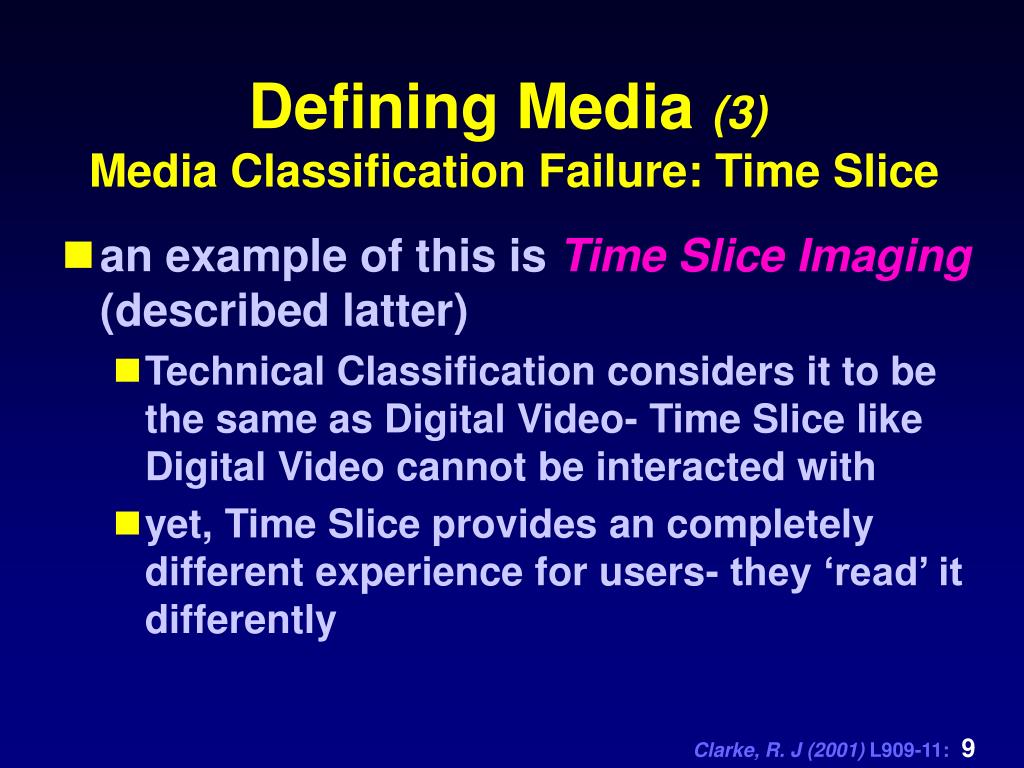

Defining Media (3)Media Classification Failure: Time Slice

  • an example of this is Time Slice Imaging (described latter)

    • Technical Classification considers it to be the same as Digital Video- Time Slice like Digital Video cannot be interacted with

    • yet, Time Slice provides an completely different experience for users- they ‘read’ it differently

Defining media 4 new media from old media l.jpg

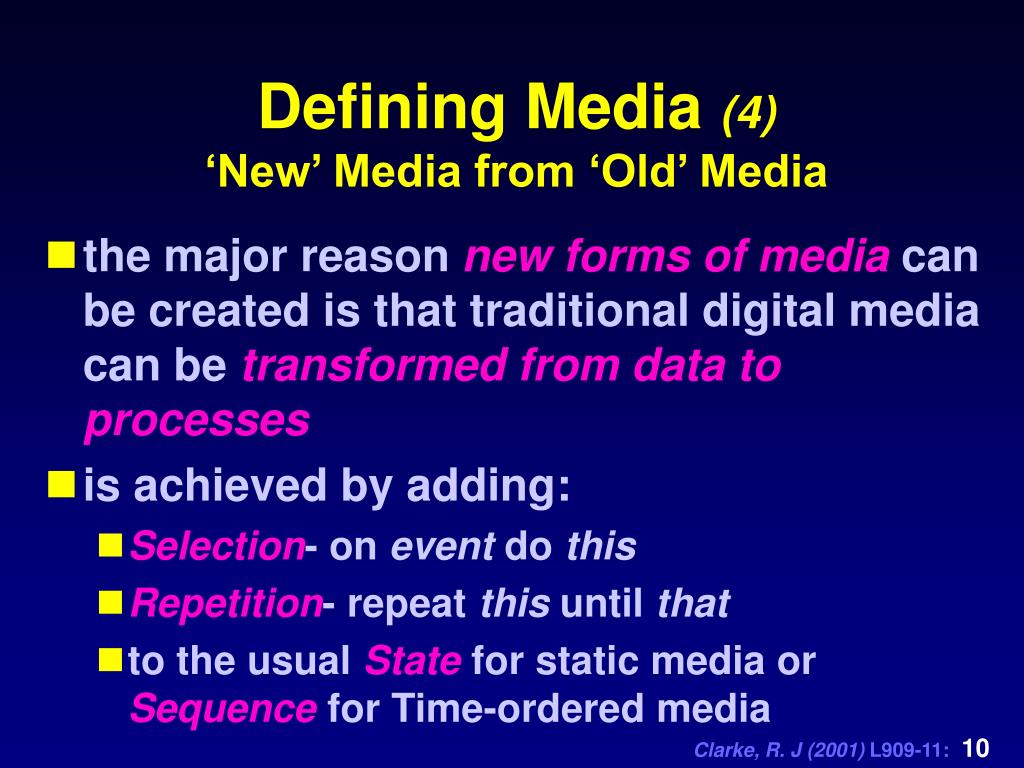

Defining Media (4)‘New’ Media from ‘Old’ Media

  • the major reason new forms of media can be created is that traditional digital media can be transformed from data to processes

  • is achieved by adding:

    • Selection- on event do this

    • Repetition- repeat this until that

    • to the usual State for static media or Sequence for Time-ordered media

Defining media 4 creating new media l.jpg

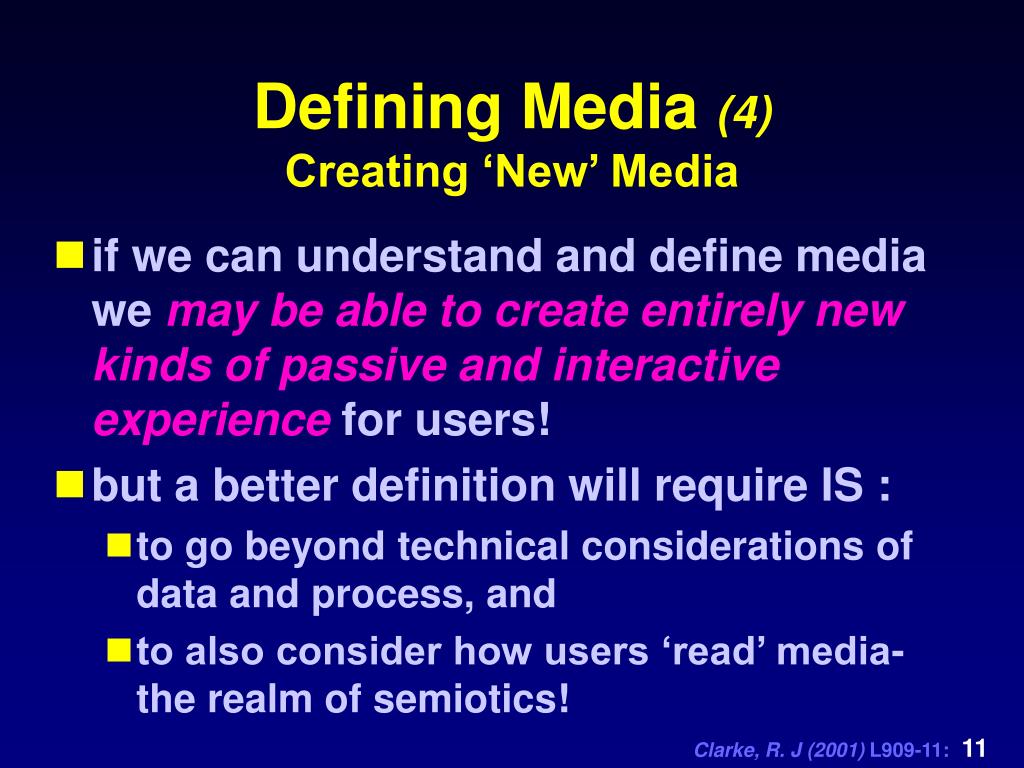

Defining Media (4)Creating ‘New’ Media

  • if we can understand and define media we may be able to create entirely new kinds of passive and interactive experience for users!

  • but a better definition will require IS :

    • to go beyond technical considerations of data and process, and

    • to also consider how users ‘read’ media- the realm of semiotics!

Time slice imaging 1 l.jpg
Time Slice Imaging (1)

  • to capture a time slice image:

    • use a special camera consisting of a large number of still cameras (~120) and arranged them in a large arc

    • the optical configuration of each still camera is such that each image overlaps its predecessor and successor

    • connect the cameras so that they all take an image of the same subject simultaneously

Time slice imaging 2 l.jpg
Time Slice Imaging (2)

  • to create the time slice image:

    • edit together each of the still images either using linear film editing or by using non-linear digital editing, and

    • assemble the images onto a video tape ordering the images according to camera position- that is in a sequence from left-most camera to the right-most camera

Time slice imaging 3 l.jpg
Time Slice Imaging (3)

  • then play back the movie!

  • the result is a captivating experience- a frozen moment scene from a huge number of angles

    • it is so startling because we do not see time this way and we are never able to get a view from multiple positions

    • truly a new media- technically identical to digital video but very different for users!

Time slice imaging 4 examples l.jpg
Time Slice Imaging (4)Examples

  • first mentioned in a small news item- Scientific American or New Scientist

  • Other Examples:

    • Various Advertisements

    • Lost in Space (1998)

    • The Matrix (1999)

  • Lecture Video Example:

    • BBC (1998) The Human Body- Part 2

Timeslice camera l.jpg
Timeslice Camera

“This camera gives a five-metre long 90 degree circular tracking shot in time-slice, live-action, long exposure, high-speed shutter or any combination. The camera performs like a compact motion-control rig. The optics are multi-coated, allowing the camera to perform to wide screen feature film standards. Again the construction is robust, enabling the camera to travel to far flung locations and work under the harshest conditions (as has proven the case with natural history work).”

Quicktime vr19 l.jpg
QuickTime VR

  • first partially immersive VR system

    • QTVR is proprietary in that it must be developed on a high-end Macintosh,

    • but can be played on multiple platforms just like QuickTime

    • not a problem for multimedia developers who often prefer this platform because of its continuous support of graphic arts and design markets

Quicktime vr types l.jpg
QuickTime VRTypes

  • there are several types of VR that can be built using QuickTime VR:

    • Object Movies

    • Single Node Panoramic Movies

    • Multi-Node Movies

      • Sparse Multi-Node Scene

      • Continuous Multi-Node Scene

Quicktime vr sources of object movies l.jpg
QuickTime VRSources of Object Movies

  • photography of real object/s from all views using film or video

  • model and render virtual object/s from all views digitally

  • each view becomes a distinct frame in a frame space formed by a QuickTime movie

Quicktime vr frame order and frame space l.jpg
QuickTime VRFrame Order and Frame Space

  • the order of frames in the frame space is important:

    • if the object is real then simply photograph views in the corrct order

    • if the object is virtual then frames must be rendered in the corrct order

  • Frame Access Function is used identify which frames to display based on user interaction

Object movies definition l.jpg
Object MoviesDefinition...

  • two forms of object movies:

    • a 360º series of images around the ‘equator’ of an object, or

    • a series of images which form a number of ‘latitude’ loops around an object including the ‘north and south poles’

  • assembled to form a continuous loop of images

Object movies definition25 l.jpg
Object Movies...Definition

  • size of the object is a consideration when creating object movies:

    • if the object for which an object movie is to be created is small then the object is rotated,

    • otherwise the camera rig is moved around the object to simulate rotation of the object

Object movies background issues l.jpg
Object MoviesBackground Issues

  • object movie backgrounds are generally black and featureless

  • makes the transition from the embedding media (panoramic VR or video) less jarring

  • it is also extremely difficult to match up the photometric and geometric characteristics of different media (described latter)

Object movies medium l.jpg
Object MoviesMedium...

  • photography-

    • produces great results

    • but has many difficult steps which are out of the control of the content creator

    • dependent on Kodak who are the only company that can create the necessary PhotoCDs

Object movies medium28 l.jpg
Object MoviesMedium

  • analog video-

    • must be digitised which will require very expensive hardware and software

    • very noisy and will need image pre-processing before making the Object Movie

  • digital video-

    • convenient I-link (Firewire) upload of images to VR development machine

    • expensive but worth it!

Object movies camera requirements l.jpg
Object MoviesCamera Requirements...

  • if using photography you will need

    • a very good quality 35mm SLR camera- could be an old manual high-end camera or a new state-of-the-art high end-camera

    • camera mount that can hold the camera in portrait orientation

    • camera head which can turn the camera in equal segments of a circle

Object movies camera requirements30 l.jpg
Object Movies…Camera Requirements

  • a wide angle lens- the wider it is the fewer the number of photographs are needed

  • lens characteristics (<15 mm is a very expensive fisheye lens; >28mm is approaching a normal lens- so forget it)

    • 15mm 12 images

    • 18mm 12 images

    • 28mm 18 images

Object movies supports l.jpg
Object MoviesSupports

  • any supports should not be visible in the completed object media

  • special supports for the items being photographed can be expensive- need special jigs to get a 360º series including the ‘poles’

  • can use an old record turntable if the objects are small

Single node panoramic scene l.jpg

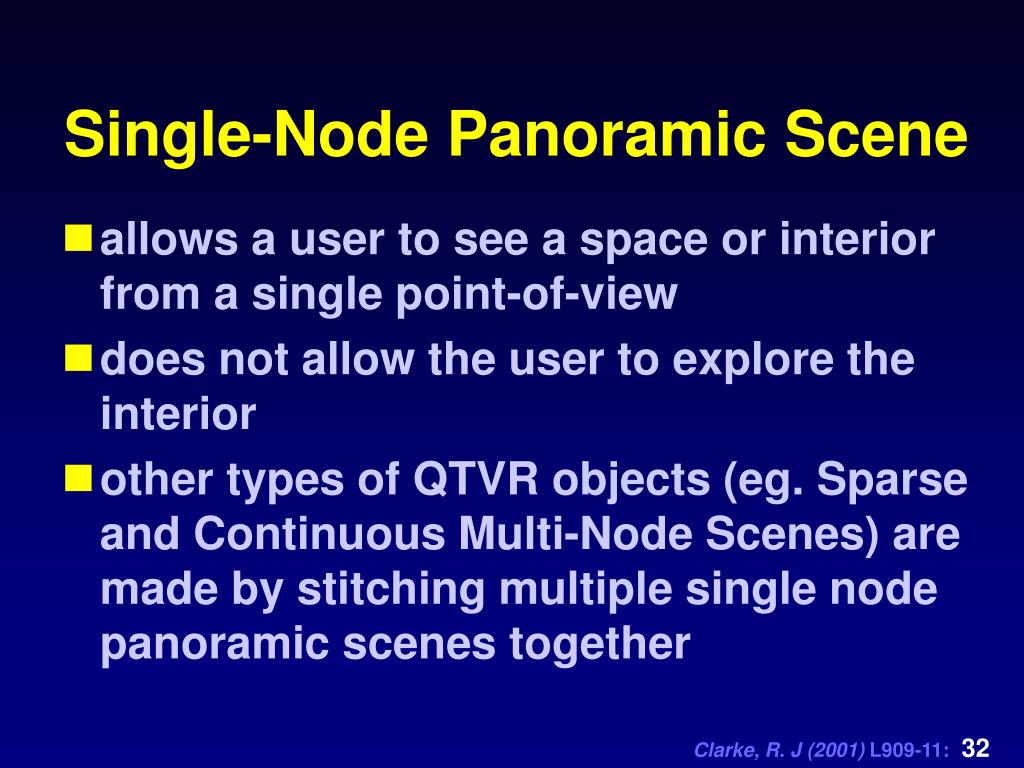

Single-Node Panoramic Scene

  • allows a user to see a space or interior from a single point-of-view

  • does not allow the user to explore the interior

  • other types of QTVR objects (eg. Sparse and Continuous Multi-Node Scenes) are made by stitching multiple single node panoramic scenes together

Sparse multi node scene l.jpg

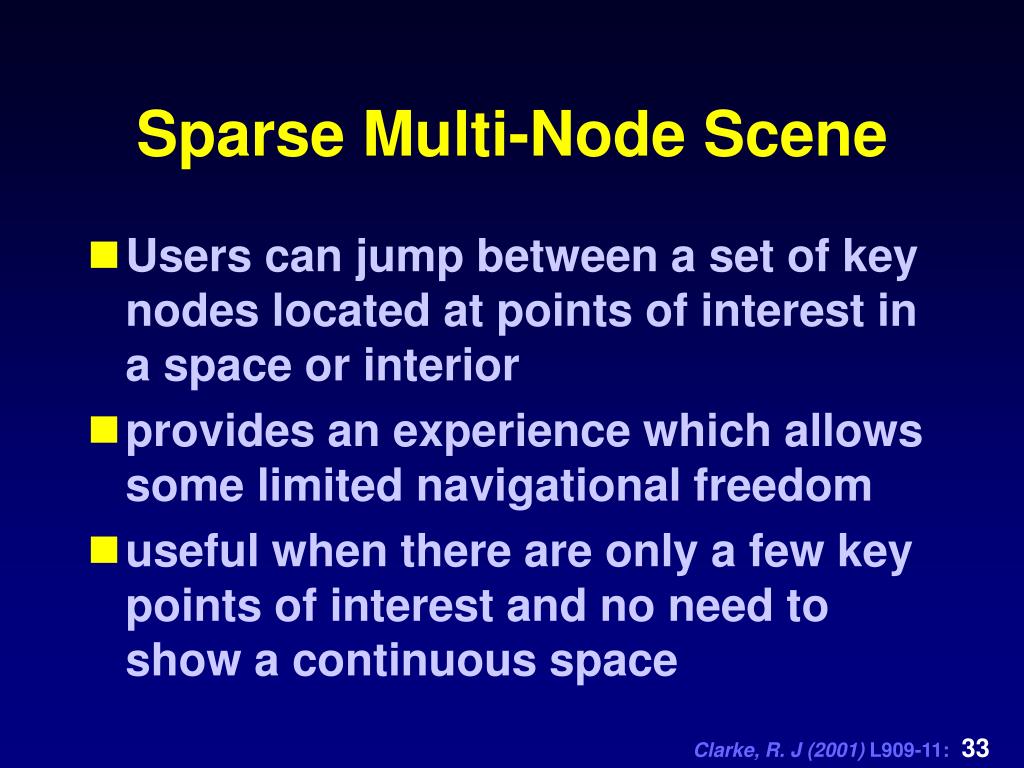

Sparse Multi-Node Scene

  • Users can jump between a set of key nodes located at points of interest in a space or interior

  • provides an experience which allows some limited navigational freedom

  • useful when there are only a few key points of interest and no need to show a continuous space

Continuous multi node scene 1 l.jpg
Continuous Multi-Node Scene (1)

  • user has much more freedom to visit different locations in space

  • key nodes which lie at path intersections in front of interesting objects and displays

  • continuous space is created by positioning nodes between the key nodes- needed when everything is interesting

Continuous multi node scene 2 example microlabs uow c 1995 l.jpg
Continuous Multi-node Scene (2)Example: MicroLabs, UOW c. 1995

Can be viewed or downloaded from the BUSS909 Intranet

Qtvr production difficulties photochemical processes l.jpg
QTVR Production DifficultiesPhotochemical Processes

  • a surprisingly large range of problems during VR production can occur as a result of the use of photographic source materials, photochemical processing and photo CD mastering stages

Qtvr production difficulties photometric mismatches missing frames l.jpg
QTVR Production DifficultiesPhotometric Mismatches; Missing Frames

  • similar mismatches occur between the photometric characteristics of photographic systems and video systems used to create VR and content sequences

  • missing frames from a node can lead to the exclusion of an entire node

Qtvr production difficulties optical geometry mismatches l.jpg
QTVR Production DifficultiesOptical Geometry Mismatches

  • mismatches between geometric characteristics of wide angle film lenses used in the production of VR and wide angle video lenses used in capturing ‘live action’ sequences that will be linked to the VR

  • apart from the fact that these are the only stages conducted outside the control of the VR production

Vr production digital breakthrough l.jpg
VR Production Digital Breakthrough

  • digital workflows are being developed with the advent of megapixel digital still cameras (left), and affordable (almost! sigh!) digital video camera (right)

Qtvr production steps digital workflow l.jpg
QTVR Production StepsDigital Workflow


Other kinds of virtual reality spherical vrs single nodes l.jpg
Other Kinds of Virtual RealitySpherical VRs (Single Nodes)

Other kinds of virtual reality spherical vrs stitched panorama l.jpg
Other Kinds of Virtual RealitySpherical VRs (Stitched Panorama)

Integrating new media example systems in context cd rom l.jpg
Integrating New MediaExample: Systems in Context CD-ROM

Using new media reuse and scalability requirement l.jpg
Using New MediaReuse and Scalability Requirement

  • the authors created a Multimedia Case Study structure which was sufficiently general to show most workplace actions and activities

  • major advantages of creating a general structure are reuse and scalability

Using new media templates and widgets l.jpg
Using New MediaTemplates and Widgets

  • the use of Media Templates to speed up the systems integration of the various media elements used,

  • a specially designed text widget, which enables large texts to be displayed within limited screen real estate

Using new media templates and widgets47 l.jpg
Using New MediaTemplates and Widgets

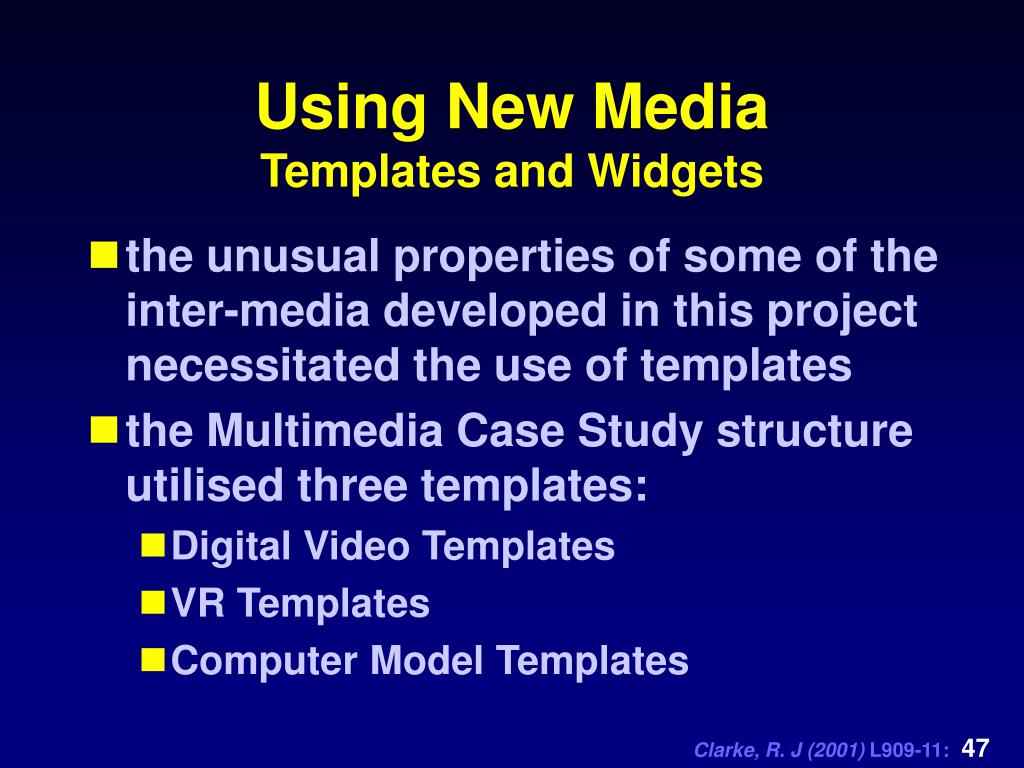

  • the unusual properties of some of the inter-media developed in this project necessitated the use of templates

  • the Multimedia Case Study structure utilised three templates:

    • Digital Video Templates

    • VR Templates

    • Computer Model Templates

Digital video template l.jpg

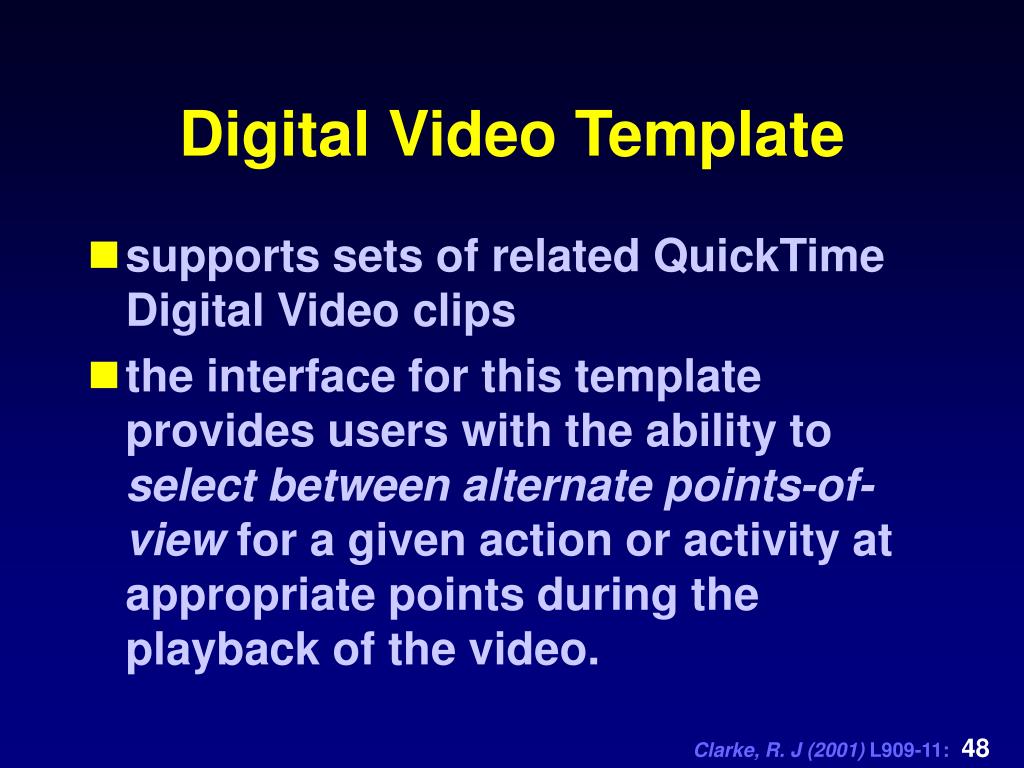

Digital Video Template

  • supports sets of related QuickTime Digital Video clips

  • the interface for this template provides users with the ability to select between alternate points-of-view for a given action or activity at appropriate points during the playback of the video.

Digital video template49 l.jpg
Digital Video Template

  • Unfamiliar workpractices can be made familiar by allowing the user to see the action from multiple points of view.

Virtual reality template l.jpg
Virtual Reality Template

  • supports the display of Quicktime VRs

  • the interface for this template alerts users to the existence of other embedded VR Objects and video/computer animation sequences

  • used to show the architectural layout of workplaces.

Computer model template l.jpg
Computer Model Template

  • supports the display of computer generated models

  • this template provides user with the ability to select between related sets of computer models, which may be nested.

  • is used to reveal objects not directly visible within a scene or to explain abstract concepts

Computer model template52 l.jpg
Computer Model Template

  • these templates work in conjunction with each other

  • if the VR Template indicates an embedded resource is available the VR display frame of the VR Template morphs into the video display frame of the Digital Video Template.

Text widget l.jpg
Text Widget

  • the digital video, virtual reality, and computer model templates are designed to work in conjunction with a specially designed text widget

Text widget54 l.jpg
Text Widget

  • the text widget is a cross between an hypertext browser and an outline processor

  • users can click on a tab to get a more complete textual description of an object or item of interest

  • Hyper-links are provided to open related text tabs or to highlight a region on an image for example

Text widget55 l.jpg
Text Widget

  • the hyper-links are bi-directional, for example, clicking on a hyper-region in an image, also opens up an appropriate textual description

  • the advantage of this widget is that extended texts can be displayed without the user being overwhelmed by information

Text widget56 l.jpg
Text Widget

  • the design of the tabs enables the structure and content of these texts to be easily quickly ascertained.

Links spherical vrs l.jpg
LinksSpherical VRs

Equipment Setup

Tripods- Handheld (Virtual)

  • Method:

  • Example:

    Tripods- Actual

  • Equipment:



    Timeslice Cameras


Links spherical vrs58 l.jpg
LinksSpherical VRs

Helmut Dersch's Panorama Tools (PTools)

  • PTools

  • Ptgui (Joost Nieuwenhuijse)

    PTools Related Tutorials

  • Ben Kreunen

  • Sascha Kerschhofer

    PTools Related Examples (Philippe Hurbain’s Site)

  • Indoor Panoramas

  • Outdoor panoramas

  • Kite Panoramas

References l.jpg

  • Clarke, R. J. and L. Schafe (1997) “Prototyping Multimedia: Experiences from the ‘Information Systems in Context’ CAUT Project” ASCILITE’97 Perth

  • Clarke, R. J. and L. Schafe (1999) Supply and Warehousing at BHP: Stocked Repairable Items Information Systems in Contexts CD-ROM, University of Wollongong in press

  • Martin, J. R. (1992) English Text: System and Structure Philadelphia/Amsterdam: John Benjamins Publishing Company

  • Schafe, L. and R. J. Clarke (1995) Information Systems in Context CAUT Proposal, University of Wollongong

  • Gibbs, S. J. and D. C. Tsichritzis (1995) Multimedia Programming: Objects, Environments and Frameworks Chapter 2: Media Types, ACM Press Books/Addison-Wesley Publishing Company, 15-78; Reading #3
