Presentation Transcript
forensic toxicology2

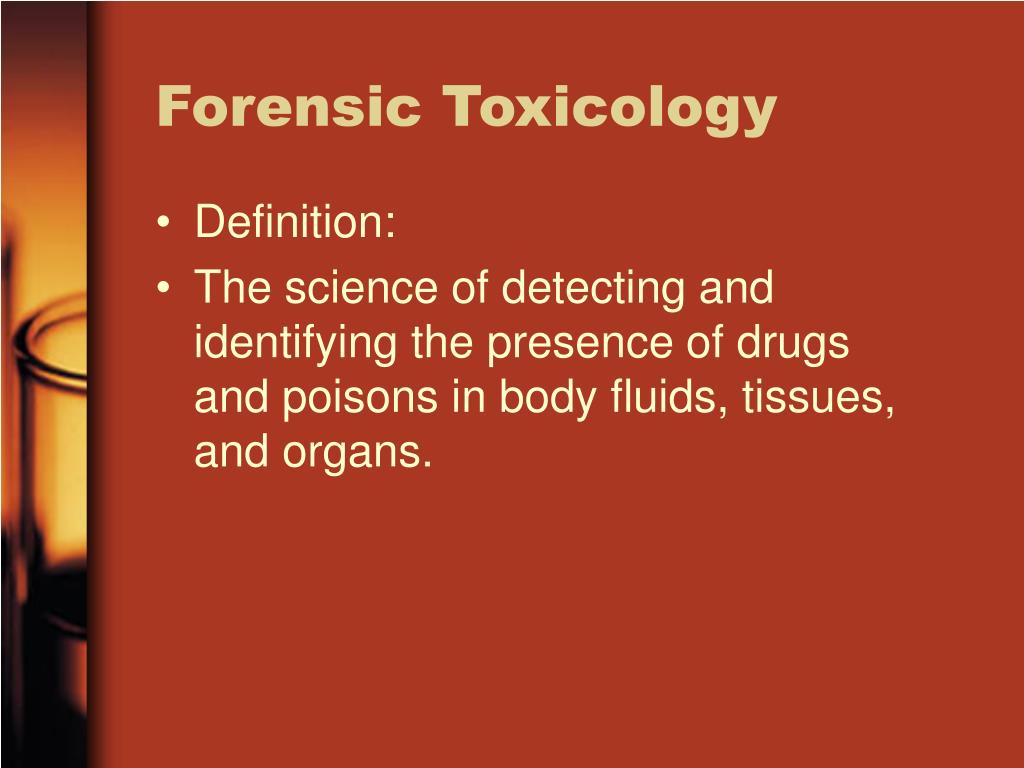

Forensic Toxicology
  • Definition:
  • The science of detecting and identifying the presence of drugs and poisons in body fluids, tissues, and organs.
controlled substances act

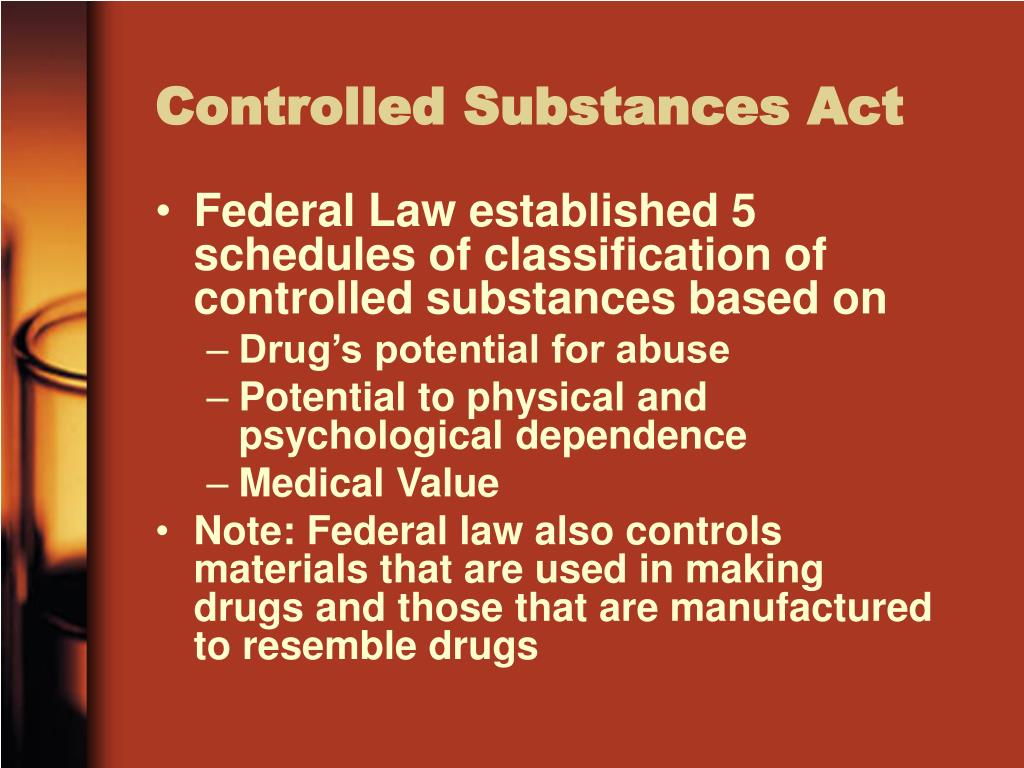

Controlled Substances Act
  • Federal Law established 5 schedules of classification of controlled substances based on
    • Drug’s potential for abuse
    • Potential to physical and psychological dependence
    • Medical Value
  • Note: Federal law also controls materials that are used in making drugs and those that are manufactured to resemble drugs
drug schedules
Drug Schedules
  • Schedule I:
  • Drugs with high potential for abuse and addiction, NO medical value

Ex: Heroin, LSD, Ecstasy, Marijuana

  • Schedule II:
  • Drugs with high potential for abuse and addiction, have some medical value with restrictions

Ex: PCP, Cocaine, Amphetamines, Most Opiates, Some Barbiturates

drug schedules5
Drug Schedules
  • Schedule III:
  • Drugs with less potential for abuse and addiction, currently acceptable for medical use

Ex: Some Barbiturates, Codeine, Steroids

  • Schedule IV:
  • Drugs with low potential for abuse and addiction, currently acceptable for medical use

Ex: Tranquilizers like Valium, Xanax, Librium

drug schedules6
Drug Schedules
  • Schedule V:
  • Drugs with low potential abuse, medical use, lowest potential dependency
  • Ex: Some Opiates with Non-Narcotic Ingredients
role of the toxicologist

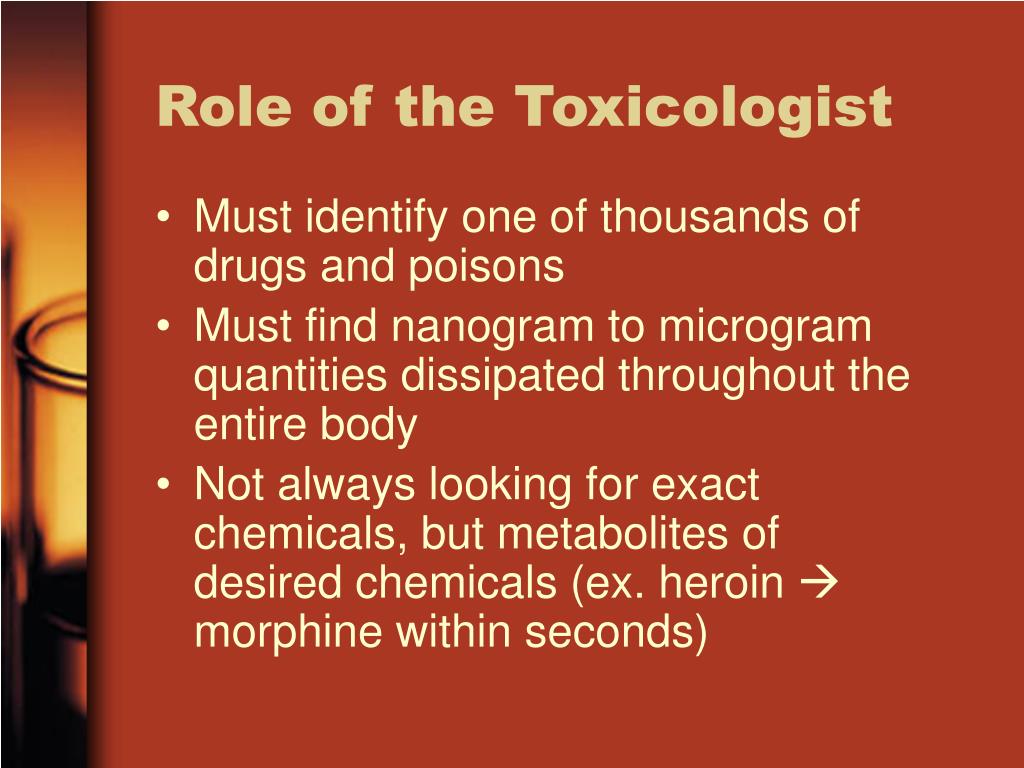

Role of the Toxicologist
  • Must identify one of thousands of drugs and poisons
  • Must find nanogram to microgram quantities dissipated throughout the entire body
  • Not always looking for exact chemicals, but metabolites of desired chemicals (ex. heroin  morphine within seconds)
toxicology procedures
Toxicology Procedures
  • 10mL of blood in airtight container
    • Add anticoagulant
    • Add preservative
  • 2 consecutive urine samples
    • Some drugs take a while to show up in urine (1-3 days)
  • Vitreous humor
  • Hair samples
toxicology procedures9
Toxicology Procedures
  • Screening-
    • quick test to narrow down possibilities
    • color tests, TLC, GC, immunoassay
  • Confirmation-
    • determines exact identity
    • GC/Mass Spec

Note: TLC—thin layer chromatography

color tests
Color Tests
  • Marquis Test:
    • Turns purple in the presence of Heroin, morphine, opium
    • Turns orange-brown in presence of Amphetamines
  • Scott Test:Three solutions
    • Blue then pink then back to blue in the presence of Cocaine
  • Duquenois-Levine:
    • Test for marijuana –turns purple
more analytical tests

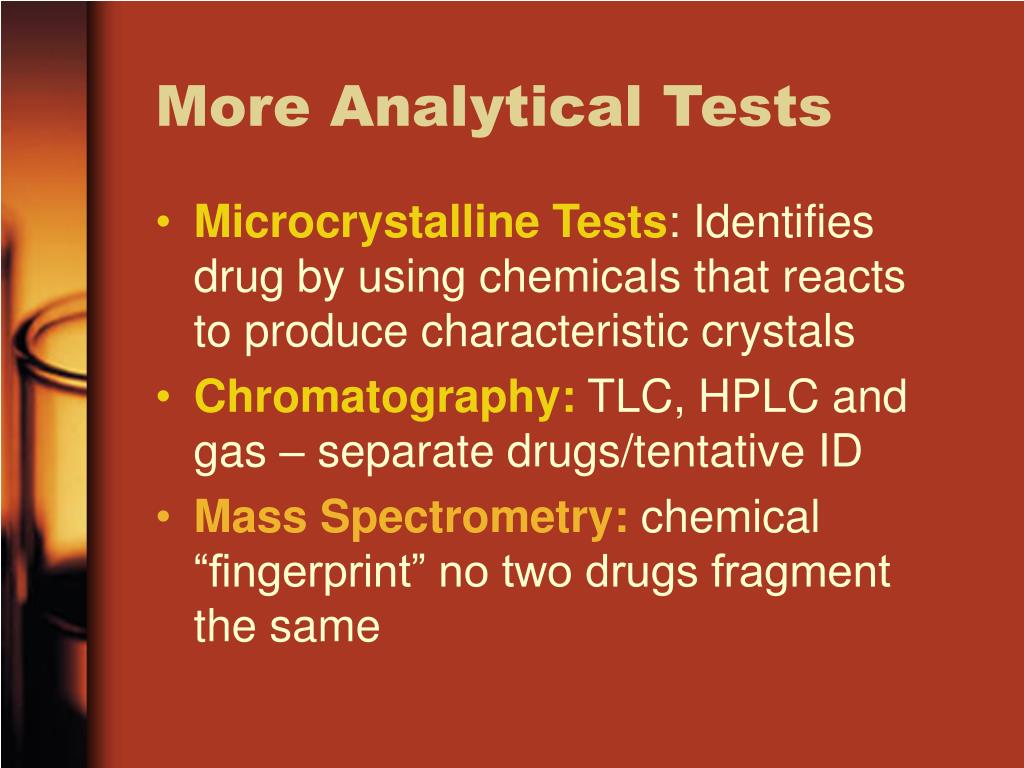

More Analytical Tests
  • Microcrystalline Tests: Identifies drug by using chemicals that reacts to produce characteristic crystals
  • Chromatography: TLC, HPLC and gas – separate drugs/tentative ID
  • Mass Spectrometry: chemical “fingerprint” no two drugs fragment the same
  • Think of all the people that you have “heard” do drugs.
  • US drug manufacturers produce enough barbiturates and tranquilizers each year to give every person in the US 40 pills
  • (that’s about 12 billion pills)
  • 18,000 out of 44,000 annual traffic deaths are alcohol related and send over 2 million people to the hospital
toxicology of alcohol

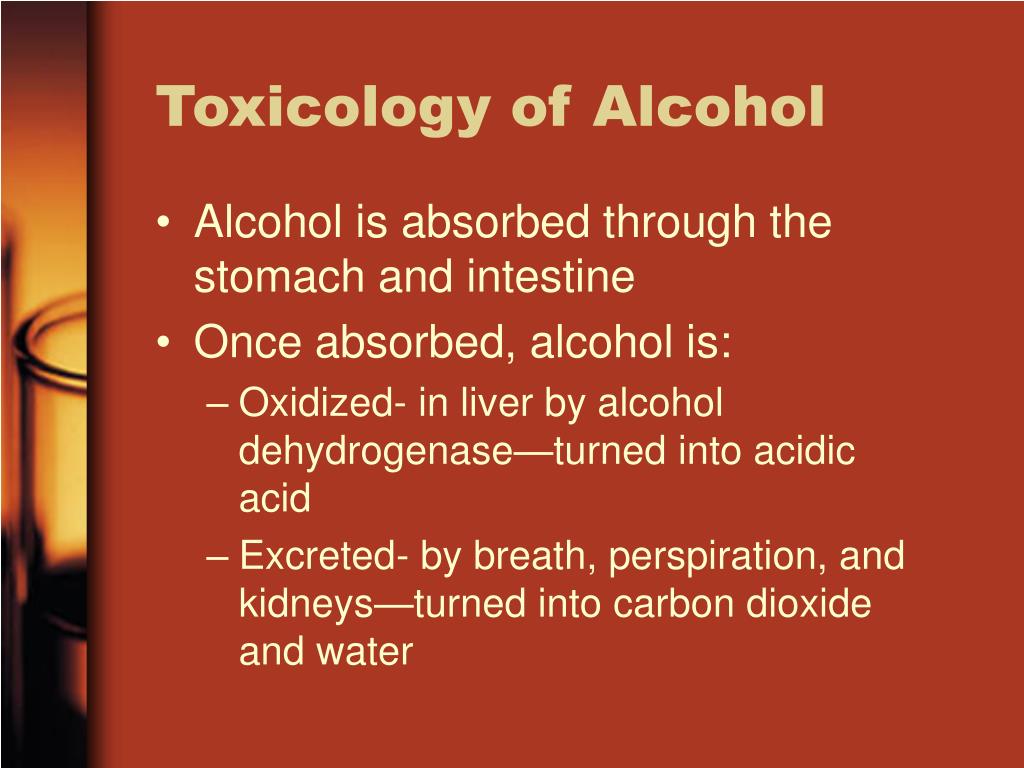

Toxicology of Alcohol
  • Alcohol is absorbed through the stomach and intestine
  • Once absorbed, alcohol is:
    • Oxidized- in liver by alcohol dehydrogenase—turned into acidic acid
    • Excreted- by breath, perspiration, and kidneys—turned into carbon dioxide and water
factors that affect alcohol absorption
Time of consumption

Type of alcoholic beverage

Presence of food in stomach

Factors that Affect Alcohol Absorption
toxicology of alcohol15
Toxicology of Alcohol
  • Alcohol intoxication depends on
    • Amount of alcohol consumed
    • Time of consumption
    • Body weight
    • Rate of alcohol absorption
fate of alcohol
Fate of Alcohol
  • Alcohol is absorbed into the bloodstream
  • Distributed through-out the body’s water
  • And finally eliminated by oxidation and excretion
fate of alcohol con t
Fate of Alcohol Con’t


  • Oxidation is the combination of oxygen and alcohol to produce new products by the liver
  • Elimination is removing alcohol from the body in an unchanged state; normally excreted in breath and urine
alcohol in the circulatory system
Alcohol in the Circulatory System
  • Measuring the quantity of alcohol in the blood system determines the degree to which someone is drunk
  • Two methods of making this measurement
    • Measurement of alcohol content in blood
    • Measurement of alcohol in breath
circulation definitions
Circulation Definitions
  • Artery—a blood vessel that carries blood away from the heart
  • Vein—a blood vessel that transports blood toward the heart
  • Capillary—a tiny blood vessel—walls exchange materials between blood and tissues
  • Alveoli—small sacs in lungs—exchange vapors between breath and blood
circulation con t
Circulation Con’t
  • Note: If alcohol is present, it will be passed from the blood into the alveoli where it will be passed on to the mouth and nose during the act of breathing.
  • Evidence has shown that the ratio of alcohol to alveoli air is approx. 2100 to 1—This is a basis for relating breath to blood-alcohol concentration.
analysis of bac
Analysis of BAC
  • Breath Tests
  • Field Sobriety Tests
  • Blood Tests
breath tests

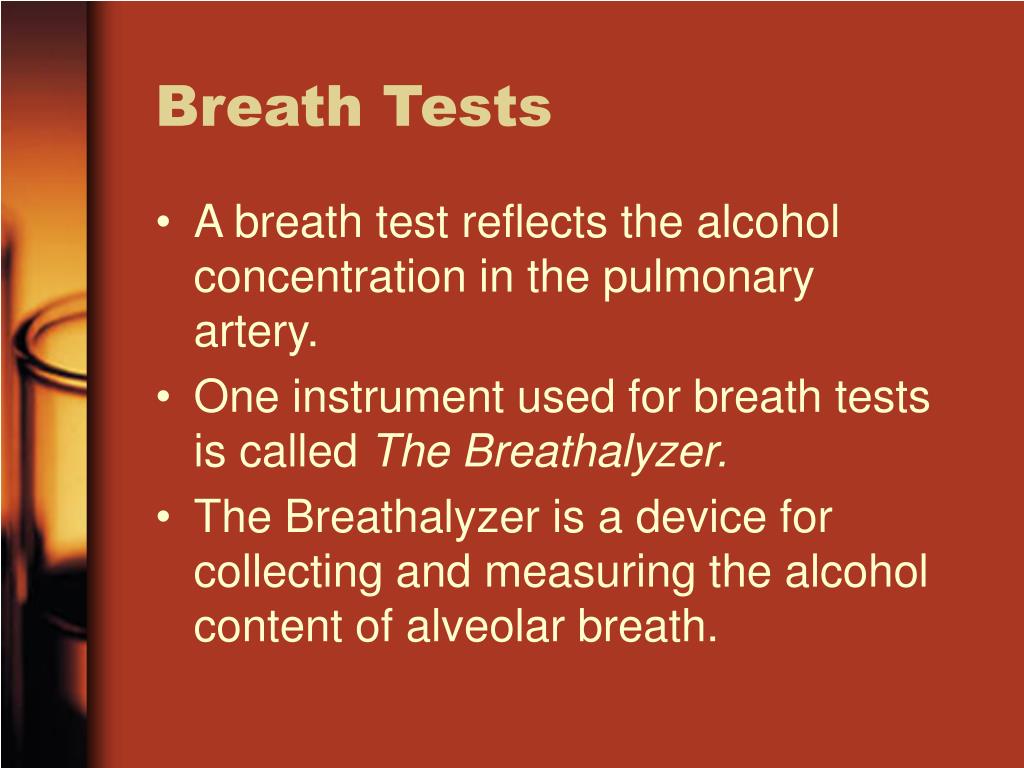

Breath Tests
  • A breath test reflects the alcohol concentration in the pulmonary artery.

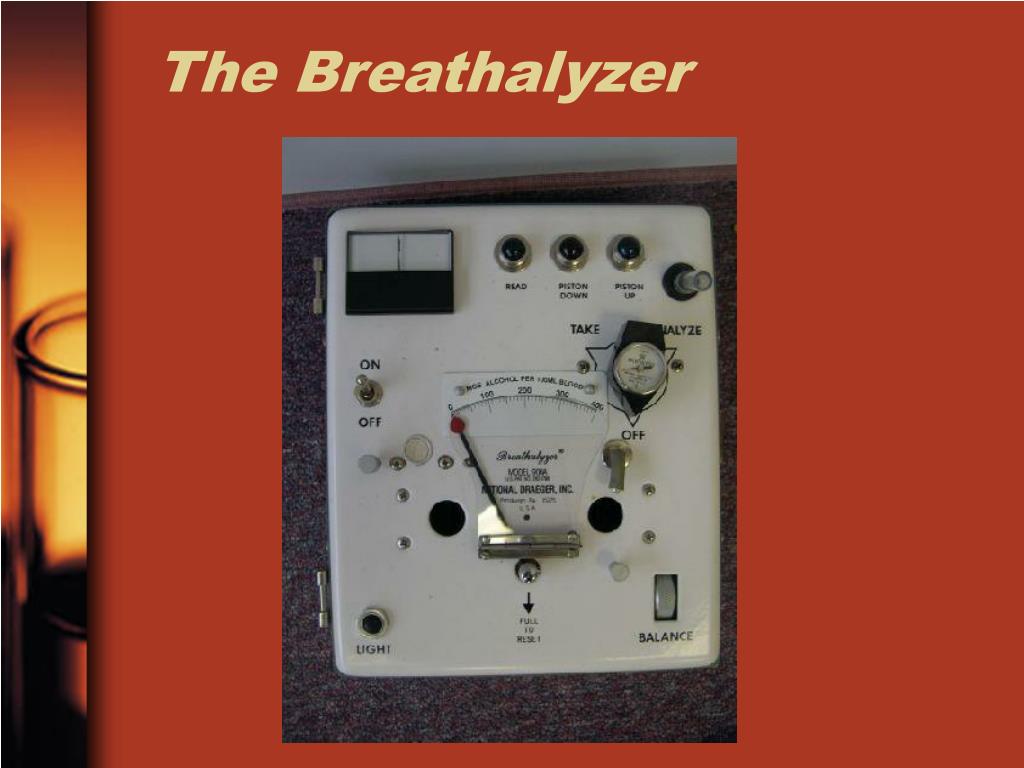

  • One instrument used for breath tests is called TheBreathalyzer.
  • The Breathalyzer is a device for collecting and measuring the alcohol content of alveolar breath.
the breathalyzer con t
The Breathalyzer Con’t
  • The Breathalyzer traps 1/40 of 2100 milliliters of alveolar breath.
  • Since the amount of alcohol in 2100 milliliters of breath approximates the amount of alcohol in 1 milliliter of blood—the Breathalyzer in essence measures the alcohol concentration present in 1/40 of a milliliter of blood.
breathalyzer con t
Breathalyzer Con’t
  • Once the alveolar breath is trapped it is allowed to undergo a chemical reaction:
  • 2K2Cr2O7 + 3C2H5OH + 8H2SO4 2Cr2(SO4)3 + 2K2SO4 + 3CH3COOH + 11H2O
  • The Breathalyzer indirectly determines the quantity of alcohol consumed by measuring the absorption of light by potassium chromate before and after its reaction with alcohol, using the principle of spectrophotometry

Potassium dichromate

Ethyl alcohol

Sulfuric acid

Chromium sulfate

Potassium sulfate

Acetic acid

Dihydrogen oxide

other breath tests
Other Breath Tests
  • Infrared breath-testing instrument
  • Fuel cell
  • Note: These instruments are used more recently because they don’t depend upon chemical reagents and are entirely automated.
infrared breath test
Infrared-Breath Test
  • Uses the principle that infrared light is absorbed when shined on alcohol
  • Essentially, the infrared light passes through a chamber where it will interact with the alcohol and cause the light density to decrease.
  • The decrease in light intensity is proportional to the concentration of alcohol present in the captured breath
fuel cell breath test
Fuel Cell—Breath Test
  • A fuel cell converts a fuel and an oxidant into an electrical current.
  • In this test, the breath alcohol is the fuel and atmospheric oxygen acts as the oxidant.
  • Alcohol is converted, generating a current that is proportional to the quantity of alcohol present in the breath.
infrared and fuel cell breath tests
Infrared Breath Test uses infrared wavelengths to test for alcohol or other interferences in the breath

Fuel Cell Test converts fuel (alcohol) and oxygen into a measurable electric current

Infrared and Fuel Cell Breath Tests
field sobriety testing
Field Sobriety Testing
  • Two reasons for the field sobriety test:
    • Used as a preliminary test to ascertain the degree of the suspect’s physical impairment
    • To see whether or not an evidential test is justified.
field sobriety testing methods

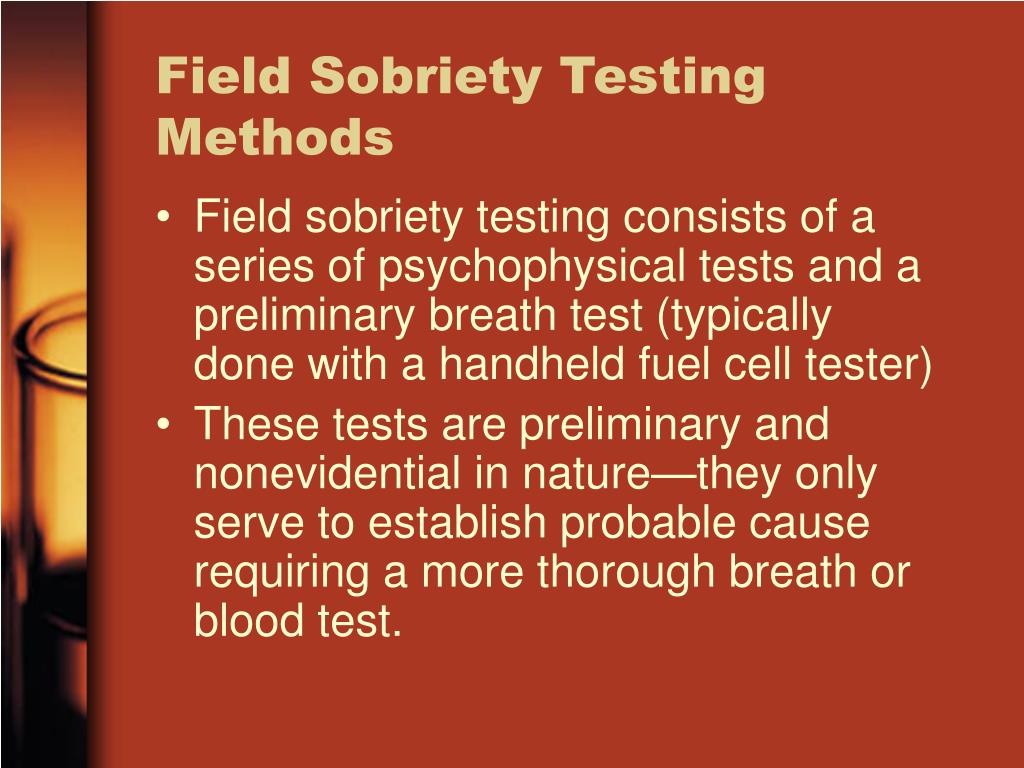

Field Sobriety Testing Methods
  • Field sobriety testing consists of a series of psychophysical tests and a preliminary breath test (typically done with a handheld fuel cell tester)
  • These tests are preliminary and nonevidential in nature—they only serve to establish probable cause requiring a more thorough breath or blood test.
field sobriety tests
Field Sobriety Tests
  • Horizontal Gaze Nystagmus
    • Involuntary eye jerk as eye moves horizontally
  • Walk and Turn (divided attention tasks)
  • One-Leg Stand

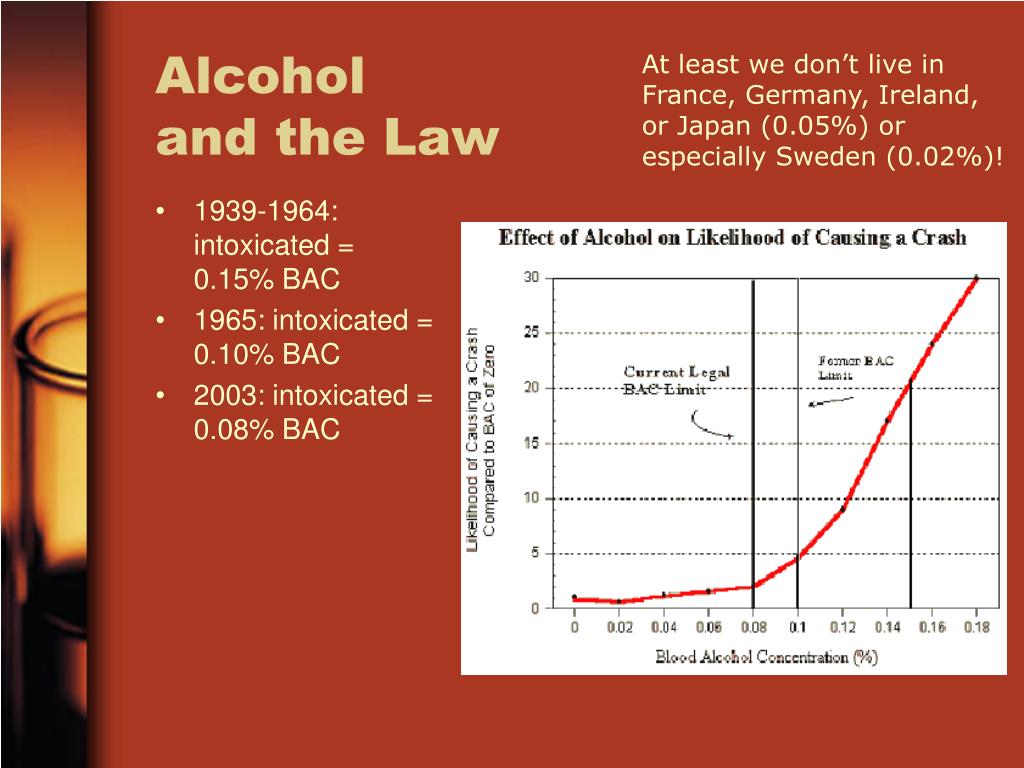

alcohol and the law

At least we don’t live in France, Germany, Ireland, or Japan (0.05%) or especially Sweden (0.02%)!

Alcohol and the Law
  • 1939-1964: intoxicated = 0.15% BAC
  • 1965: intoxicated = 0.10% BAC
  • 2003: intoxicated = 0.08% BAC
alcohol and the law37

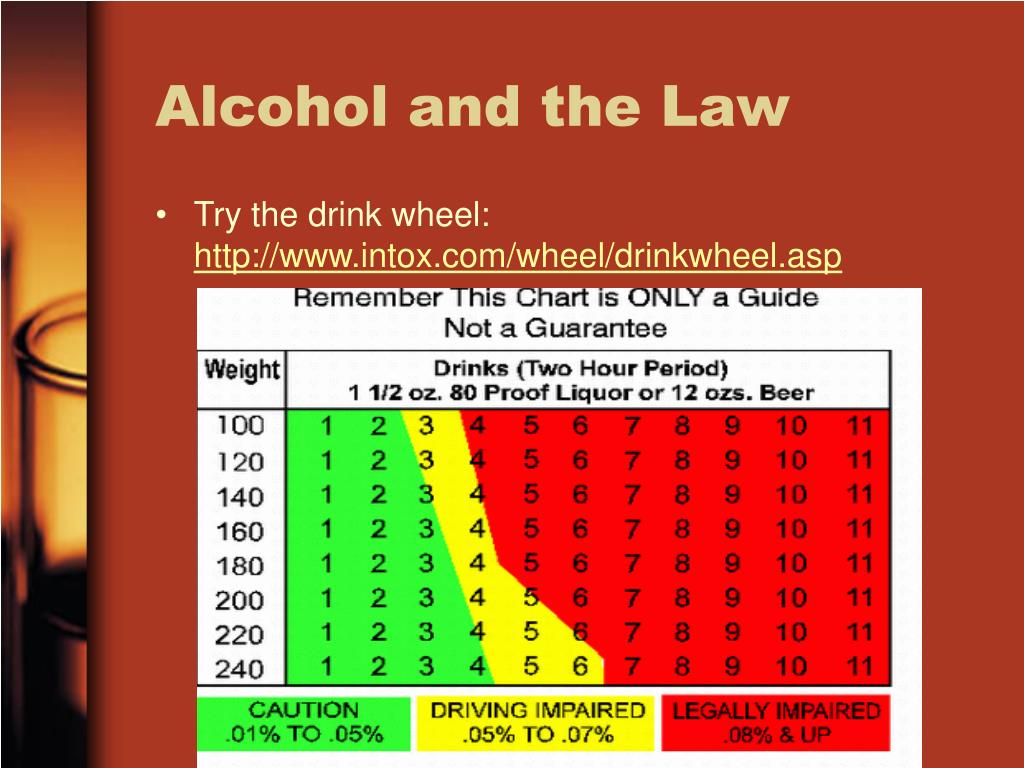

Alcohol and the Law
  • Try the drink wheel:
