Compliant Whole-Body Controlof Humanoid Robot

Taizo Yoshikawa

Mechanics and Control

summary
Summary

Compliant Whole-Body Control of Humanoid Robot

Most robotic control is accomplished with a position control system. In this framework, a motion is designed for every task so that the robot can accomplish its motion by following the designed trajectory and an individual joint position command is calculated. However, in most cases, the position controller only account for the contact through the end-effector and the contacts through another link cannot be allowed. Moreover, the position controller cannot account for the dynamics of the system and is difficult to model the dynamics related with the contact in uniformed representation. One approach for addressing this problem is to use torque control. The input torques for the system can be designed to accomplish the desired task as well as to compensate for dynamic effect of the contact with the environment. This provides the robot with higher performance in position tracking as well as in compliant motion.

Not only the controller but also the robotic system and hardware is also designed for position control. If humanoid robots are designed for torque, that is actuated by the torque command, and dynamics is accounted to control the robot, advanced motion control can be achieved. In this review, (i) compliant mechanism for upper-body control and (ii) passive and compliant balance controller are reviewed.

outline
Outline
  • Motivation / Background
  • Review 1
  • Review 2
  • Compliant Upper-Body Control
  • Passive Lower-Body Control
background
Background

Current Humanoid Robot

  • Cognitive/Learning Type
  • Task Execution Type

i-cub

kotaro

HRP

TWENDY-ONE

robobee

  • Actroid
  • Demonstration Type
  • Cybernetic
  • Human
background5
Background

Current Humanoid Robot

  • Task Execution Type

Skill

  • Behavior Control
  • Trajectory Control
  • Learning Skill
  • Manipulation Skills
  • Running

HRP

TWENDY-ONE

Position Control

  • Actroid
  • Demonstration Type
  • Cybernetic
  • Human
approach
Approach

Motion in the actual environment

Skill

  • Behavior Control
  • Trajectory Control
  • Learning Skill
  • Manipulation Skills
  • Running

Safety

  • Interactive Motion Control
  • Compliant Motion Control
  • Passive Motion Control
  • Sensing Skill
  • Compliant Mechanism

Missing

Functions

reference
reference

ICRA 2010 Workshop : Workshop on Active Force Control (May 3rd @Anchorage)

Achieving robust, compliant, interactive humanoid robots via active force control

Torque Control

HONDA Humanoid Robot

BOSTON Dynamics

ATR(SARCOS)

DLR : JASTIN

MEKA

Disney Land

outline8
Outline
  • Motivation / Background
  • Review 1
  • Review 2
  • Compliant Upper-Body Control
  • Passive Lower-Body Control
review 110
Review 1

Hardware

review 111
Review 1

Brain like system

review 112
Review 1

MEKA robot (Commercial Product)

outline13
Outline
  • Motivation / Background
  • Technical Paper 1
  • Technical Paper 2
  • Compliant Upper-Body Control
  • Passive Lower-Body Control
review 215
Review 2

Approach

review 216

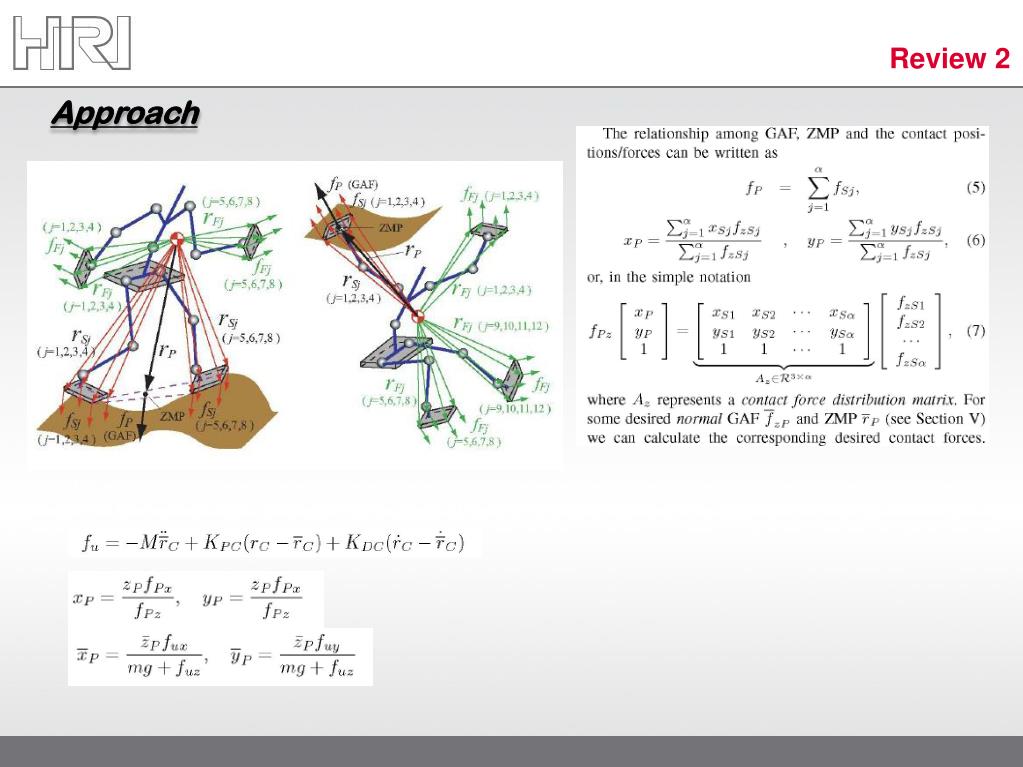

Review 2

Approach

review 217
Review 2

Approach

review 219
Review 2

Experimental Test (SARCOS ROBOT)

conclusion
Conclusion

Compliant Whole-Body Control of Humanoid Robot

Most robotic control is accomplished with a position control system. In this framework, a motion is designed for every task so that the robot can accomplish its motion by following the designed trajectory and an individual joint position command is calculated. However, in most cases, the position controller only account for the contact through the end-effector and the contacts through another link cannot be allowed. Moreover, the position controller cannot account for the dynamics of the system and is difficult to model the dynamics related with the contact in uniformed representation. One approach for addressing this problem is to use torque control. The input torques for the system can be designed to accomplish the desired task as well as to compensate for dynamic effect of the contact with the environment. This provides the robot with higher performance in position tracking as well as in compliant motion.

Not only the controller but also the robotic system and hardware is also designed for position control. If humanoid robots are designed for torque, that is actuated by the torque command, and dynamics is accounted to control the robot, advanced motion control can be achieved. In this review, (i) compliant mechanism for upper-body control and (ii) passive and compliant balance controller are reviewed.

objective
Objective

Motion in the Actual Environment

Skill

  • Behavior Control
  • Trajectory Control
  • Learning Skill
  • Manipulation Skills
  • Running
  • Measurement
  • Motion Design
  • Controller Design
  • Simulation

Experimental Validation

  • Test
  • Whole-body compliant control
  • Compliance control of arm while walking
  • Arm controlled/guided walk
  • Contact force control at hands
  • Door knob manipulation
  • No visual feedback
  • No-self-collision avoidance
  • Programmed and fixed motion sequencer
