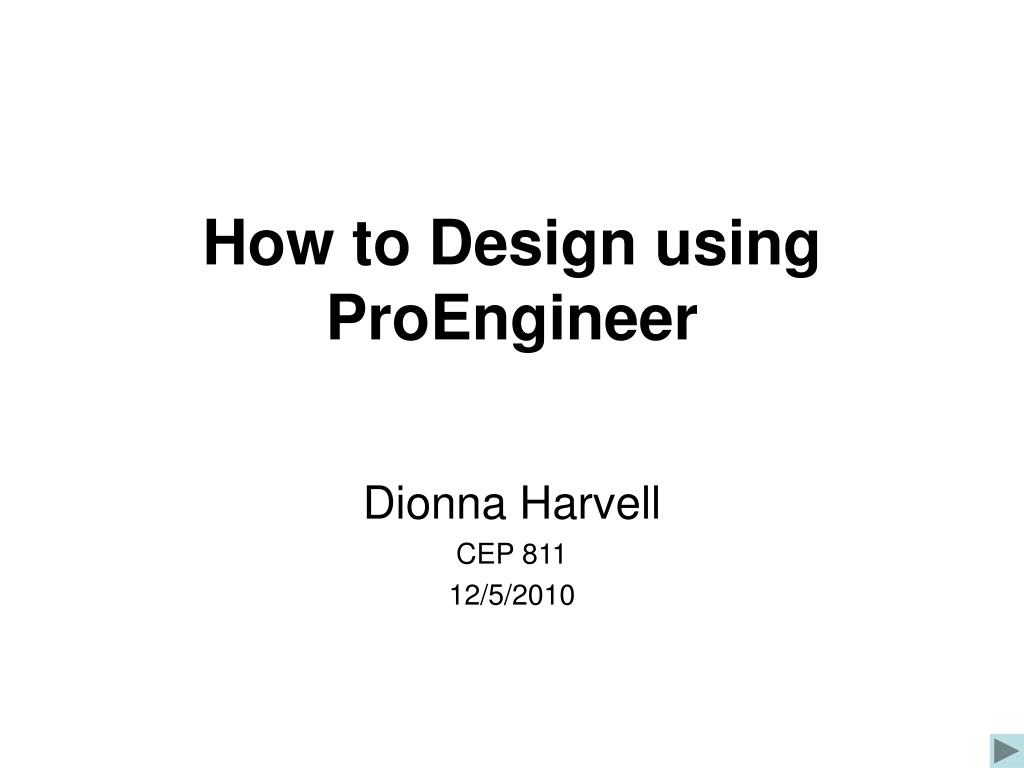

  1. How to Design using ProEngineer Dionna Harvell CEP 811 12/5/2010

  2. INTRODUCTION How to Design using ProEngineer will help students at different CAD levels • learn the basics to creating models in CAD • learn how to make start parts in Pro-E • create sketches, align planes, axis, csys, and dimensioning tool

  3. WHICH LESSON WOULD YOU LIKE? HARD (no help) BOAT MEDIUM (minimum help) CAR (2) ADVANCED ProEngineer DEMO • http://m.youtube.com/watch?gl=US&client=mv-google&hl=en&v=E9Vc7wgE-jI • http://m.youtube.com/watch?gl=US&client=mv-google&hl=en&rl=yes&v=_yj3vaLogU4 EASY (step by step help) ROBOT *NOTE: If you are interested in a more advanced CAD course after reviewing the 2 demos and successfully completing the quizzes contact me at dionnaharvell@gmail.com

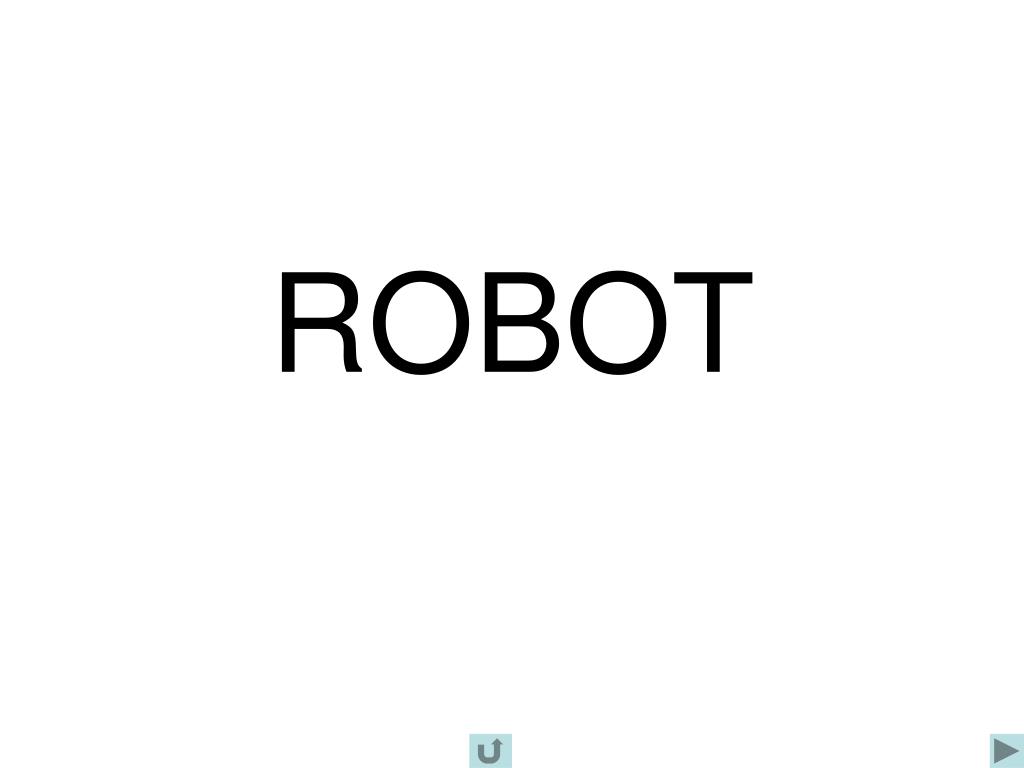

  4. ROBOT

  5. Setting Up Start Fileinches (or) millimeters • Once you have chosen your file name and file extension, you must indicate if you would like your start file to be drawn in inches or millimeters. You can also enter the parameters at this time or you can enter them later in the file, see below. • Click tools – Parameters (enter information) • Every Start assembly and part should have the following: • XYZ - Datum Planes • XYZ - Coordinate System • Center Axis

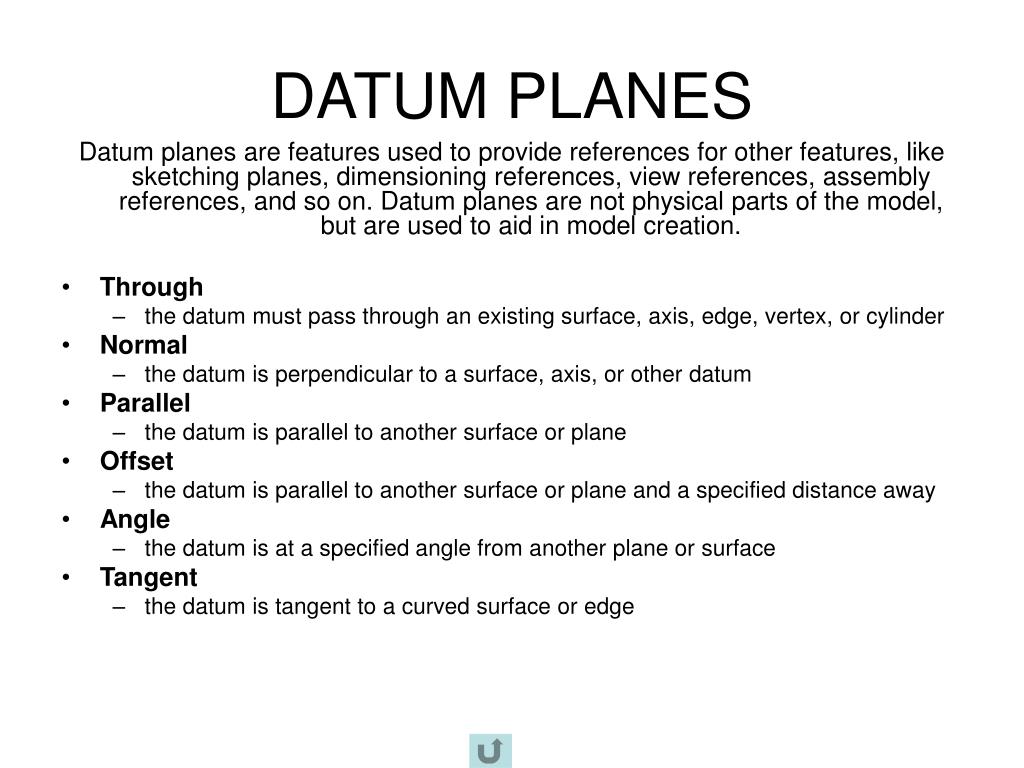

  6. DATUM PLANES Datum planes are features used to provide references for other features, like sketching planes, dimensioning references, view references, assembly references, and so on. Datum planes are not physical parts of the model, but are used to aid in model creation. • Through • the datum must pass through an existing surface, axis, edge, vertex, or cylinder • Normal • the datum is perpendicular to a surface, axis, or other datum • Parallel • the datum is parallel to another surface or plane • Offset • the datum is parallel to another surface or plane and a specified distance away • Angle • the datum is at a specified angle from another plane or surface • Tangent • the datum is tangent to a curved surface or edge

  7. COORDINATE SYSTEM • A system which uses one or more numbers, or coordinates, to uniquely determine the position of a point or other geometric element

  8. AXIS (also called a rotational axis). • An imaginary line around which an object can be rotated a certain number of degrees and still resemble the original shape. When two planes of symmetry intersect, they form a straight line, which is the axis of symmetry.

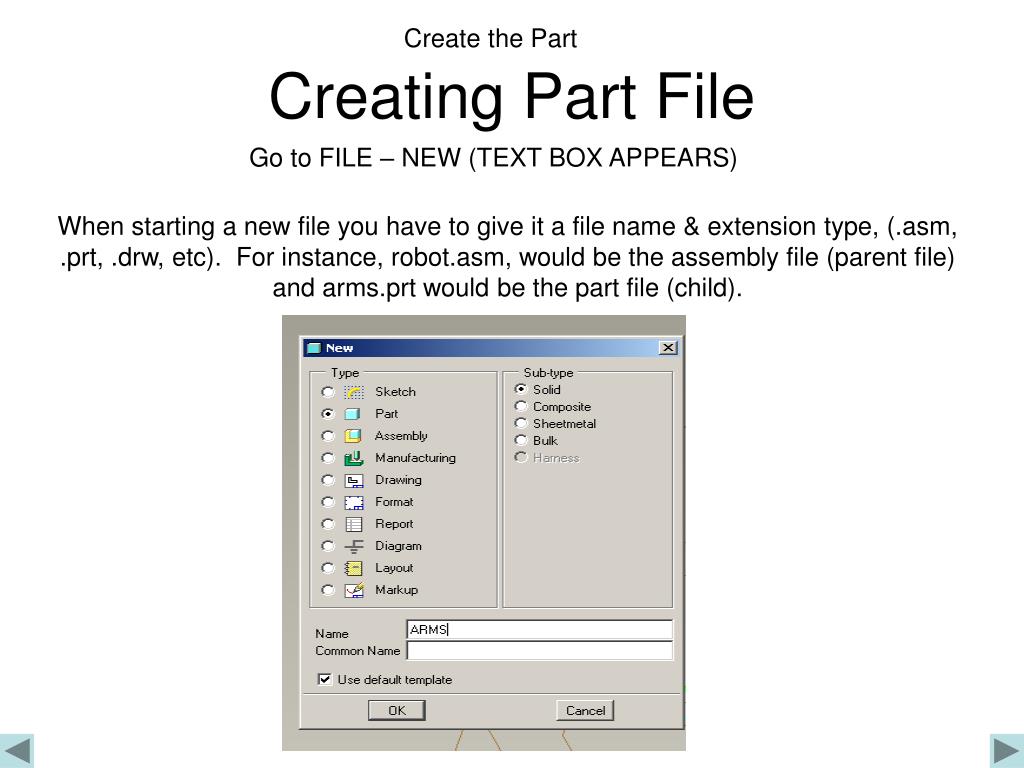

  9. Create the Part Creating Part File Go to FILE – NEW (TEXT BOX APPEARS) When starting a new file you have to give it a file name & extension type, (.asm, .prt, .drw, etc). For instance, robot.asm, would be the assembly file (parent file) and arms.prt would be the part file (child).

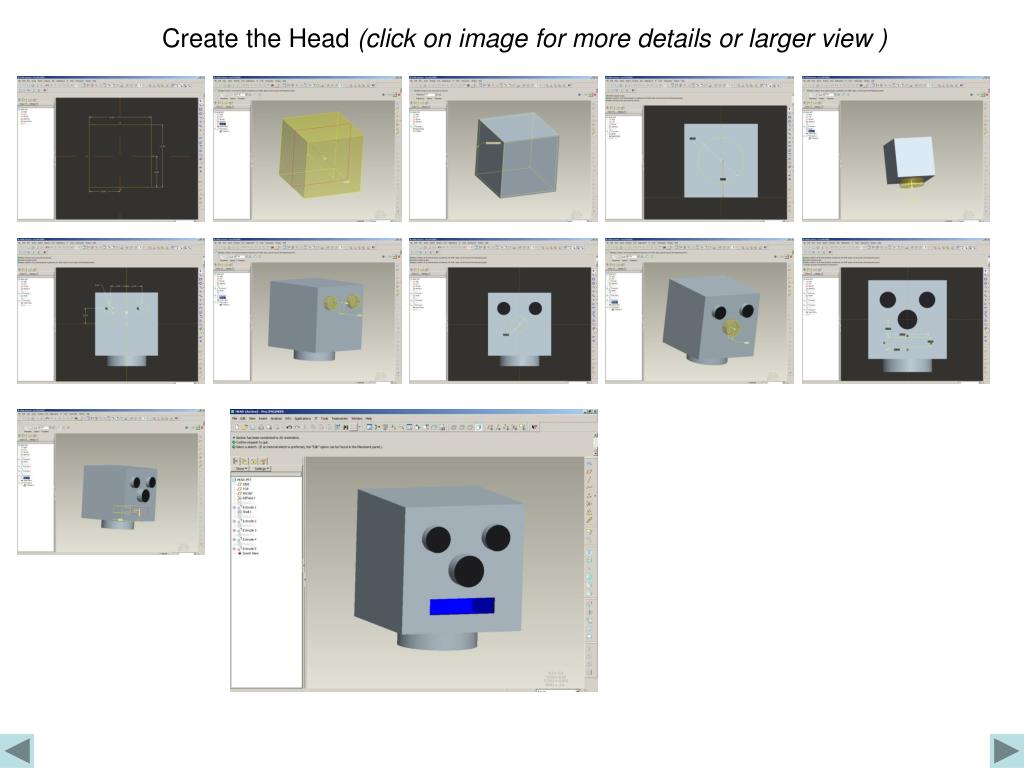

  10. Create the Head (click on image for more details or larger view )

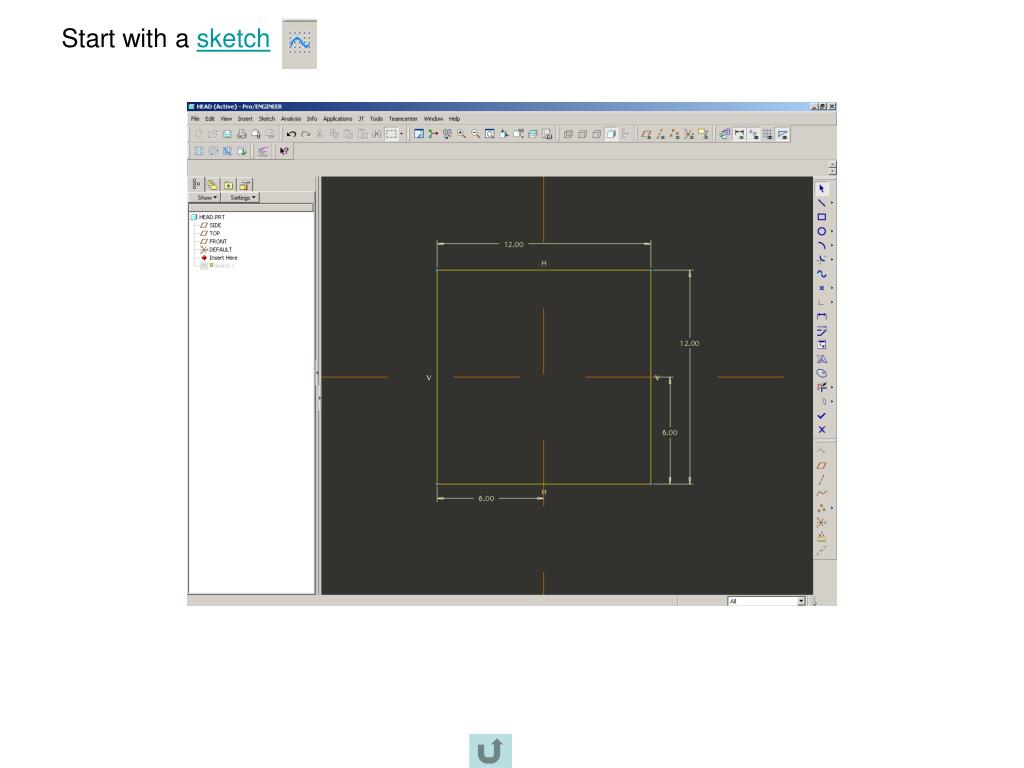

  11. Start with a sketch

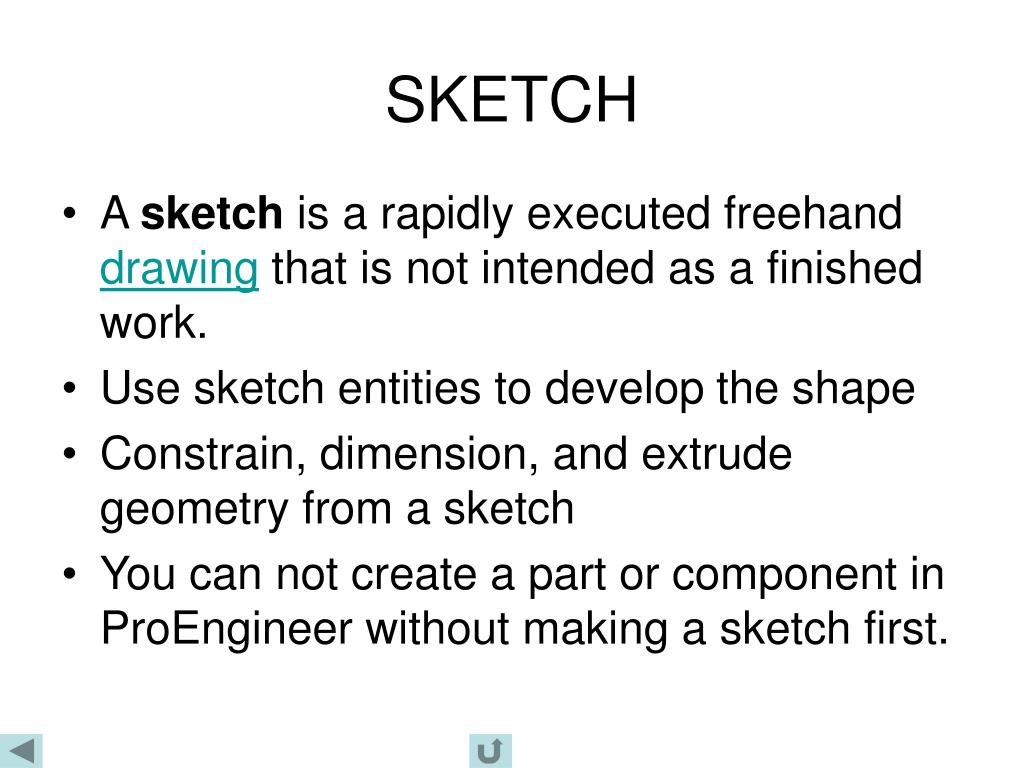

  12. SKETCH • A sketch is a rapidly executed freehand drawing that is not intended as a finished work. • Use sketch entities to develop the shape  • Constrain, dimension, and extrude geometry from a sketch • You can not create a part or component in ProEngineer without making a sketch first.

  13. Extrude the sketch

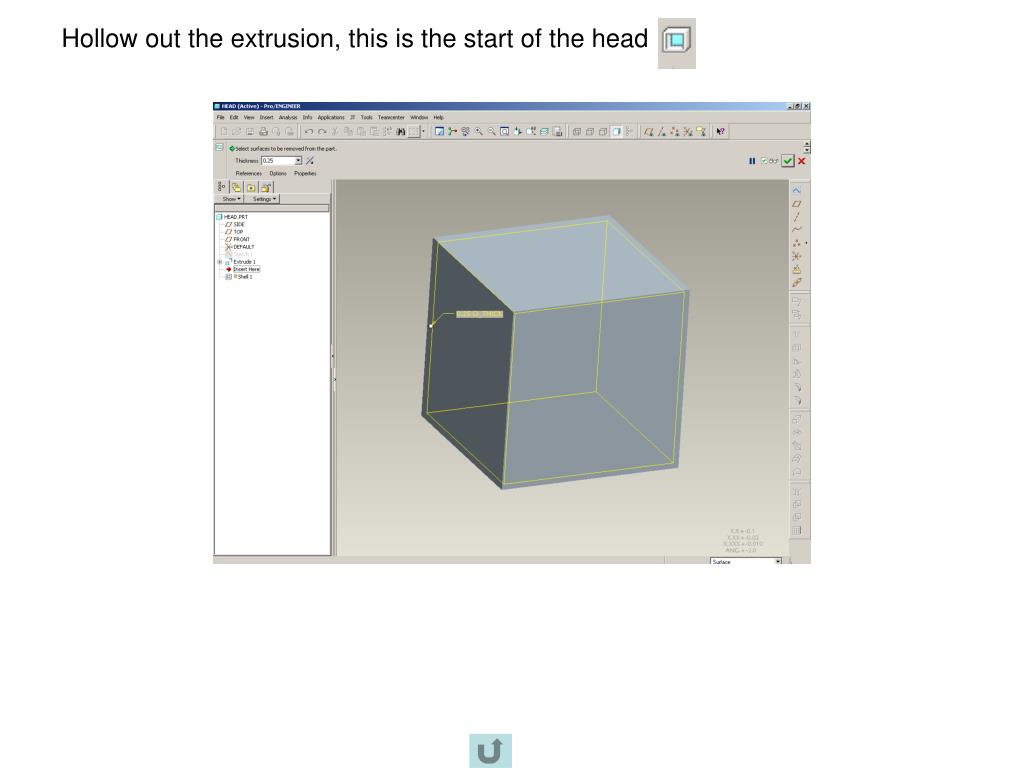

  14. Hollow out the extrusion, this is the start of the head

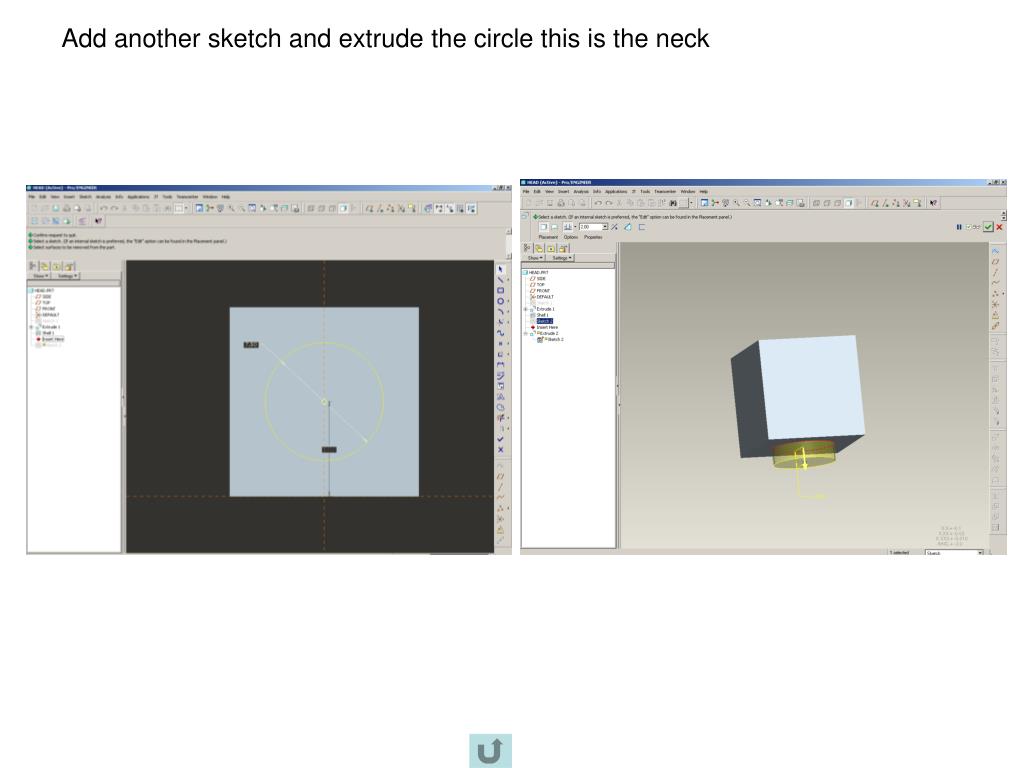

  15. Add another sketch and extrude the circle this is the neck

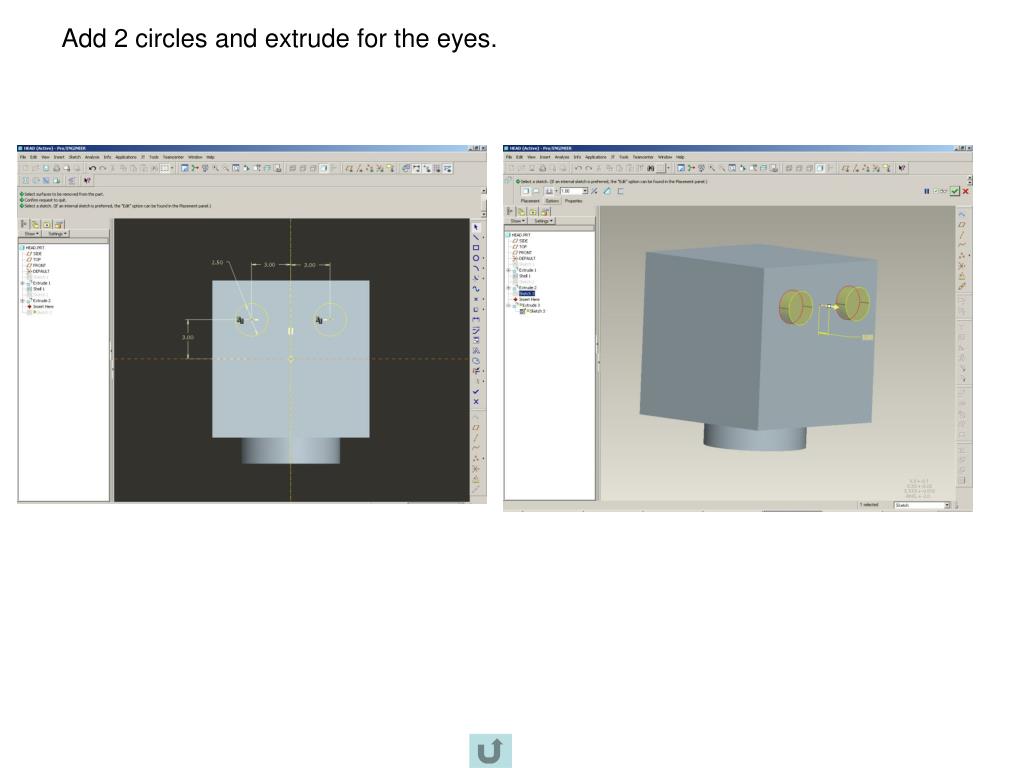

  16. Add 2 circles and extrude for the eyes.

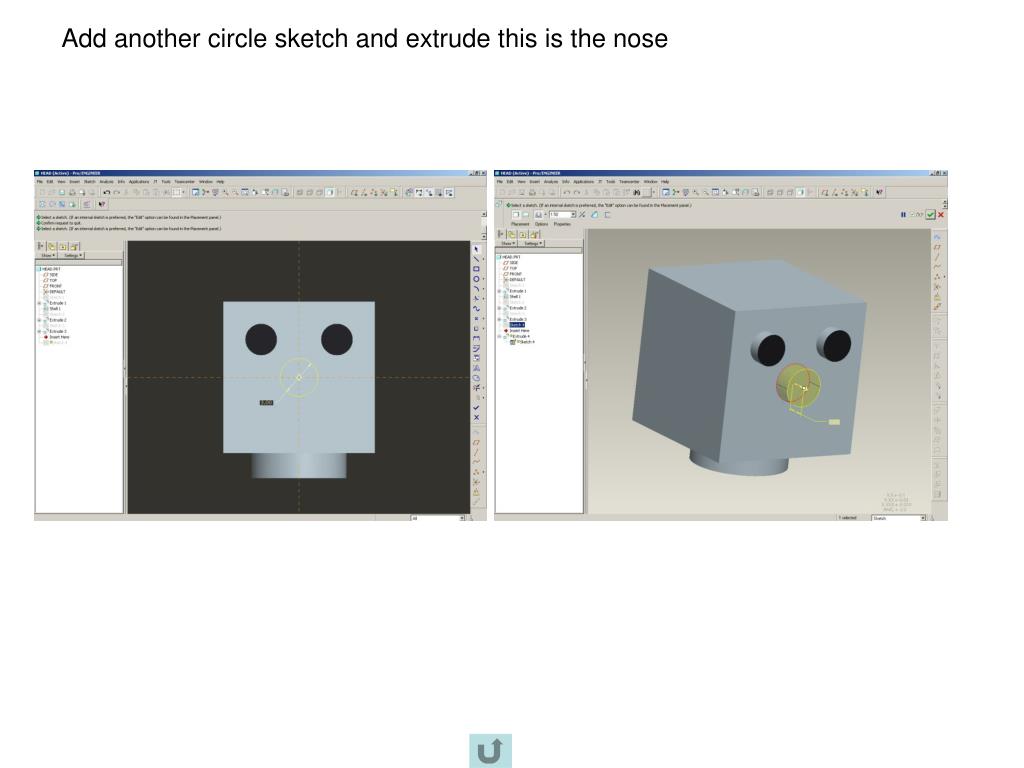

  17. Add another circle sketch and extrude this is the nose

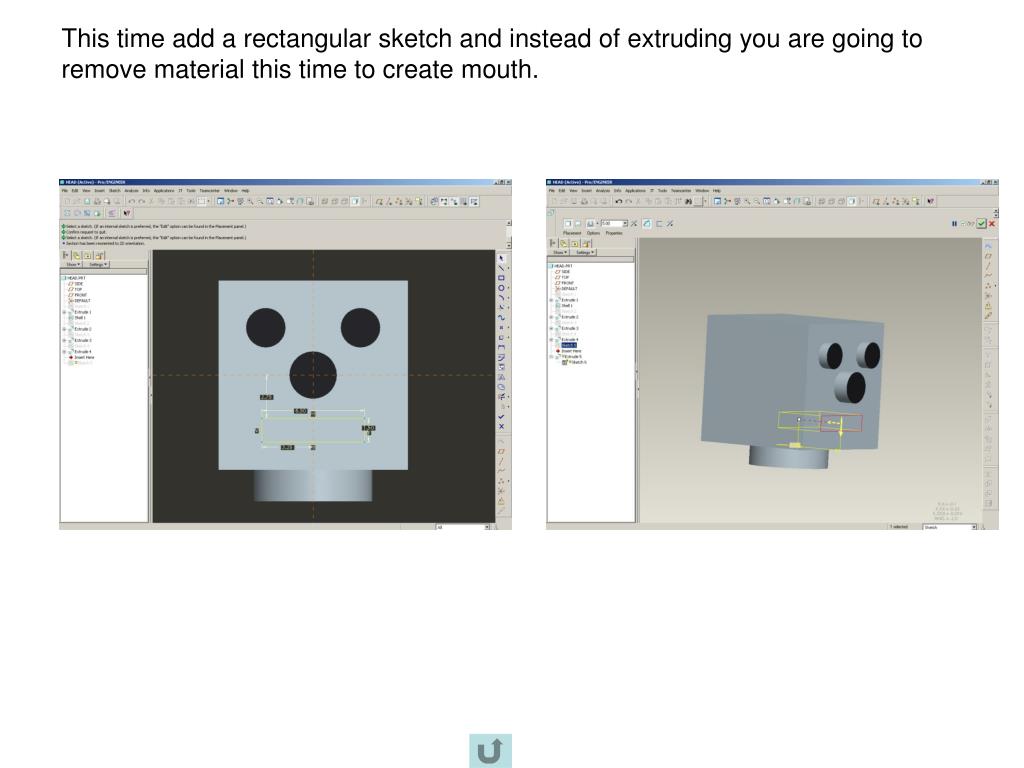

  18. This time add a rectangular sketch and instead of extruding you are going to remove material this time to create mouth.

  19. Create the Body (click on image for more details or larger view)

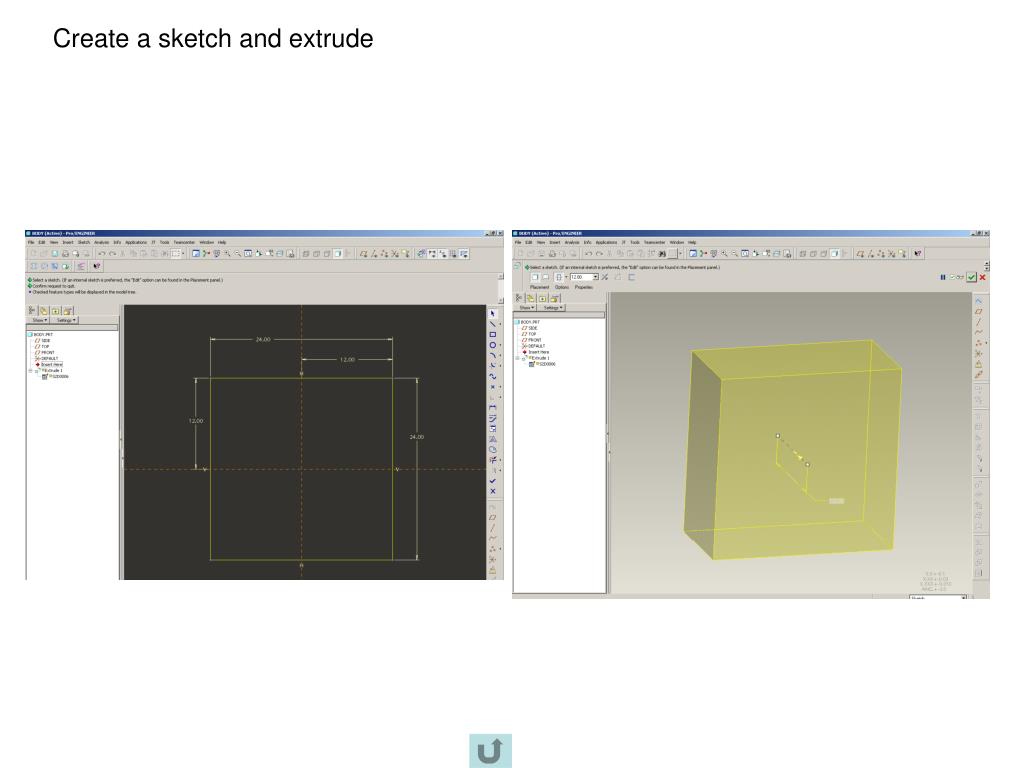

  20. Create a sketch and extrude

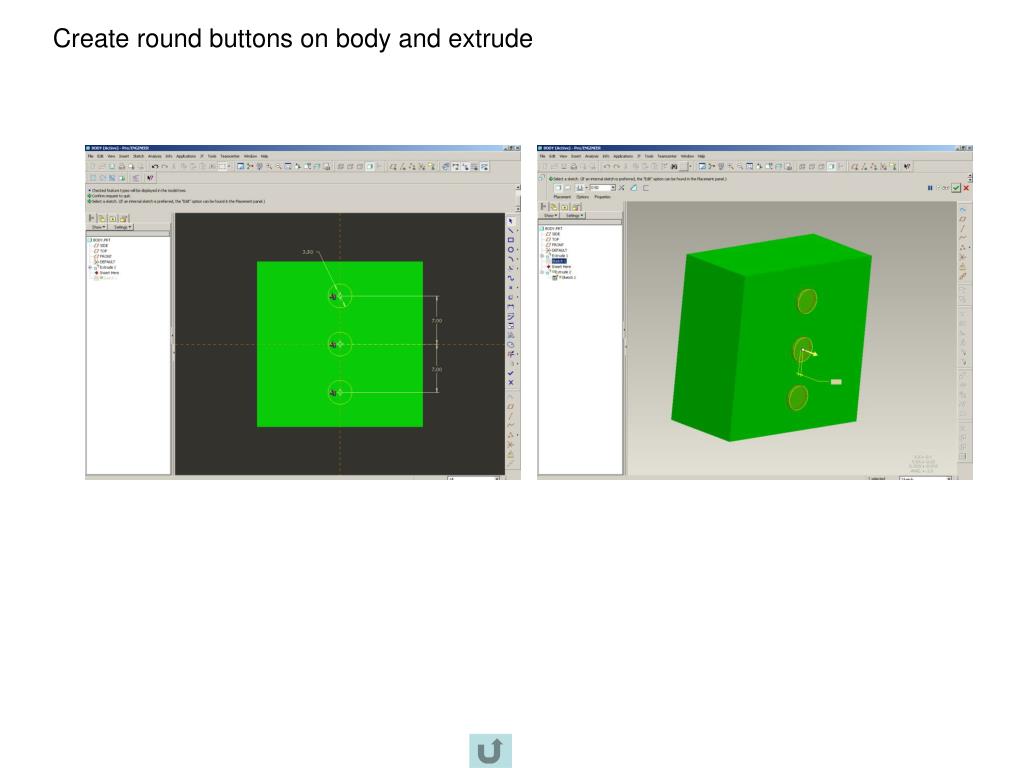

  21. Create round buttons on body and extrude

  22. Create a sketch to remove material or you can use the chamfer tool

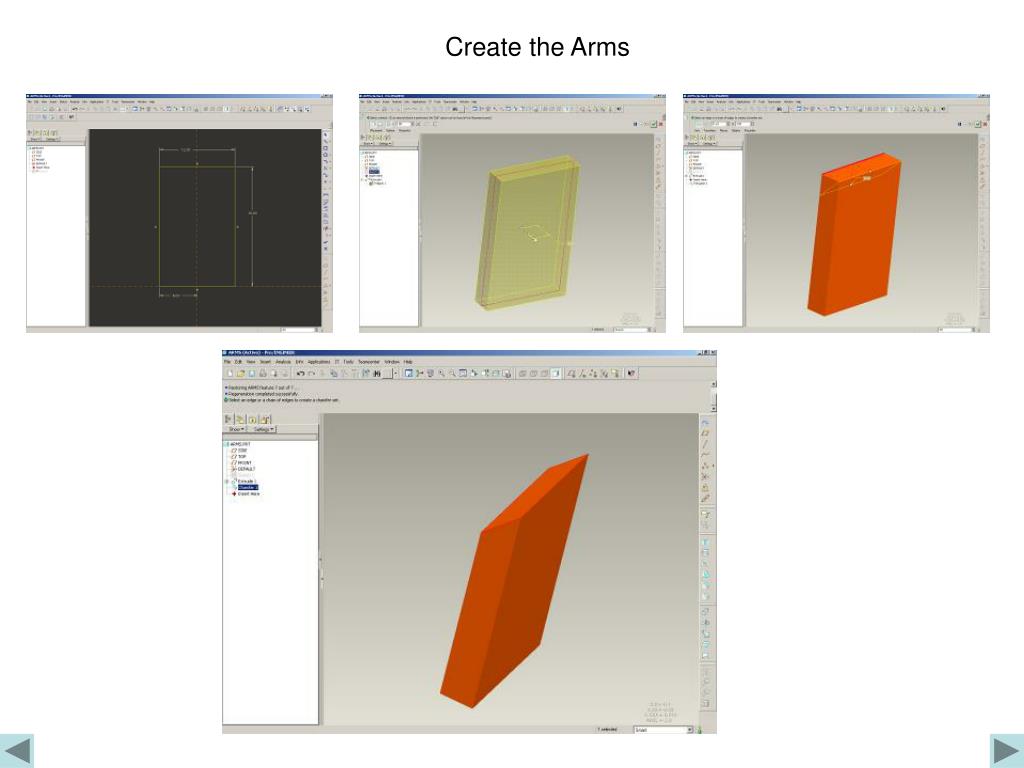

  23. Create the Arms

  24. Create the Legs

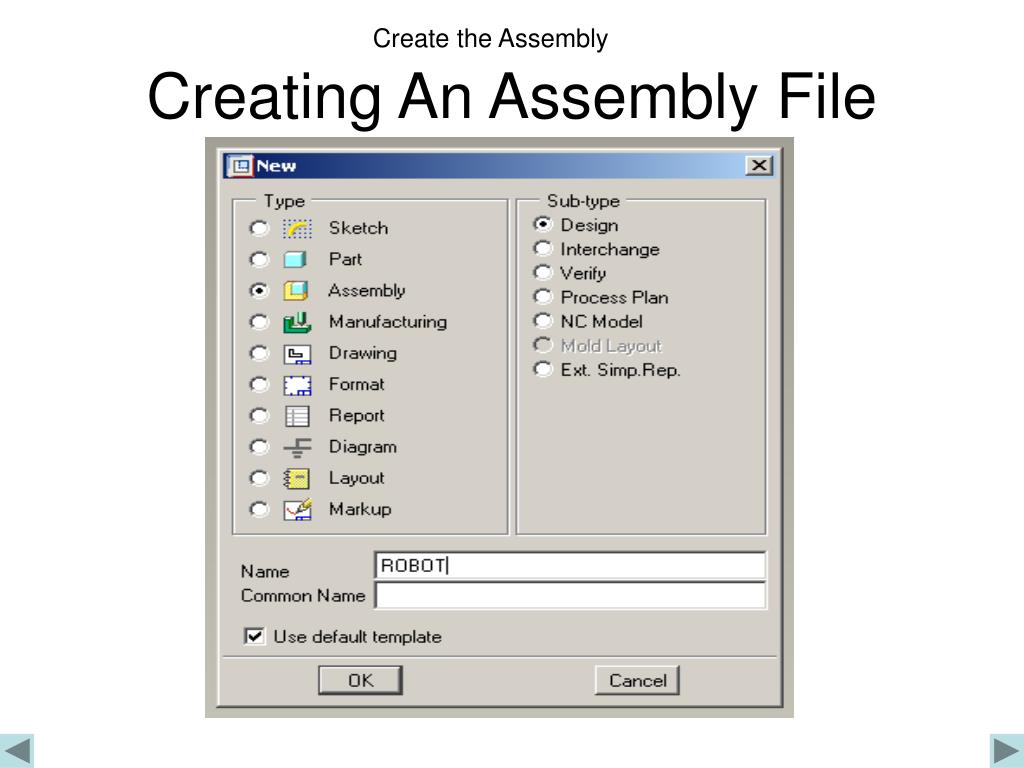

  25. Create the Assembly Creating An Assembly File

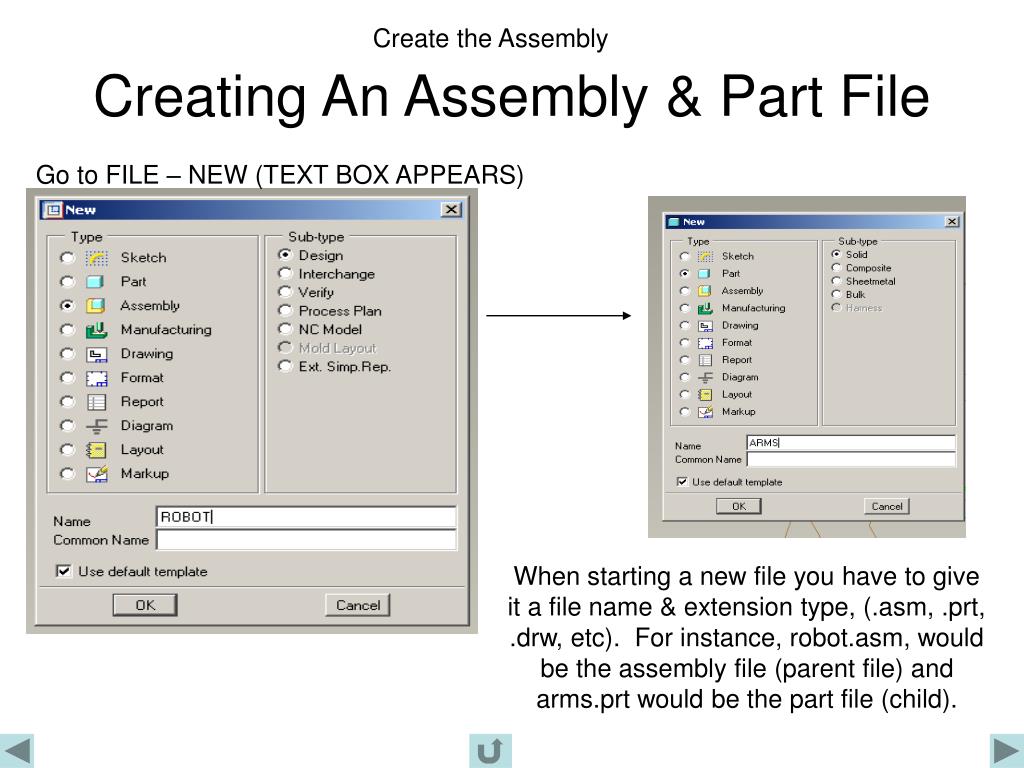

  26. Create the Assembly Creating An Assembly & Part File Go to FILE – NEW (TEXT BOX APPEARS) When starting a new file you have to give it a file name & extension type, (.asm, .prt, .drw, etc). For instance, robot.asm, would be the assembly file (parent file) and arms.prt would be the part file (child).

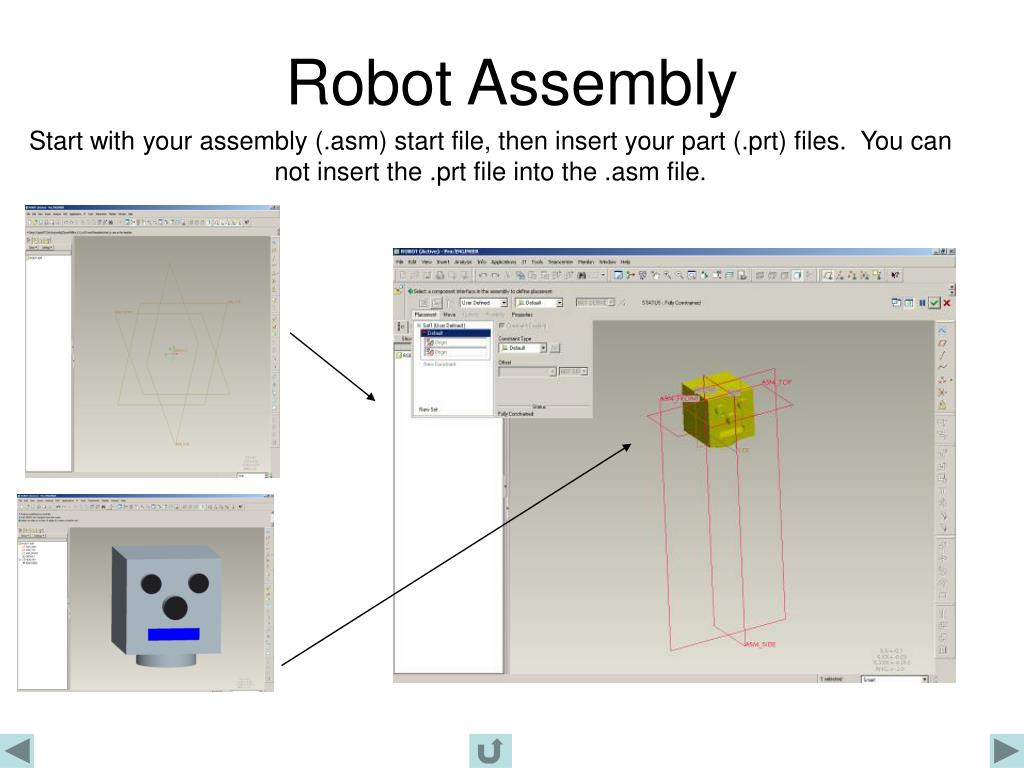

  27. Robot Assembly Start with your assembly (.asm) start file, then insert your part (.prt) files. You can not insert the .prt file into the .asm file.

  28. Robot Assembly To create the Robot assembly start with an empty assembly Insert component and add your first (head) component and fully constrain Insert component and add your body component and fully constrain to the head Insert component and add your arms and fully constrain to the body Last, Insert component and add your legs and fully constrain to the body

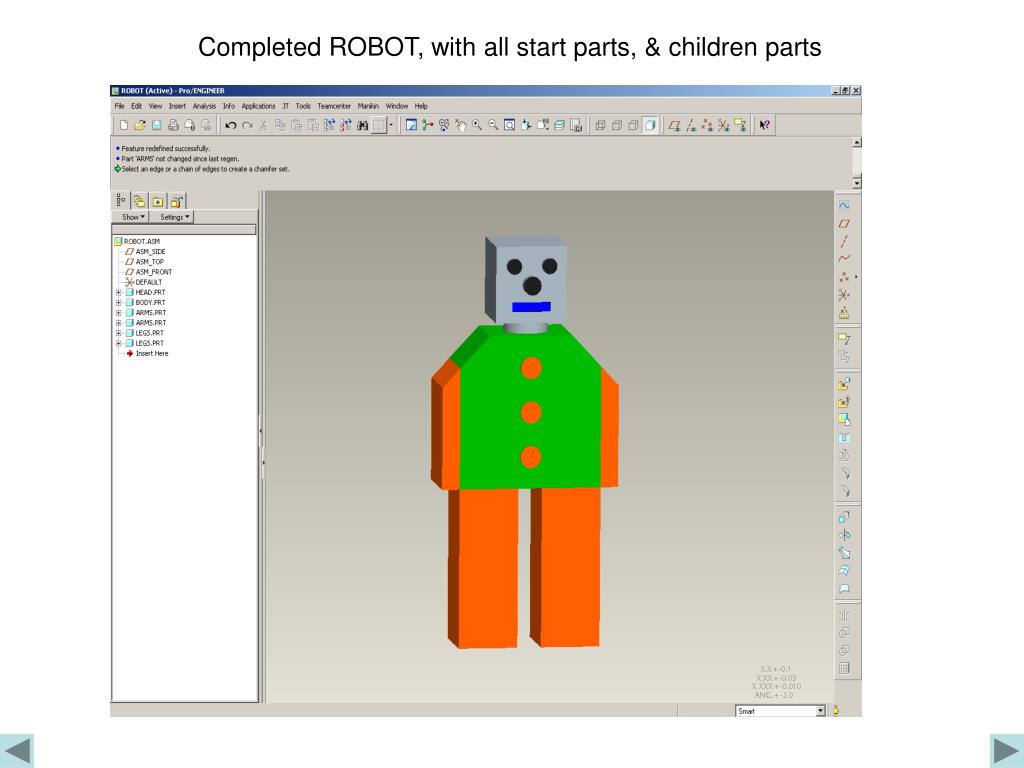

  29. Completed ROBOT, with all start parts, & children parts

  30. This ends the ROBOT lesson are you ready to go to Lesson 2 YES or NO

  31. CAR

  32. Create the Car BodyClick for more details on new features in this lesson

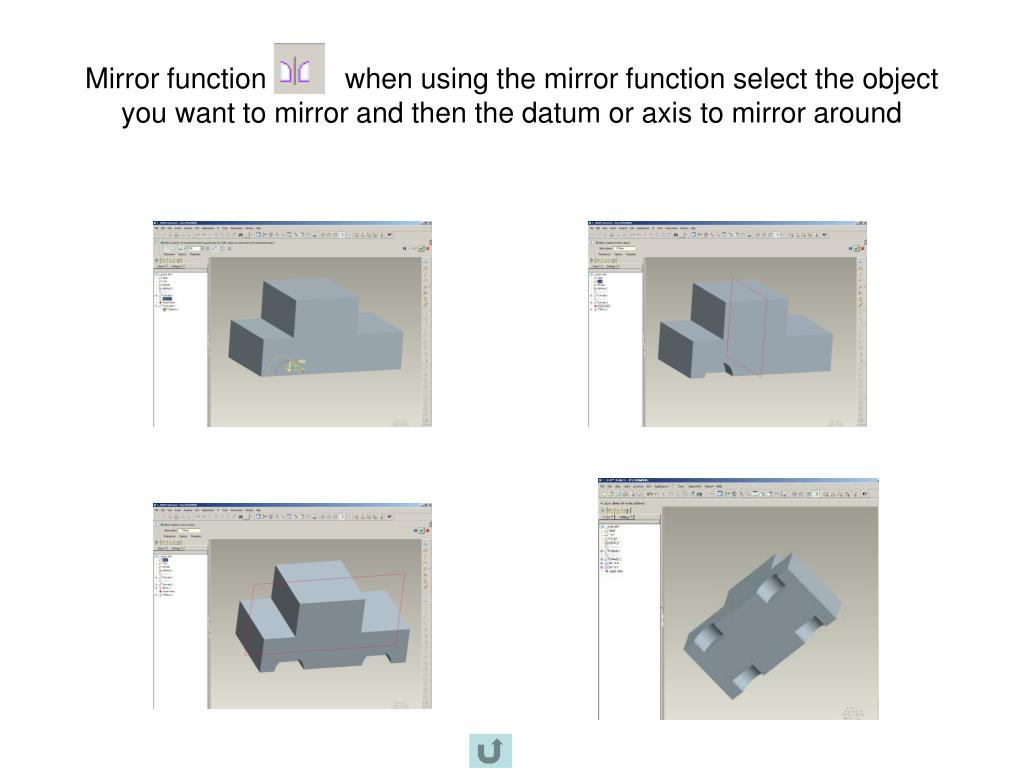

  33. Mirror function when using the mirror function select the object you want to mirror and then the datum or axis to mirror around

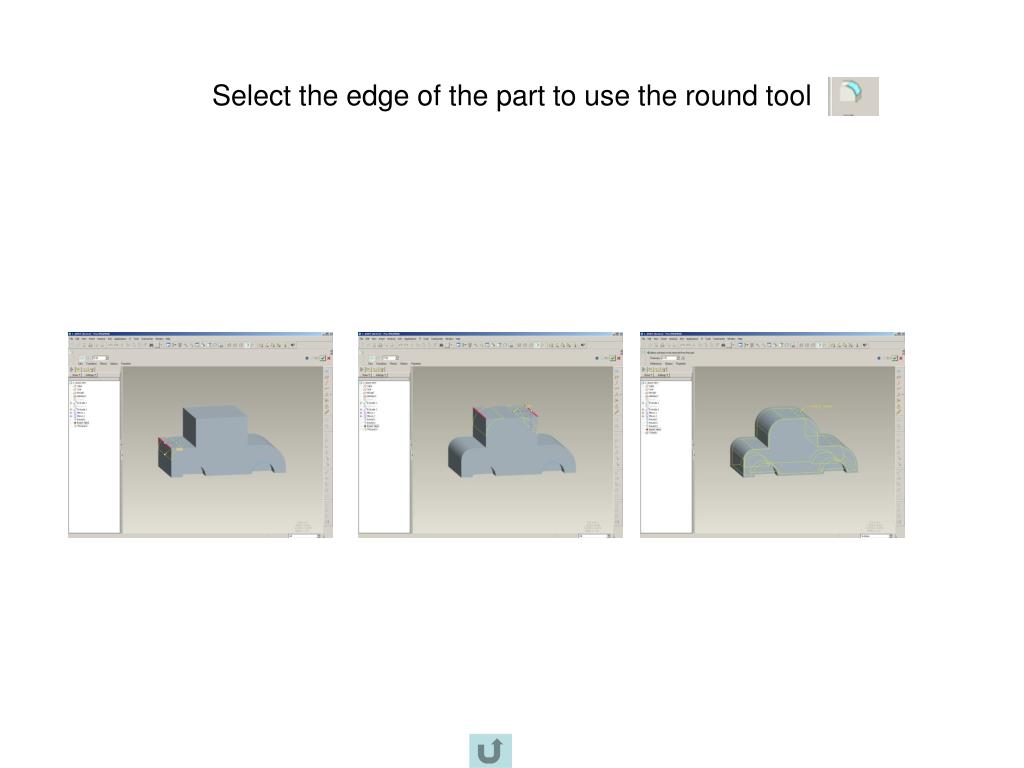

  34. Select the edge of the part to use the round tool

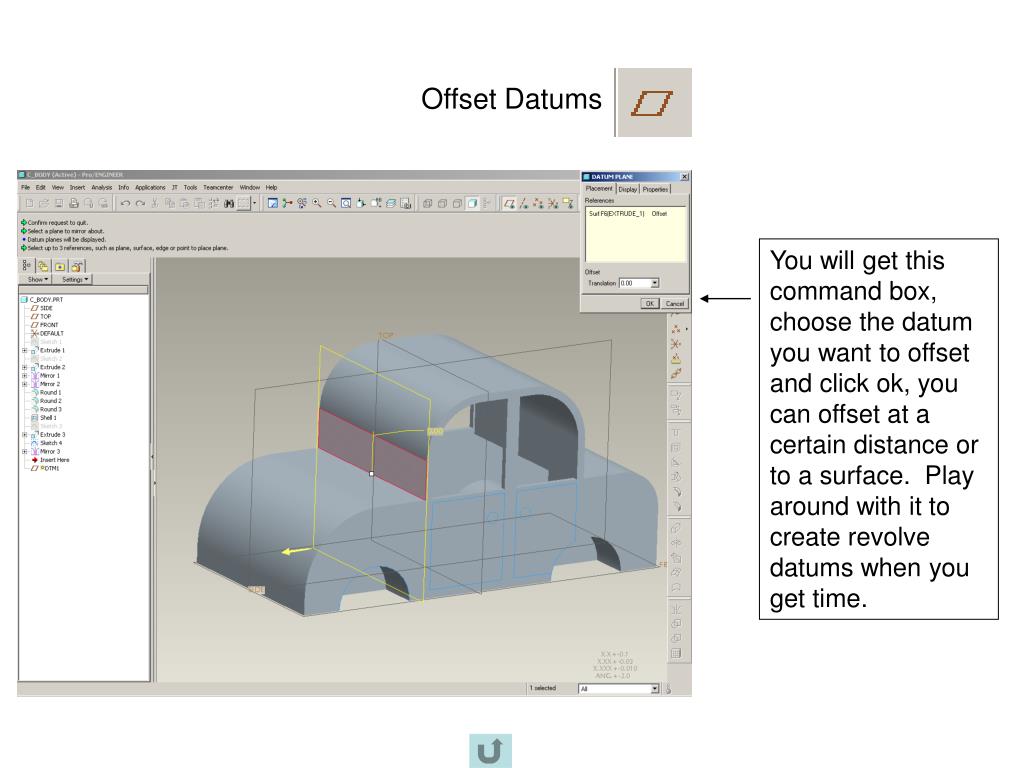

  35. Offset Datums You will get this command box, choose the datum you want to offset and click ok, you can offset at a certain distance or to a surface. Play around with it to create revolve datums when you get time.

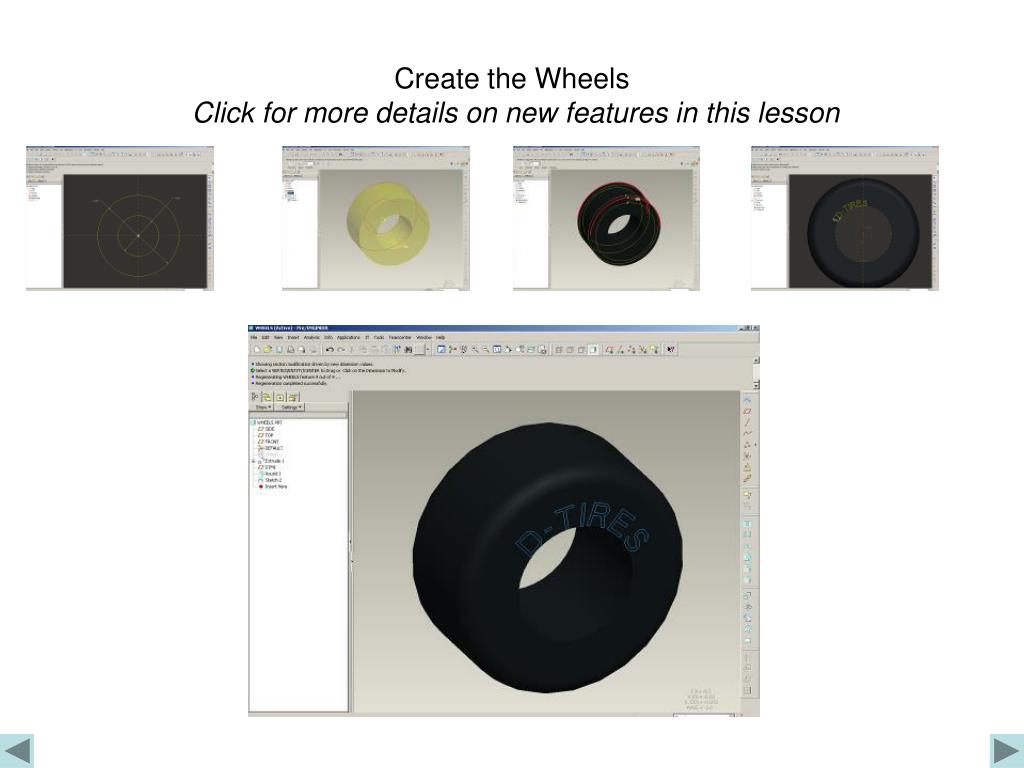

  36. Create the Wheels Click for more details on new features in this lesson

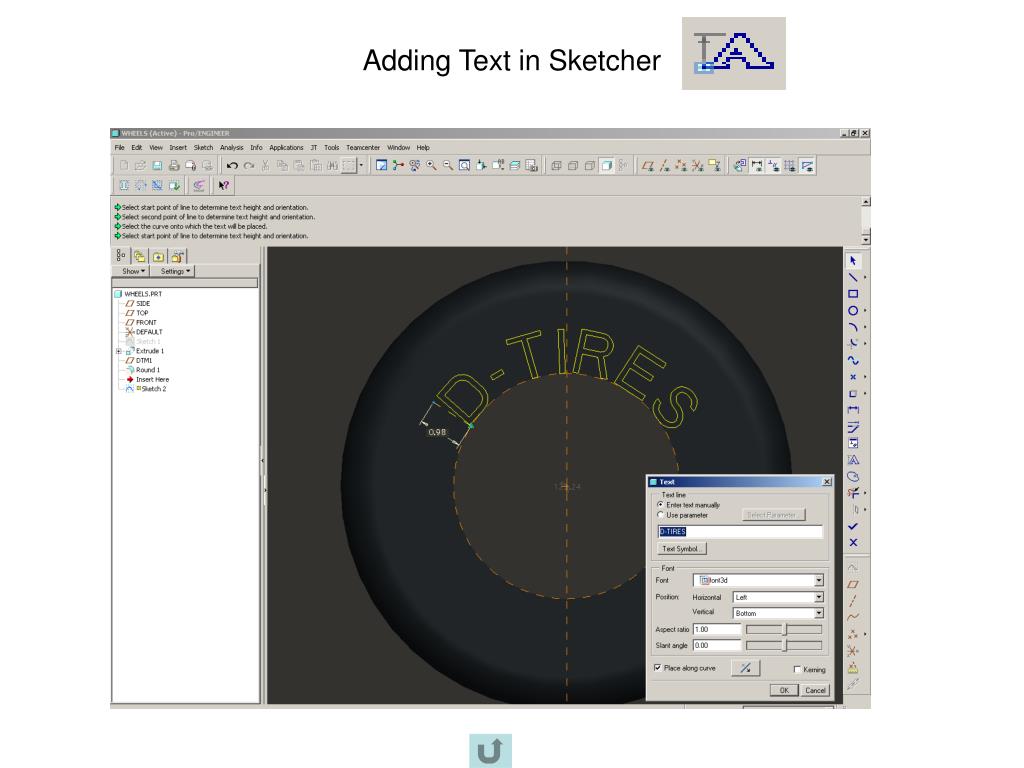

  37. Adding Text in Sketcher

  38. Create the Seats Click for more details on new features in this lesson

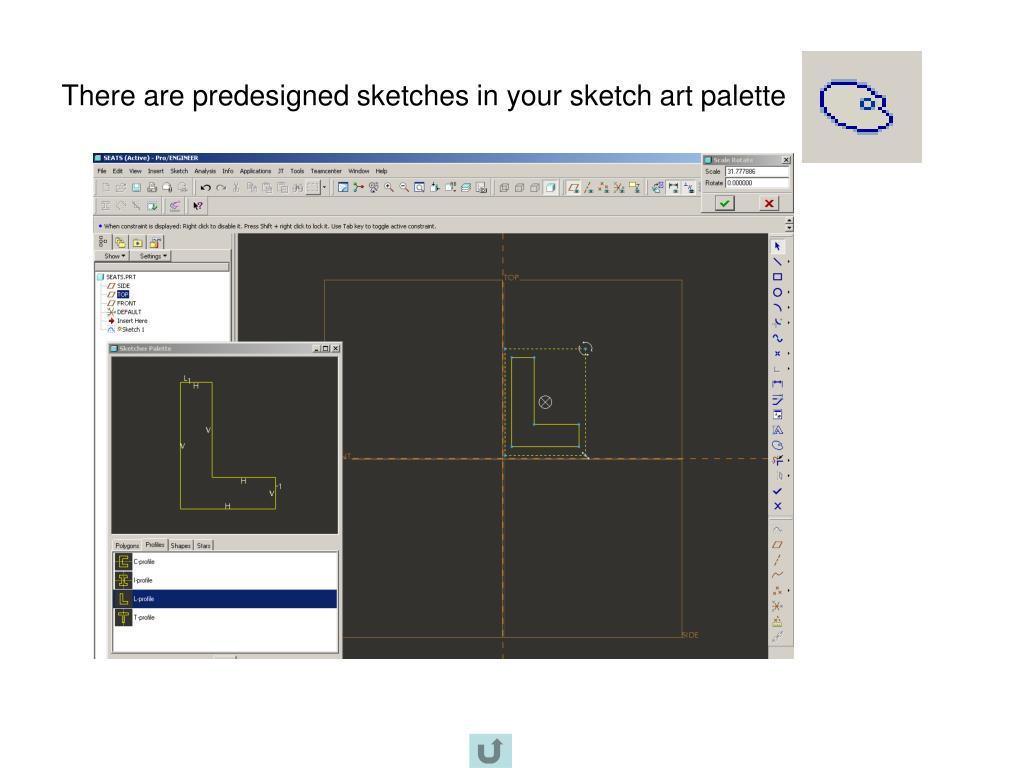

  39. There are predesigned sketches in your sketch art palette

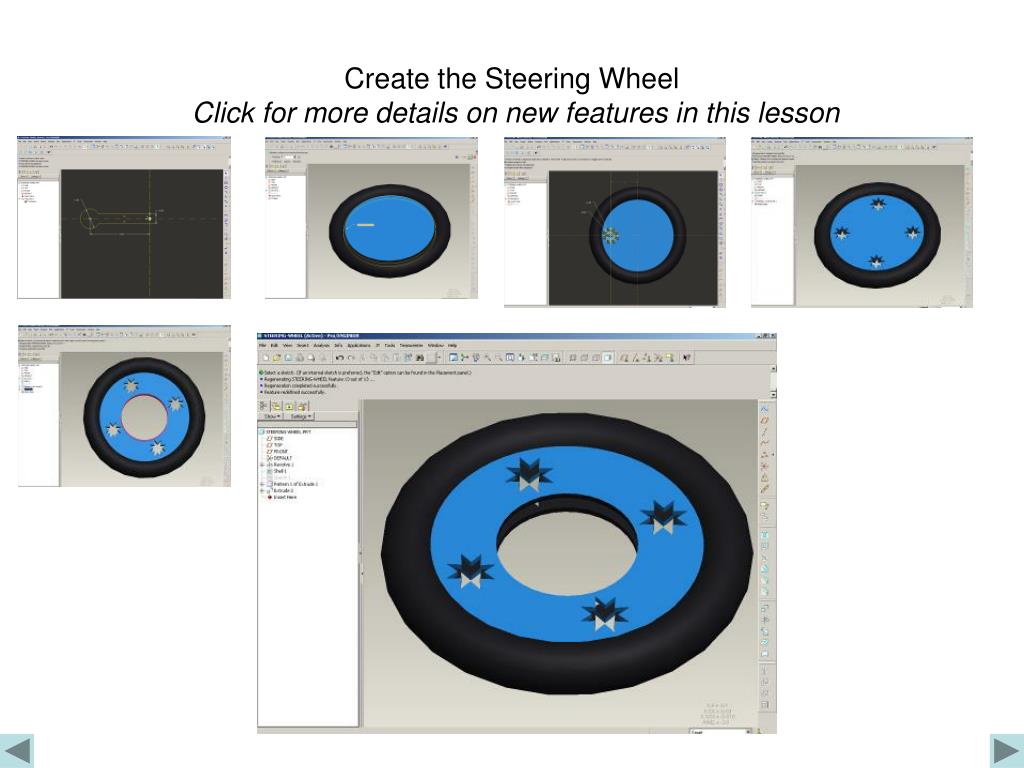

  40. Create the Steering Wheel Click for more details on new features in this lesson

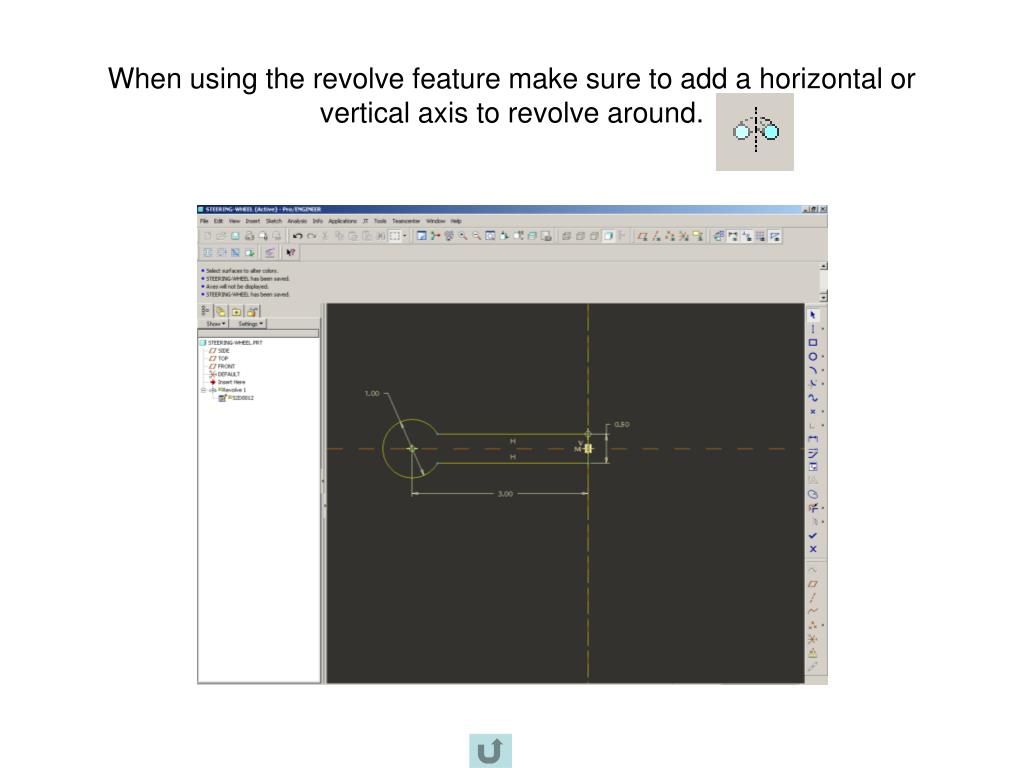

  41. When using the revolve feature make sure to add a horizontal or vertical axis to revolve around.

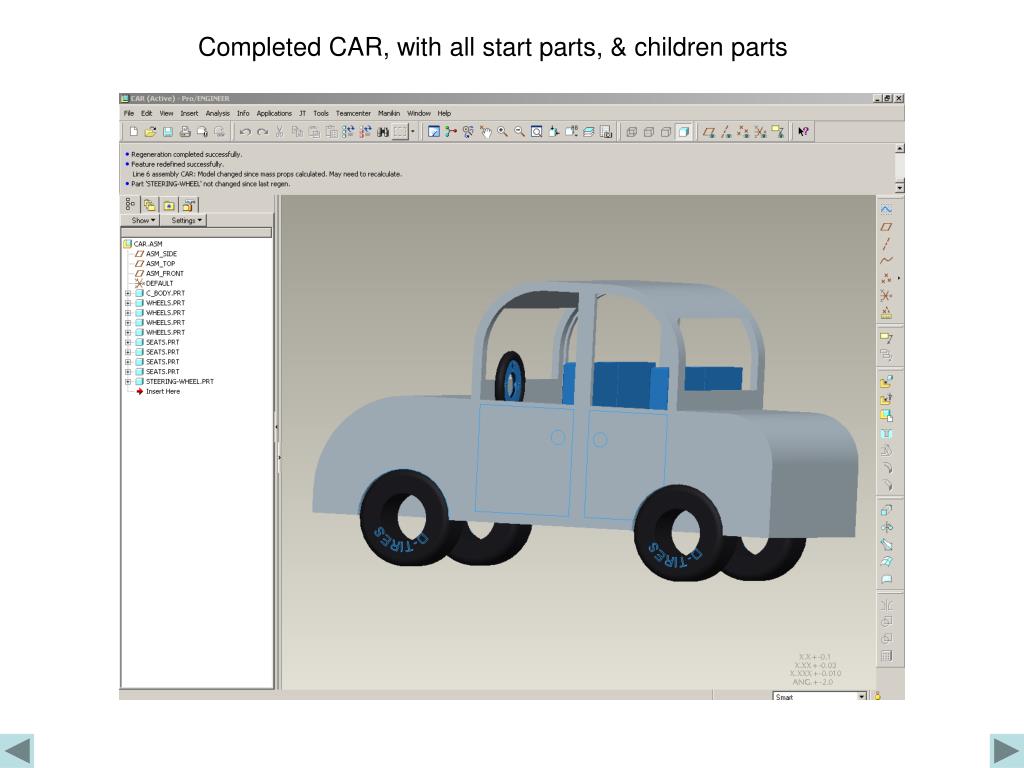

  42. Completed CAR, with all start parts, & children parts

  43. This ends the CAR lesson are you ready to go to Lesson 3 YES or NO

  44. BOAT

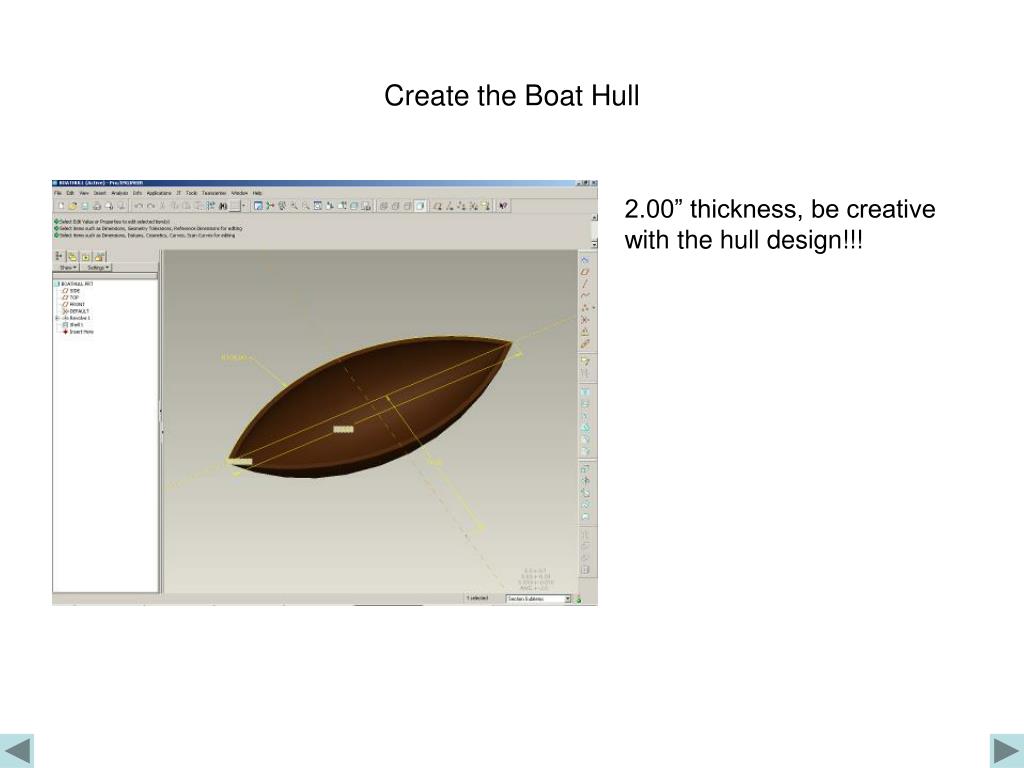

  45. Create the Boat Hull 2.00” thickness, be creative with the hull design!!!

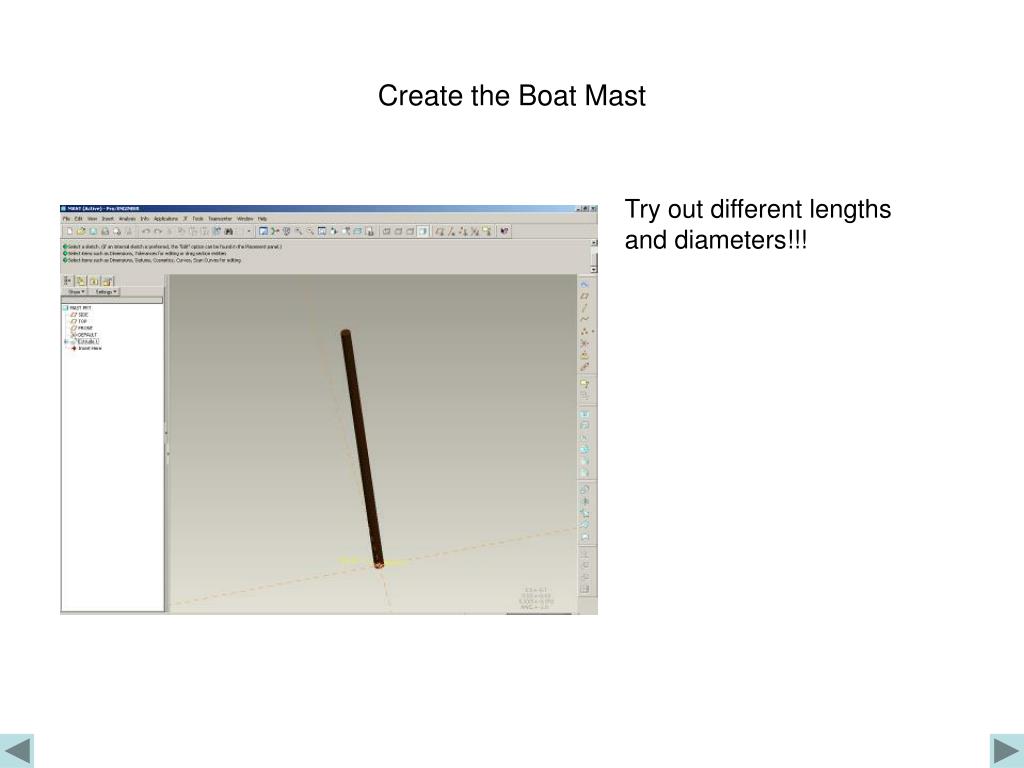

  46. Create the Boat Mast Try out different lengths and diameters!!!

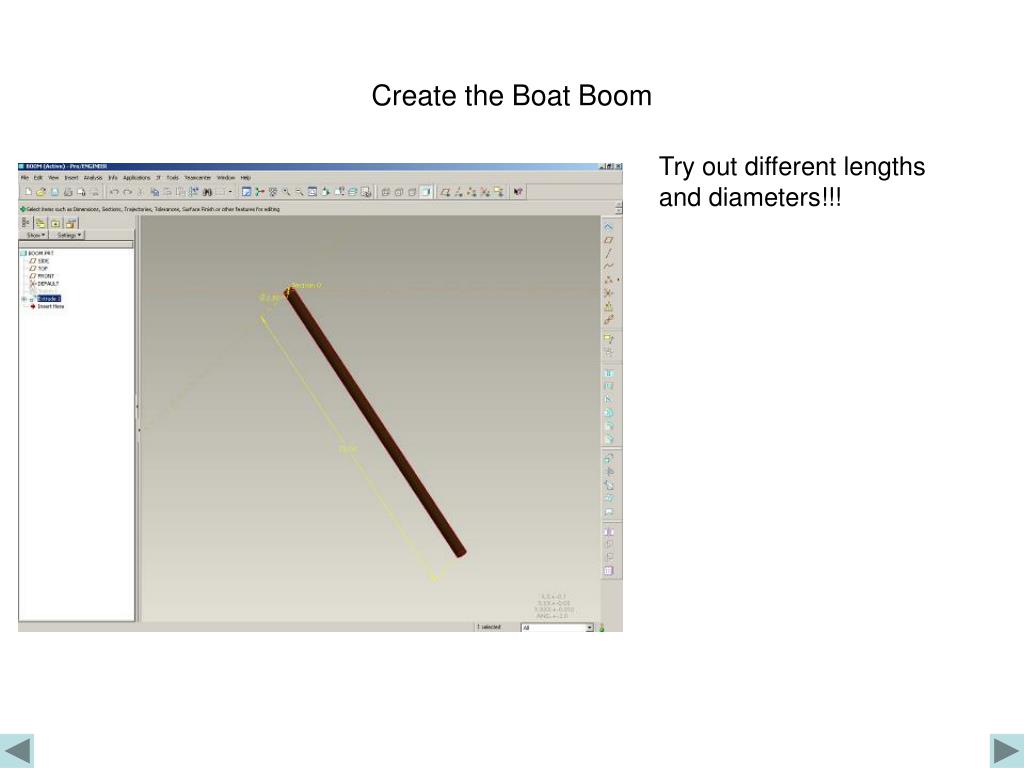

  47. Create the Boat Boom Try out different lengths and diameters!!!

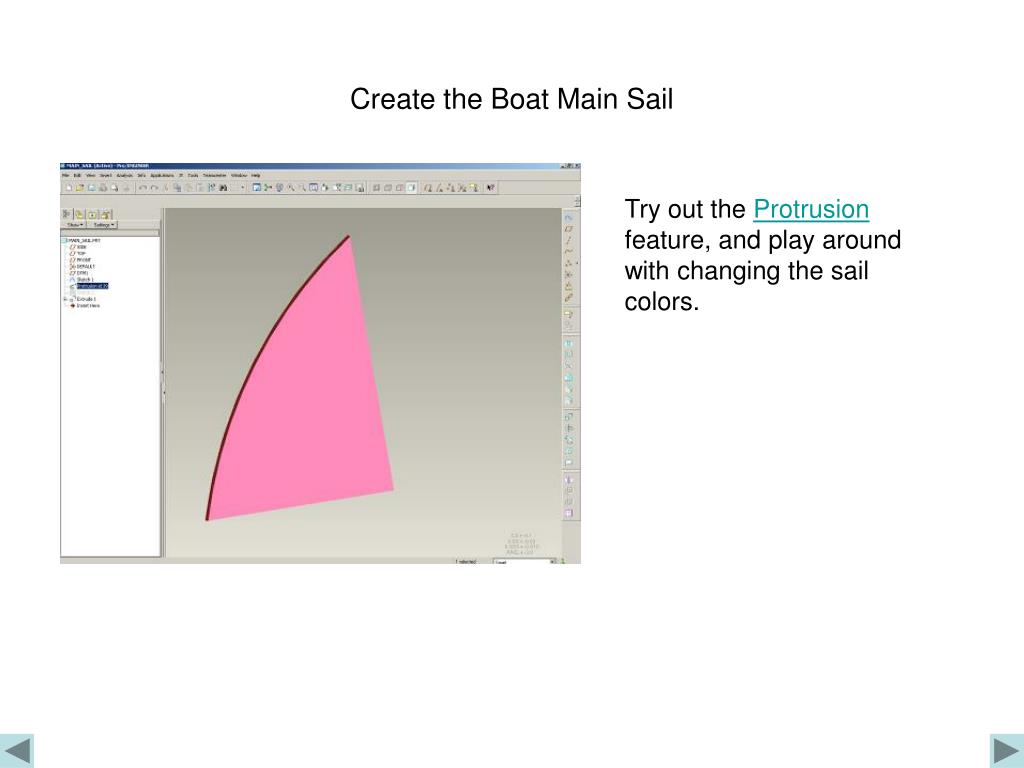

  48. Create the Boat Main Sail Try out the Protrusion feature, and play around with changing the sail colors.
