Weathering. Weathering. The various mechanical and chemical processes that cause exposed rock to fall apart/decompose. Rock into sediments Rock into rust.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

Weathering


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
    Presentation Transcript
    1. Weathering

    2. Weathering • The various mechanical and chemical processes that cause exposed rock to fall apart/decompose. • Rock into sediments • Rock into rust

    3. Weathering Factors Factors present and affecting weathering of rocks • Water • Temperature • Pressure

    4. Weathering Factors • Surface area • The more surface area • The more intense the weathering rate

    5. Weathering • Types of Weathering • 1. Mechanical/Physical • Rocks are broken into smaller pieces • Same original physical properties • No chemical change

    6. Types of Mechanical Weathering Frost Wedging ~ alternate freezing and thawing of water in rocks • due to changes in air temperature • Waterexpands in volume as it freezes by 7% to 9%. • Waterin the cracks of rocks freezes and expands. • Pressure against the crack walls …….. • Rocks spilt apart • .

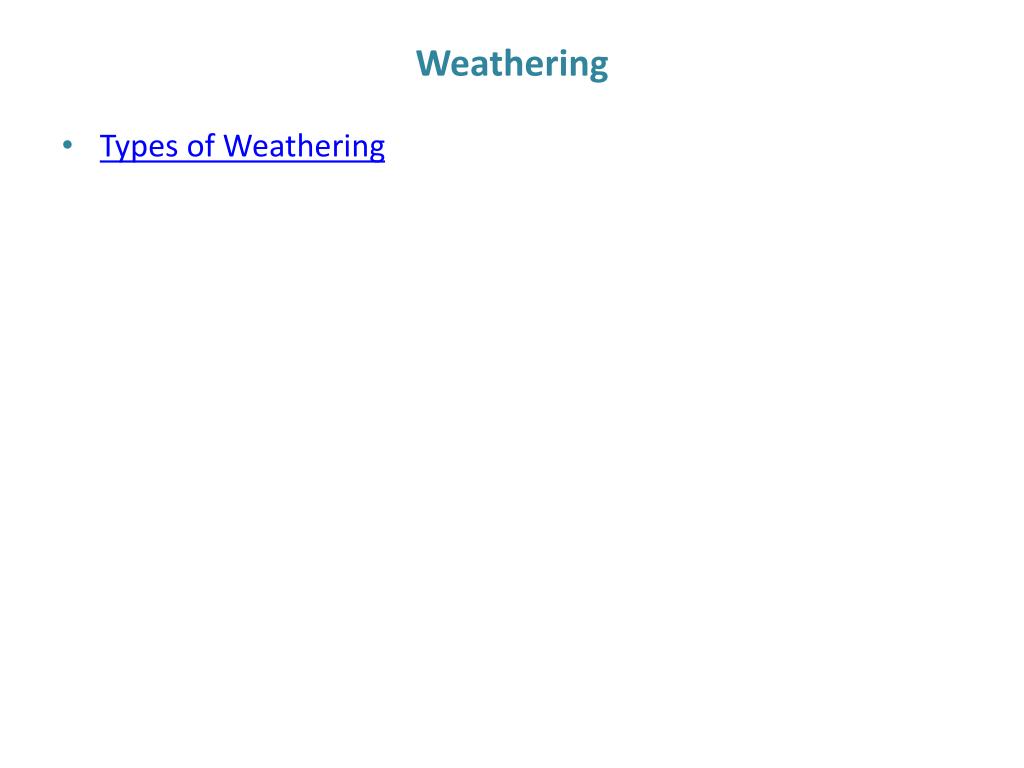

    7. Weathering • Types of Weathering

    8. Types of Mechanical Weathering • Temperature change • rocks expand • Warm temperature Cold temperature • rocks contract • Alternate Tension (expansion) and Compression ( contraction ) Pressures • Atomic bonds break

    9. Weathering • Types of Weathering

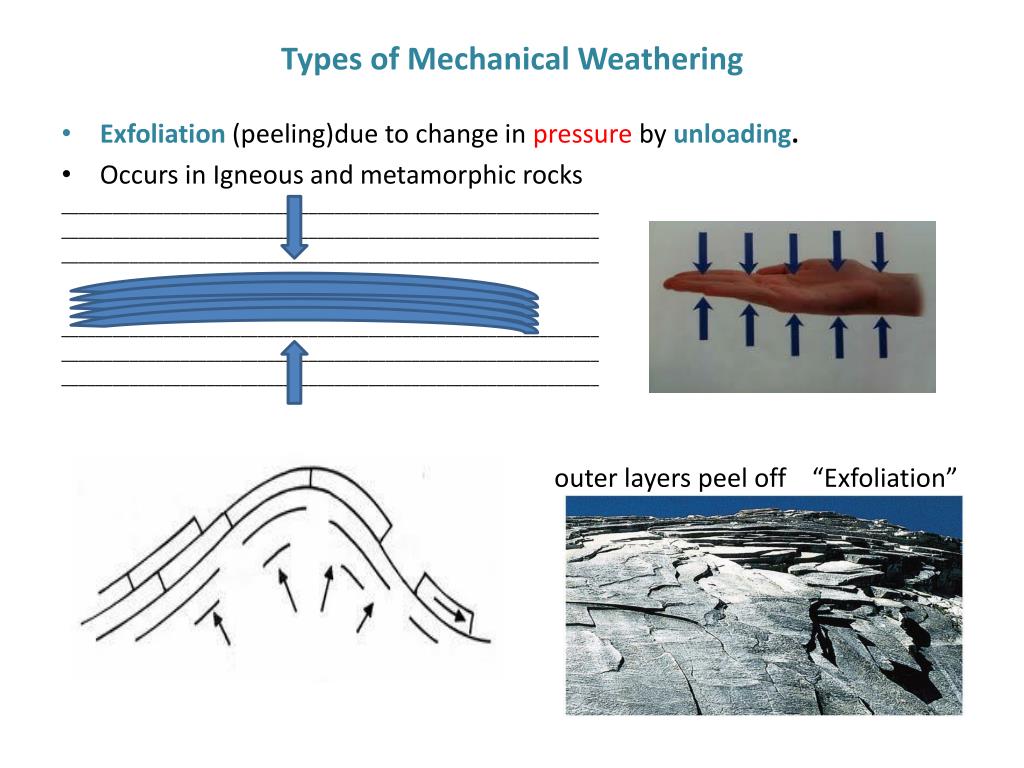

    10. Types of Mechanical Weathering • Exfoliation (peeling)due to change in pressure byunloading. • Occurs in Igneous and metamorphic rocks _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ outer layers peel off “Exfoliation”

    11. Dome Rock • Colorado • Enchanted rock • Texas • Granite

    12. Weathering • Types of Weathering

    13. Types of Mechanical Weathering • Biological/Organic activity • Pressure force by plants and animals • Burrowing animals • plant roots • People !

    14. Review • Explain the type of weathering that is taking place. • Frost Wedging • What factors are present? • Water, Temperature, Pressure • Surface area • Explain the type of weathering that is taking place. • Exfoliation • What factor(s) is/are present? • Pressure • Surface area

    15. Review • Observe the weathered sidewalk. • Describe a possible type of mechanical weathering process. • Frost Wedging, • Thermal Expansion • Organic Activity

    16. Mechanical Weathering Lab • Lab

    17. Weathering • Types of Weathering • 1. Mechanical/Physical • 2. Chemical rocks are dissolved/chemically changed. • Salt dissolved in water • Rust

    18. Reminder • Weathering ~ rocks break apart ( fragments/dissolved ) • Factors present and affecting weathering • Water Temperature Pressure Surface area

    19. Types of Chemical Weathering • Hydrolysis chemical reaction of water with other substances. • Minerals are “dissolved”/fall apart in water. • Halite NaCl dissolves in water • water molecules break NaCl bonds

    20. Types of Chemical Weathering • OxidationReaction of Oxygen in air/water with metallic elements • O2 + metal Oxide “rust” • “Rust” is loosely formed on the surface of the original metal. Iron oxide Copper oxide

    21. Types of Chemical Weathering • Acid Precipitation • CO2 in the air + water produceCarbonic acid • Limestone is dissolved in weak acidic water.

    22. Types of Chemical Weathering • Thermal effect • Ex. Salt dissolves faster in hot water than in cold water. • thehigher temperature of air and water • the more intense rate of chemical weathering

    23. Review • Explain how water dissolves minerals. • Hydrolysis • What condition(s) can intensify this process? • Higher Temperature • More water • More surface area • Explain how a limestone statue is chemically weathered. • Calcite ~ Ca CO3 • Carbonic Acid

    24. Review • Describe what is happening to the Statue of Liberty? • Oxidation • Cu +O2Copper Oxide • What will eventually happen to a chemically weathered object? • Its original material is dissolved/chemically changed. • Falls apart/Disappears!

    25. Chemical Weathering Lab • Lab

    26. Weathering Review • Explain the difference between mechanical and chemical weathering. • Mechanical ~ rocks break into smaller pieces. • Chemical ~ rocks dissolve/chemically change. • Describe possible weathering processes that are occurring in this picture.

    27. Weathering Review • Mechanical and Chemical weathering may occur at the same time/place.

    28. Weathering • Biological Weathering • Lichens: colonies of fungi and algae • Mechanical ~ microscopic roots • Chemical ~ molecular breakdown of minerals • “Eat away” at the surface of the rock • Leave loose, unused rock/mineral material

    29. Lichens Lichens are actually two types of organisms, microscopic fungi and algae, working symbiotically, or together. The fungus keeps the algae moist, and the algae makes food for both organisms. This partnership allows lichens to live in some of the most inhospitable places on Earth, such as barren rock. The many types of lichen range in color from the palest green to bright orange to black. Most of the lichens normally seen are epilithic, meaning they reside on the surface of the rock. The endolithic lichens make their way into rock, while chasmolithic lichens can survive in cracks within rockRead more: What Are Biological Weathering Lichens? | eHow.comhttp://www.ehow.com/info_8551957_biological-weathering-lichens.html#ixzz2ETKc8orO • Physical Weathering • With microscopic rootlike filaments, lichens can physically weather rocks. Parts of lichens called hyphae and rhizines find their way between the grains of rock. Once there, the lichens' repeated swelling and shrinking increases the size of the gaps, allowing more lichens to enter and continue the process. Eventually, the rock forms cracks along its surface and/or sheds part of its top layer.Read more: What Are Biological Weathering Lichens? | eHow.comhttp://www.ehow.com/info_8551957_biological-weathering-lichens.html#ixzz2ETKjZxDF • Chemical Weathering • Lichens make chemicals that react with other substances to eat away at rock slowly. One of the biggest weathering agents is oxalic acid, which occurs naturally in lichens. When oxalic acid reacts with the environment, it leaches calcium carbonate from rocks and replaces it with a weaker substance.Read more: What Are Biological Weathering Lichens? | eHow.comhttp://www.ehow.com/info_8551957_biological-weathering-lichens.html#ixzz2ETKxbSZC • Lichens help to erode rocks in other ways. Water from the sky and carbon dioxide from the lichens mix with a common rock compound called calcium bicarbonate to form calcium carbonate, a liquid that is easily washed away by rain. In the same way, lichens can help turn rock-hard magnesium bicarbonate into the highly erodible magnesium bicarbonate.Read more: What Are Biological Weathering Lichens? | eHow.comhttp://www.ehow.com/info_8551957_biological-weathering-lichens.html#ixzz2ETLQhKBw • Effects • In some cases, lichen growing inside a rock can weather the rock 200 to 300 times faster than geological processes such as wind and water. During decades and centuries, lichens can turn barren boulders into chunks of rock with deep fissures and a layer of organic matter. This allows small plants such as mosses to gain a foothold. These plants further weather rock so soil and, eventually, a new ecosystem can form. • Lichens can bring unwanted weathering to statues, tombstones, stone buildings and other elements that humans would rather remain intact and unvarnished.Read more: What Are Biological Weathering Lichens? | eHow.comhttp://www.ehow.com/info_8551957_biological-weathering-lichens.html#ixzz2ETLdJ4W5 • Effects • In some cases, lichen growing inside a rock can weather the rock 200 to 300 times faster than geological processes such as wind and water. During decades and centuries, lichens can turn barren boulders into chunks of rock with deep fissures and a layer of organic matter. This allows small plants such as mosses to gain a foothold. These plants further weather rock so soil and, eventually, a new ecosystem can form. • Lichens can bring unwanted weathering to statues, tombstones, stone buildings and other elements that humans would rather remain intact and unvarnished. Read more: What Are Biological Weathering Lichens? | eHow.comhttp://www.ehow.com/info_8551957_biological-weathering-lichens.html#ixzz2ETLdJ4W5

    30. Do Now Question • How does your garden grow? • Name and describe conditions needed for a plant to grow. • * • * • * • * • * • * • Sun • Water • Nutrients • air • Soil

    31. Soil

    32. Soil • Regolith Sediments on earth’s surface • Humus Decomposed organic matter ( nutrients ) • Mixture of Regolith, Humus, water, & air • Soil Supports plant life

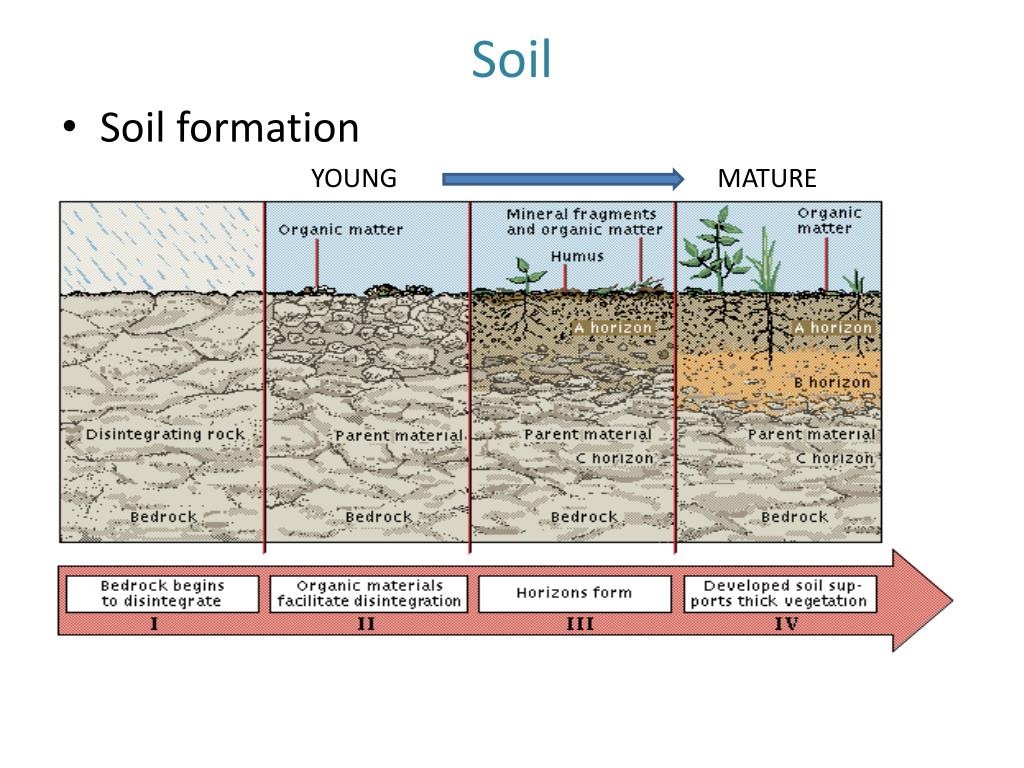

    33. Soil • Soil formation YOUNG MATURE

    34. Soil Horizons • Mature soils have develop distinct layers/Horizons • Texture: Sediment grain size • Composition: Organic matter • Organic Horizon: 100% Humus layer • A Horizon: Top Soil • Sediment Layer (coarse-grain) ) • 25% Humus • B Horizon: Subsoil/Zone of Accumulation • Fine-grained • 5% Humus Impermeable Clay layer _____________ • C Horizon: Weathered bedrock surface • Unsorted texture • No Humus • Bedrock: Original Parent Rock Layer

    35. Soils Review • Explain how each soil horizon is described. • Texture & Composition • Which soil Horizon has the most amount of plant root activity? • A Horizon, Top Soil • Explain why O Horizon is not as good as the A Horizon for plant roots? • No regolith pore space for air and water • Where is the Clay layer? • At the bottom of the B Horizon • Which soil Horizon has the least amount of plant root activity? • C Horizon • Explain why. • No Humus in C horizon due to the clay layer • Describe the texture of the C Horizon. • Unsorted sediments of the weathered surface of bedrock

    36. Soil Profiles • Soil Profiles

    37. Soil • Types of climates

    38. Soil Types • Soils are affected by climate regions. • Temperature, water, & organic activity • 1. Polar Water permanent freeze • Soil permafrost • A Horizon thin & low% humus • 2. Desert Water arid/not much • A Horizon thin & low% humus • 3. Tropical Water plenty/too much • A Horizon thin & low% humus • 4. Temperate Water plenty/enough • A Horizon thick & high% humus • Forest, *Prairie ( grass land ) • * Agriculture

    39. Comparing Soil Types Lab

    40. Types of Soils & Climates

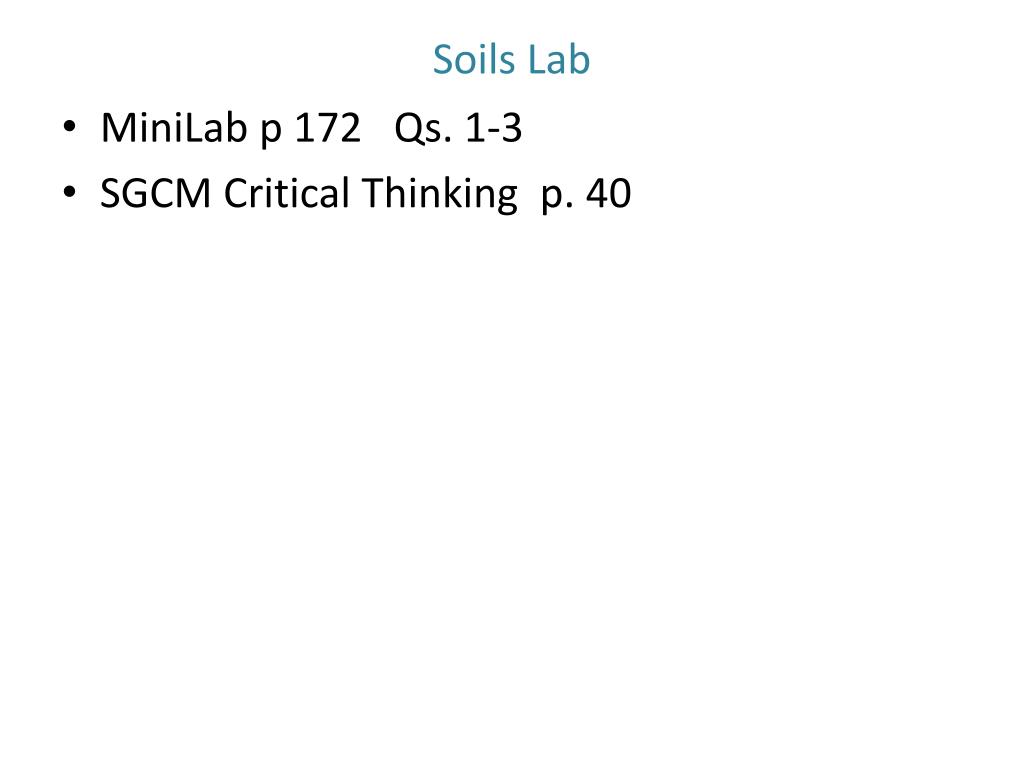

    41. Soils Lab • MiniLab p 172 Qs. 1-3 • SGCM Critical Thinking p. 40
