updates on informix 4gl

Updates on Informix 4GL

Jonathan LefflerArchitect, Foundation Engineering

Updates to Informix 4GL

agenda
Agenda
  • Minor Features in I4GL 7.30
  • CENTURY fields
  • SQL Blocks
  • Connection Management
  • Dynamic Reports
  • Dynamic INPUT ARRAY
  • String concatenation ‘||’
  • Informix 4GL in the Future

Updates to Informix 4GL

minor features in i4gl 7 3

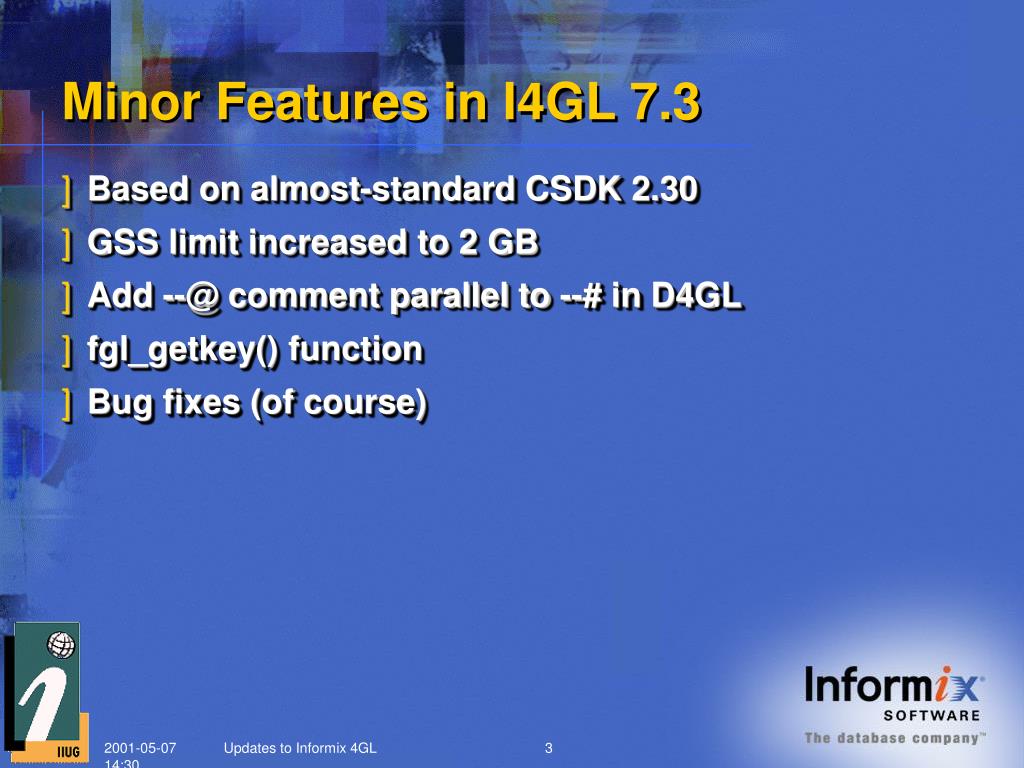

Minor Features in I4GL 7.3
  • Based on almost-standard CSDK 2.30
  • GSS limit increased to 2 GB
  • Add --@ comment parallel to --# in D4GL
  • fgl_getkey() function
  • Bug fixes (of course)

Updates to Informix 4GL

century fields

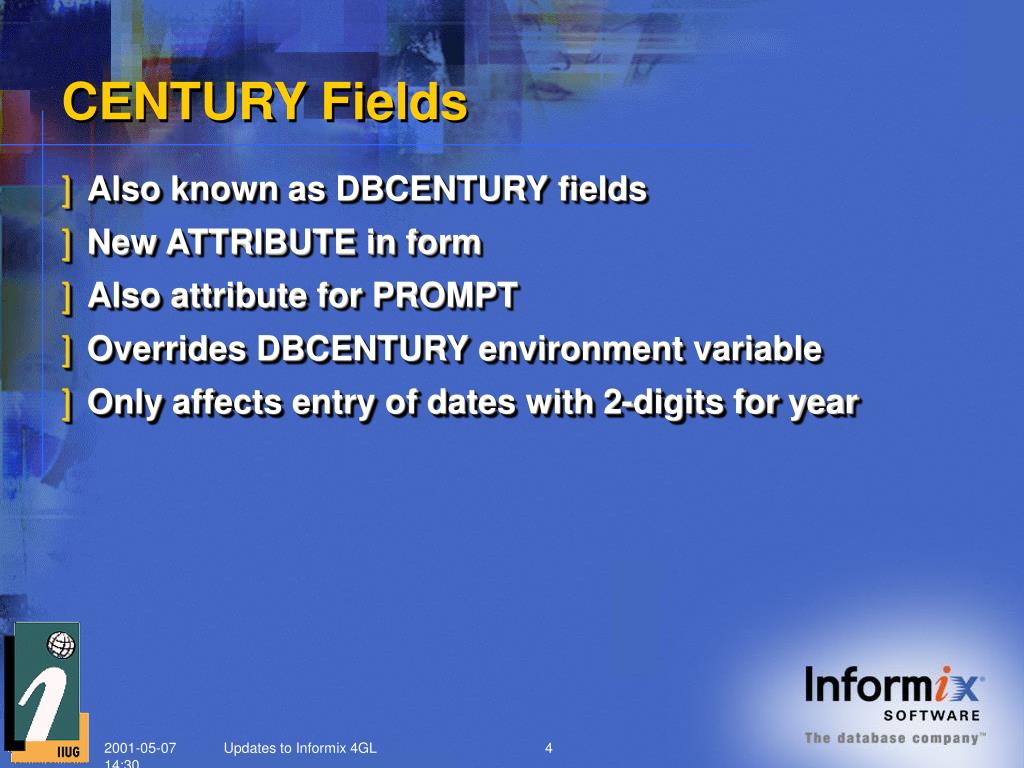

CENTURY Fields
  • Also known as DBCENTURY fields
  • New ATTRIBUTE in form
  • Also attribute for PROMPT
  • Overrides DBCENTURY environment variable
  • Only affects entry of dates with 2-digits for year

Updates to Informix 4GL

century fields5
CENTURY Fields
  • The CENTURY attribute is simple to use:

f000 = FORMONLY.dob TYPE DATE,

CENTURY = “P”,

COMMENTS = “Enter date of birth”;

  • When user types 2-digits for year
    • interpreted as past date
  • Applies to:
    • DATE
    • DATETIME

Updates to Informix 4GL

century fields6

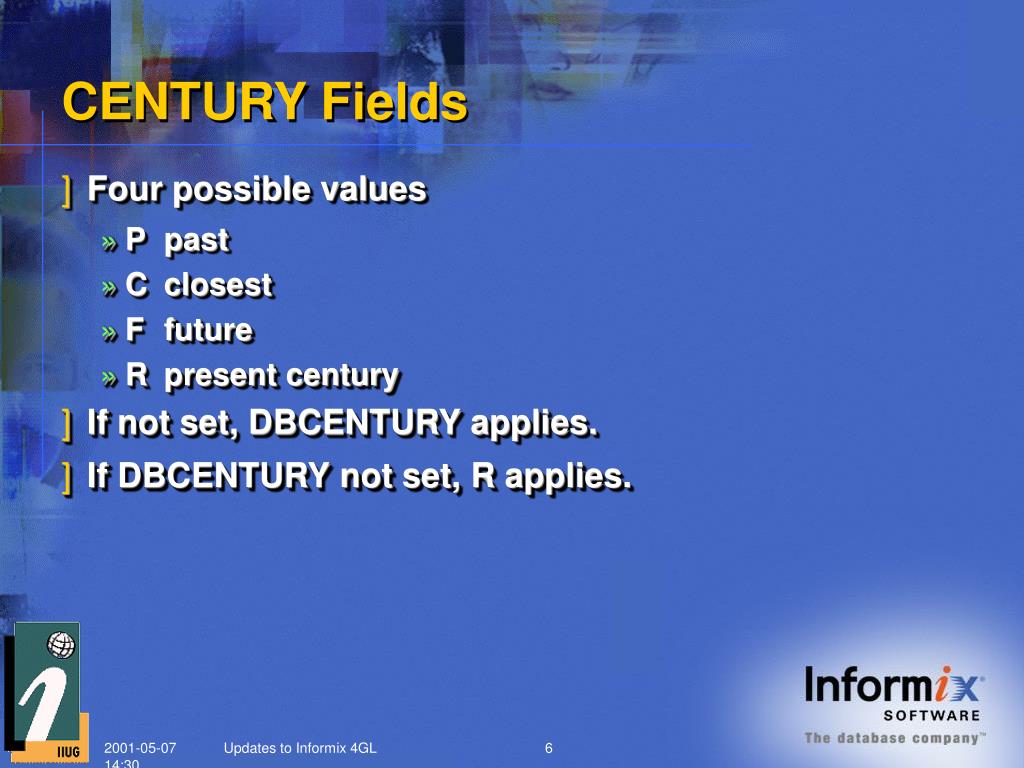

CENTURY Fields
  • Four possible values
    • P past
    • C closest
    • F future
    • R present century
  • If not set, DBCENTURY applies.
  • If DBCENTURY not set, R applies.

Updates to Informix 4GL

century attribute for prompt
CENTURY attribute for PROMPT
  • PROMPT statement can also be used to enter DATE (or DATETIME) values.

PROMPT “Enter DOB” FOR dob

ATTRIBUTE(CENTURY=“P”)

  • Same meaning as in form
  • Provided for completeness and consistency

Updates to Informix 4GL

date entry guidelines
DATE Entry Guidelines
  • Always display 4 digits for the year
    • No exceptions in form input fields
  • If user types 4 digit year, that overrides:
    • CENTURY field attribute
    • DBCENTURY environment variable
  • Try to avoid FORMAT or PICTURE
    • Effectively ignores DBDATE otherwise

Updates to Informix 4GL

sql blocks
SQL Blocks
  • Support for preparable SQL statements
    • Connection management not in SQL block
    • Nor other non-preparable statements
  • Future proofing
  • Single statement per SQL block
    • Not CREATE PROCEDURE
  • Must be preparable statement

Updates to Informix 4GL

sql blocks simple
SQL Blocks - Simple
  • Parameter-less SQL statements

SQL

CREATE TRIGGER t1_sometable UPDATE

FOR SomeTable

REFERENCING NEW AS newrow

ON EVERY ROW (EXECUTE PROCEDURE

LogUpdate(“SomeTable”,

newrow.pk_column))

END SQL

Updates to Informix 4GL

sql blocks input

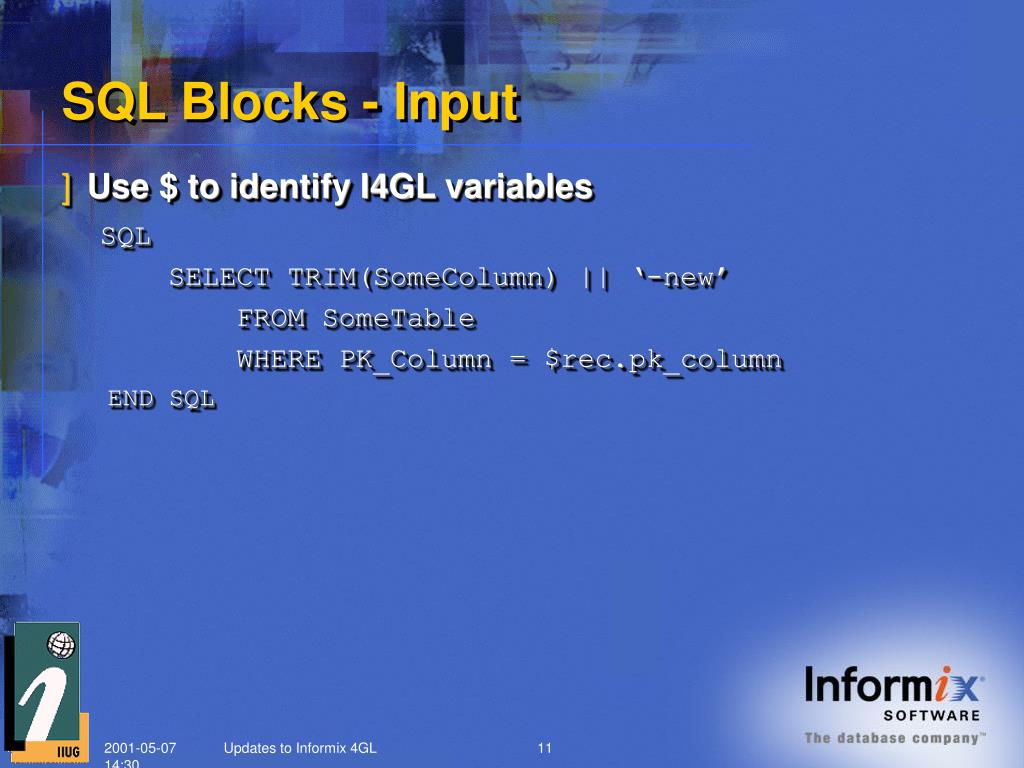

SQL Blocks - Input
  • Use $ to identify I4GL variables

SQL

SELECT TRIM(SomeColumn) || ‘-new’

FROM SomeTable

WHERE PK_Column = $rec.pk_column

END SQL

Updates to Informix 4GL

sql blocks output

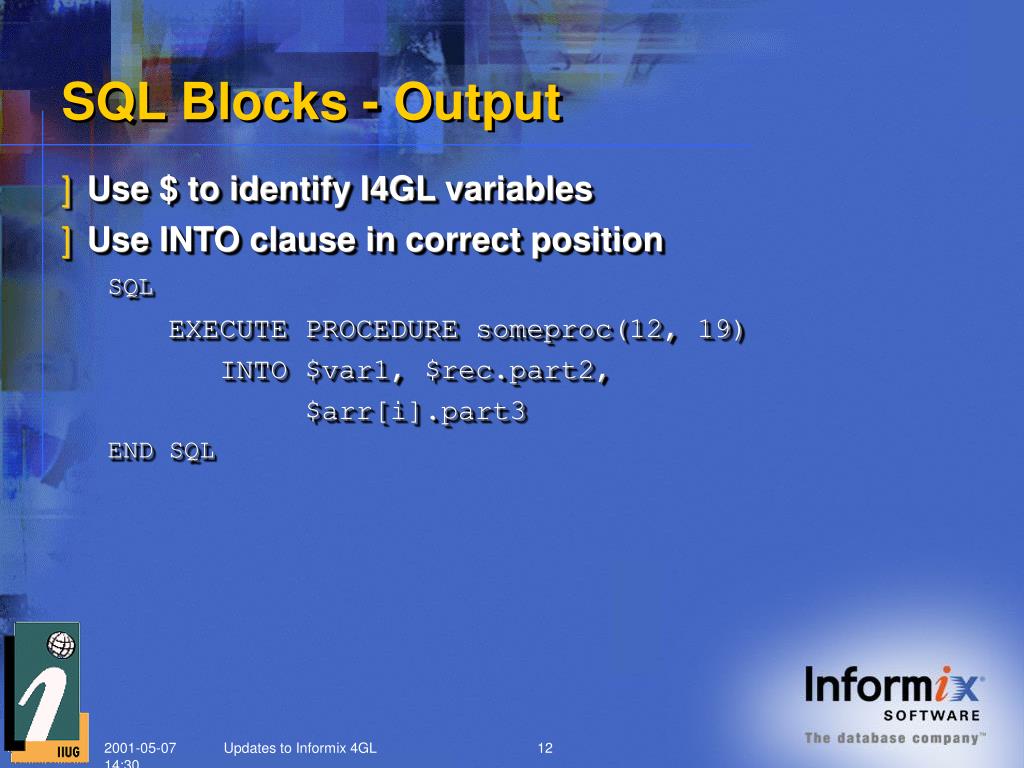

SQL Blocks - Output
  • Use $ to identify I4GL variables
  • Use INTO clause in correct position

SQL

EXECUTE PROCEDURE someproc(12, 19)

INTO $var1, $rec.part2,

$arr[i].part3

END SQL

Updates to Informix 4GL

sql blocks input output
SQL Blocks - Input & Output
  • Use $ to identify I4GL variables
  • Use INTO clause in correct position

SQL

EXECUTE PROCEDURE someproc($v1, $v2)

INTO $var1, $rec.part2,

$arr[i].part3

END SQL

Updates to Informix 4GL

sql blocks cursors
SQL Blocks - Cursors
  • Special notation for cursors
  • Use $ to identify I4GL variables

DECLARE c_select SCROLL CURSOR

WITH HOLD FOR SQL

SELECT TRIM(BOTH SomeCol) || ‘-old’

INTO $str

FROM SomeTable

WHERE OtherCol > $val

END SQL

Updates to Informix 4GL

connection management
Connection Management
  • Direct support for
    • CONNECT
    • DISCONNECT
    • SET CONNECTION

Updates to Informix 4GL

connection management16

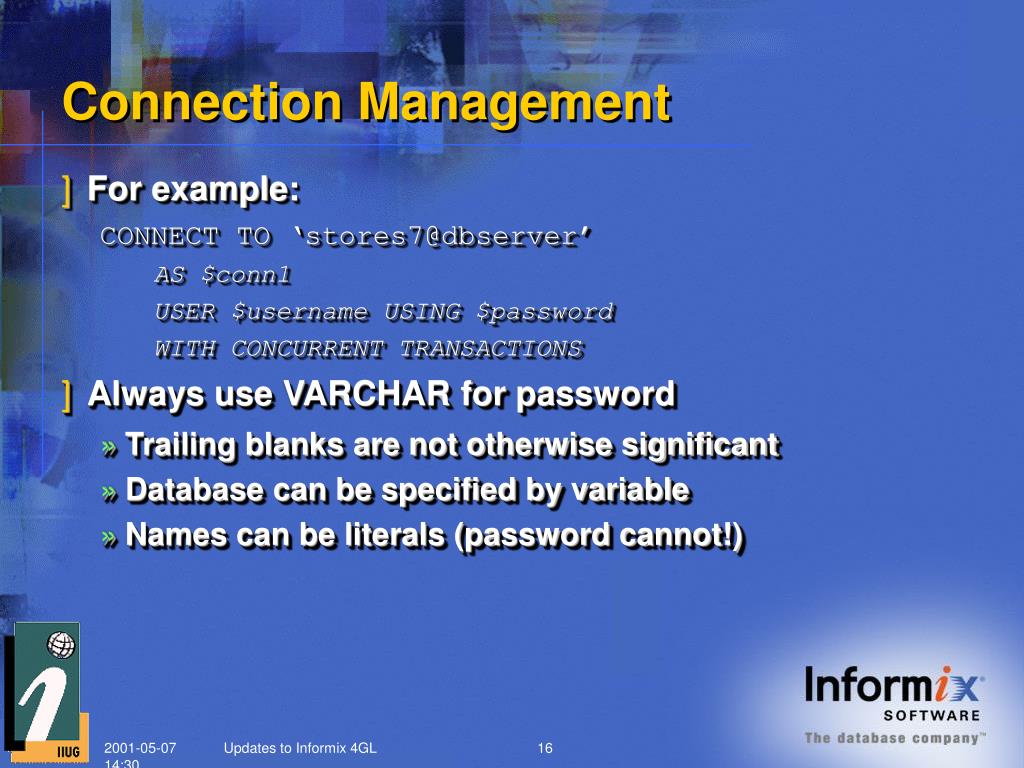

Connection Management
  • For example:

CONNECT TO ‘stores7@dbserver’

AS $conn1

USER $username USING $password

WITH CONCURRENT TRANSACTIONS

  • Always use VARCHAR for password
    • Trailing blanks are not otherwise significant
    • Database can be specified by variable
    • Names can be literals (password cannot!)

Updates to Informix 4GL

connection management17

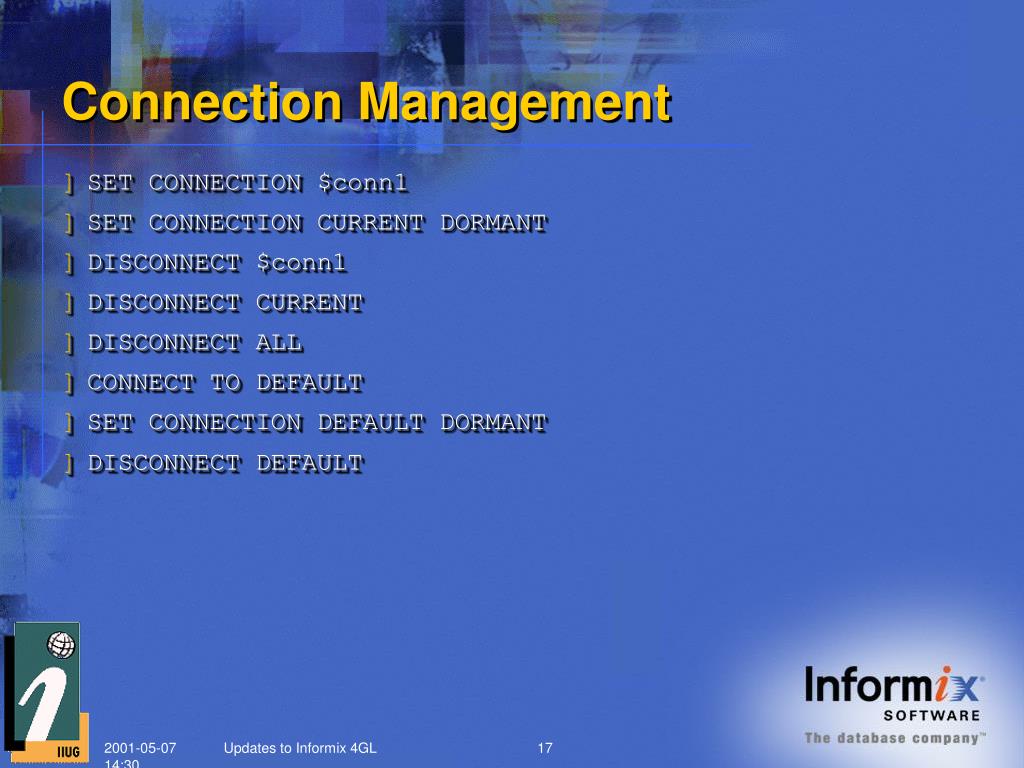

Connection Management
  • SET CONNECTION $conn1
  • SET CONNECTION CURRENT DORMANT
  • DISCONNECT $conn1
  • DISCONNECT CURRENT
  • DISCONNECT ALL
  • CONNECT TO DEFAULT
  • SET CONNECTION DEFAULT DORMANT
  • DISCONNECT DEFAULT

Updates to Informix 4GL

connection management18
Connection Management
  • Can have multiple simultaneous connections
  • To OnLine and SE
  • Only one can be active at any time
    • Others are dormant
  • I4GL cannot be multi-threaded reliably
    • Dormancy is most important with threads

Updates to Informix 4GL

other non preparable statements

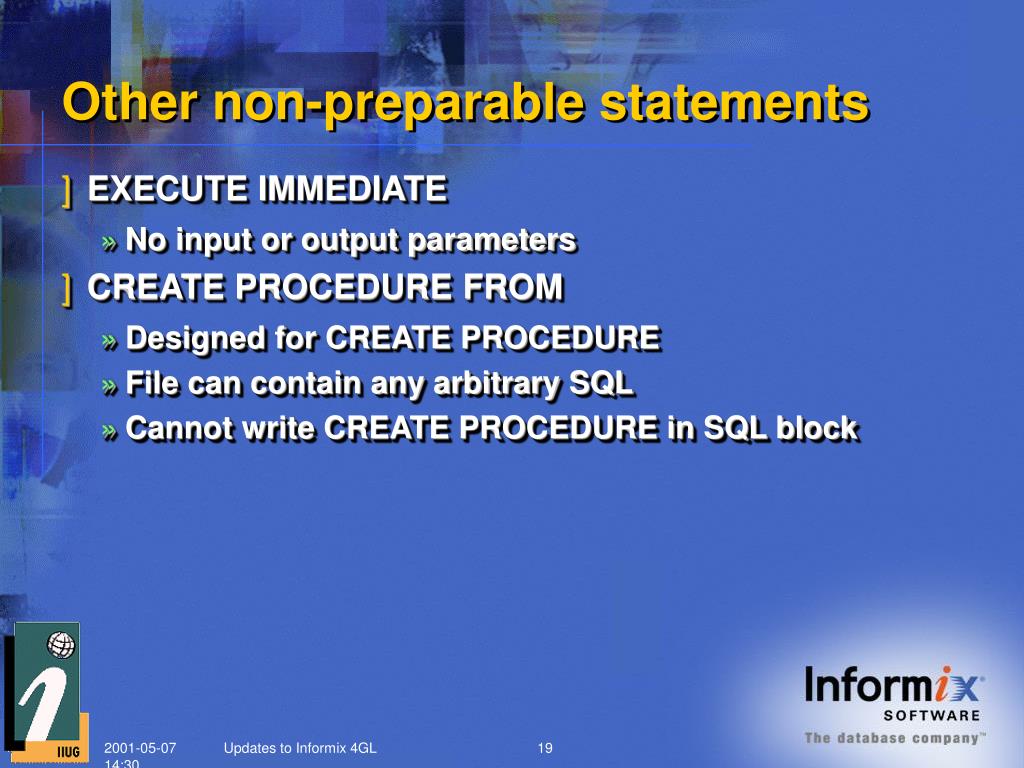

Other non-preparable statements
  • EXECUTE IMMEDIATE
    • No input or output parameters
  • CREATE PROCEDURE FROM
    • Designed for CREATE PROCEDURE
    • File can contain any arbitrary SQL
    • Cannot write CREATE PROCEDURE in SQL block

Updates to Informix 4GL

other non preparable statements20
Other non-preparable statements
  • OPEN WITH REOPTIMIZE
    • Not supported 
  • SET DEFERRED_PREPARE
    • Not supported 

Updates to Informix 4GL

future proofing
Future Proofing
  • SQL blocks are not parsed very much
  • New SQL syntax can be used
    • If it can be prepared and executed
      • Or prepared and declared
    • Provides some future proofing
    • Better syntactic analysis in future
  • Does not support new non-preparable SQL
    • Uses PREPARE on contents of SQL block
    • Non-preparable SQL requires special handling

Updates to Informix 4GL

dynamic reports
Dynamic Reports
  • Configure size of report pages at run time
  • Configure any destination in single statement
    • One START REPORT a possibility

Updates to Informix 4GL

dynamic report

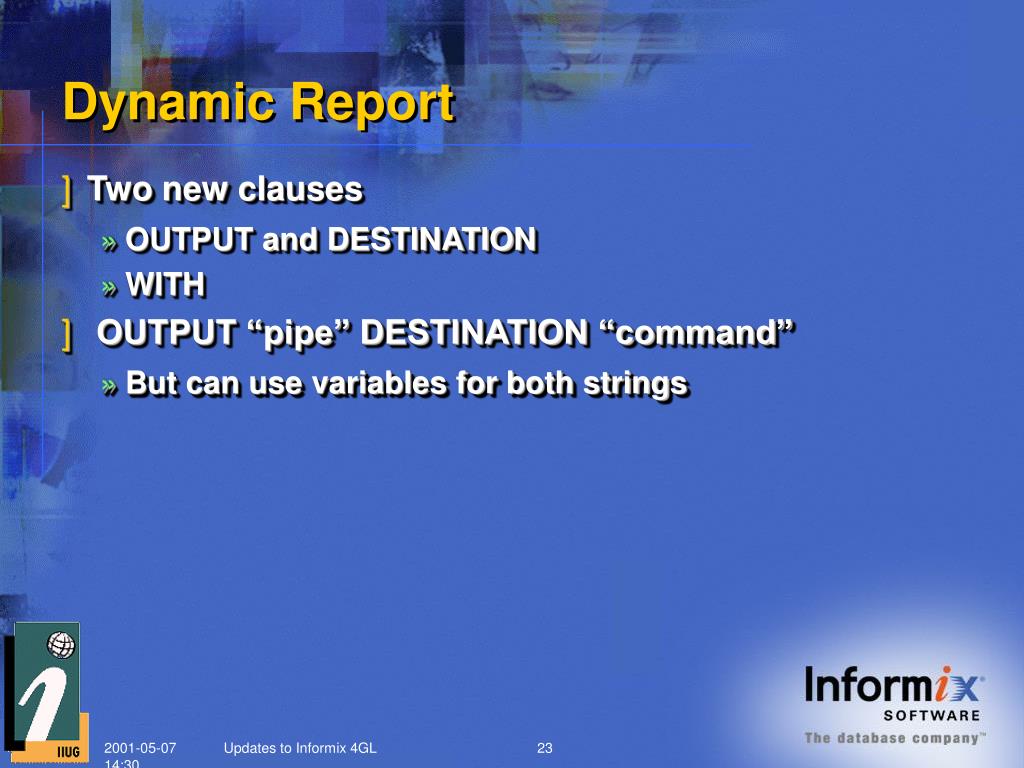

Dynamic Report
  • Two new clauses
    • OUTPUT and DESTINATION
    • WITH
  • OUTPUT “pipe” DESTINATION “command”
    • But can use variables for both strings

Updates to Informix 4GL

dynamic reports24
Dynamic Reports
  • WITH clause
    • PAGE LENGTH
    • LEFT MARGIN
    • RIGHT MARGIN
    • TOP MARGIN
    • BOTTOM MARGIN
    • TOP OF PAGE

Updates to Informix 4GL

dynamic report25
Dynamic Report
  • Hence can use database to store
    • Printer commands
    • Page sizes
    • Control strings

Updates to Informix 4GL

dynamic report26
Dynamic Report
  • All variables except reportname

START REPORT reportname

TO OUTPUT otype

DESTINATION dstring

WITH PAGE LENGTH = plength,

TOP MARGIN = tmargin,

BOTTOM MARGIN = bmargin,

LEFT MARGIN = lmargin

Updates to Informix 4GL

dynamic report27
Dynamic Report
  • Need ability to output zero-width strings 
    • Printer control strings
    • Possible notations
      • PRINT str ZERO_WIDTH
      • PRINT ZERO(str)
    • Would simplify column counting
    • And printer special effects

Updates to Informix 4GL

dynamic input array
Dynamic INPUT ARRAY
  • Many new features for I4GL
  • COUNT, MAX_COUNT attributes
  • CURRENT ROW DISPLAY attributes
  • INSERT KEY, DELETE KEY attributes
  • CANCEL INSERT, CANCEL DELETE
  • fgl_dialog_setcurrline() function

Updates to Informix 4GL

dynamic input array29
Dynamic INPUT ARRAY
  • COUNT attribute
    • Replacement for SET_COUNT()
    • Number of initialized rows of data
  • MAX_COUNT attribute
    • Specifies effective size of array
    • Can be smaller than defined size

Updates to Informix 4GL

dynamic input array30

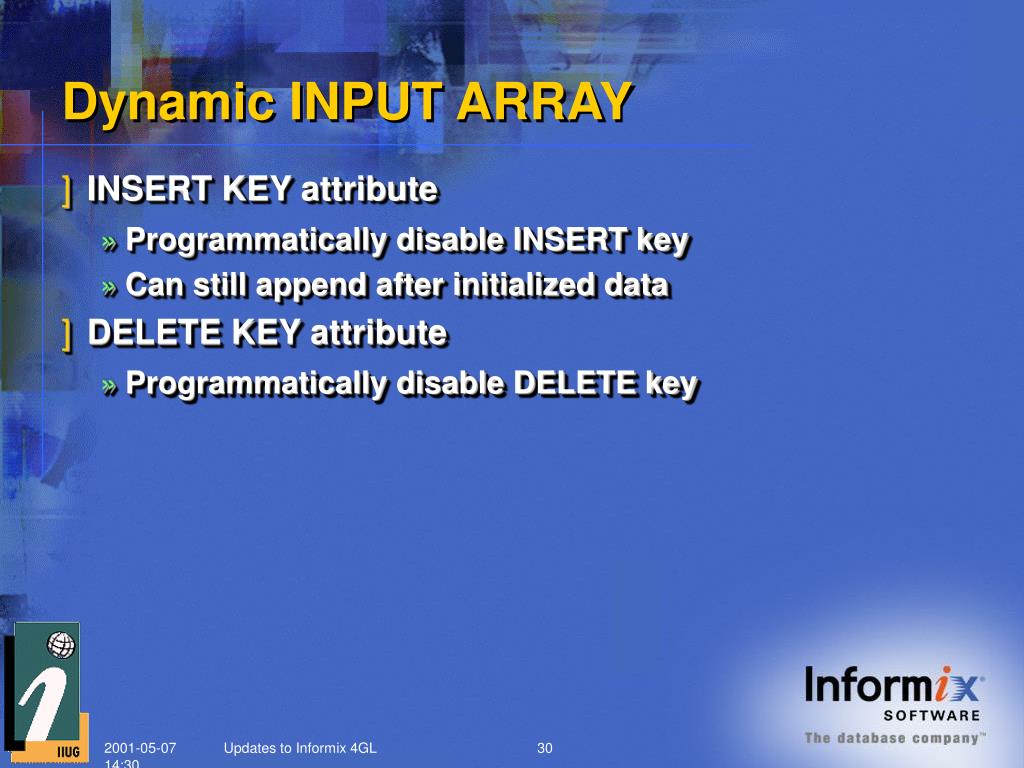

Dynamic INPUT ARRAY
  • INSERT KEY attribute
    • Programmatically disable INSERT key
    • Can still append after initialized data
  • DELETE KEY attribute
    • Programmatically disable DELETE key

Updates to Informix 4GL

dynamic input array31
Dynamic INPUT ARRAY
  • CANCEL INSERT
    • Allowed in BEFORE INSERT only
    • Behaves like NEXT FIELD
      • No further actions taken
    • Can control insert conditionally
      • No rows inserted in previous data
    • Can suppress append operations

Updates to Informix 4GL

dynamic input array32
Dynamic INPUT ARRAY
  • CANCEL DELETE
    • Allowed in BEFORE DELETE only
    • Behaves like NEXT FIELD
      • No further actions taken
    • Can control delete conditionally
      • Eg cannot delete pre-existing rows

Updates to Informix 4GL

dynamic input array33

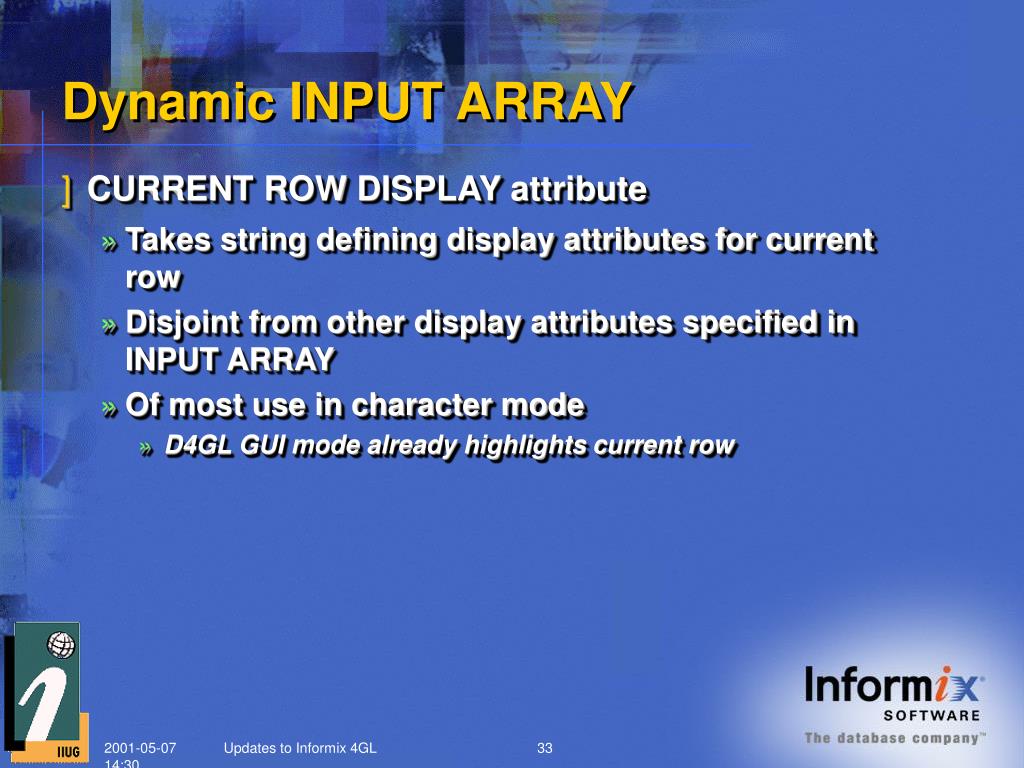

Dynamic INPUT ARRAY
  • CURRENT ROW DISPLAY attribute
    • Takes string defining display attributes for current row
    • Disjoint from other display attributes specified in INPUT ARRAY
    • Of most use in character mode
      • D4GL GUI mode already highlights current row

Updates to Informix 4GL

dynamic input array34
Dynamic INPUT ARRAY
  • Function fgl_dialog_setcurrline()
    • Renamed D4GL dialog.setcurrline()
  • Specify row on screen array, and
  • Specify row in program array
    • Display is aligned appropriately

Updates to Informix 4GL

string concatenation operator
String Concatenation Operator ‘||’
  • Part of SQL-89
    • Servers support since version 5.00
  • Now added to inline I4GL
    • Same semantics as SQL version
    • NULL || string is NULL
    • string || NULL is NULL
    • Hence different from I4GL comma operator

Updates to Informix 4GL

string concatenation operator36
String Concatenation Operator ‘||’
  • Cannot be used in inline SQL statements
    • Not 4.10 SQL syntax
  • Can be used in function calls
    • Cannot be used in DISPLAY 

Updates to Informix 4GL

informix 4gl in the future
Informix 4GL in the Future
  • Planning a 7.31 release
  • Support for long identifiers
    • As found in IDS 9.2x and later
    • 128 characters for object names
    • 32 characters for object owners
    • Identifiers in I4GL will be raised to 128 too
  • Direct use of ClientSDK
    • Probably 2.80
    • Will allow upgrades to CSDK independently of upgrades to I4GL

Updates to Informix 4GL

informix 4gl for db2

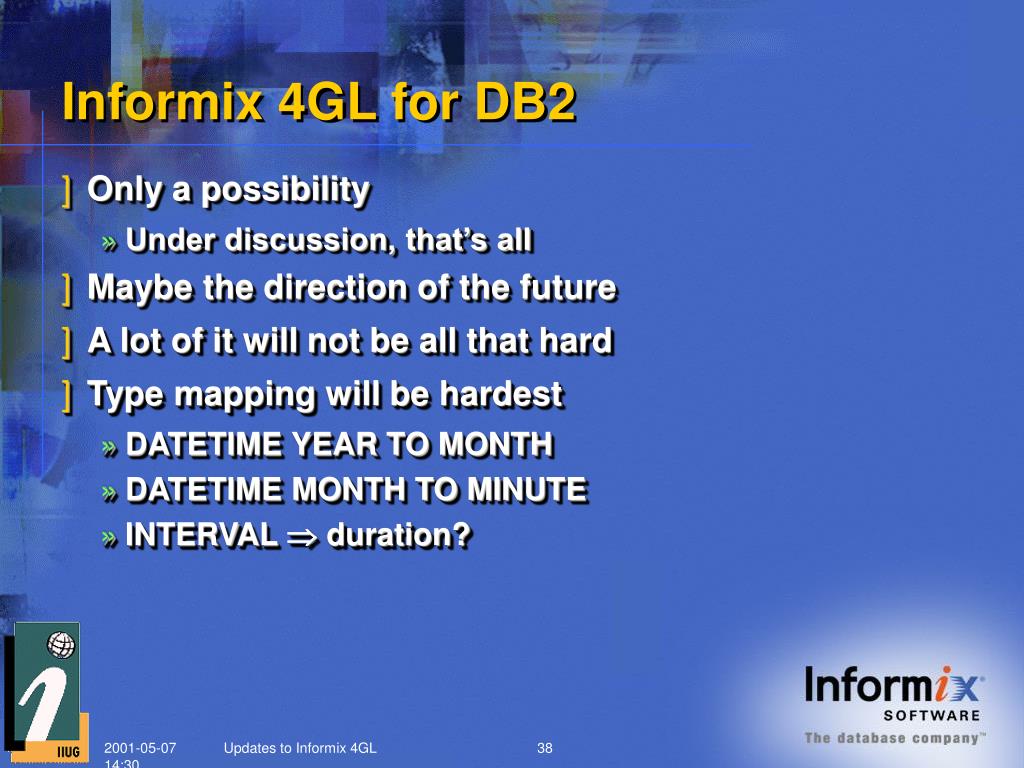

Informix 4GL for DB2
  • Only a possibility
    • Under discussion, that’s all
  • Maybe the direction of the future
  • A lot of it will not be all that hard
  • Type mapping will be hardest
    • DATETIME YEAR TO MONTH
    • DATETIME MONTH TO MINUTE
    • INTERVAL  duration?

Updates to Informix 4GL

other possible enhancements

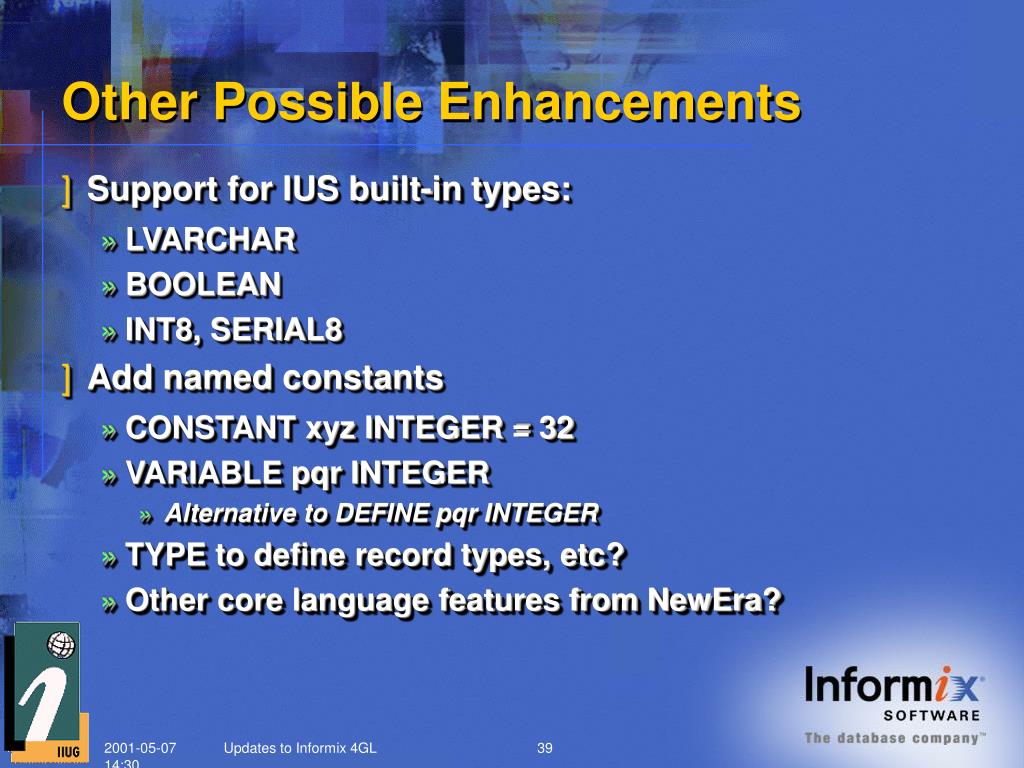

Other Possible Enhancements
  • Support for IUS built-in types:
    • LVARCHAR
    • BOOLEAN
    • INT8, SERIAL8
  • Add named constants
    • CONSTANT xyz INTEGER = 32
    • VARIABLE pqr INTEGER
      • Alternative to DEFINE pqr INTEGER
    • TYPE to define record types, etc?
    • Other core language features from NewEra?

Updates to Informix 4GL

other possible enhancements40

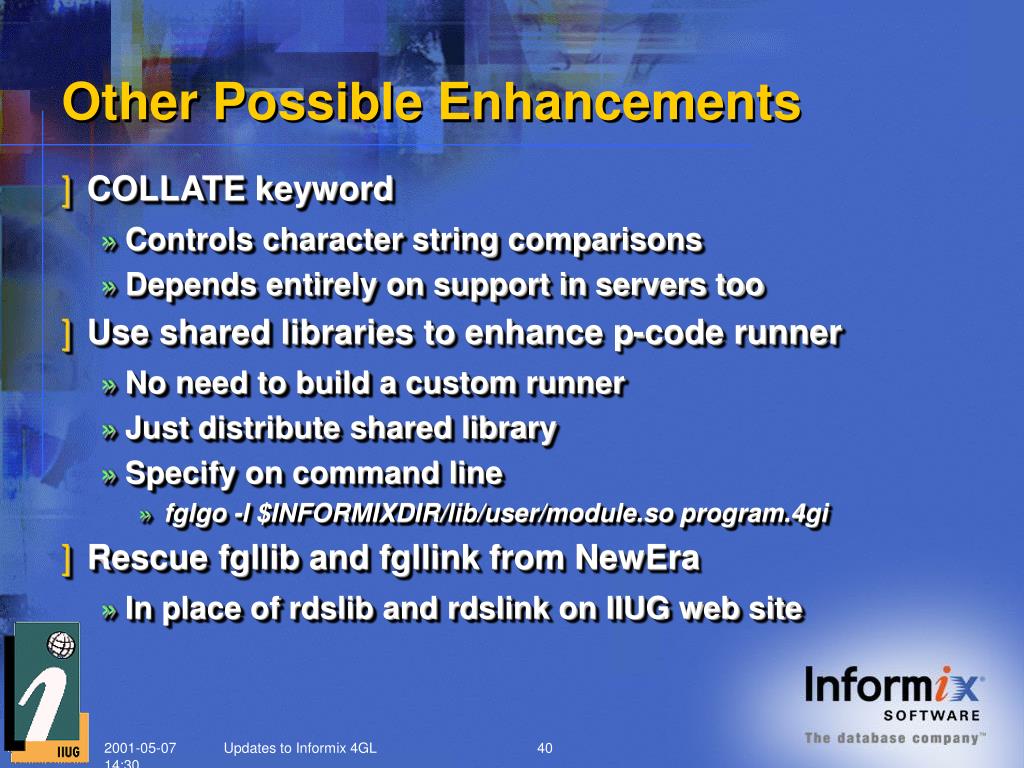

Other Possible Enhancements
  • COLLATE keyword
    • Controls character string comparisons
    • Depends entirely on support in servers too
  • Use shared libraries to enhance p-code runner
    • No need to build a custom runner
    • Just distribute shared library
    • Specify on command line
      • fglgo -l $INFORMIXDIR/lib/user/module.so program.4gi
  • Rescue fgllib and fgllink from NewEra
    • In place of rdslib and rdslink on IIUG web site

Updates to Informix 4GL

other possible enhancements41

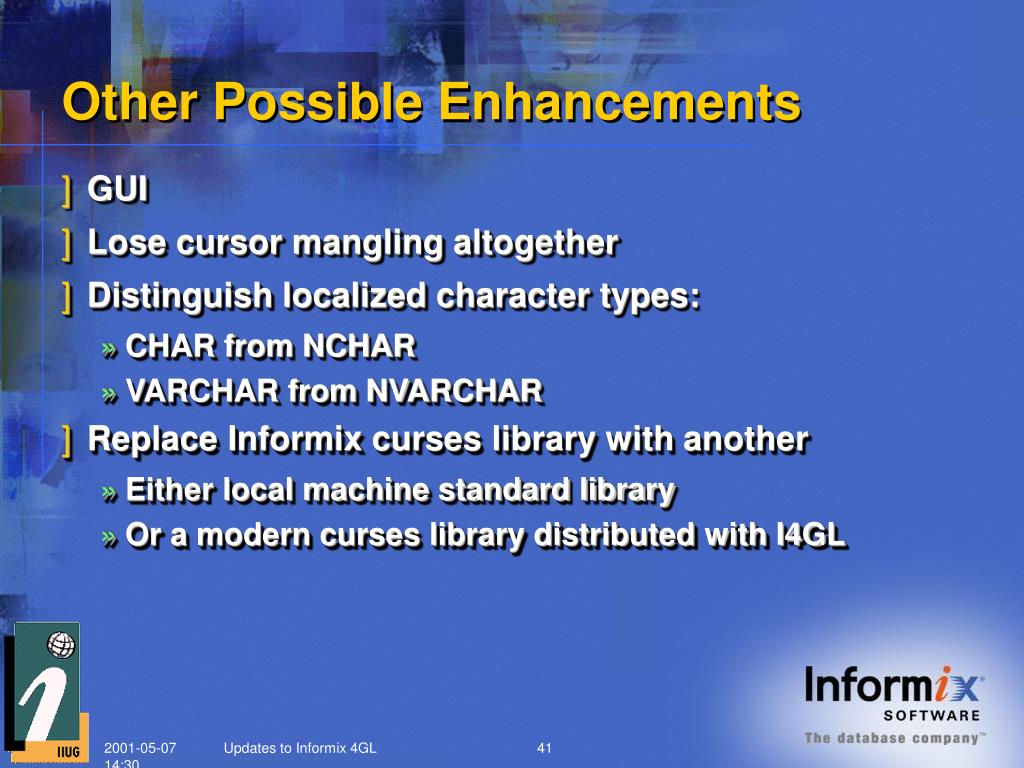

Other Possible Enhancements
  • GUI
  • Lose cursor mangling altogether
  • Distinguish localized character types:
    • CHAR from NCHAR
    • VARCHAR from NVARCHAR
  • Replace Informix curses library with another
    • Either local machine standard library
    • Or a modern curses library distributed with I4GL

Updates to Informix 4GL

the end
The End

Thank you for listening

Any Questions?

Updates to Informix 4GL
